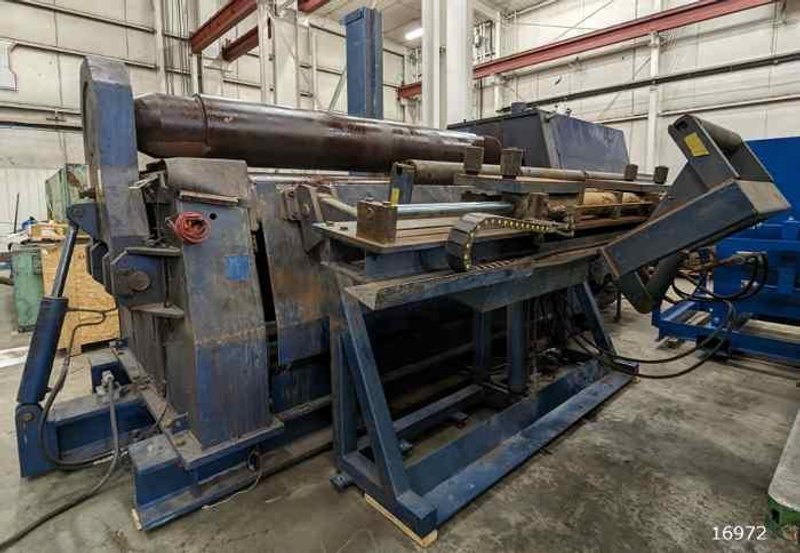

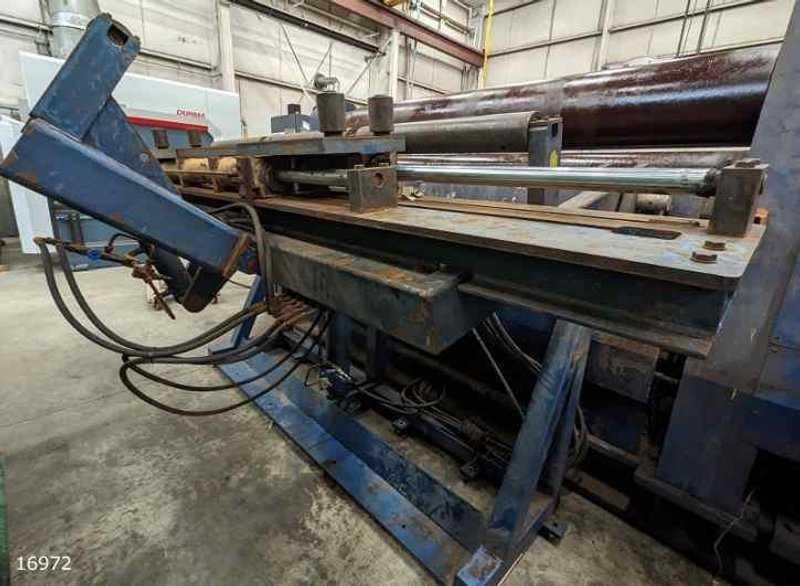

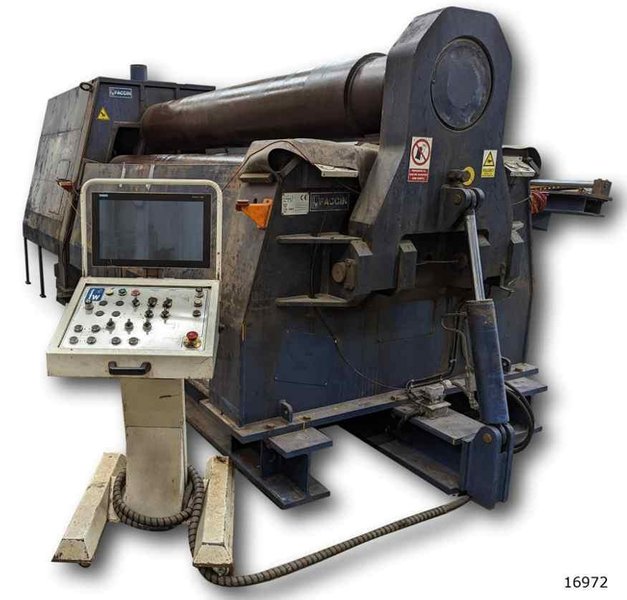

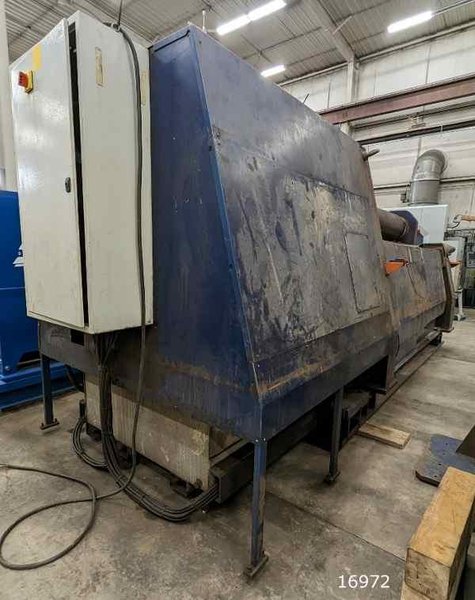

1.42″ x 10′ Faccin 4HEL-3146 CNC Plate Roller, 2016 – Overhead & Side Supports

Brand
Model
4HEL-3146
Stock #
922943
Year
2016
Condition
Not specified

Location

Not specified
4 Rolls Linear Slides Maximum Plate Width: 120″ Top Roll Diameter: 18.11″ Lower Roll Diameter: 16.93″ Side Rolls Diameter: 13.39″ Bending Force On Top Roll: 441 Ton Infinitely Variable Rotation Speed: 25 Feet/Minute Rolling Power: 60 Hp

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full-Length Capacity At 37.7 KSI: Bending Thickness: 1.42″ (With 90.5″ Inside Dia.) Pre-Bend Thickness: 1.18″ (With 90.5″ Inside Dia.)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Full-Length Capacity At 52.2 Ksi: Bending Thickness: 1.22″ (With 90.5″ Inside Dia.) Pre-Bend Thickness: 0.95″ (With 90.5″ Inside Dia.) Dimensions: 252″ X 85″ X 105″ Weight: 60,000 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Configuration:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hardened & Polished Rolls Cone Bending With Electronic Control Simultaneous Machine Movements Micro-Positioning Designed To Accept Future Upgrades Extra-Large Double Shaft Drop End Electronic Balancing System For Roll Synch Top Roll Tilting With Hyd Drop End Opening Dual Linear Slide Sys For Rolls Translation Ultra-Wide Roll Bearing Housings 4 Bearings Supporting Each Roll Centralized Pump Lubrication System Pressure Gauges For Pinch Roll Monitoring Extra Torque & Special Braking Power System High Precision And Productivity Package Safety Barrier With Emergency Stop Machinery Directive 2006/42/Ec Compliant

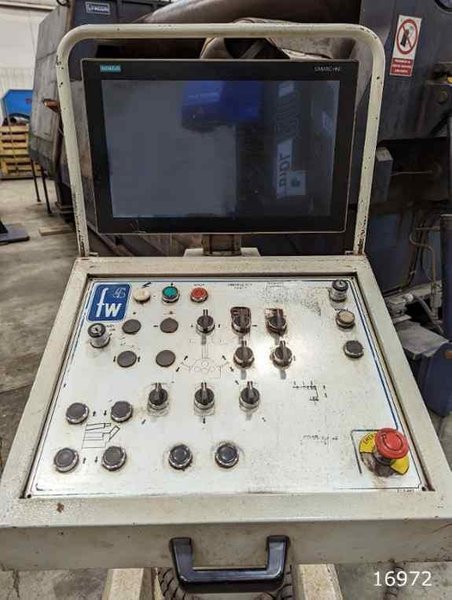

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Siemens Pgs-Ultra Cnc Overhead Support Side Support 4 Axis Clamping For Side Support Air-Oil Exchanger Upgrade

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
