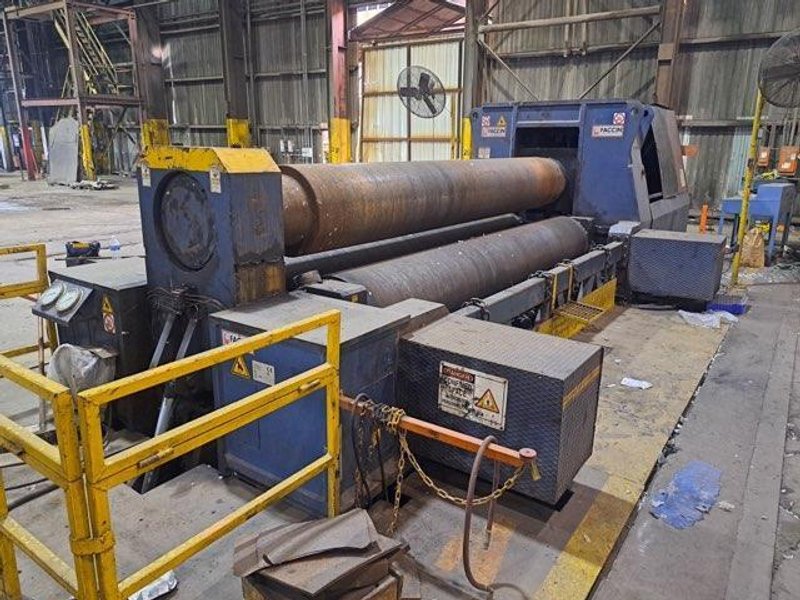

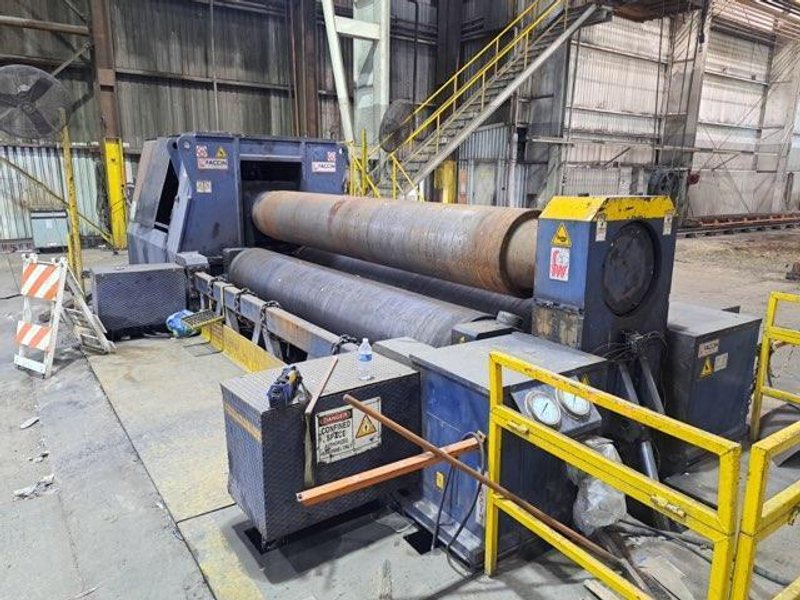

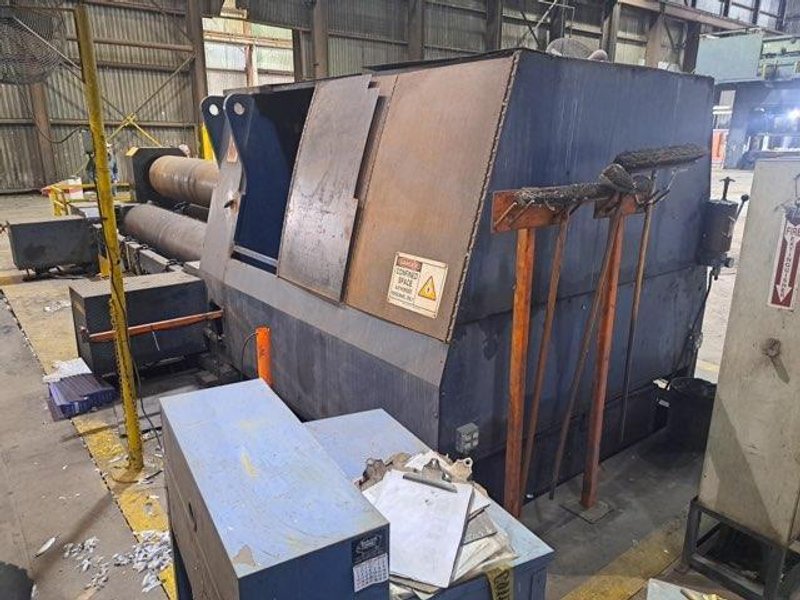

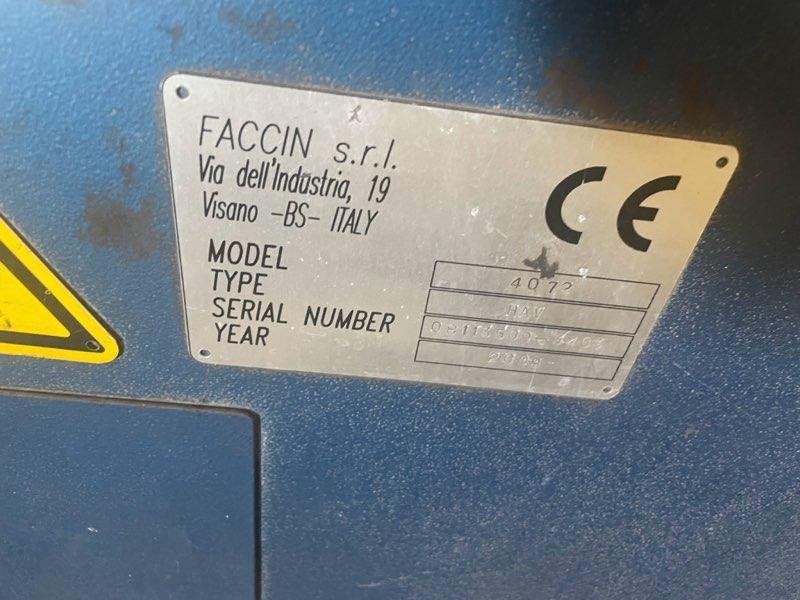

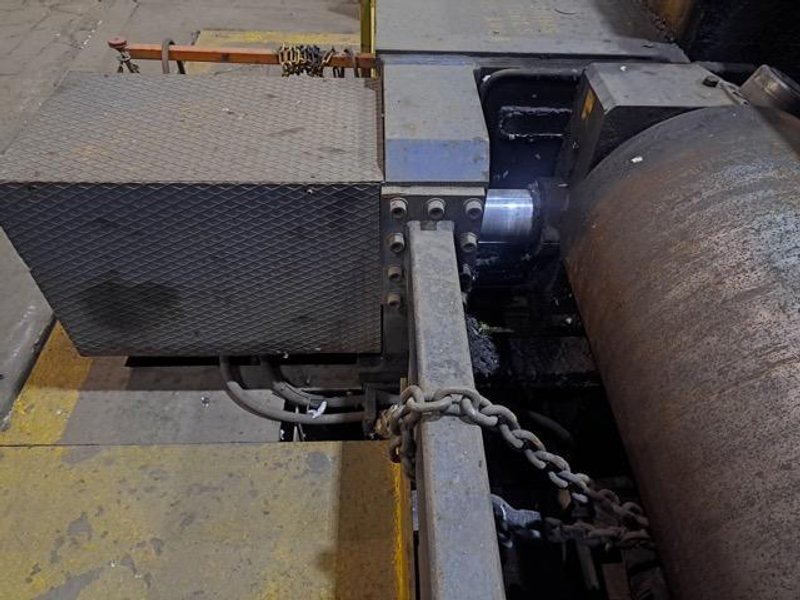

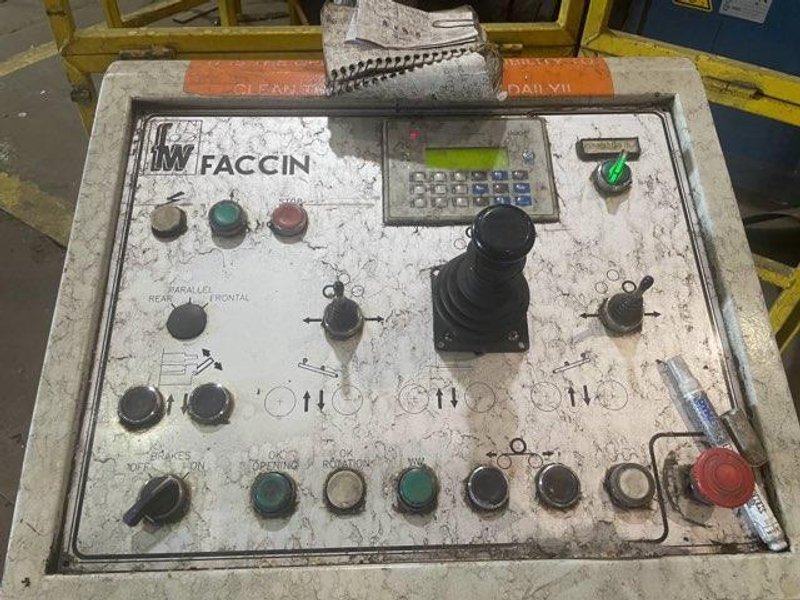

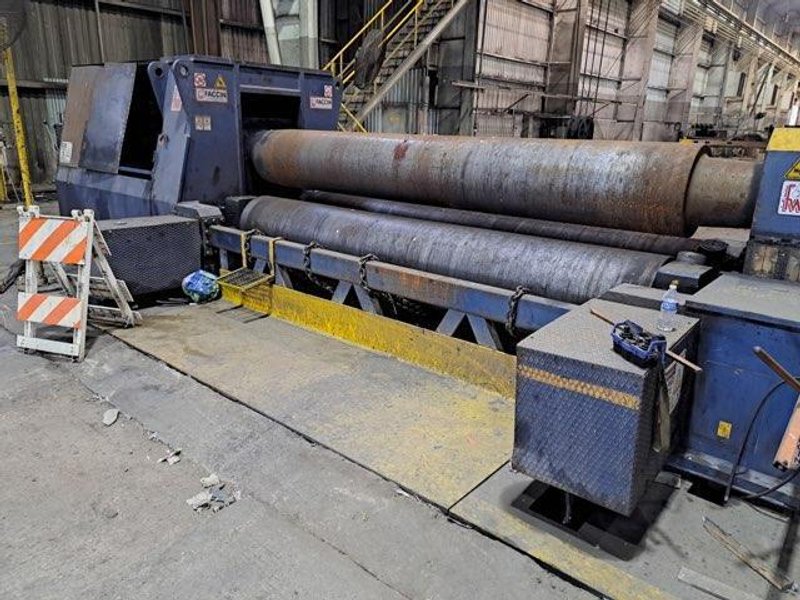

1 - PREOWNED 2009 FACCIN HAV 4072 PLATE ROLL, S/N: 08113509-3463

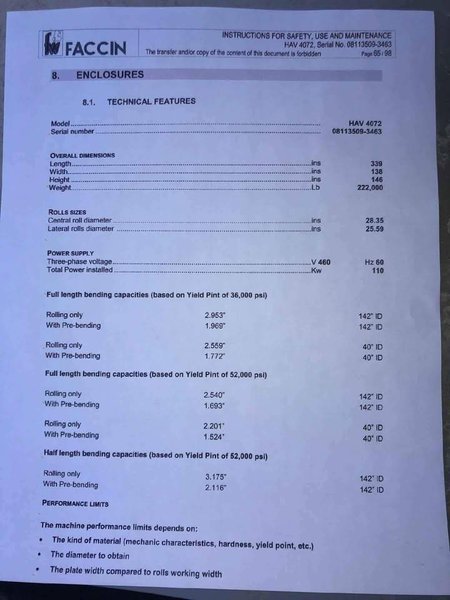

GENERAL SPECIFICATIONS

Full Length Rolling Capacity (@ 36,000 PSI Yield Point):    2.953”
Pre-Bending Capacity:                                                         1.969”
Max. Work Length:                                                               158”
Roll Diameter:                                                                       22”
Dimensions:                                                                          339” X 138” X 146”
Weight:                                                                                  222,000 Lbs

From standard specifications:

• Maximum Rolling Capacity (Mild Steel, 36,000 PSI Yield Strength): ~2.953 inches (75 mm) at full length.
• Maximum Pre-Bending Capacity (Mild Steel, 36,000 PSI Yield Strength): ~1.969 inches (50 mm) at full length.

Adjustment for Stainless Steel

Stainless steel has a higher yield strength than mild steel, typically around 1.5 to 2 times the yield strength of mild steel, depending on the grade. To account for this, the rolling capacity for stainless steel is usually reduced by 50% of the mild steel rating.

Estimated Capacity for Stainless Steel at 10 Feet

Using the reduction factor:

• Max Rolling Thickness for Stainless Steel: ~1.5 inches (37.5 mm) at 10 feet.
• Max Pre-Bending Thickness for Stainless Steel: ~1 inch (25 mm) at 10 feet.
