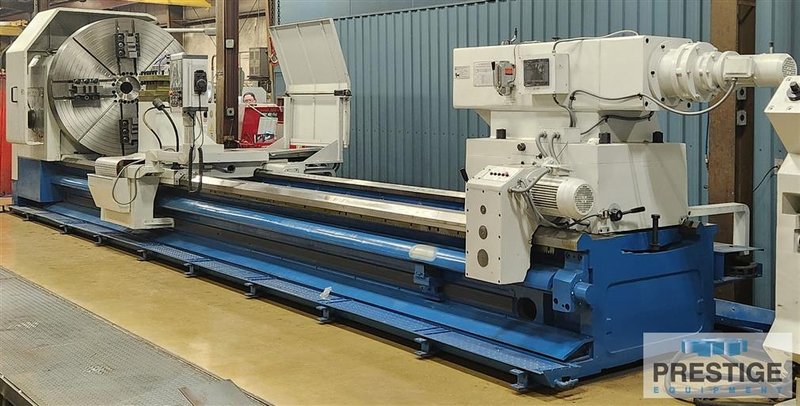

Tru Turn 64.56" x 236.22" CNC Lathe

Chuck Diameter 62.99"
Max Swing over Bed 64.56"
Max Swing Over Carriage 49.21"
Width of Bed 43.30"
Max Workpiece length 236.22"
Max Weight Between Centers 20 Ton
Spindle Speeds 3.15-315 RPM
Spindle Bore 5.11"
Max Strole, X-Axis 29.52"
Max Stroke Z-Axis 228.34"
Rapids, X-Axis 157.48"
Rapids, Z-Axis 157.48"
Diameter of Tailstock Quill 11.02"
Travel of Tailstock Quill 11.81"
Tailstock Speed, Motorized 39.37 IPM
EQUIPPED As Follows:
FANUC TF1 & Fanuc Spindle Motor
Electrical power four position tool post
Manual 4 gears shift spindle speed
Main motor is 37 KW Fanuc servo motor and feed motors are FANUC
1600mm four jaw chuck
Z axis ball screw
NSK headstock spindle bearings
NSK tailstock spindle bearings
NSK bearings of X axis ball screw
Motorized tailstock
400-700mm steady rest
120-480mm Steady Rest
4:1 Taper Center to 60 degree
Chip Conveyor
Warranty:
1 Year Parts Warranty
