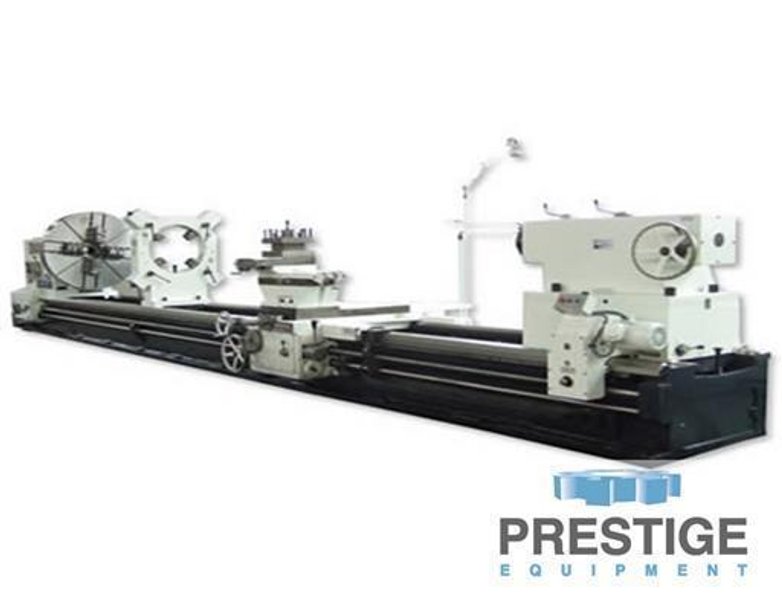

TruTurn CW61160H 64" x 472" Manual Lathe w/2-Carriages

SPECIFICATIONS:
Swing Over Bed 64.56"
Swing Over Cross Slide 49.21"
Width of Guide Way 43.30"
Distance Between Centers 472.44"
Spindle Hole 5.12"
Spindle Speeds (21 Speeds) 3.15-315 RPM
Tailstock Diameter 11.02”
Tailstock Travel 11.81"
Tailstock Taper Metric No 140
Weight Capacity Between Centers 20,000 kg



Equipped With:
Twin Carriages w/ Tool Post
55.81"(1400mm) 4- Jaw Chuck
Inch & Metric Threading
Center Sleeve
Work Light
Motorized Tailstock
Coolant system
Foundation Bolts & Levelers
40 HP Motor


AVAILABLE OPTIONS [AT ADDITIONAL COST]: Center Sleeve
350-800 mm Roller Support (Open Steady Rest)
120-480 mm Steady Rest
400-700 mm Steady Rest
Follow Rest
Taper Turning Attachment


Delivery: Six (6) Months From Date of Order [Estimated]
FOB Philadelphia, PA Warehouse
