CAPACITY:

Swing Over Bed 80.31"
Swing Over Cross Slide 64.96"
Width of Guide Way 43.30"
Distance Between Centers 236.22"
Spindle Speeds (21 Speeds) 3.15-315 RPM
Spindle Bore 5.12"
Spindle Nose A-15
Tailstock Diameter 11.02"
Tailstock Travel 11.81"
Taper of Tailstock Bore 140 Metric
Weight Capacity 33,000 lbs

Equipped With:

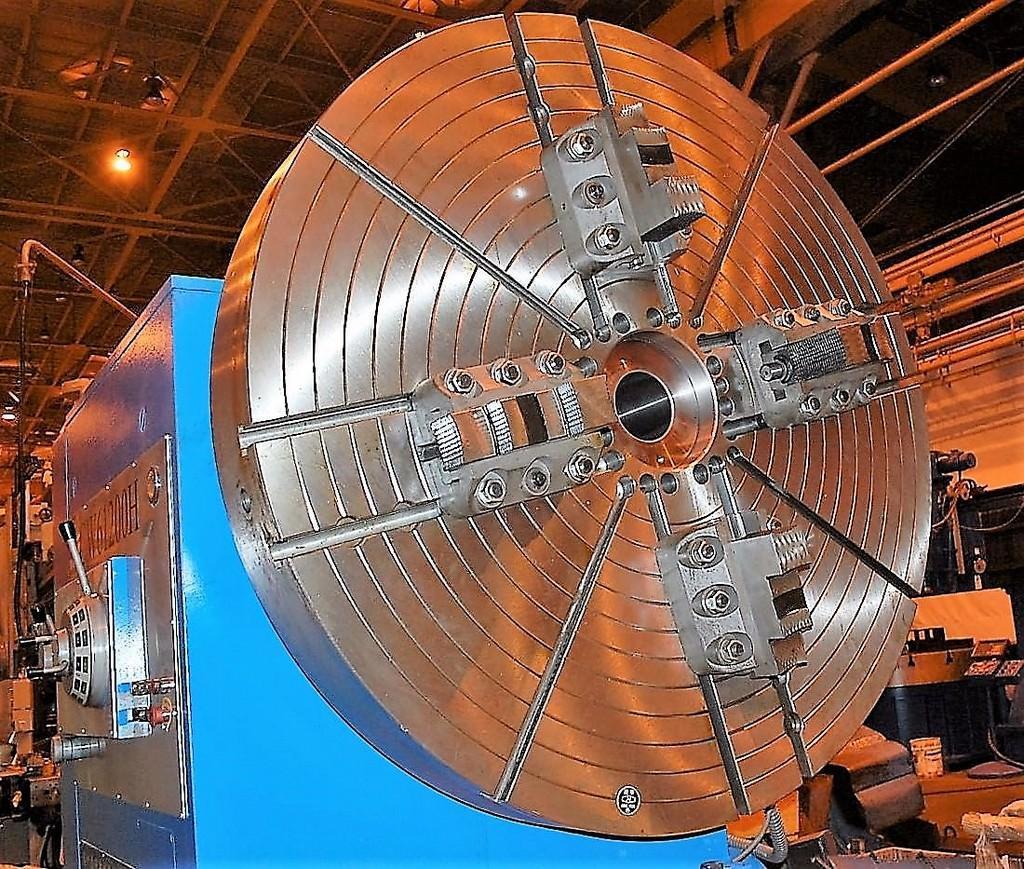

78.74" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
(2) Roller Type Steady Rest:

18.89 & 39.37"
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock
Motorized Tailstock

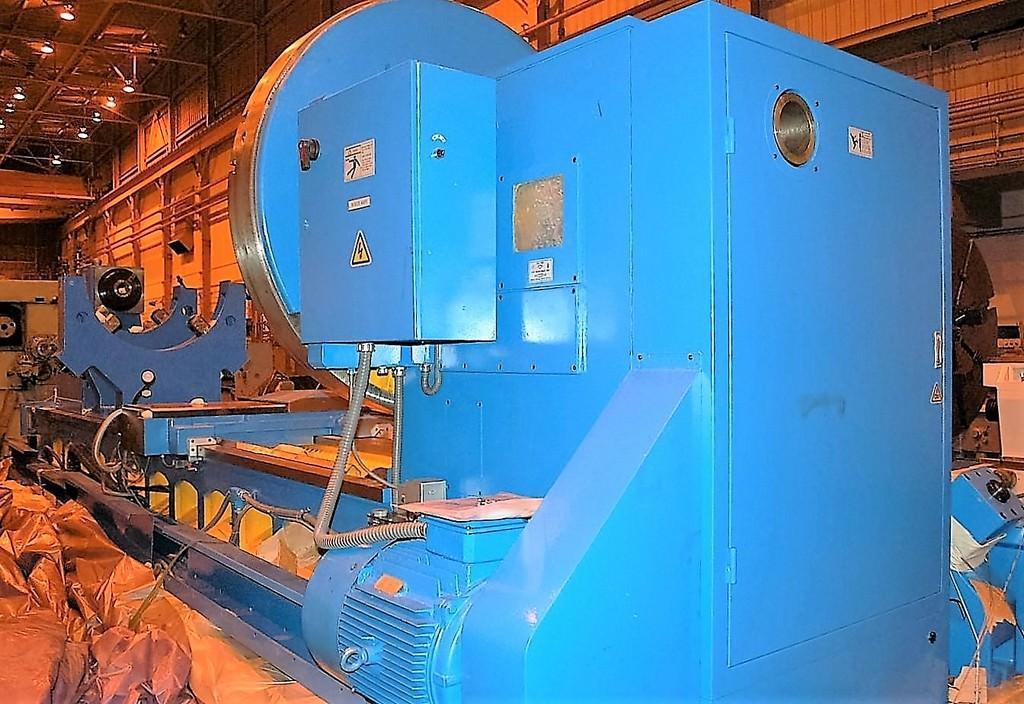

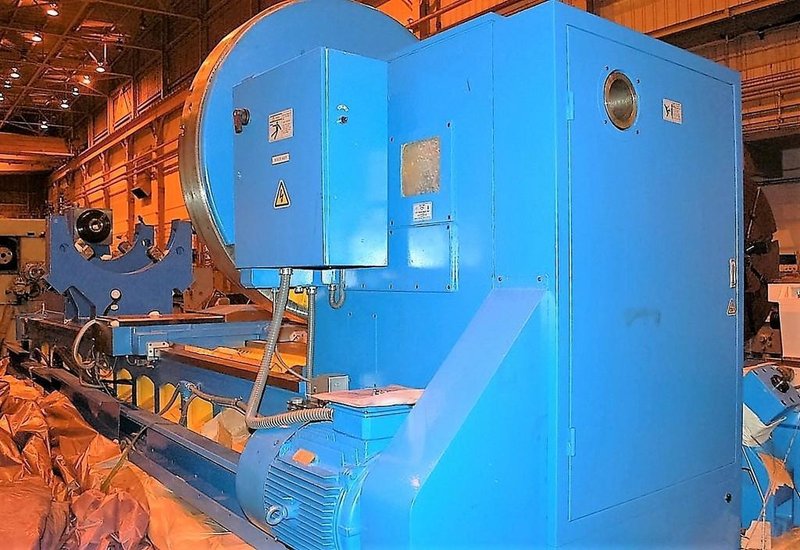

40 HP Drive Motor With Controls
3/60/440 Volt Electrics
1-Year Parts Warranty
DELIVERY:

5-Months From Order
