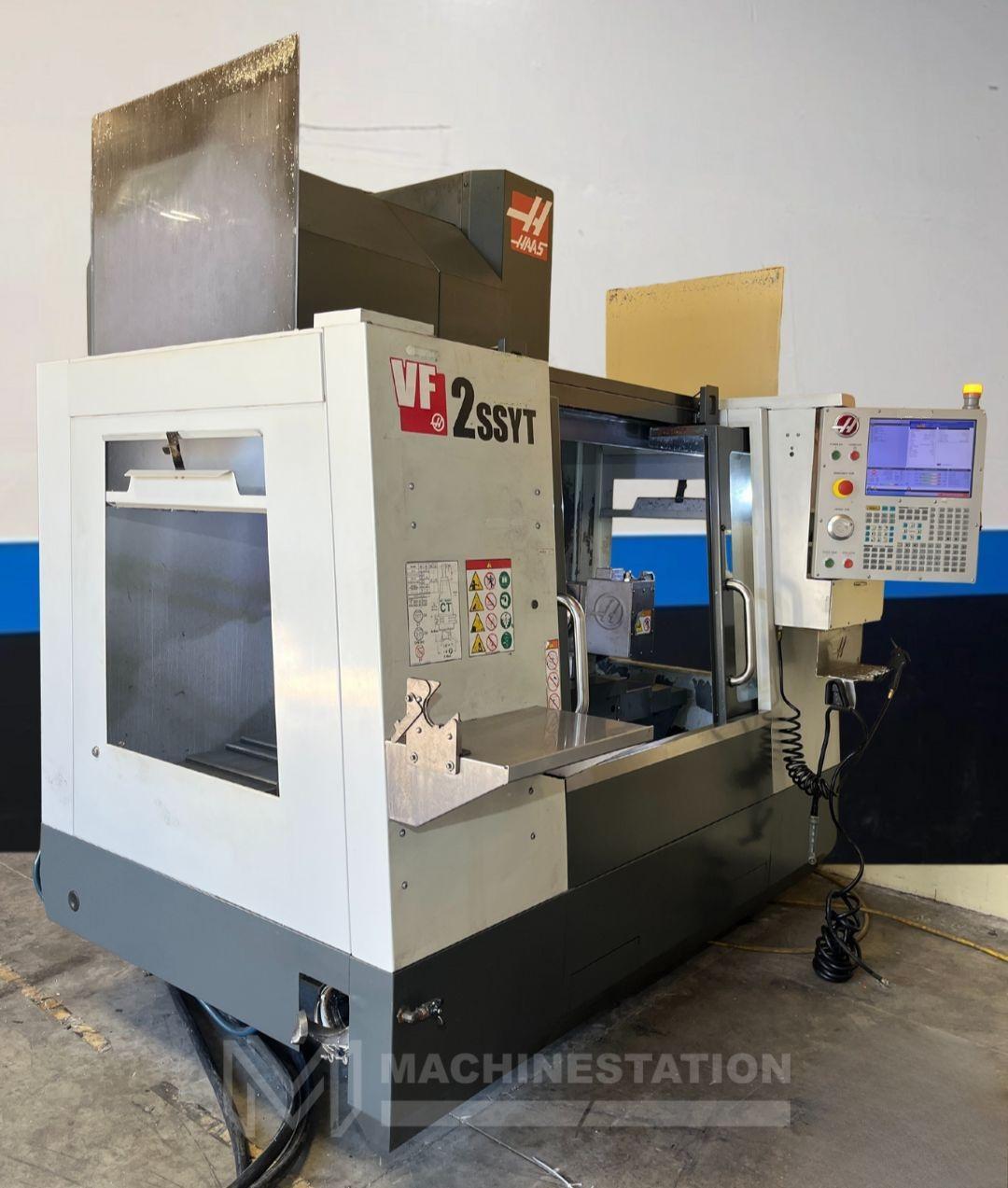

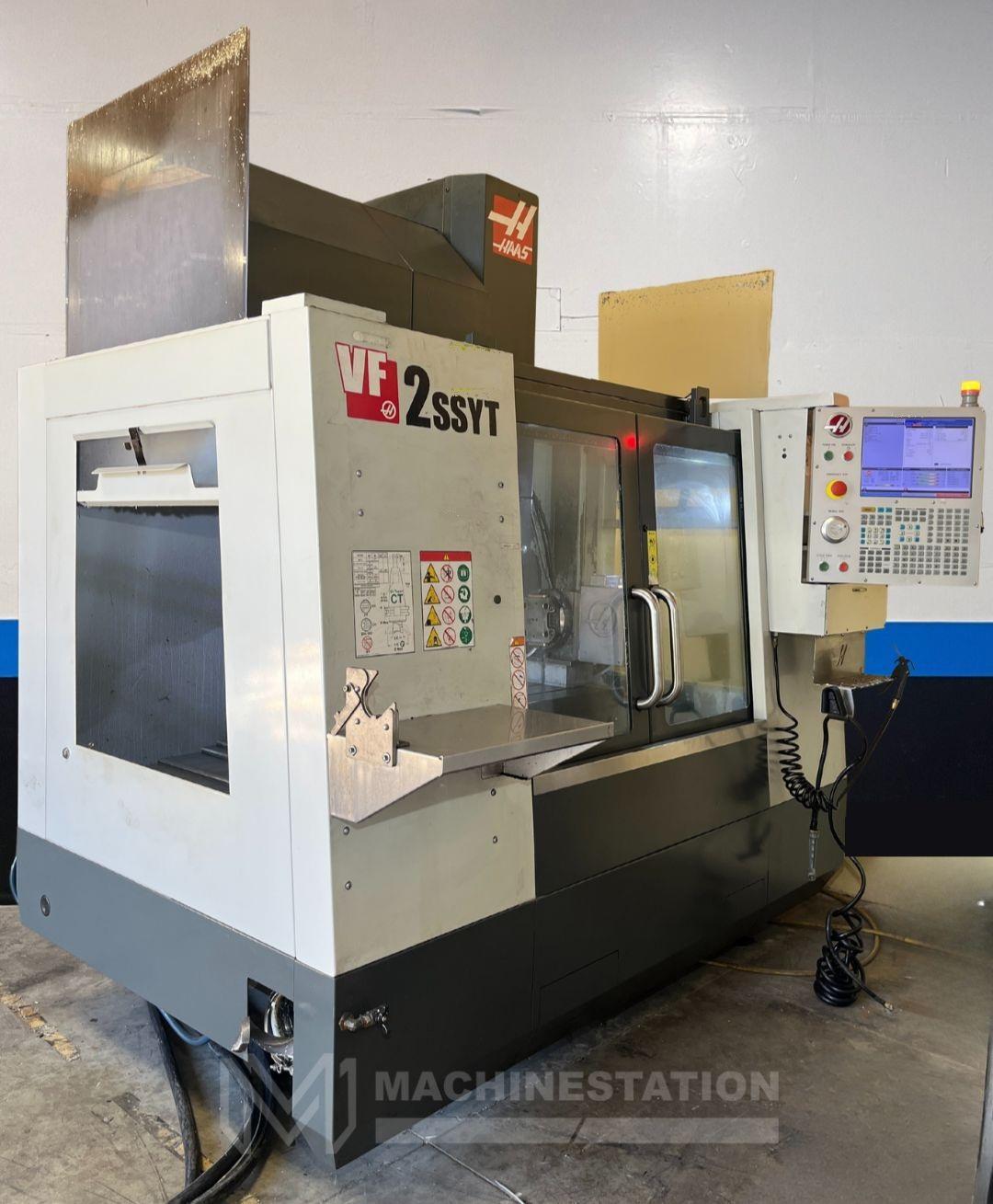

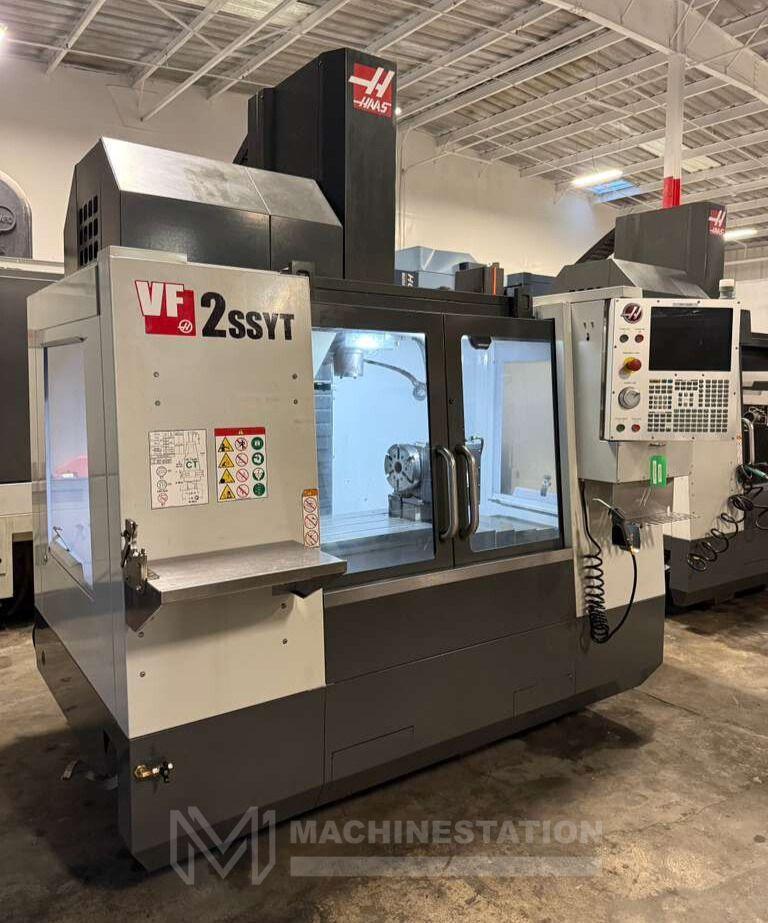

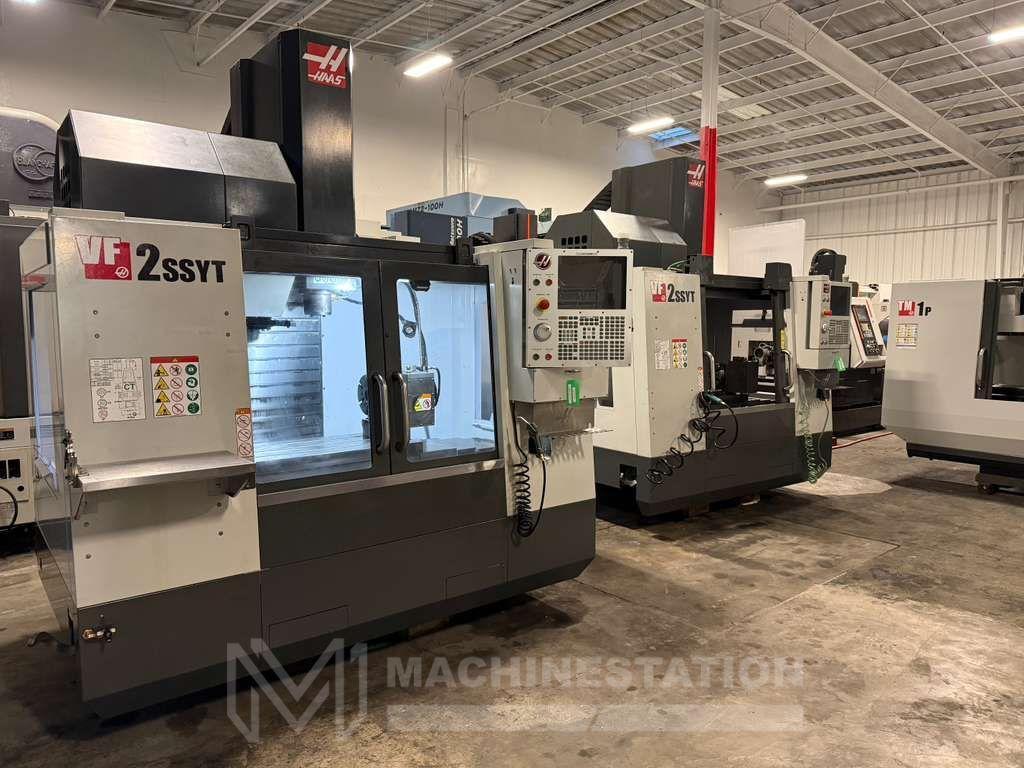

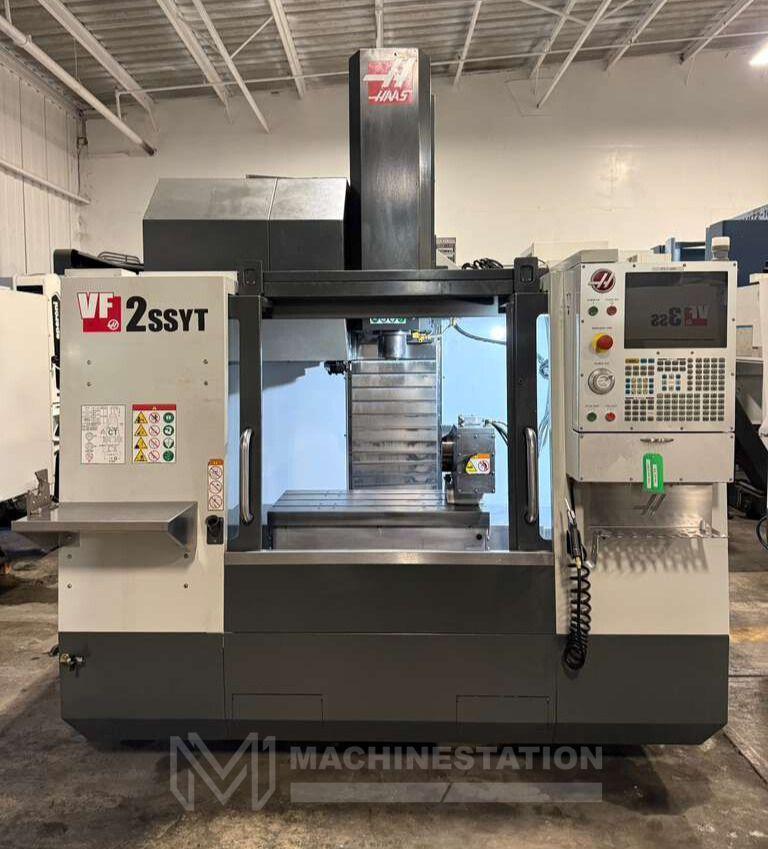

Haas VF-2SSYT CNC Vertical Machining Center – 2018 4th Axis Mill

Haas VF-2SSYT CNC Vertical Machining Center – 2018 4th Axis Mill

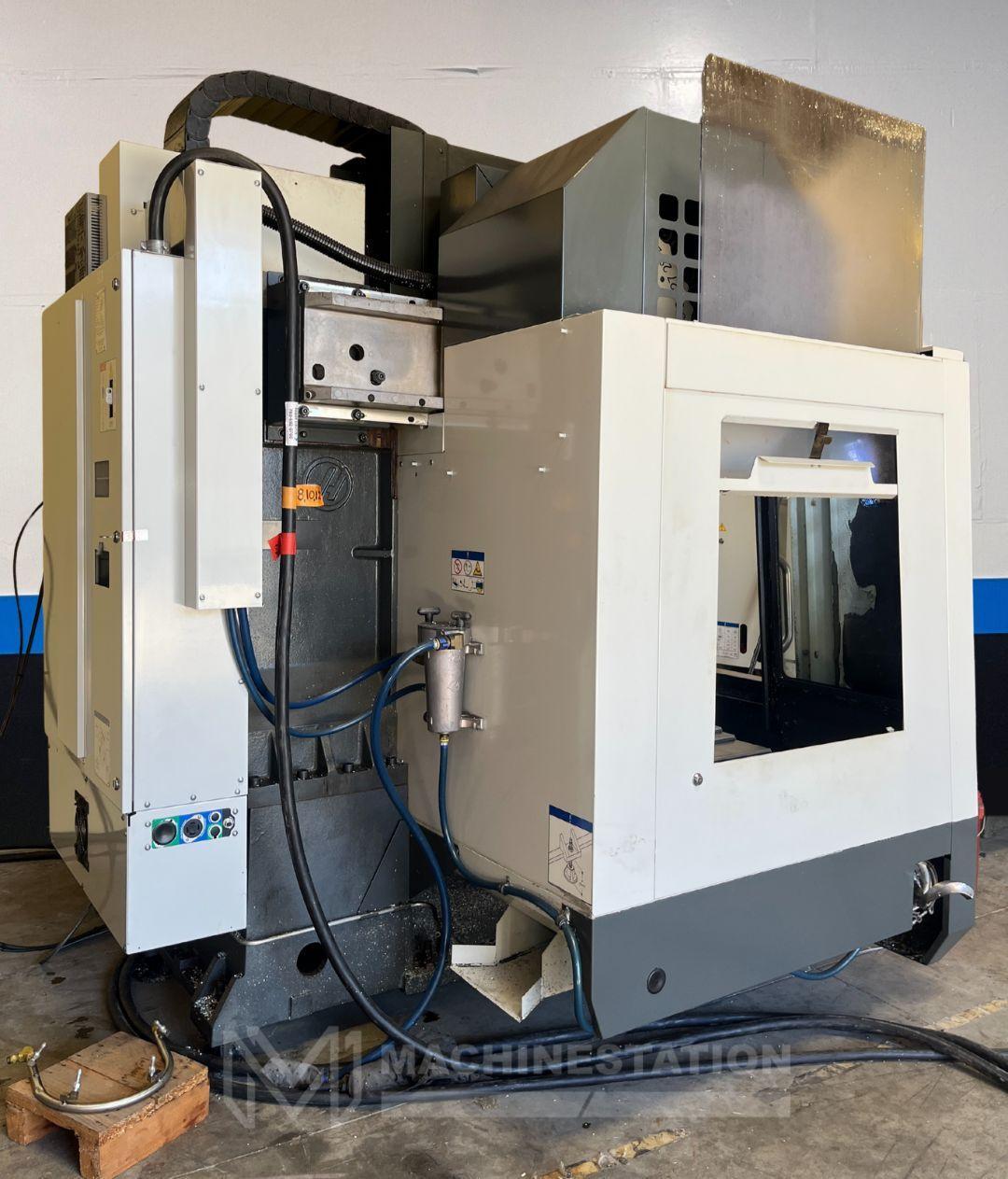

Name: Haas VF-2SSYT CNC Vertical Machining Center – 2018 4th Axis Mill
Brand: HAAS
SKU: 112990
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	112990

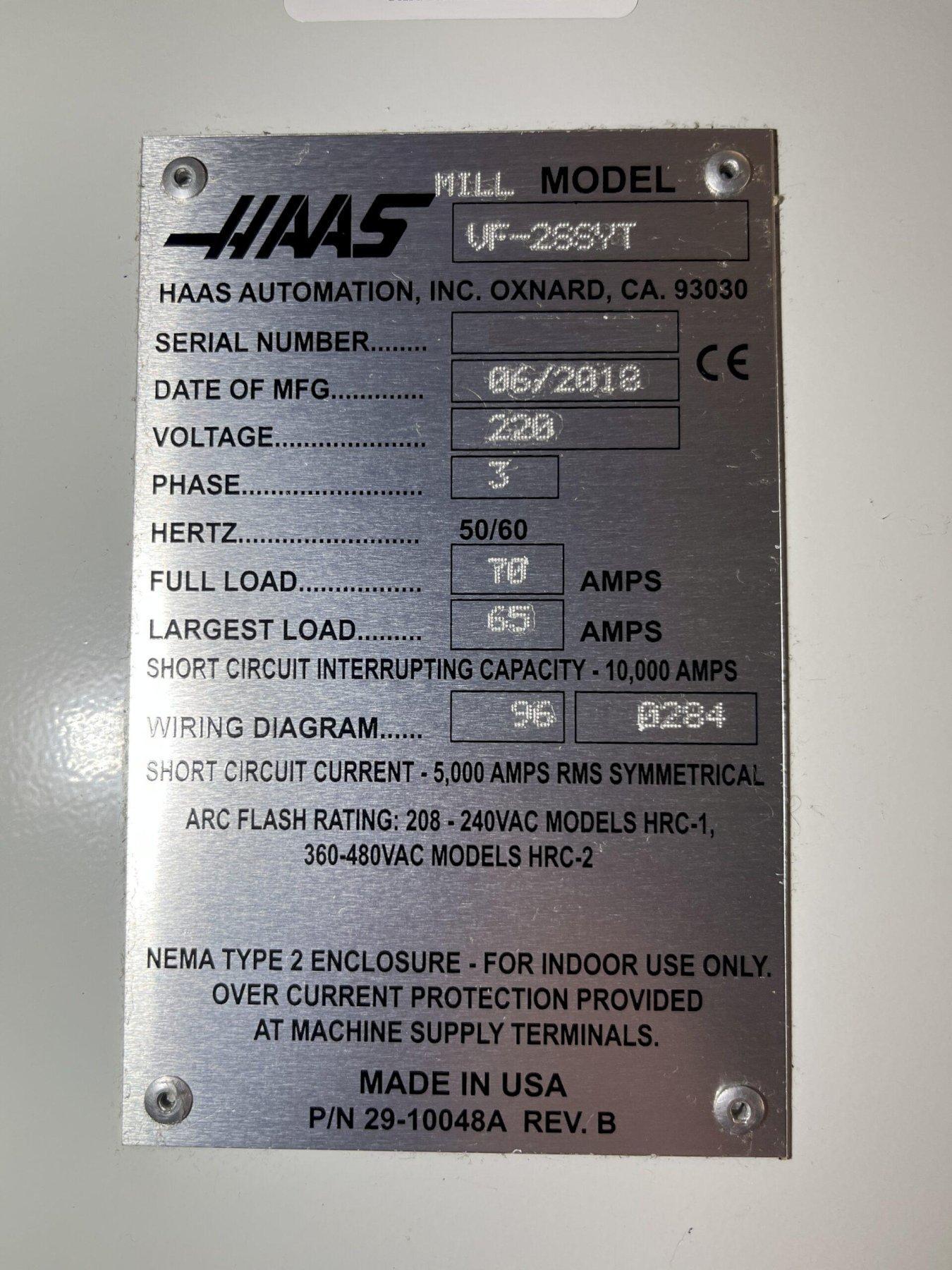

Make:	Haas
Model:	VF2SSYT
Year of Manufacture:	2018
Condition:	Used – Excellent

Equipped With:

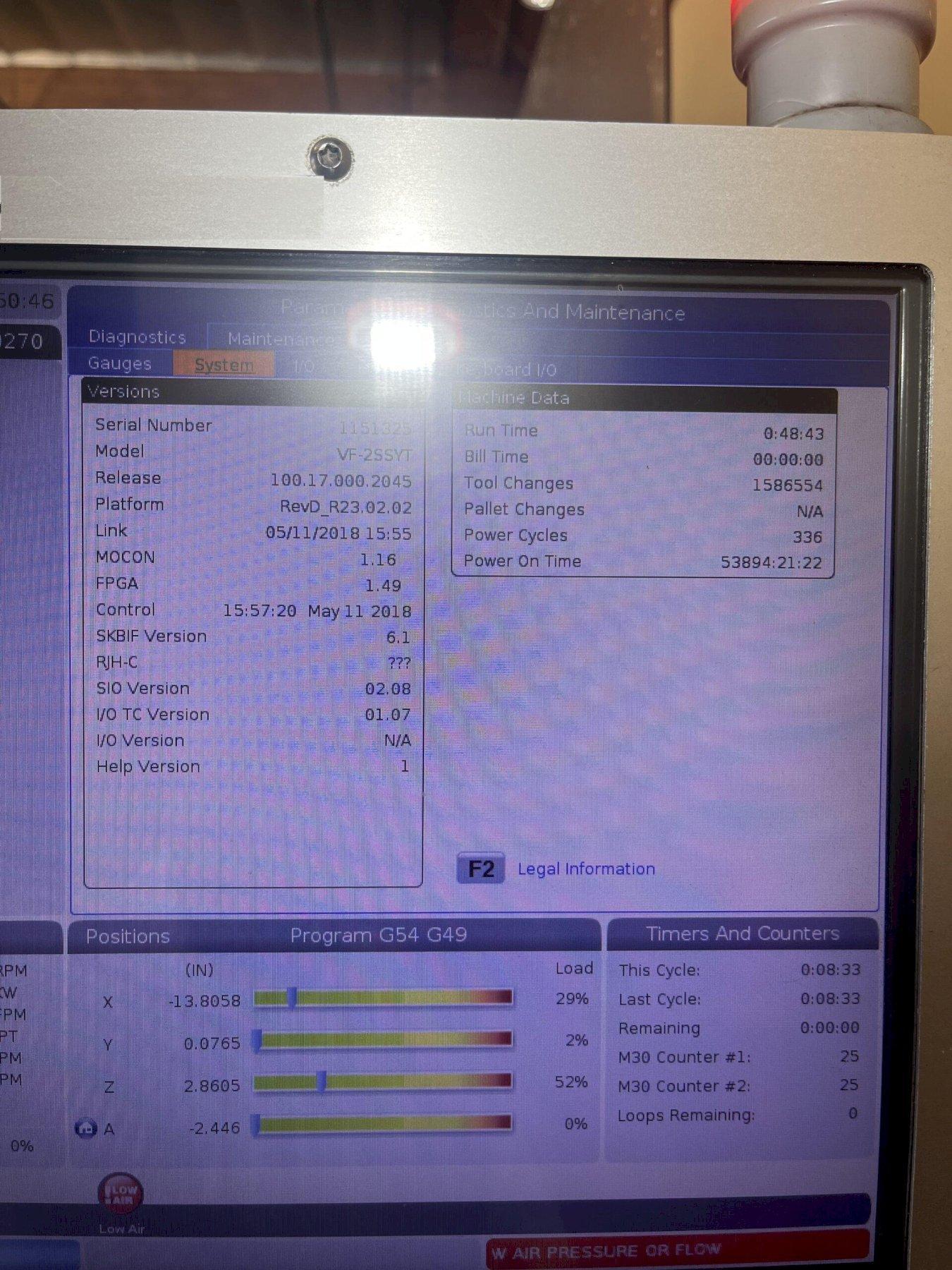

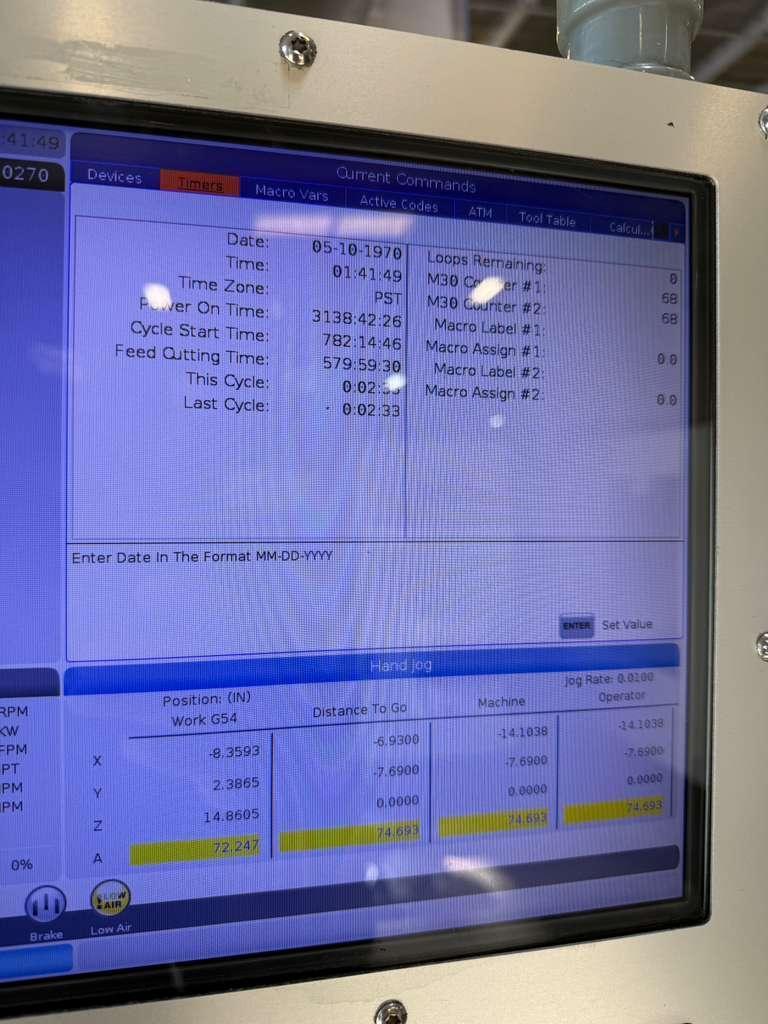

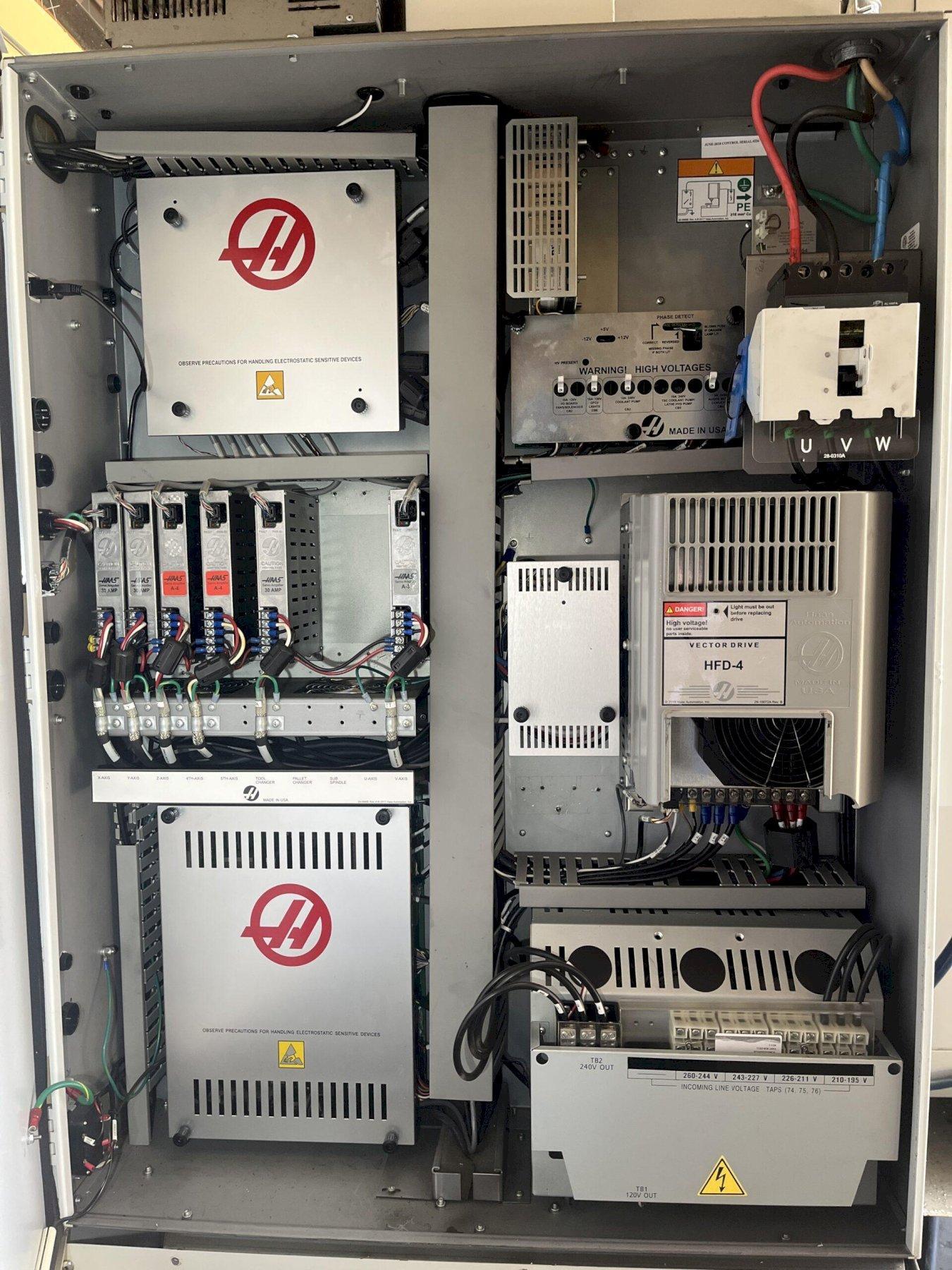

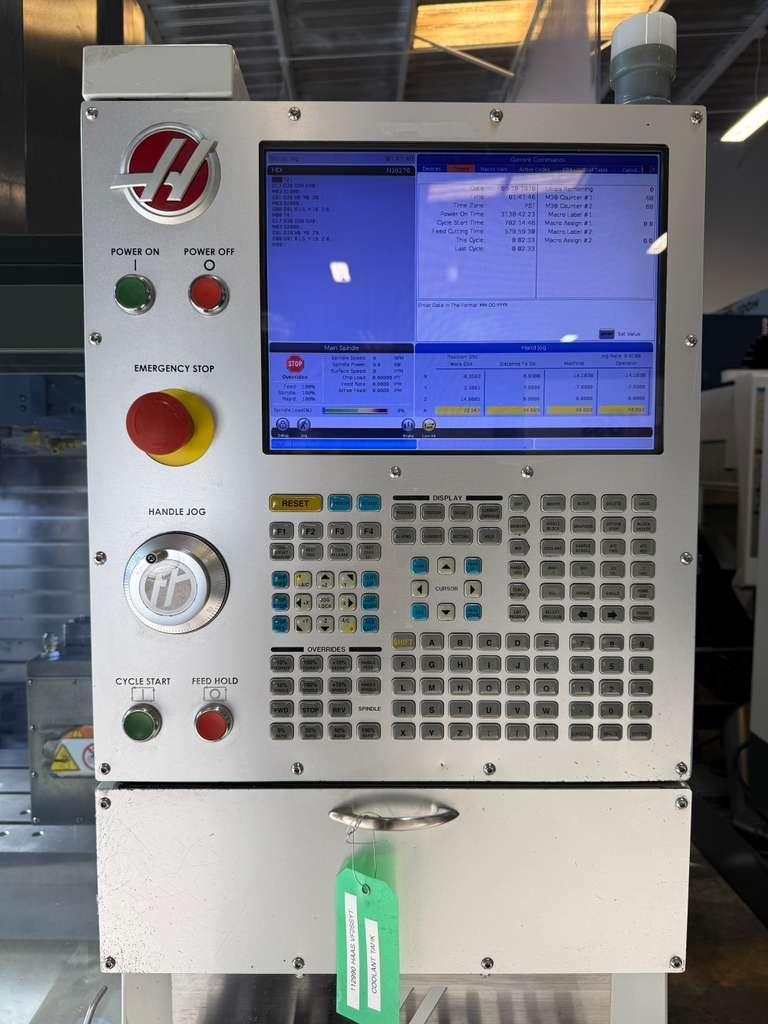

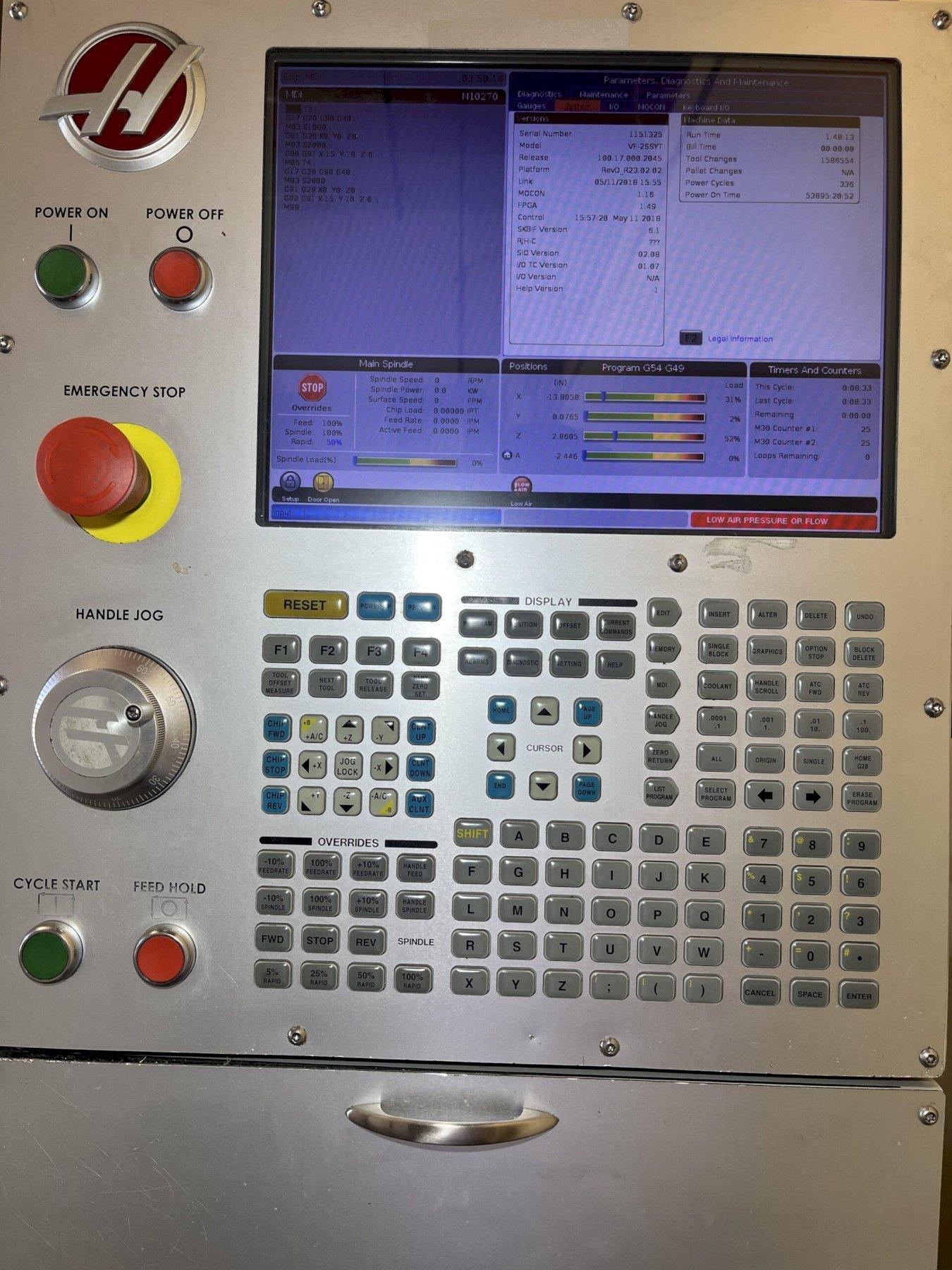

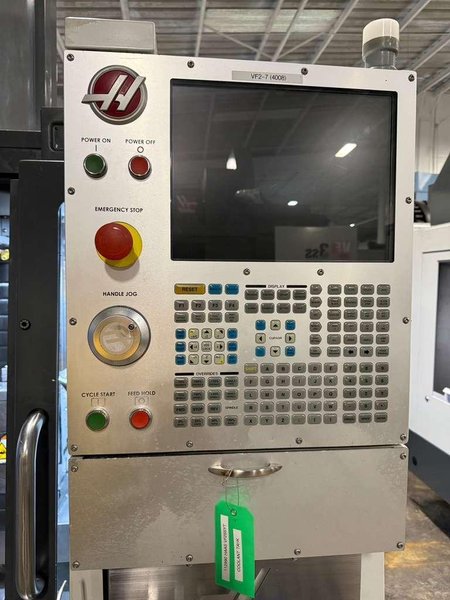

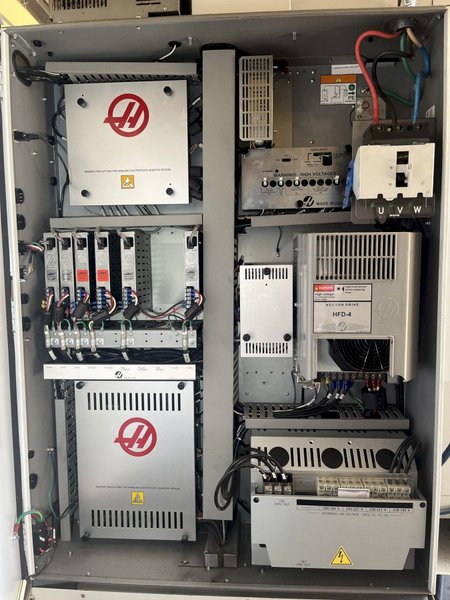

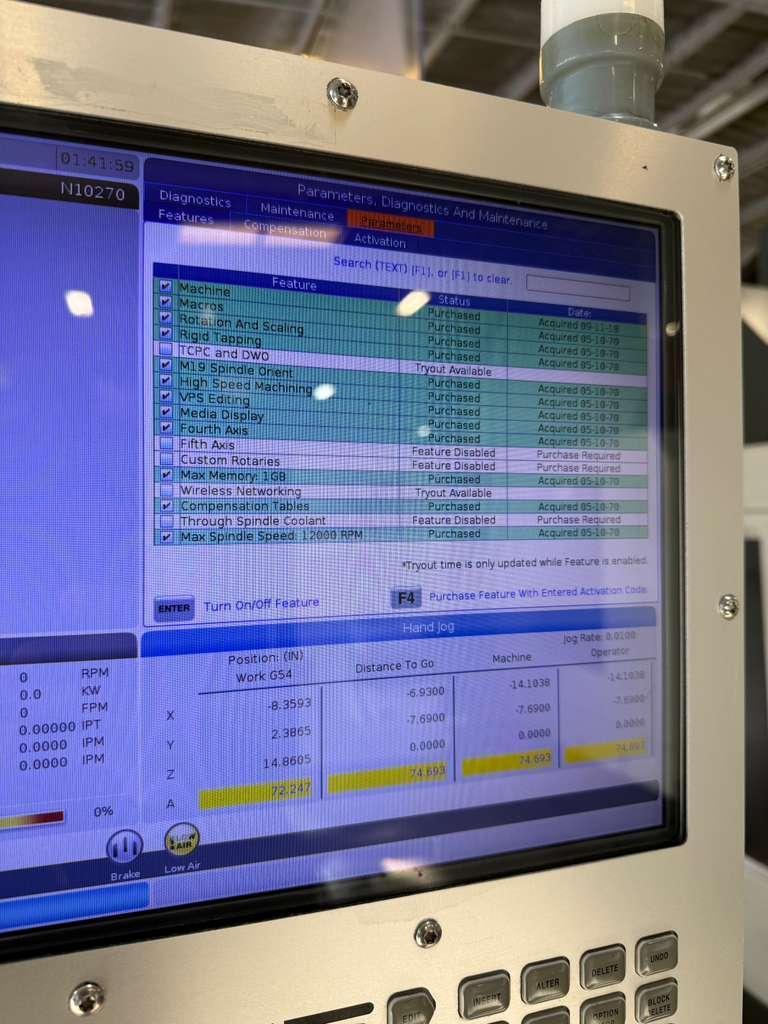

Haas CNC Control

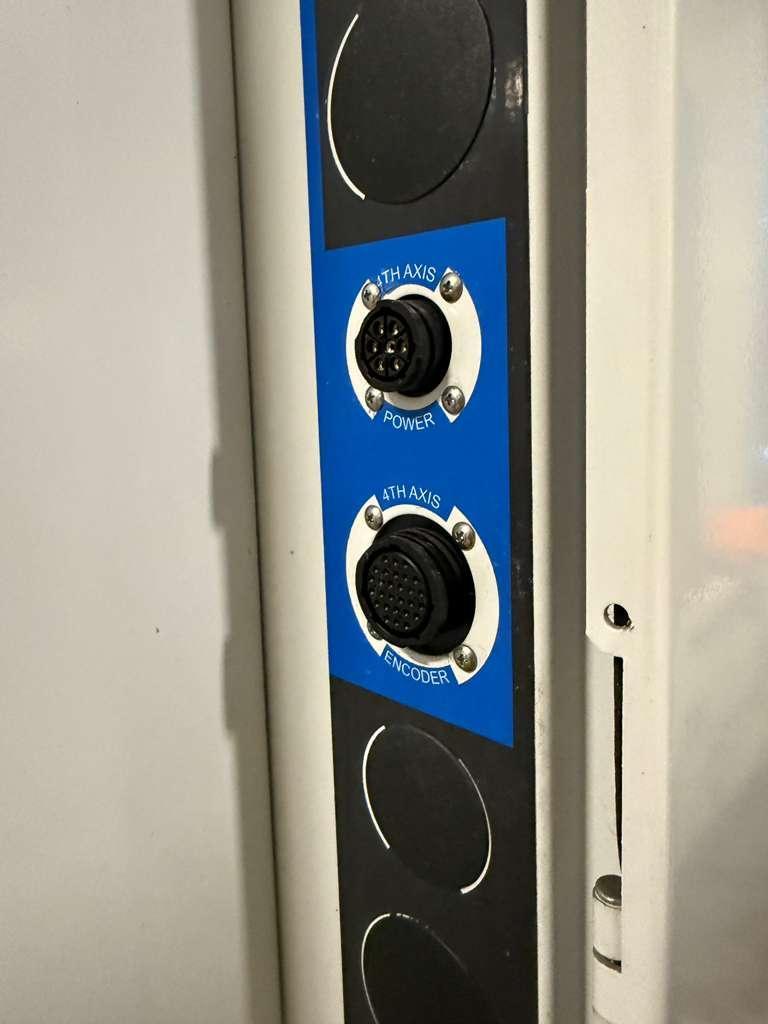

4th Axis Drive and Wiring (Upgraded $3,595 value Included) – Allows The Use of a 4th-Axis Haas Rotary Table or Indexer For Multi-Sided Machining

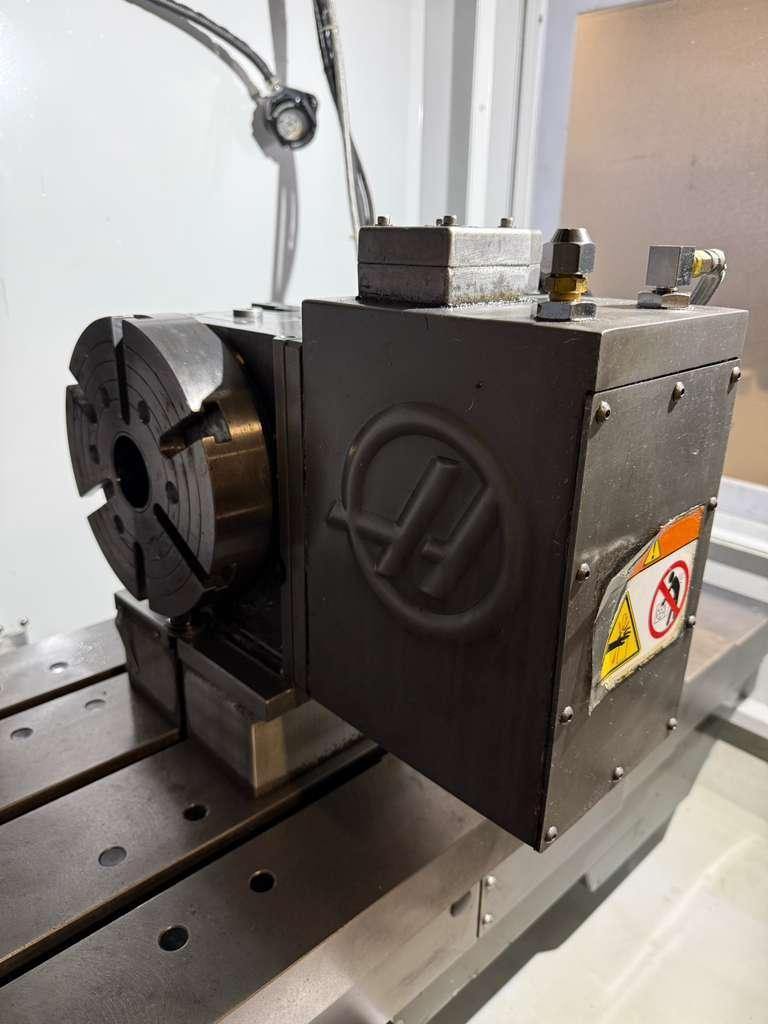

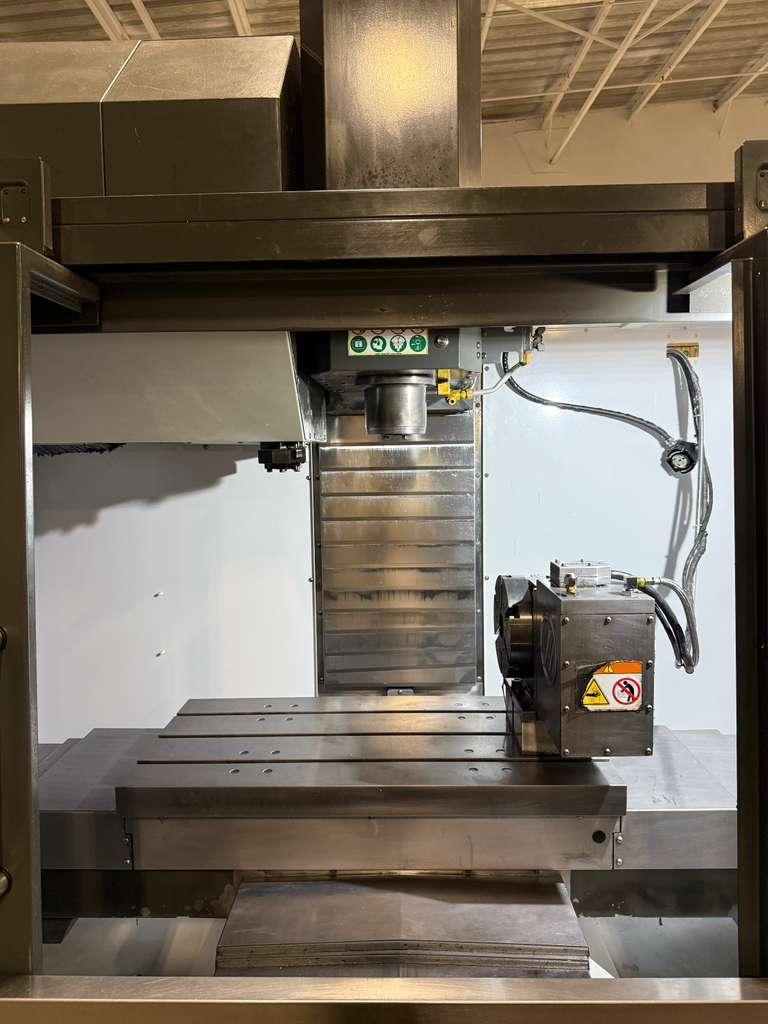

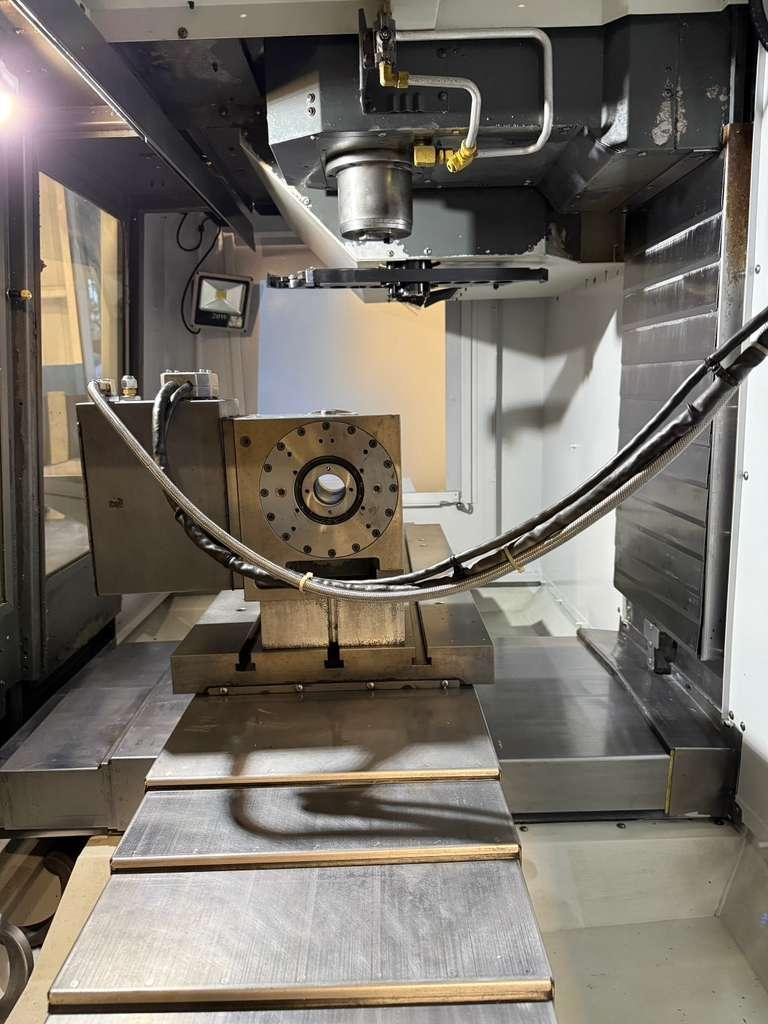

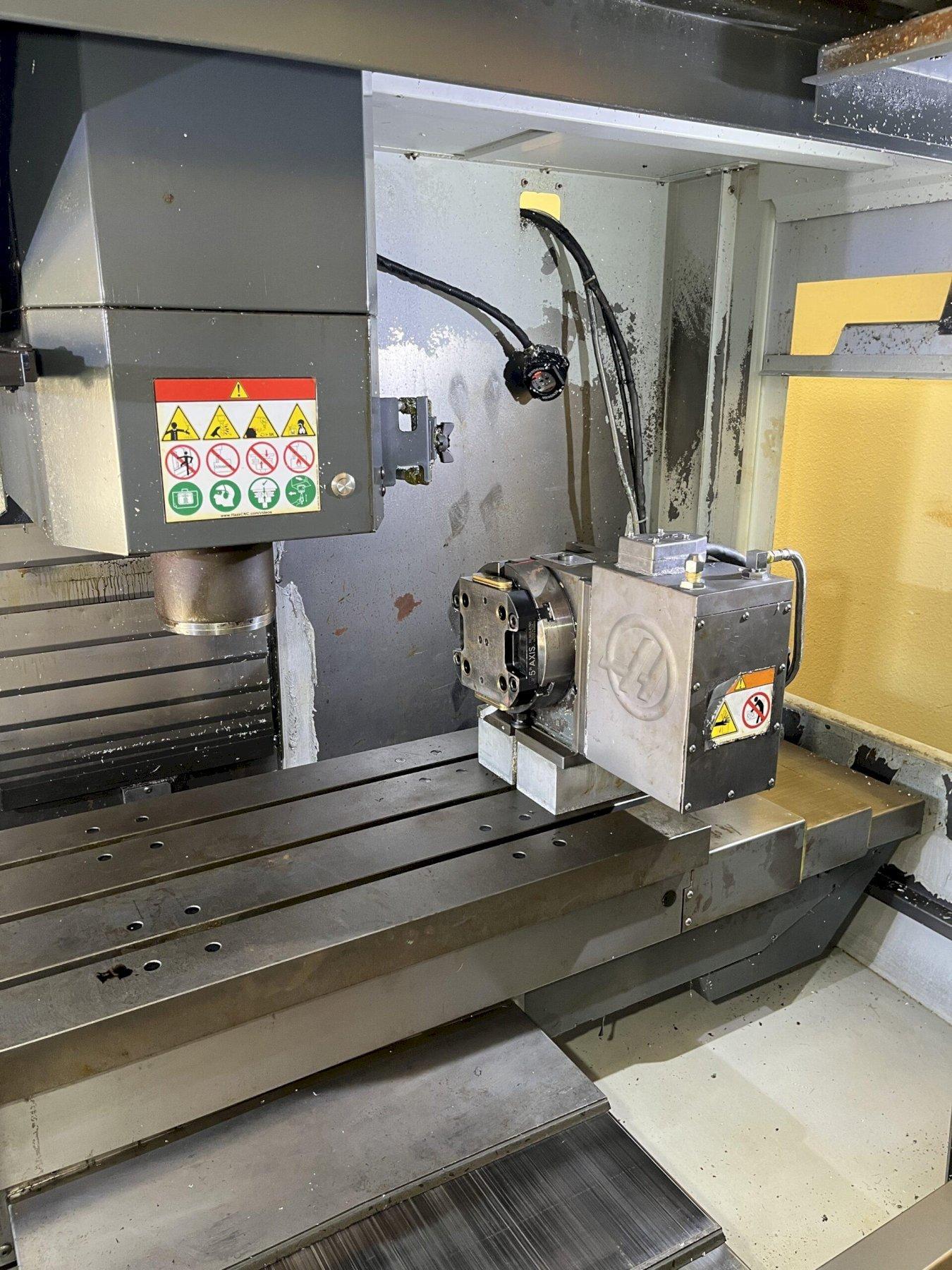

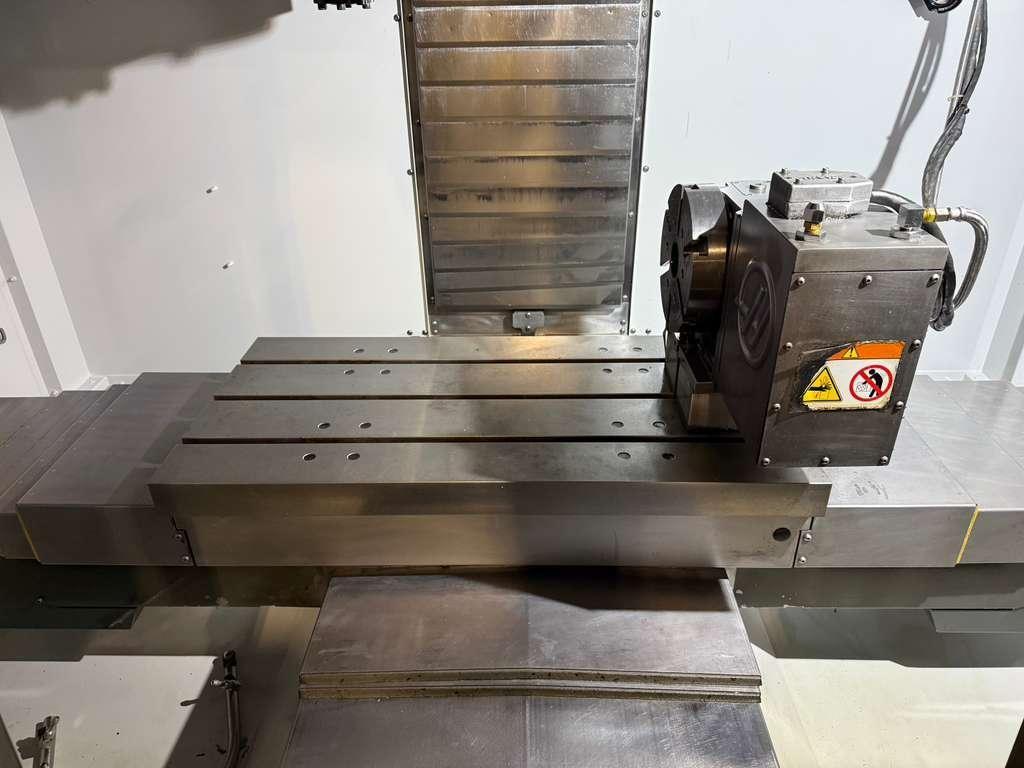

HRC-210 4th Axis Rotary Table – (Upgraded $16,395 value Included) For Multi-Sided Machining
Extended Y Axis Travel
12000 RPM High Speed Inline Direct Drive Spindle
30 HP High Torque Spindle Motor

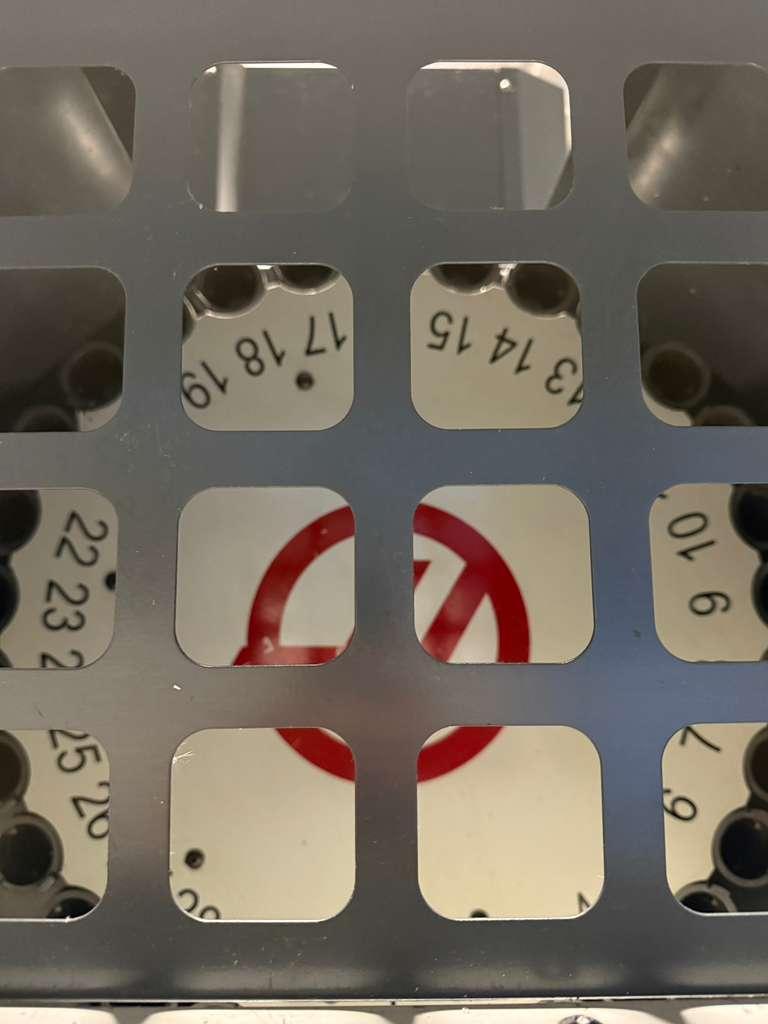

30 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid
WIPS-R Renishaw Probing System (Probe Needed) (Upgraded $6,395 value Included) – Reduced Scrap Rates, Minimized Downtime
Rigid Tapping
Spindle Orientation
Coordination Rotation and Scaling
Visual Part Programming System
User Definable Macros
1GB Memory
Coolant System
Chip Auger (Upgraded $4095 value Included) – Automatically Removes Chips From The Machine

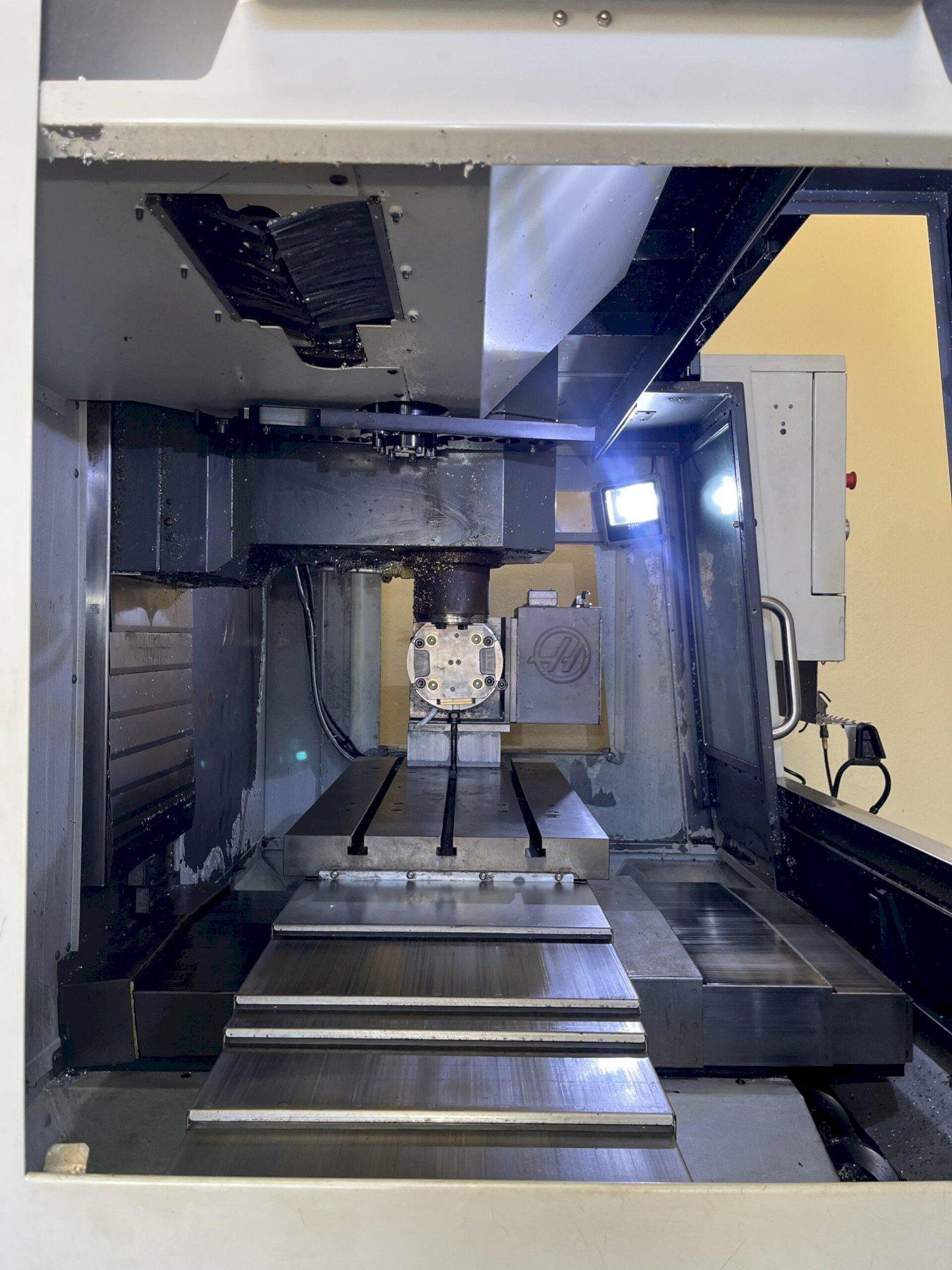

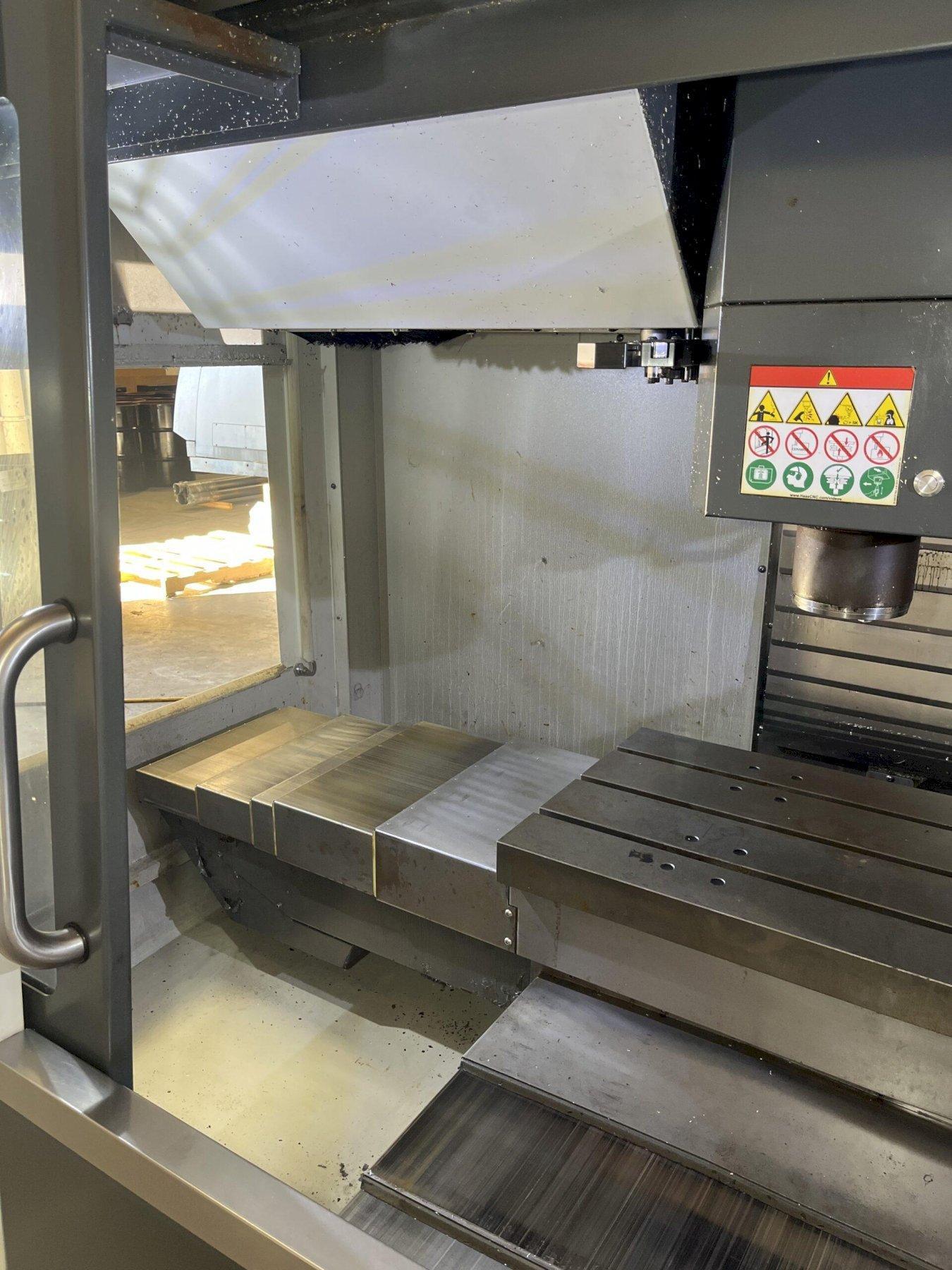

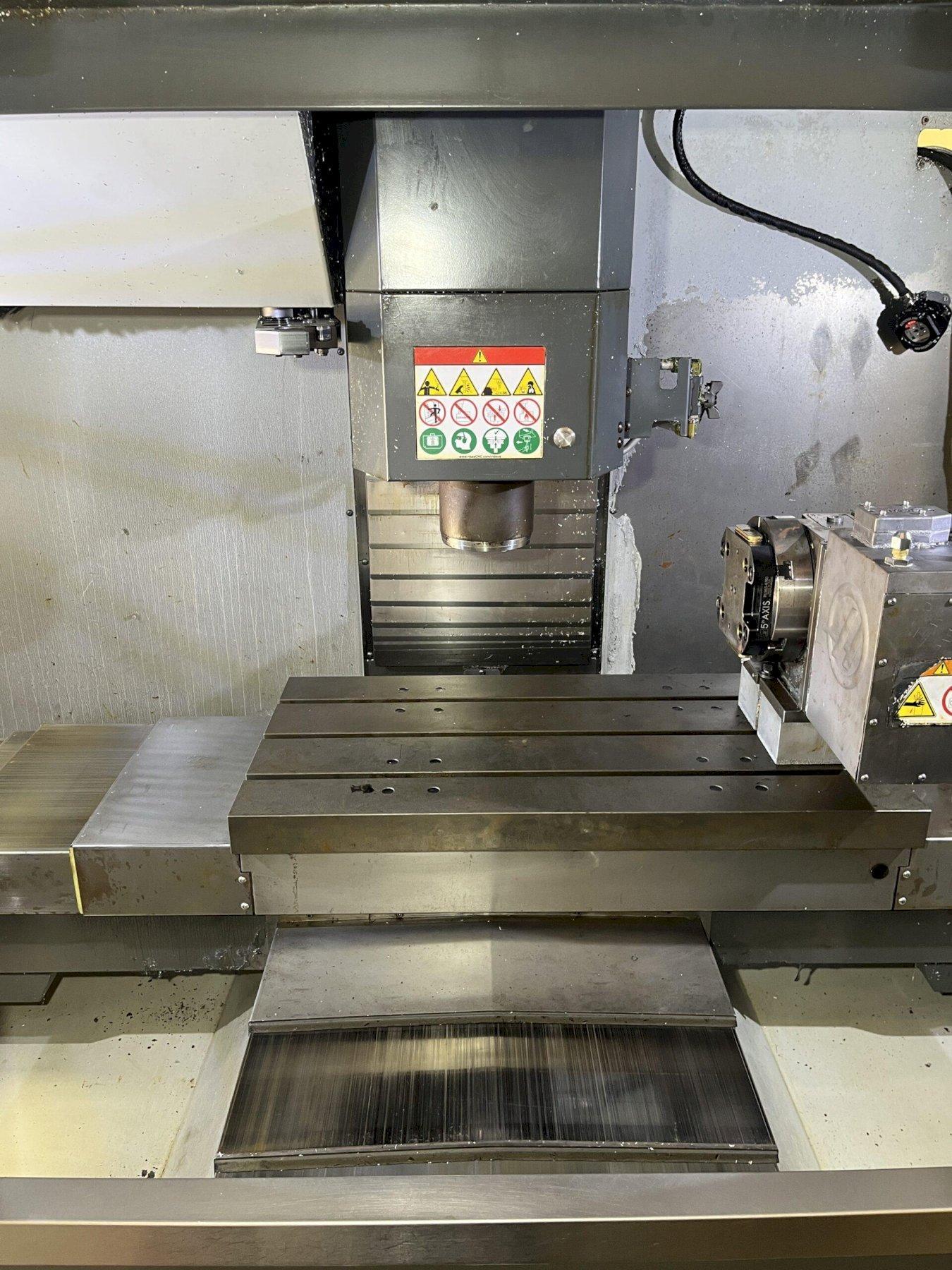

Table:
Length: 36.0″
Width: 18.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Travels:
X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

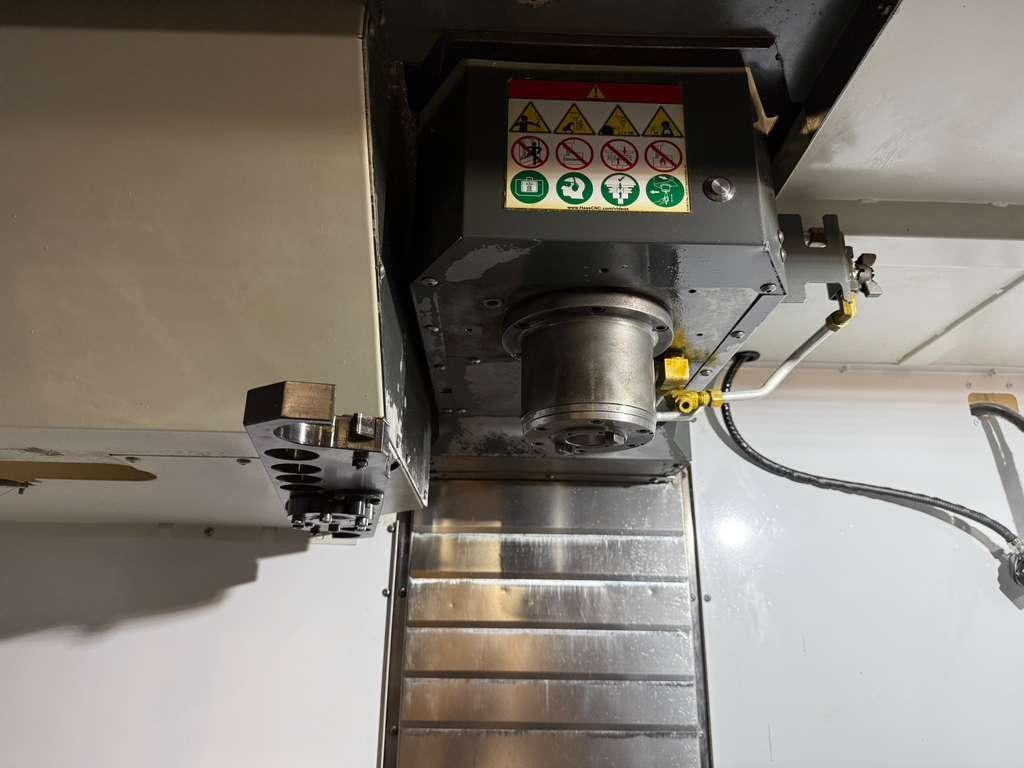

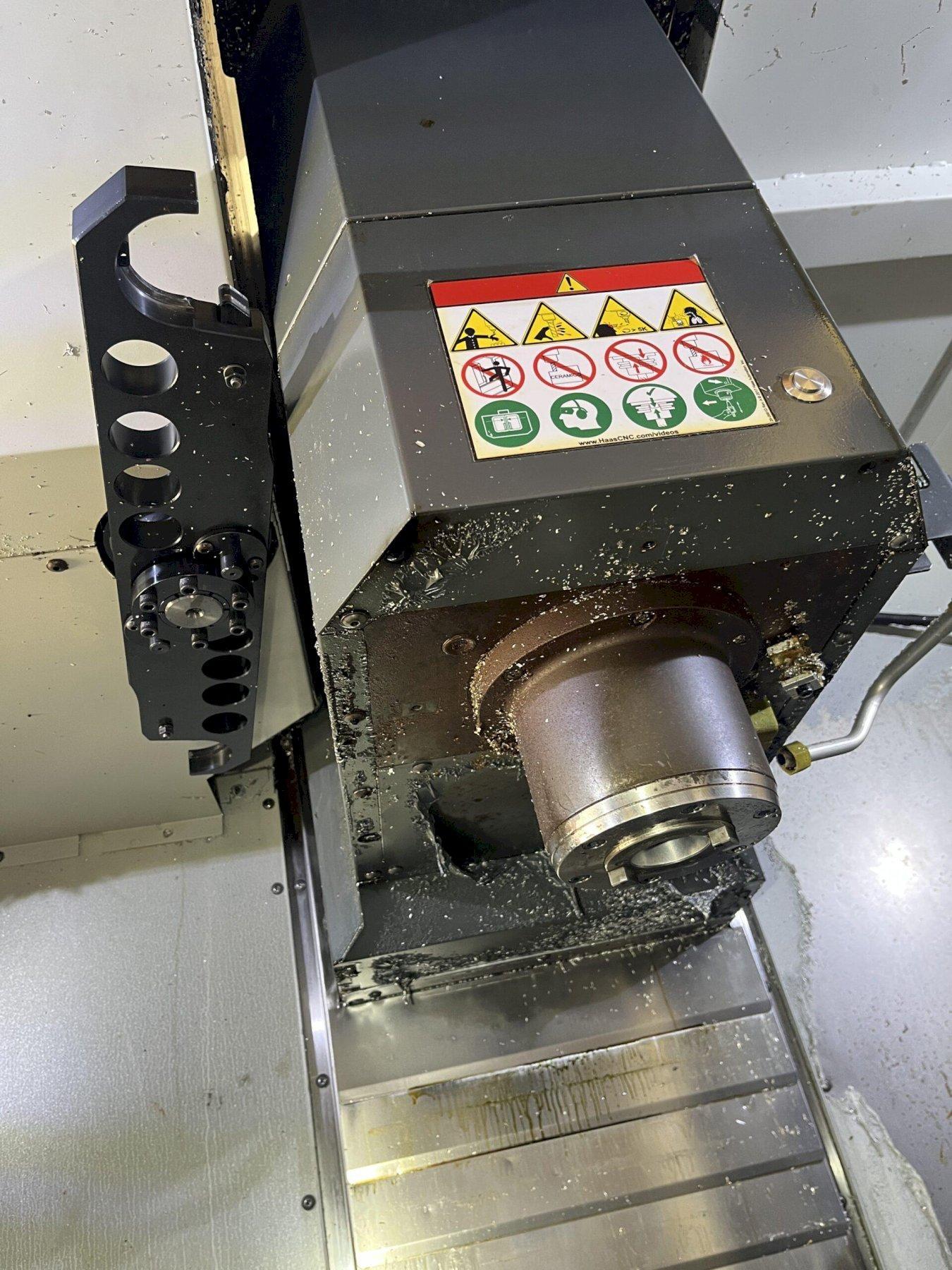

Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 30 HP
Max Torque: 90 ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (Adjacent empty): 5.0″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
