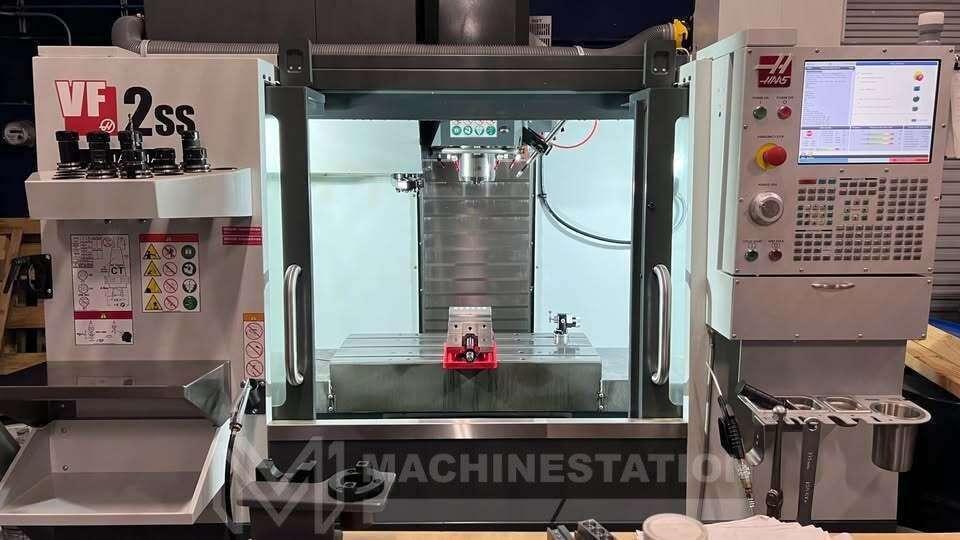

Haas VF-2SS CNC Vertical Machining Center – 2022

Brand
HAAS
Category
Machining Centers
Type
Vertical Machining Centers
Model
HAAS VF-2SS
Stock #
115036
Year
2022
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU: 115036
Make: Haas
Model: VF2SS
Year of Manufacture: 2022
Condition: Used – Excellent
Equipped With:
Haas CNC Control
4th-Axis Drive and Wiring (Upgraded $3,395 value Included)
15,000 RPM High Speed Inline Direct Drive Spindle (Upgraded $8,395 value Included)
Through Spindle Coolant Ready (Upgraded $1,295 value Included)
30 HP High Torque Spindle Motor
30 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid
Wireless Intuitive Probing System (Upgraded $6,095 value Included)
Probe Riser Block (Upgraded $595 value Included)
High Speed Machining (Upgraded $3,695 value Included)
Rigid Tapping
Spindle Orientation
Coordination Rotation and Scaling
Haas Visual Programming System
User-Definable Macros
Automatic Air Gun (Upgraded $1,495 value Included)
Coolant Mist Condenser (Upgraded $2,795 value Included)
Coolant System
Chip Auger (Upgraded $3,895 value Included)
Misc. Tooling

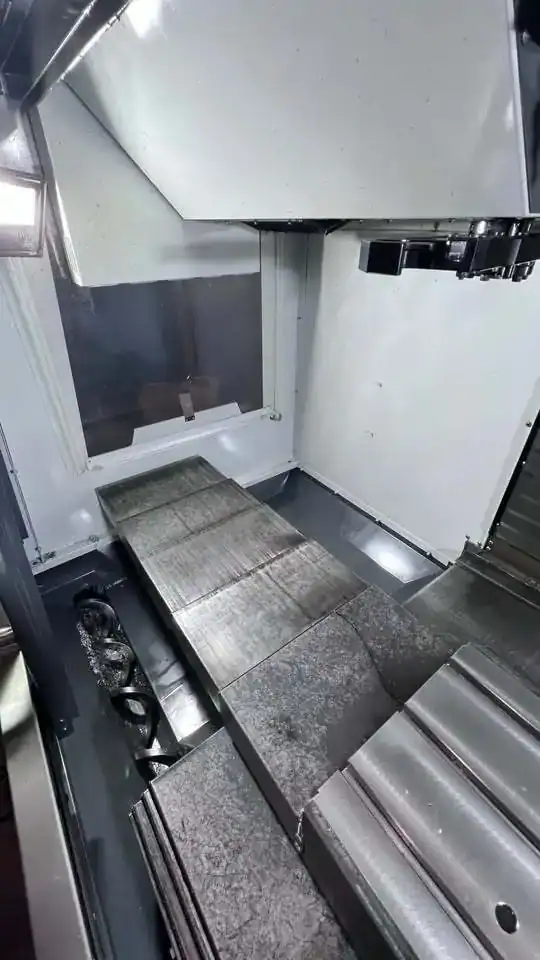

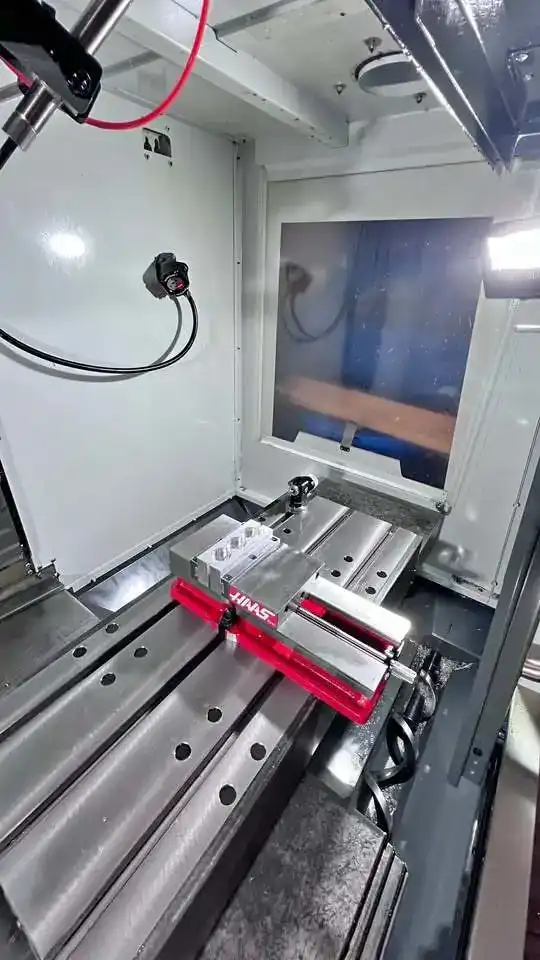

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs
Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Spindle:
Taper Size: CAT-40
Speed Range: 12000 RPM
Spindle Power: 30 HP
Max Torque: 90 ft-lb @ 2000 RPM
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (Adjacent empty): 5.0″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 101″ x 99″ x 101″ High
Weight: 9200 lbs
