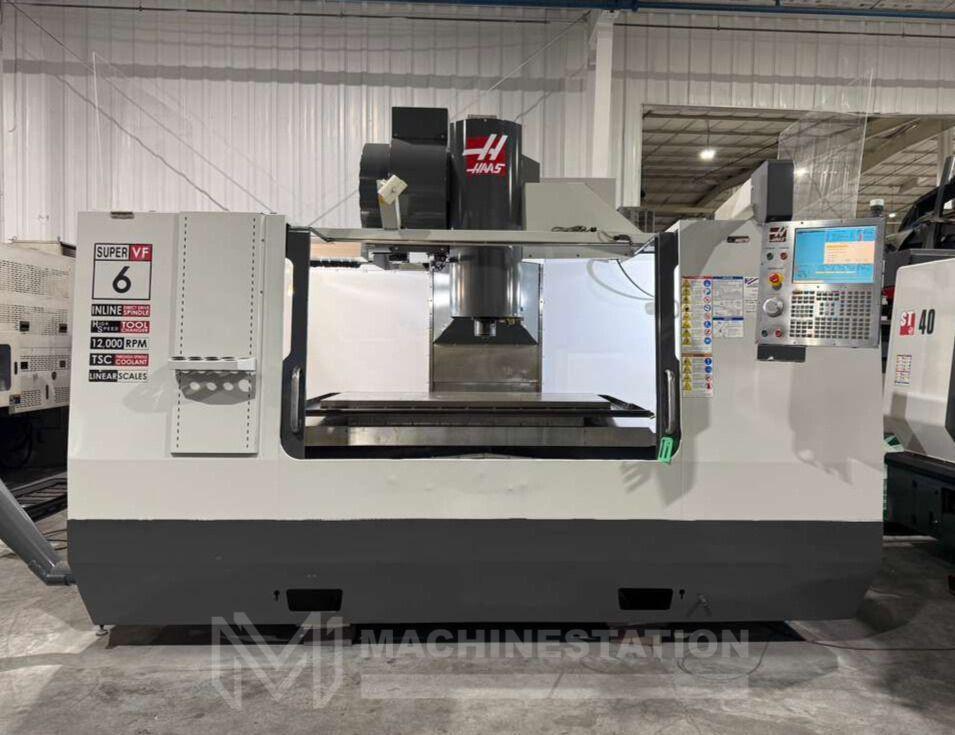

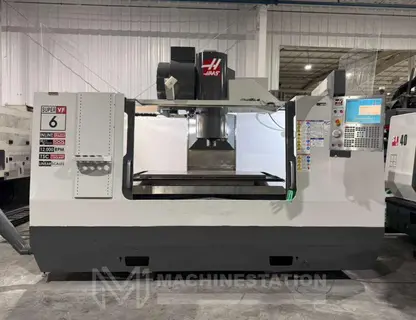

Haas VF-6SS CNC Vertical Machining Center – 4th Axis Ready Mill

Haas VF-6SS CNC Vertical Machining Center – 4th Axis Ready Mill

Name: Haas VF-6SS CNC Vertical Machining Center – 4th Axis Ready Mill
Brand: Unknown
SKU: 112967
Availability: PreOrder

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	VF6SS
Year:	2009
Condition:	Used – Good

Equipped With:
Haas CNC Control
4th Axis Drive and Wiring (Upgraded $3,595 value Included)
12,000 RPM Inline Direct Drive Spindle
40 HP Vector Drive
24 Station High Speed Tool Changer
Linear Scales
Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
Renishaw Probing System (Probe Needed) (Upgraded $6,395 value Included)
Rigid Tapping
Spindle Orientation
Quick Code Programming
Rotation and Scaling
Macros
DNC Enabled
Floppy Enabled
Coolant System
Chip Auger

Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 1200 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 2000 Lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 40 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.2 Seconds
