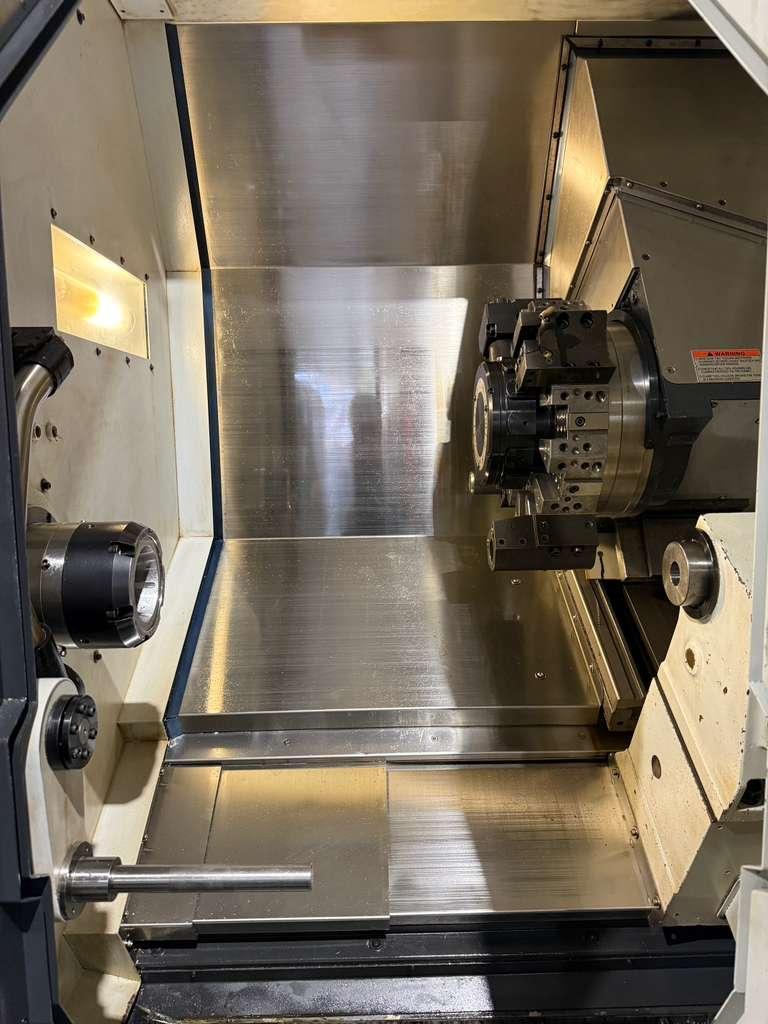

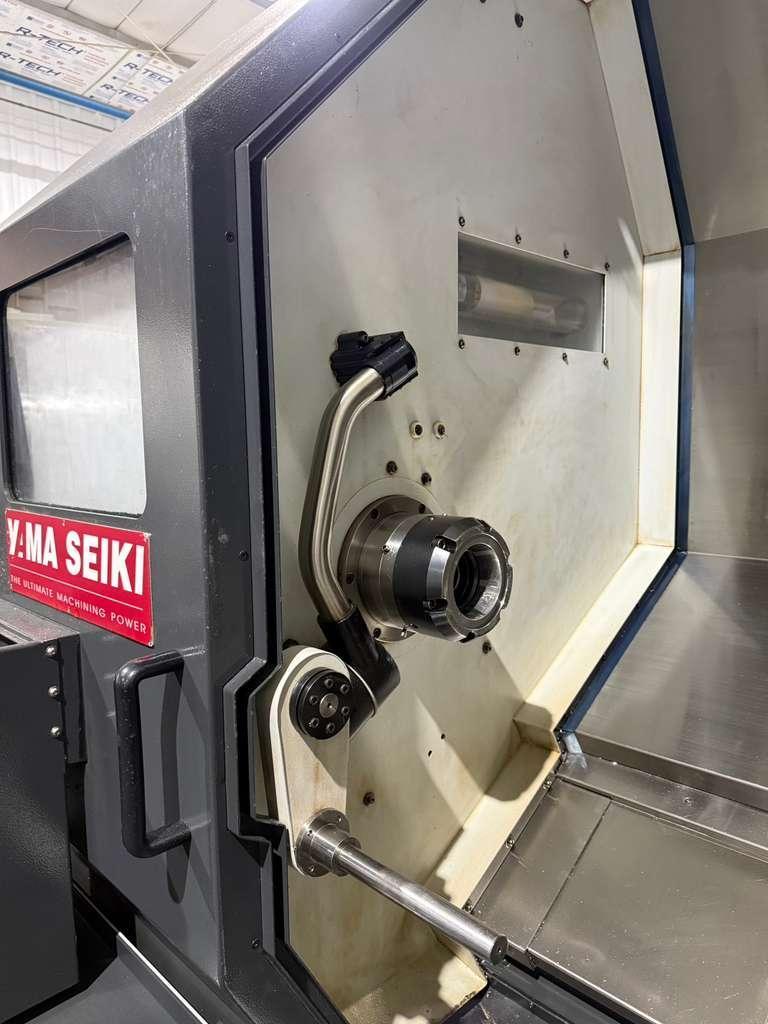

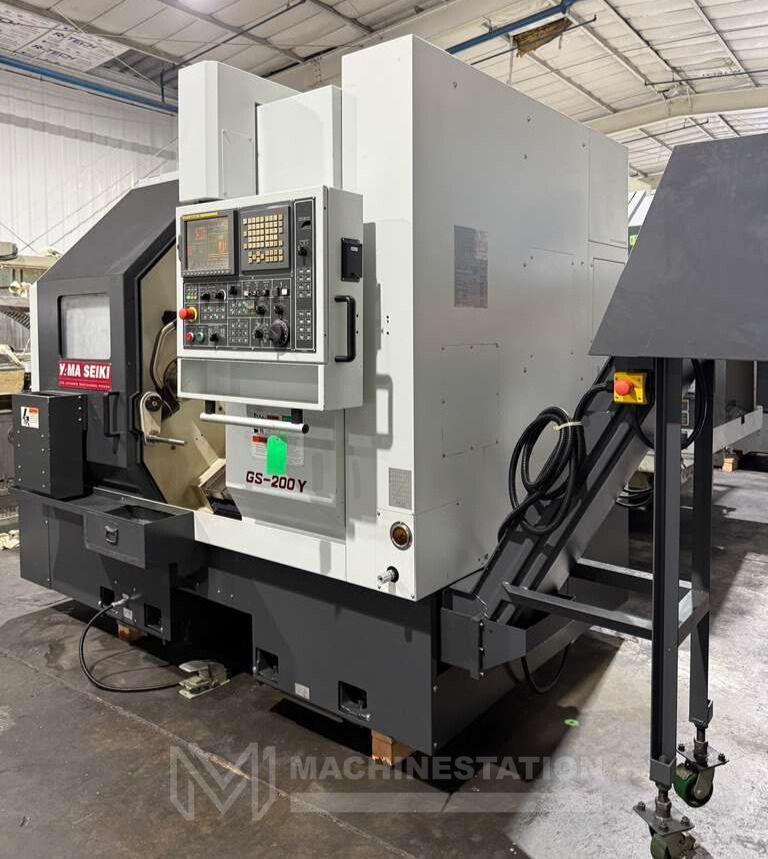

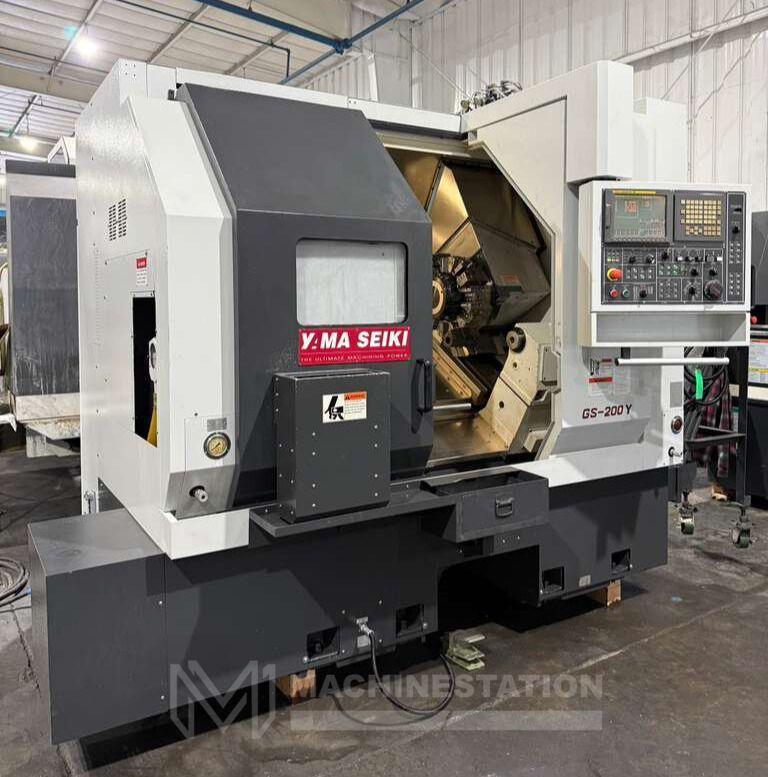

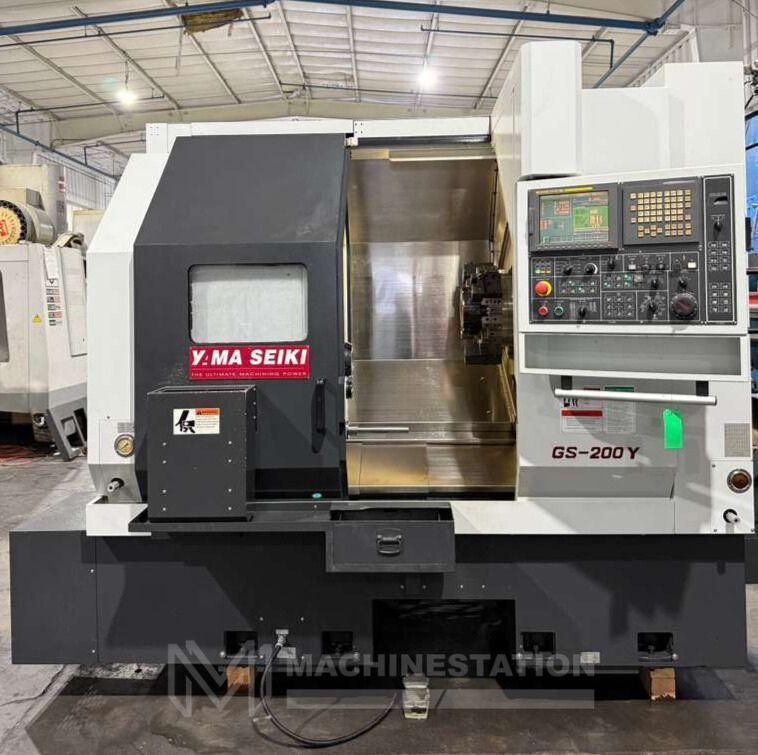

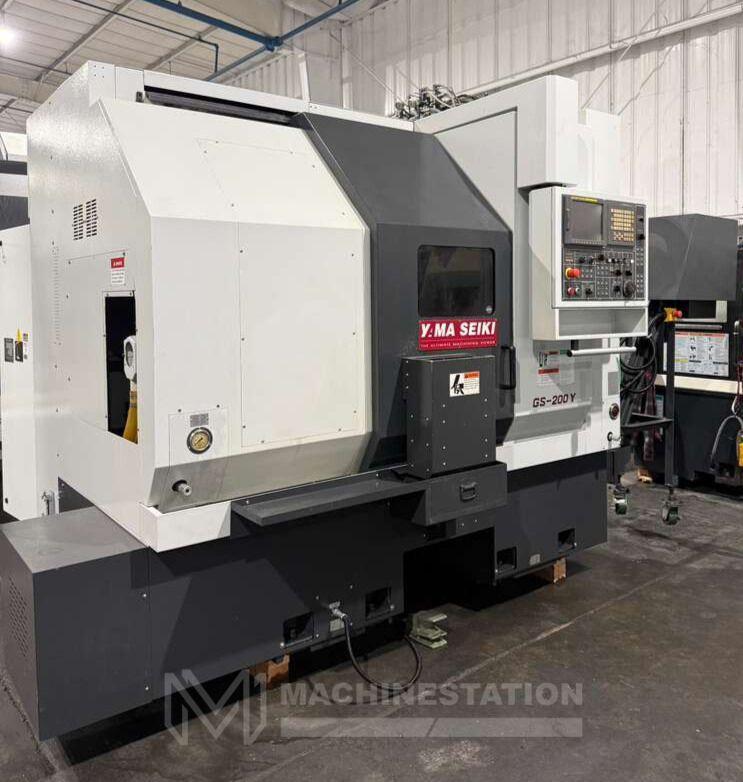

Yama Seiki GS-200Y CNC Turning Center – C Axis Live Tool Y Axis Lathe

Brand
YAMA SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Yama Seiki GS-200Y
Stock #
112957
Year
2008
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Yama Seiki
Model: GS-200Y
Year: 2008
Condition: Used – Good
Equipped With:

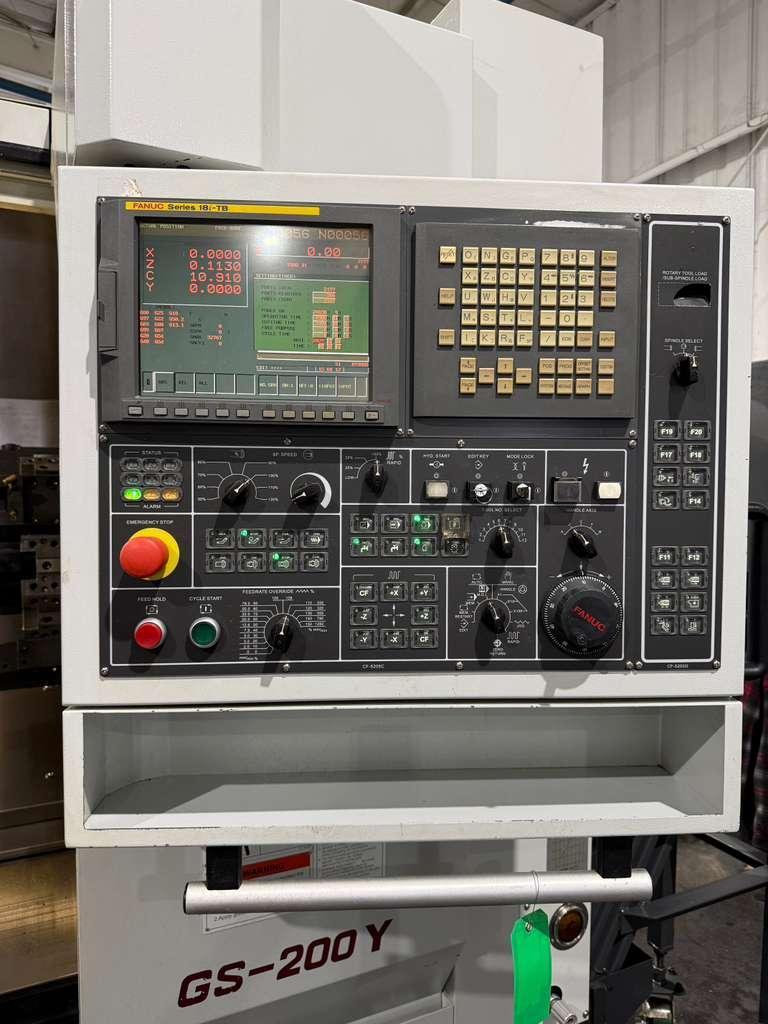

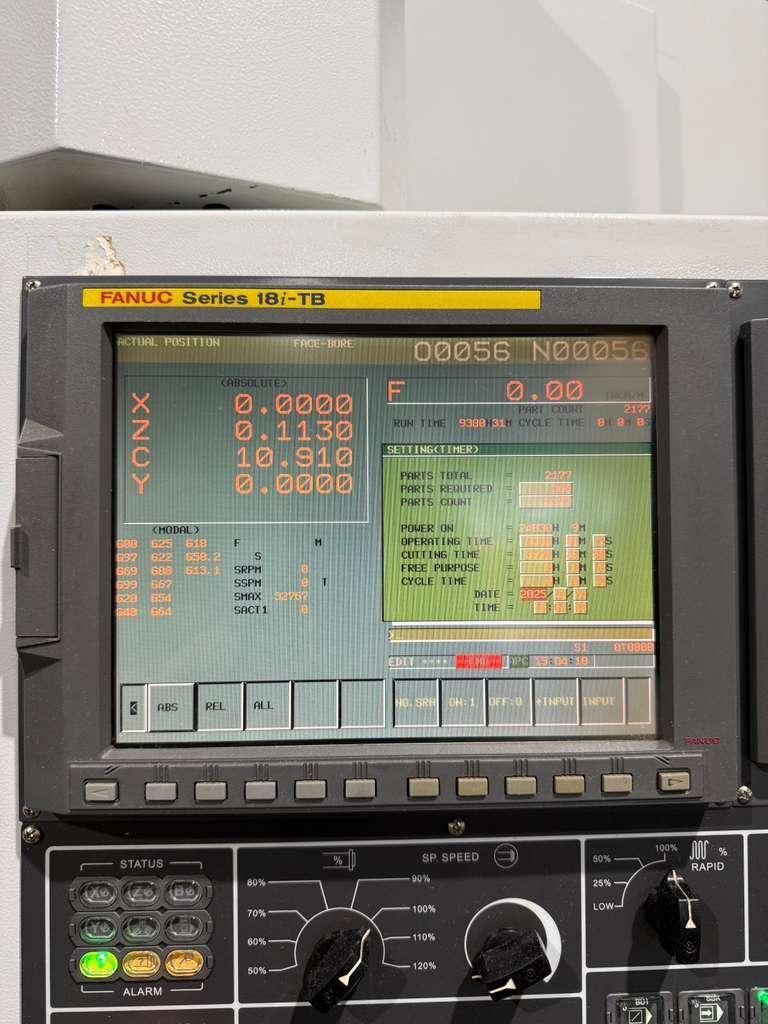

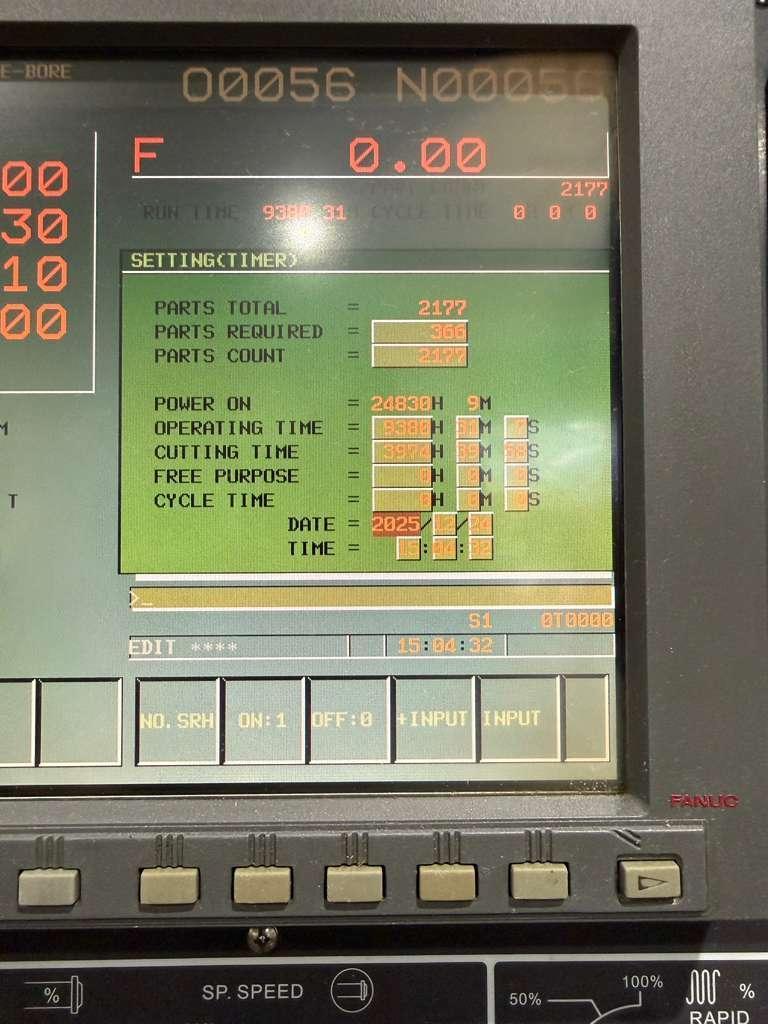

Fanuc 18i-TB CNC Control
Hydrobar Bar Feeder

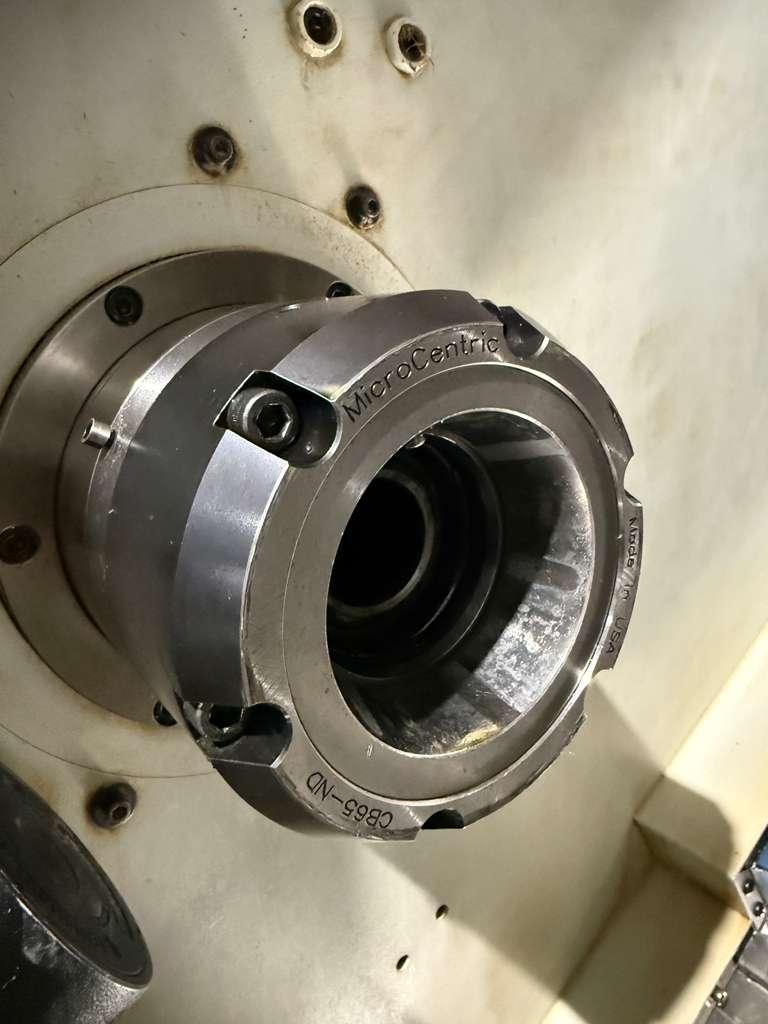

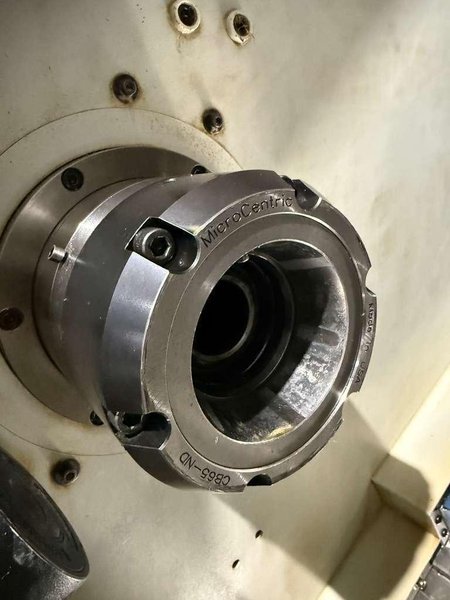

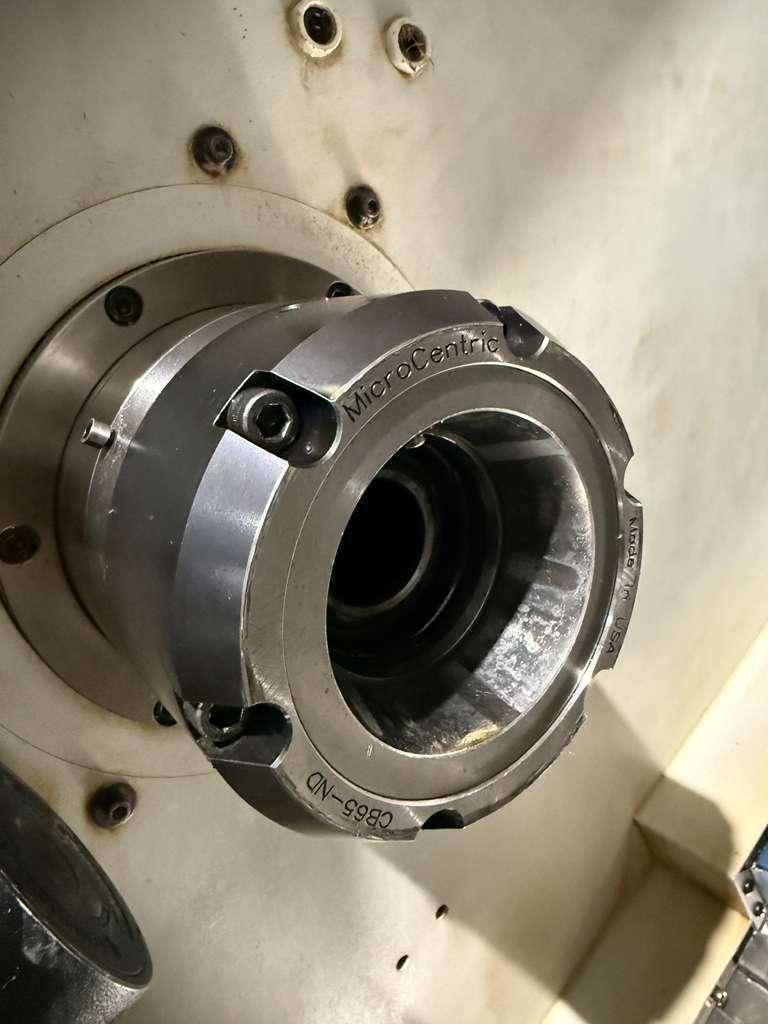

MicroCentric CB65-ND Collet Chuck (8″ Chuck Capable)
A2-6, 4800 RPM Spindle
Servo Controlled Full C Axis on Spindle

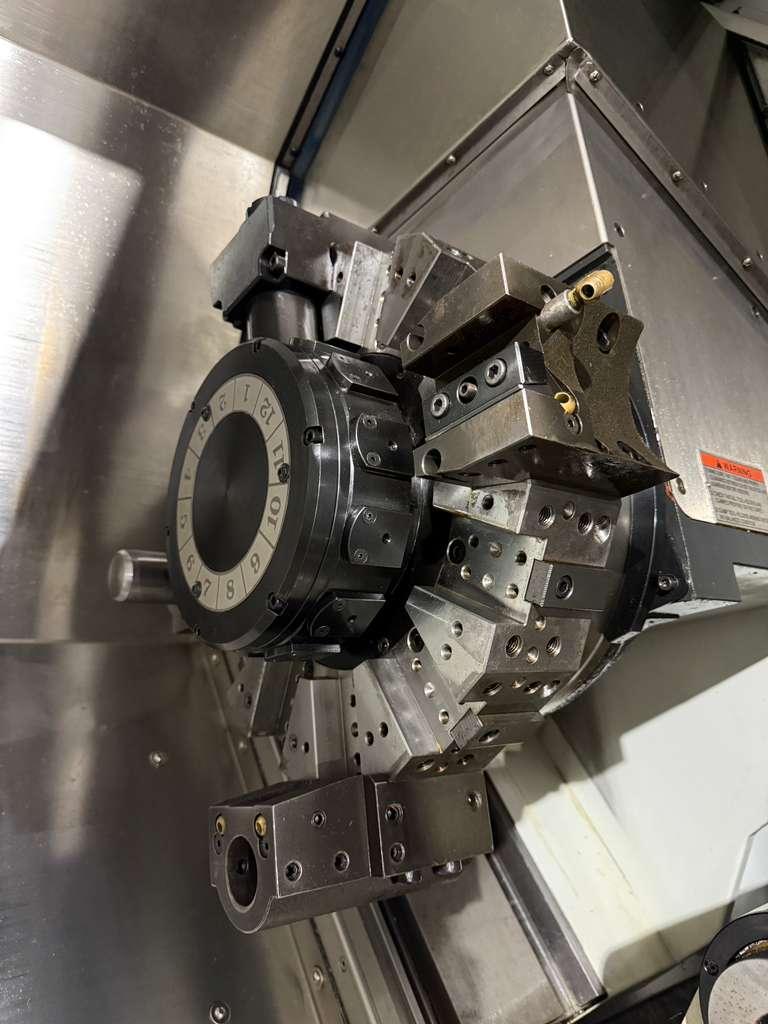

12 Station Live Tool Turret
Y Axis on Turret

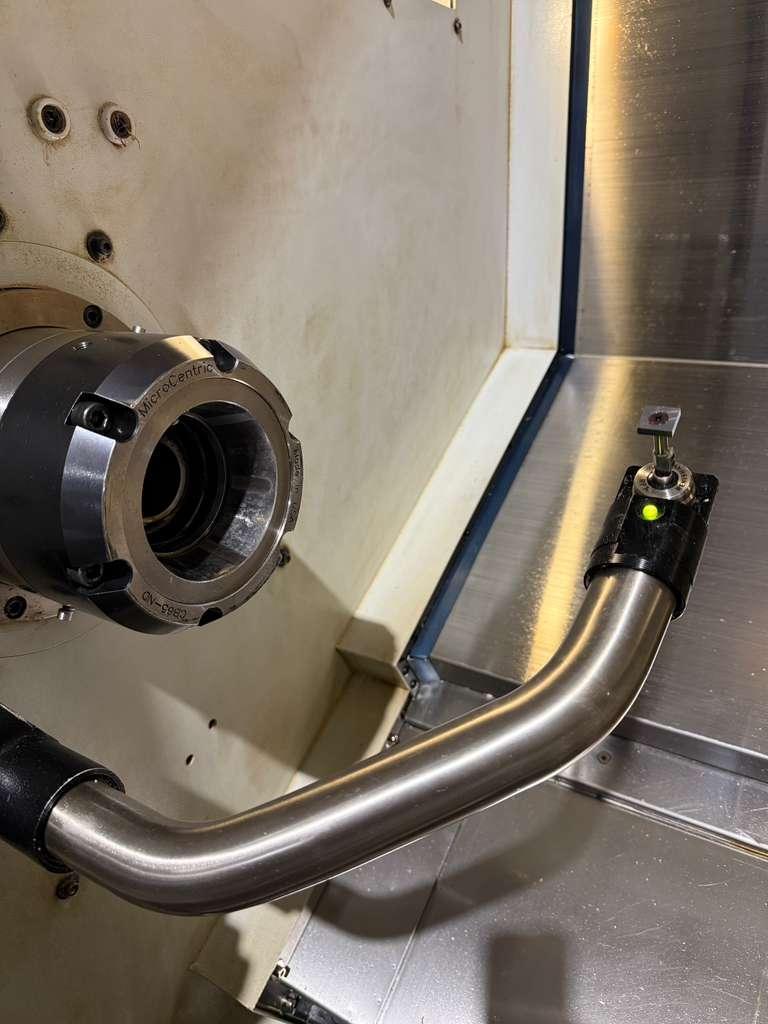

Tool Presetter
Parts Catcher
Programmable Tailstock

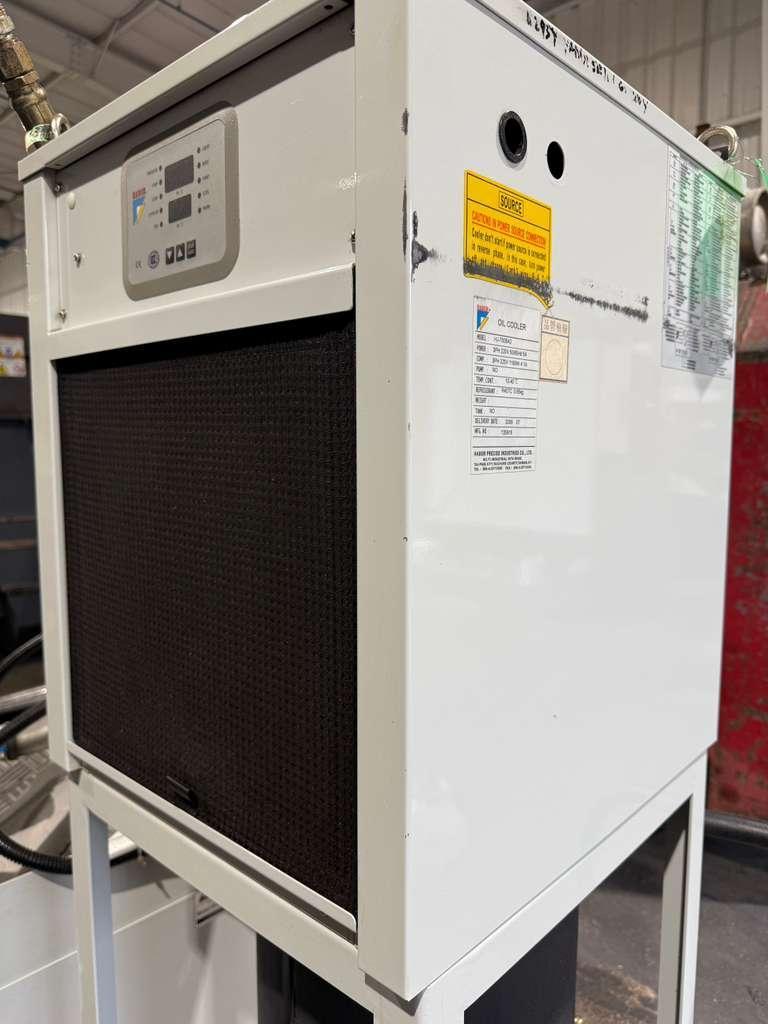

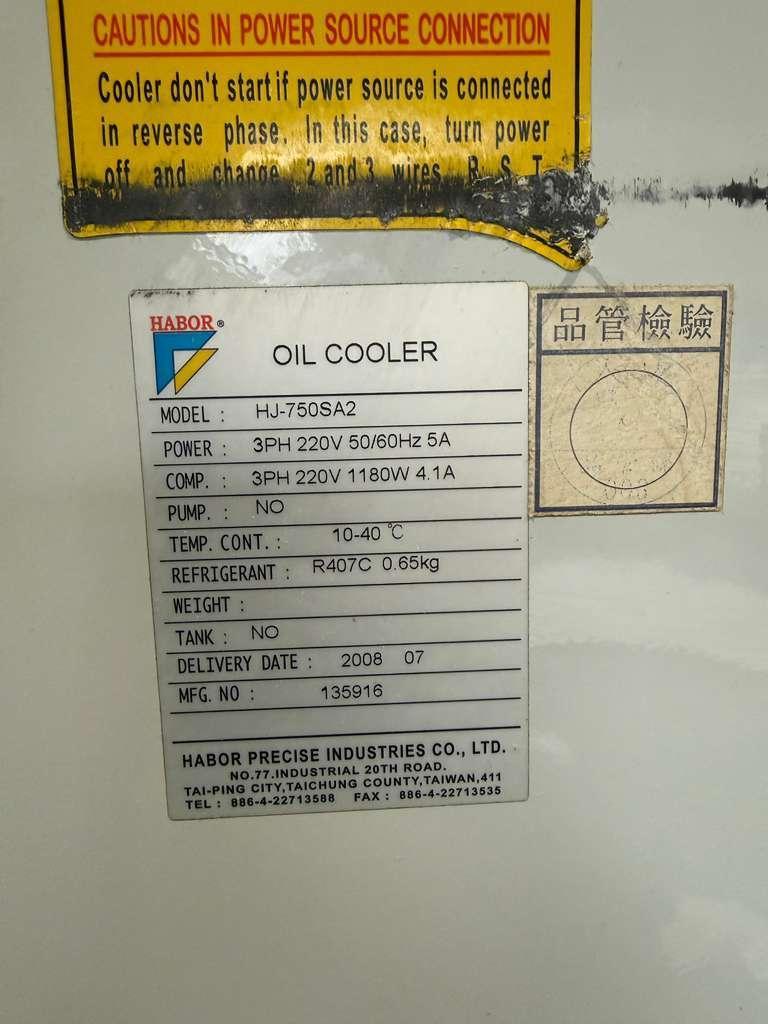

Spindle Chiller Unit
Rigid Tapping
PCMCIA Card Interface
RS-232 Port
Coolant System
Chip conveyor
Foot Switch
Levelling Pads
Books & Manuals

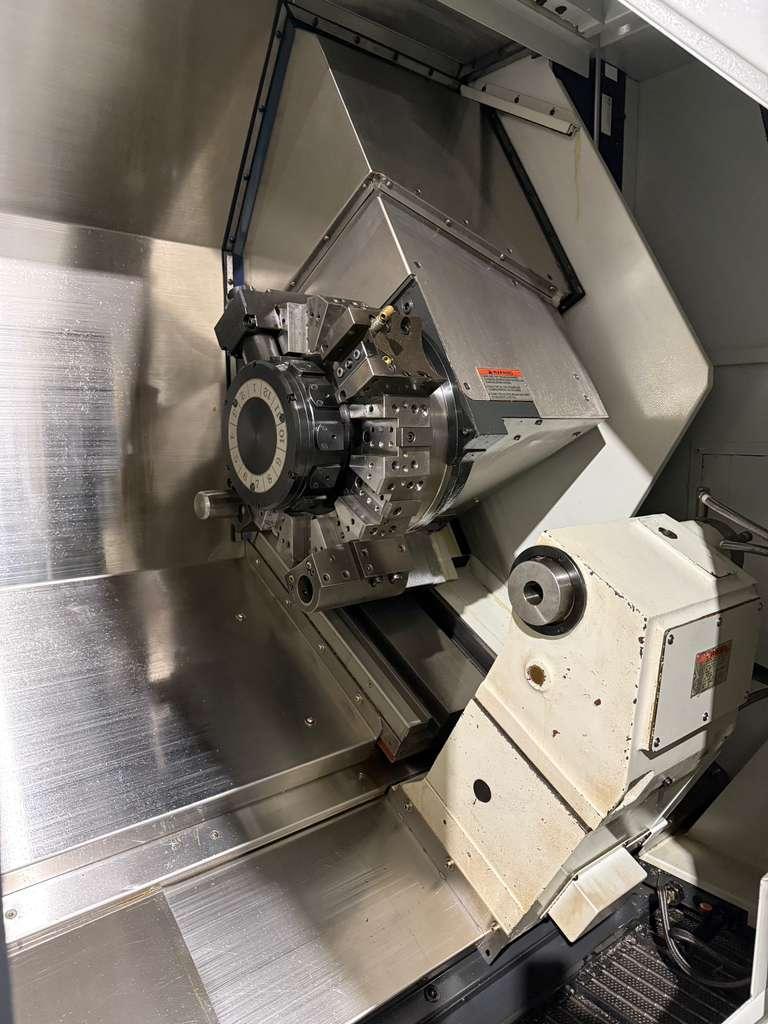

Tool Holders Are Mounted On Turret (As shown in the images)
Capacity:
Max Turning Diameter: 13.38″
Max Turning Length: 23.62″
Max Swing Over Bed: 18.50″
Max Bar Capacity: 2.05″
Travels:
X Axis Travel: 10.61″
Y Axis Travel: 4.72″
Z Axis Travel: 23.62″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.59″
Spindle Speed: 4800 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Live Tool Speed: 3000 RPM
Live Tool Motor: 5 HP
OD Tool Shank Size: 1″
ID Tool Shank Size: 1.5″
Tailstock:
Tailstock Taper: MT-3
Tailstock Quill Diameter: 3.34″
Tailstock Quill Stroke: 4.72″
Tailstock Body Travel: 18.50″
General:
Power: 50/60 HZ / 220v / 3-Phase
Overall Dimensions: 106″ x 77″ x 75″ High Approx.
Weight: 12,125 lbs
