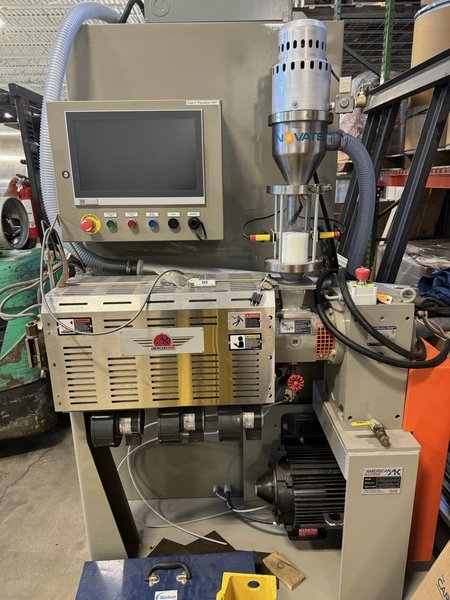

1.25″ American Kuhne ULTRA CR 24:1 Air-Cooled Extruder, 2016 – Hopper, Feeder

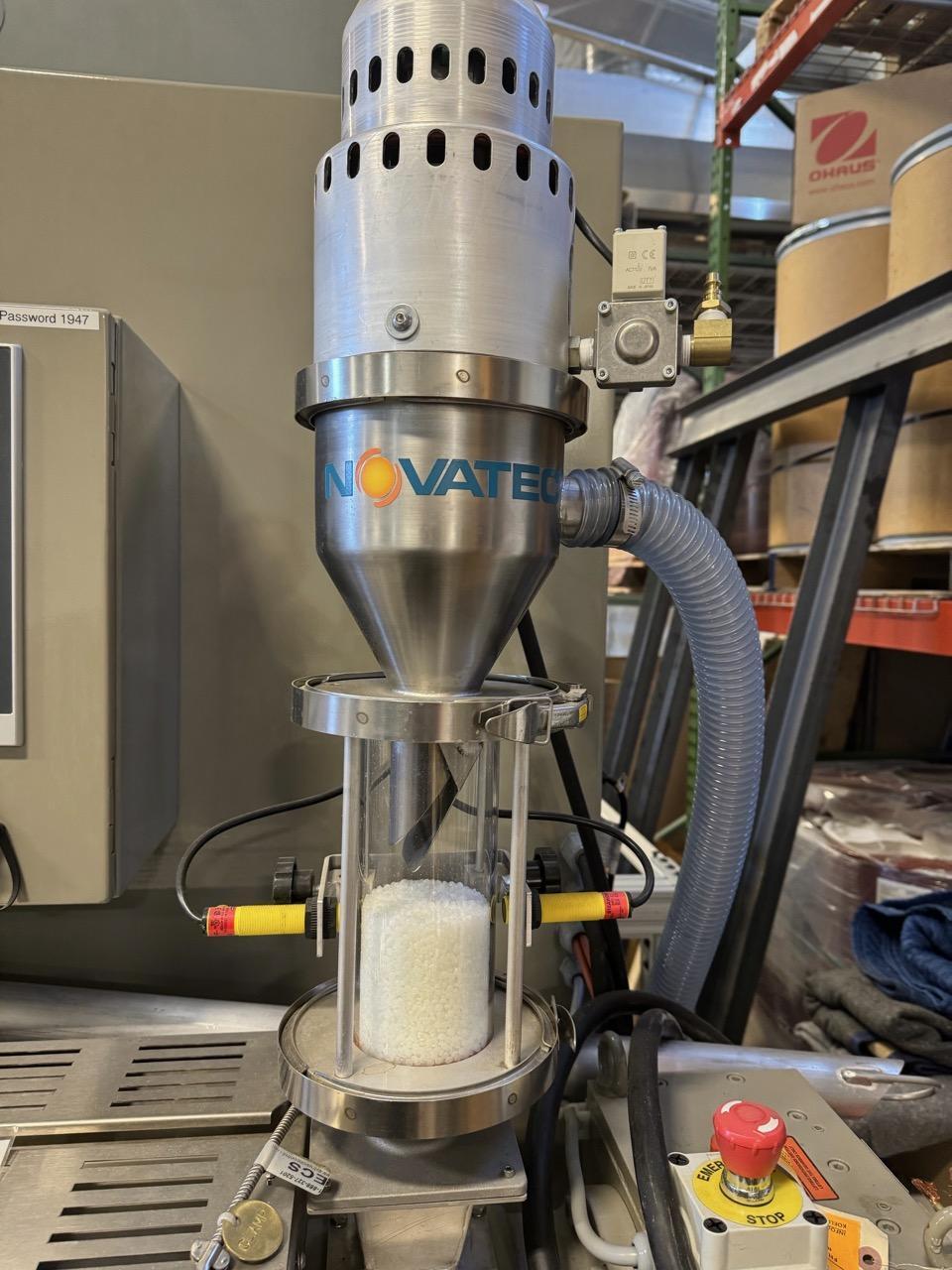

Screw Diameter: 1.25″ Length‑to‑Diameter (L/D) Ratio: 24:1 Motor HP: 7.5 HP Motor Type: AC Vector Duty, 1800 RPM, TE‑NV Gearbox: 11 HP rated at 100 RPM, 1.5 service factor, rear-mounted thrust bearing Barrel Zones: 3 heating/cooling zones Heater Max Temp: 900 °F process Barrel Liner: Xaloy 3690 or equivalent bimetallic Screw Material: Inconel 625 billet with Colmonoy 56 hard facing Clamp / Breaker Plate: Heated, hinged, single bolt clamp, Inconel or Hastelloy breaker plate Feed Section: Full surround water-cooled, PTFE impregnated bronze bushing, Inconel/Hastelloy liner Hopper: 1.0 ft³ stainless steel square with slide gate and dump chute Electrical Power: 460 V 3‑Phase, 60 Hz, 120 V control, die transformer 230 V 1‑Phase Ambient Temperature: 50–104 °F Relative Humidity: 60% max Control System: Navigator® Light Control with industrial PC, 15.7″ touch display, EtherCAT® field bus, soft‑PLC, recipe manager, data logging, diagnostics

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,• Air‑Cooled Barrel with High Capacity Blow‑On Cooling • Heated Clamp / Breaker Plate • Feed Section with Water Jacket and Needle Valve • Drive: V‑Belt to 100–125 RPM with adjustable motor base • Melt Pressure and Temperature Monitoring • Closed Loop Temperature Control
