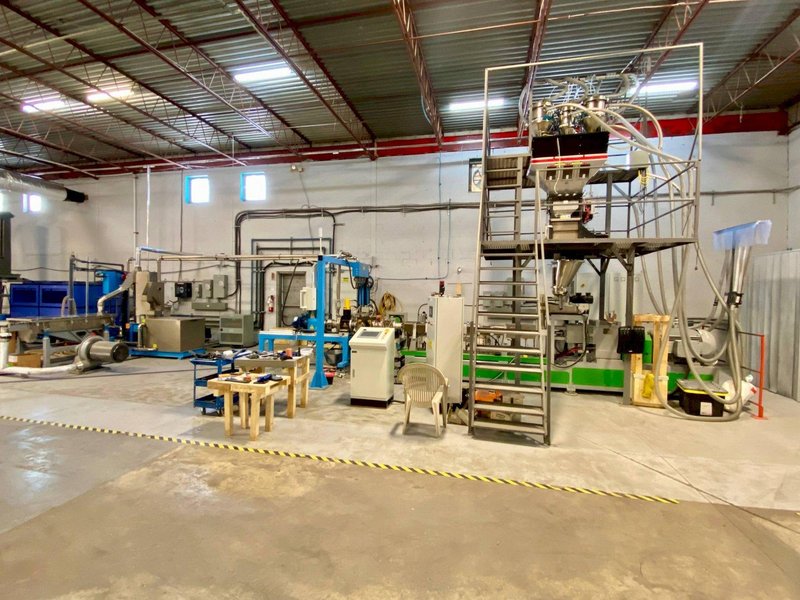

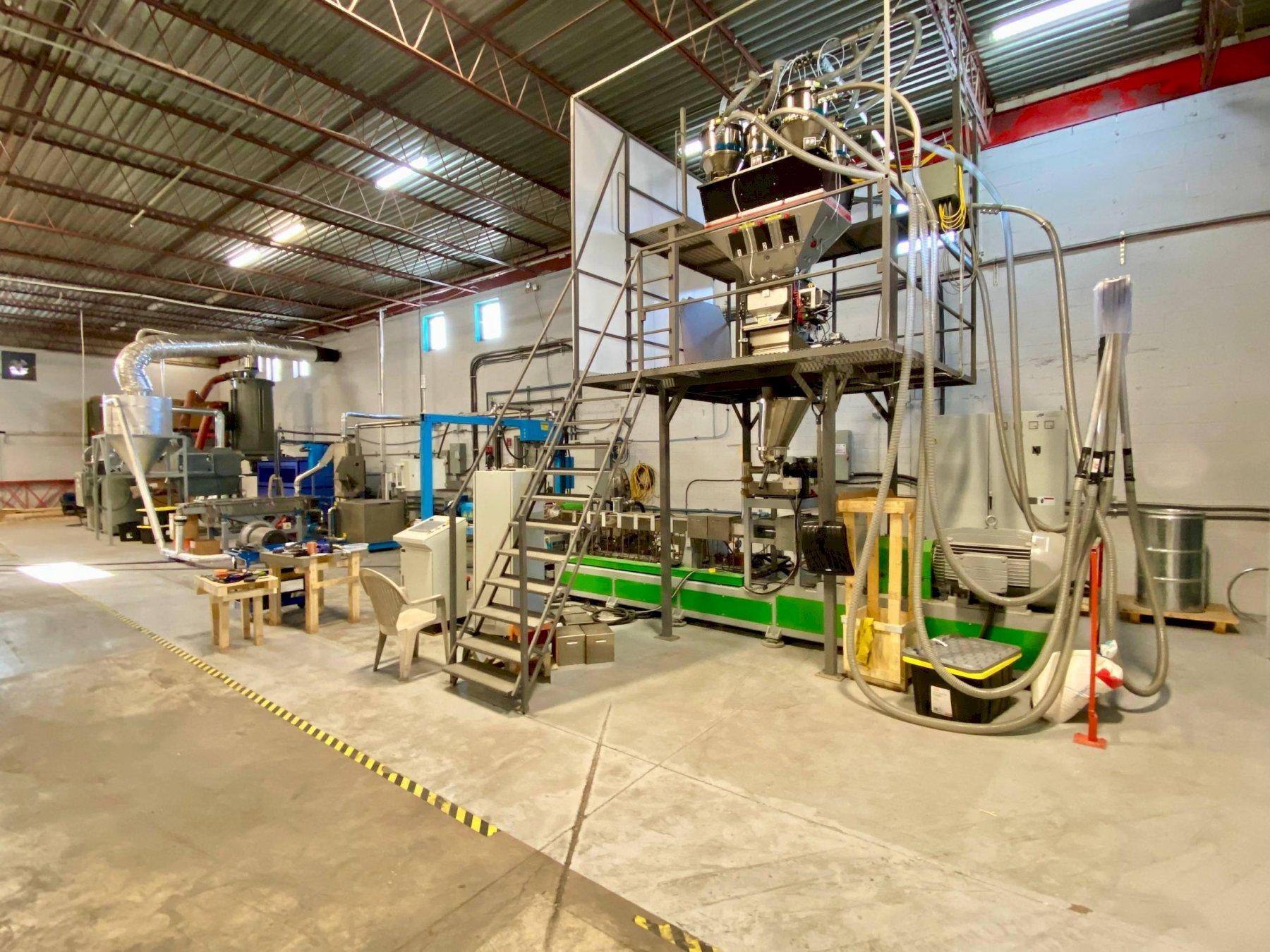

Xinda SHJ-65 Twin-Screw Compounding / Reactive Extrusion Line with Underwater Pelletizer, 2023

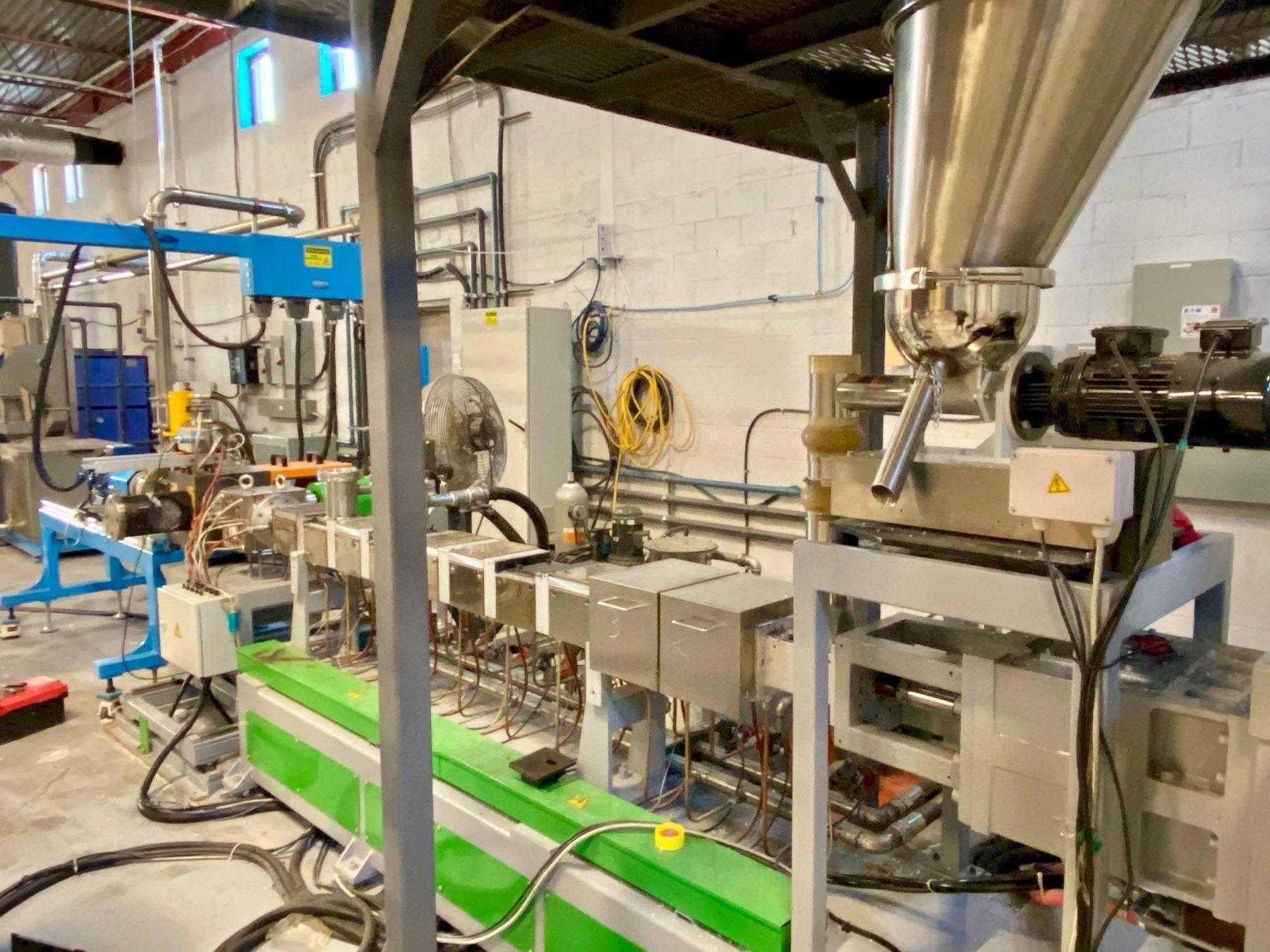

Main Extruder

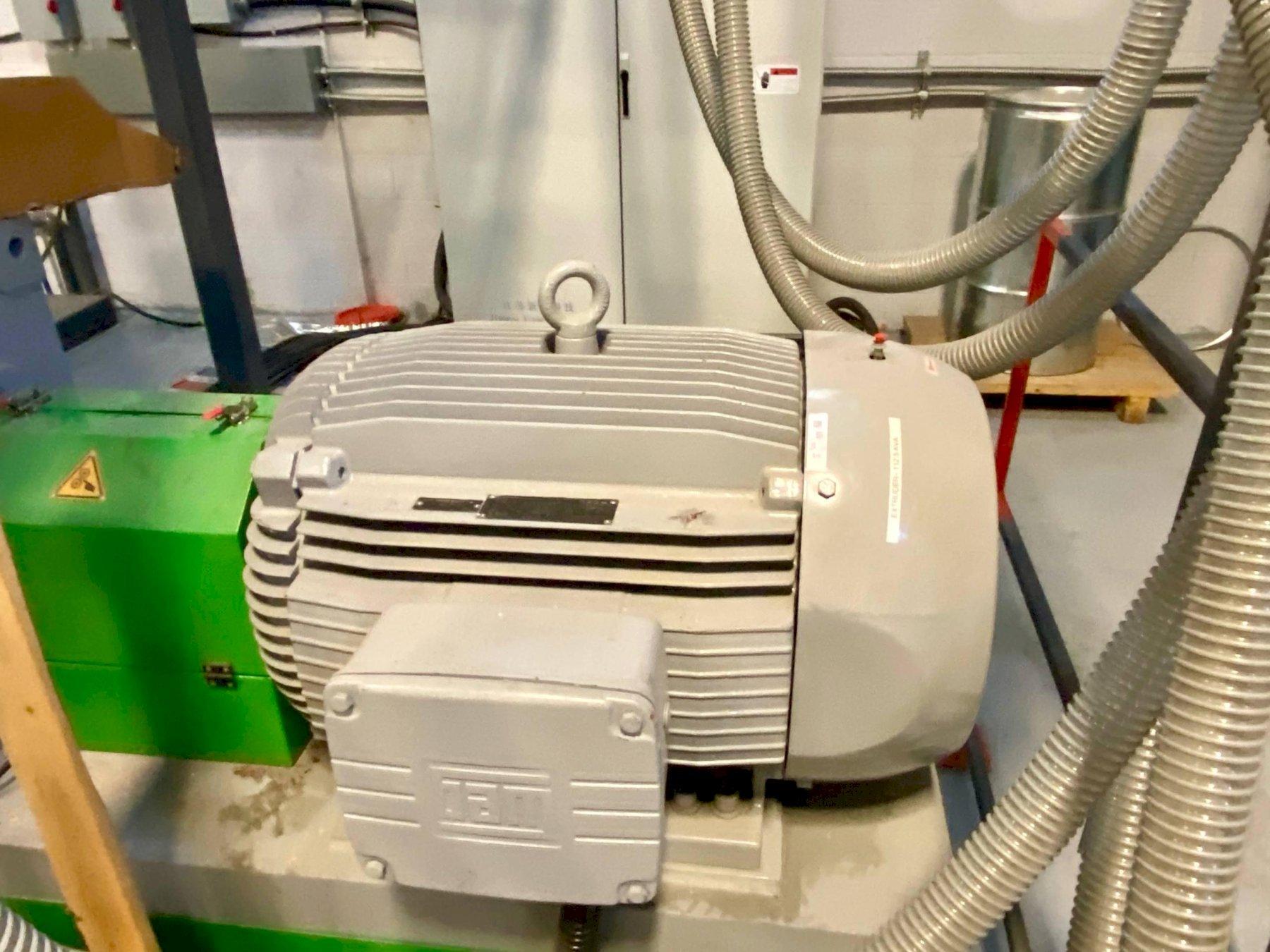

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Model: Xinda SHJ-65 Screw diameter: 65mm Main drive motor: 90 kW (WEG brand) Main drive inverter: Schneider brand Vacuum degassing: dual-port system (barrels 8 & 10), water-recycling vacuum pump (3 kW)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Melt Pump

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speed: 10–60 RPM (variable) Drive power: 11 kW (Schneider inverter) Heating: electric, 4 kW Pump body: high-temp alloy steel; Gear material: M2 Dual connector configuration (melt pump or screen changer)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Screen Changer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Single-column, double-piston, hydraulic Filter diameter: 154mm Max working pressure: ≤35 MPa Heating: 7.5 kW Includes hydraulic station (2.2 kW motor)

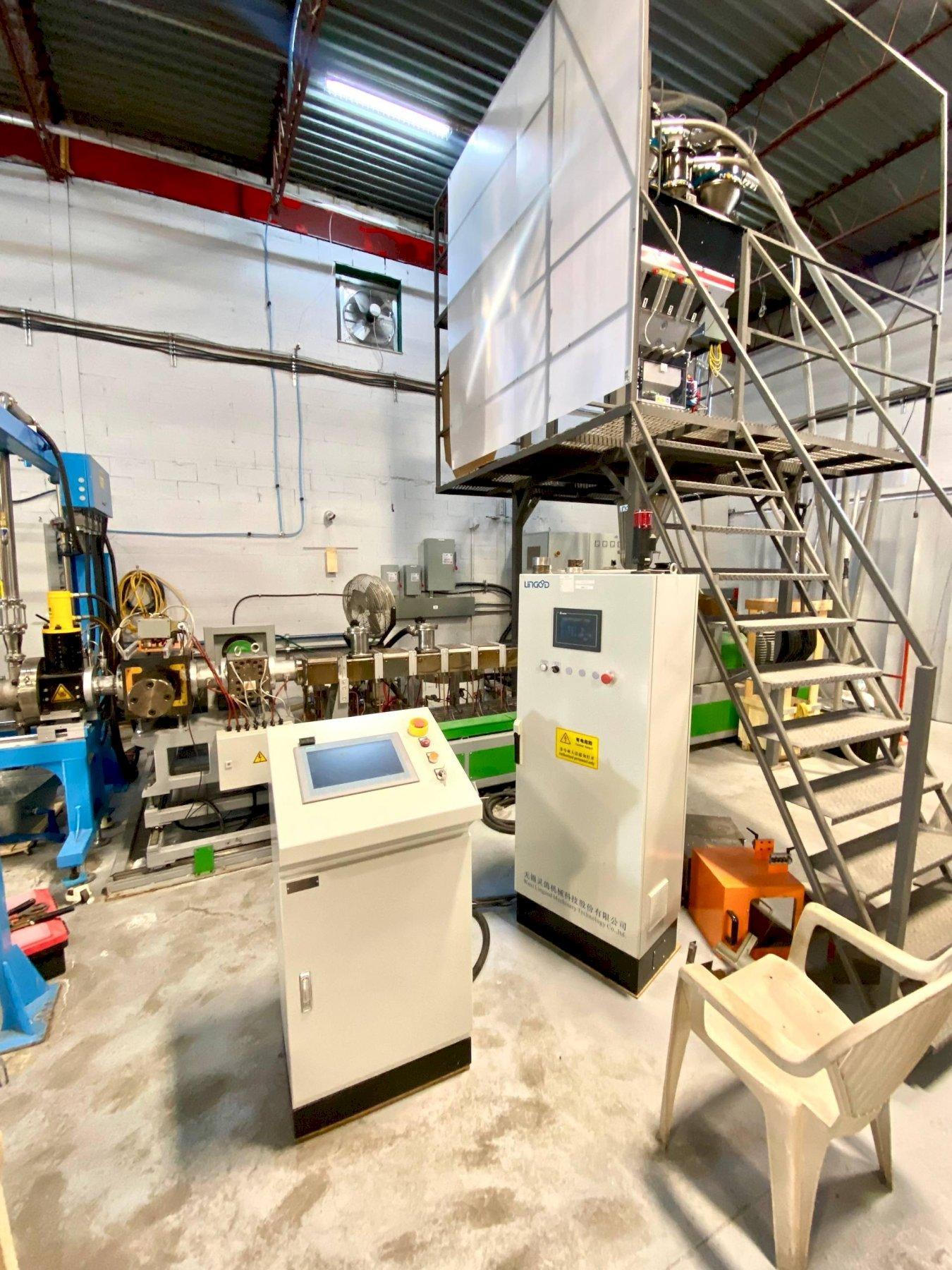

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,PLC: Siemens SIMATIC S7-1200 HMI: WEINVIEW touchscreen Interlocks: motor/lube/feeder/fan Low-voltage components: Siemens, Schneider, ODE Certified: CE; meets CSA / UL standards All inverters: Schneider brand (main, feeder, melt pump, pelletizer)

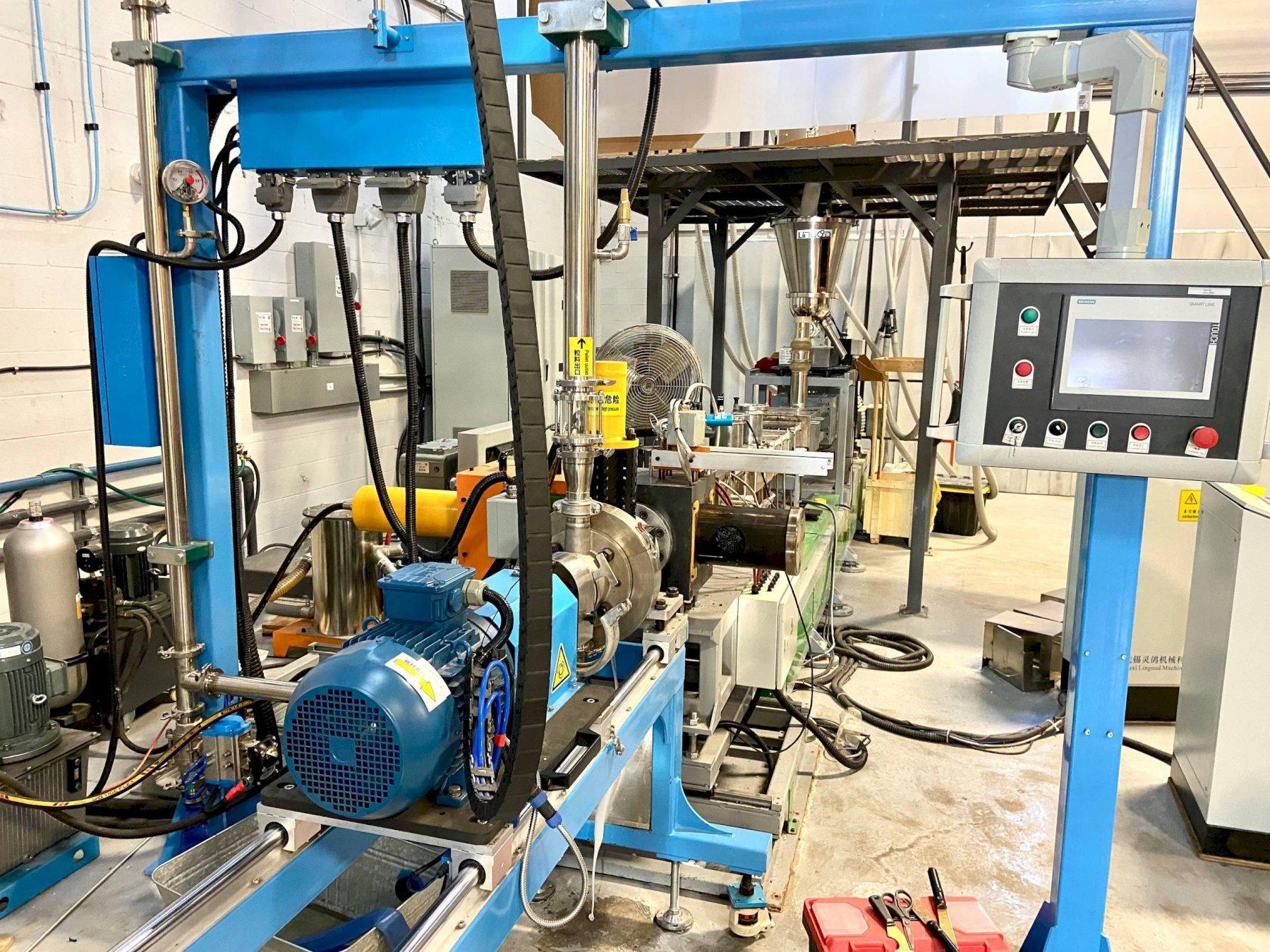

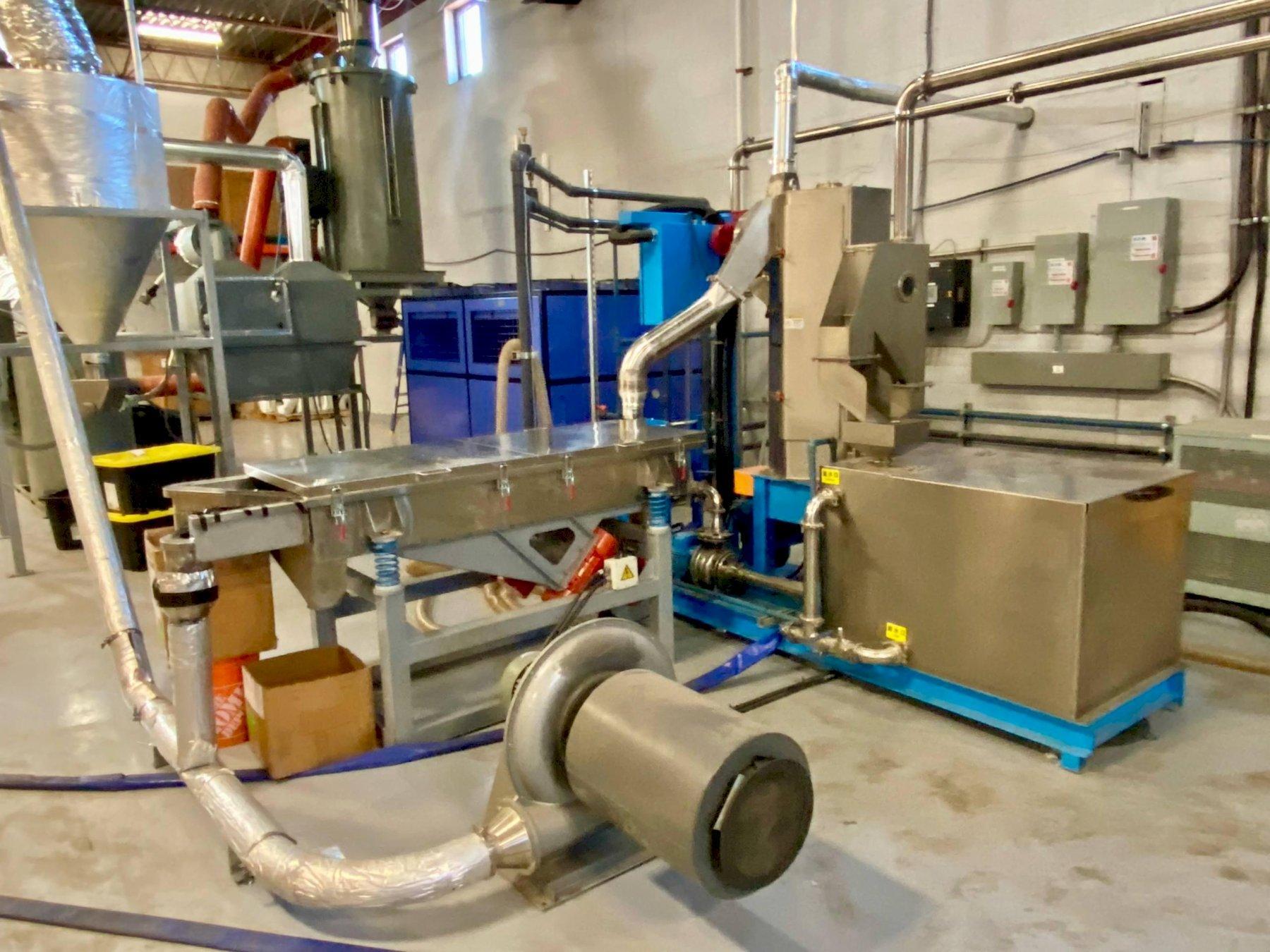

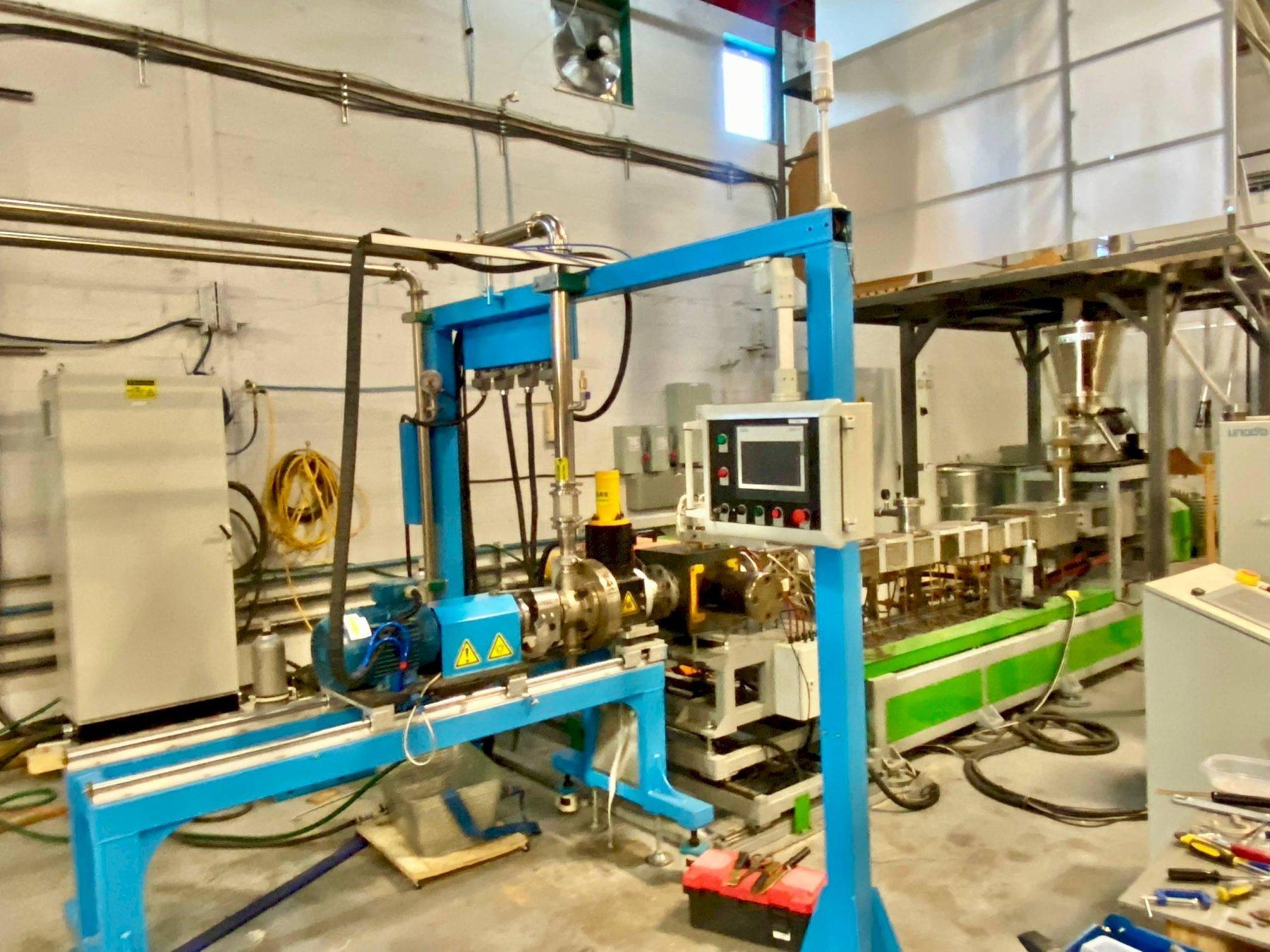

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Underwater Pelletizing Unit — UWP95

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2023 | Condition: Like New Pelletizer motor: Siemens 5.5 kW, model PA95 (max 2,840 RPM) Cutting: 6-blade shelf; ABB inverter; Omron PLC Diverter valve: hydraulic station (3 kW), melt pressure sensor (0–350 bar), PT100 sensor Water system piping: SS 304, 76mm diameter, 16m length; 3 pneumatic ball valves Water tank: WT-10, 0.8 m³, with filtration; 24 kW heating; auto-fill Water pump: 30 m³/hr flow (manual adjustable) Spin dryer: Siemens 5.5 kW motor, ABB inverter; <60 dB noise Vibration sieve: separates irregular granules, assists cooling

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Voltage/Frequency: 460V / 3-Phase / 60Hz High-voltage cable protection: corrugated PVC-coated liquid-tight flexible metal conduit
