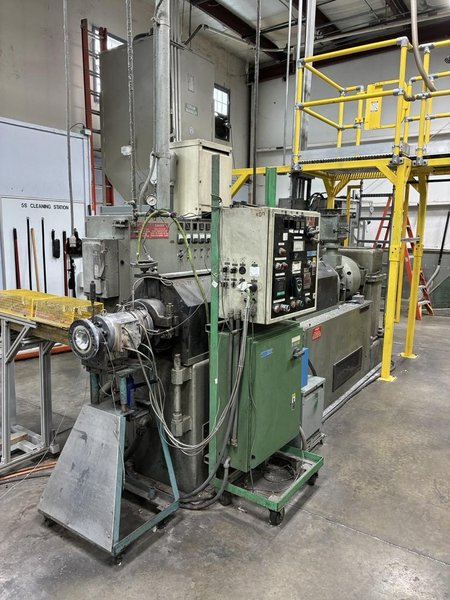

4-1/2″ Plastics Extruder – 24:1 L/D, 150 HP, Melt Pump, Mixing Screws

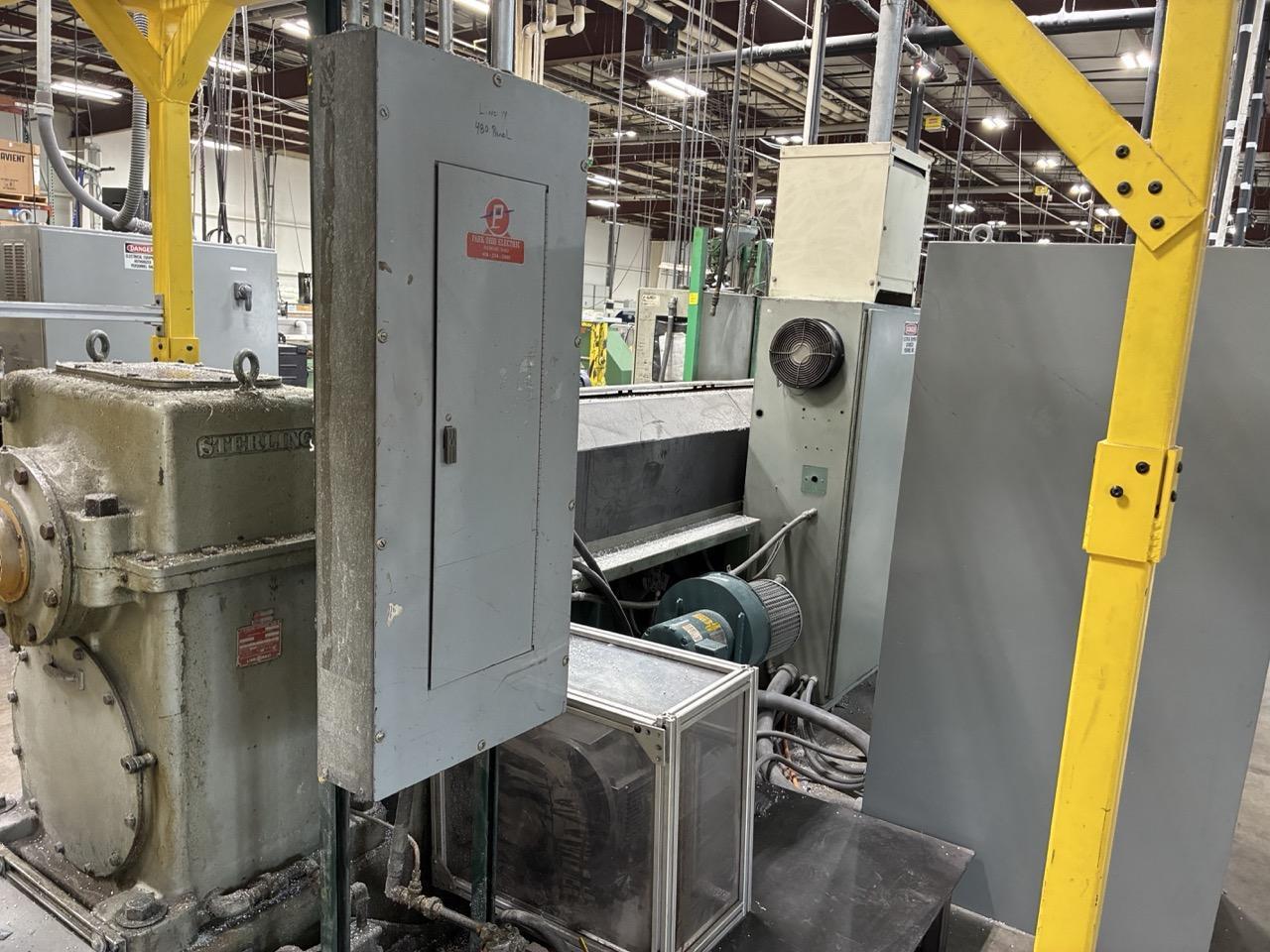

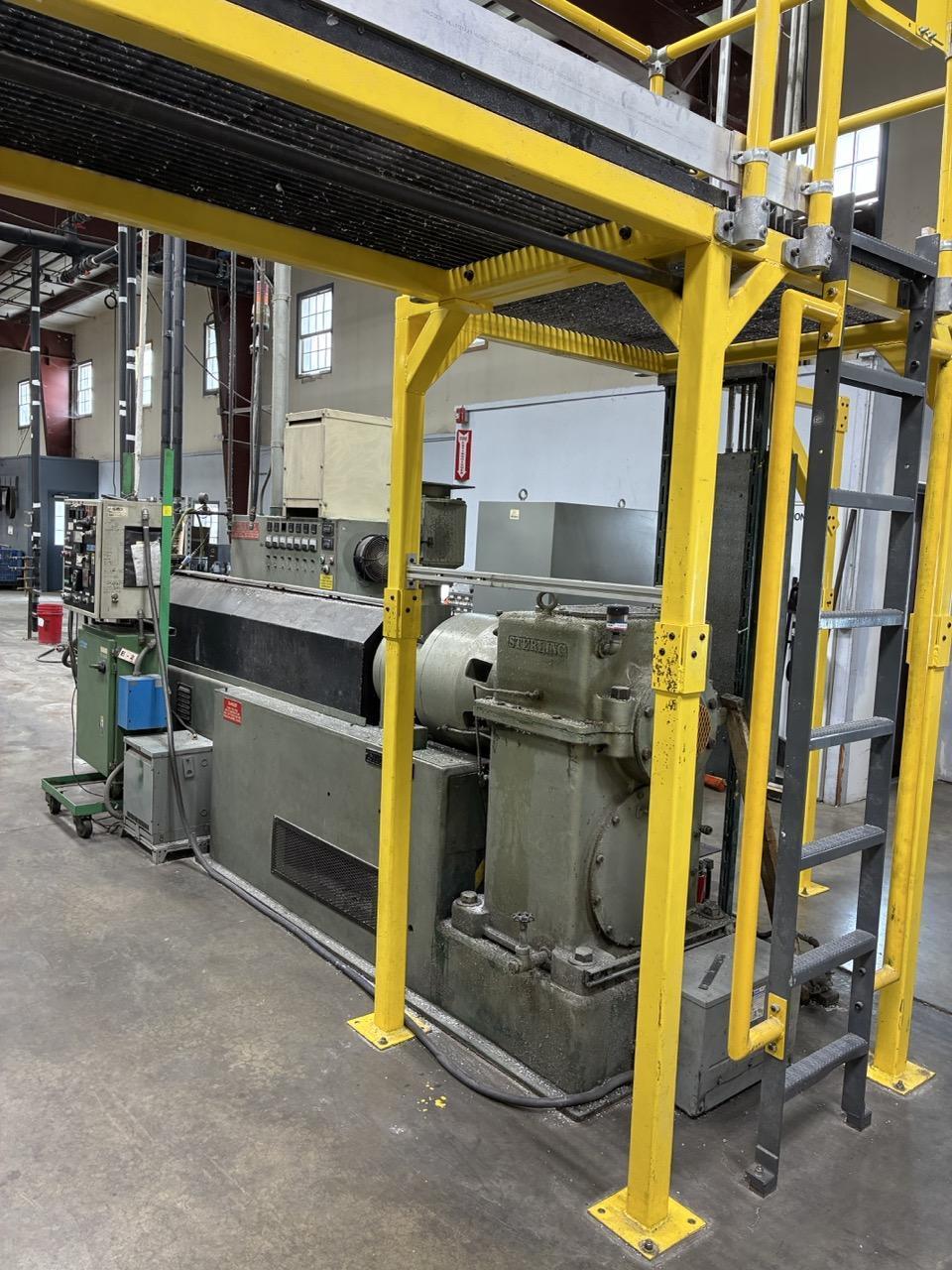

4.5″ Sterling plastics extruder equipped with a herringbone gear drive and 150 HP motor, designed for consistent melt quality and high-output processing. Featuring a 24:1 L/D ratio with both pumping and mixing screws, this unit is well suited for plastic compounding, extrusion, and continuous processing applications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Plastics Extruder Screw Diameter: 4.5″ L/D Ratio: 24:1 Drive Type: Herringbone Gear Drive Motor Power: 150 HP Gearbox Model: VSY60-62 Gear Ratio: 17:1 Input Speed: 1750 RPM Service Factor: 1.43 AGMA Rating: 150 HP Load Class: 2 Lubrication Capacity: 19 Gallon Temperature Range: 50° To 125°F

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Melt Pump Herringbone Gear Drive System Pumping Screw Mixing Screw Heavy Duty Gearbox Industrial Extrusion Frame Continuous Processing Design
