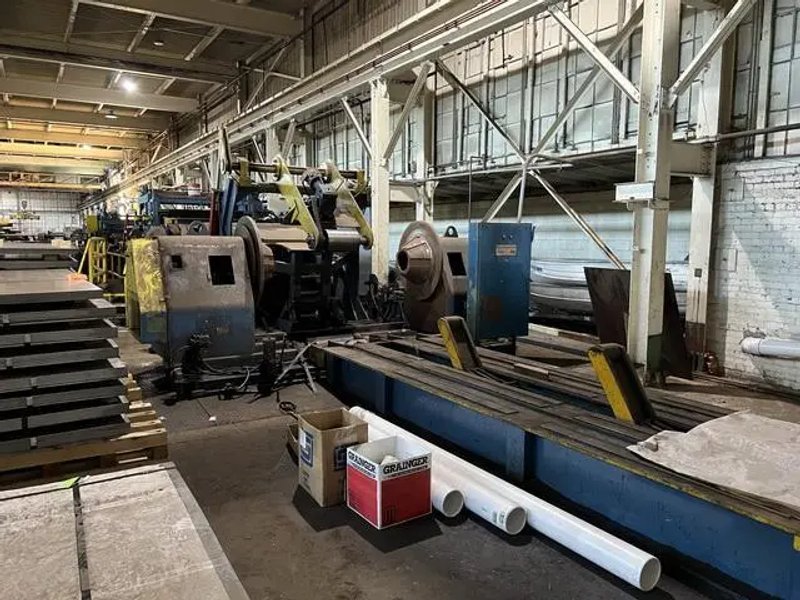

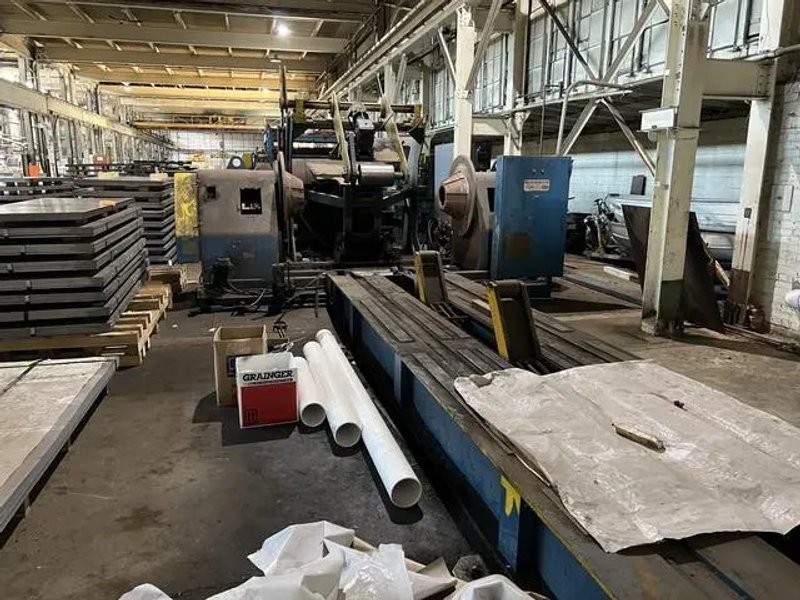

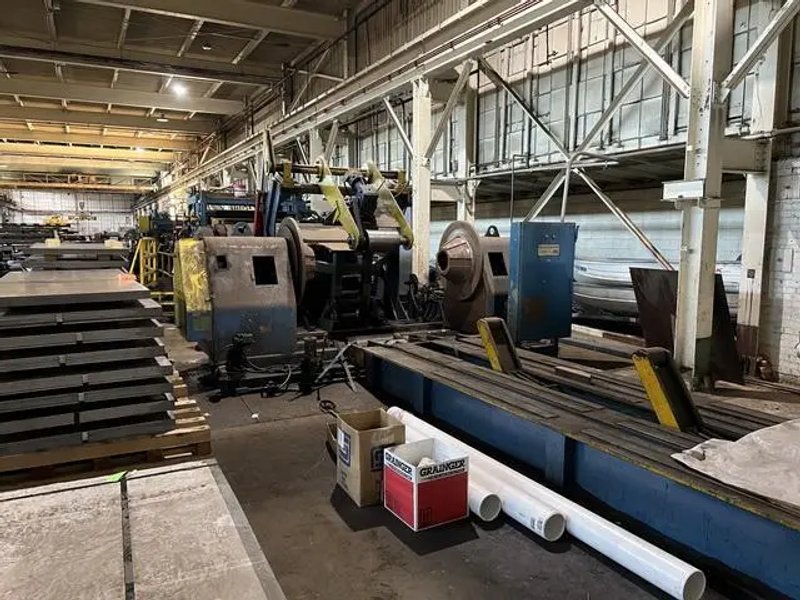

72" x .200" x 50,000# Voss cut to length line, Stock# 10962

72" x .200" x 50,000# Voss cut to length line, Stock# 10962

Name: Used Voss Cut To Length Lines For Sale 10962
Brand: Voss
SKU: 10962
Availability: PreOrder

Brand

Voss

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Cut To Length Lines

Manufacturer:

VOSS

Stock #:

10962

Status:

For Sale

Description

VOSS Cut To Length Line, used, max coil width 72", weight 50,000#, thickness .047"-.200", speed 50-150FPM. Includes uncoiler, edge guides, leveler, motorized tilt, high-speed shear, and stacker. Durable and efficient for high-capacity needs.

Specifications

Brand: Voss

Specifications:
Max Coil Width: 72"
Max Coil Weight: 50,000#
Thickness Range: .047"-.200"
Line Speed: 50-150FPM
Coil ID Range: 20"-28"
Max Coil OD: 72"
Max Stack Length: 252"

Complete with the Following Components:

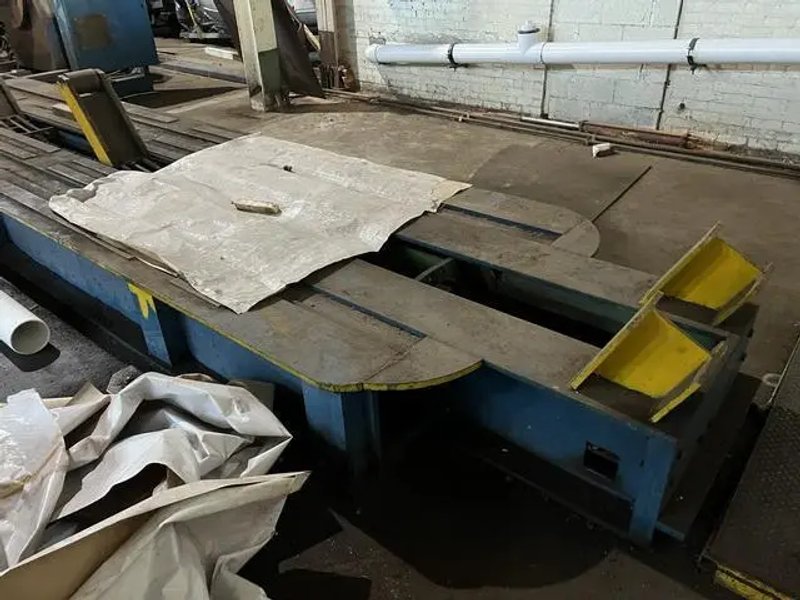

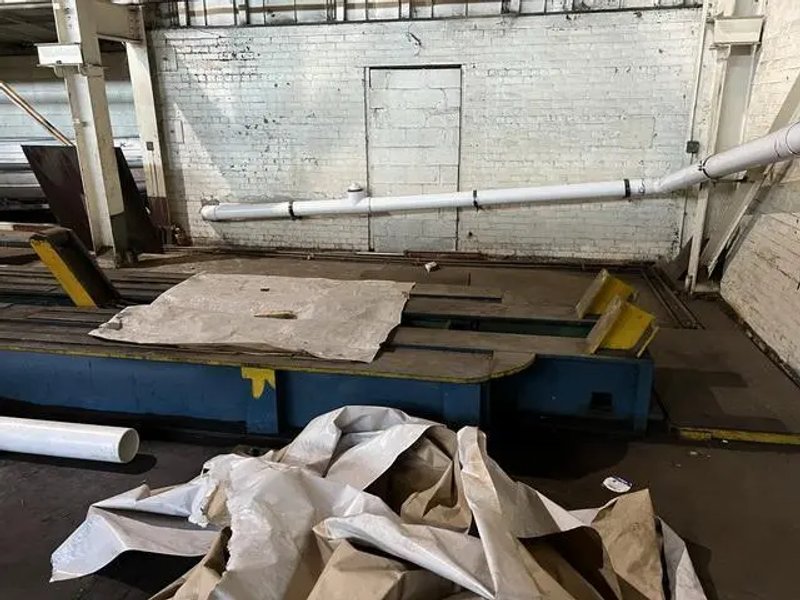

Entry Coil Staging Ramp
Coil Lift

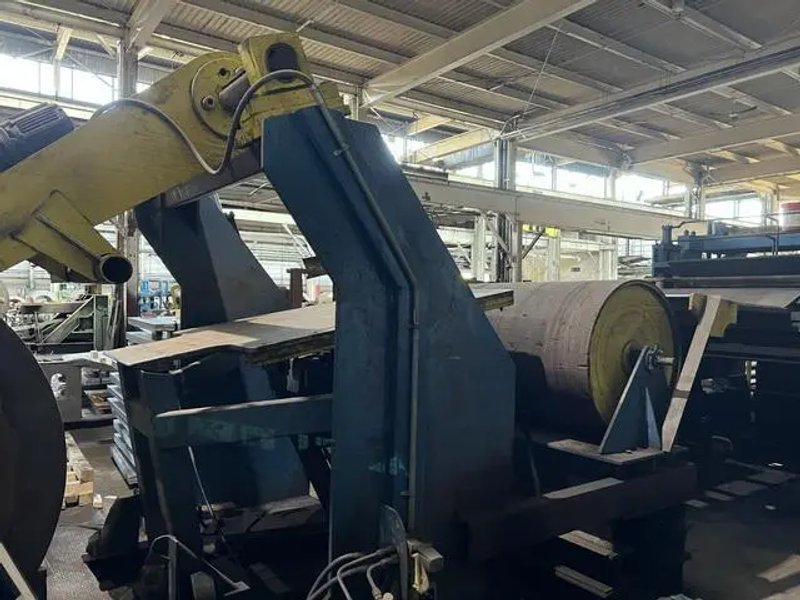

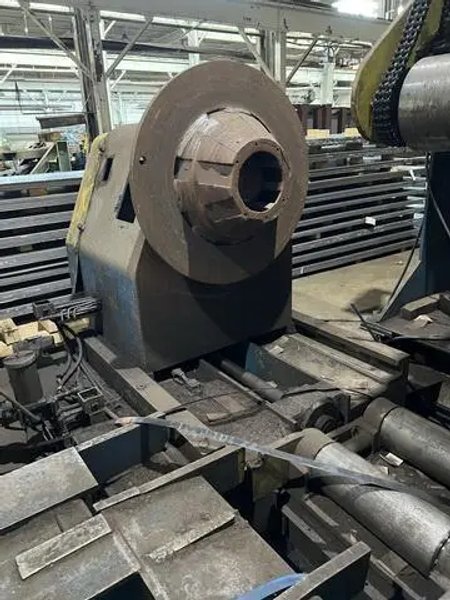

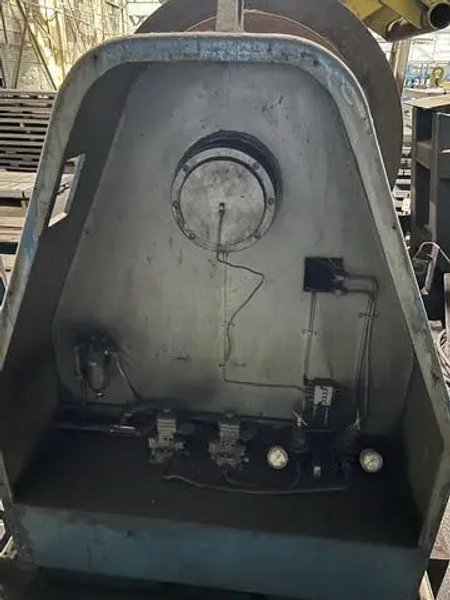

Double Cone Uncoiler
Sliding Bases

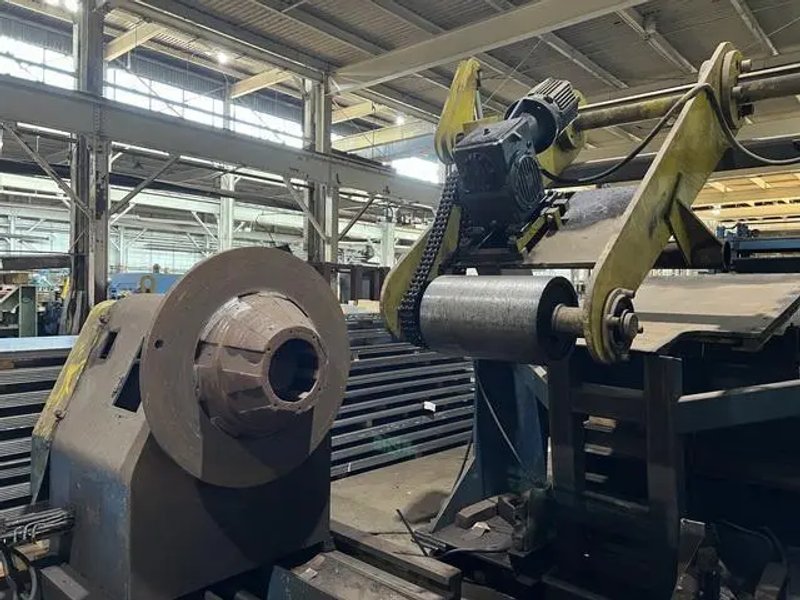

Peeler and Hold Down Roll

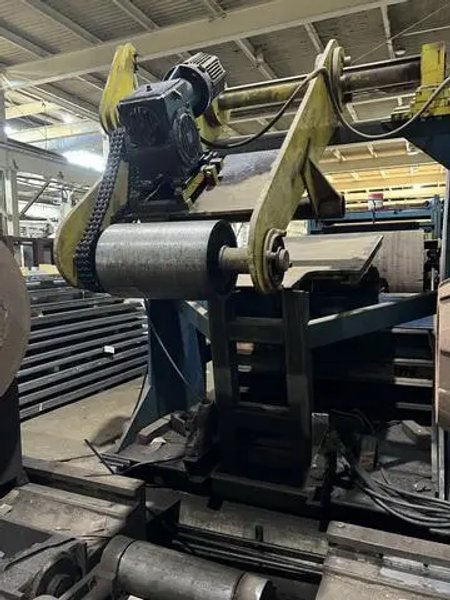

Powered Hold Down Roll
Pass Line Roll
Edge Guides
Pinch Rolls
Flattener
Five Powered Rolls

Pit
Pass Line Roll
Edge Guides
Pinch Rolls

Voss Leveler
Model: 84/2.687-17/5RH
4HI Leveler
17 Rolls
Roll Diameter: 2.687"
Roll Face: 84"
5 Flights of Back Ups
3 Flights of Back Ups with Independent Adjustments
Motorized Tilt

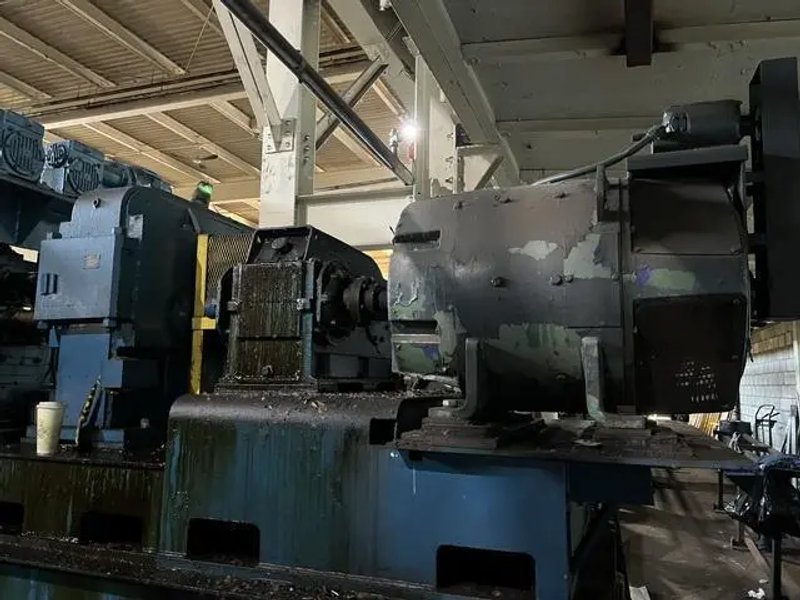

75HP DC Motor
Encoder
Wysong High Speed Shear
Bow Tie Blade
Conveyor
Drop Type Stacker
Side Discharge

Currently Installed
