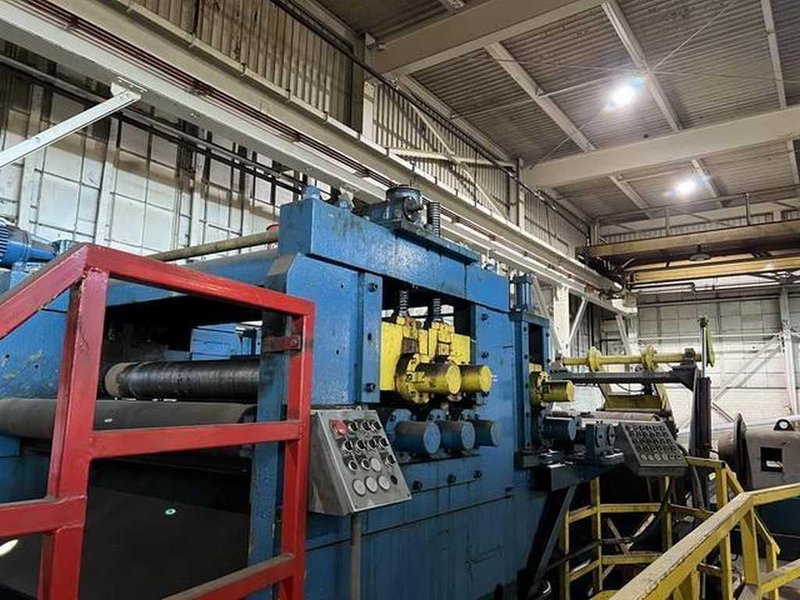

72" x 0.200" x 50,000# Voss Cut To Length Line STOCK# 3468

Brand
Voss
Category
Coil Handling Equipment
Type
Cut To Length Lines
Model
Not specified
Stock #
3468
Year
Not specified
Condition
Good

Location

Ohio
Maximum Coil Width:                72"
Maximum Coil Weight:               50,000#
Thickness Range:                   0.047" - 0.200"
Line Speed:                        50 - 150 FPM
Coil ID Range:                     20" - 28"
Maximum Coil OD:                   72"
Maximum Stack Length:              252"

Consisting of the following:

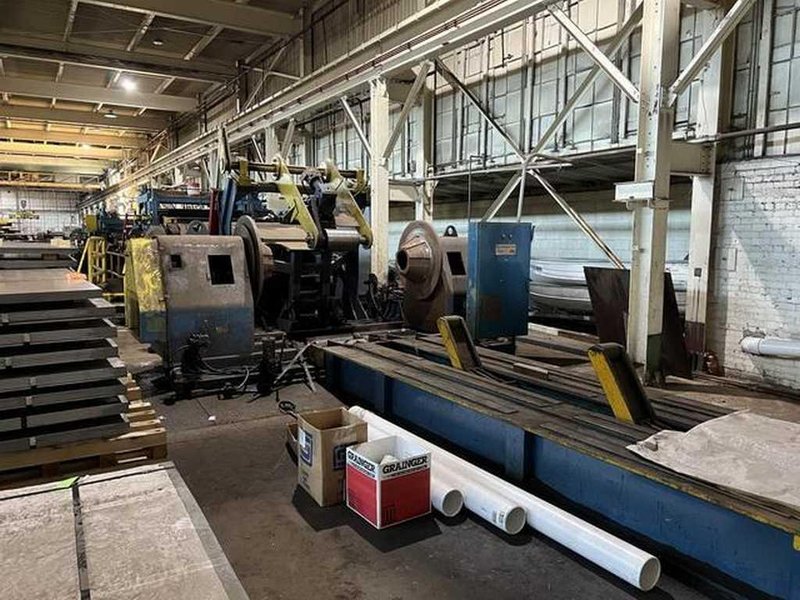

-Entry Coil Staging Ramp

-Coil Lift

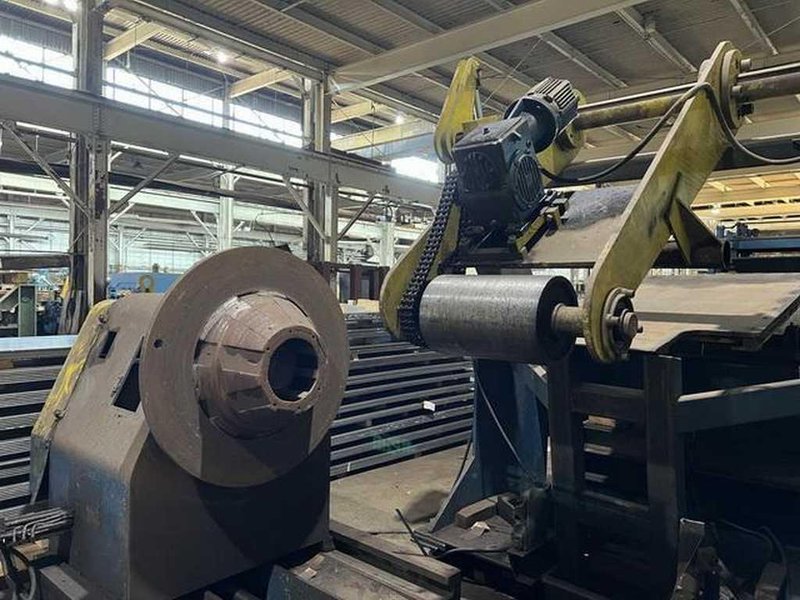

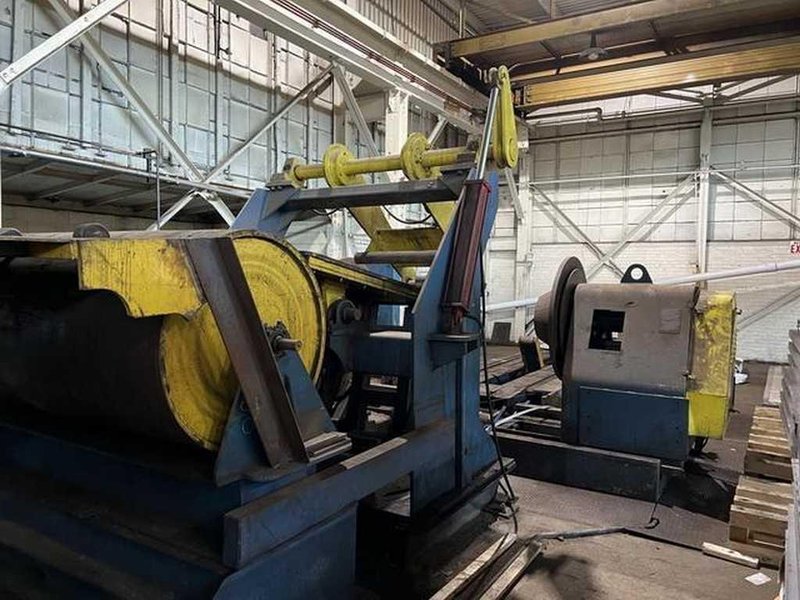

-Double Cone Uncoiler:
  Sliding Bases

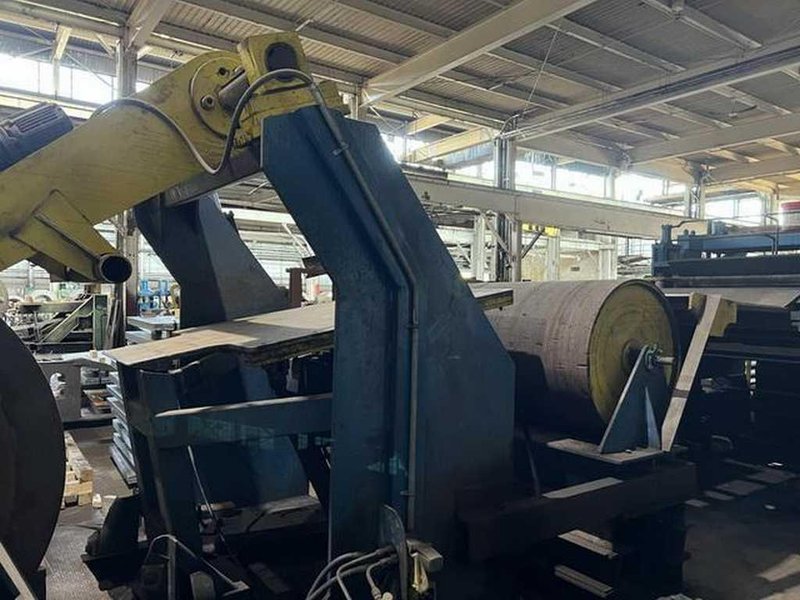

-Peeler and Holddown Roll:
  Powered Holddown Roll
  Pass Line Roll

-Edge Guides

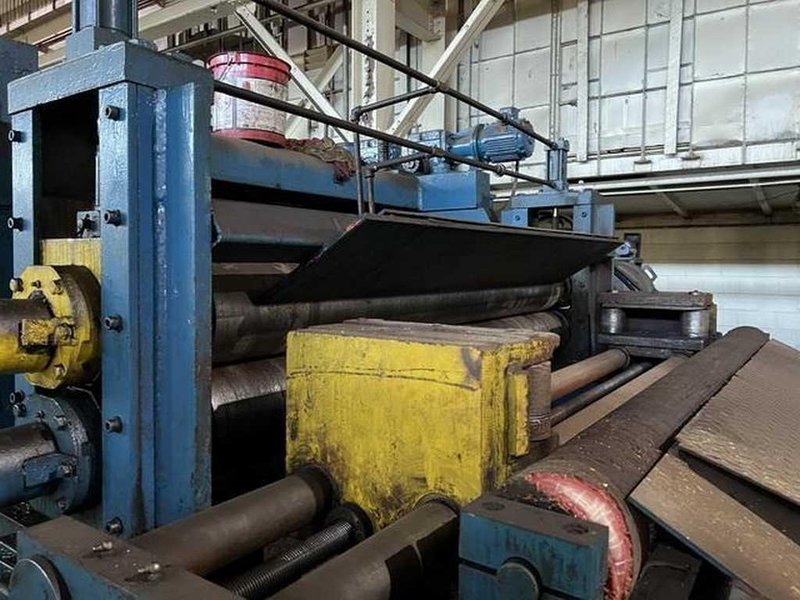

-Pinch Rolls

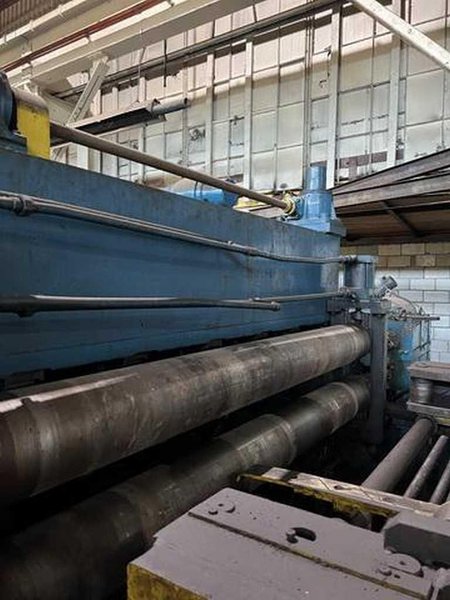

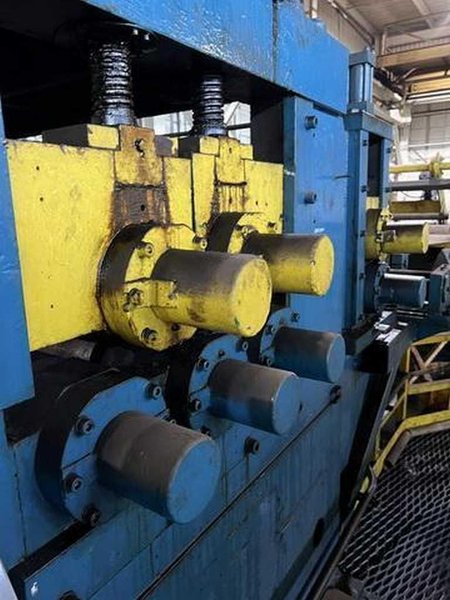

-Flattener:
  Five Powered Rolls

-Pit
-Pass Line Roll
-Edge Guides
-Pinch Rolls

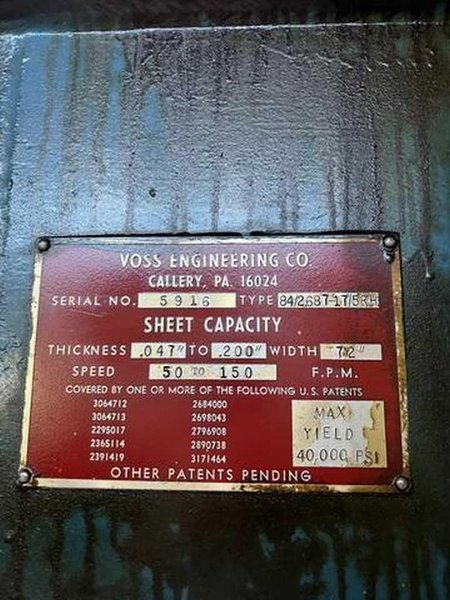

-Voss Leveler:
  Capacity: 0.047" - 0.200"
  Model:  84/2.687-17/5RH
  4 HI Leveler
  17 Rolls
  Roll Diameter:  2.687"
  Roll Face:  84"
  5 Flights of Backups
  3 Flights of Backups with Independent Adjustments
  Motorized Tilt

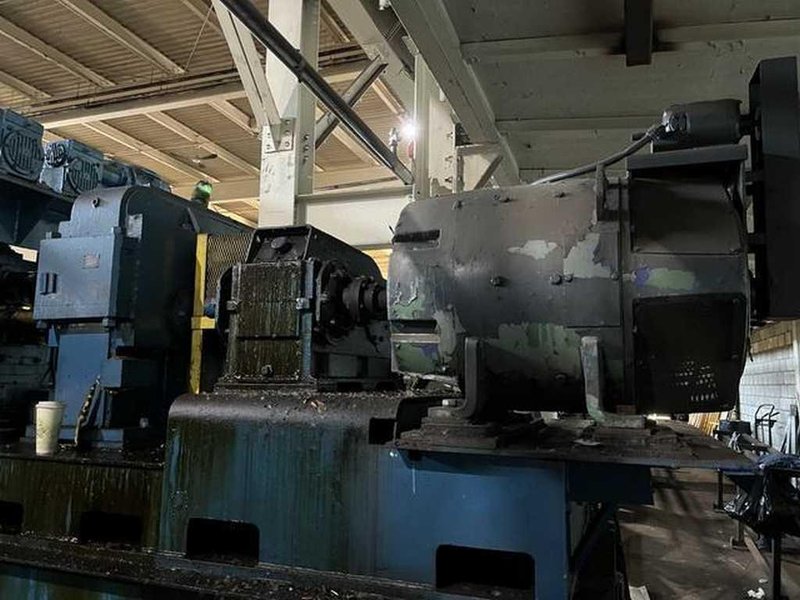

  75 HP DC Motor
  Encoder

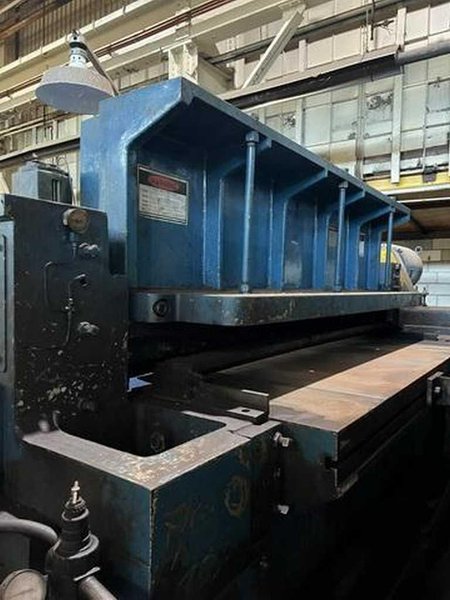

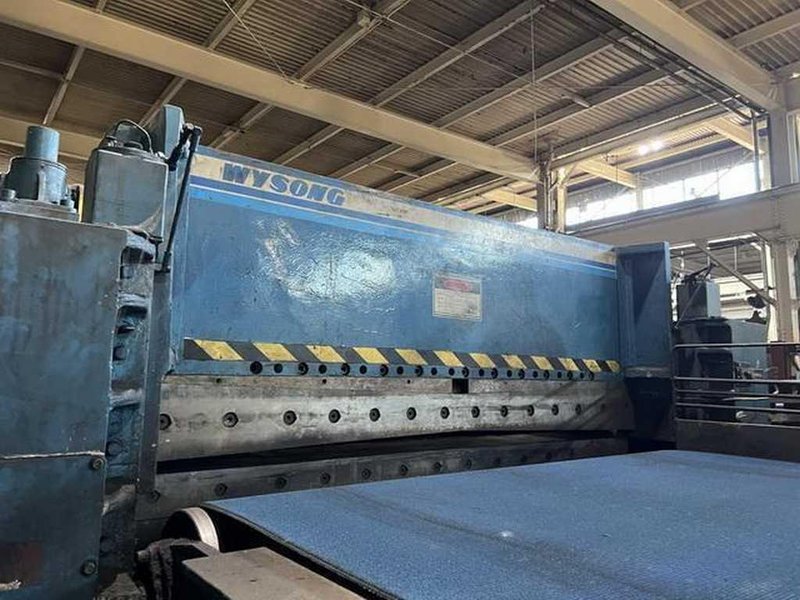

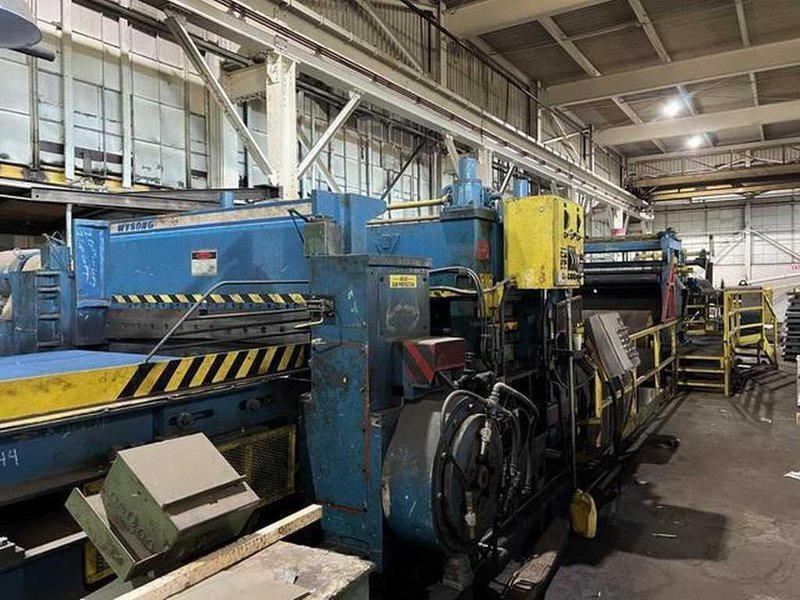

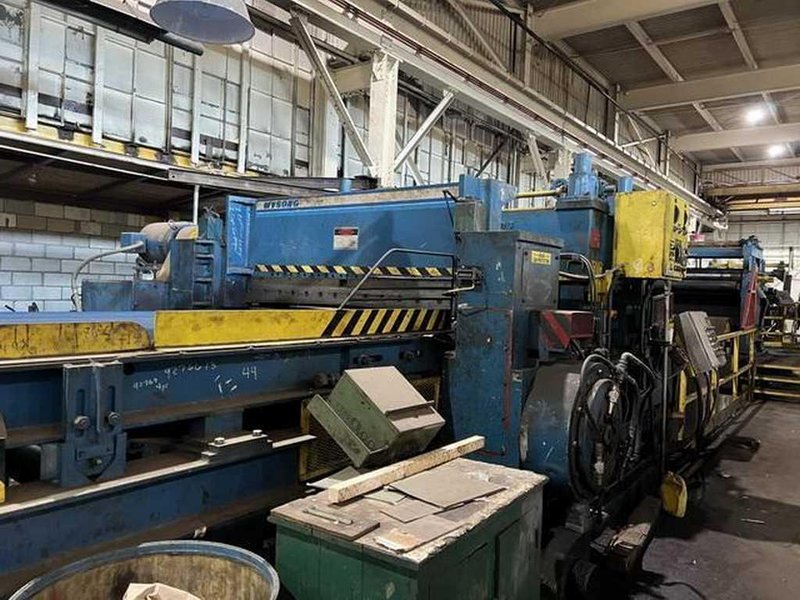

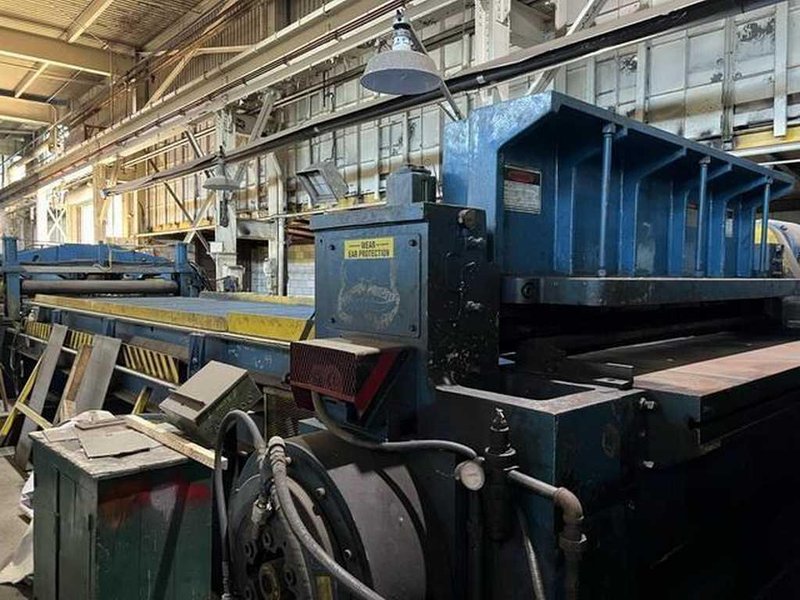

-Wysong High Speed Shear
  Bow Tie Blade

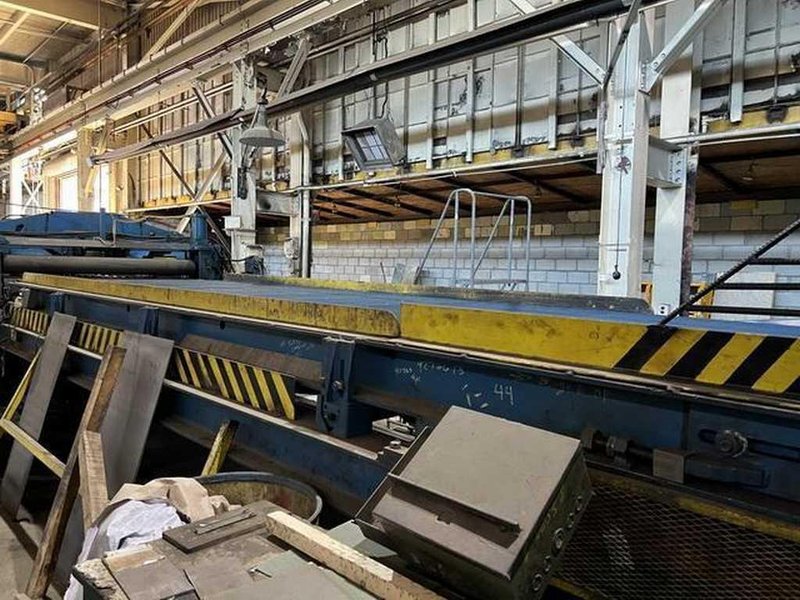

-Conveyor

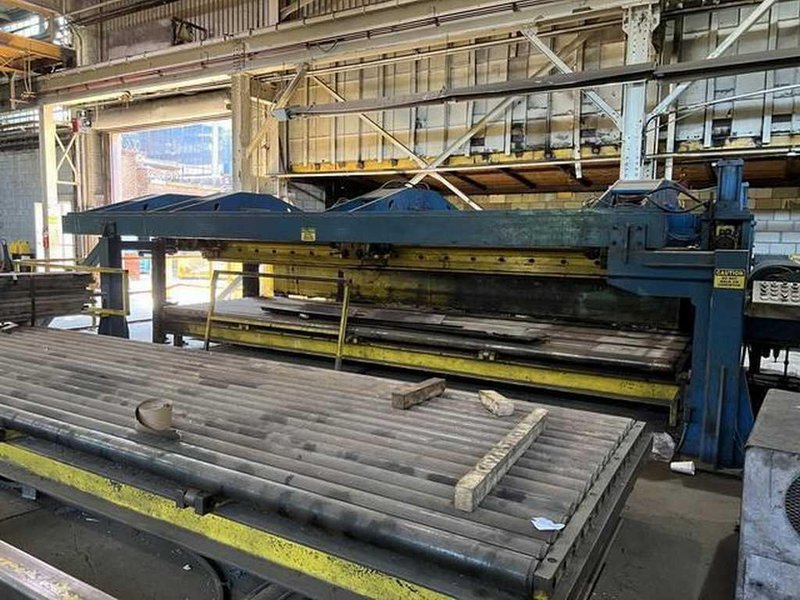

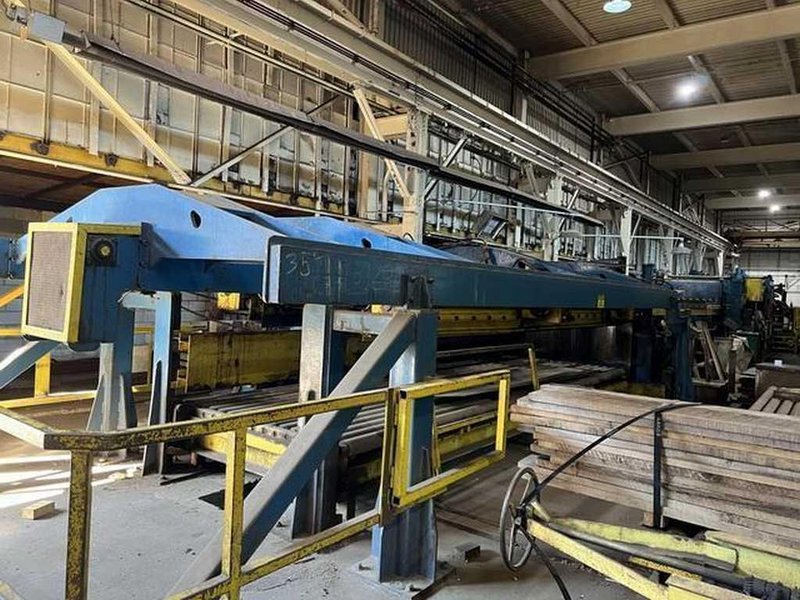

-Drop Type Stacker
  Side Discharge

-Installed
No files or videos to display
