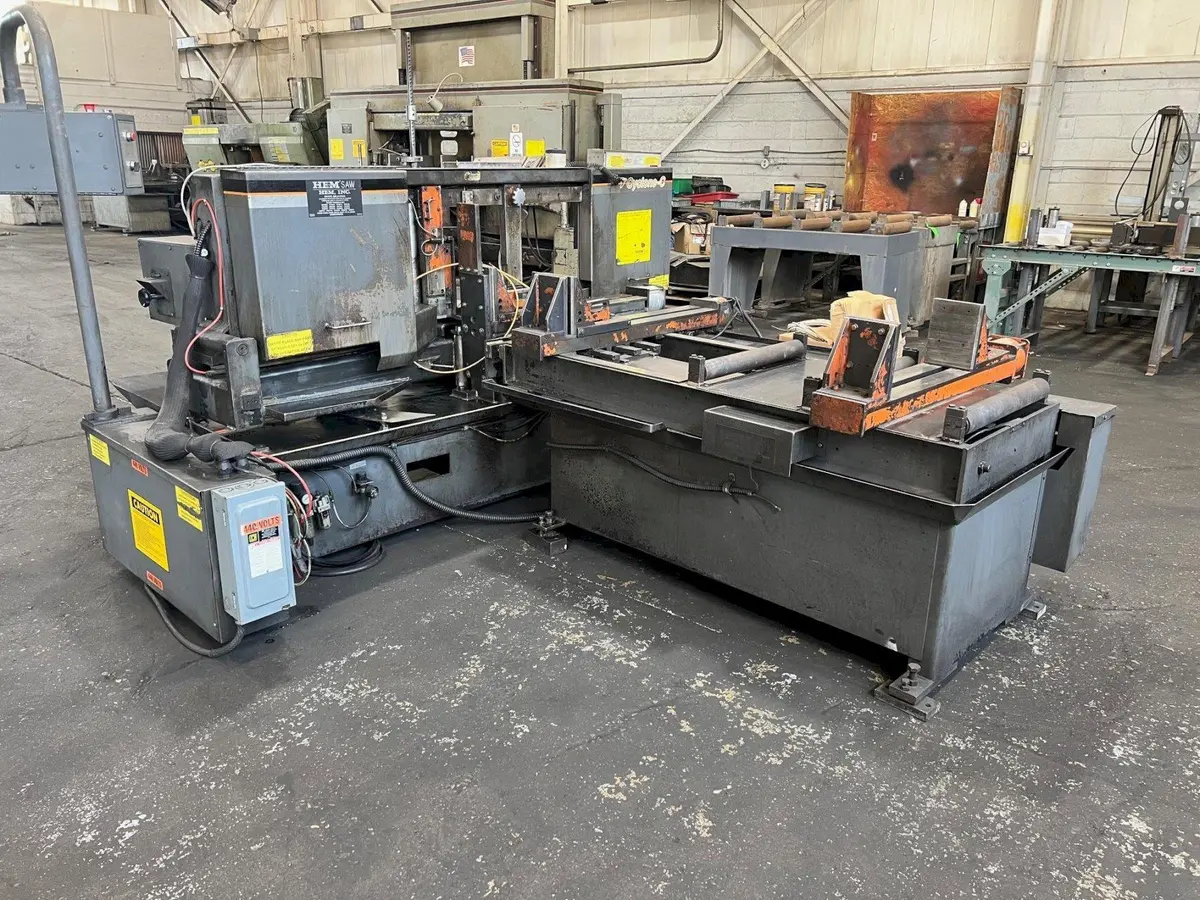

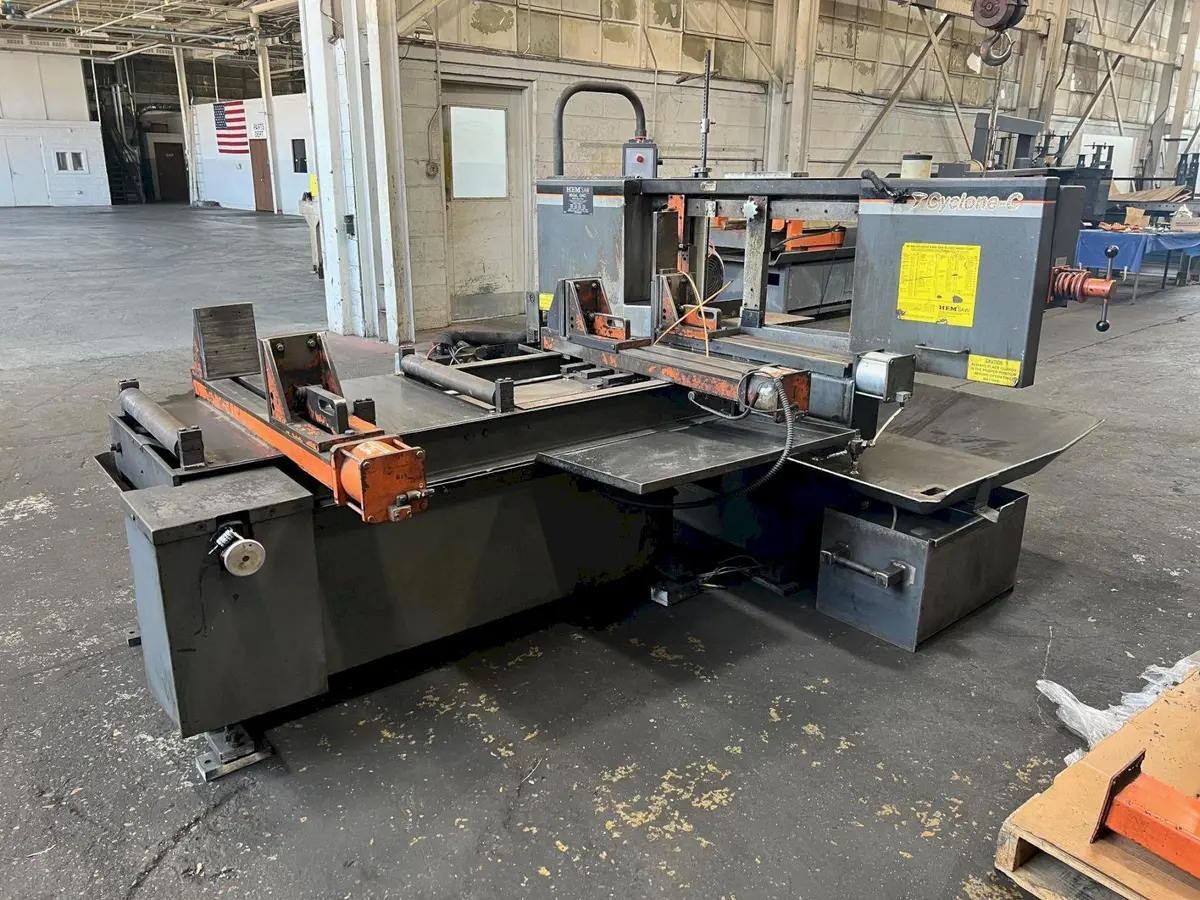

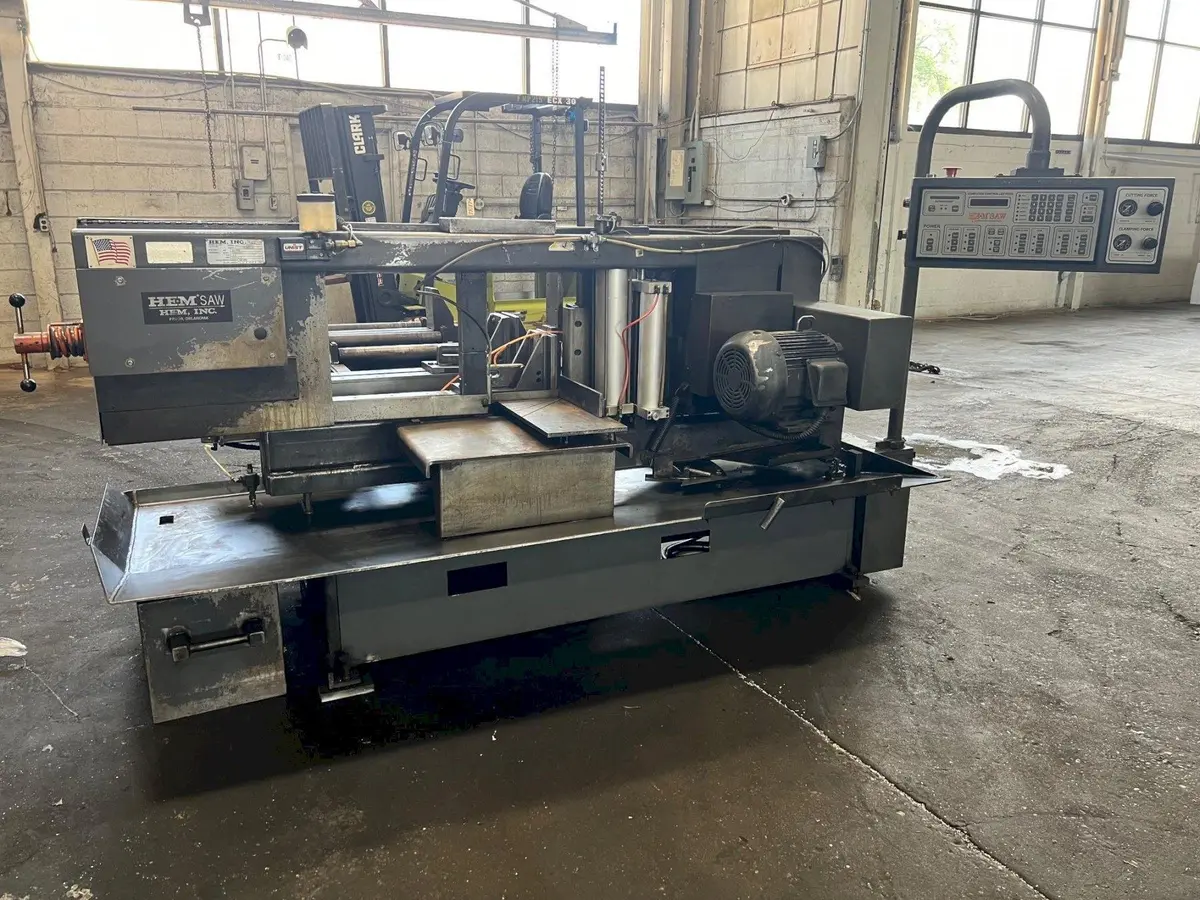

USED HEM 16" X 22" AUTOMATIC HORIZONTAL MITERING BANDSAW MODEL CYCLONE A-C, Year: 2007

USED HEM 16" X 22" AUTOMATIC HORIZONTAL MITERING BANDSAW MODEL CYCLONE A-C, Year: 2007

Name: USED HEM 16" X 22" AUTOMATIC HORIZONTAL MITERING BANDSAW MODEL CYCLONE A-C, Year: 2007
Brand: HEM
SKU: 11088
Availability: InStock

Brand

HEM

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Saws, Miter

Manufacturer:

HEM

Model:

CYCLONE A-C

Year:

2007

Stock #:

11088

Status:

For Sale

Description

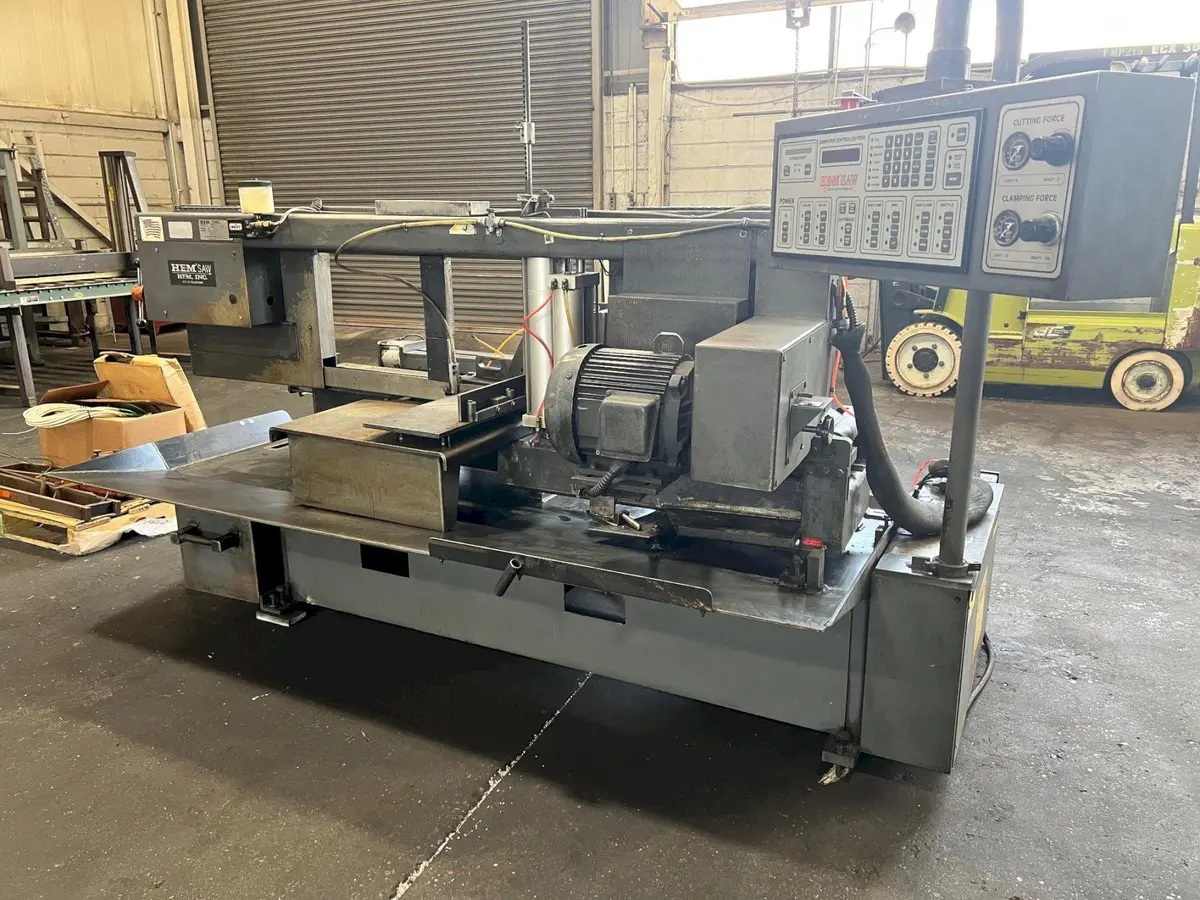

HEM Cyclone A-C miter saw, 2007 model, boasts 16"Hx22"W capacity at 90°, 7.5 HP blade drive, variable speed, and 3rd holding vise. Features include overhead clamps, movable control panel, mist lubrication, and more. Wired for 440V, excellent for versatile cutting tasks.

ImperialMetric

Rect-Cap (W)	22"	558.8 mm
Rect-Cap (H)	16"	406.4 mm
Power	7.5 hp	5.6 kW

Brand: Hem
Model: Cyclone A-C

Specifications:
Capacity @ 90 degrees: 16" H x 22" W
Capacity @ 45 degrees: 16" H x 15" W
Blade size: 1-1/4" x 16' x .042"
Blade wheel size: 19-3/8"
Blade drive: 7.5 H.P.
Blade speed: 60 - 300 FPM infinitely variable
Feed rate: 0 - 3 IPS
Blade guides: Carbide
Shuttle feed: 24" (4x multi index)
Air requirements: 85 PSI

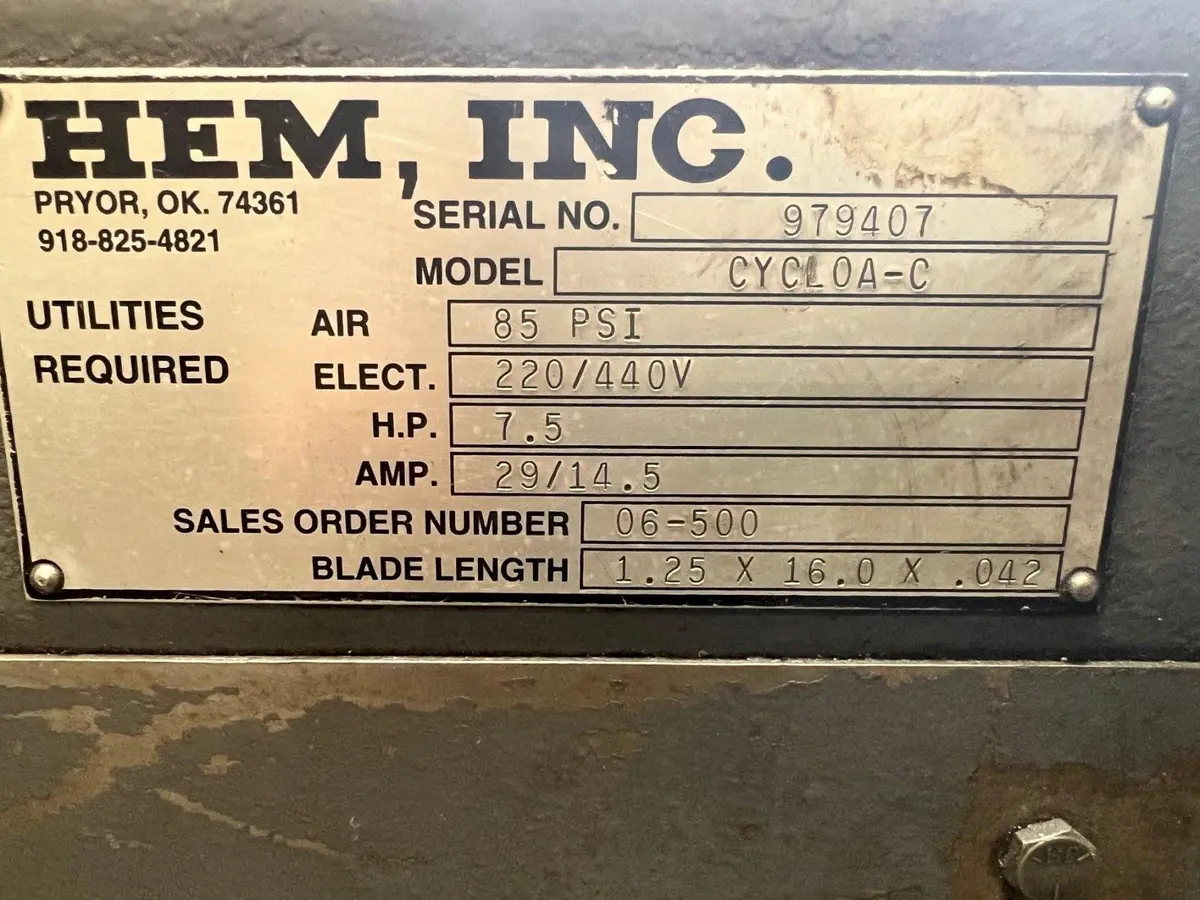

Voltage: 220 / 440 volt 3 phase (currently wired 440 volt)
Floorspace: 115" x 115" x 70"

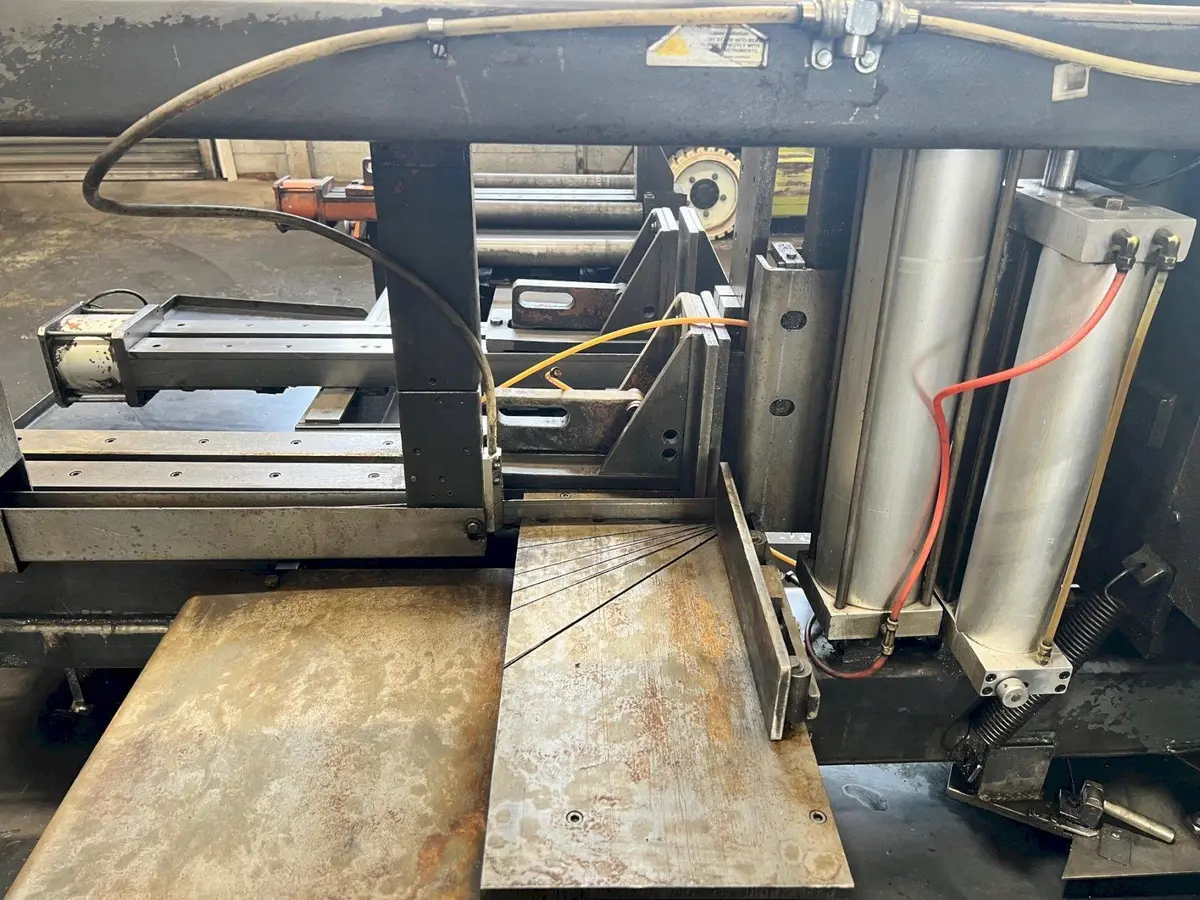

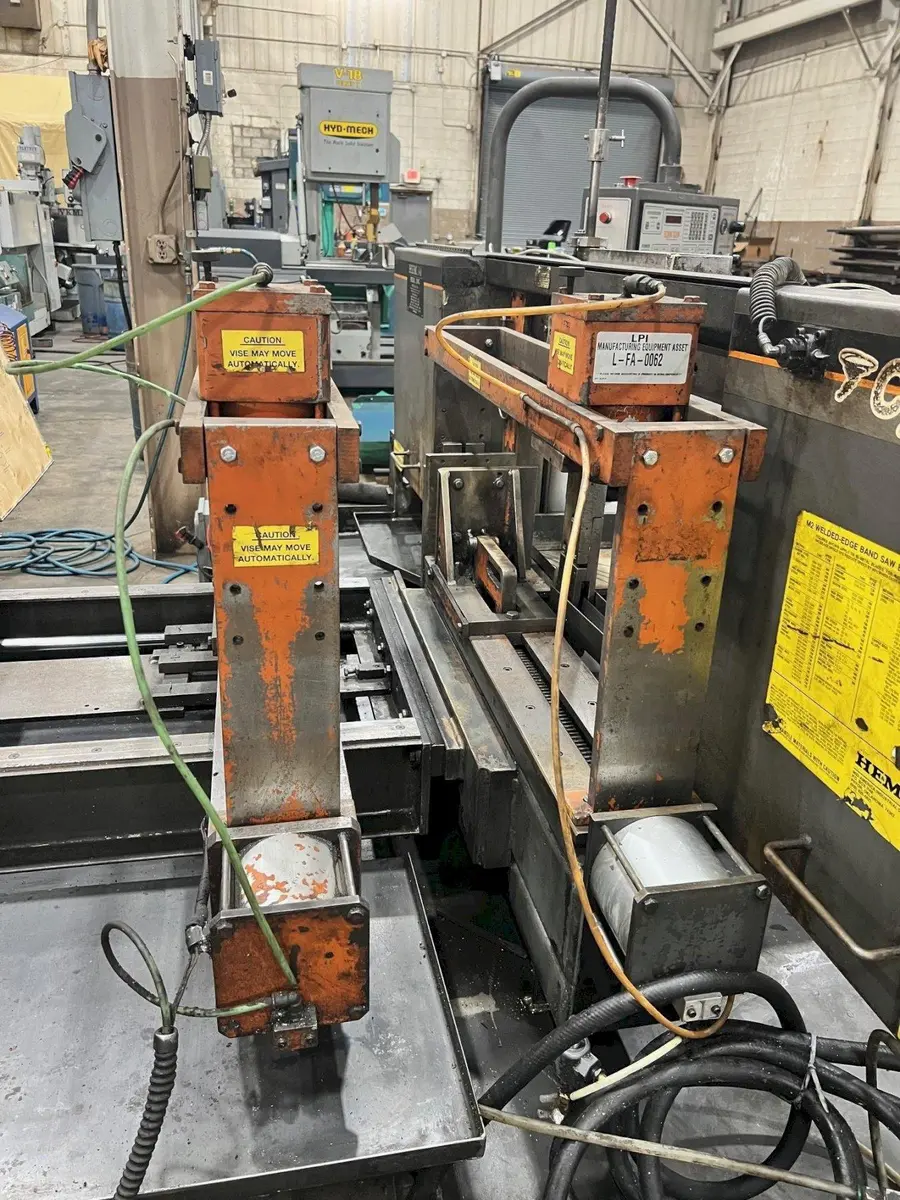

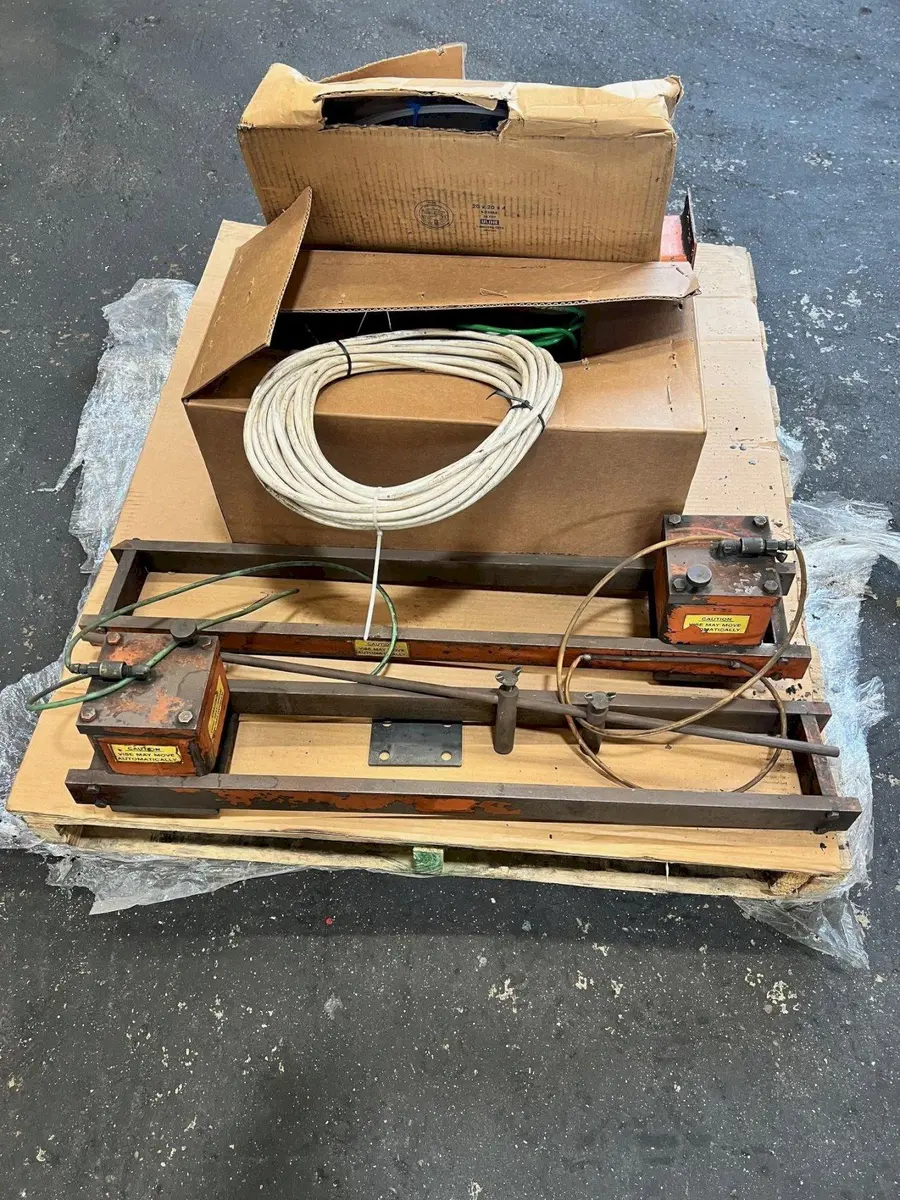

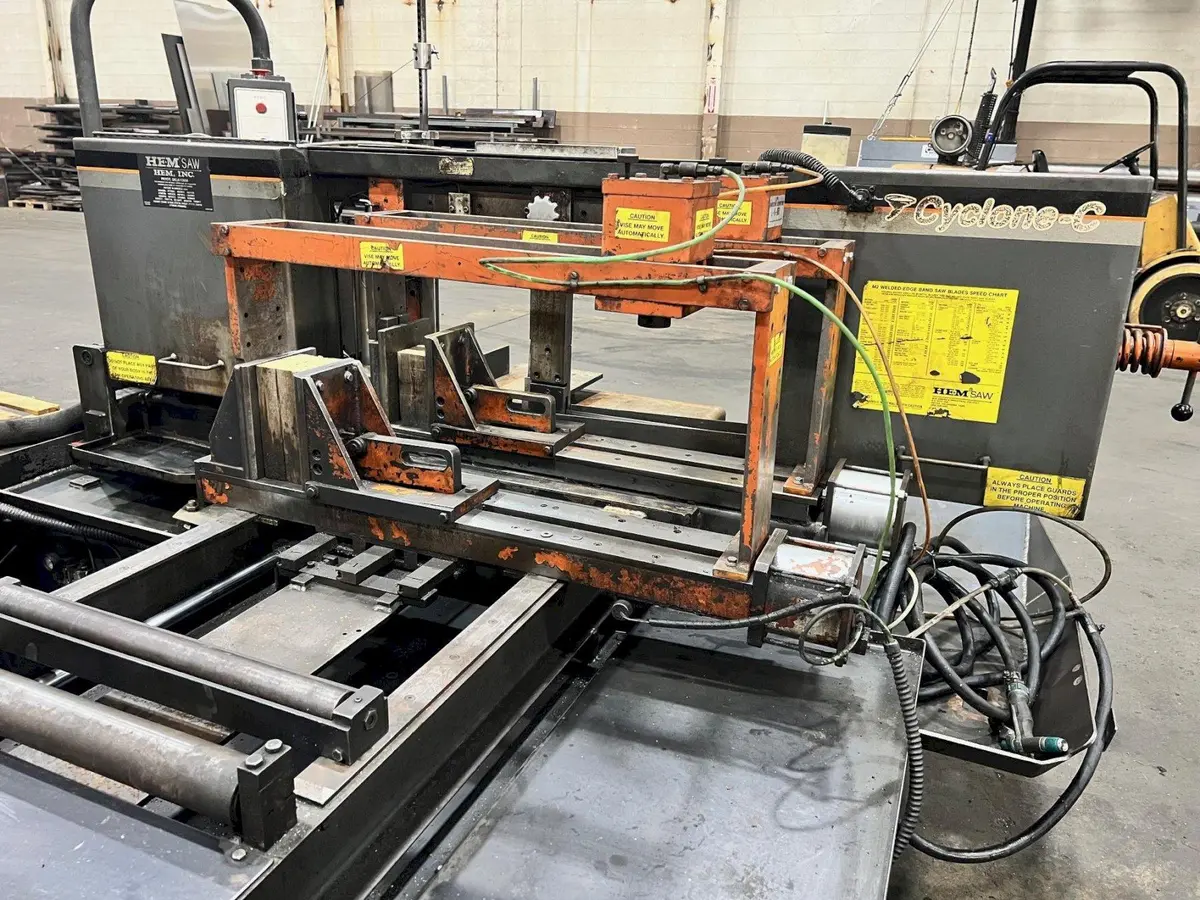

Overhead bundling clamps
Variable vise pressure

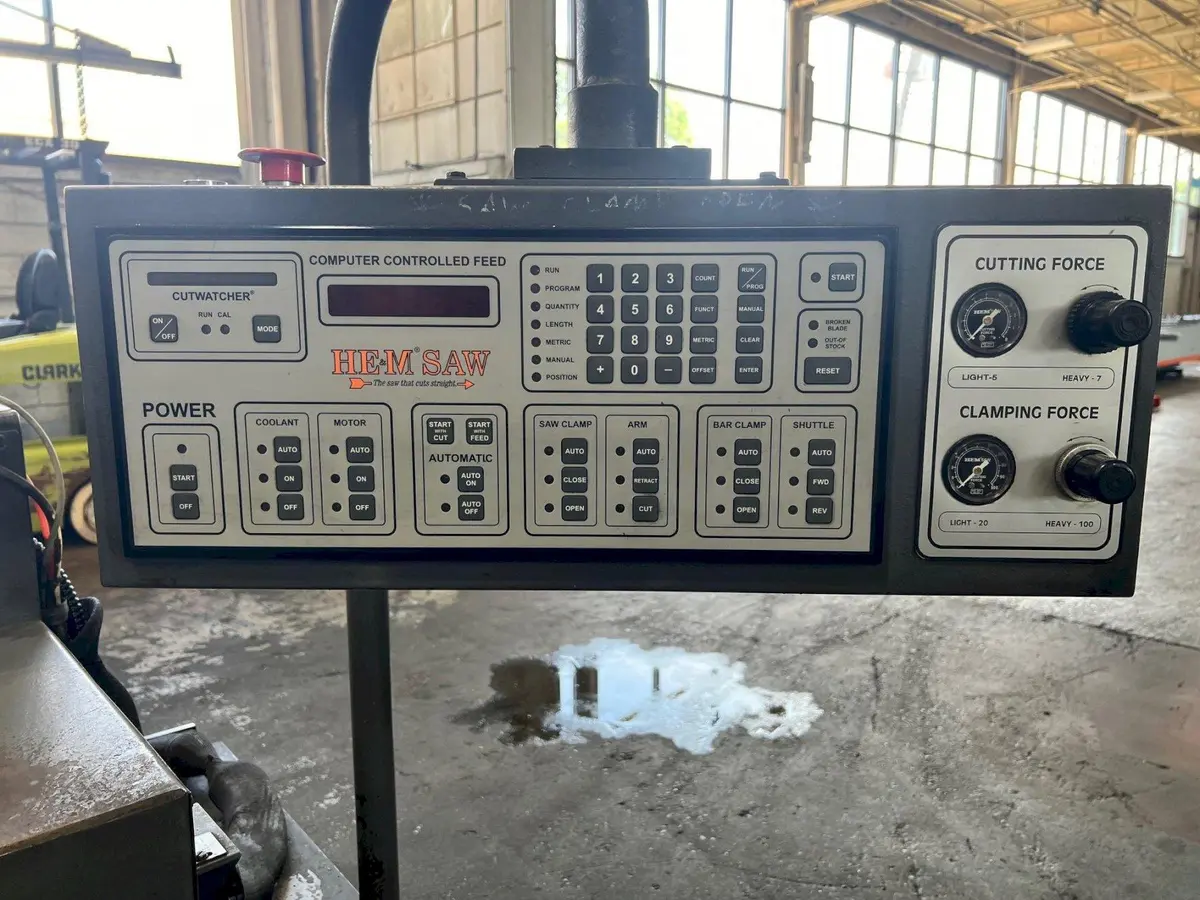

Movable control panel
Cut watcher system
Powered blade chip brush
Mist lubrication
3rd holding vise
Arm miter on a camlock
Manual blade tension
Semi-automatic & fully automatic modes

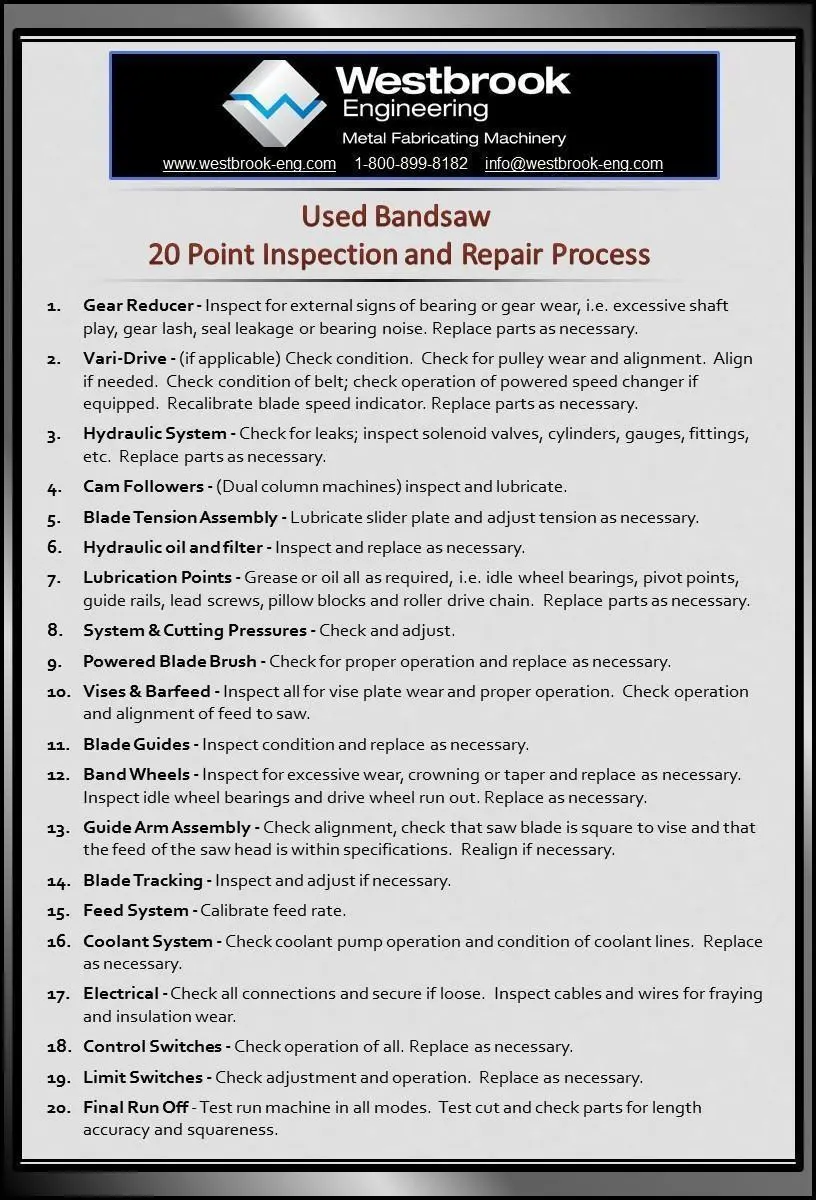

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
