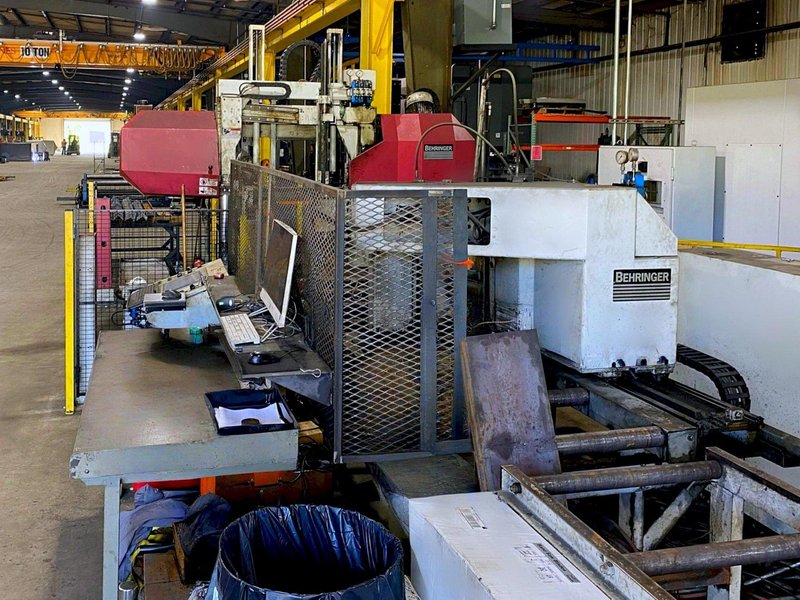

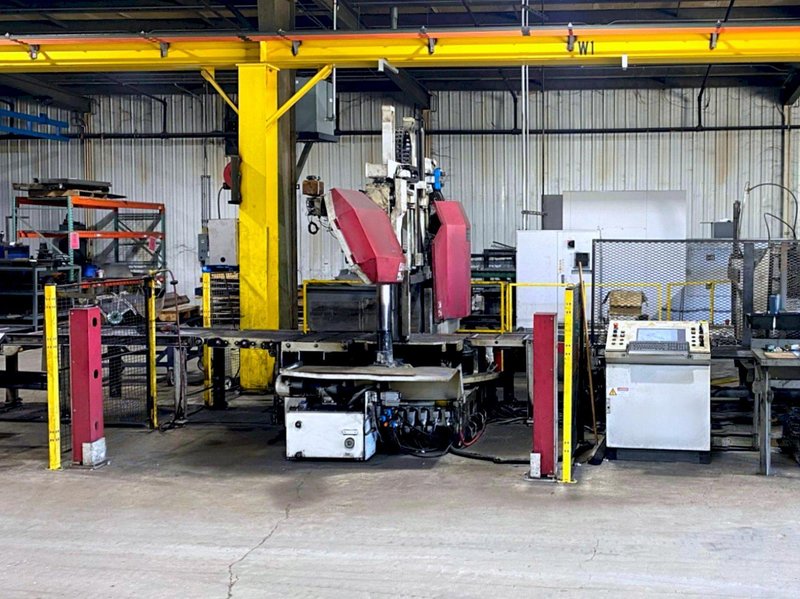

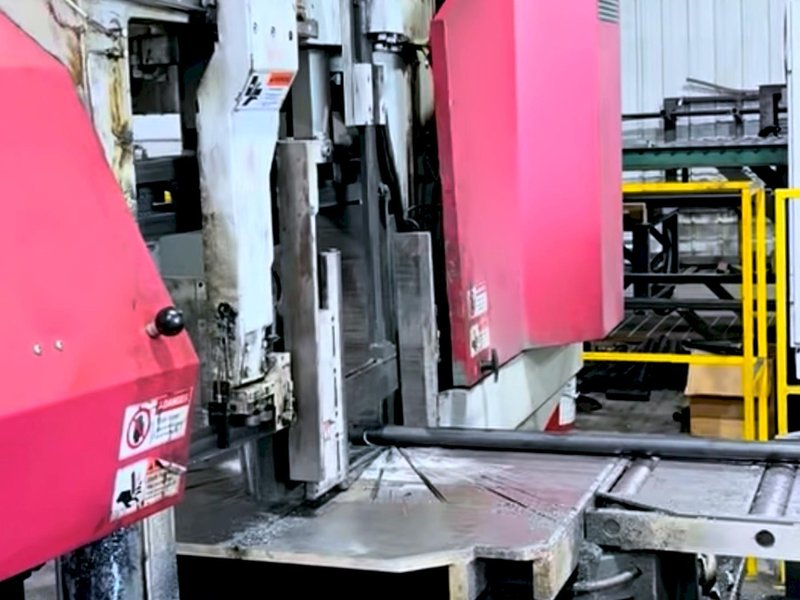

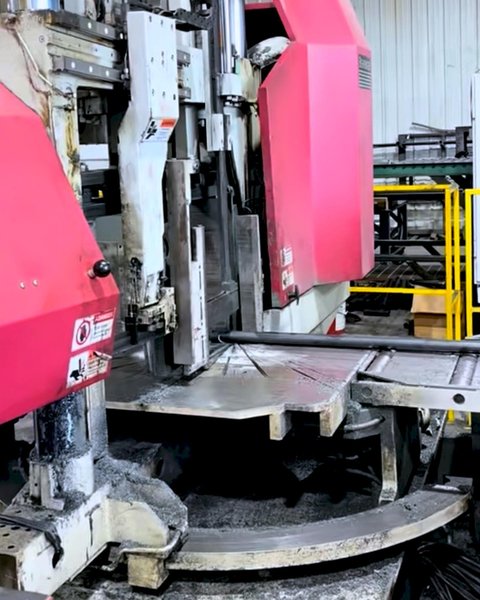

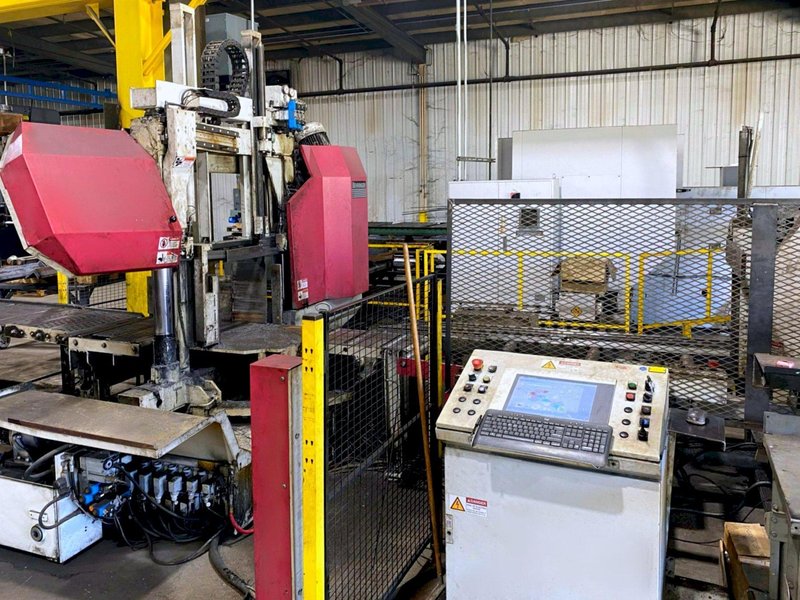

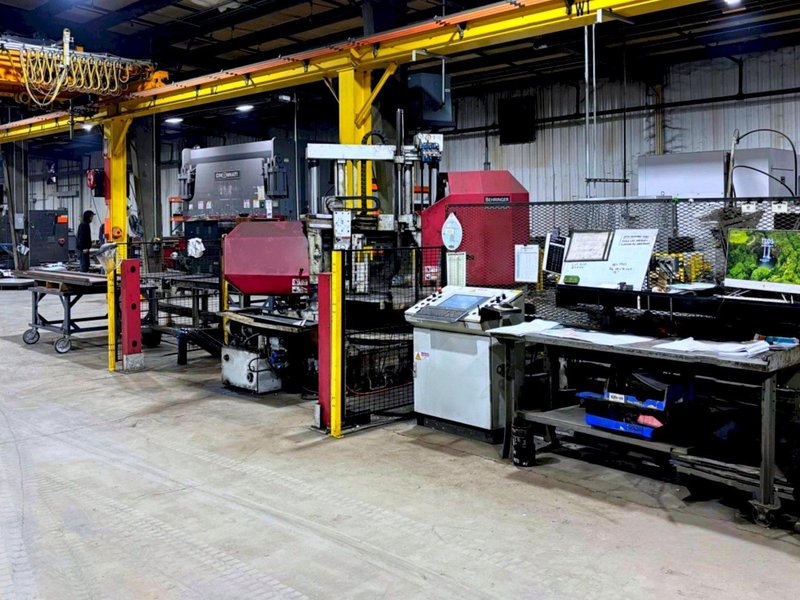

Behringer HBP 510-723GA Automatic Horizontal Dual-Column Miter Bandsaw

Name: Behringer HBP 510-723GA Automatic Horizontal Dual-Column Miter Bandsaw
Brand: BEHRINGER
SKU: 100667
Availability: InStock

Brand

BEHRINGER

Not specified

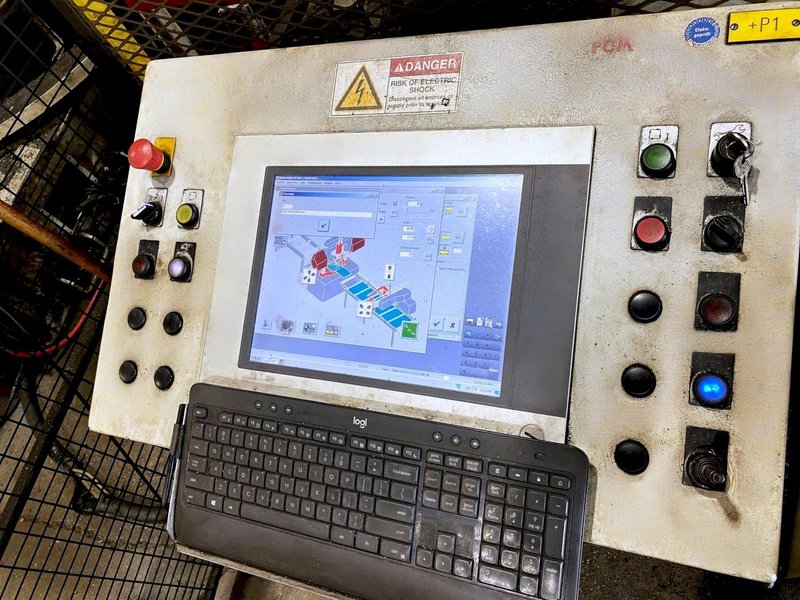

Control	PC/NC Based Behringer Control
Interface	Graphical Touchscreen
Capacity 90° Round	20"
Capacity 90° Square	19.6" × 19.6"
Capacity 90° Flat/Rectangle	24.4" × 19.6"
Capacity 45° Round	17.7"
Capacity 45° Square	17.7" × 17.7"
Capacity 45° Flat	17.7" × 19.6"
Capacity 30° Round	11.8"
Capacity 30° Square	11.8" × 11.8"
Capacity 30° Flat	11.8" × 15.7"
Automatic Feed – Single Stroke	118.1" / 9.84'
Saw Blade Length	22.75'
Saw Blade Width	2.13"
Saw Blade Thickness	0.051"
Saw Drive	Heavy-Duty Gear-Driven Band Drive
Blade Tensioning	Hydraulic
Blade Guidance	Carbide Blade Guides
Blade Cleaning	Powered Chip Brush
Workpiece Clamping	Hydraulic

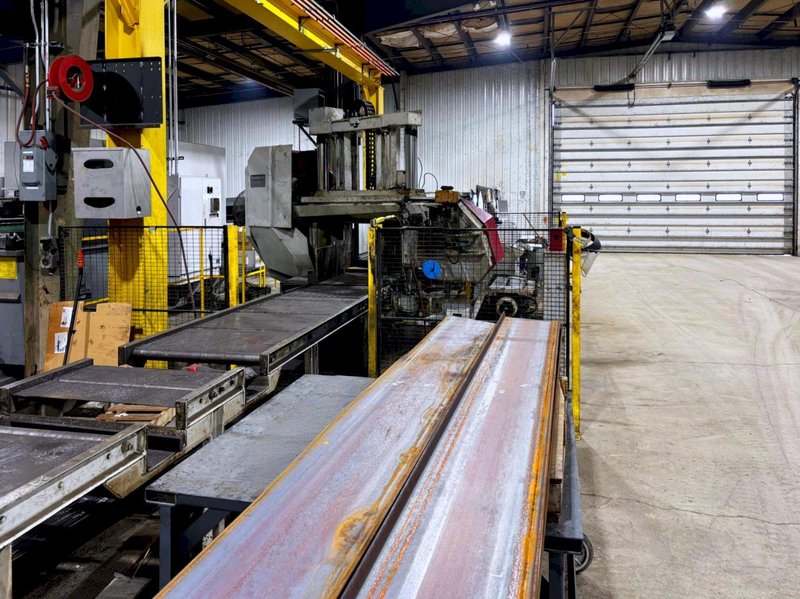

Material Feed	Automatic Hydraulic Feed System
Feed Stroke	118.1”

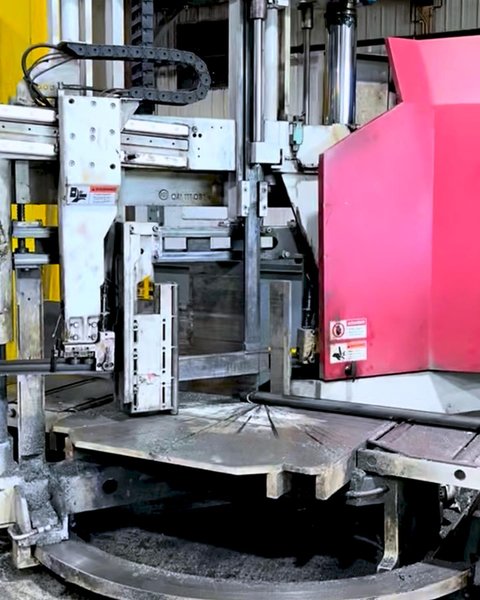

Miter Capability	Left & Right
Coolant	Flood Coolant System
Electrical Requirements	460 V / 3-phase / 60 Hz

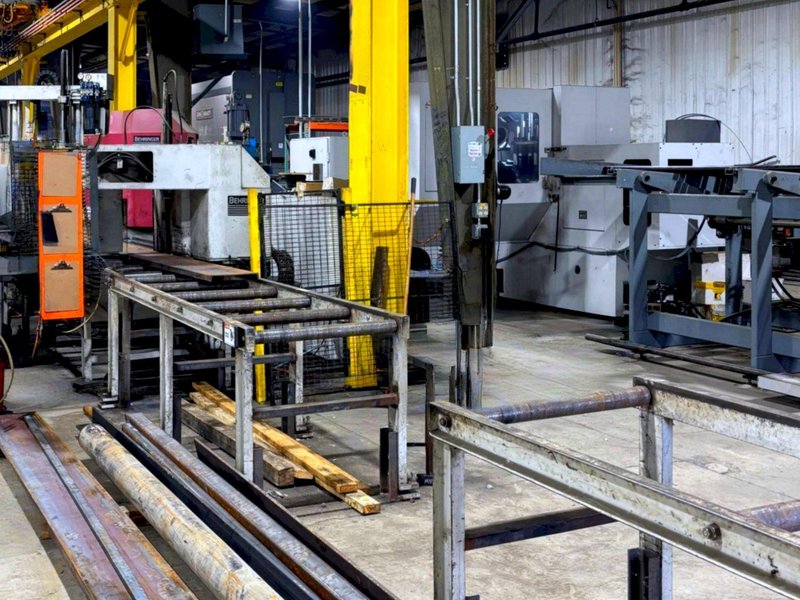

Equipped With: PC/NC Based Behringer Control Graphical Touchscreen Interface & Keyboard Automatic Material Feeding 118.1” Single Feed Stroke Automatic Left/Right Miter Cutting NC Miter-Angle Positioning NC Length Positioning Hydraulic Material Clamping Hydraulic Saw-Frame Feed Dual-Column Saw-Frame Construction Carbide Blade Guides Hydraulic Blade Tensioning Powered Blade Cleaning Brush Flood Coolant System Automatic Multiple Indexing Roller-Conveyor Compatible
