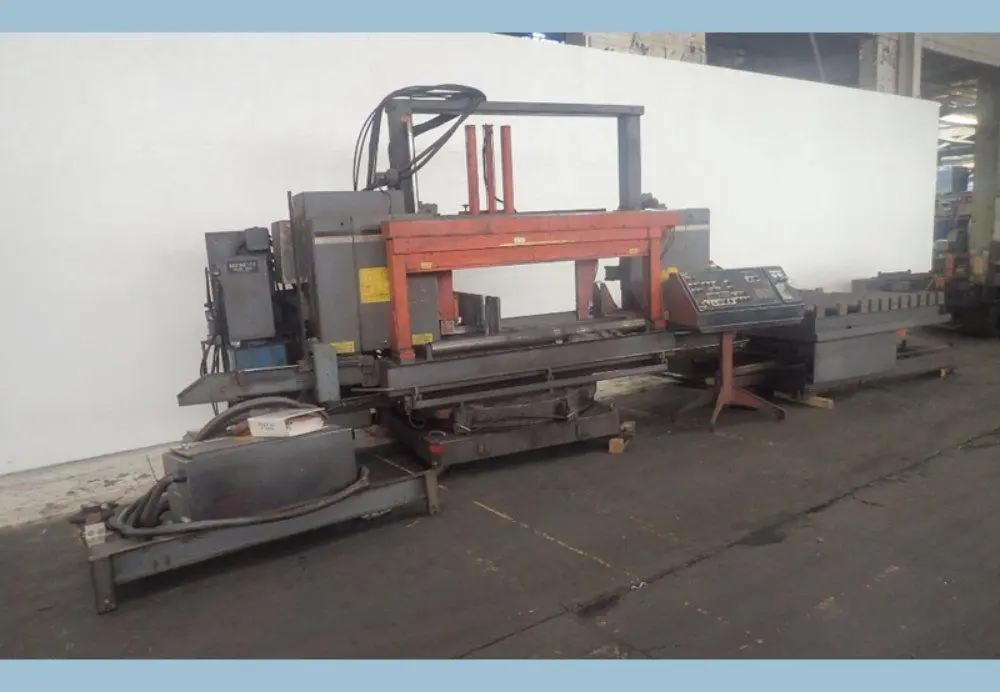

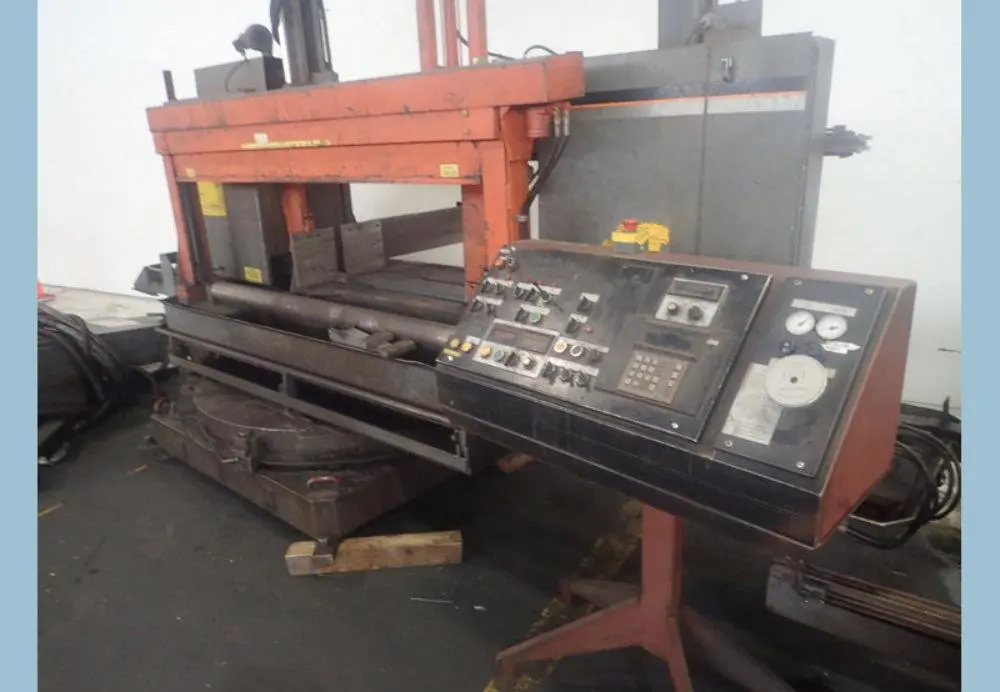

USED HEM HORIZONTAL MITERING BASE BANDSAW, Model DC-2038RBI, 20” x 38”, YEAR: 2005

Brand: Hem
Model: DC-2038RBI

Specifications:
Max. cutting cap. 90 deg, round: 20”
Max. cutting cap. 45 deg, round: 20”
Max. cutting cap. 30 deg, round: 20”
Max. cutting cap. 90 deg, rectangular: 20” H x 38” W
Max. cutting cap. 45 deg, rectangular: 20” H x 24” W both directions
Max. cutting cap. 30 deg, rectangular: 20” H x 16” W one direction
Max degree of miter: 30 degrees
Blade dimensions: 2” x .062 x 24’6”
Blade guides: Carbide
Guide Arm (Manual / powered): Powered
Blade speeds: 65 - 350 FPM
Number of speeds: Infinite
Blade motor: 15 H.P.
Blade drive type: Motor to gearbox
Blade tension type: Hydraulic
Blade wheel size: 28”
Head Lift Type: Hydraulic
Hydraulic motor: 5 H.P.
Coolant type: Flood
Number of Vises: 4
Vise Type (Manual / Hydraulic / Air): Hydraulic

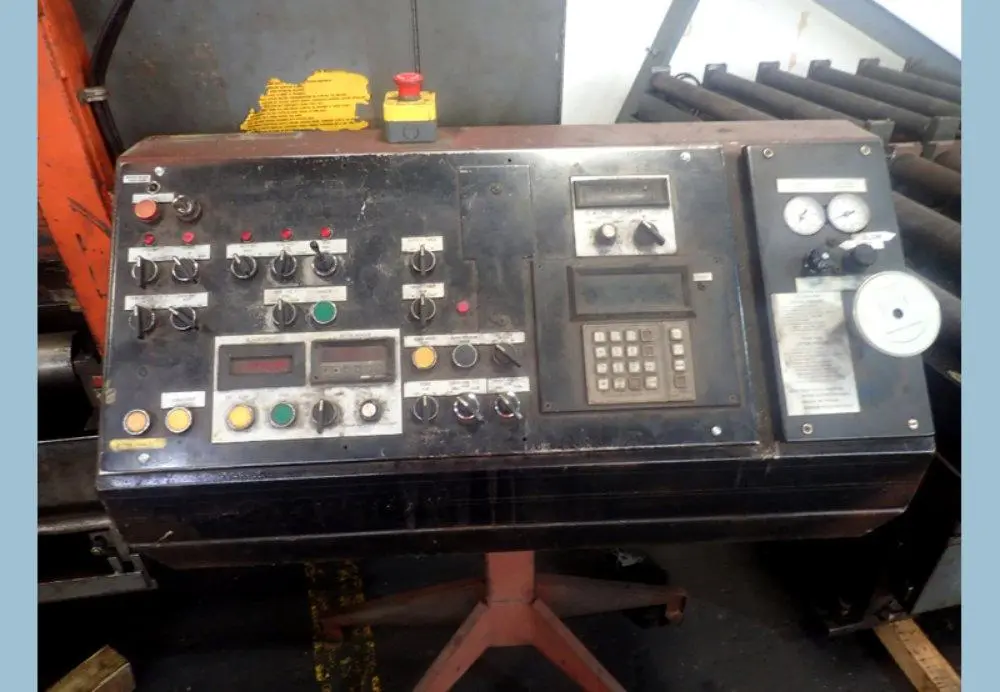

Controls: Free standing console
Voltage: 220 / 440 volt 3 phase
Currently Wired: 440 volt 3 phase

Highlights:
Hem DC-2038RBI Horizontal Bandsaw, 30 Deg Miter Base, 2” Blade, 65-350 FPM, 15 H.P. (2005)
