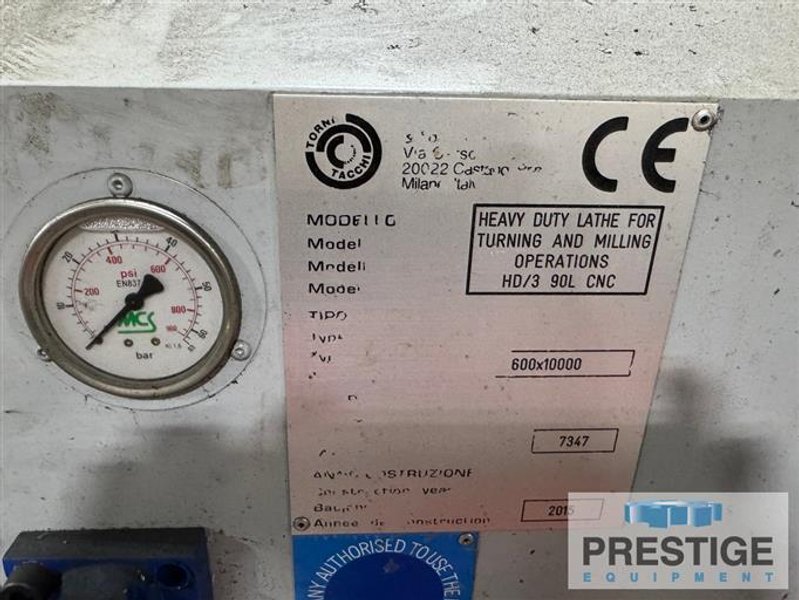

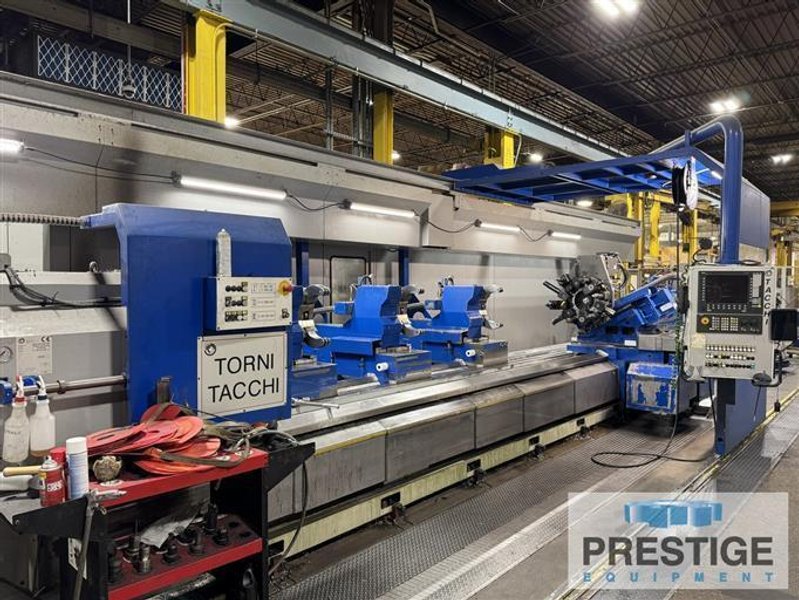

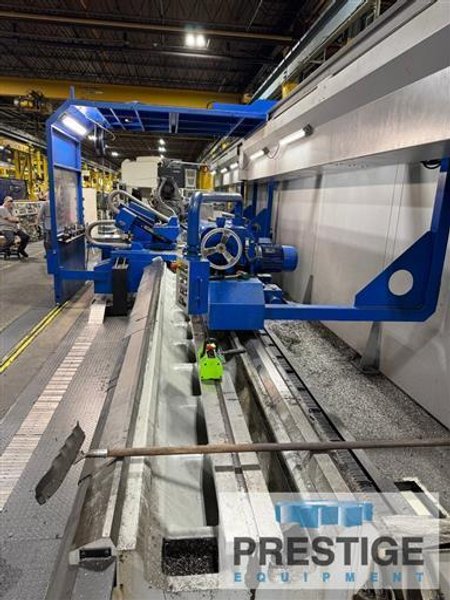

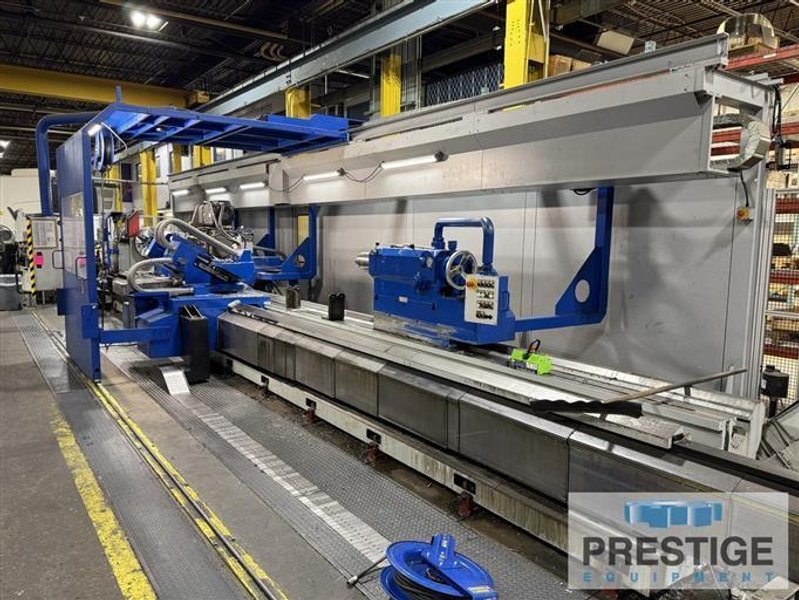

Tacchi HD/3 90L 600 x 10000 48" x 393" CNC Lathe w/ Milling & Y-Axis

SPECIFICATIONS:
Maximum Swing Over Bed Without Covers 45.27"
Maximum Swing Over Saddle 29.52"
Center Height 23.62"
Distance Between Centers 393.70"
Weight Between Centers, Unsupported 19,800 Lbs
HEADSTOCK:

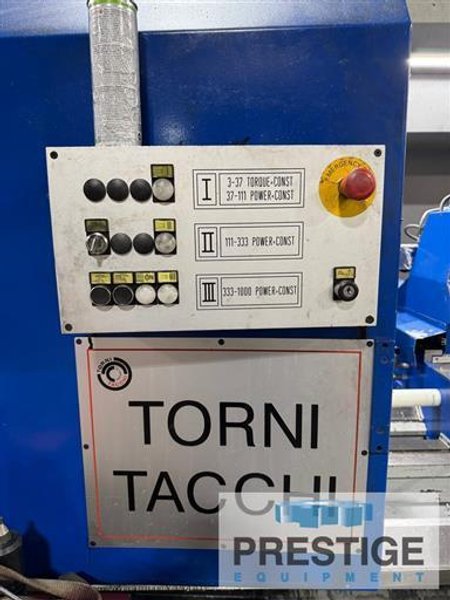

Speed Range, Standard 3-1000 RPM
Speed Range, Constant Power 37-1000 RPM
Number of Speed Ranges 3
Maximum Torque on Spindle Axis 9,000 Nm
Main Headstock Drive Motor 67 HP
Spindle Nose, DIN 55026 11"
Spindle Hole Diameter 4.13"
FEEDS:
Longitudinal Feed Rate Range,Inf Variable(Z).... 0-236.22 IPM 0-236.22 IPM
Cross Feed Rate Range, Inf. Variable(X)......... 0-236.22 IPM 0-236.22 IPM
RAPID TRAVERSE:
Longitudinal(Z) 236.22 IPM
Cross(X) 236.22 IPM
MILLING:
Live Spindle Speeds To 3000 RPM
Live Spindle Motor 20 HP

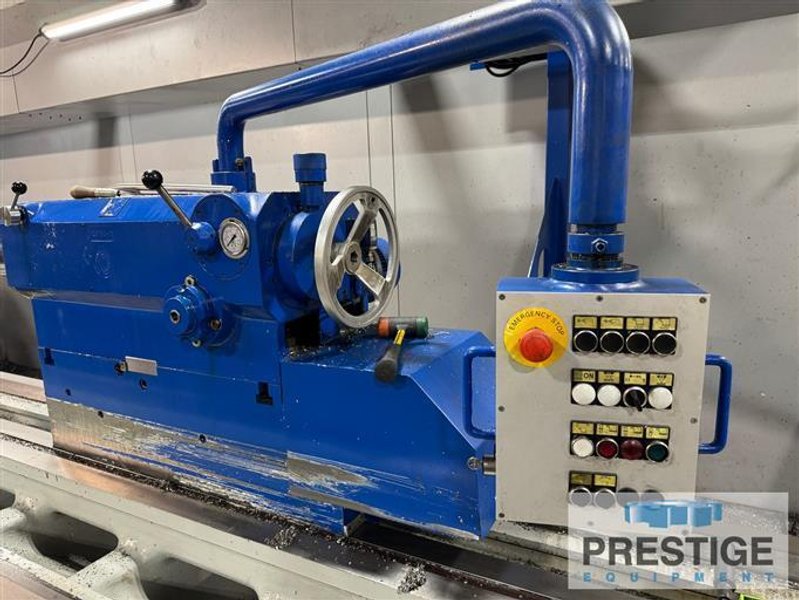

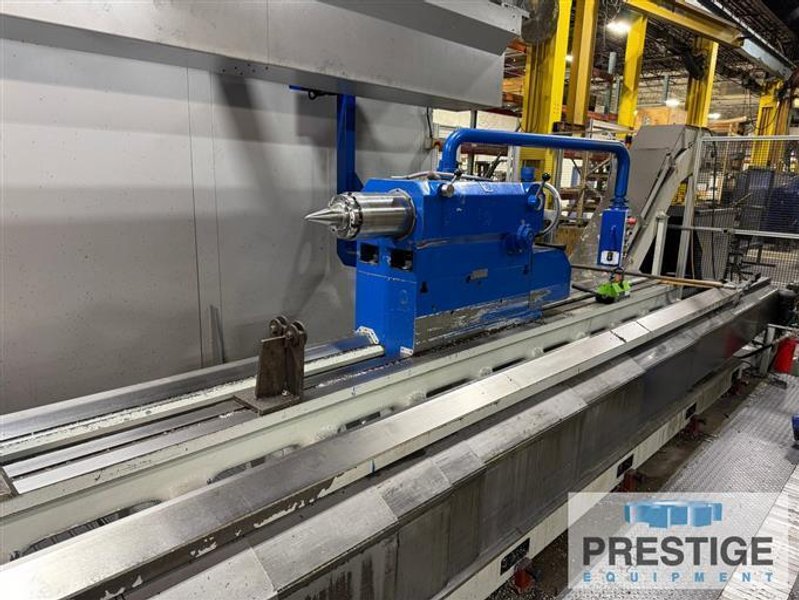

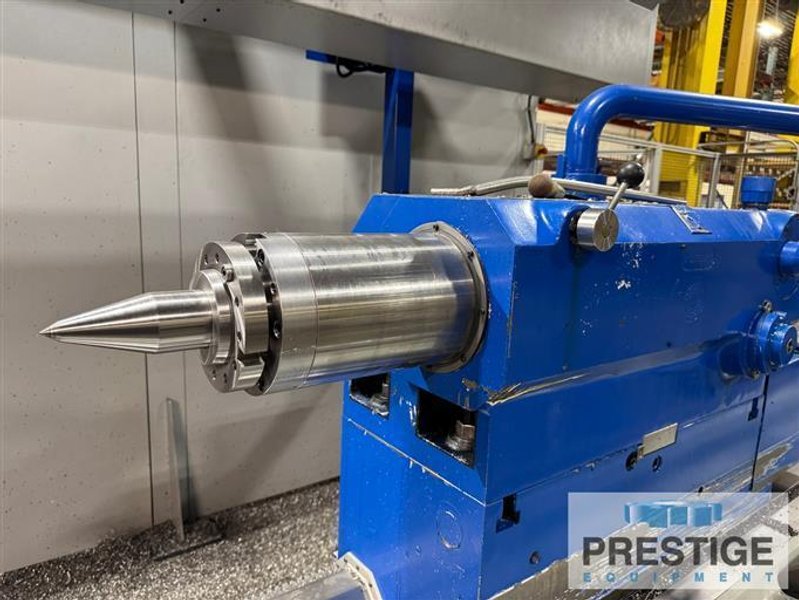

TAILSTOCK:
Quill Diameter 7.28"
Quill Stroke 11.81"
Taper of Center Morse #6



Equipped With:

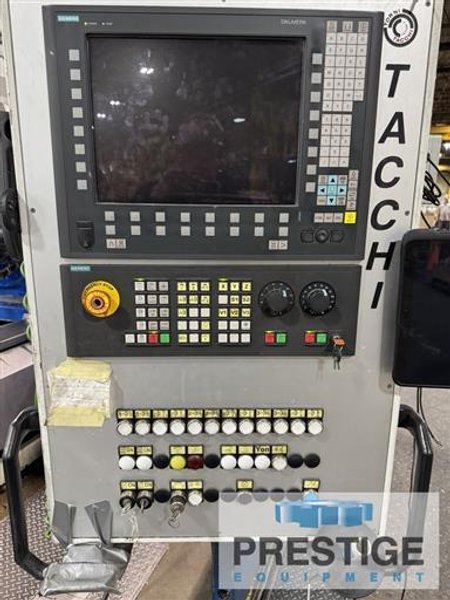

SIEMENS 840 DE SL Solution Line CNC Control
Remote Handwheel

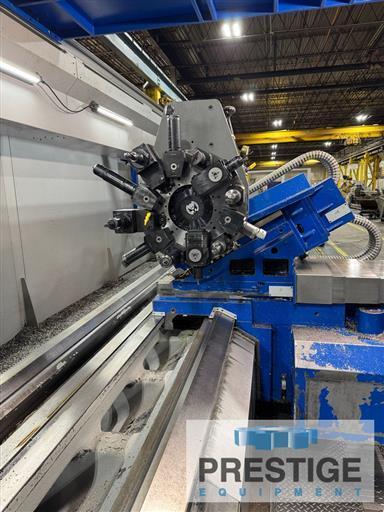

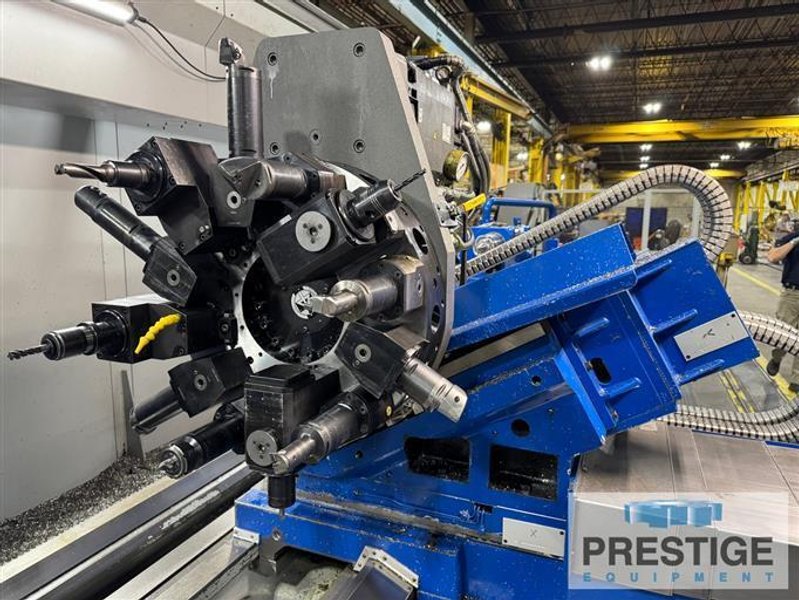

Baruffaldi TBMA 302/12 12-Station Disc Turret w/Live Milling
Heidenhain Scales on X & Z Axes

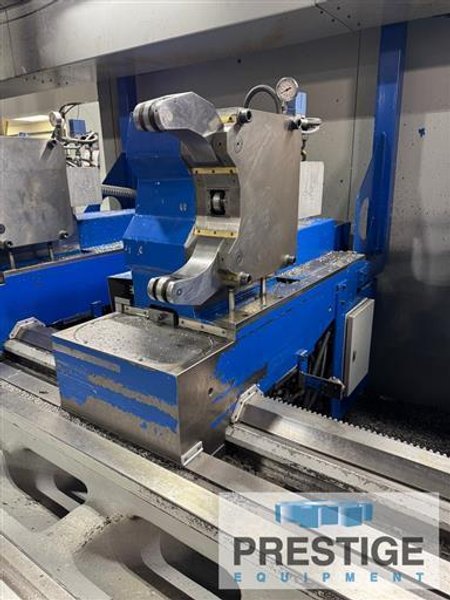

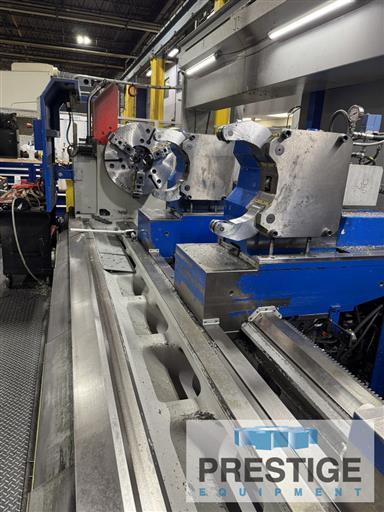

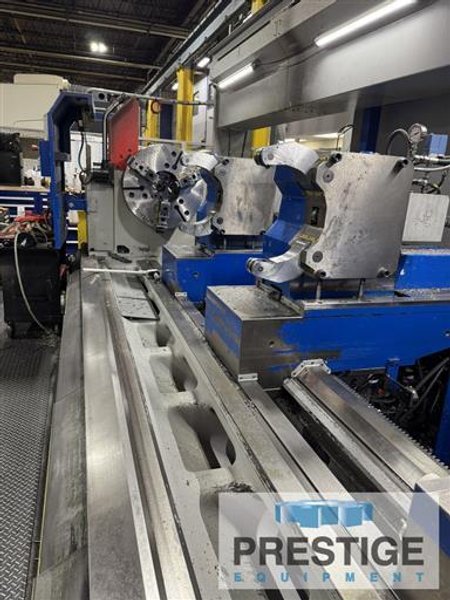

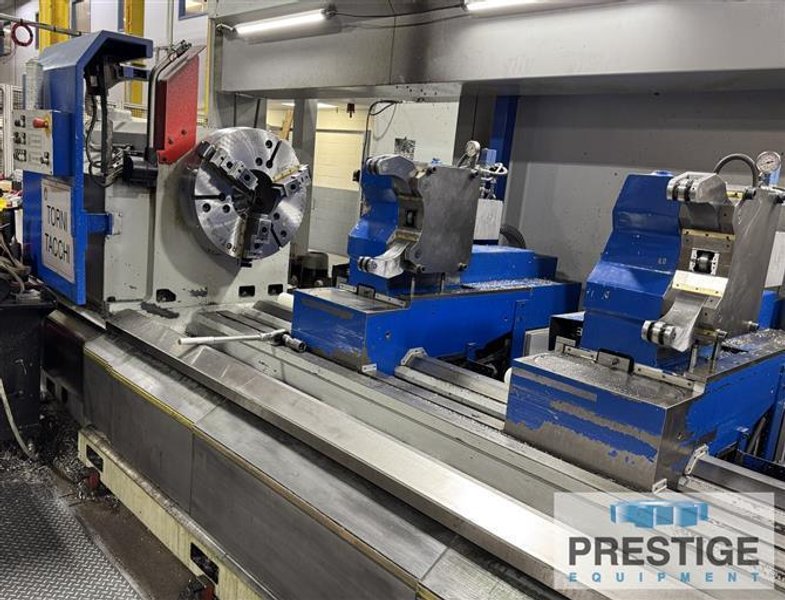

3-Morari Programable Self Centering Steady Rests w/Longitudinal Positioning
Manual 3-Point Roller Type Steady Rest
24.8" & 12.4" Rohm Chucks
Renishaw Tool Probe, TS13, RMP60
Carriage Can Pass Steady Rests and Tailstock
Tailstock Quill Thrust Compensation
Coolant System for Turning & Milling Operations
Telescoping Steel Way Covers
Full Length Chip Conveyor
Automatic Lubrication System
460 Volt 3-Phase 60 HZ Electrics


NOTE: Heavy Duty Lathe For Turning and Milling Operations. Inspect Under Power
