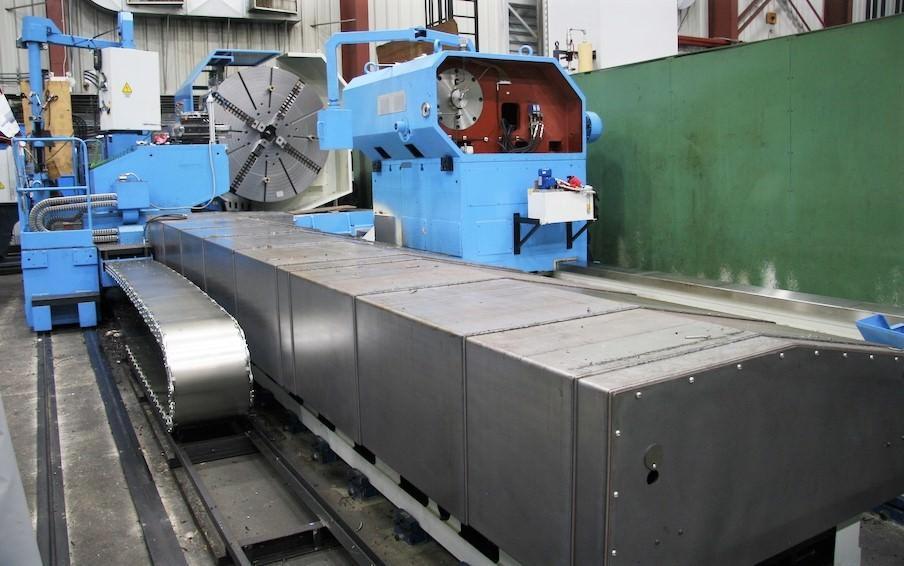

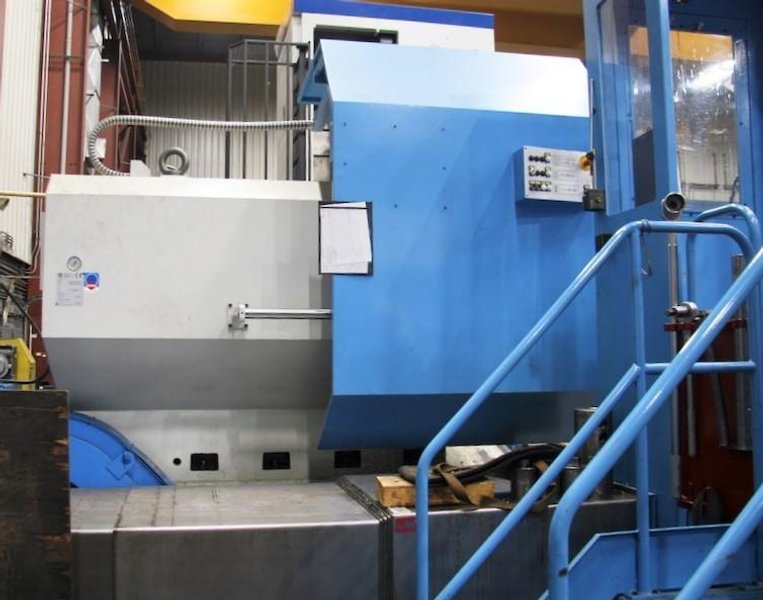

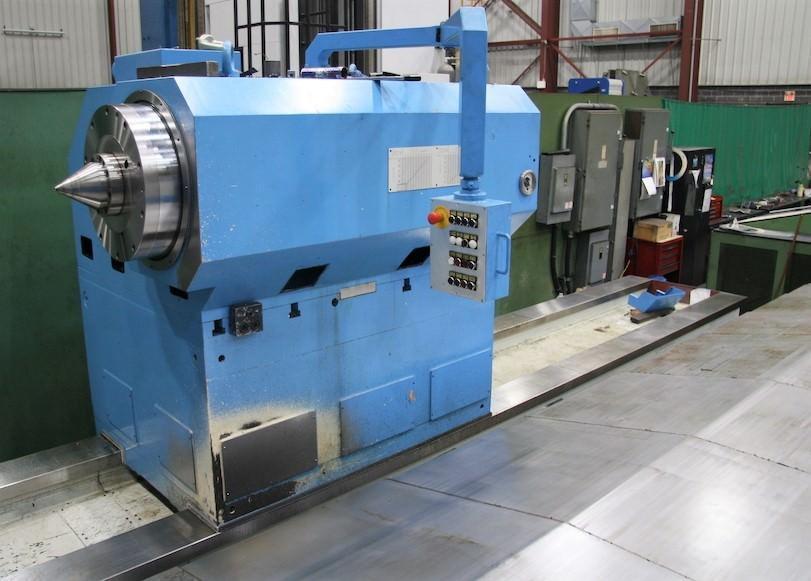

Tacchi DB 132 HS Type 14x7000, 94" x 275" CNC Roll Lathe

Tacchi DB 132 HS Type 14x7000, 94" x 275" CNC Roll Lathe

Brand

TACCHI

Category

Lathes & Turning Machines

Type

Lathes, Flat Bed, CNC

Model

DB 132 HS Type 14x7000

Stock #

30241

Year

2015

Condition

Not specified

Location

Not specified

Specifications
Files & Videos

SPECIFICATIONS:

Maximum Turning Diameter 94.48"
Maximum Swing Over Saddle 86.61"
Distance Between Centers 275.59"
Weight Between Centers without Rests 132,000 lbs
Spindle Speeds 1-250 RPM
Spindle Speeds At Constant Power 9-250 RPM
Number of Speed Ranges 3
Main Motor, AC Brushless 172 HP
Maximum Torque 110,000 Nm
Spindle Nose 20"
Spindle Hole 6.3"
Quill Diameter 21.25"
Quill Stroke 7.87"
Internal Taper Metric 60
Machine Footprint, Approx 520" x 220"
Machine Weight 181,000 Lbs

Equipped With:

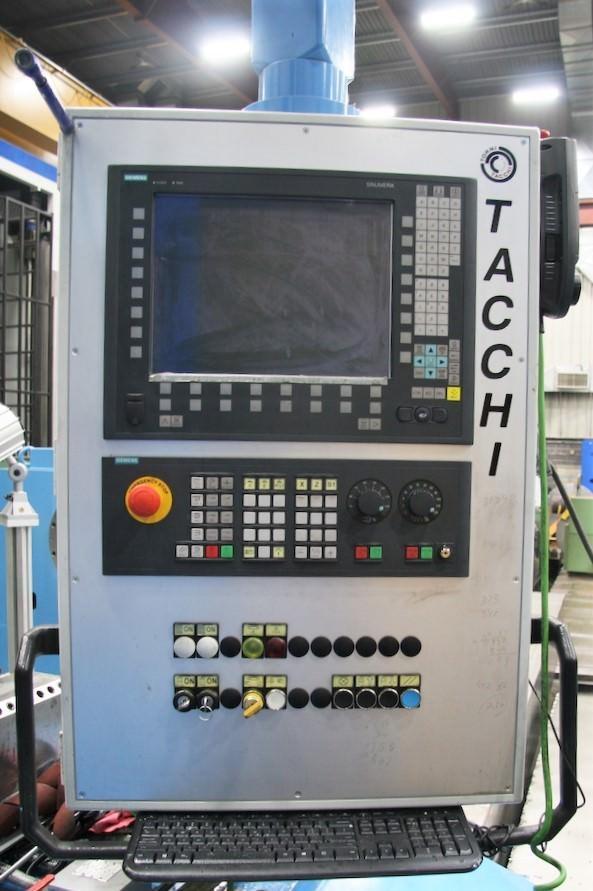

SIEMENS 840D CNC Control

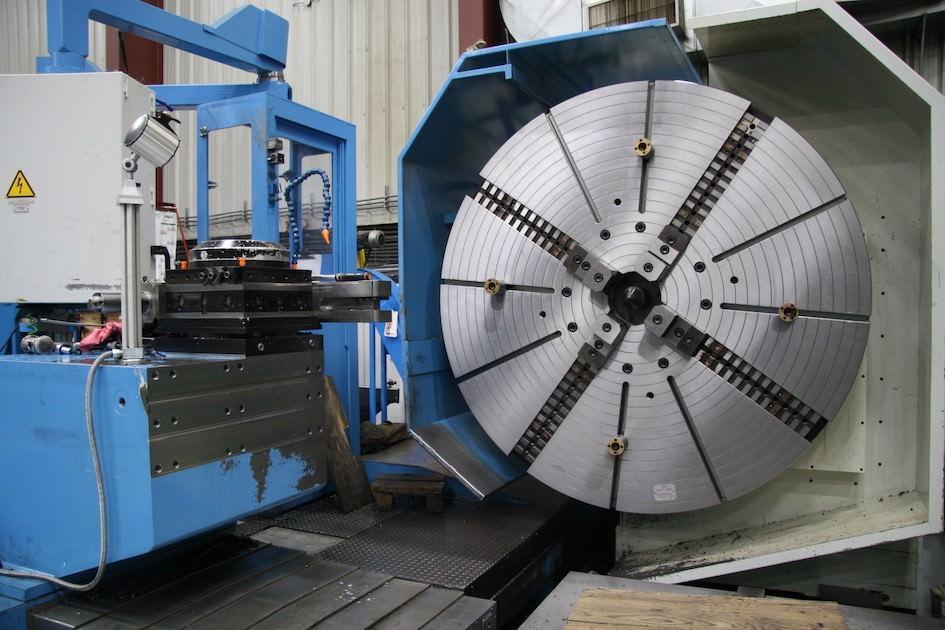

78.74" Dia. 4-Jaw Chuck
Steady Rest
Steel Sliding Way Covers
172 HP Spindle Drive Motor
