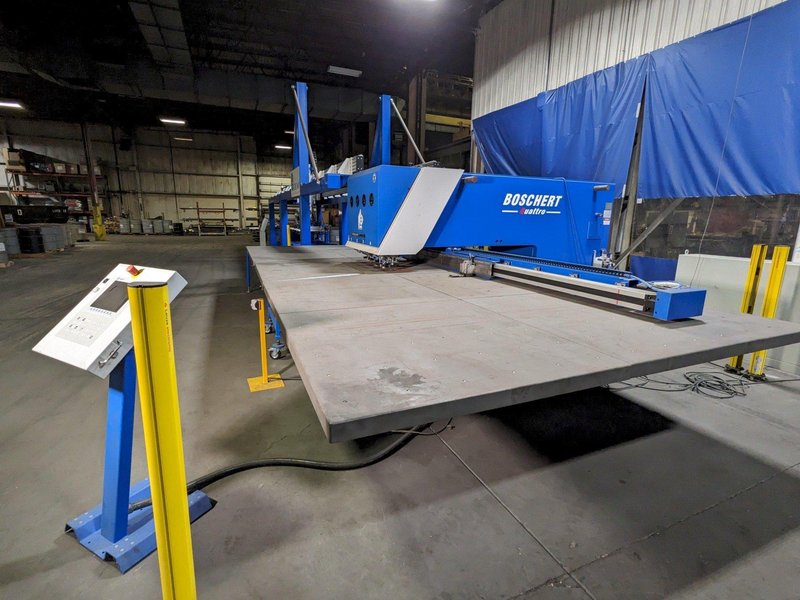

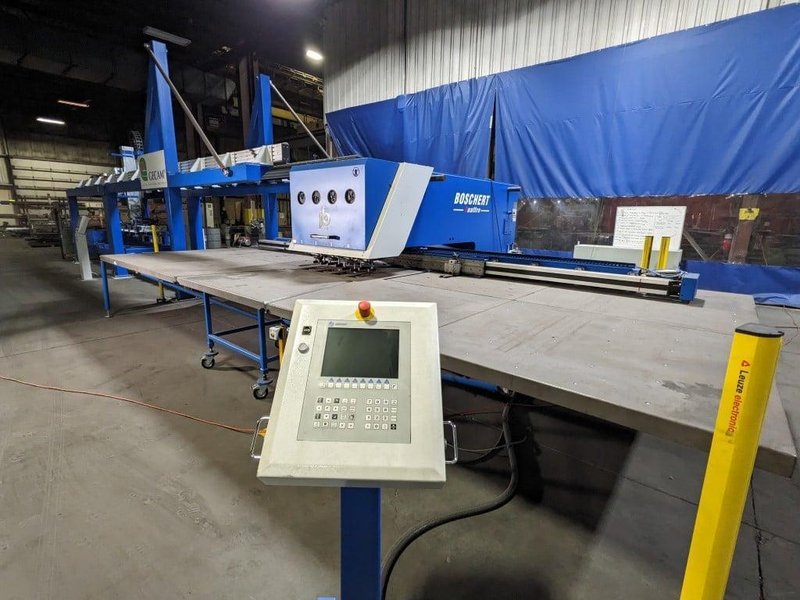

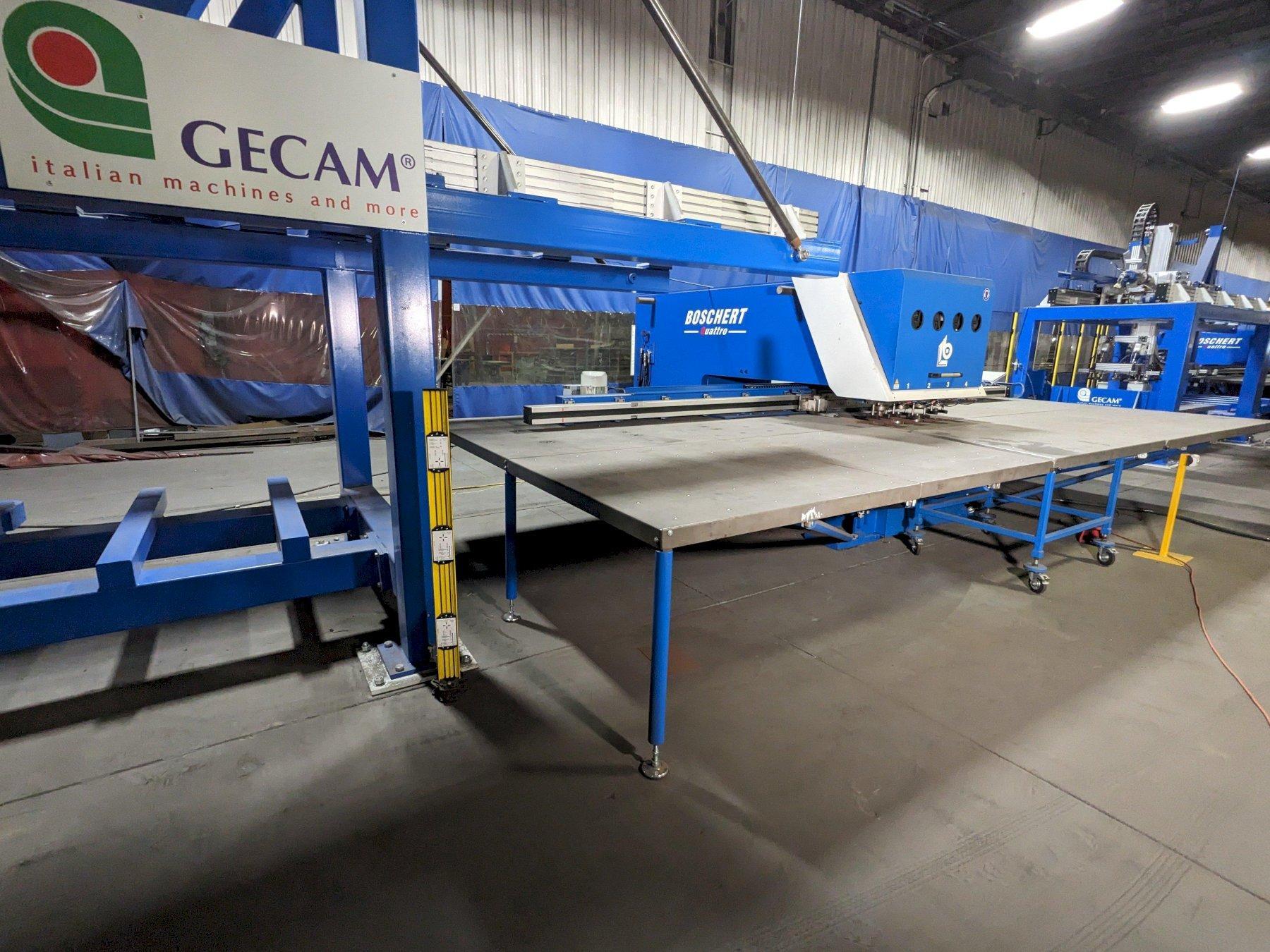

36 Ton 60” X 120” CNC Punching Machine with Boschert CNC Control, Fully Automatic Sheet Loading & Unloading System, Pneumatic Material Clamps, Automatic Repositioning, Extra Heavy-Duty X - Axis for 400 Kg Sheet Cap., Trumpf Locking Die Holders, Vacuum Slug Removal, Automatic Tool Lubrication and Ball Supports on Table.

GENERAL SPECIFICATIONS
Working Range W/o Repositioning:                60”
Maximum Punching Force:                        36 Tons
Type of Tooling Used:                        Trumpf
Maximum Punch Diameter:                        4.1”
Max Material Thickness:                        0.25”
Maximum Weight of Sheet in Clamps:                880 Lbs
Max Stroke Length:                            0 - 3.54”
Max Strokes Per Min:                        400
Height of Table Above Floor:                    35”
Approx. Floor Space Required:                    26.5’ X 21.5’ X 83” H
Hydraulic Oil Resevoir Capacity:                    42 Gal
Electric Motor for Hydraulic System:                15 HP
Approx. Weight of Machine:                    35,000 Lbs

INCLUDES: Boschert CNC Control, Fully Automatic Sheet Loading & Unloading System, Pneumatic Material Clamps, Automatic Repositioning, Extra Heavy-Duty X - Axis for 400 Kg Sheet Cap., Trumpf Locking Die Holders, Vacuum Slug Removal, Automatic Tool Lubrication and Ball Supports on Table.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
