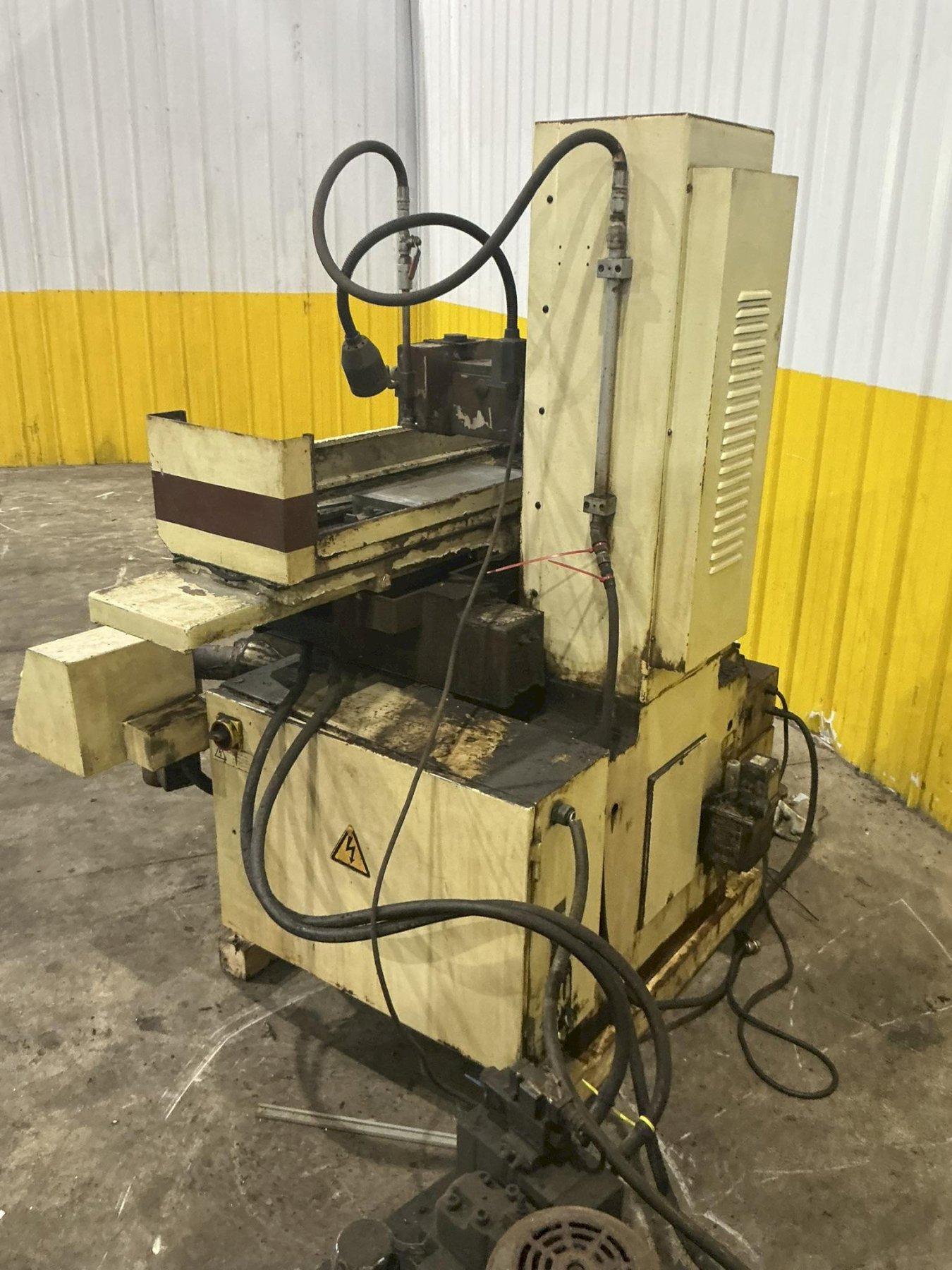

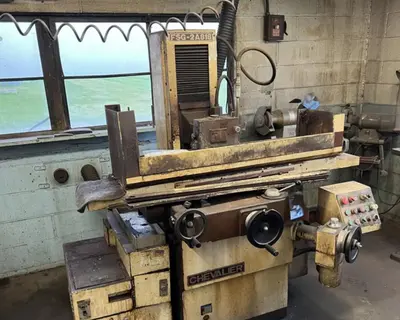

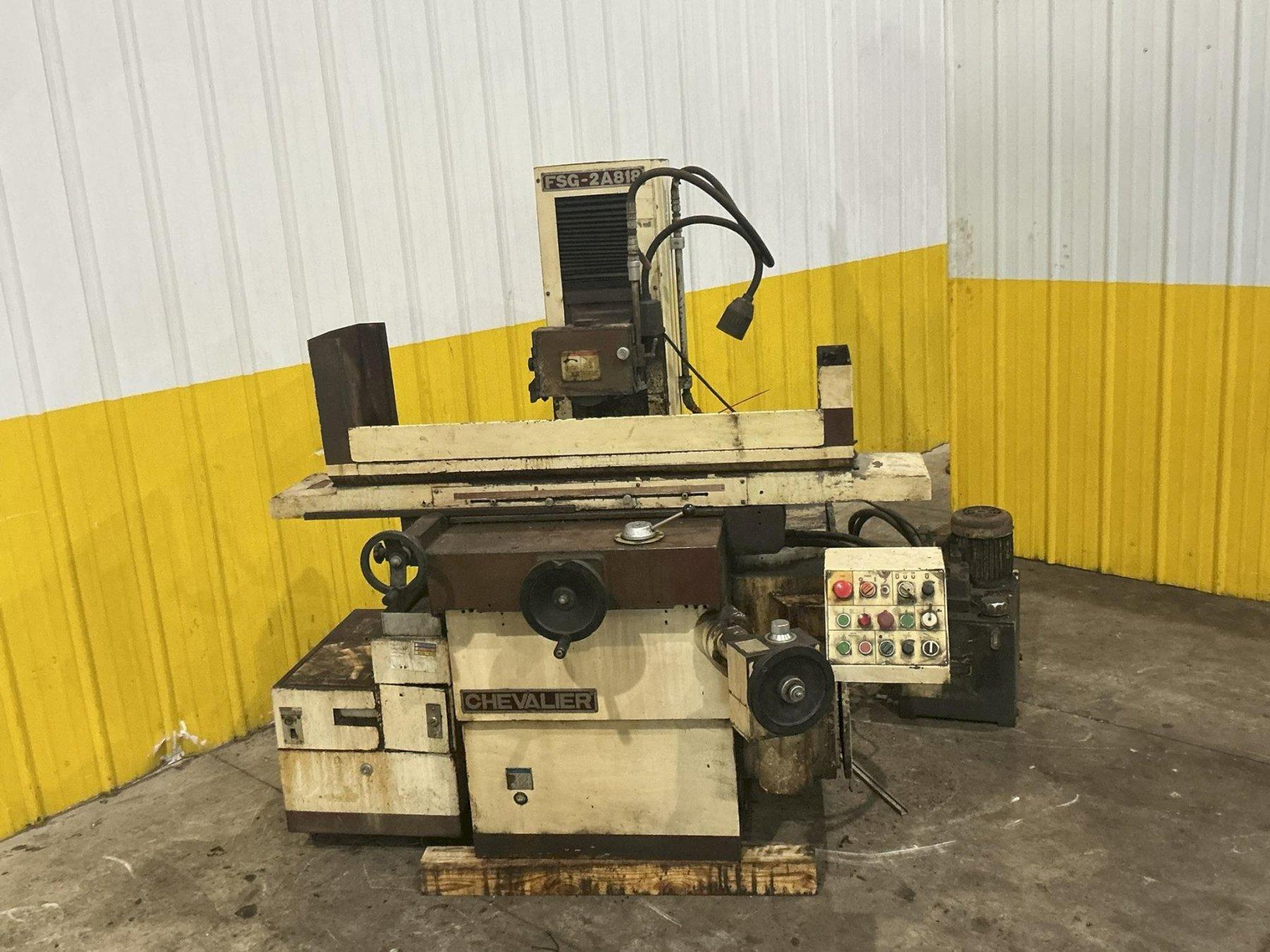

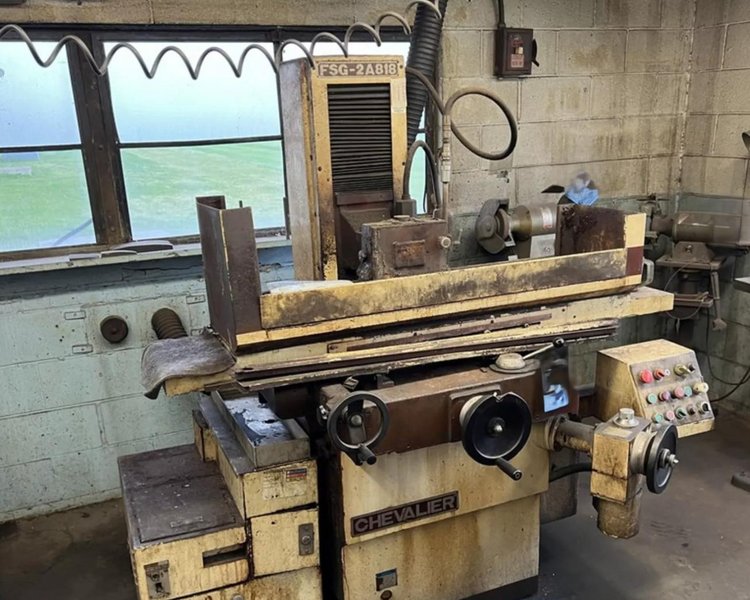

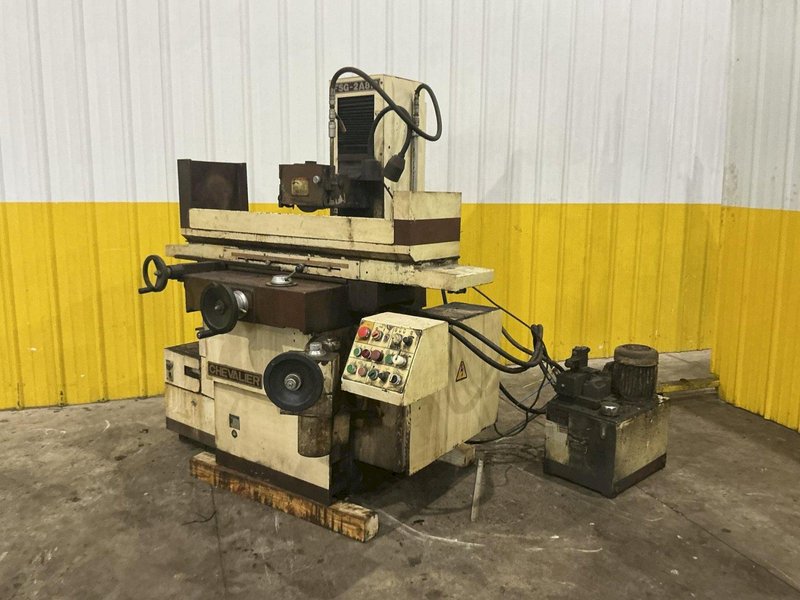

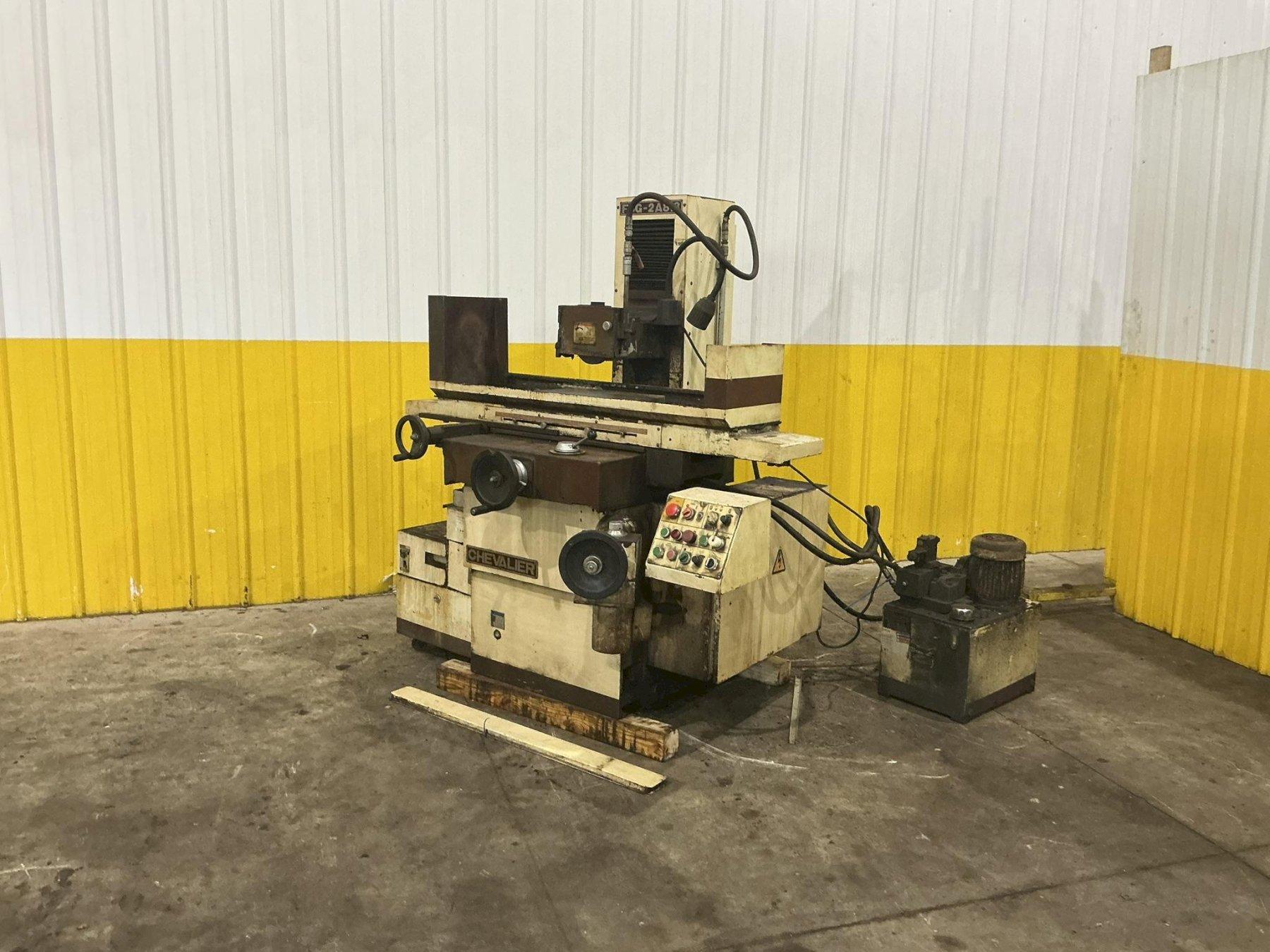

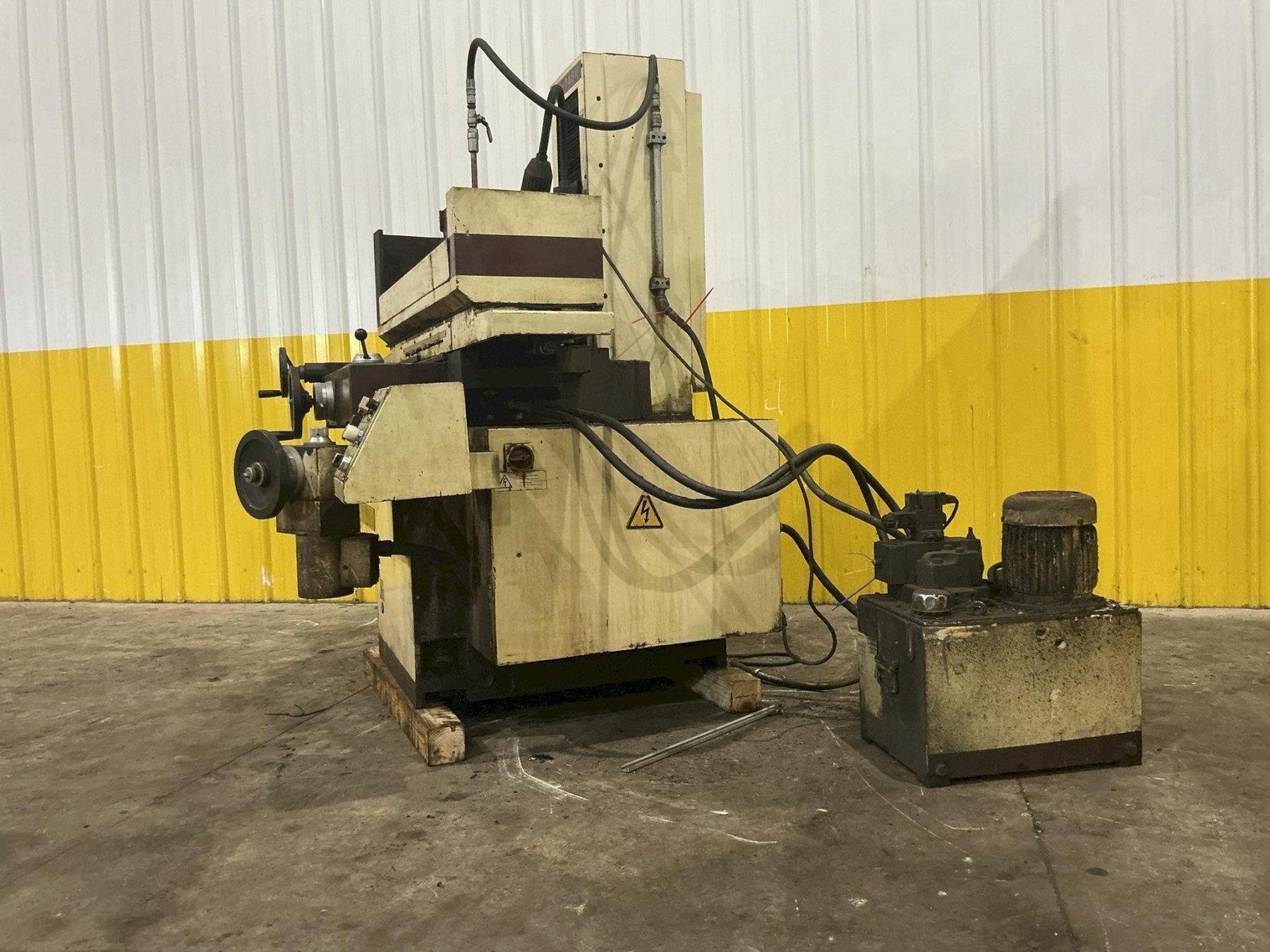

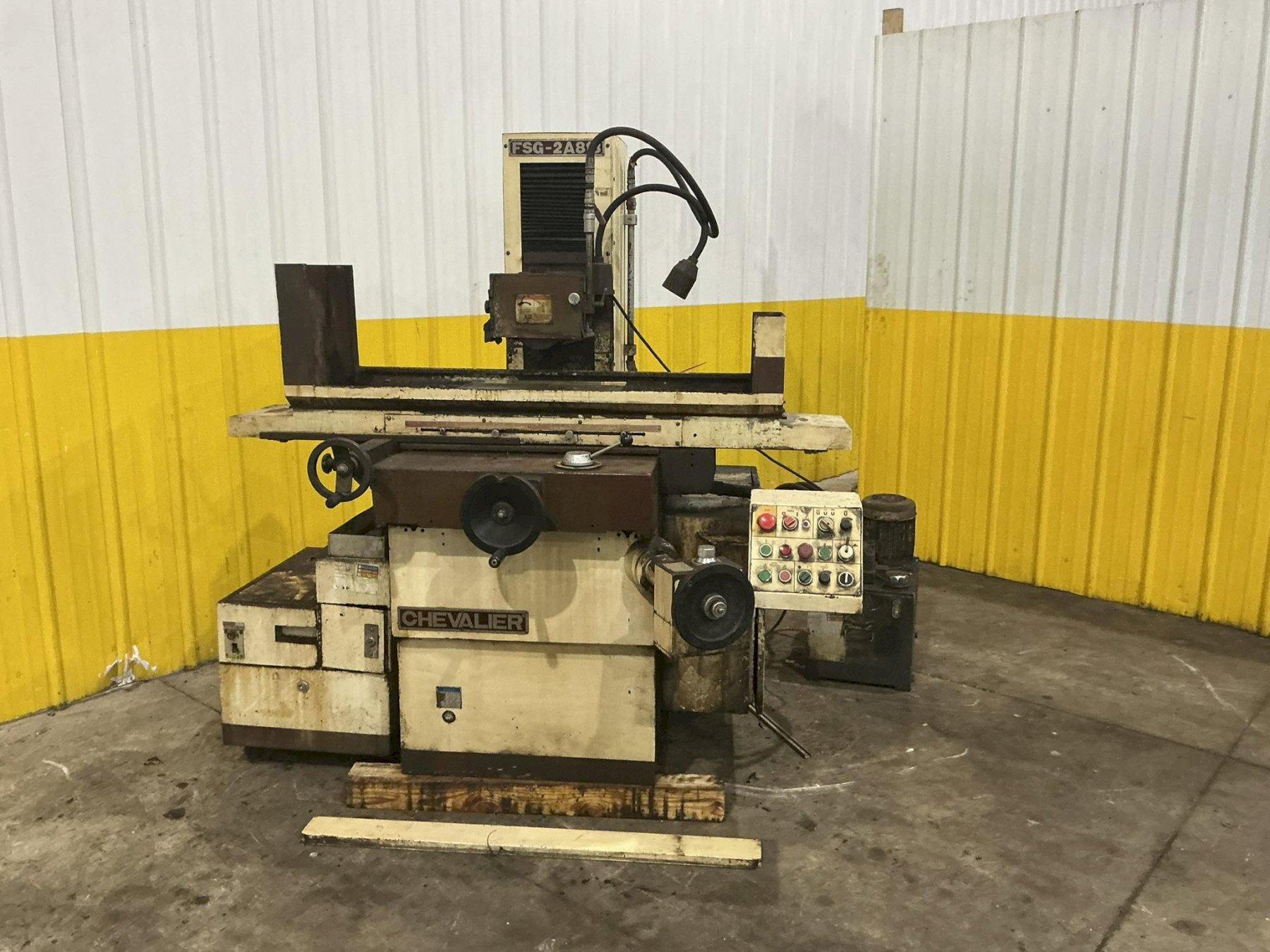

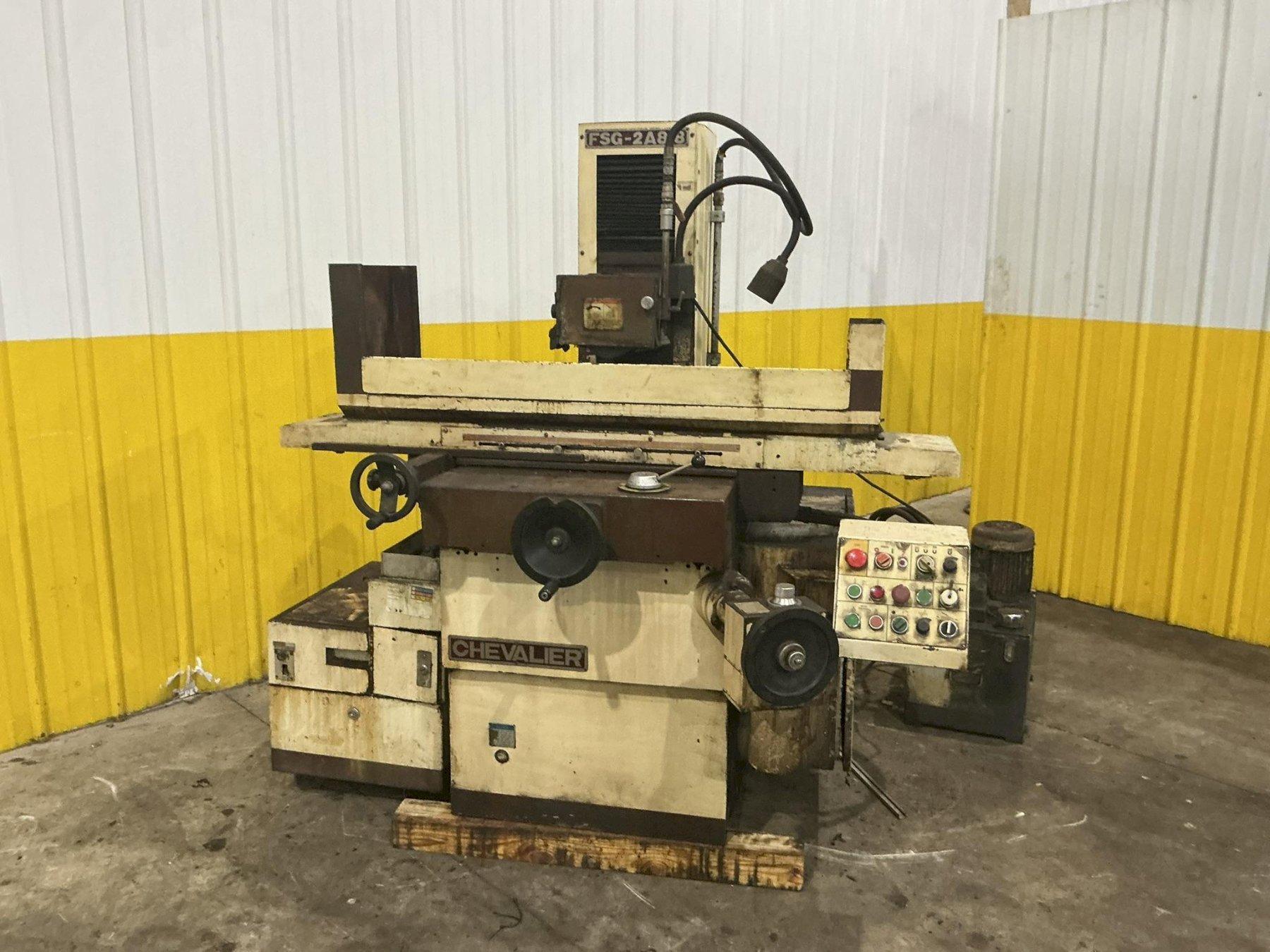

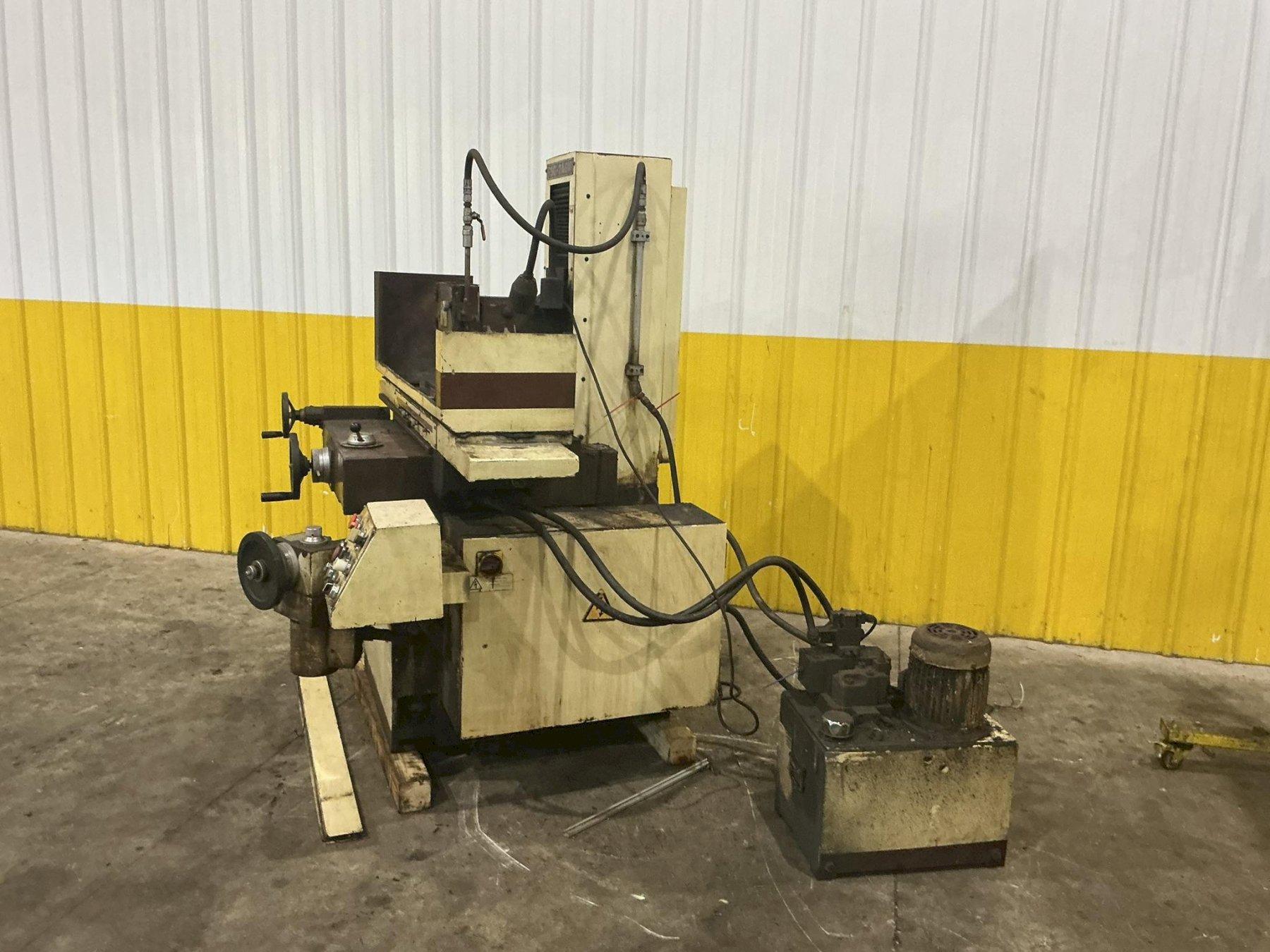

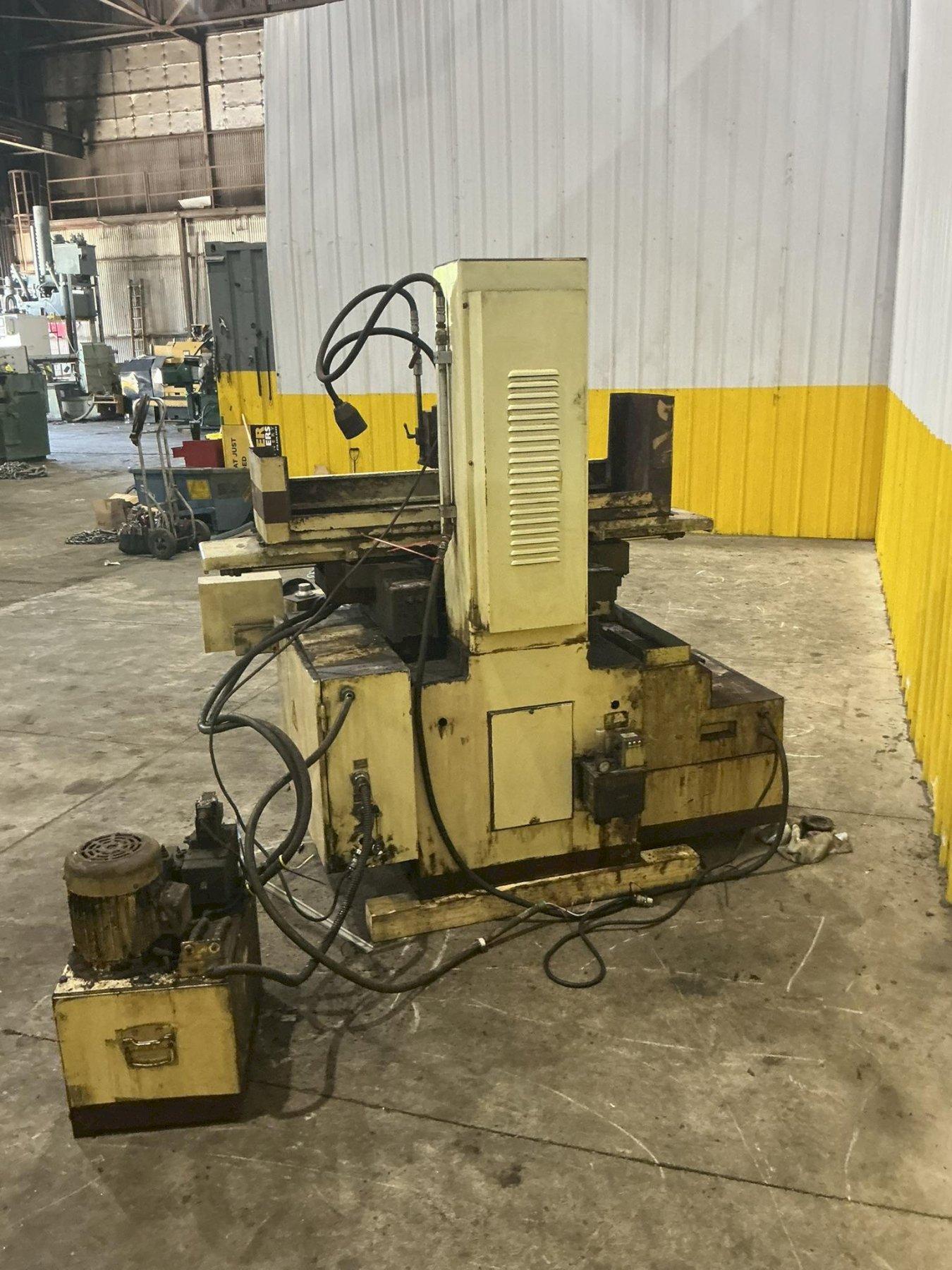

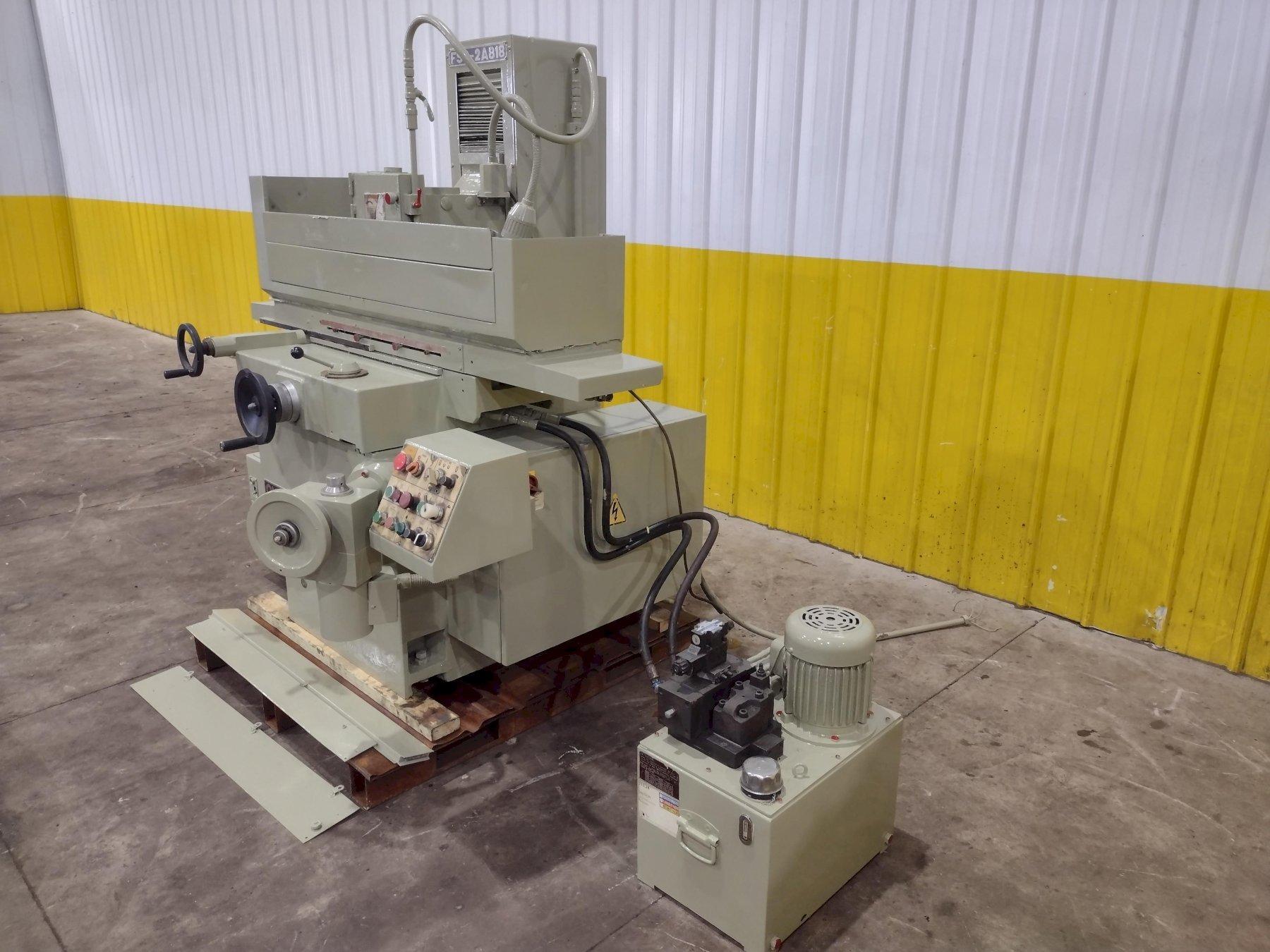

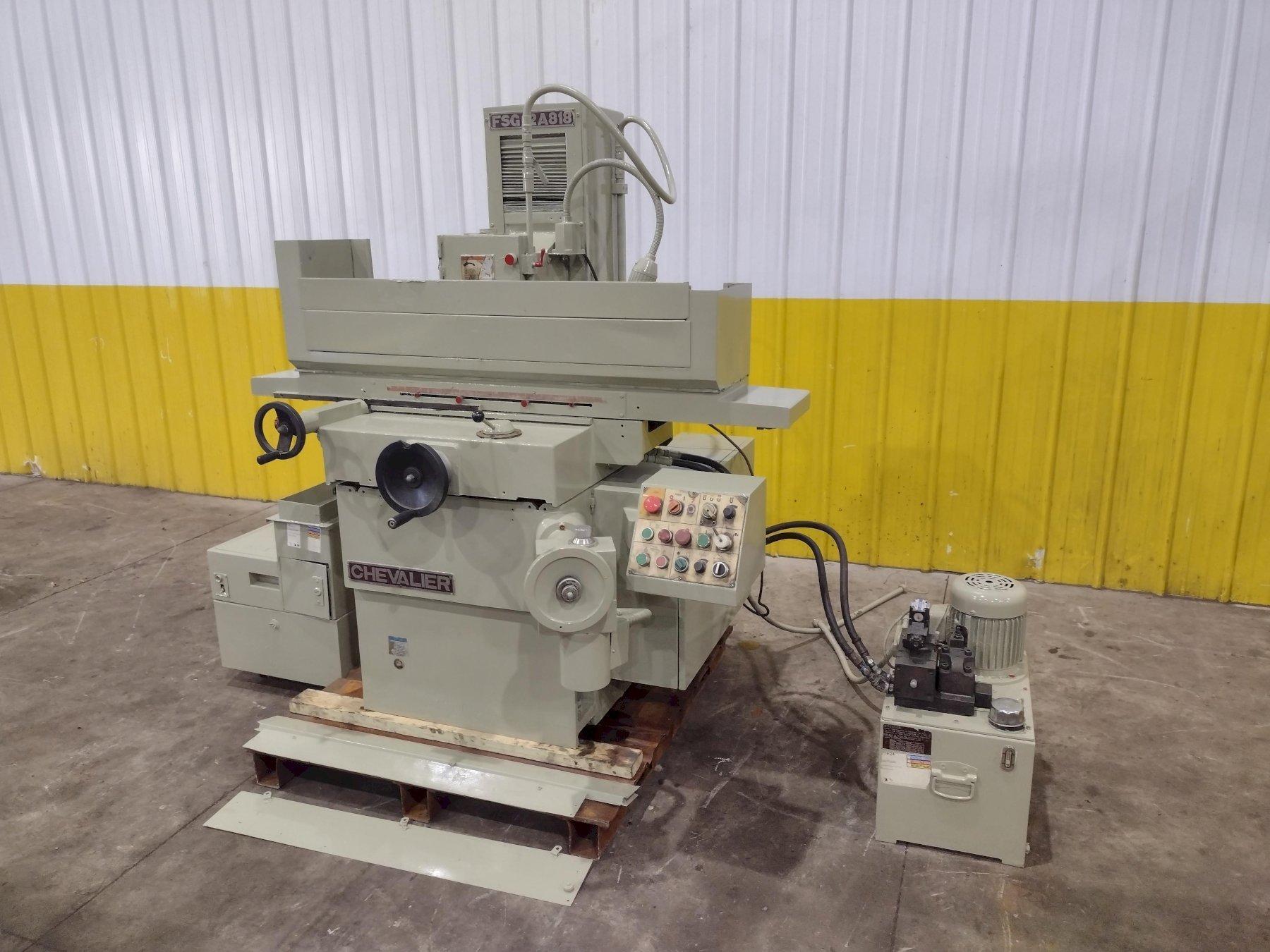

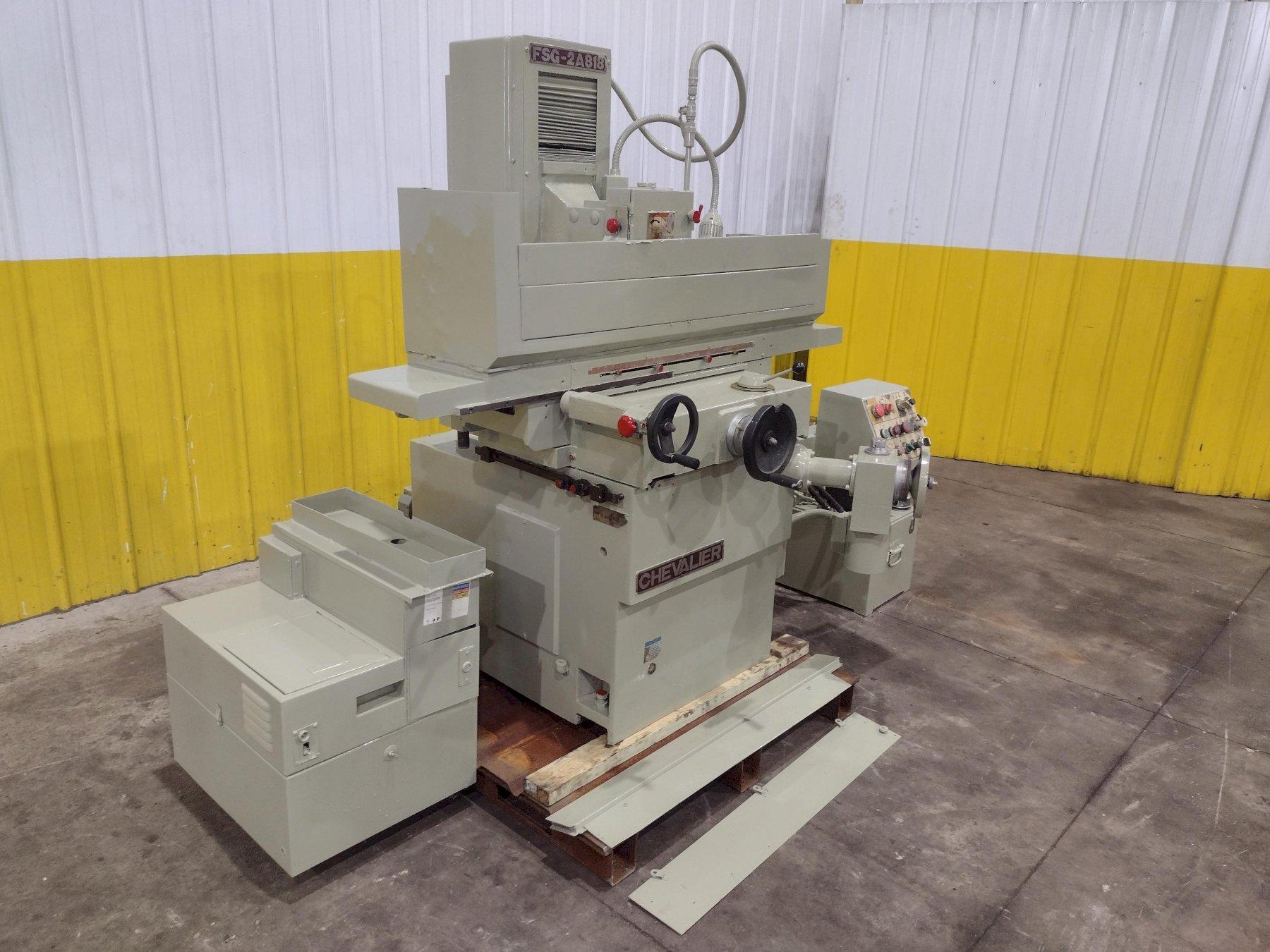

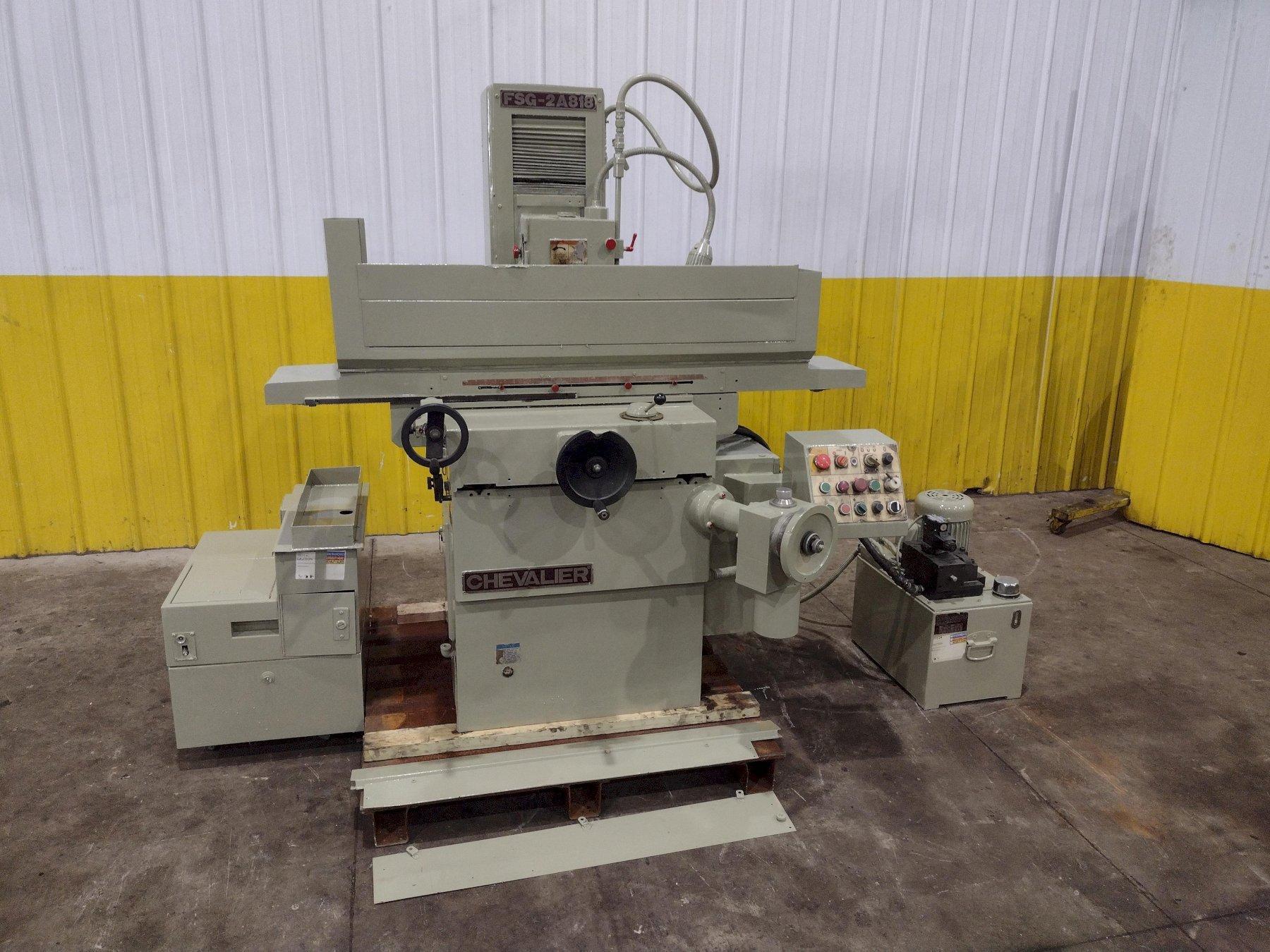

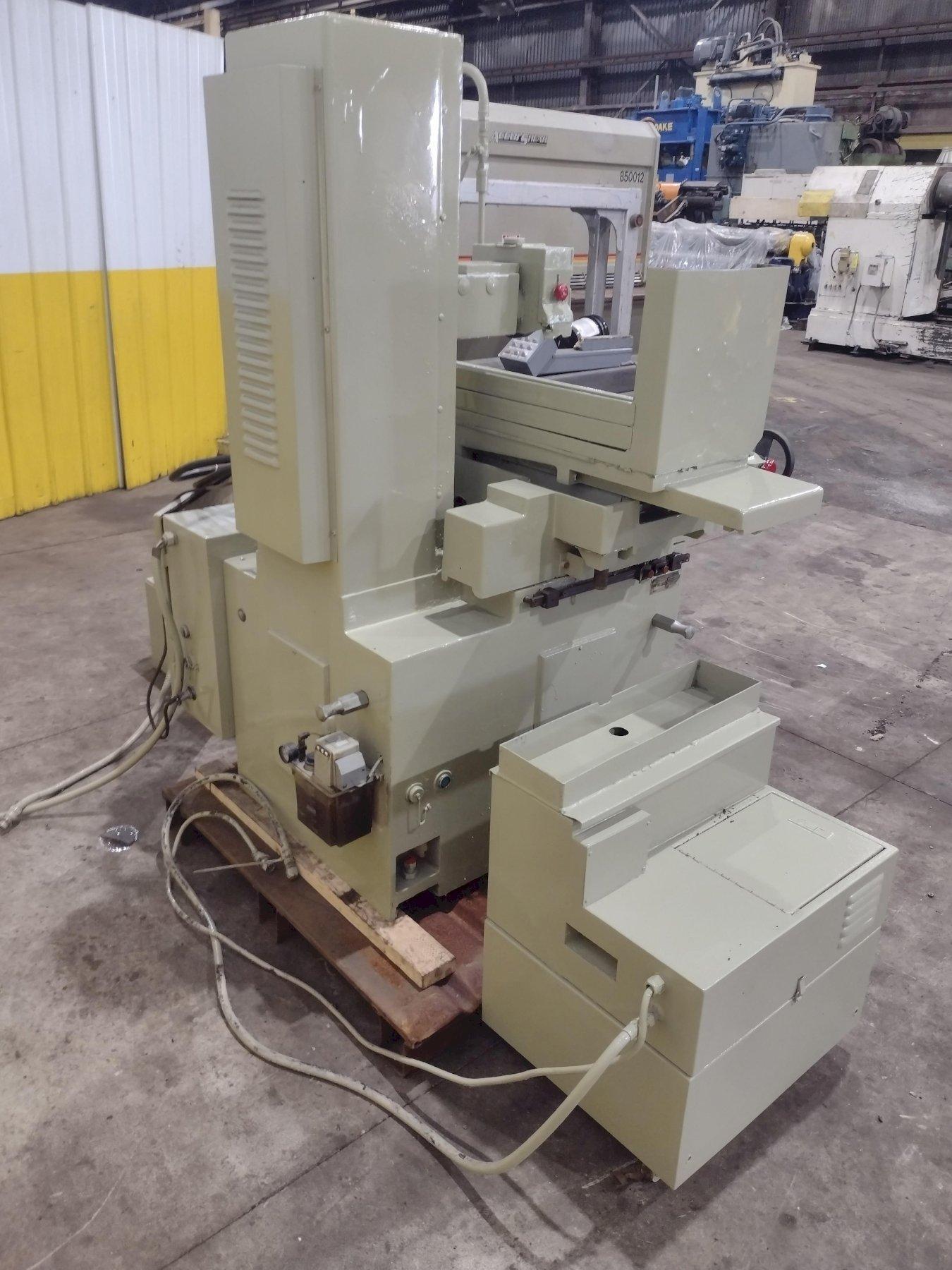

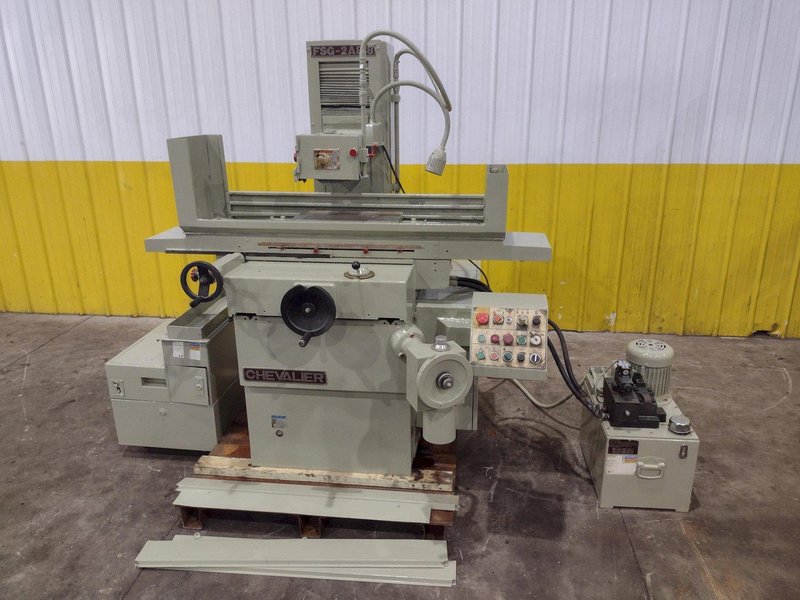

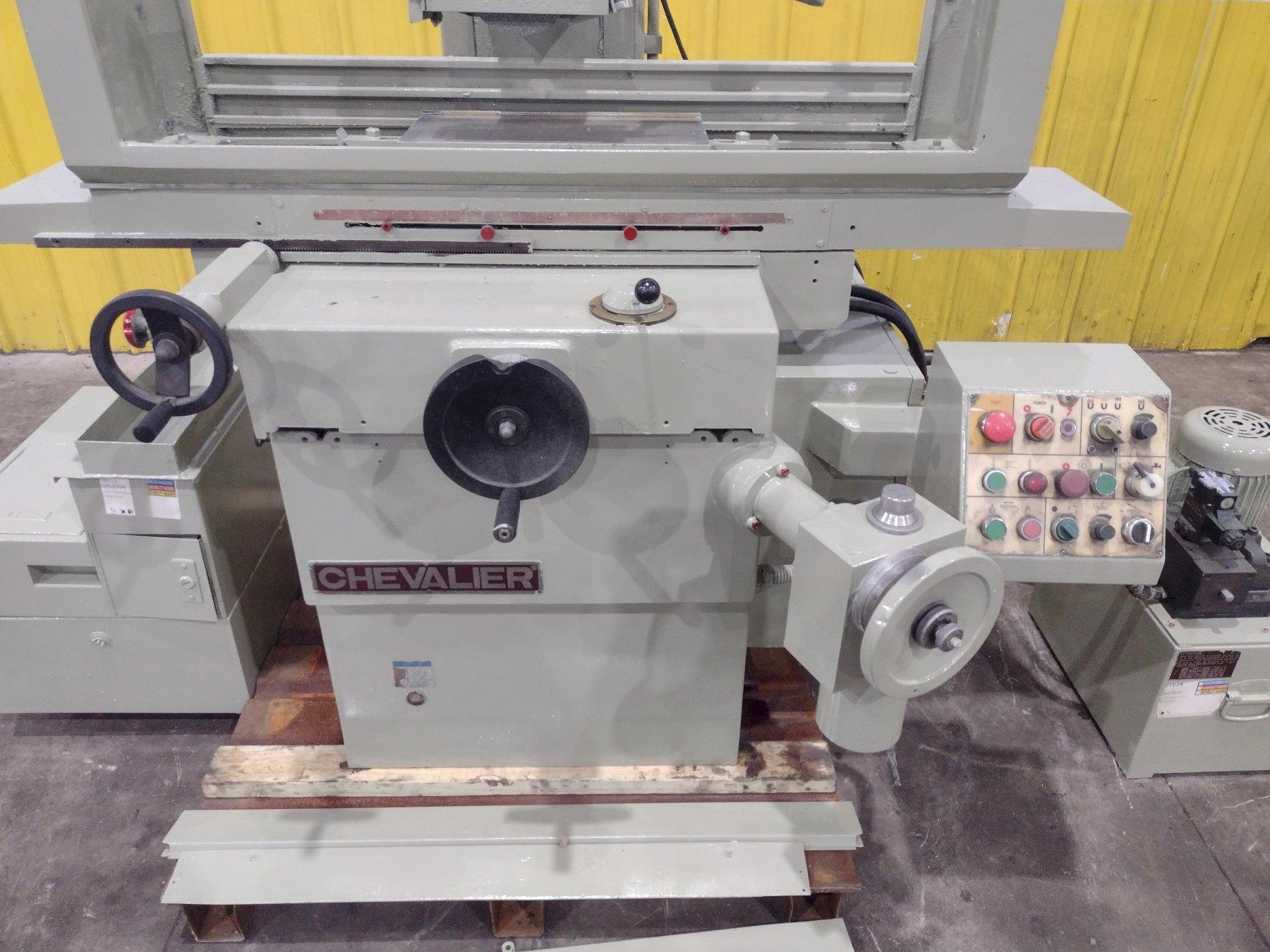

8" X 18" CHEVALIER MODEL #FSG-2A818 3 AXIS HYDRAULIC SURFACE GRINDER: YOBRO #25419

8" X 18" CHEVALIER MODEL #FSG-2A818 3 AXIS HYDRAULIC SURFACE GRINDER: YOBRO #25419

Name: 8" X 18" CHEVALIER MODEL #FSG-2A818 3 AXIS HYDRAULIC SURFACE GRINDER: YOBRO #25419
Brand: CHEVALIER
SKU: 25419
Price: 6950.00 USD
Availability: InStock

Brand

CHEVALIER

Location

Ohio

Price

$6,950.00

REQUEST FINANCING

Specifications
Files & Videos

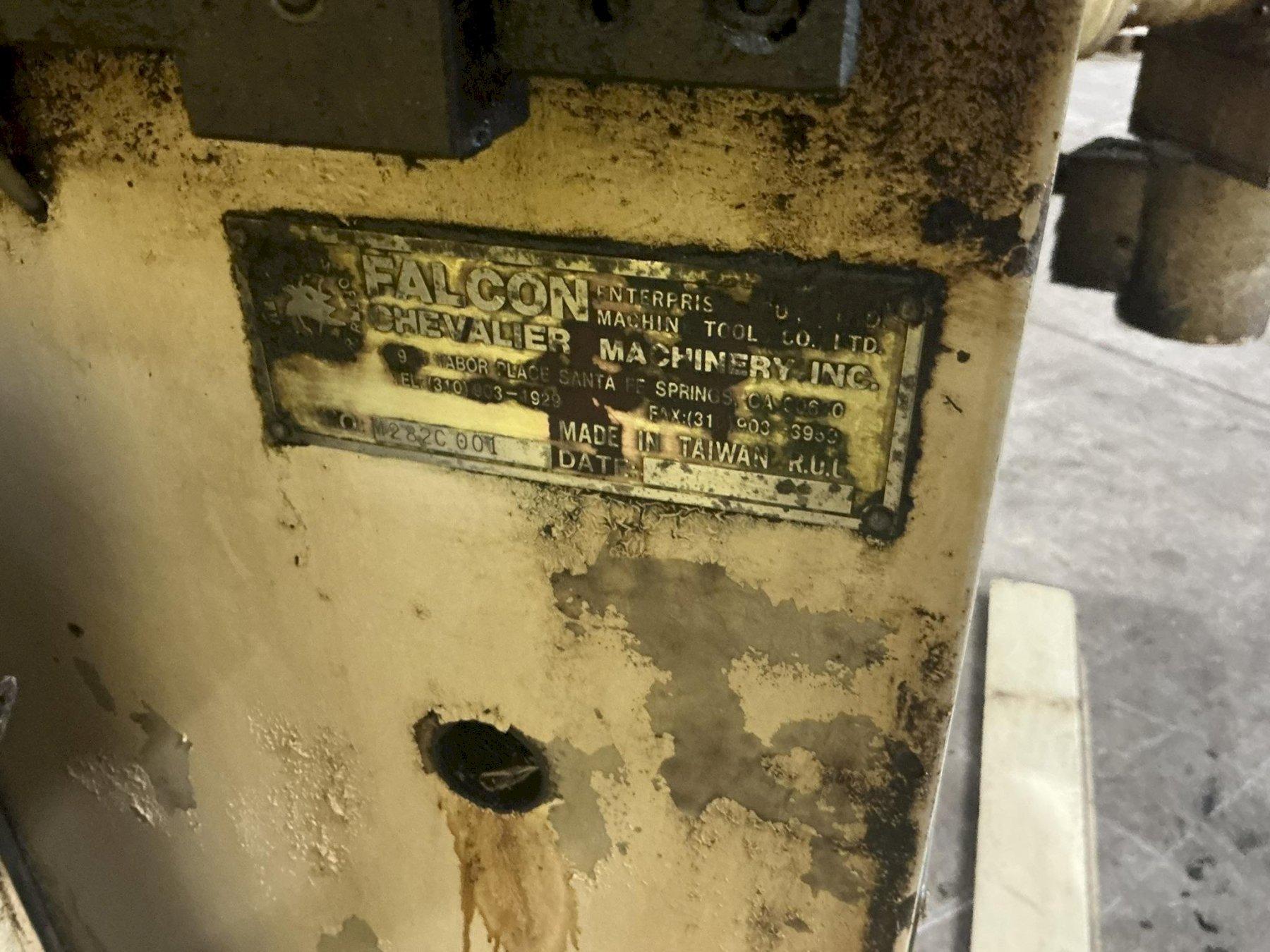

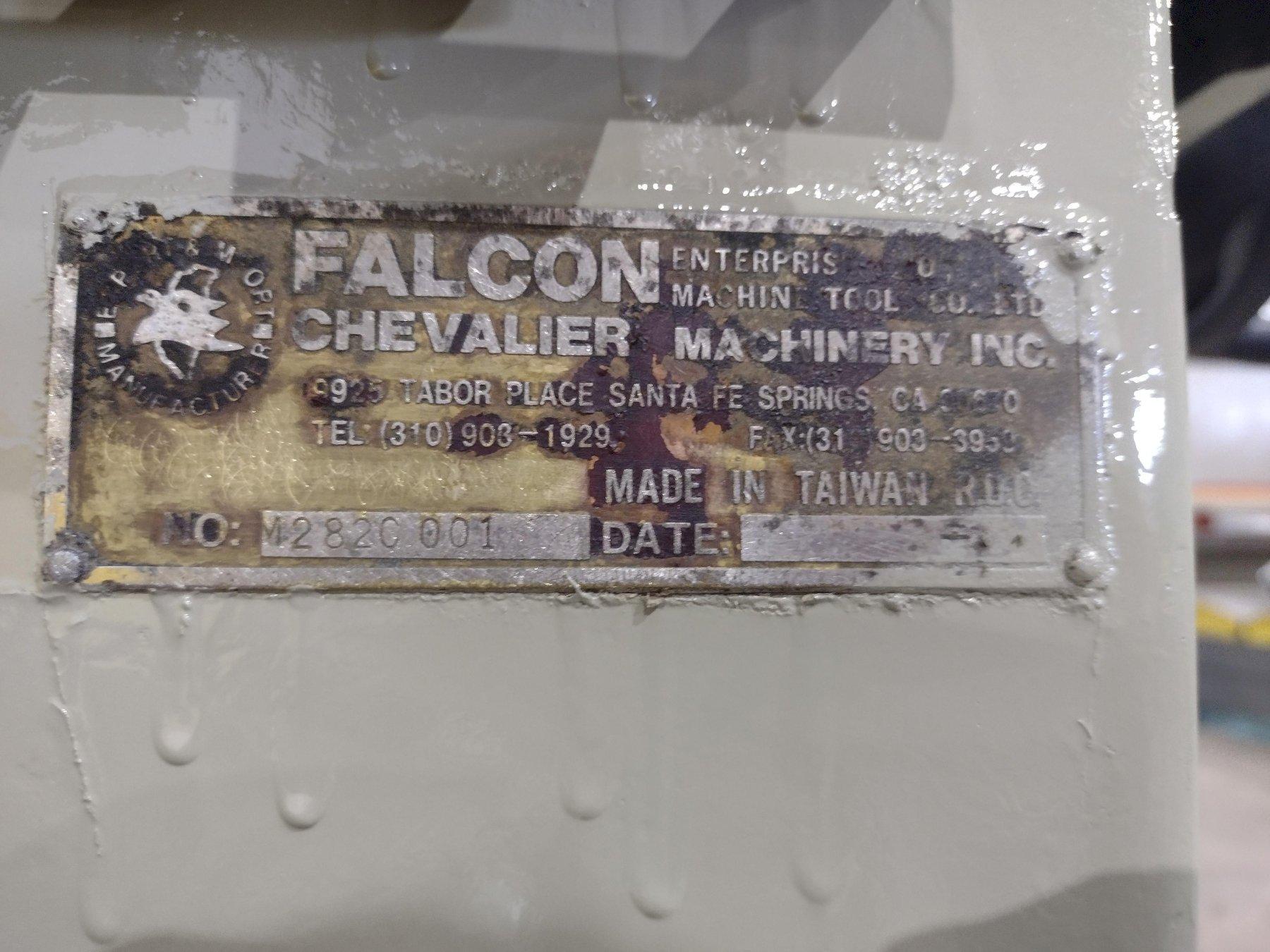

SERIAL M282C001

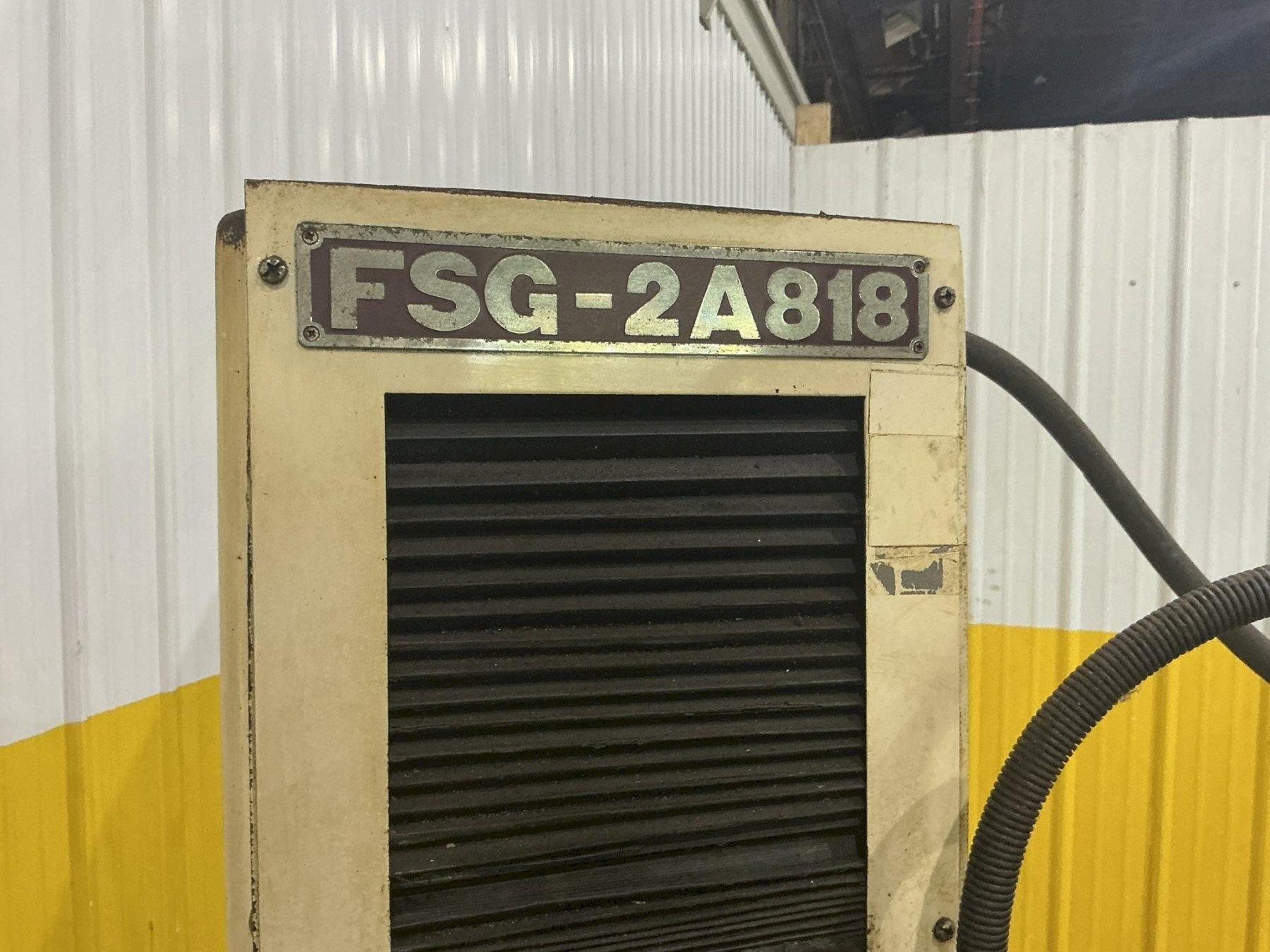

MODEL FSG-2A818
CAPACITY 8" X 18"

Table Size: 8″ x 18″

Grinding Length: 18″

Grinding Width: 8″

Distance from table surface so spindle centerline: 18″

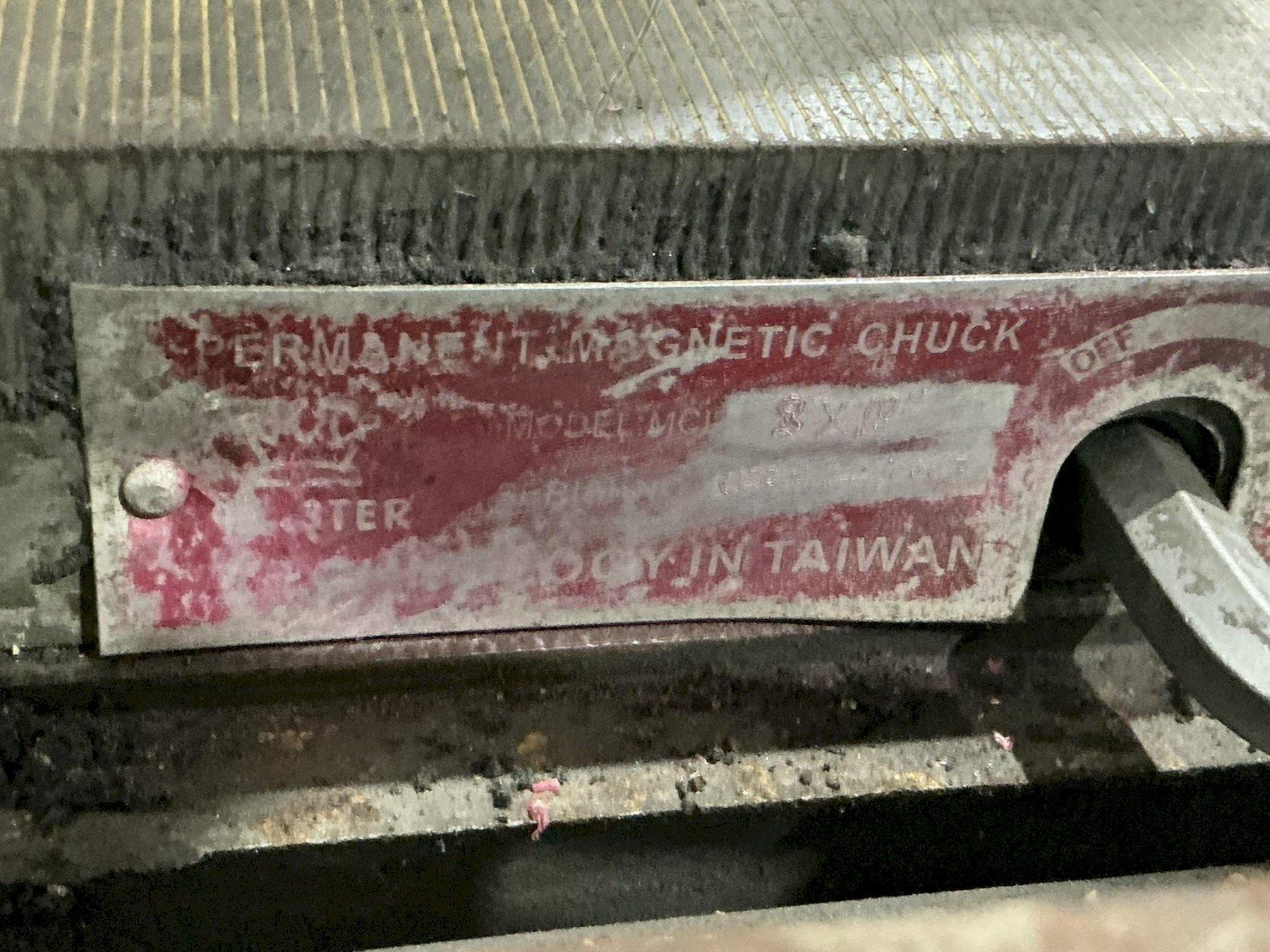

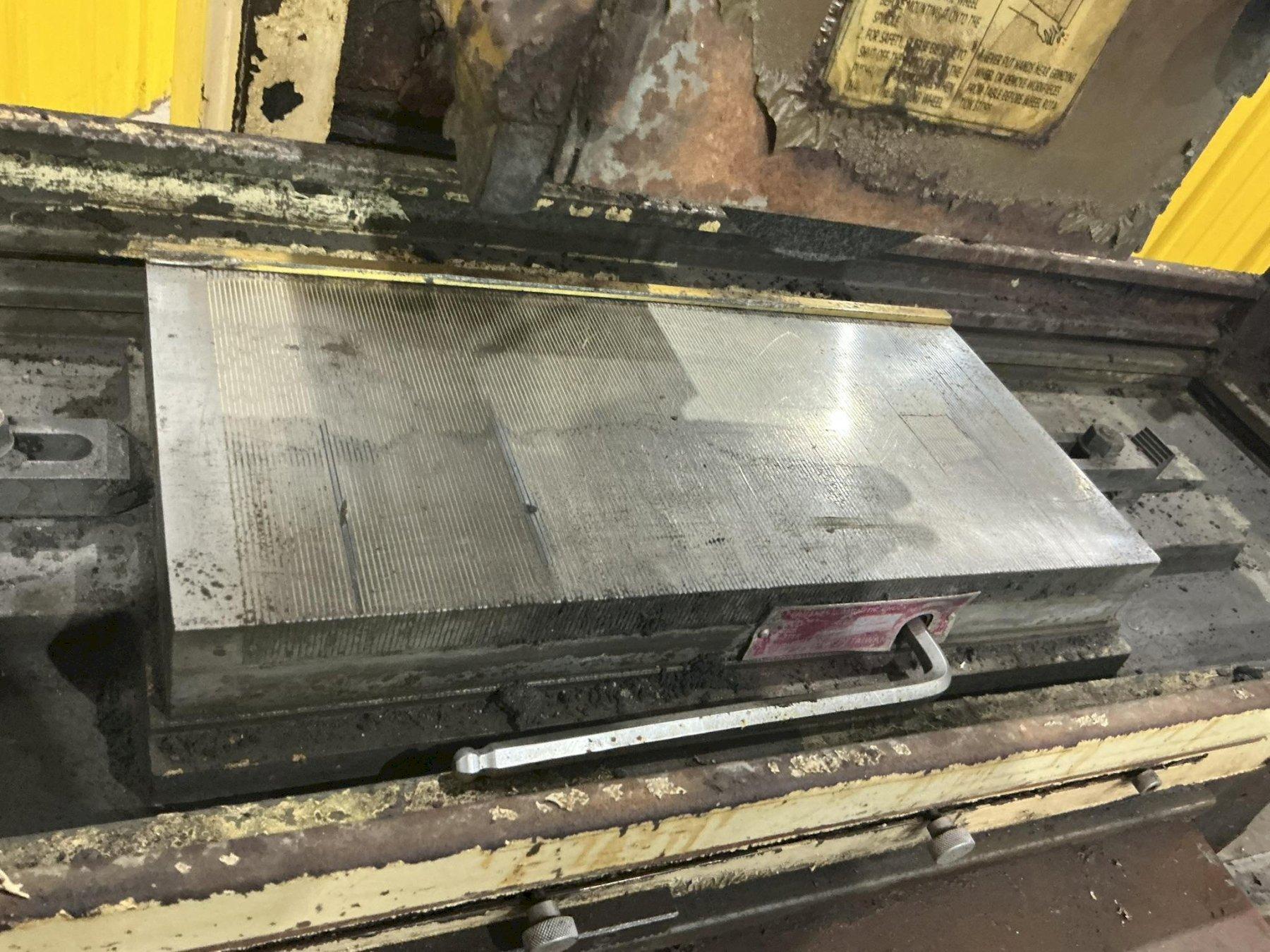

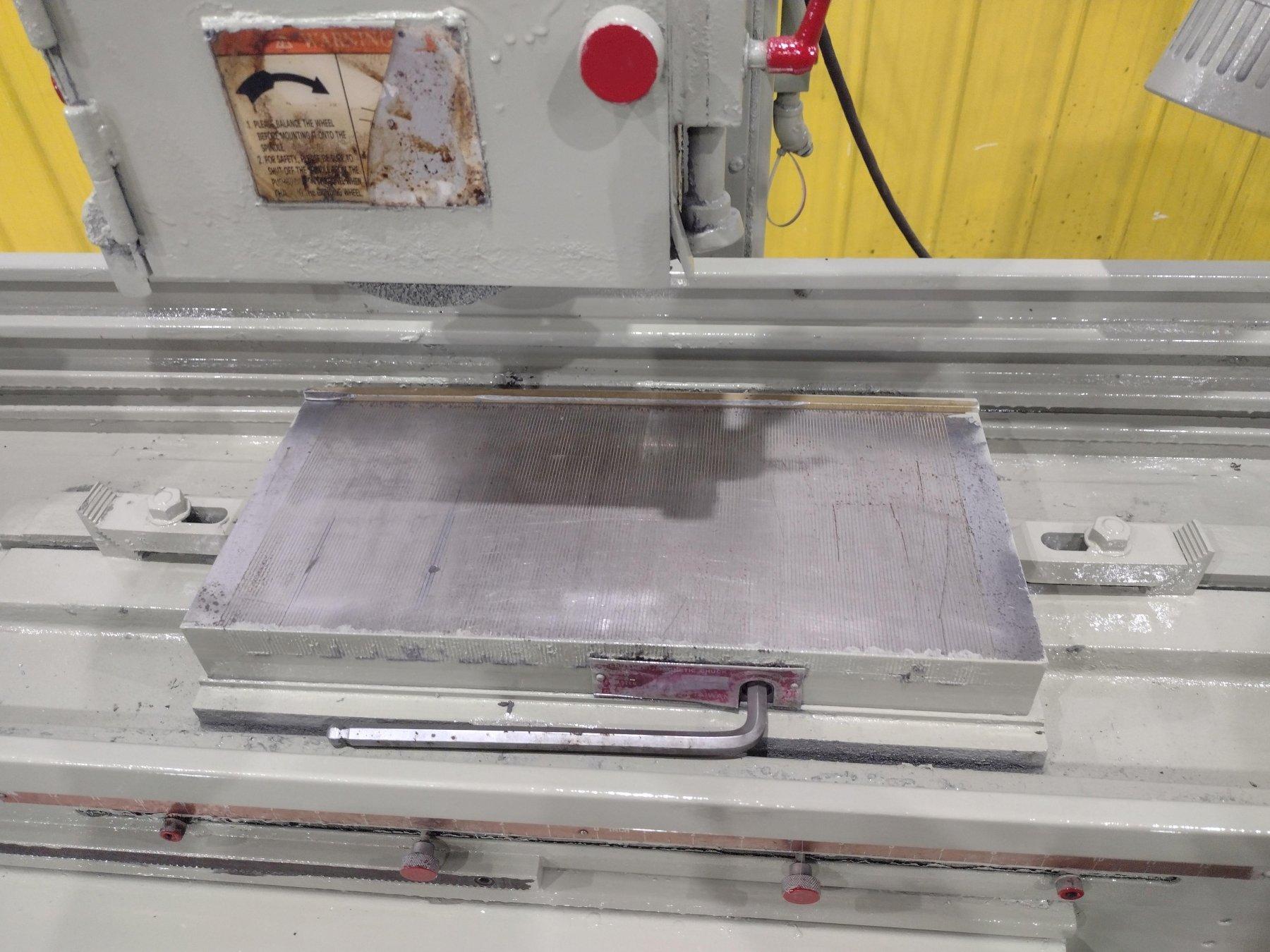

Magnetic Chuck Size: 7-7/8″ x 17-3/4″

Longitudinal Travel, Hydraulic: 19-3/4″

Longitudinal Travel, Manaul: 21″

Table Speed, Infinitely Variable: 16 – 82 FPM

Rapid Cross Travel: 38 IPM

Automatic Cross Transverse Increment: 0.02 – 0.24″

Automatic Cross Transverse Travel: 9″

Manual Cross Transverse Travel: 9-1/2″

Handwheel per Graduation: 0.001″

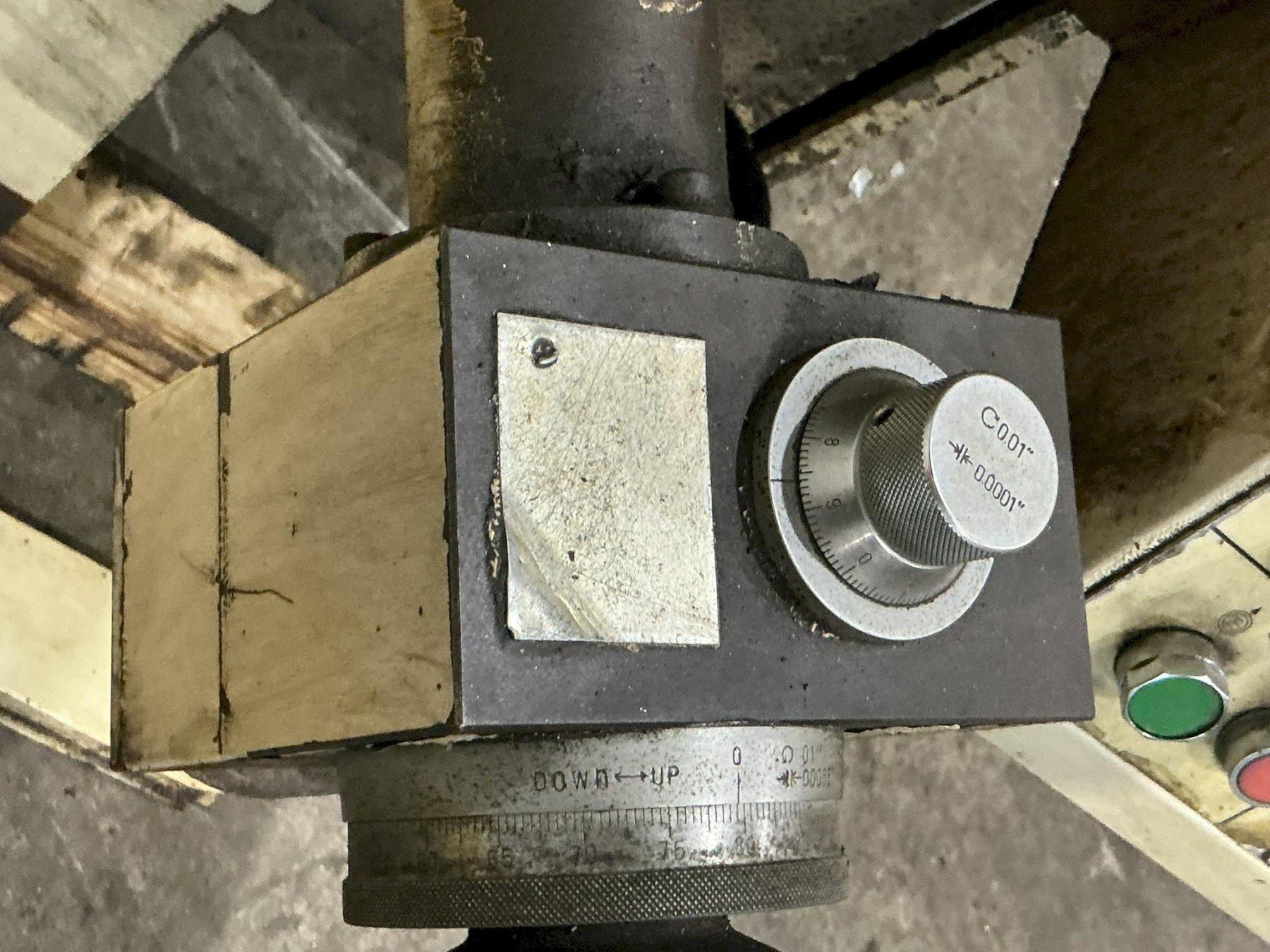

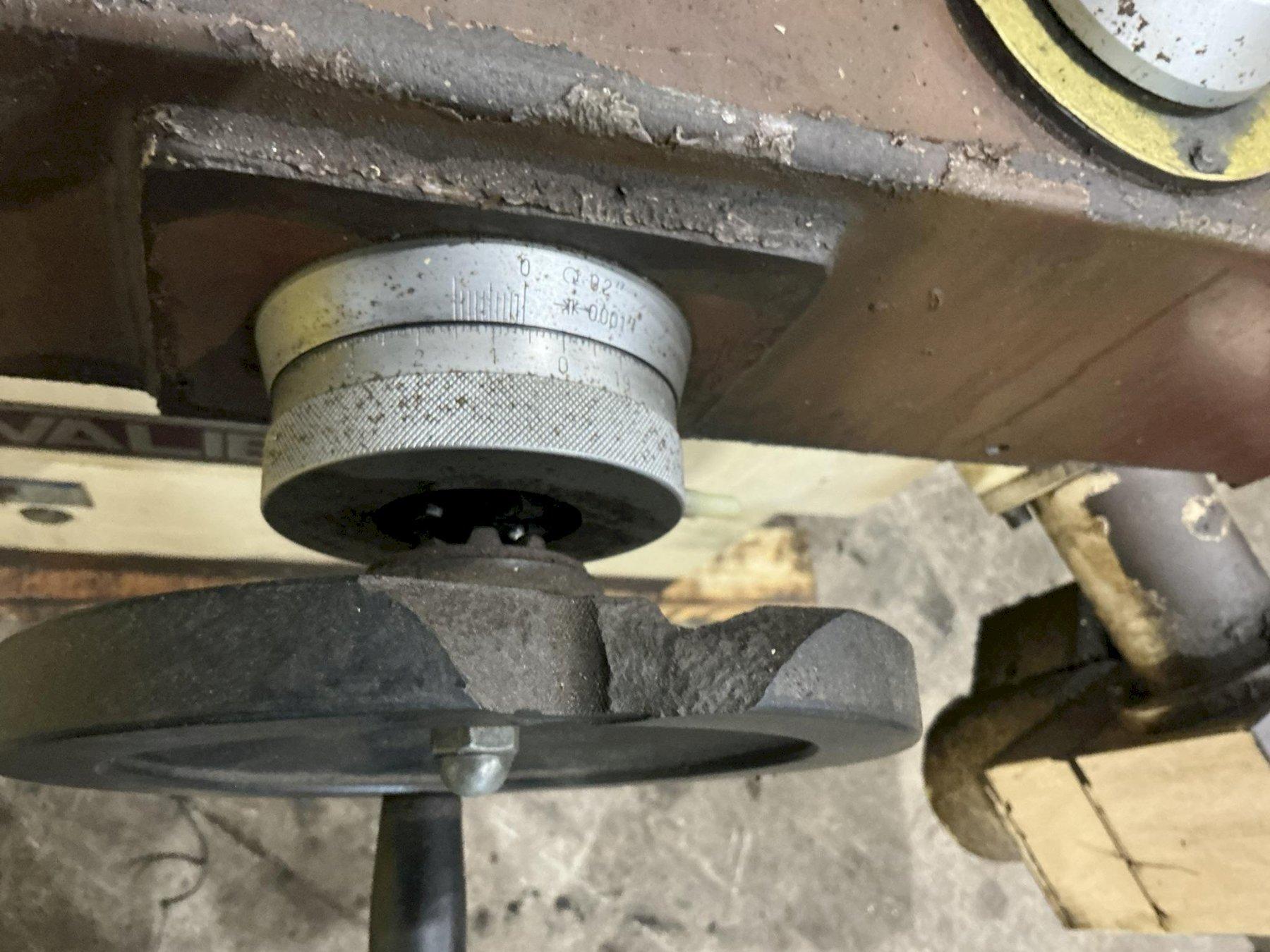

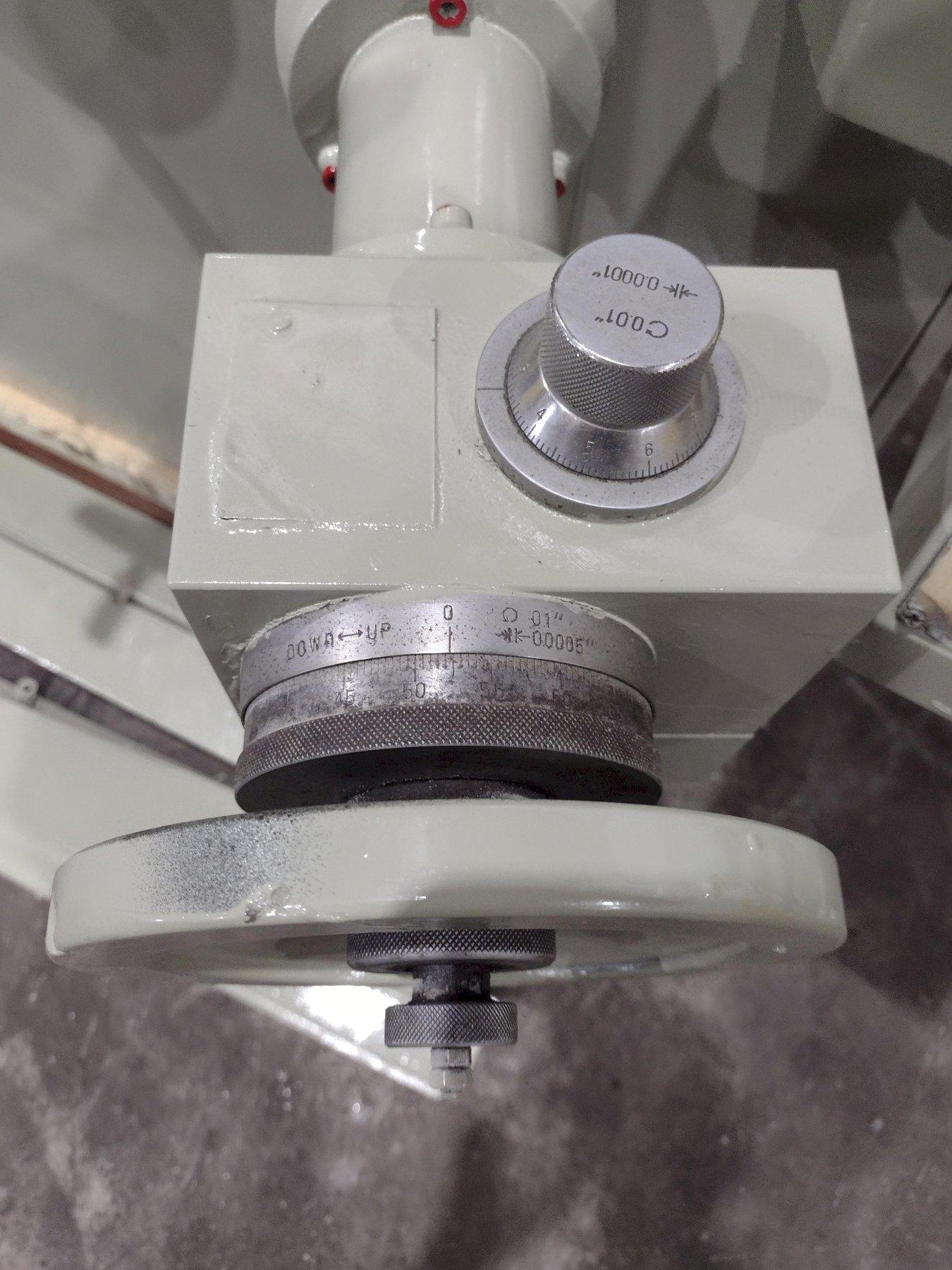

Vertical Infeed Handwheel Per Revolution: .1″
Vertical Infeed Handwheel Per Graduation: 0.0005″
Incremental Downfeed

Grinding Spindle Speed: 3450RPM

Grinding Spindle Motor HP: 2

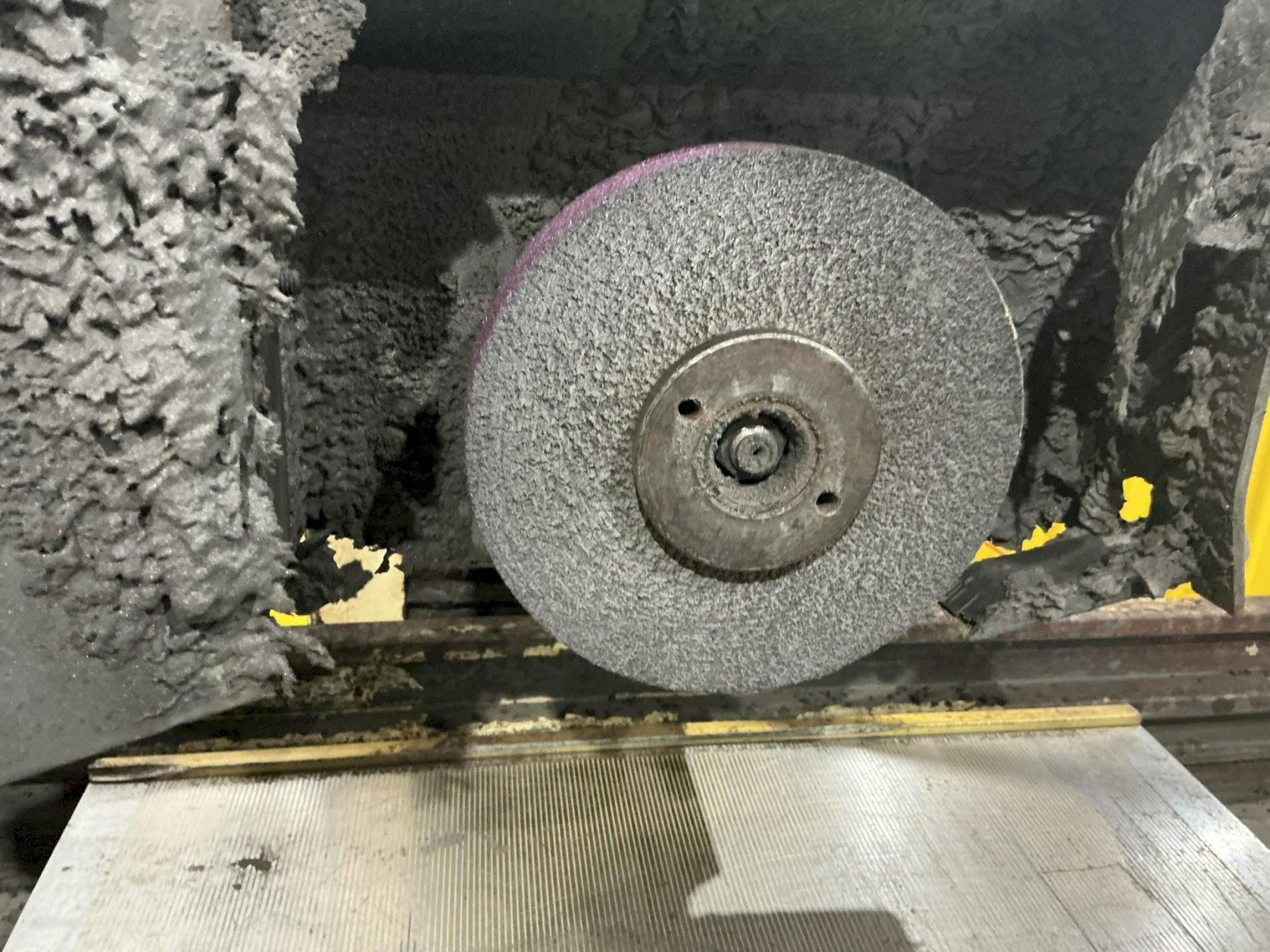

Standard Grinding Wheel Size: 8″ x 1/2″ x 1-1/4″ Bore

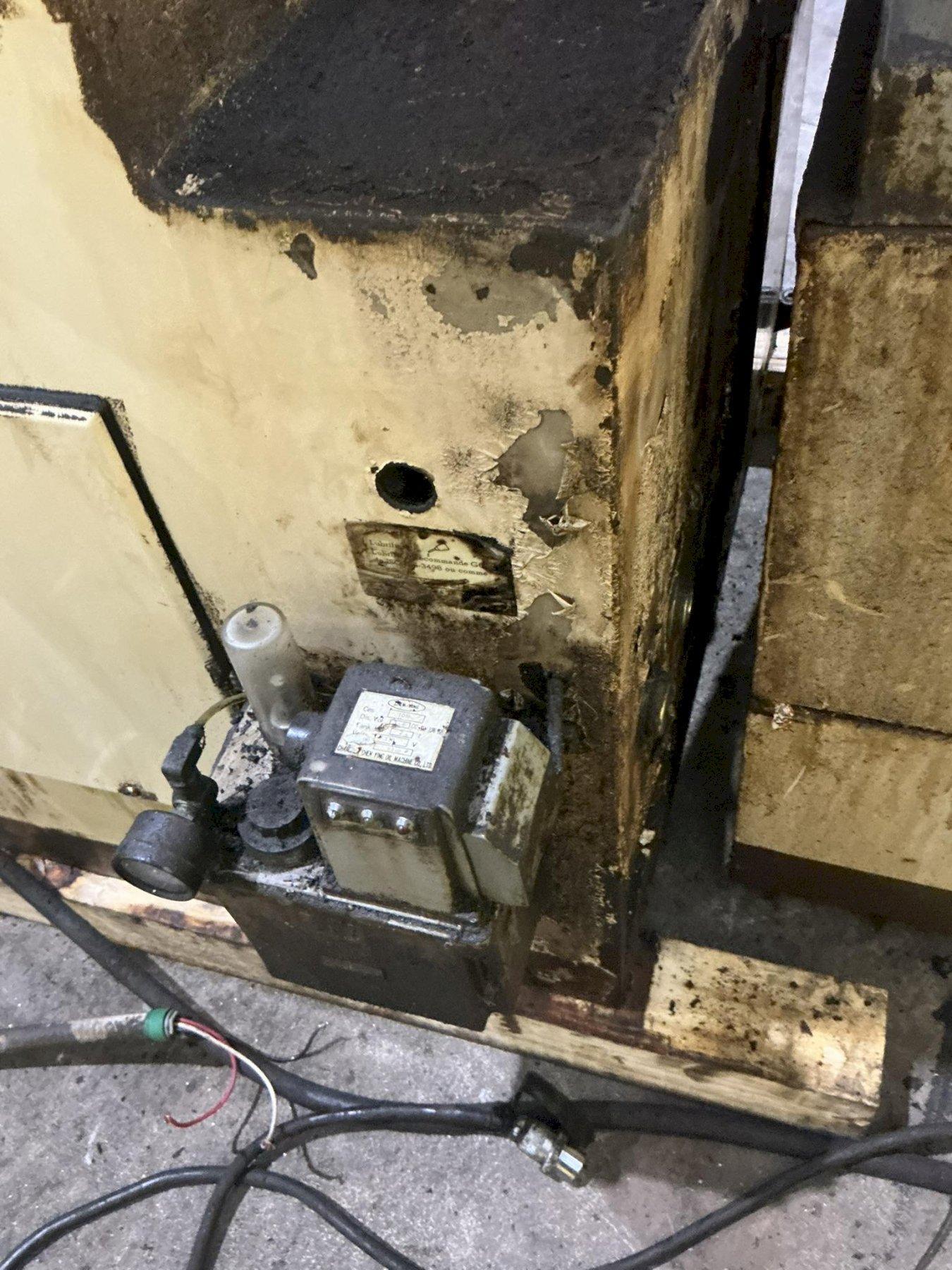

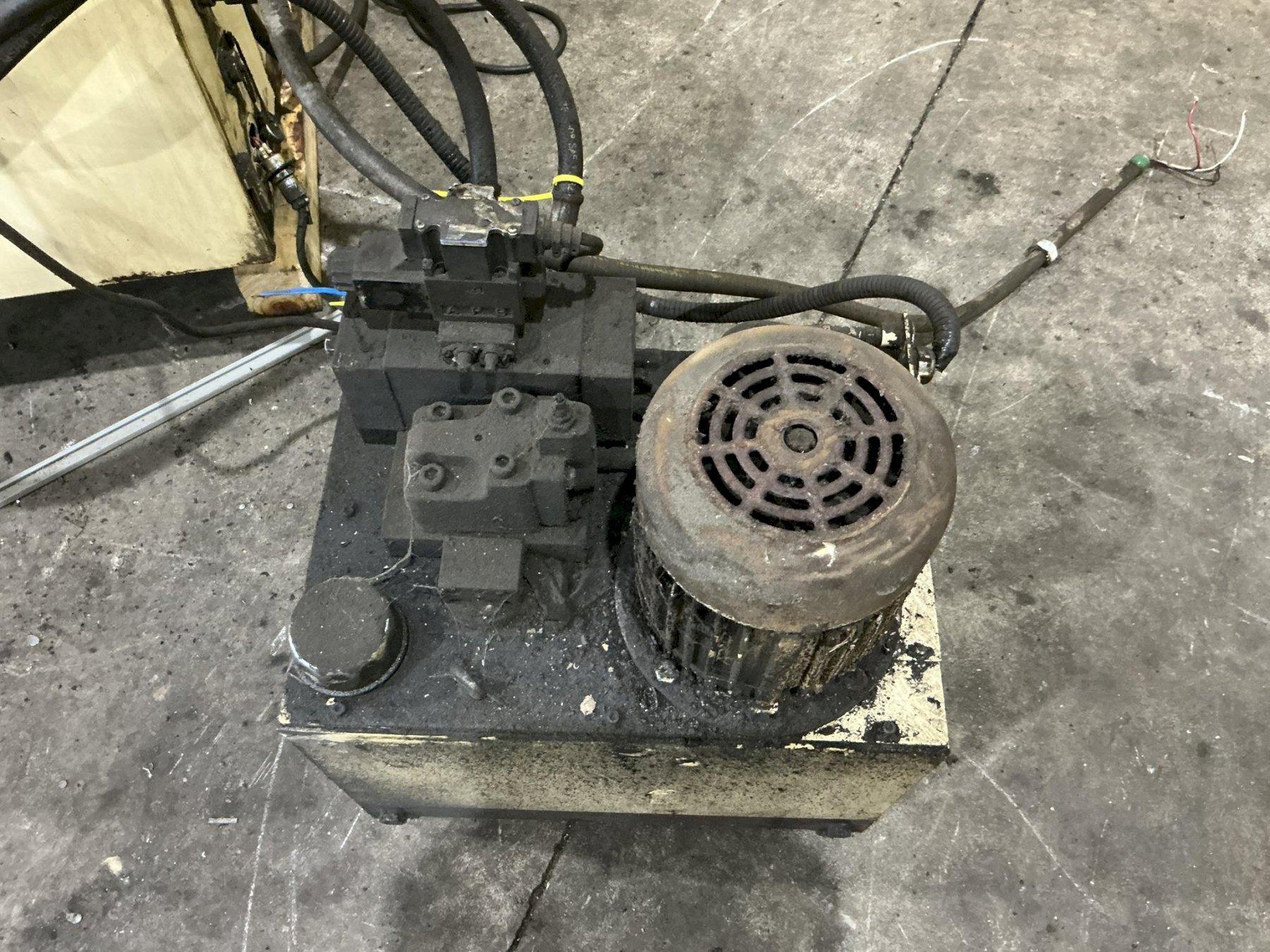

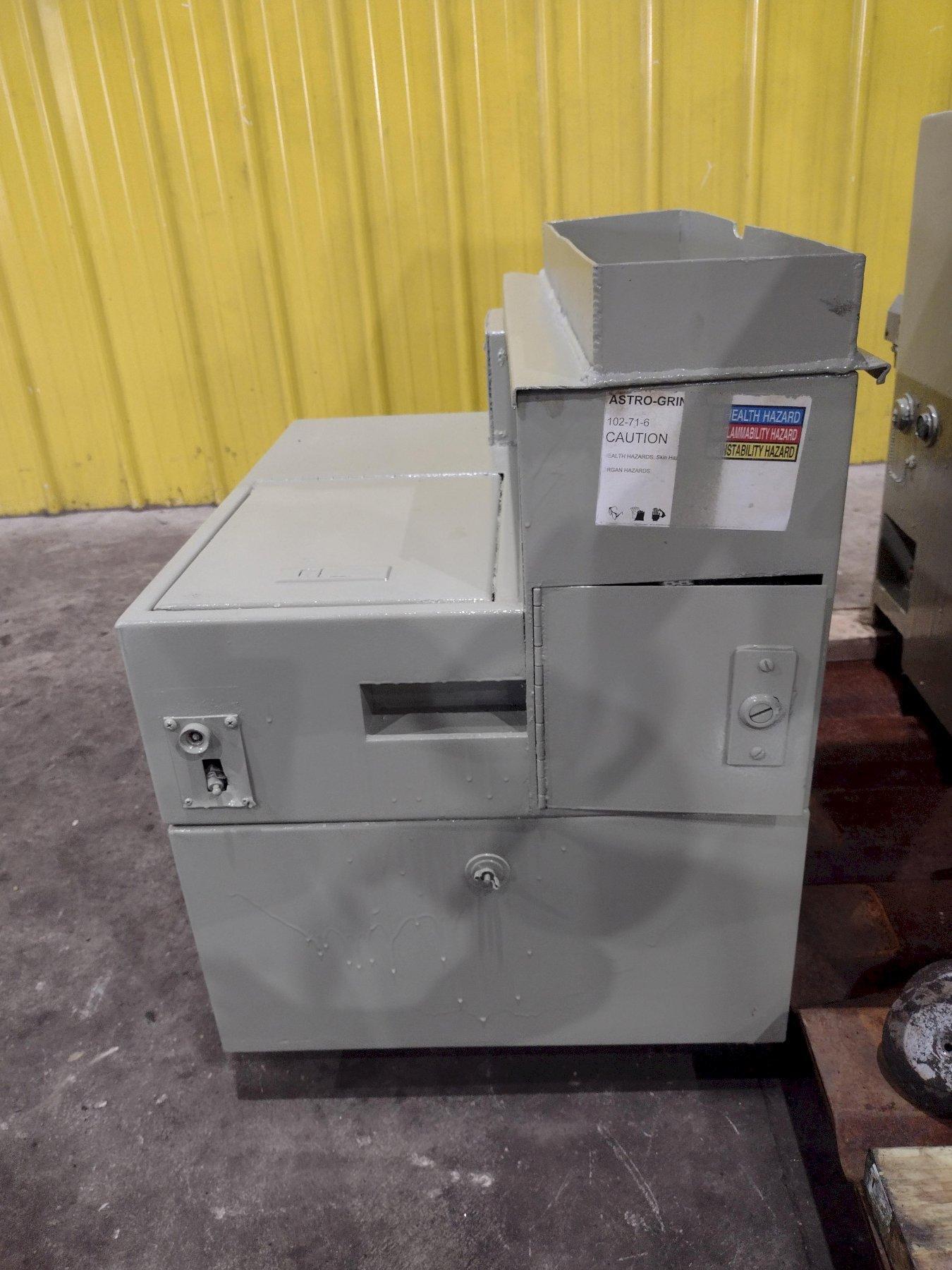

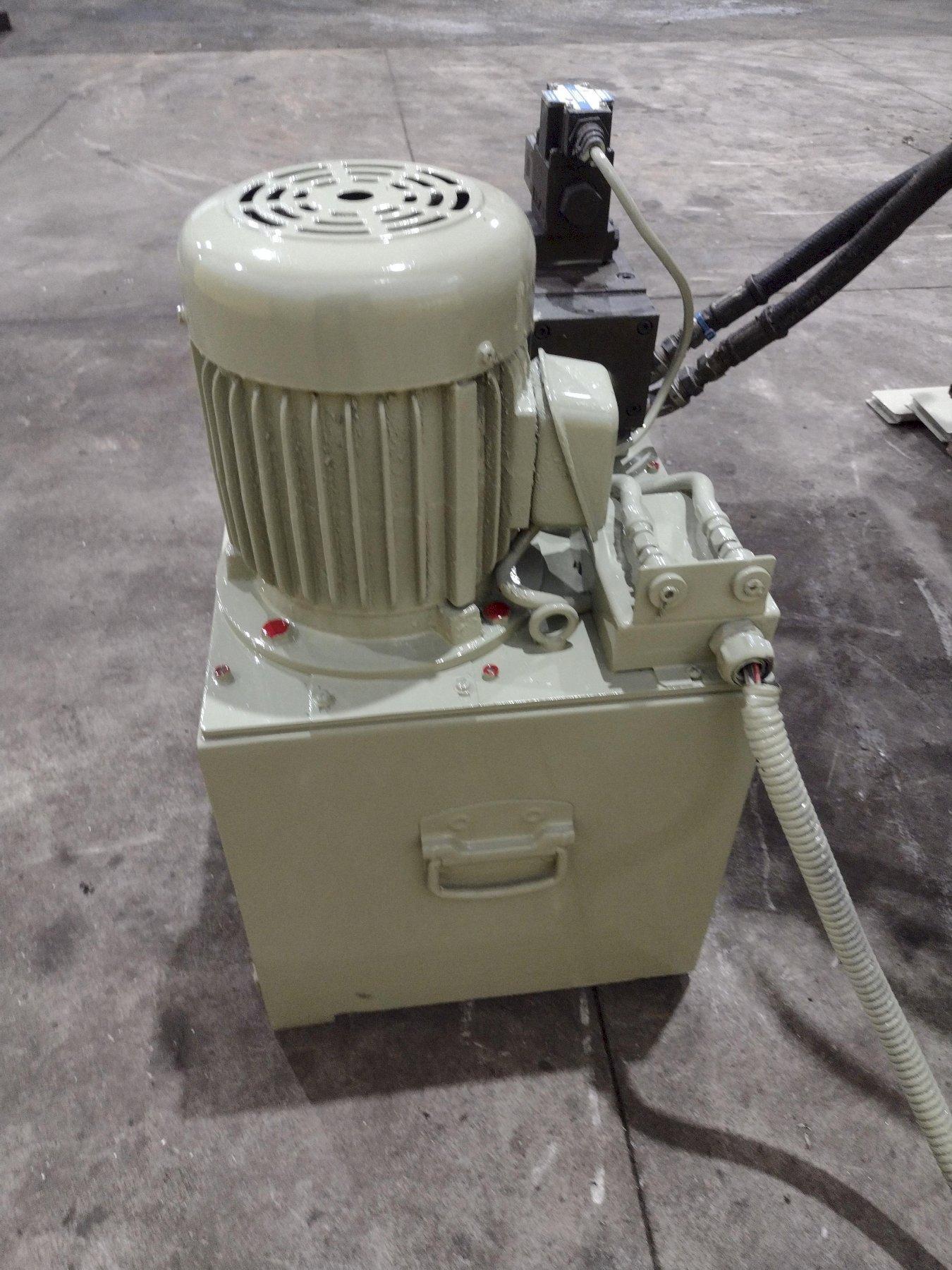

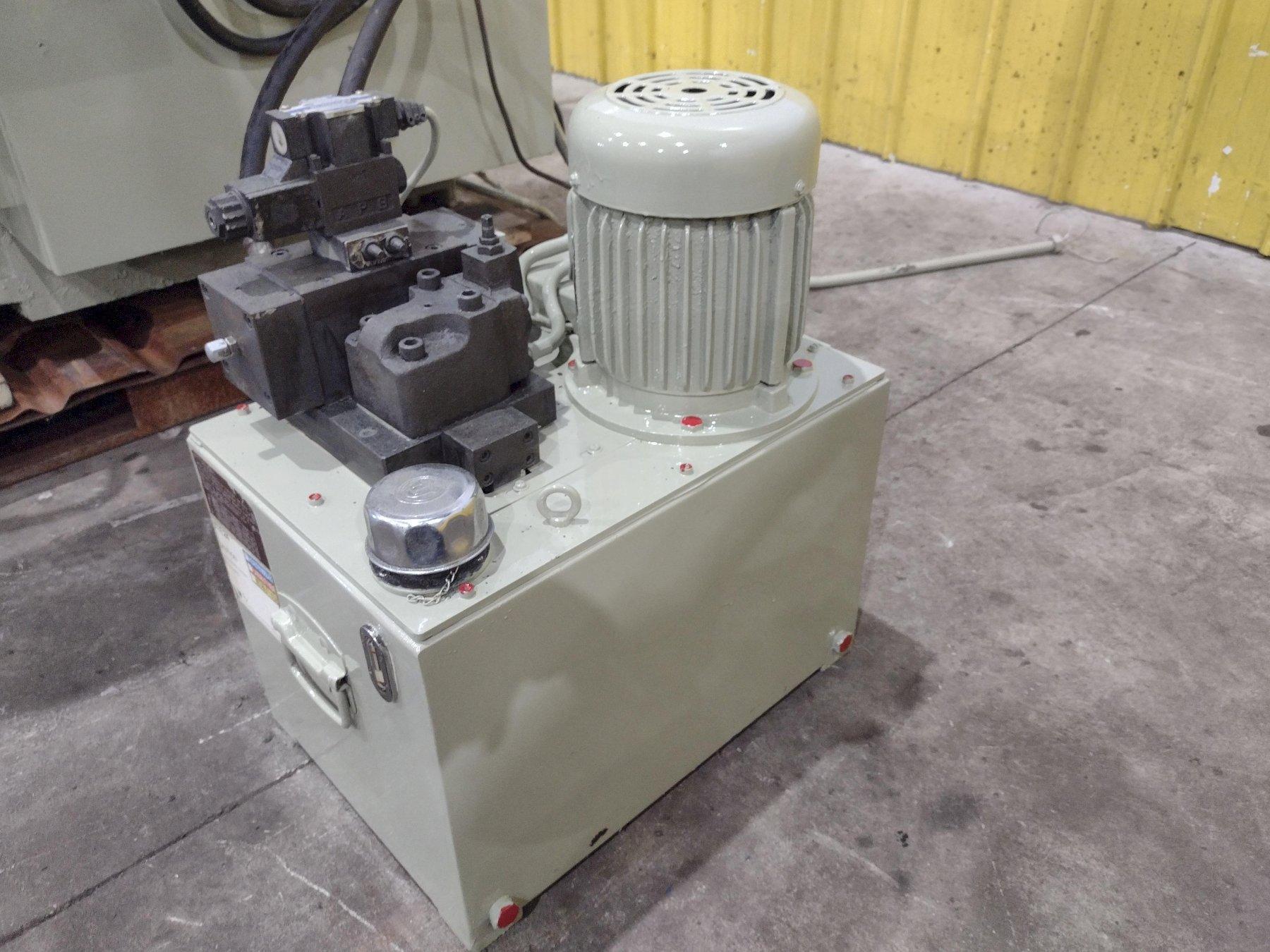

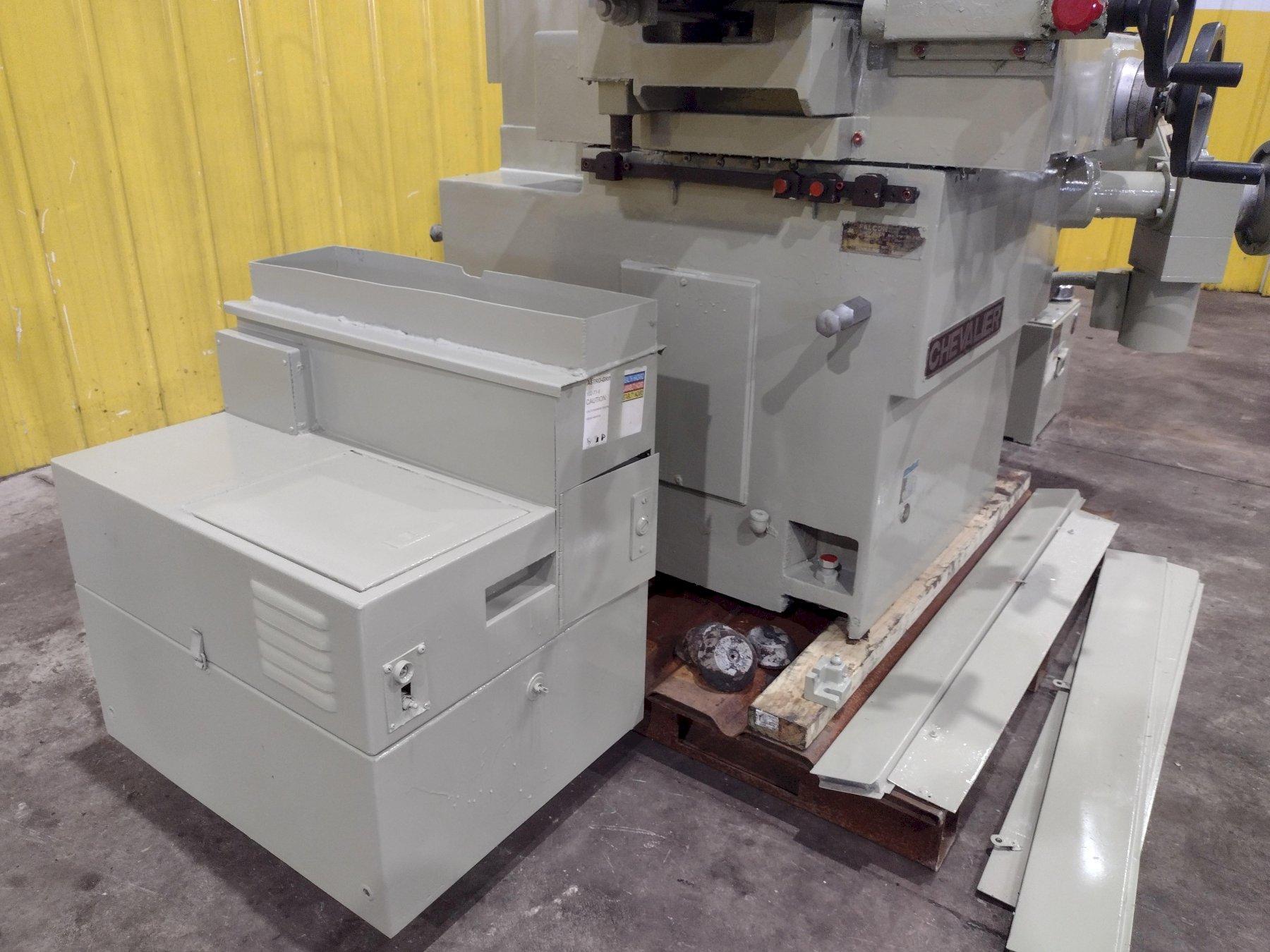

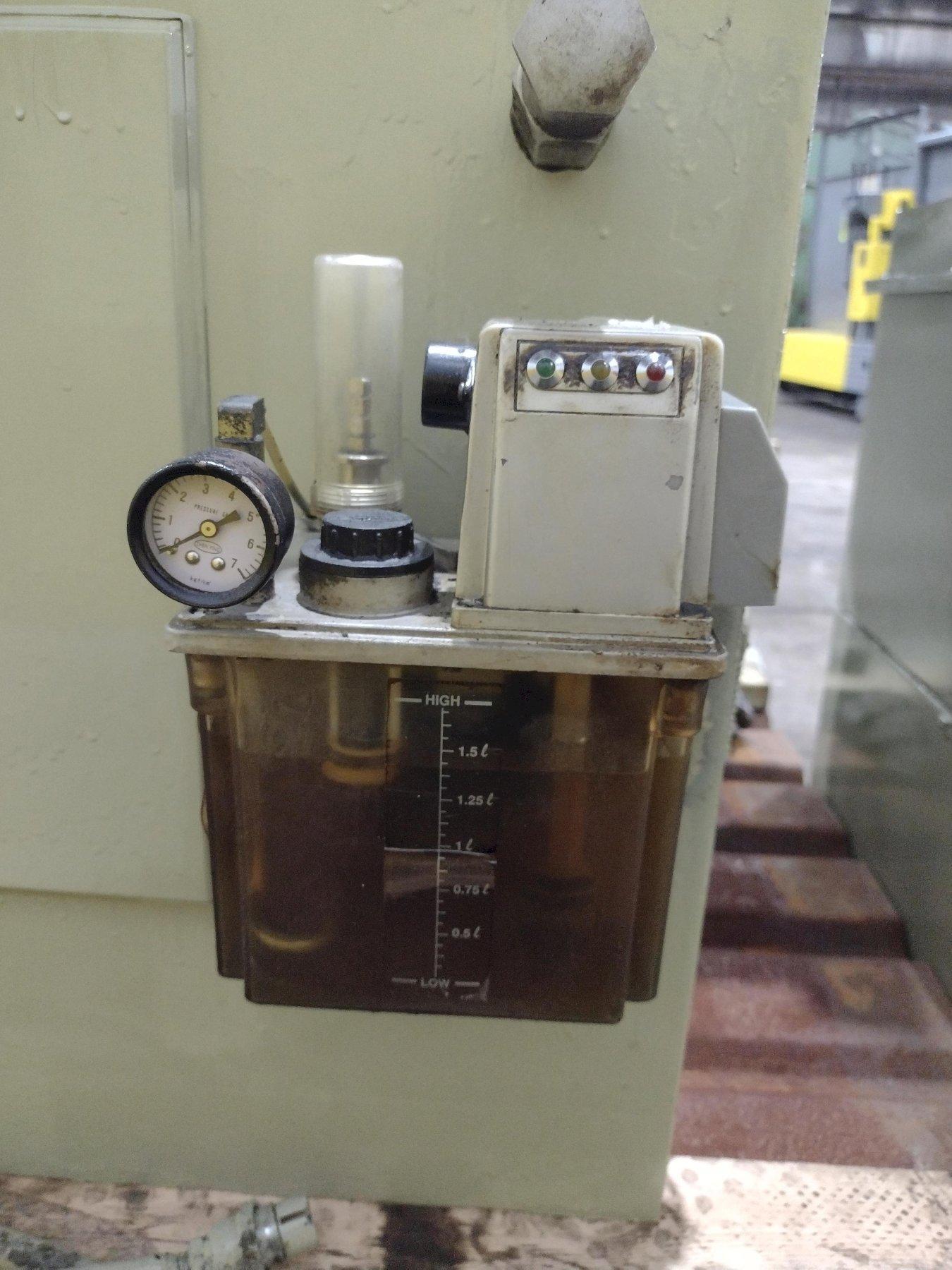

Hydraulic system for automatic longitudinal travel, power driven cross feed w/ incremental table movement, coolant system, Chevalier Electro Magnetic Chuck, automatic lubrication system
