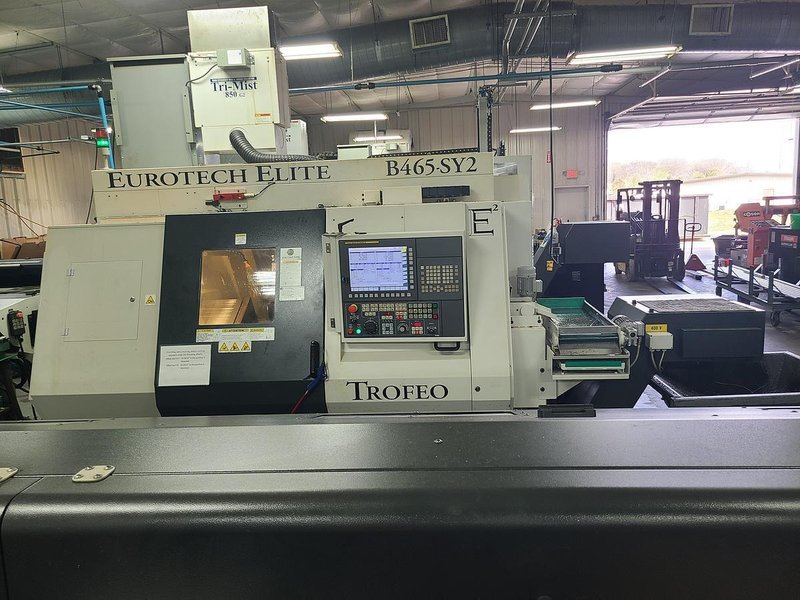

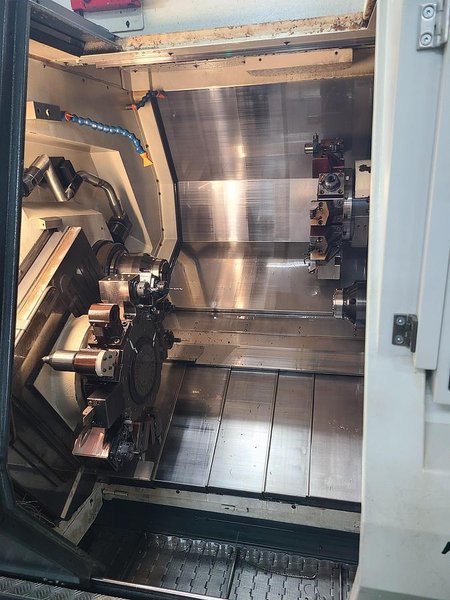

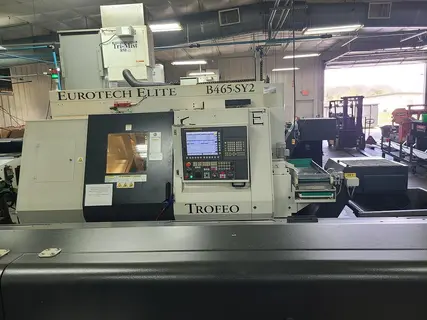

2.56” X 37.5” CNC Lathe with Fanuc 31iB CNC Control, Tri - Mist 850 G2 Mist Collector, 12’ Edge Patriot 551 Magazine Barfeeder, LNS Magnetic Chip Conveyor, EU-1000-2 HP Coolant System, Royal QG-65 Main Spindle Collet Chuck, Royal QG-42 Sub Spindle Collet Chuck, Coolant Thru Spindle, 200mm Ejector Option and Fargo DA 51XN1/FE Transformer.

GENERAL SPECIFICATIONS
Bar Capacity:                        2.56”
Distance Between Centers:                37.5”
Swing Over Diameter:                20”
Main Spindle Speed:                    4,000 RPM
Main Spindle Nose:                    6” ASA
Main Spindle Bore:                    3.15”
Main Spindle Motor:                    35 HP
Sub Spindle Speed:                    5,000 RPM
Sub Spindle Nose:                    5” ASA
Sub Spindle Bore:                    2.17”
Sub Spindle Motor:                    15 HP
Number of Stations / Max Number of Tools:    12 / 192
Turret Indexing (1 Position):            0.15 Sec
Number of Live Tool Stations:            24
Max Number of Live Tools:                48
Tool Speed (Standard / Max):            4,000 RPM / 6,000 RPM


INCLUDES: Fanuc 31iB CNC Control, Tri - Mist 850 G2 Mist Collector, 12’ Edge Patriot 551 Magazine Barfeeder, LNS Magnetic Chip Conveyor, EU-1000-2 HP Coolant System, Royal QG-65 Main Spindle Collet Chuck, Royal QG-42 Sub Spindle Collet Chuck, Coolant Thru Spindle, 200mm Ejector Option and Fargo DA 51XN1/FE Transformer.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
