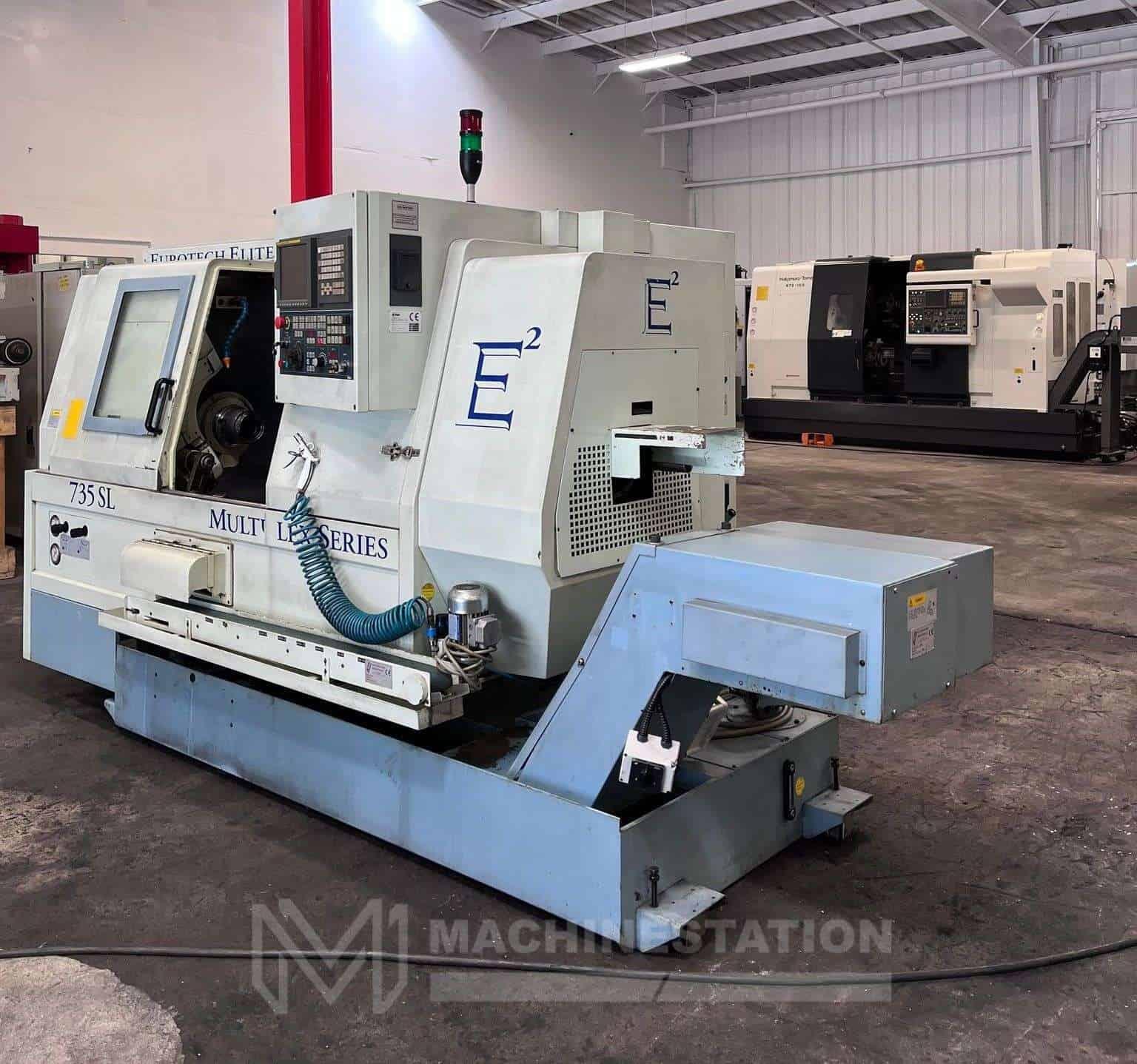

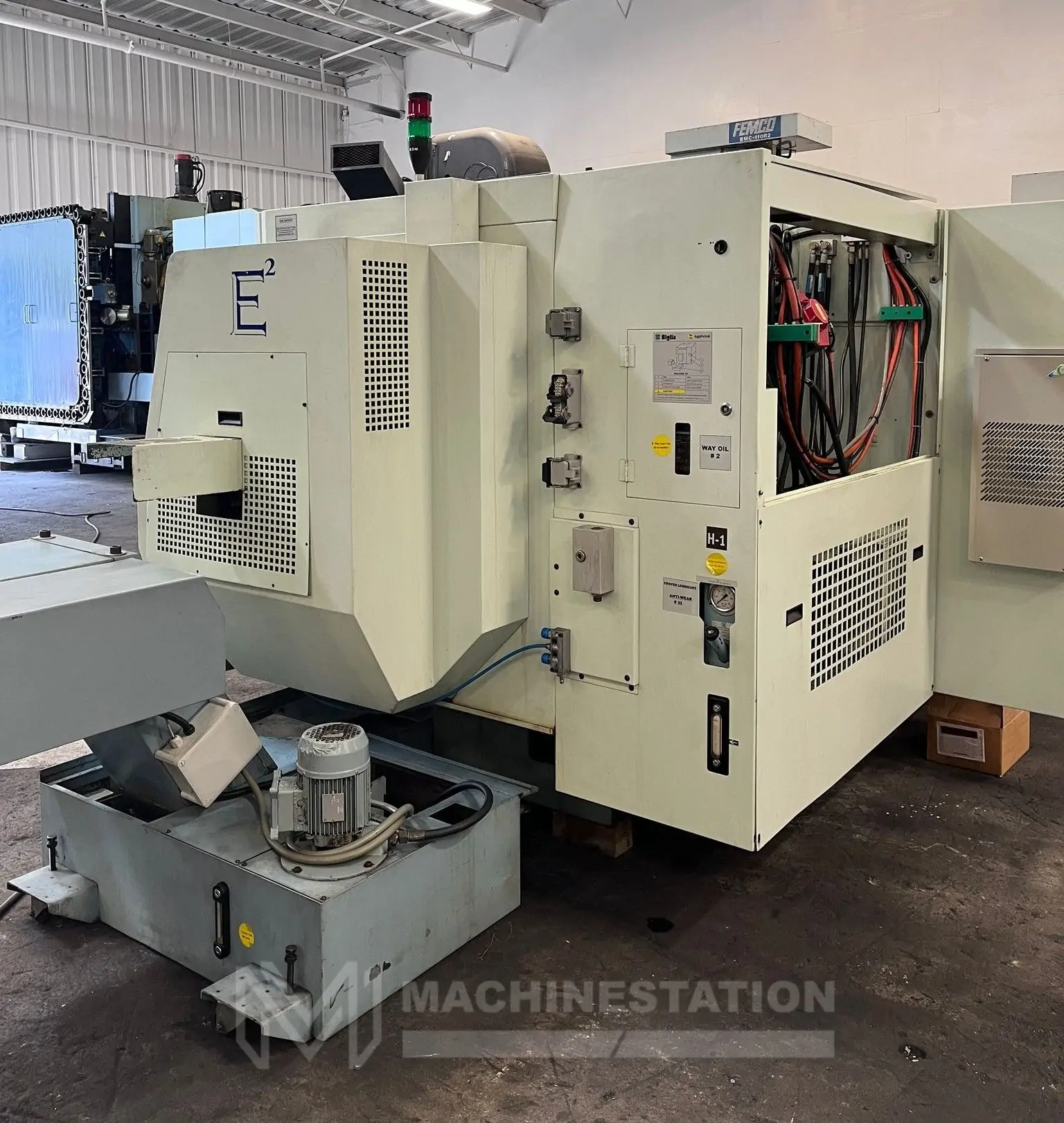

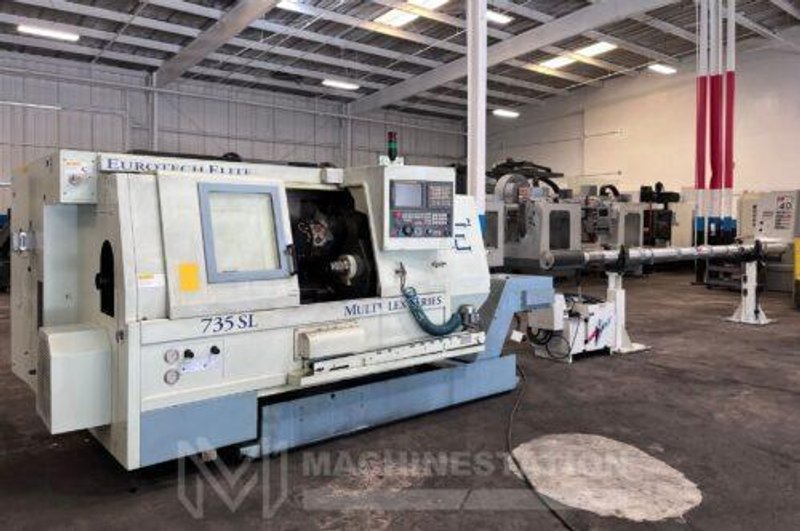

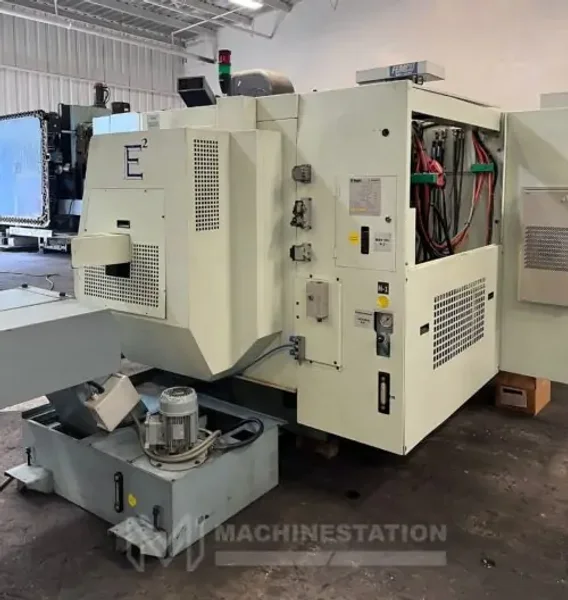

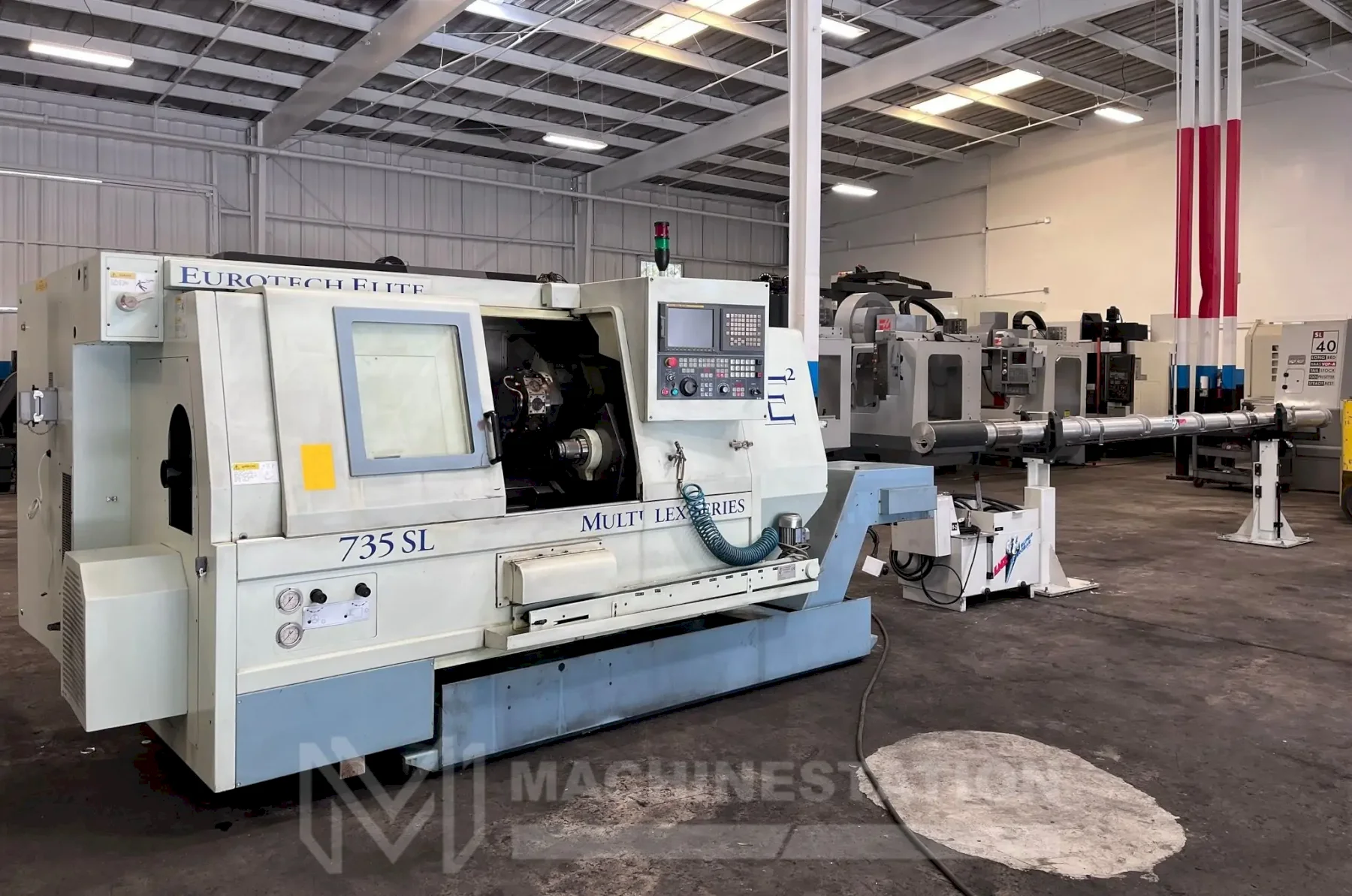

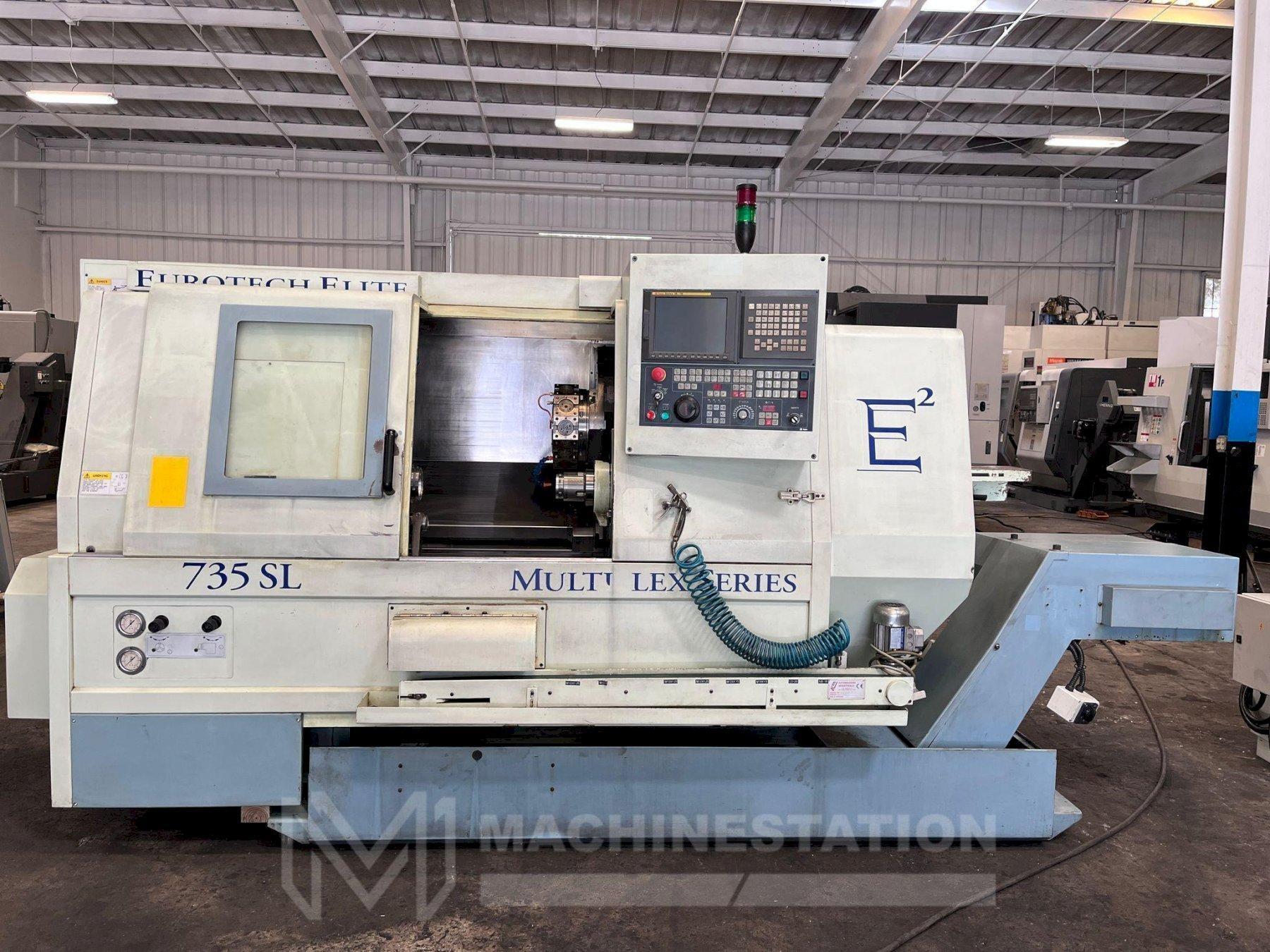

Eurtotech 735SL CNC Turning Center – Sub Spindle Lathe

Brand
EUROTECH
Category
Lathes & Turning Machines
Type
Turning Centers
Model
ELITE 735SL
Stock #
112706
Year
Not specified
Condition
Not specified

Location

Not specified

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Eurotech
Model: 735SL
Year: 2003
Equipped With:

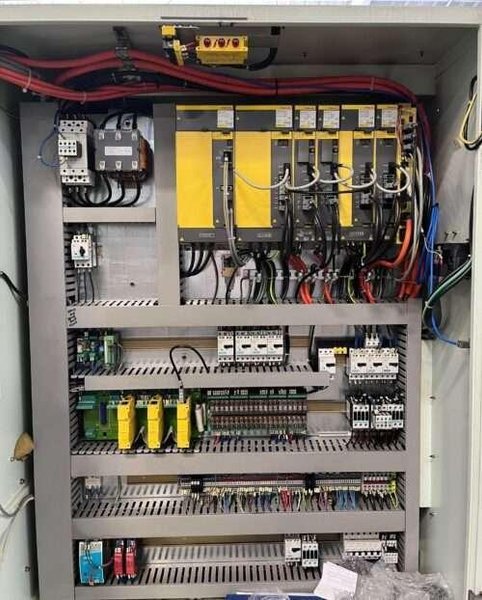

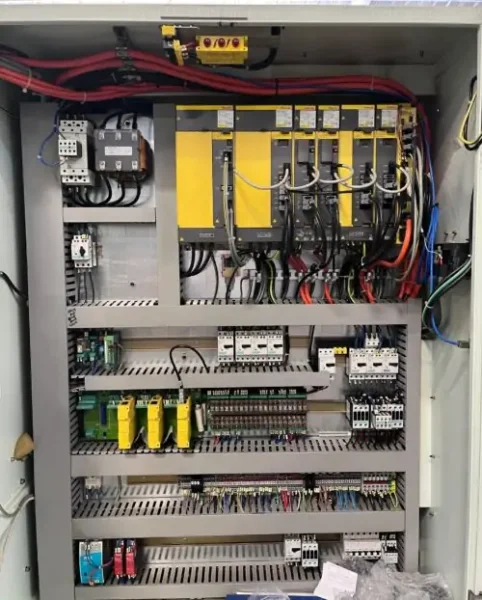

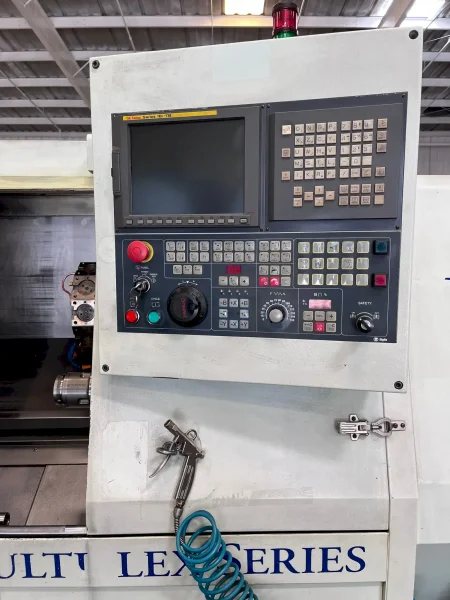

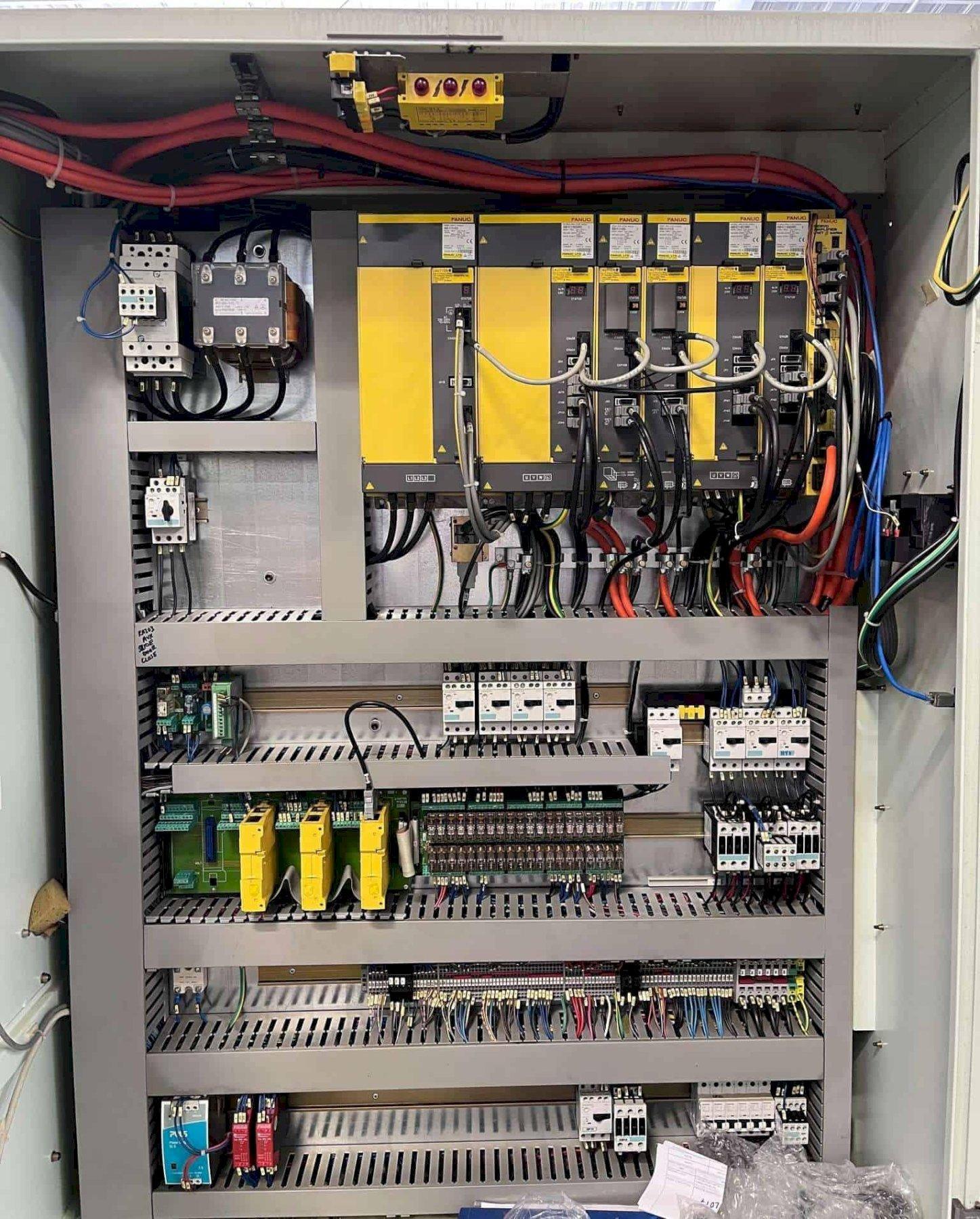

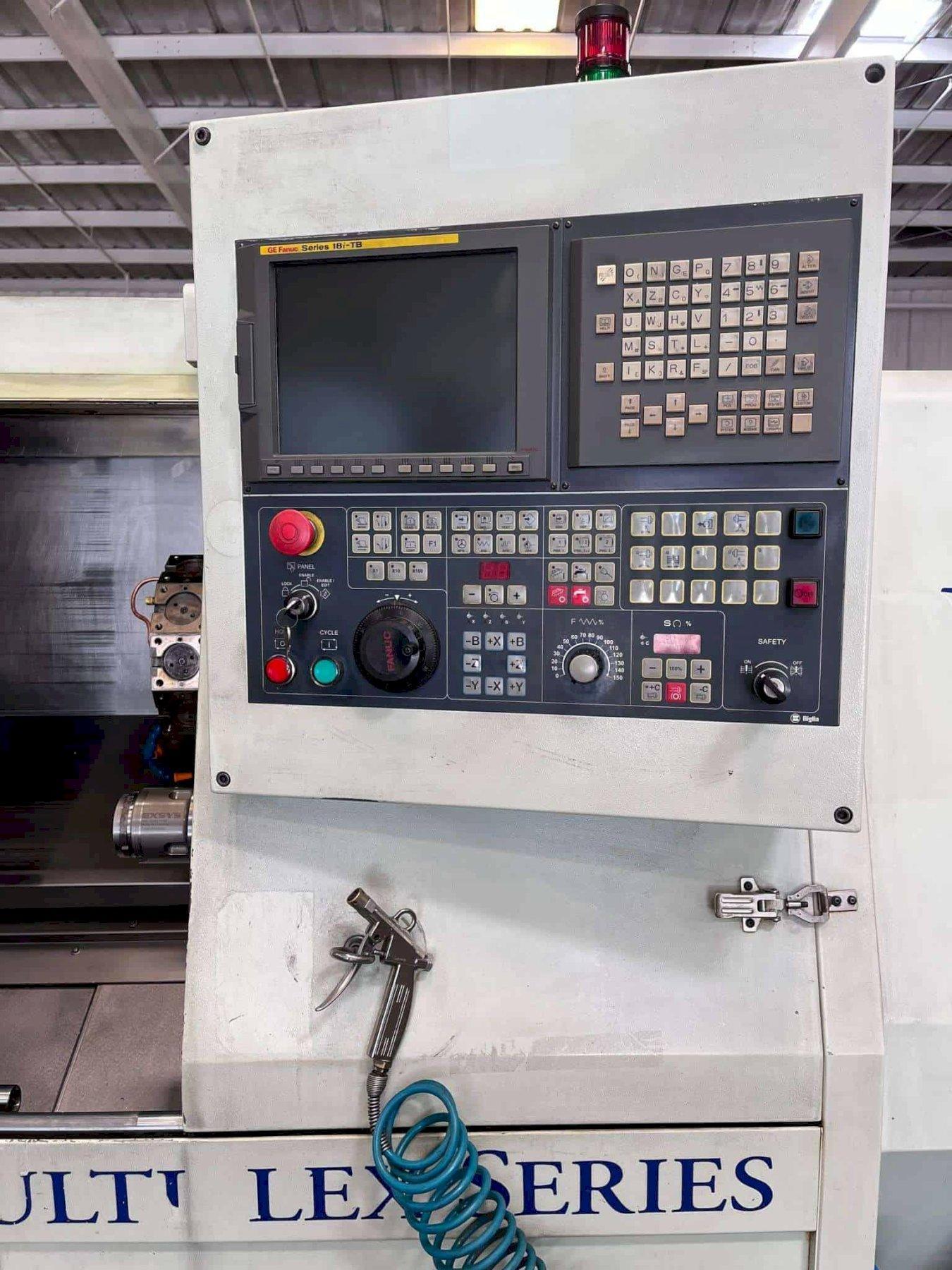

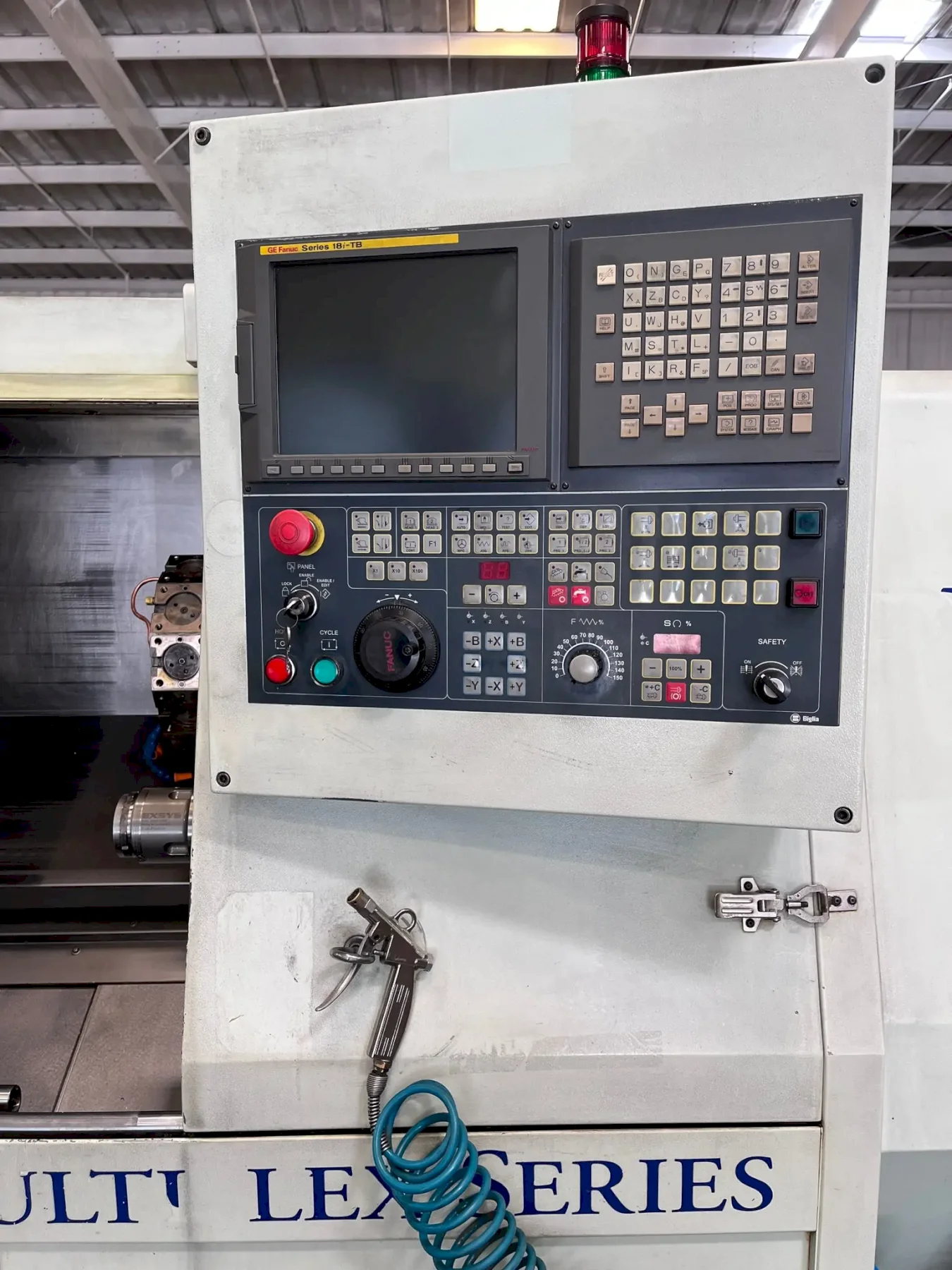

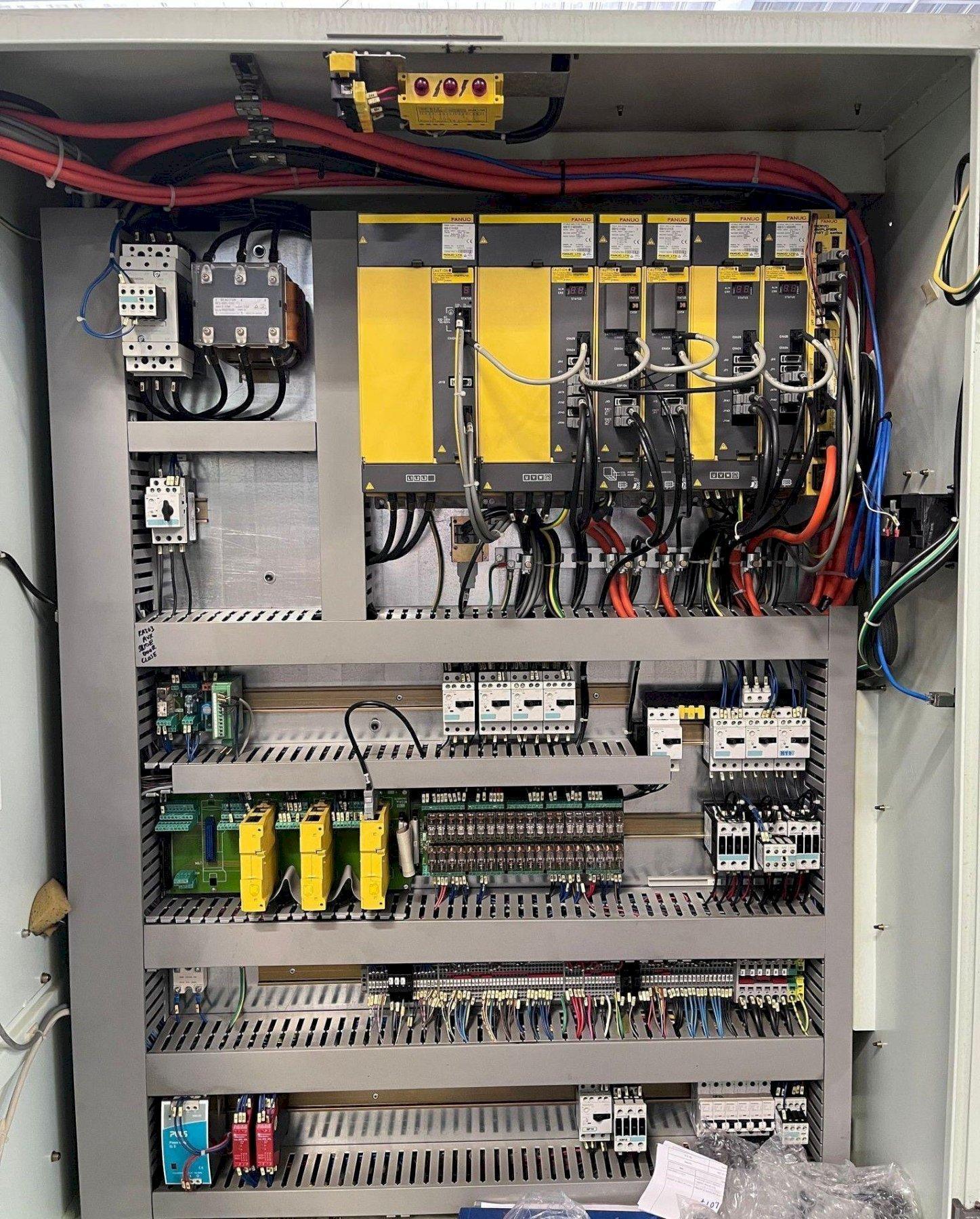

Fanuc 18i-TB CNC Control

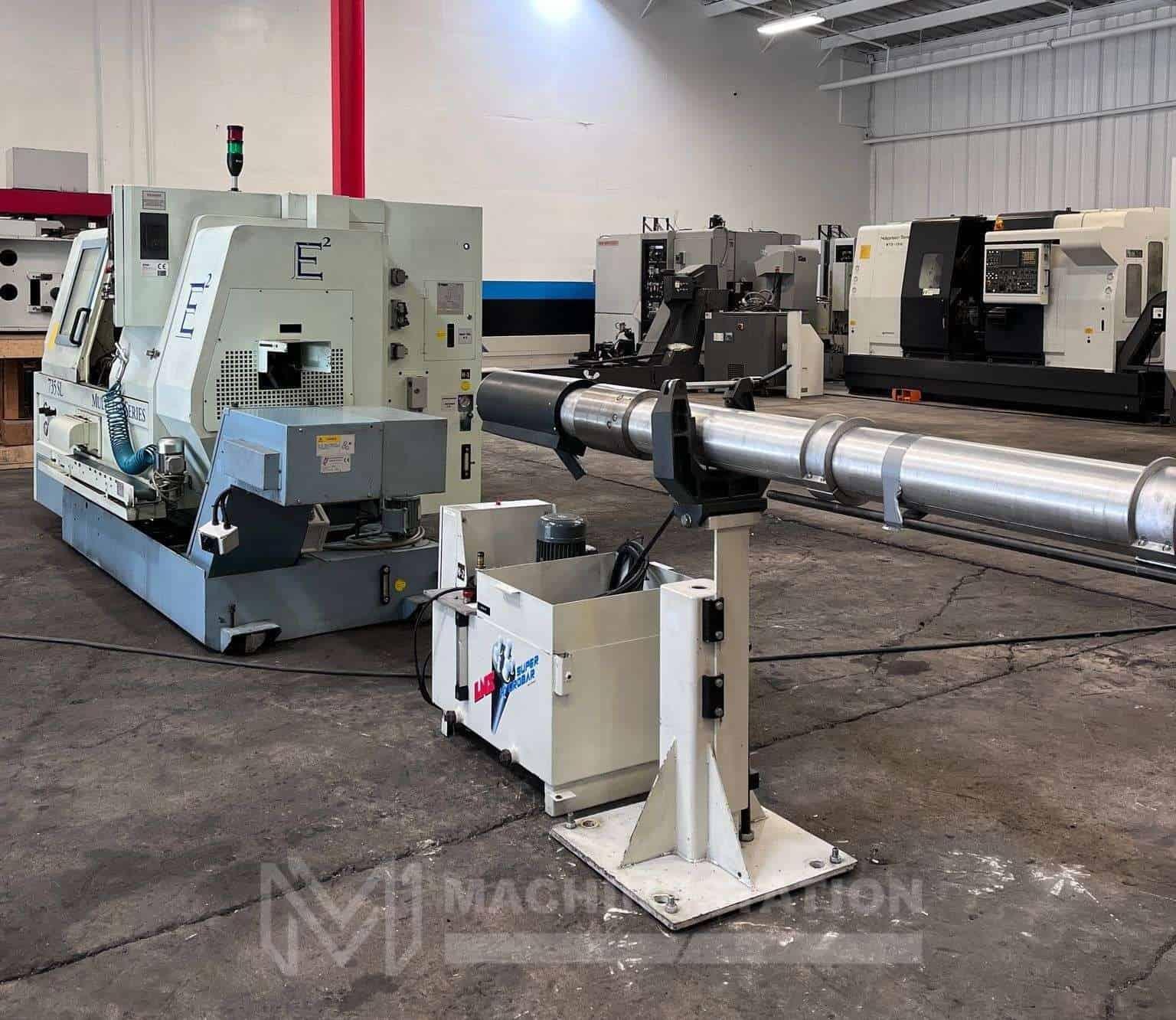

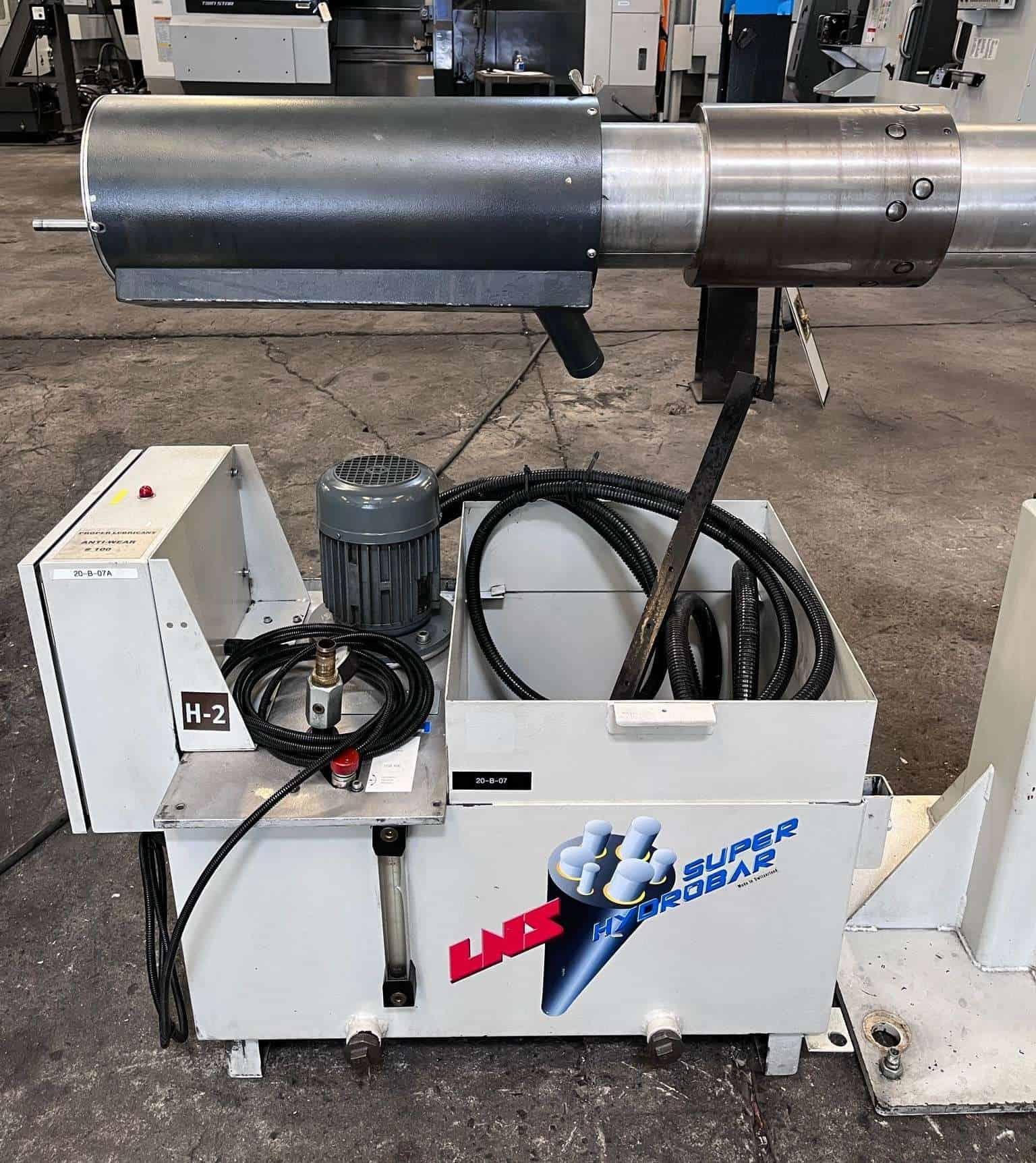

LNS Super Hydrobar Bar Feeder

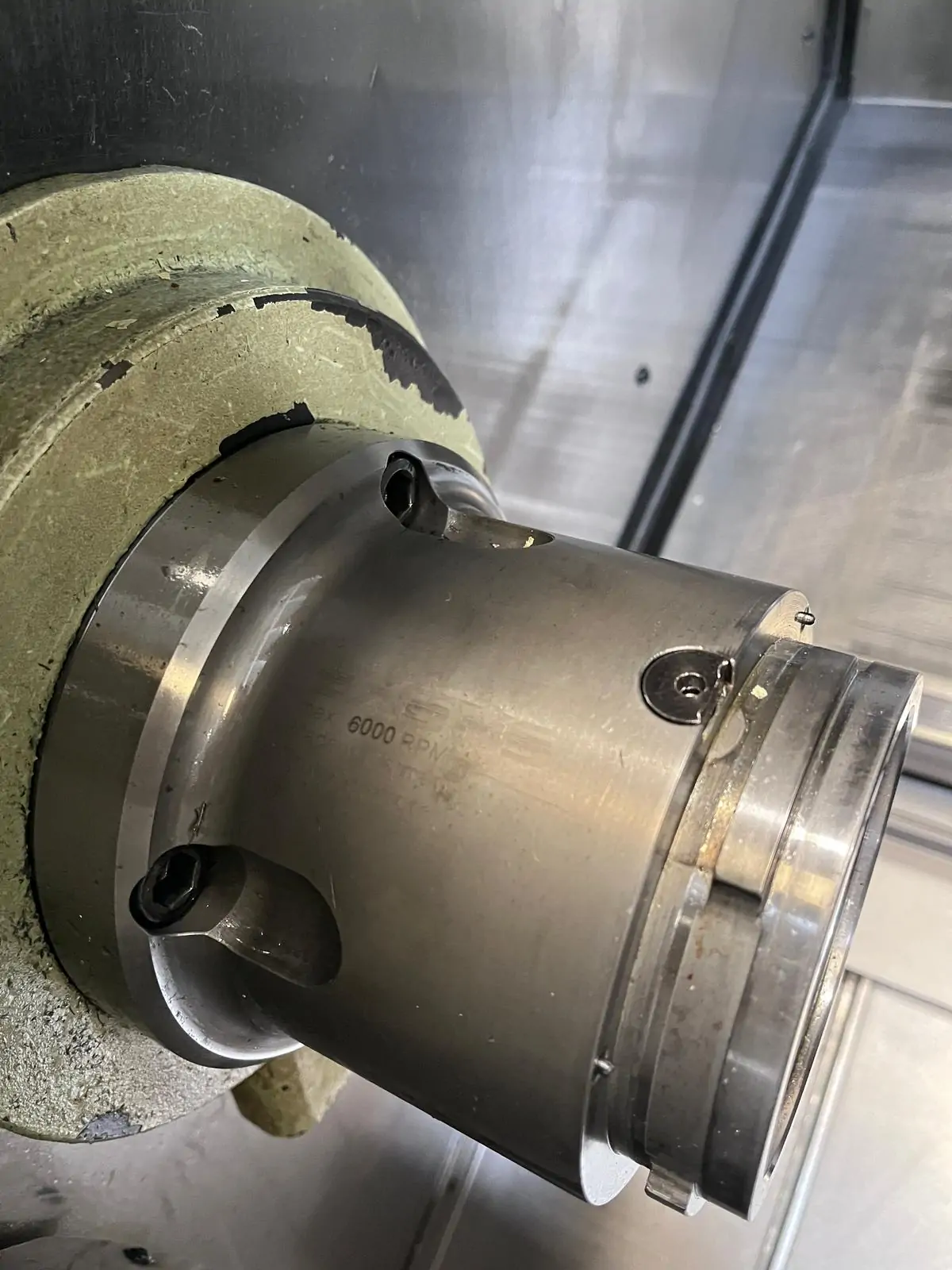

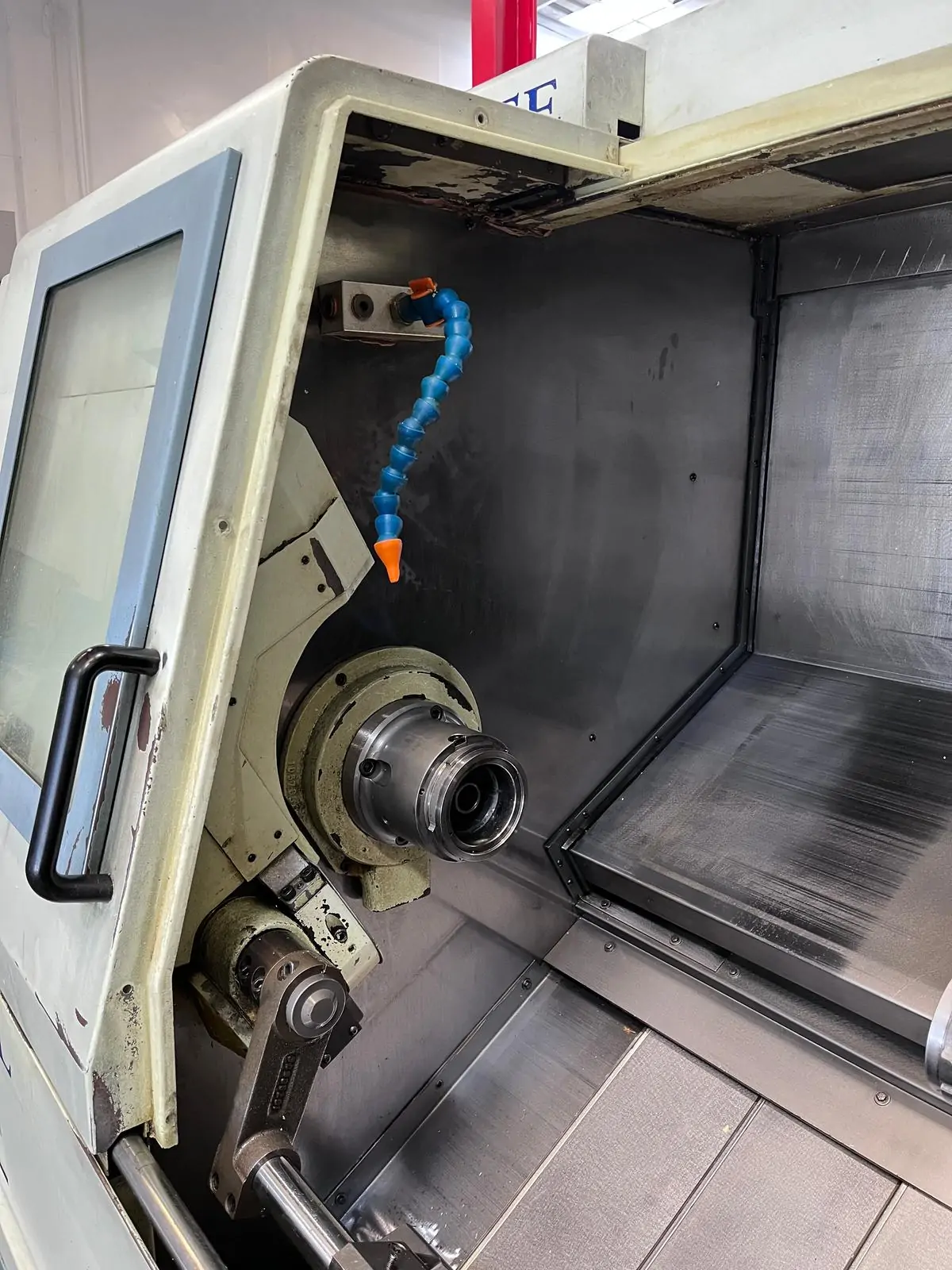

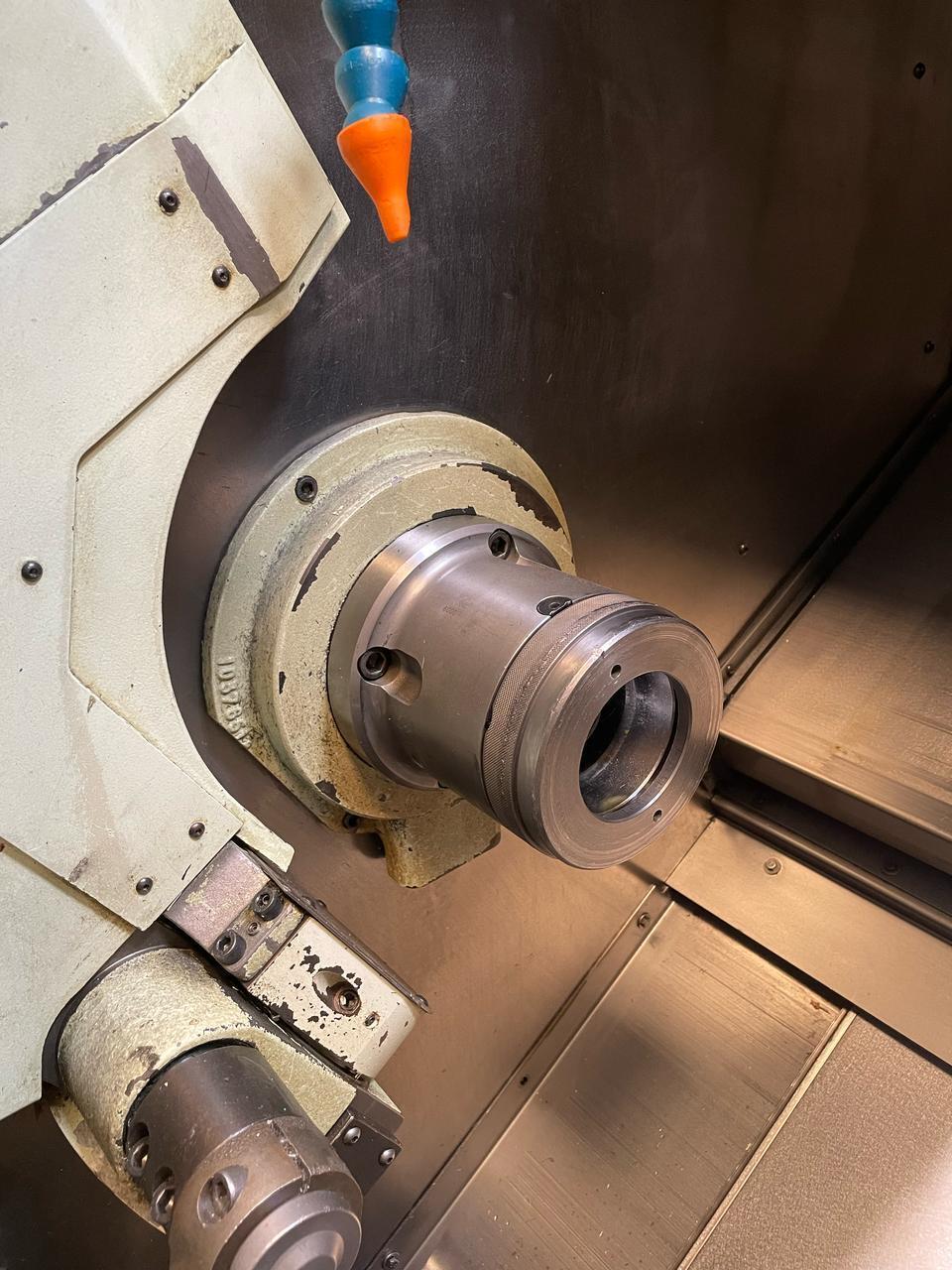

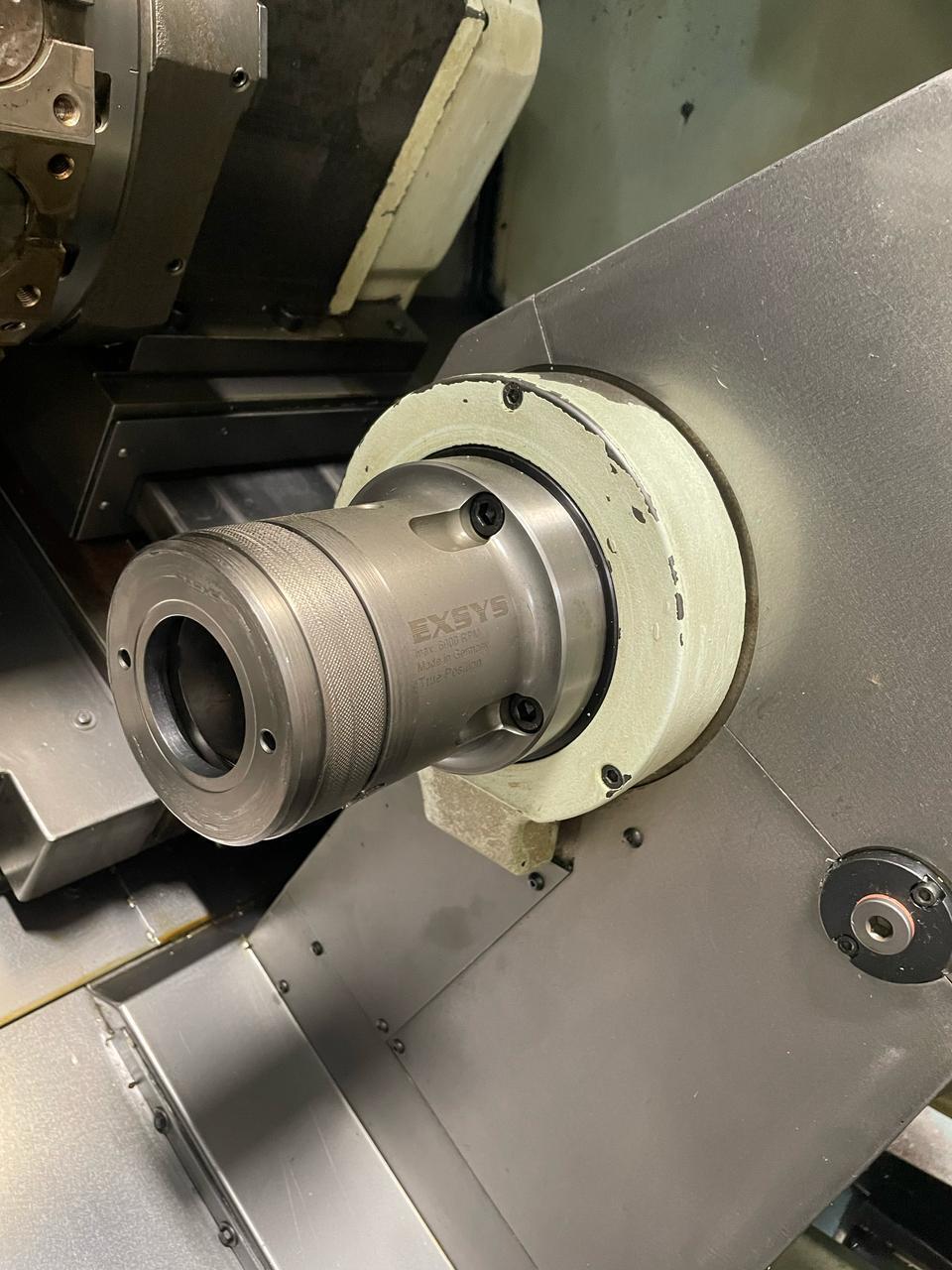

Collet Chuck On Main Spindle (Capable 10 inch Chuck)

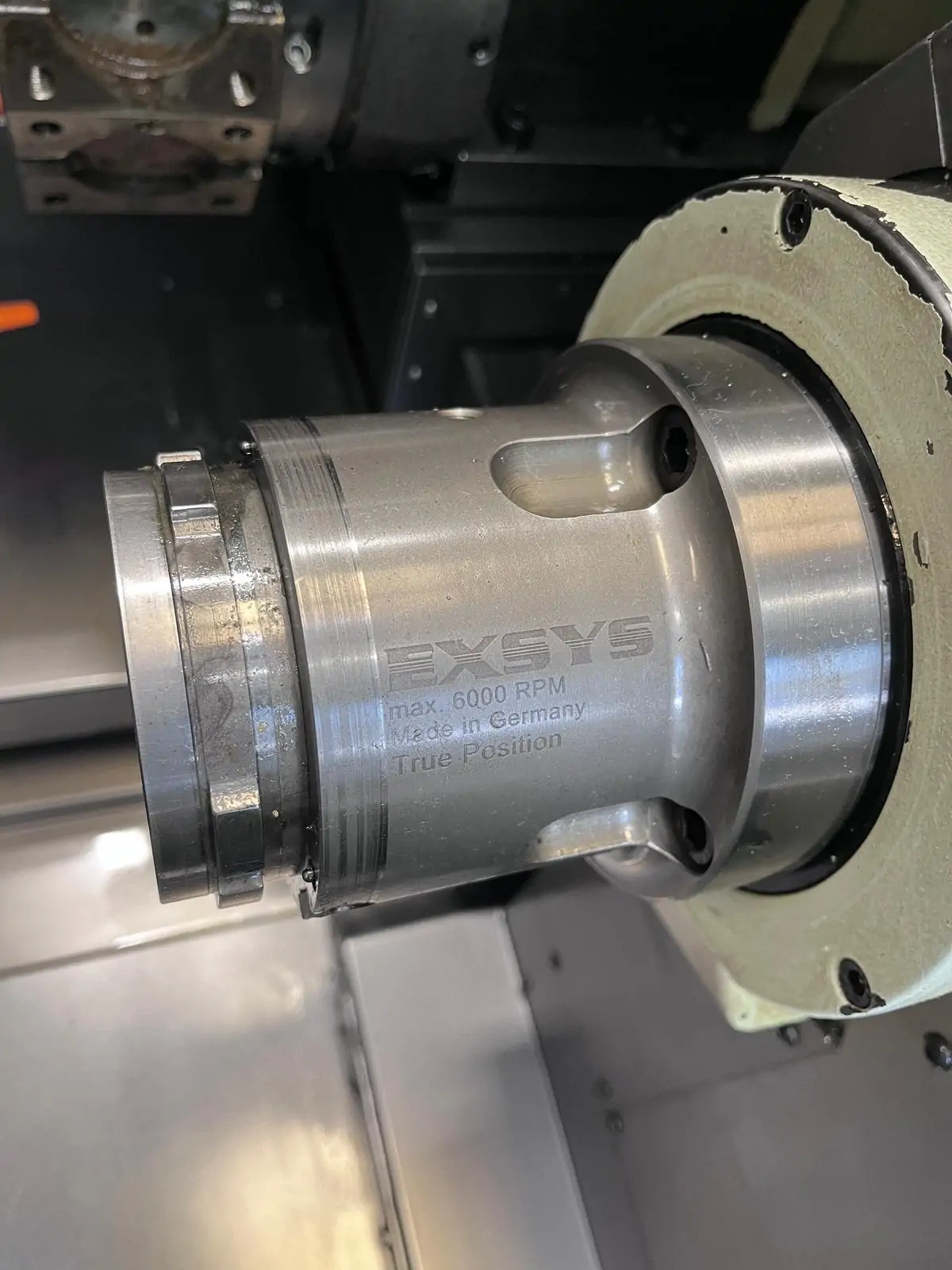

Collet Chuck On Sub Spindle (Capable 8 inch Chuck)

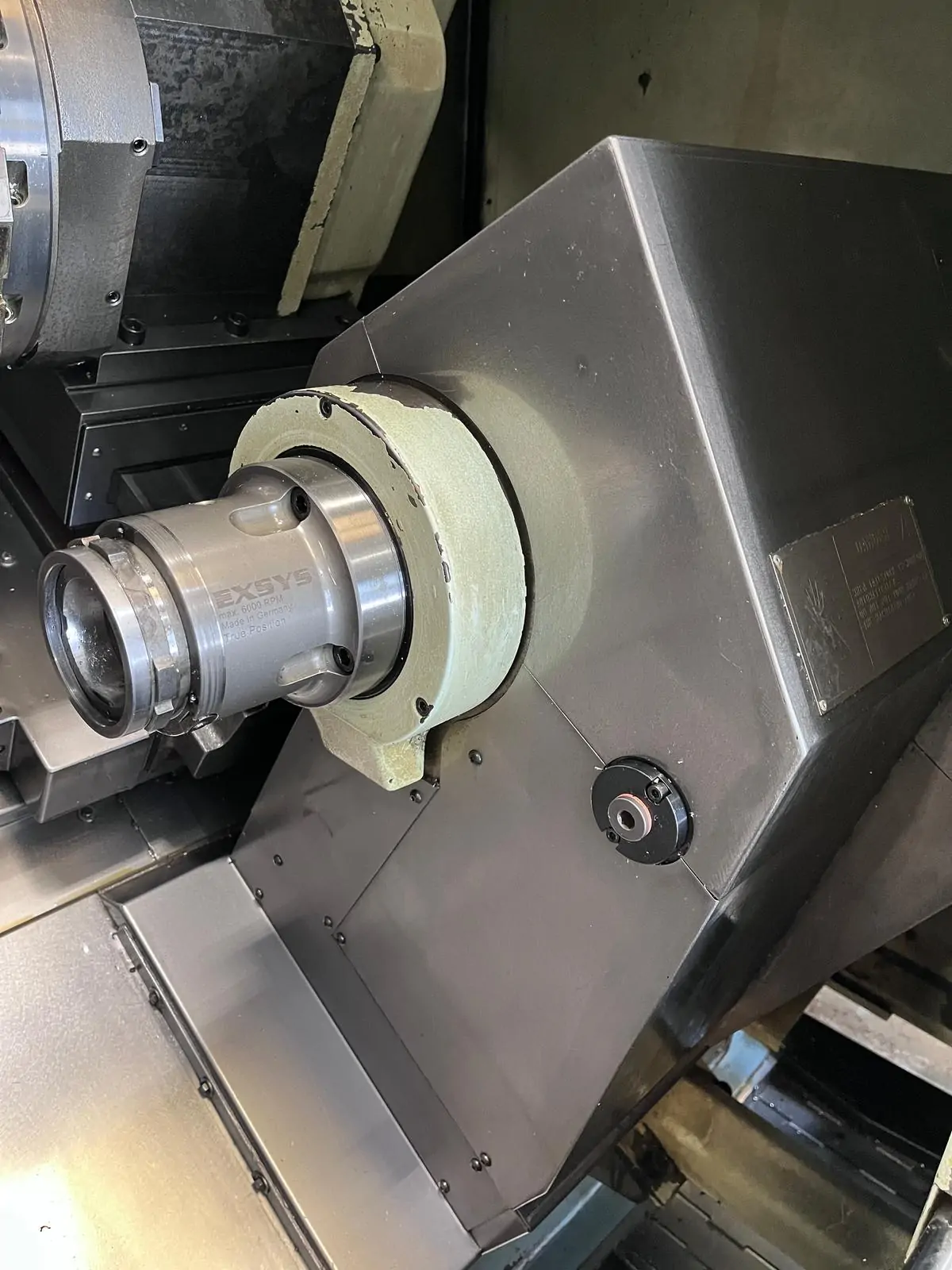

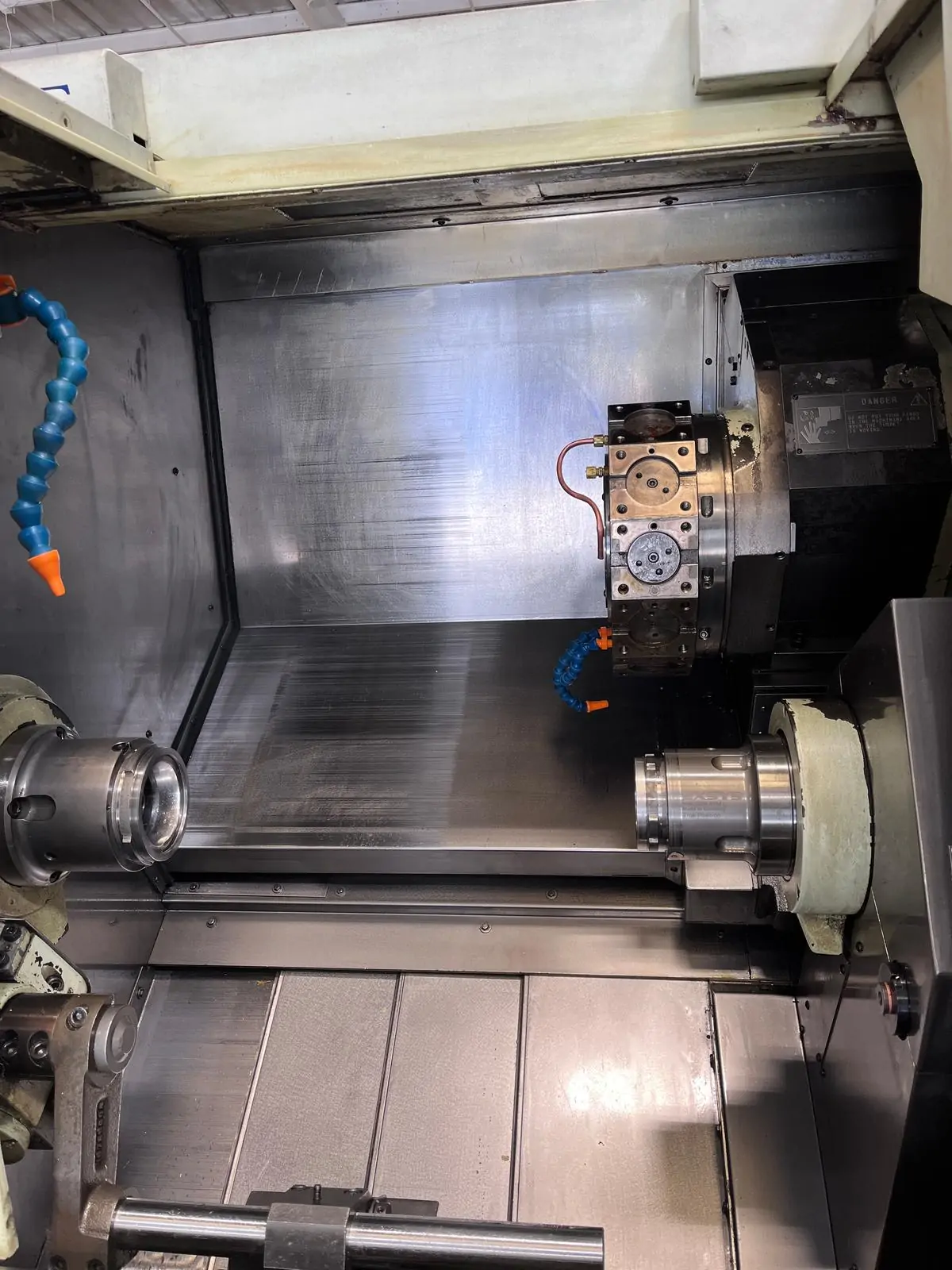

Sub Spindle
Servo Controlled Full C-Axis on Both Spindles

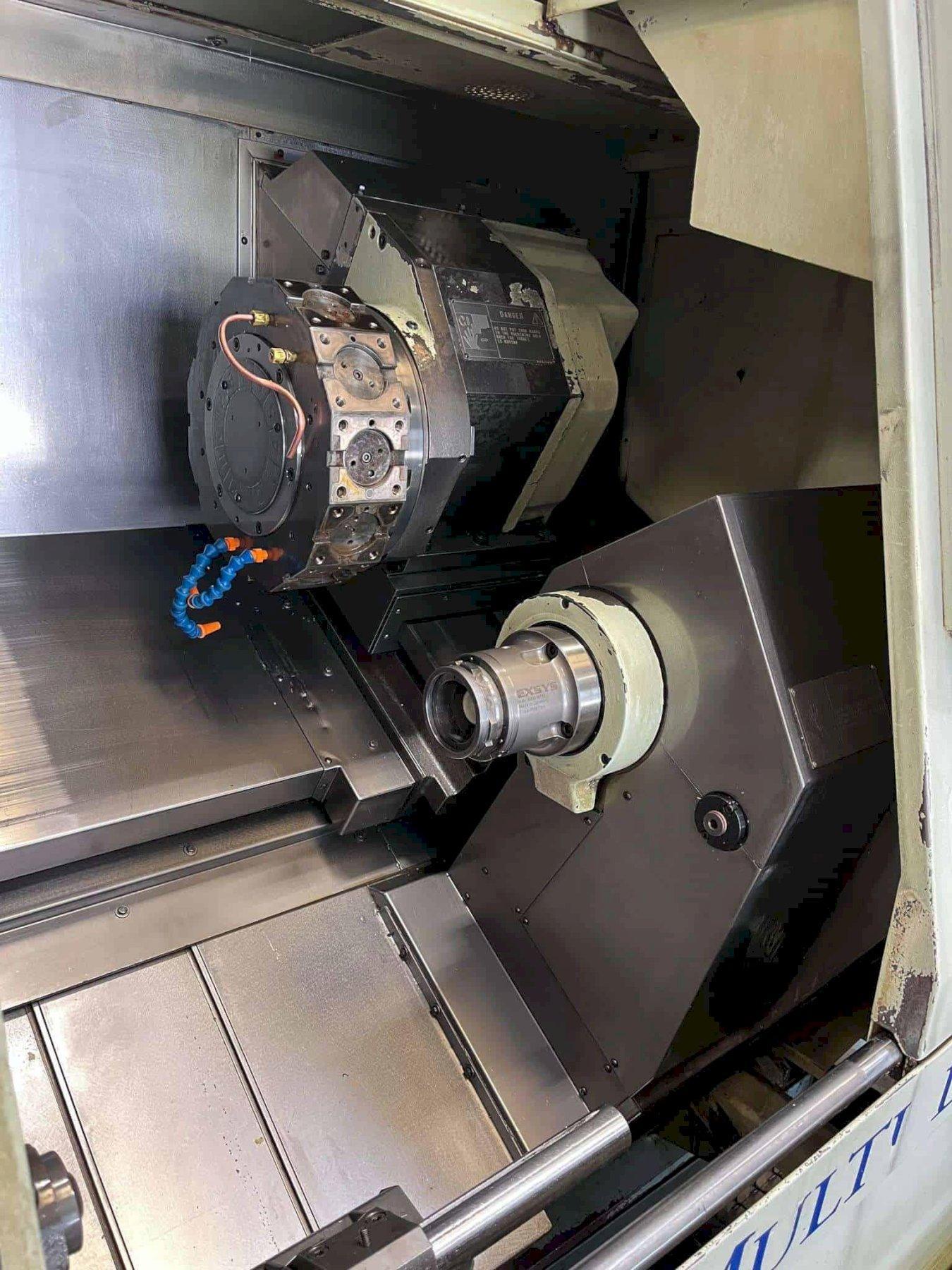

12 stations Live Tool Turret
Automatic Tool Presetter

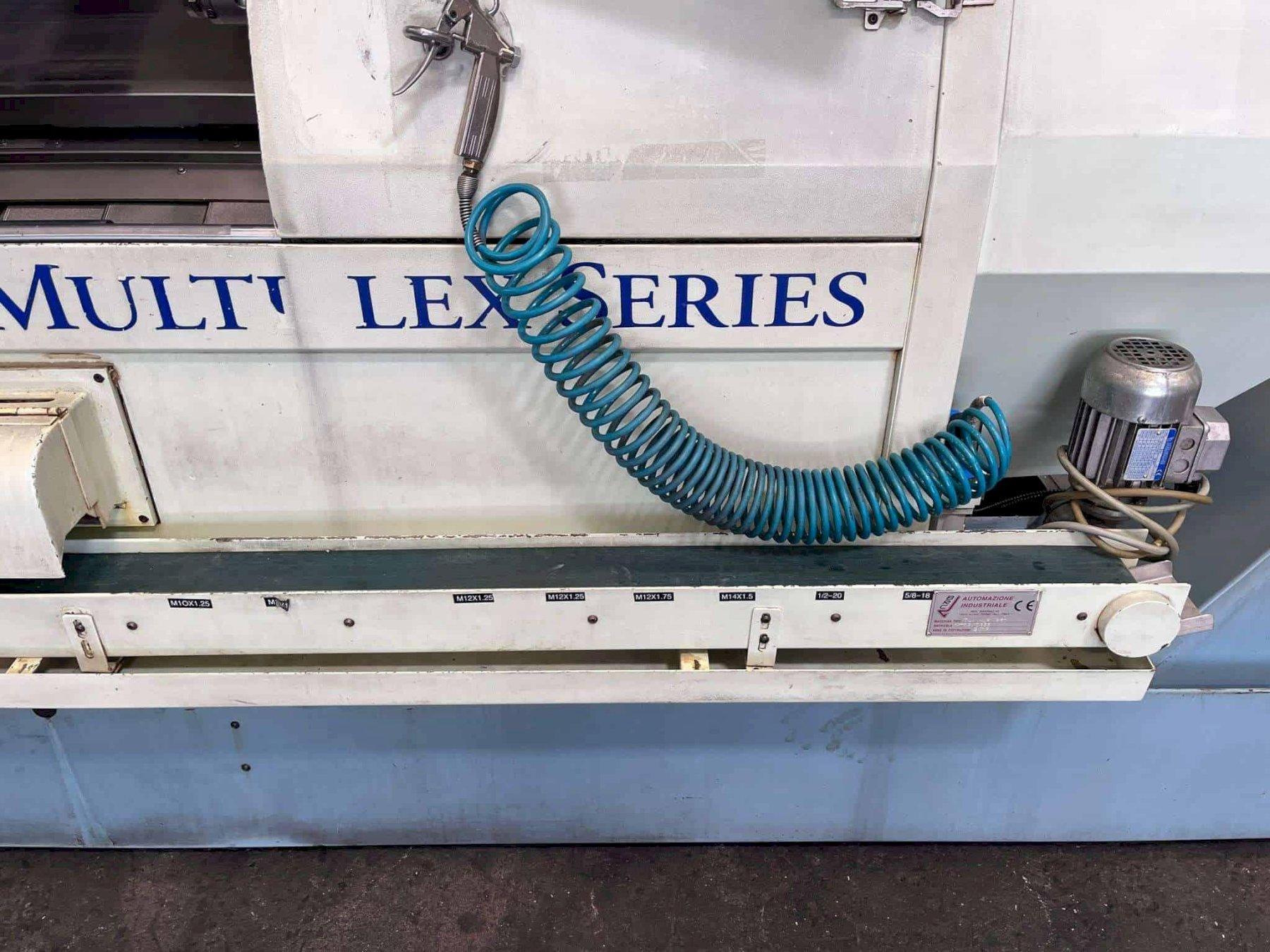

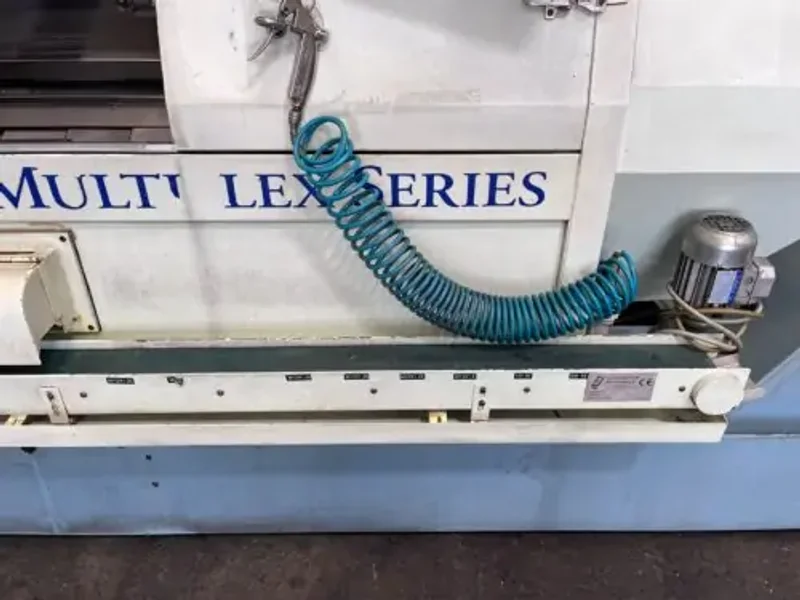

Part Catcher & Conveyor
Rigid Tapping on Both Spindles
Coolant System
Automatic Lubrication System
Chip Conveyor
Capacity:
Max Turning Diameter : 12.6 inch
Max Turning Length : 20.08 inch
Max Swing Over Bed: 22.83 inch
Max Bar Capacity Main Spindle : 2.7 inch
Travels:
X Axis Travel : 6.7 inch
Z Axis Travel : 22.0 inch
W Axis Travel ( Sub Spindle ): 19.3 inch
C Axis: 360° (0.001°) Both Spindle
Main Spindle:
Main Spindle Nose: A2-6
Main Spindle Bore: 3.15 inch
Main Spindle Bar Capacity: 2.7 inch
Main Spindle Speed: 4,000 RPM
Main Spindle Power: 35 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.17 inch
Sub Spindle Bar Capacity: 2.7 inch
Sub Spindle Speed: 5,000 RPM
Sub Spindle Power: 15 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4,000 RPM
Live Tools Motor: 5 HP
Turret Index Time: 0.15 Sec.
General:
Power Source: 220v / 50/60 Hz / 3-Phase
Overall Dimensions: 155 inch X 77 inch X 87 inch High Approx.
Weight: 10,782 lbs. Approx.
No files or videos to display

Want to request a quote or ask the owner of this listing a question?
