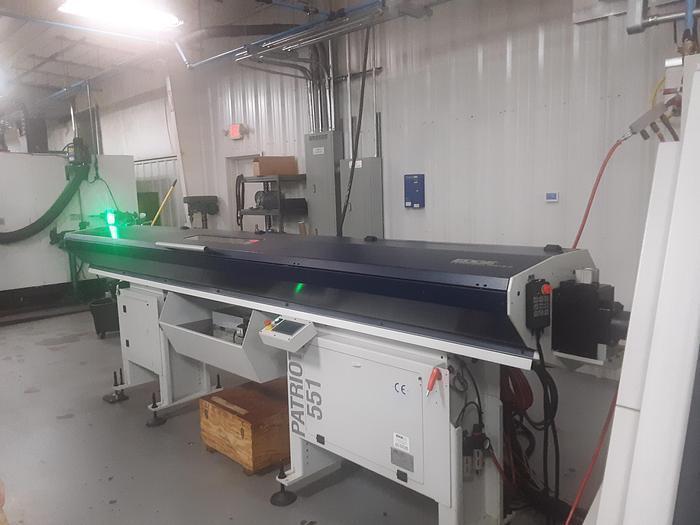

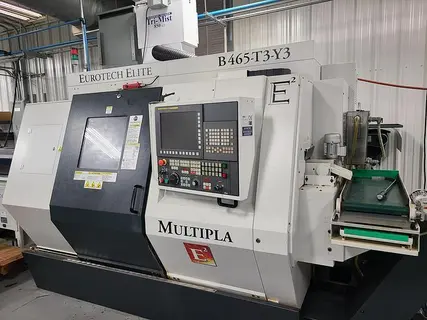

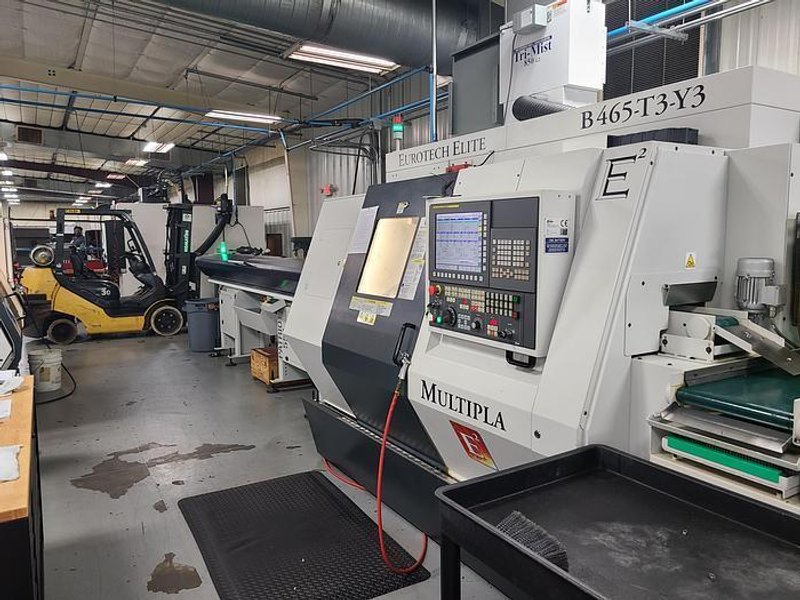

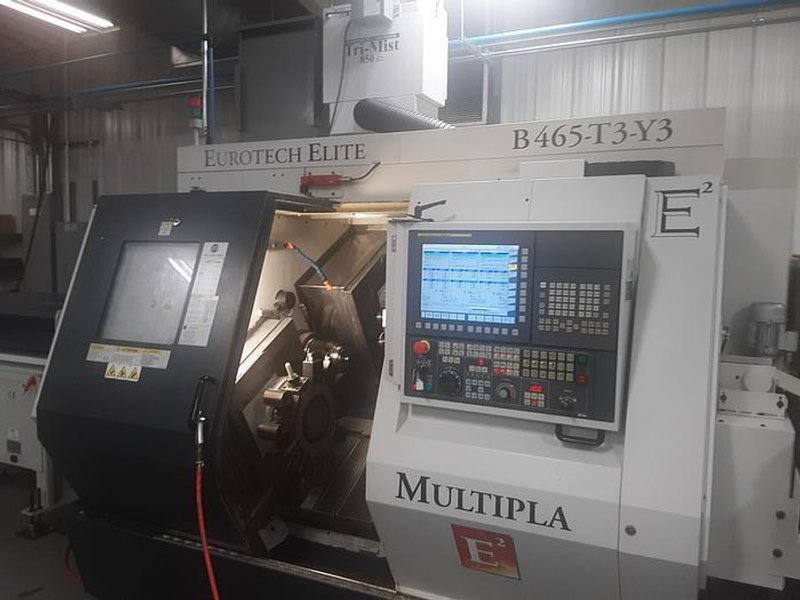

2.56” X 37.5” CNC Lathe with Fanuc 31iB Control, Tri - Mist 850 G2 Mist Collector, Dual Parts Conveyor, 12’ Edge Patriot 551 Magazine Barfeed, LNS Magnetic Chip Conveyor, EU-1000-2 HP Coolant System Plus 1 Single System, Royal QG-65 Main Spindle Collet Chuck, 200mm Ejector Option, Fargo DA 51XN1/FE Transformer.

GENERAL SPECIFICATIONS
Bar Capacity:                            2.56”
Distance Between Centers:                    37.5”
Swing Over Diameter:                    20”
Main Spindle Speed:                        4,000 RPM
Main Spindle Nose:                        6”
Main Spindle Chuck Diameter:                10”
Main Spindle Motor:                        35 HP
Main Spindle C - Axis Min Programmable Value:        0.001°
Sub - Spindle Speed:                    5,000 RPM
Sub - Spindle Nose:                        5”
Sub - Spindle Bore:                        2.17”
Sub - Spindle Chuck Diameter:                6/8”
Sub - Spindle Motor:                    15 HP
Sub - Spindle C - Axis Min Programmable Value:    0.001°
Sub - Spindle Offset Stroke:                4.72”
Sub - Spindle B - Axis Stroke:                26.35 - 1181 IPM

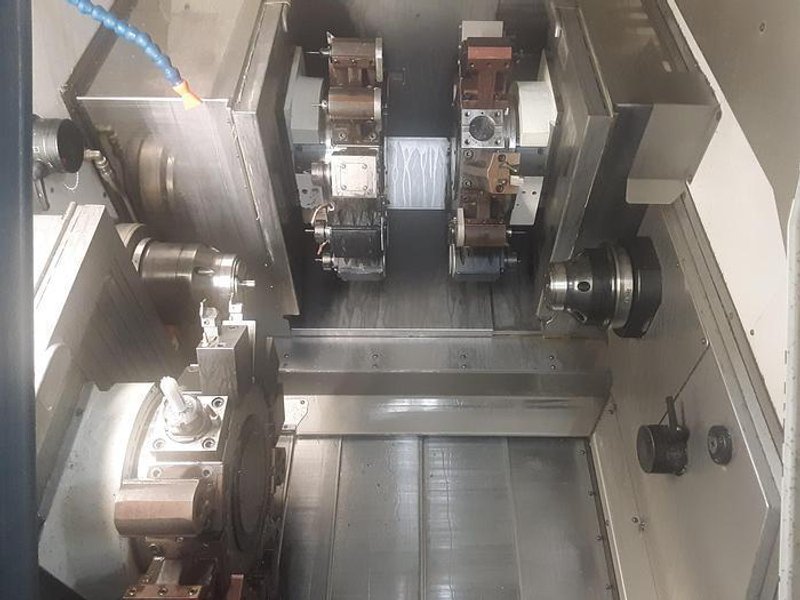

Number of Turrets:                        3
Number of Stations:                        12
Number of Tools:                        192
Turret Indexing:                        15 Seconds
Number of Live Tool Stations:                36
Number of Live Tools:                    72
Live Tool Speed:                        4,000 RPM
Motor Powered:                        5 Geared
Rapid Traverse (X1 / X2 / X3):                708 IPM
Rapid Traverse (Z1 / Z2 / Z3):                1181 IPM
Rapid Traverse (Y1 / Y2 / Y3):                3.54 (-1.57 / +2.32) - 354 IPM
Power On Hours:                        10352
Run Time Hours:                        5719
Cutting Time:                        1069
Machine Dimensions w/ Chip Conveyor:            173” X 85” X 89”
Spindle Center Height:                    42”
Machine Weight w/ Chip Conveyor:            18,500 Lbs

INCLUDES: Fanuc 31iB Control, Tri - Mist 850 G2 Mist Collector, Dual Parts Conveyor, 12’ Edge Patriot 551 Magazine Barfeed, LNS Magnetic Chip Conveyor, EU-1000-2 HP Coolant System Plus 1 Single System, Royal QG-65 Main Spindle Collet Chuck, 200mm Ejector Option, Fargo DA 51XN1/FE Transformer.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
