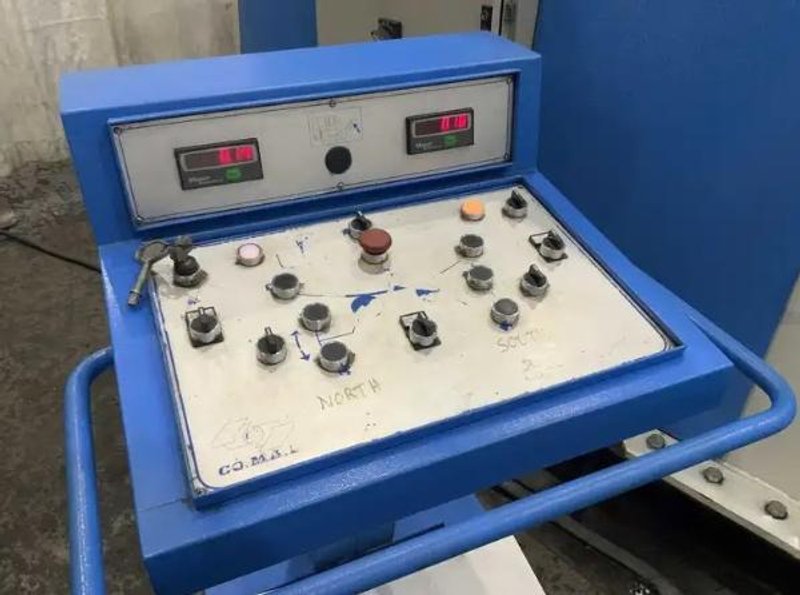

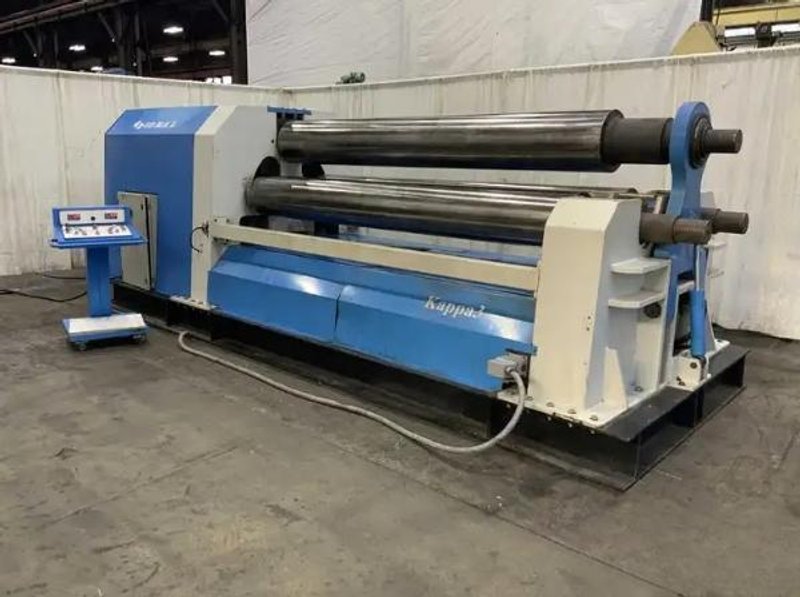

¾” X 10’ Pyramid Style Plate Roll with Hydraulic Roll Adjustment, Cone Rolling, Variable Speed Operator Console with Roll Position Display.

GENERAL SPECIFICATIONS
Max Rolling Capacity:                    ¾”
Length of Rolls:                        122”
Diameter of Top Rolls:                    14.961”
Diameter of Lower Rolls:                    14.73”
Main Drive Motor:                        30 HP
Machine Dimensions:                    288” X 88” X 82” H
Control Dimensions:                        24” X 30’ x 44” H

INCLUDES: Hydraulic Roll Adjustment, Cone Rolling, Variable Speed Operator Console with Roll Position Display.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
