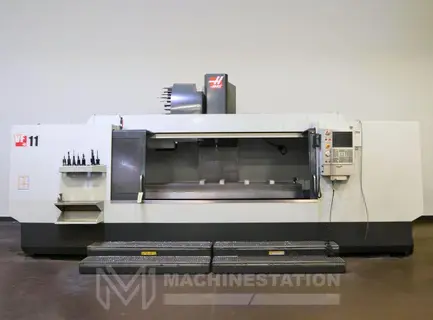

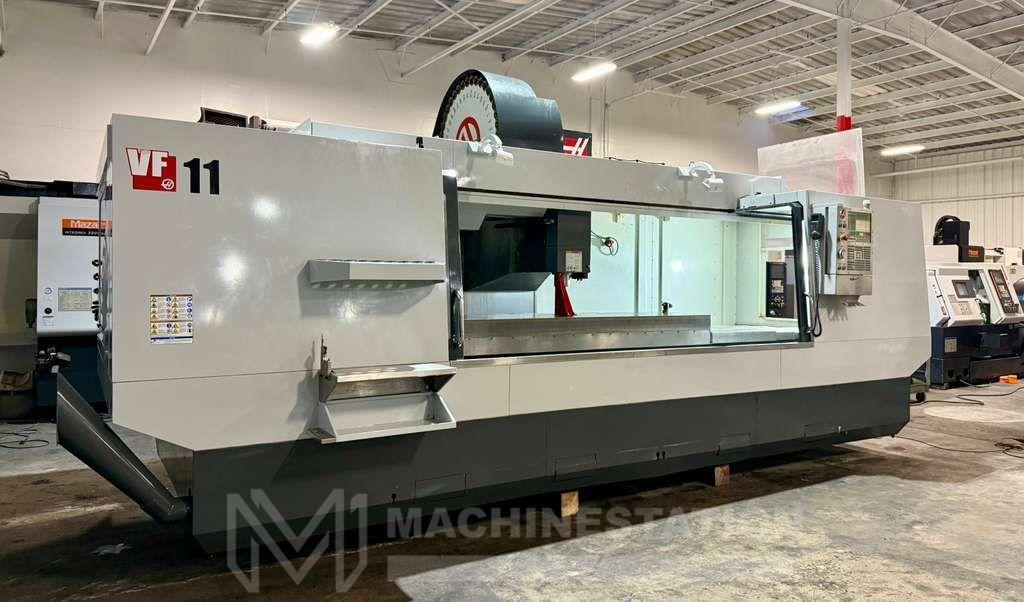

Haas VF-11/40 CNC Vertical Machining Center – 10,000 RPM, WIPS, TSC, HSM Mill

Haas VF-11/40 CNC Vertical Machining Center – 10,000 RPM, WIPS, TSC, HSM Mill

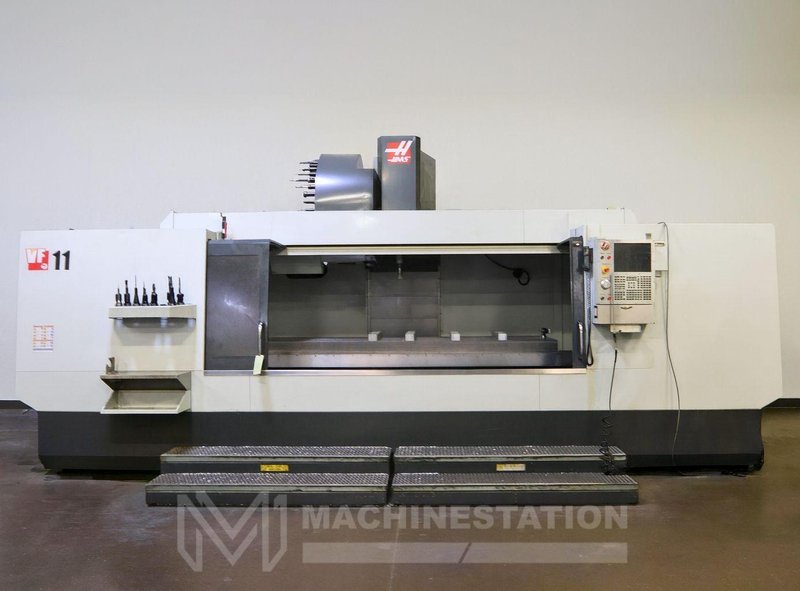

Name: Haas VF-11/40 CNC Vertical Machining Center – 10,000 RPM, WIPS, TSC, HSM Mill
Brand: HAAS
SKU: 112995
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

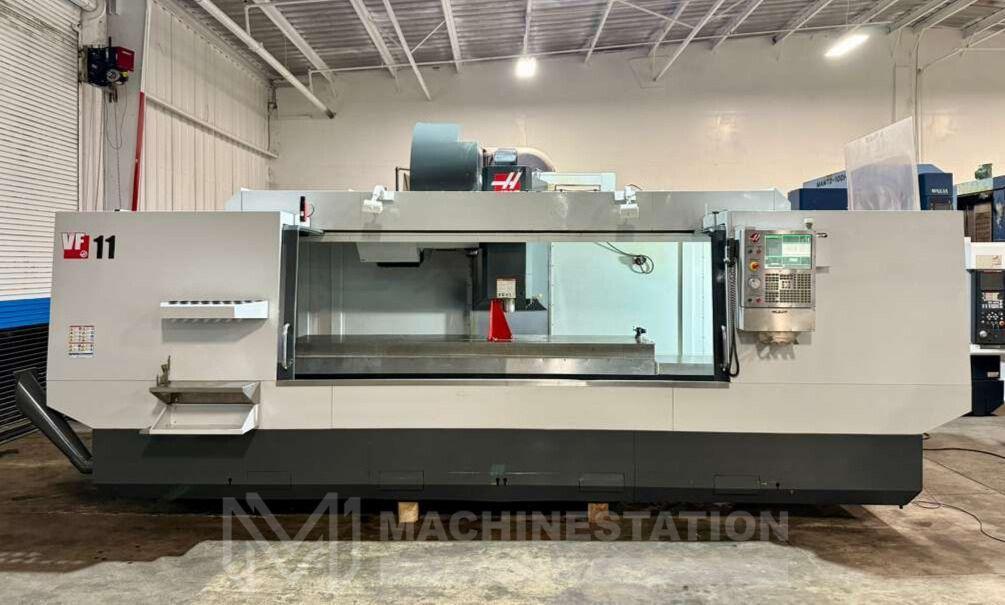

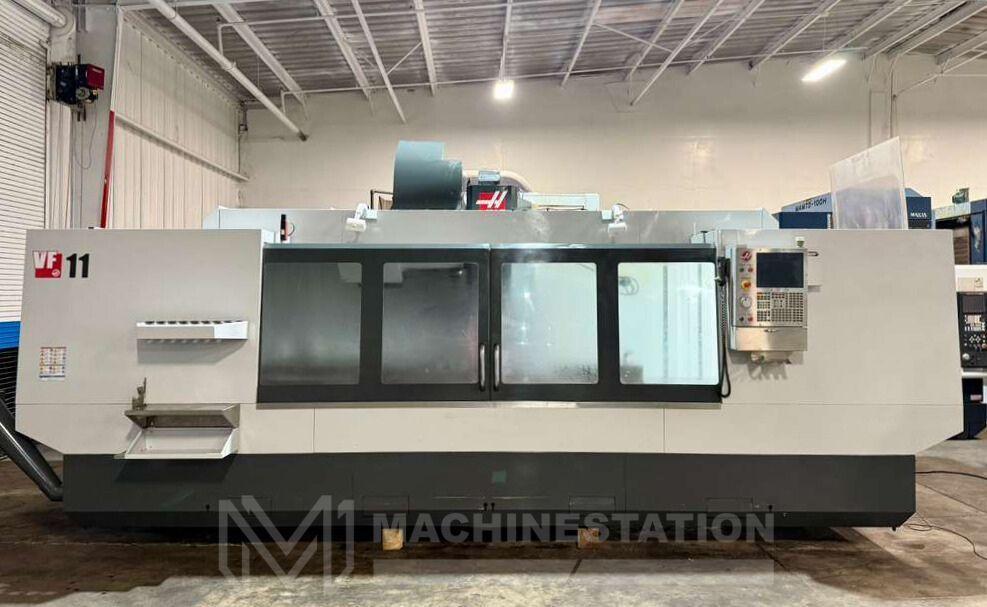

Make:	Haas
Model:	VF-11/40
Year:	2012
Condition:	Used – Good

Features:

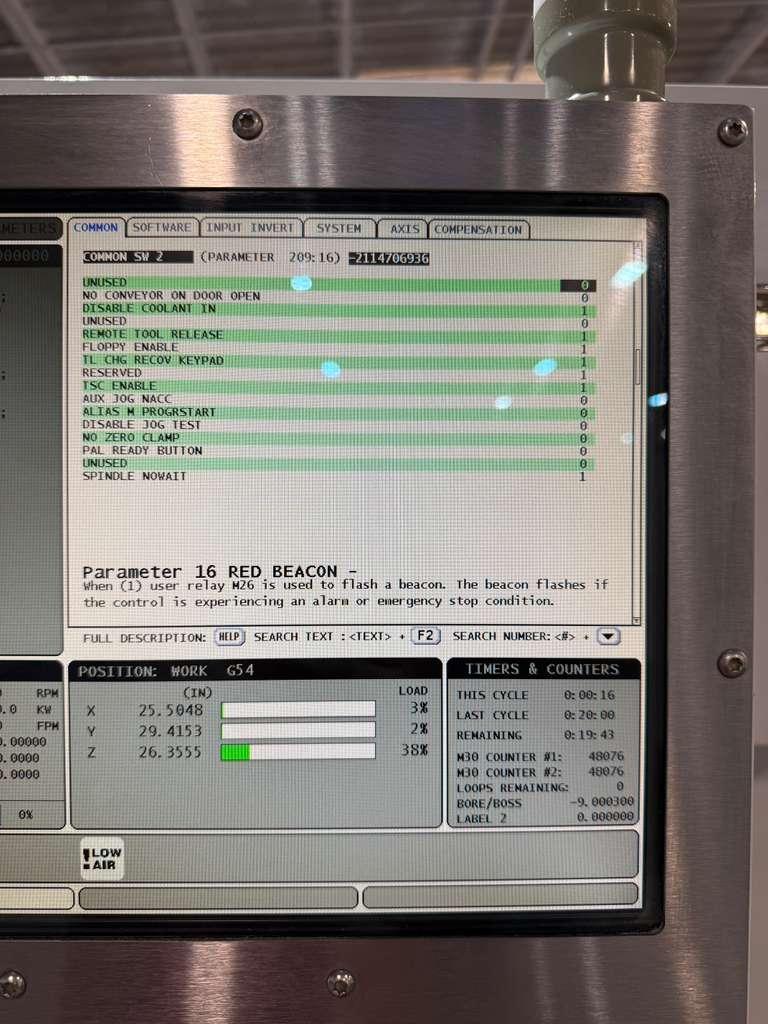

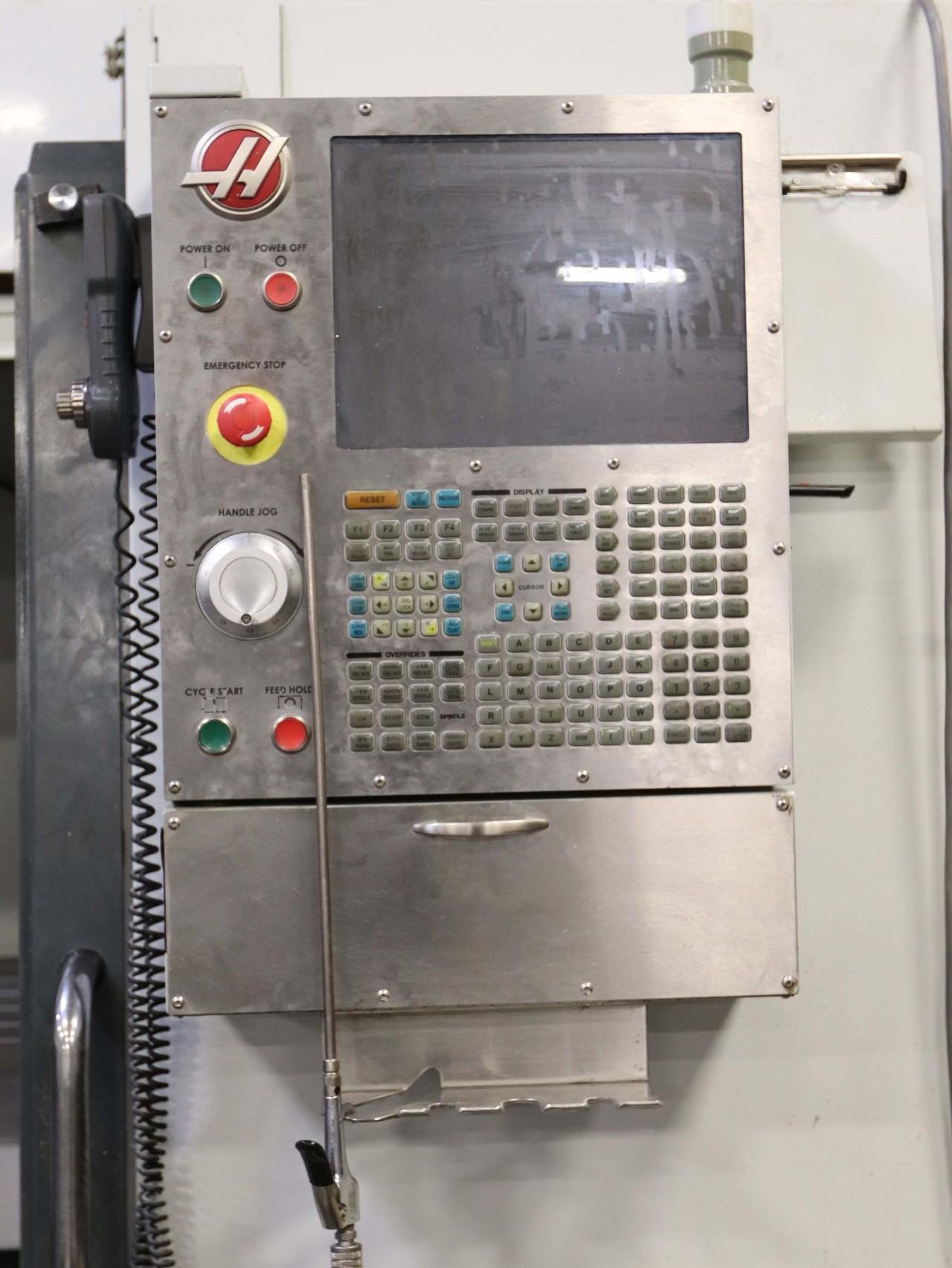

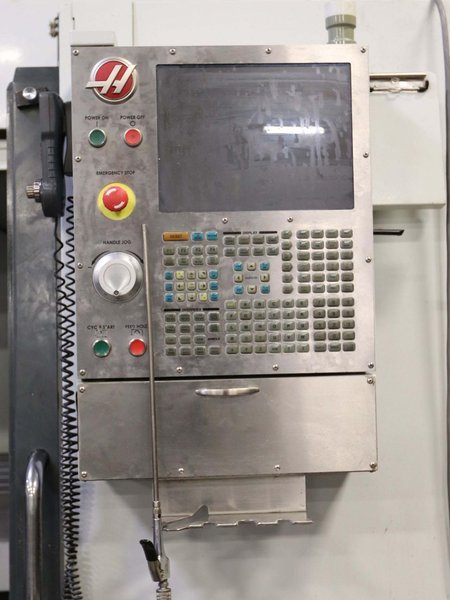

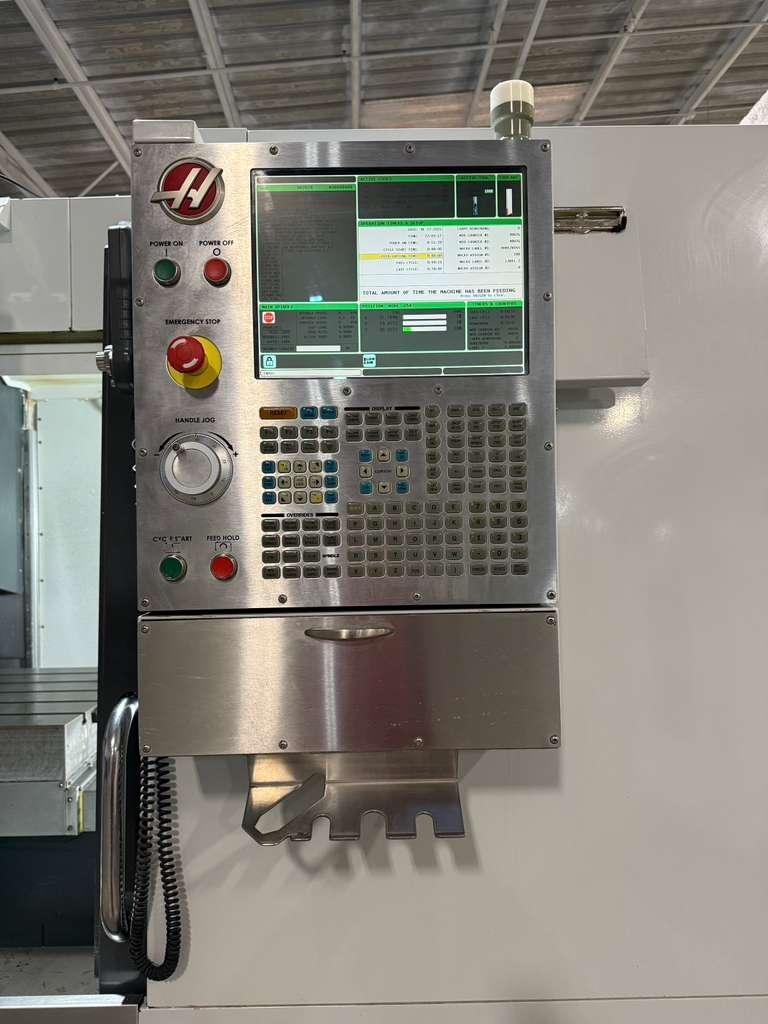

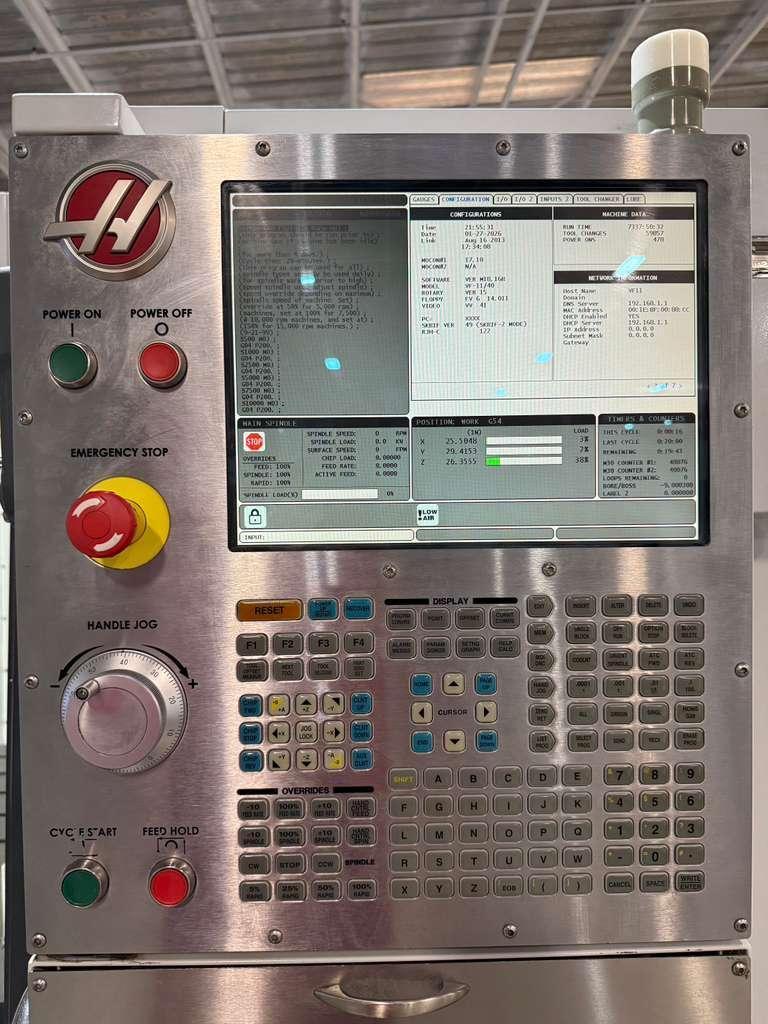

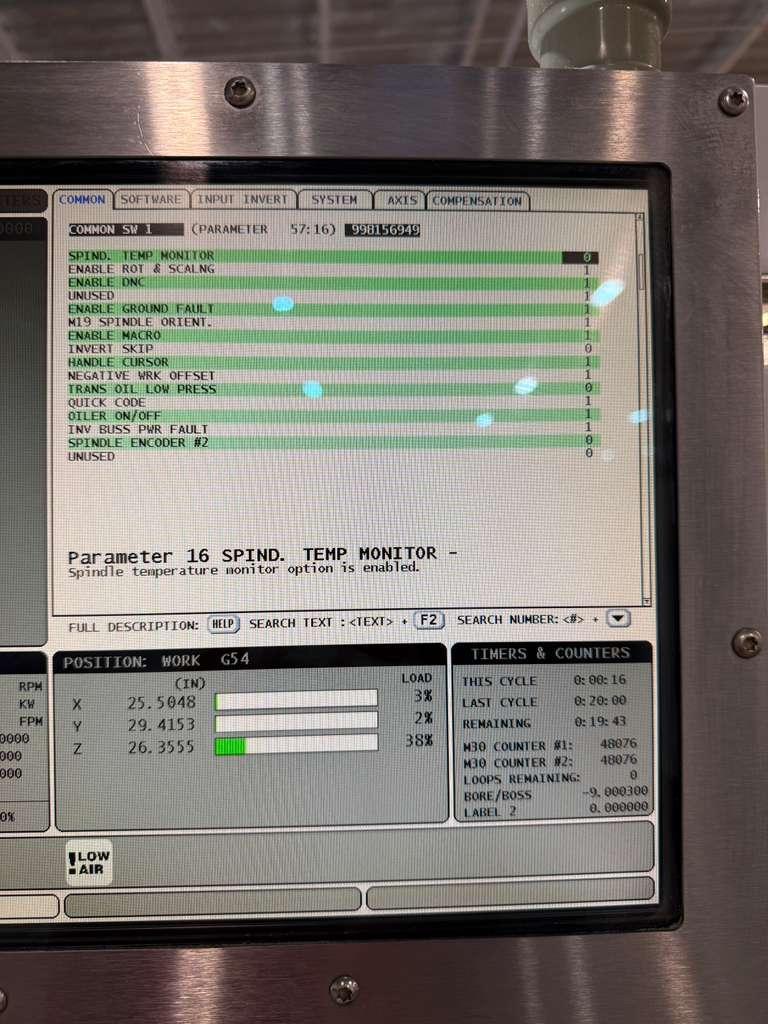

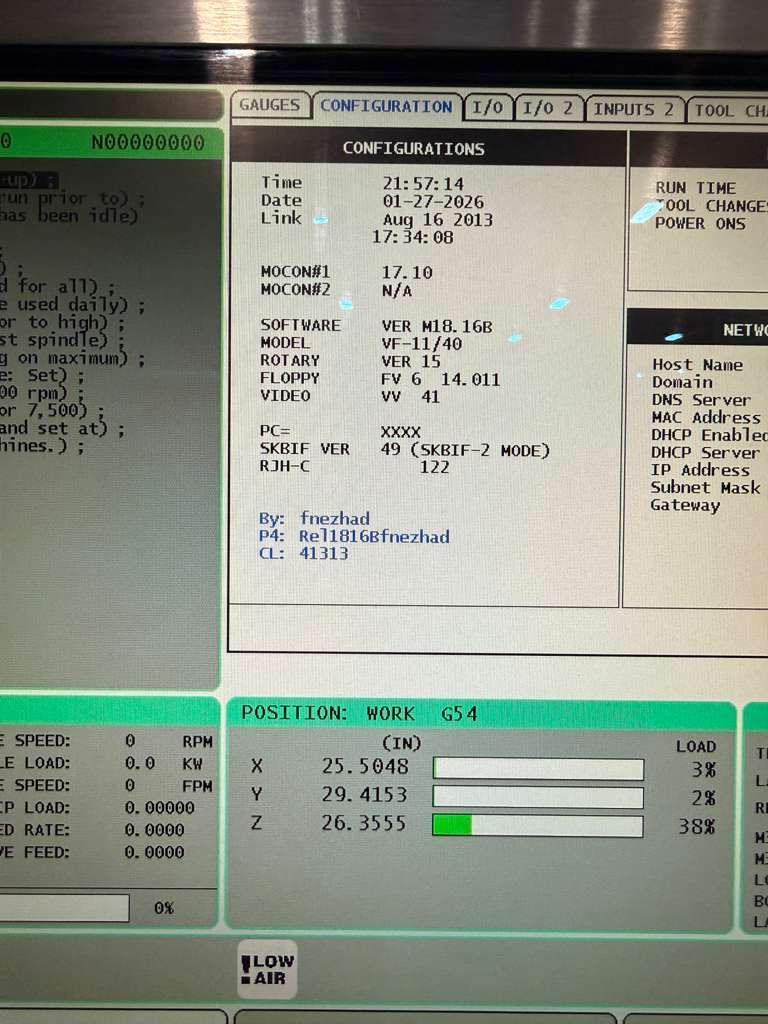

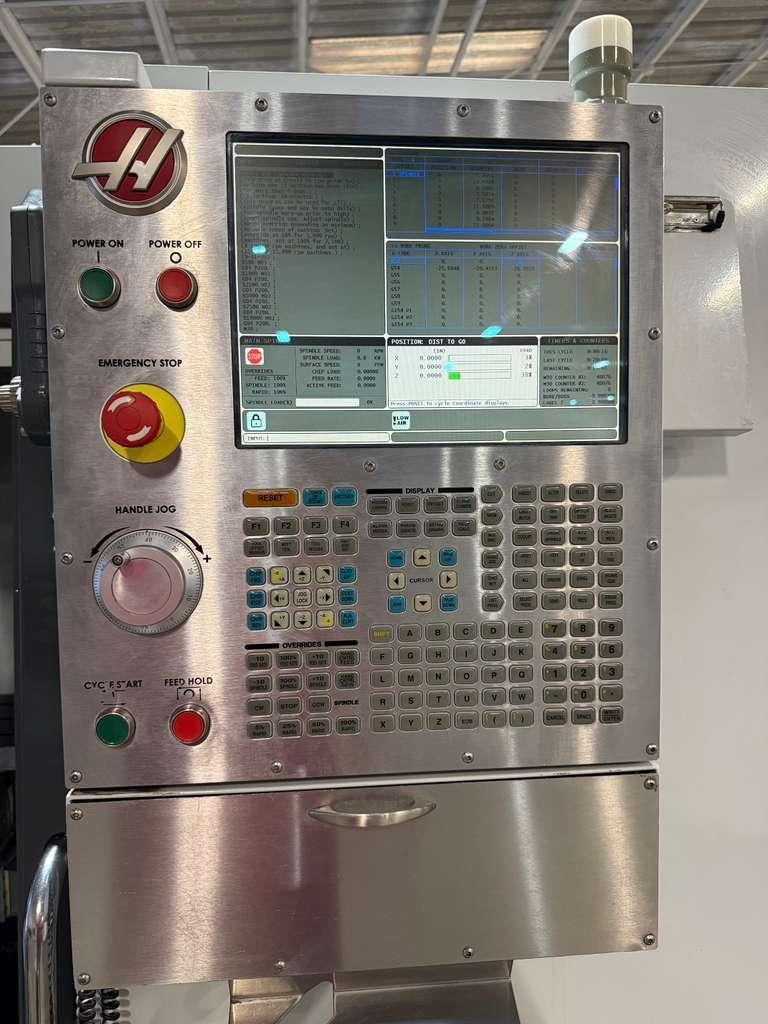

Haas CNC Control
10,000 RPM High Torque Spindle (Upgraded $7,195 value Included)

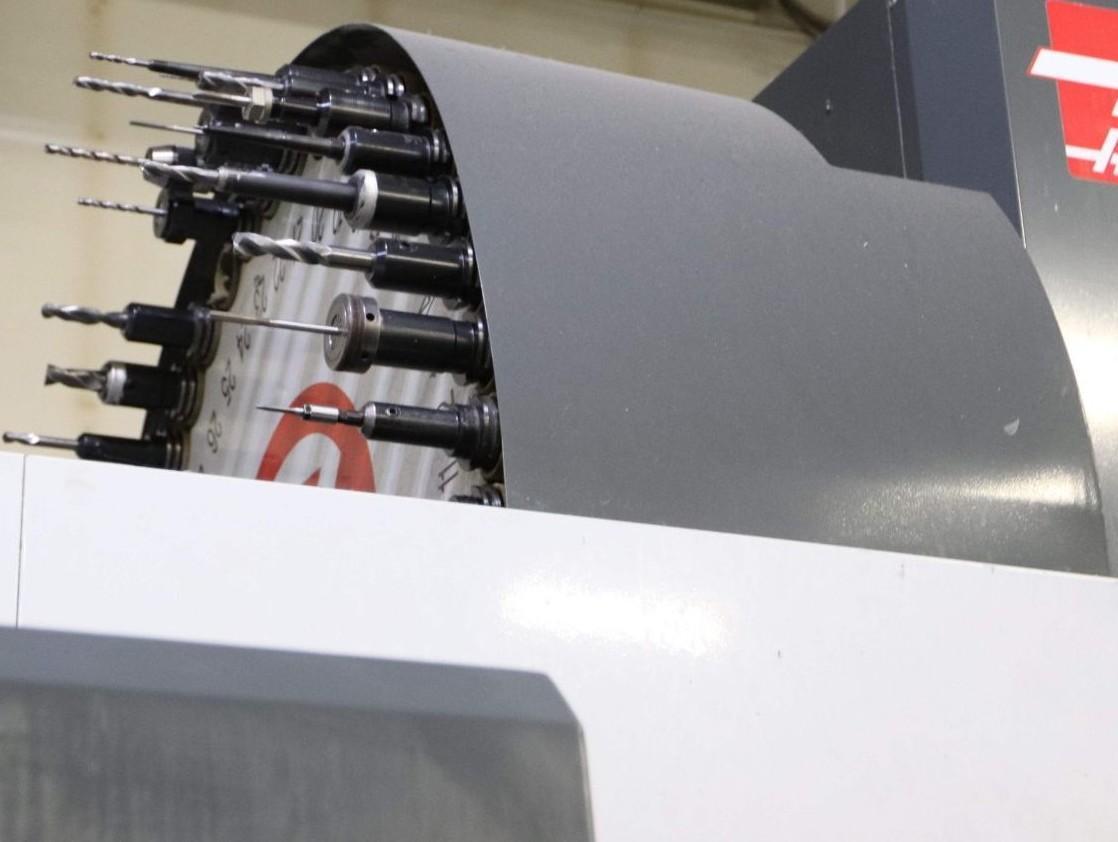

30 Station Automatic Tool Changer
CAT-40 Taper Spindle
30 HP Haas Vector Drive
Renishaw Probing System (Probe needed) (Upgraded $6,395 value Included)
Probe Riser Block (Upgraded $495 value Included)
Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)

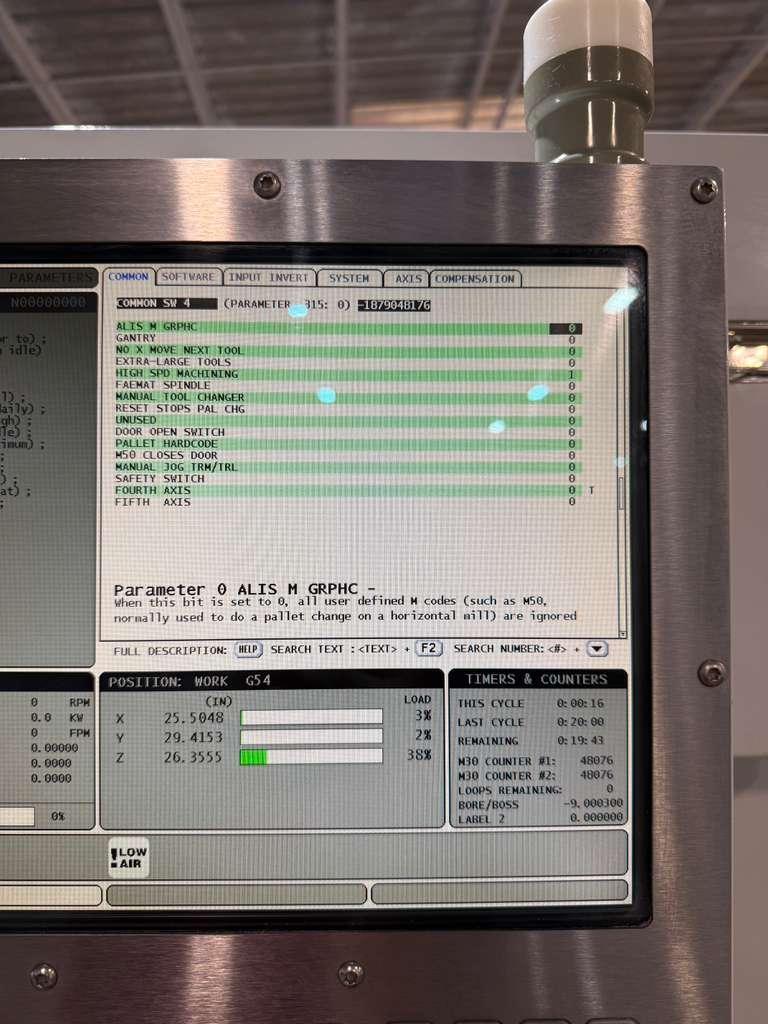

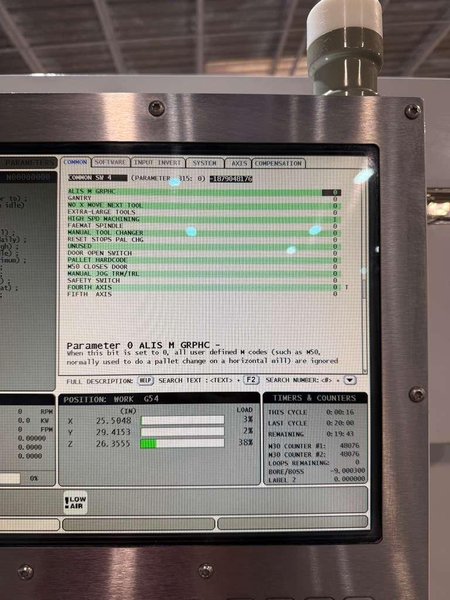

High Speed Machining (Upgraded $3,895 value Included)
MPG Handwheel Control
Floppy Enabled
DNC Enabled
Rotation & Scaling
Macros
Quick Code Programming
Advance Tool Management
Spindle Orientation
Rigid Tapping
Coolant System
Chip Auger

Travels:
X-Axis: 120″
Y-Axis: 40″
Z-Axis: 30″
Rapid Traverse Rates X Axis: 360 IPM
Rapid Traverse Rates Y & Z Axis: 600 IPM
Cutting Feed Rates: 360 IPM
Spindle Nose to Table (Min.- Max.): 4″ – 34″

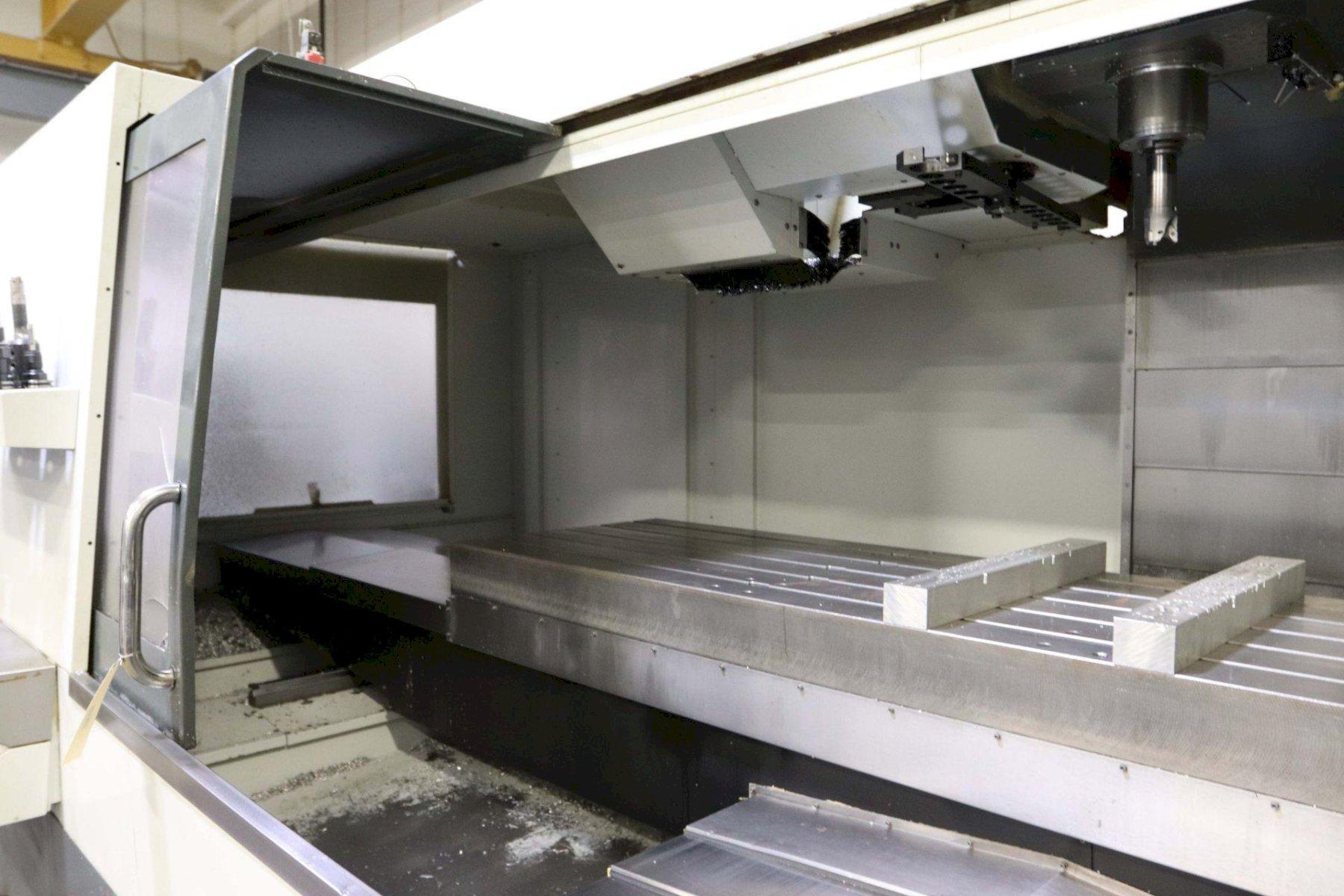

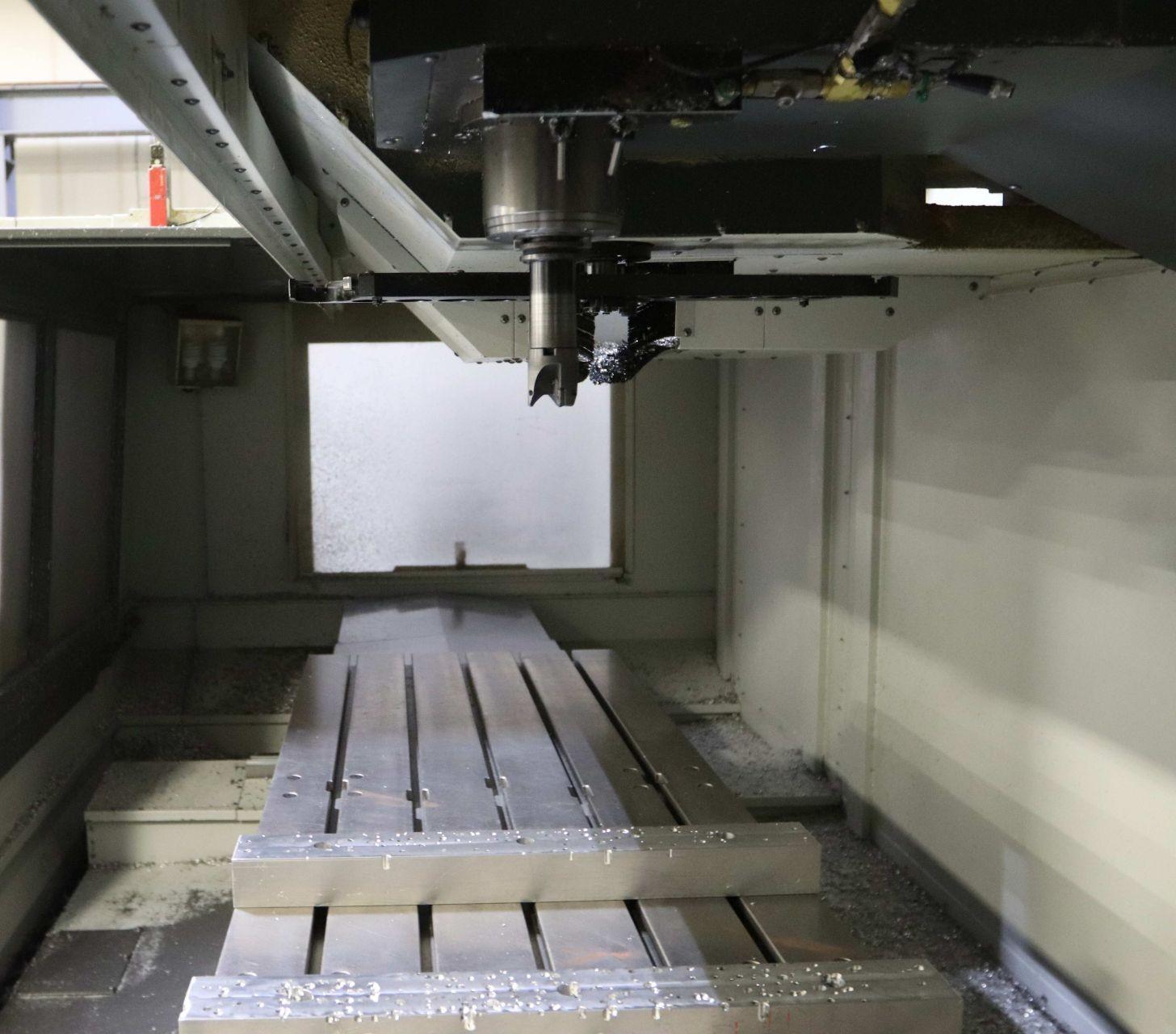

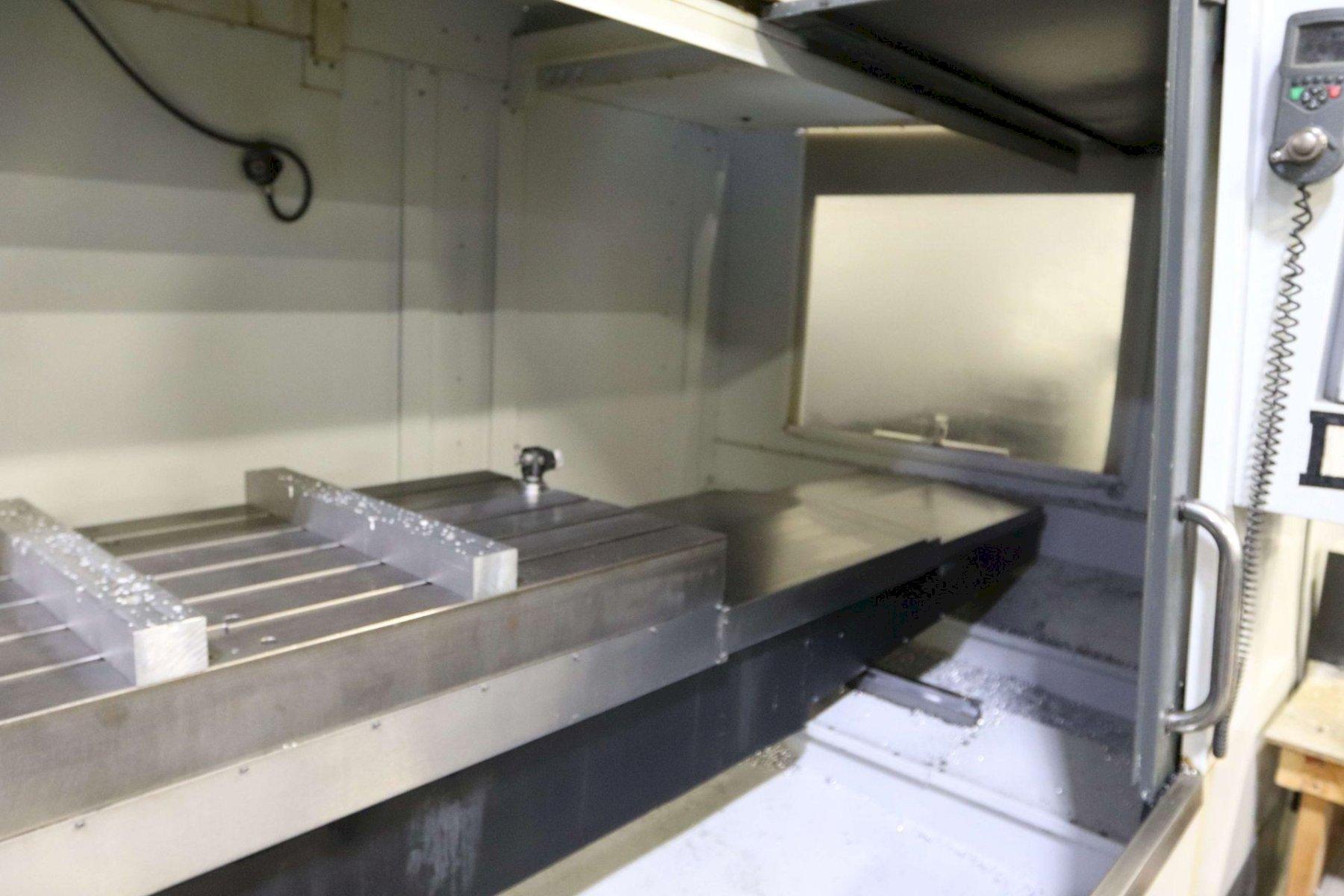

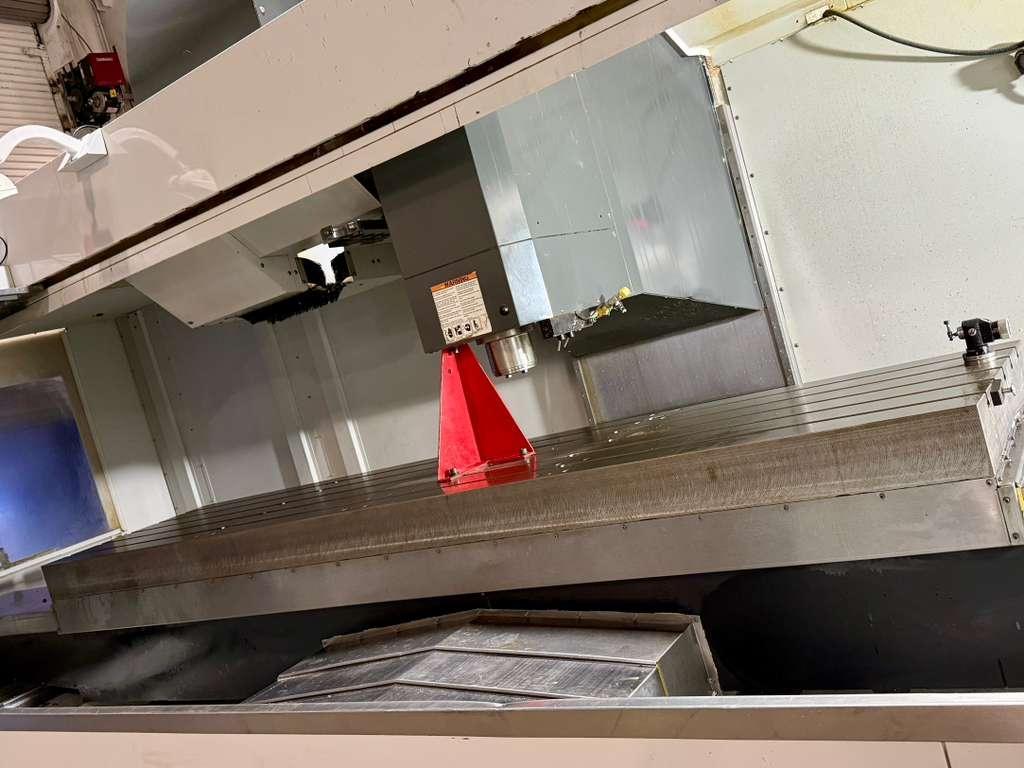

Table:
Length: 120″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

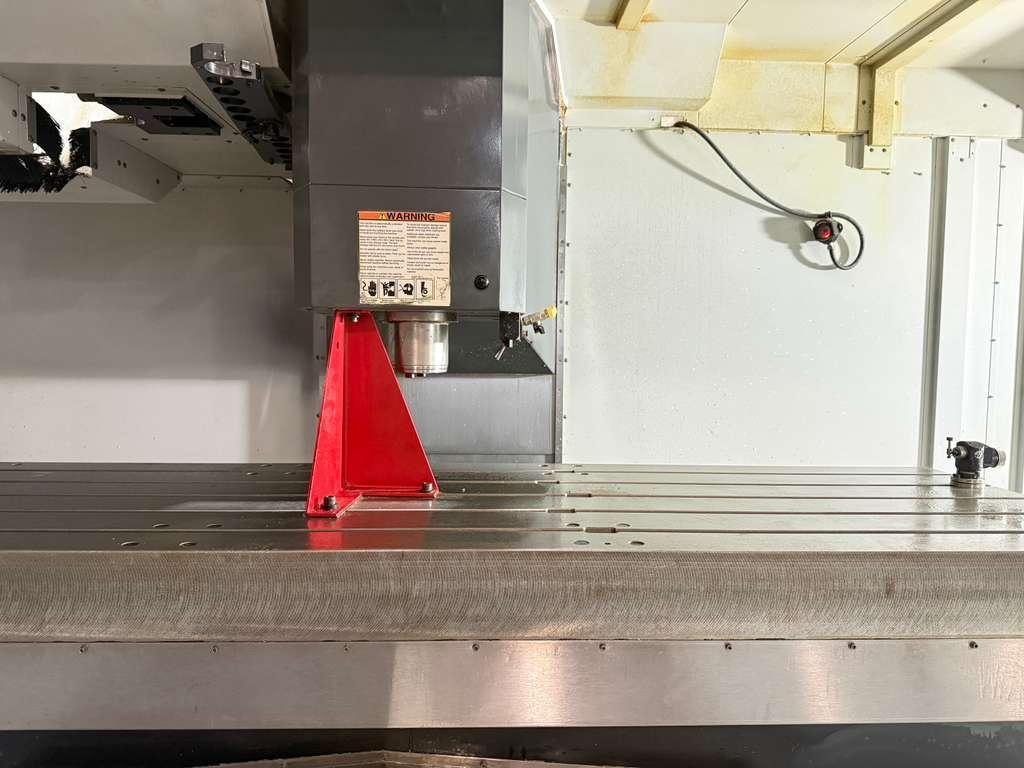

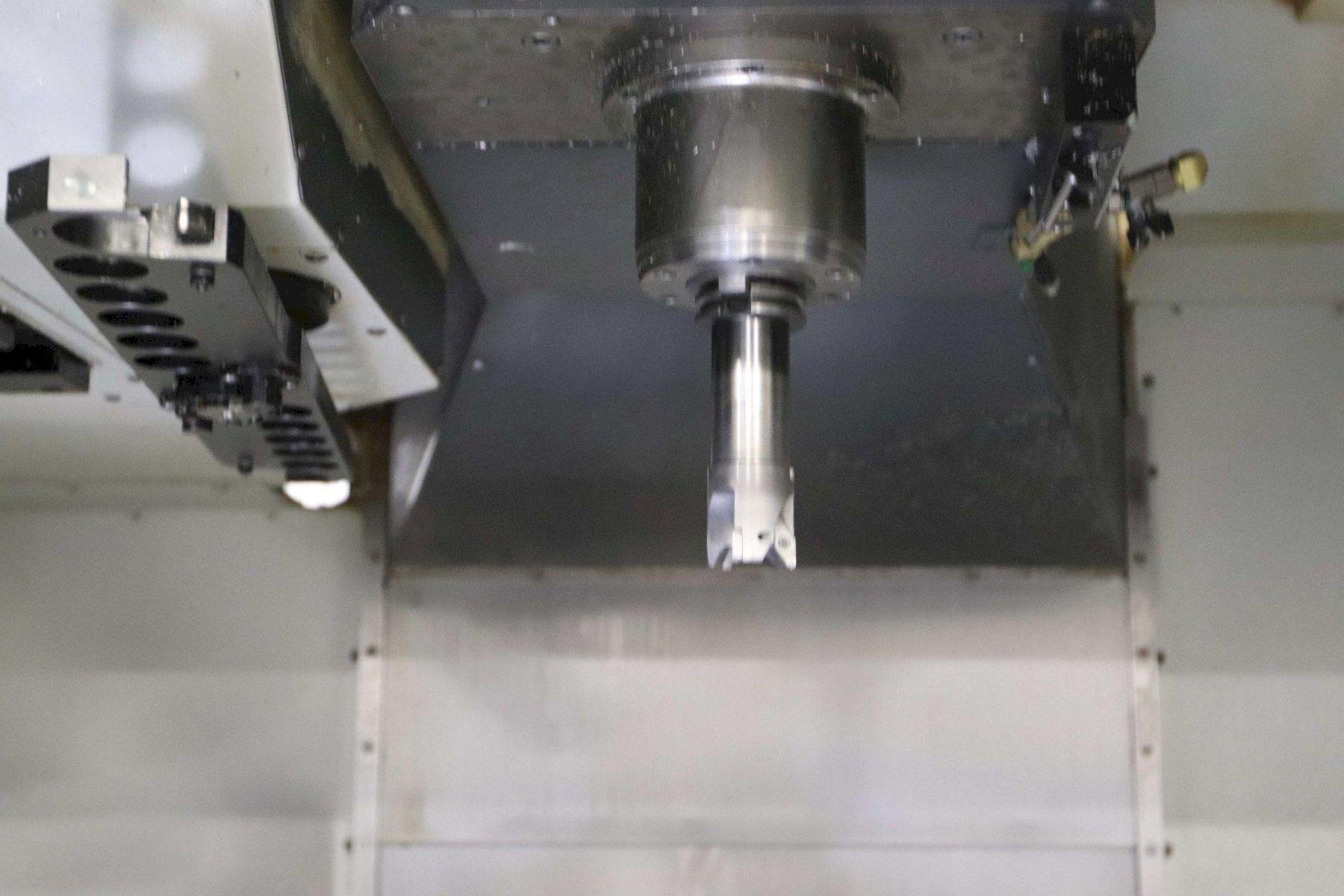

Spindle:
Taper Size: CAT-40

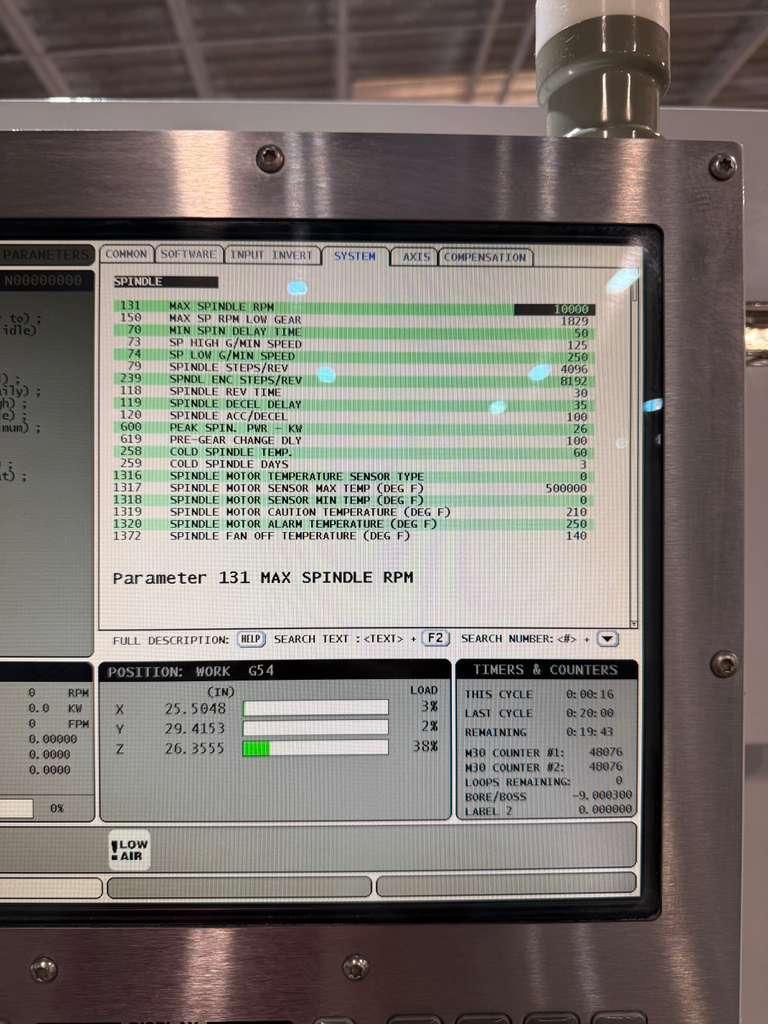

Speed Range: 10,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 6.0″
Max Tool Length: 16″
Max Tool Weight: 12 lbs
Tool Changing Time: Seconds: 3.6 seconds
