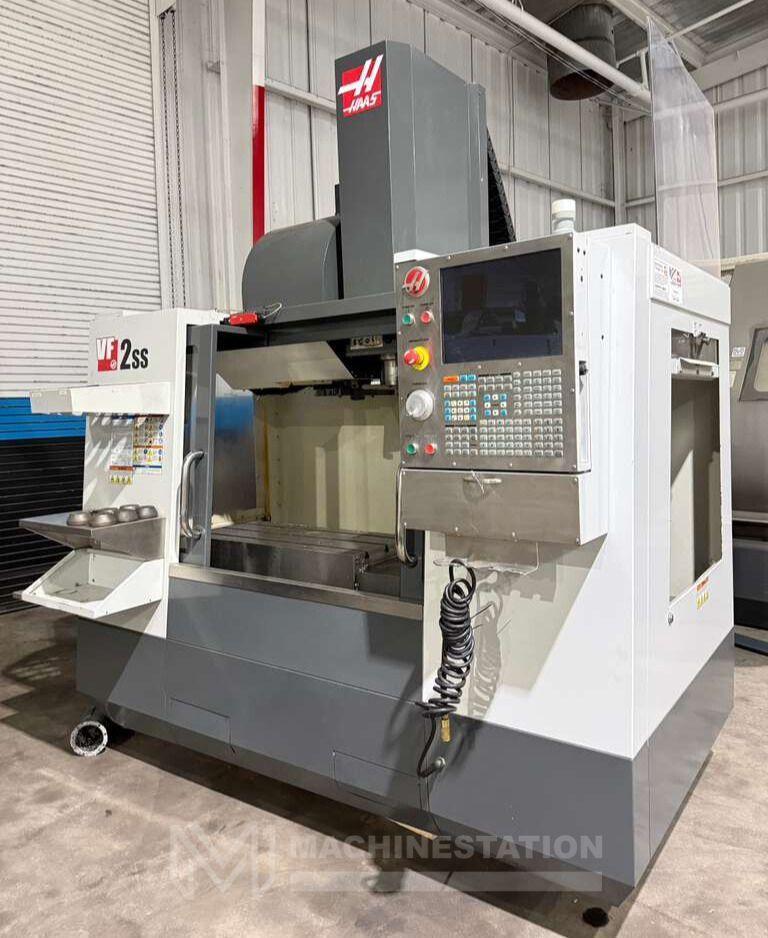

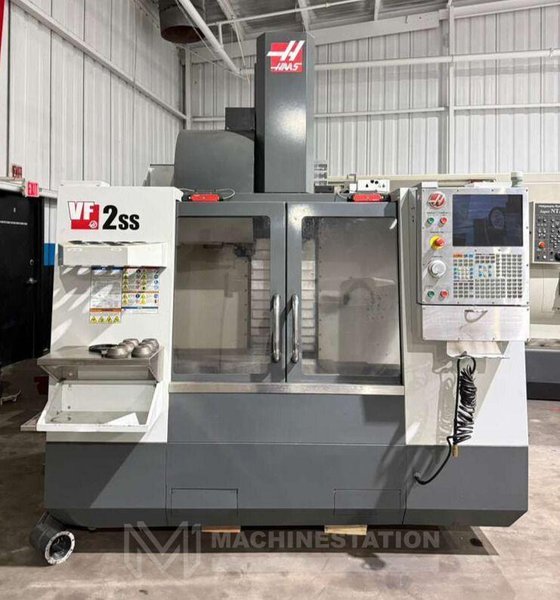

Haas VF-2SS CNC Vertical Machining Center – 4th Axis Ready Mill

Haas VF-2SS CNC Vertical Machining Center – 4th Axis Ready Mill

Name: Haas VF-2SS CNC Vertical Machining Center – 4th Axis Ready Mill
Brand: Unknown
SKU: 113516
Availability: PreOrder

Brand

Not specified

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU:	113516
Make:	Haas
Model No.:	VF2SS
Year of Manufacture:	2011
Condition	Used – Good

Equipped With:

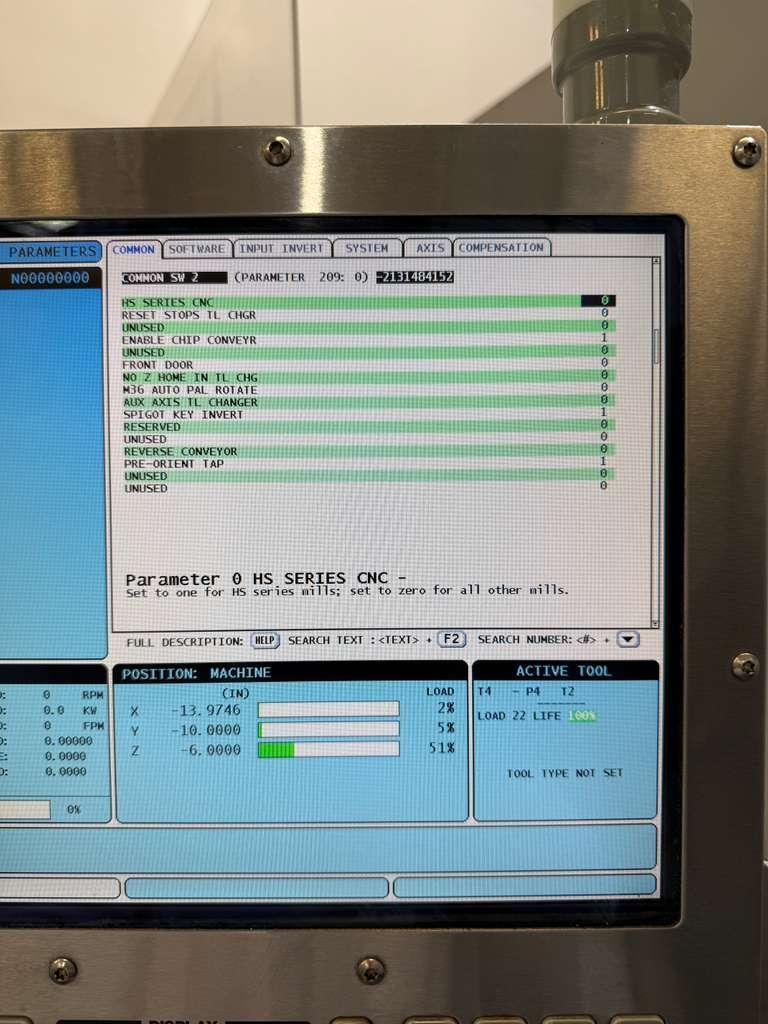

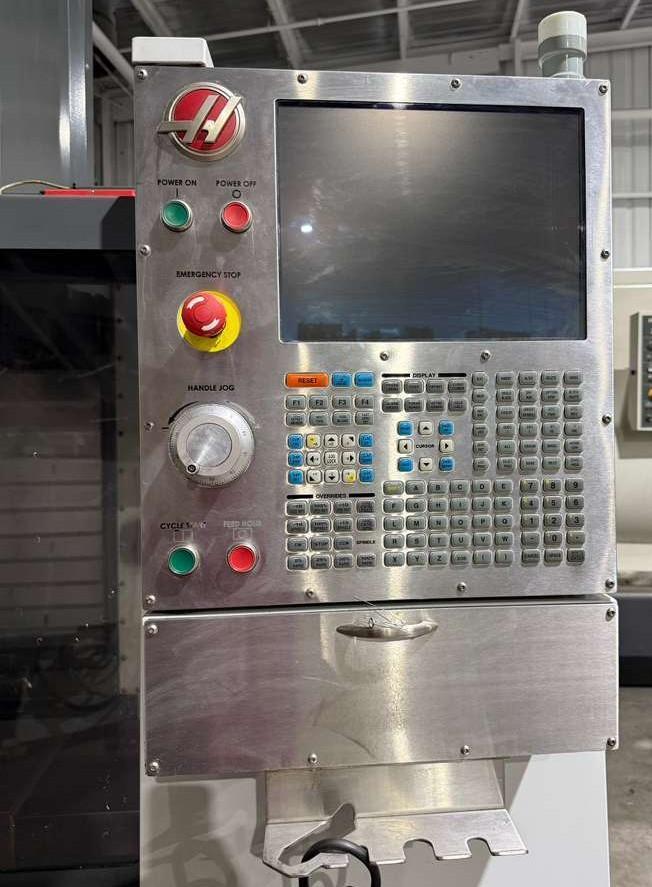

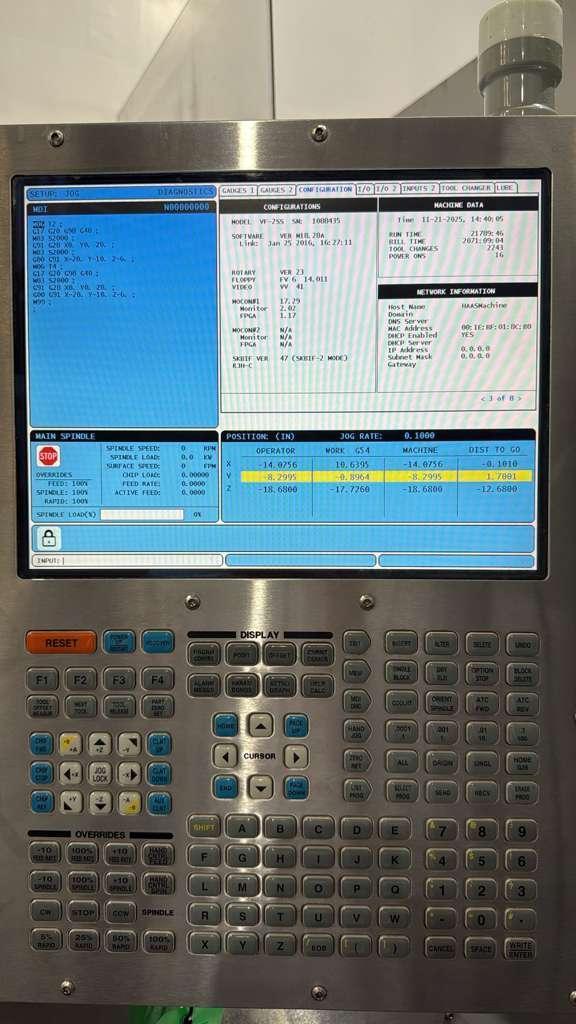

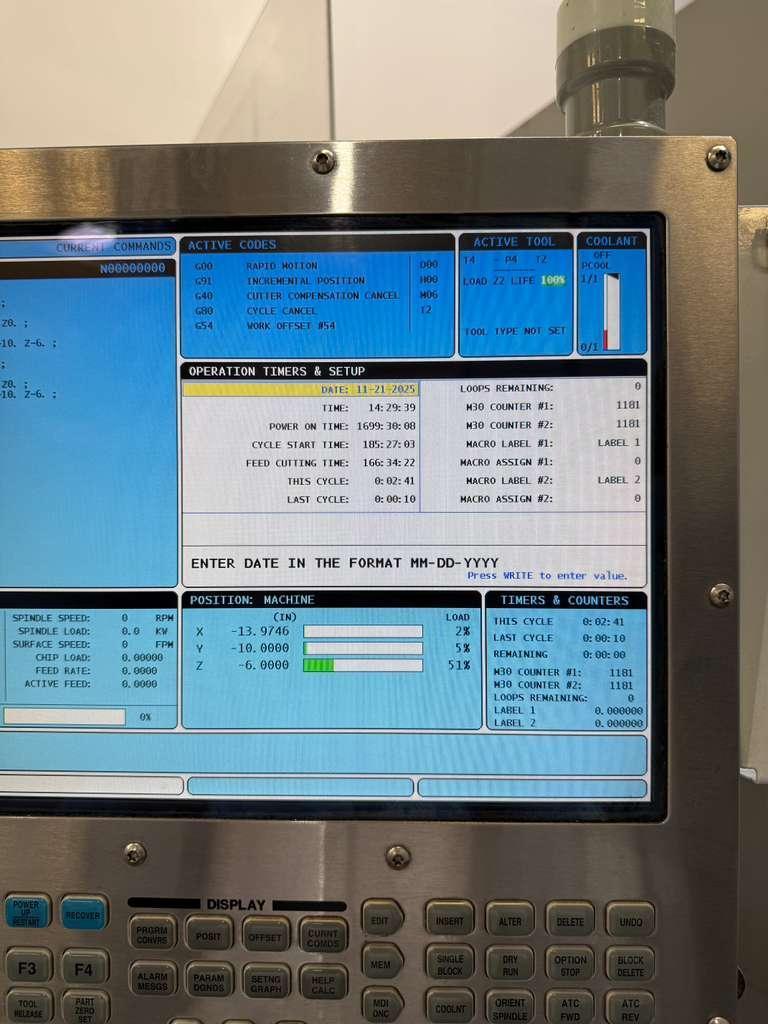

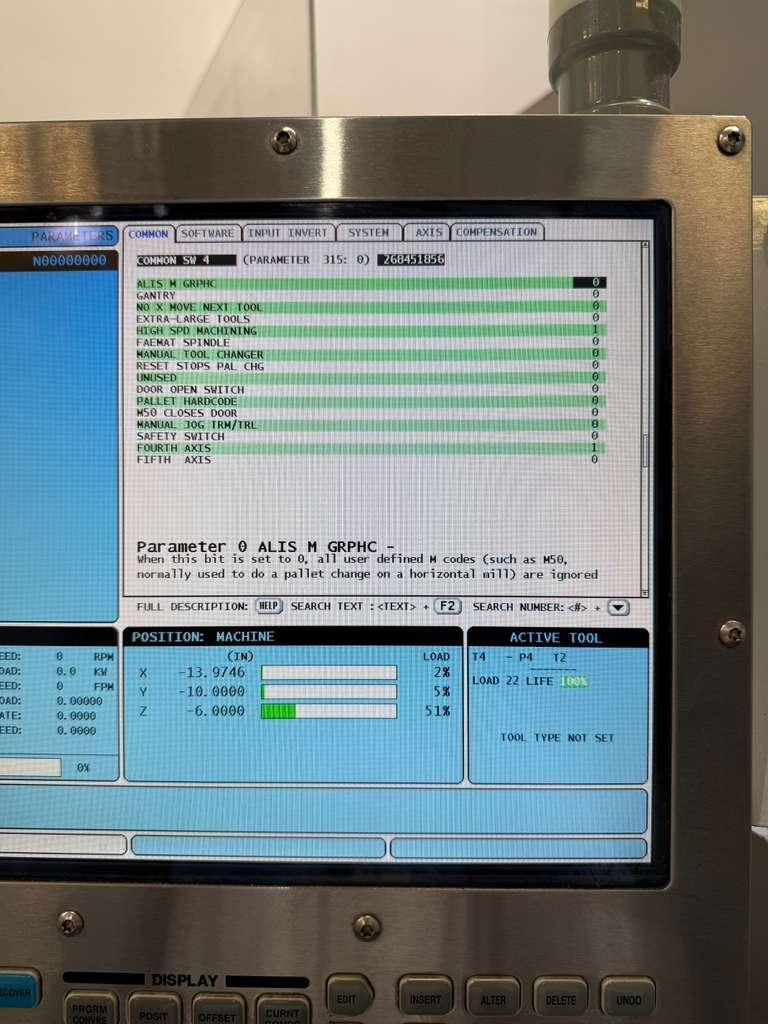

Haas CNC Control

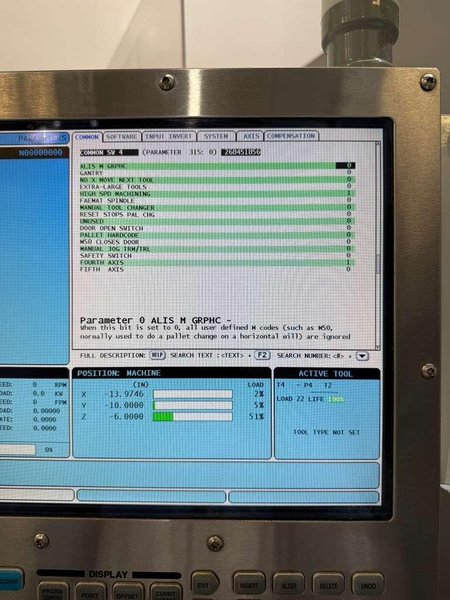

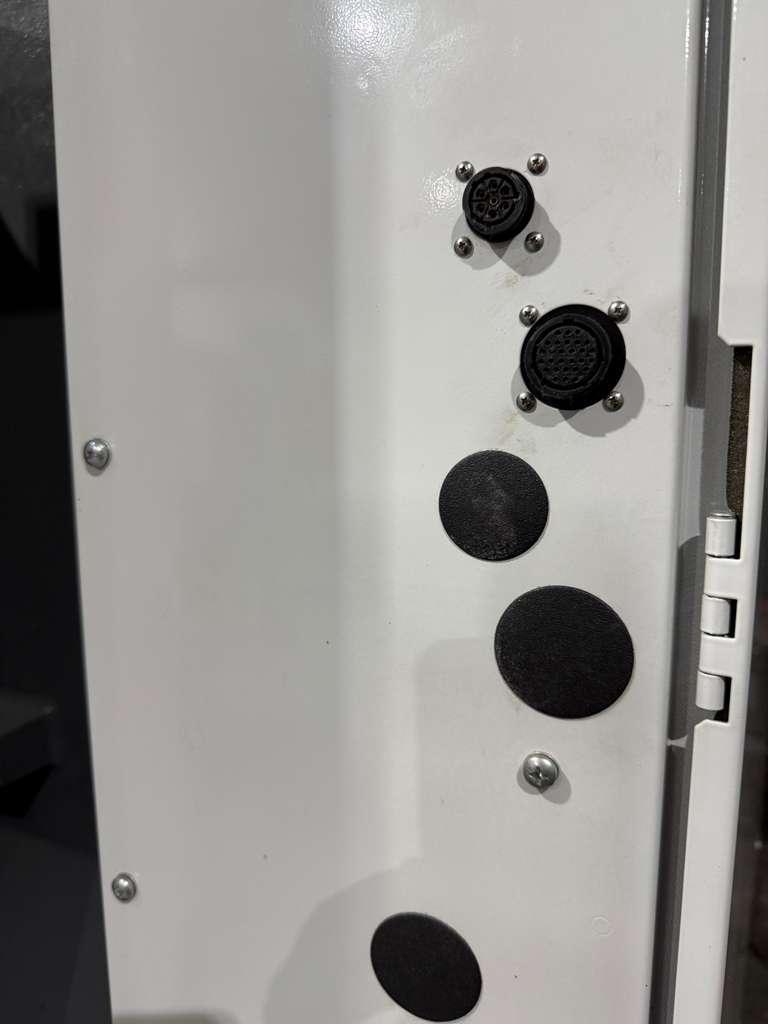

4th Axis Drive and Wiring (Upgraded $3,595 value Included)
12000 RPM High Speed Inline Direct Drive Spindle
40 HP High Torque Spindle Drive

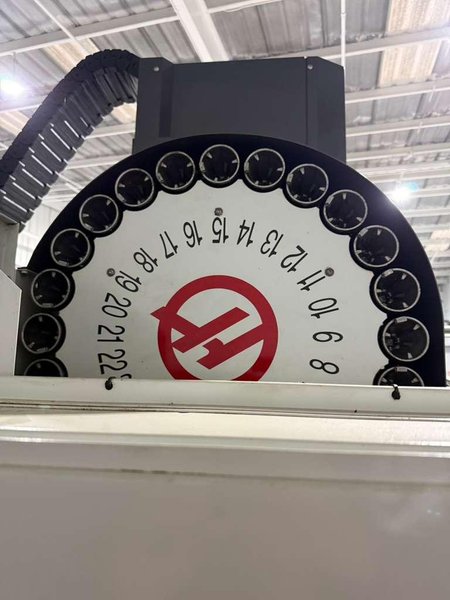

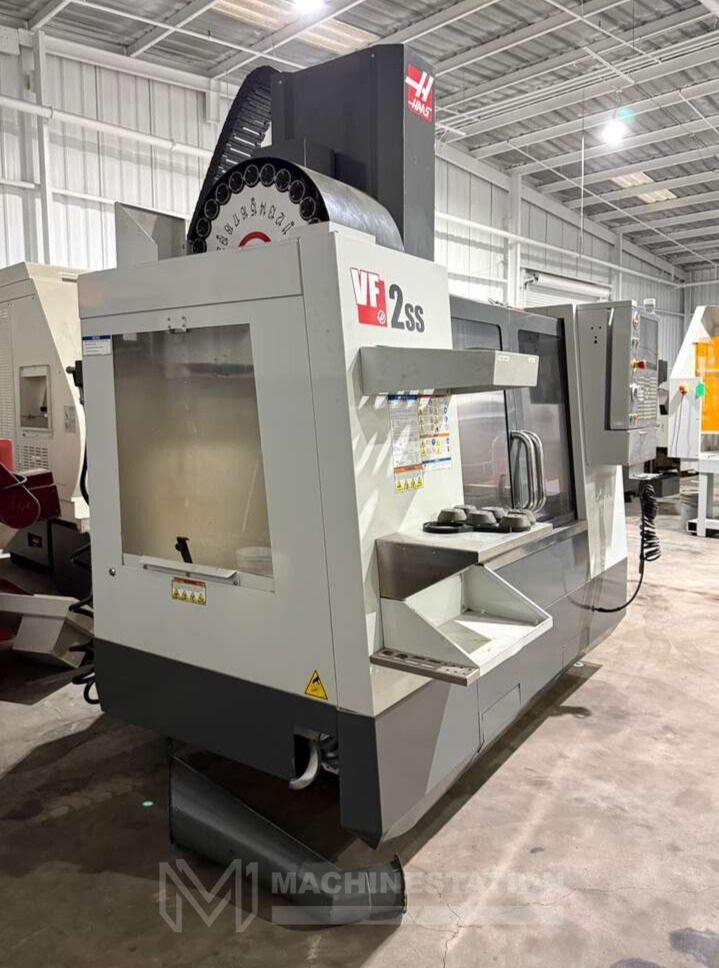

24 Station Super Speed Side Mount Automatic tool changer
1400 IPM Fast Rapid
High Speed Machining (Upgraded $3,895 value Included)
DNC Enabled
Quick Code
Rigid Tapping
Coolant System
Chip Auger (Upgraded $4,095 value Included)

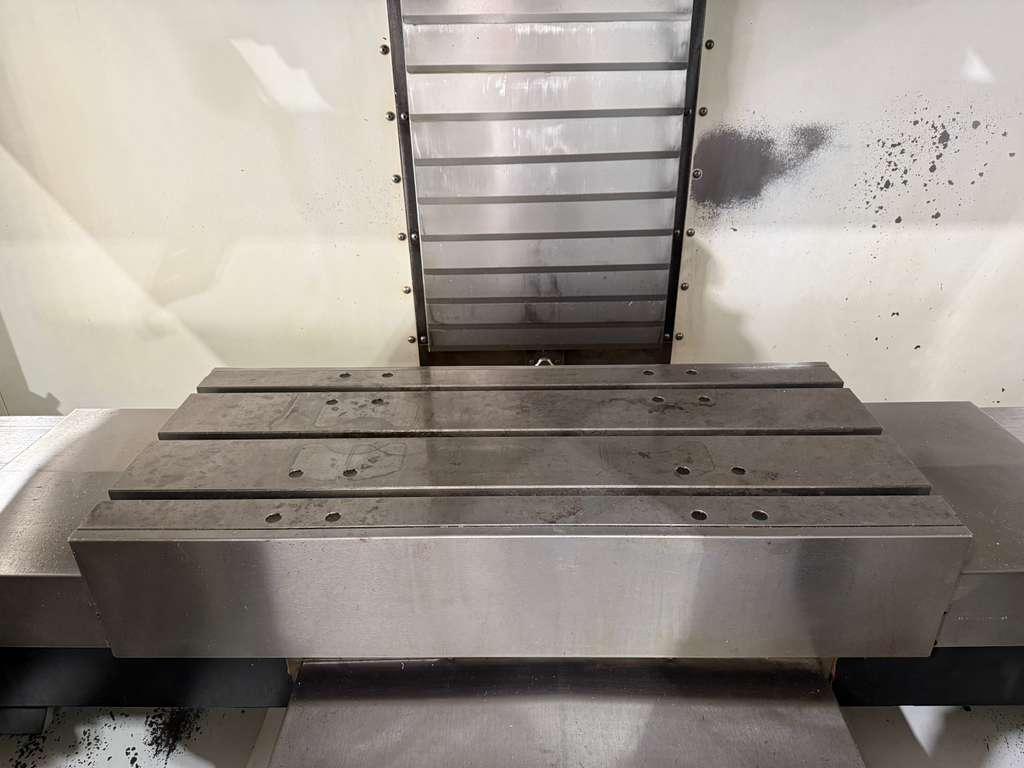

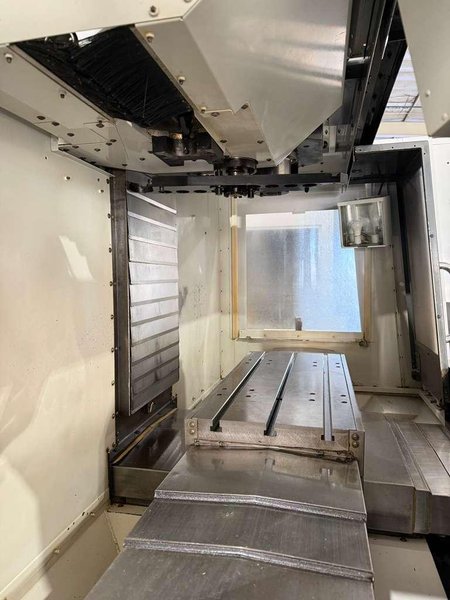

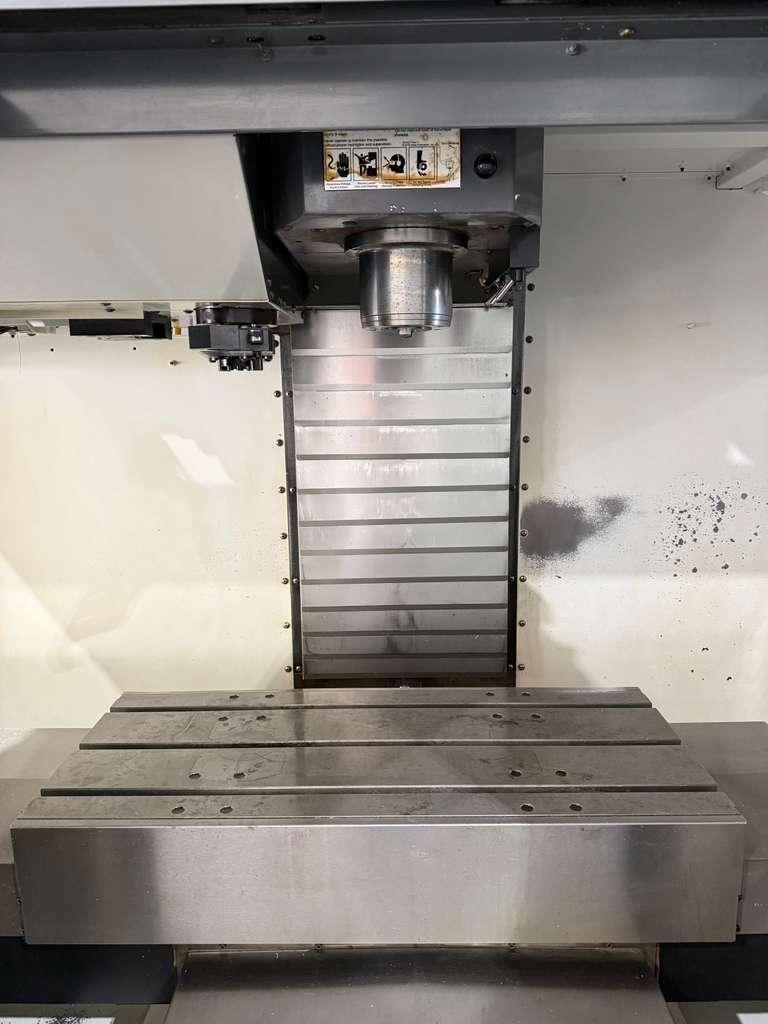

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Travel:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 883 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter (full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
