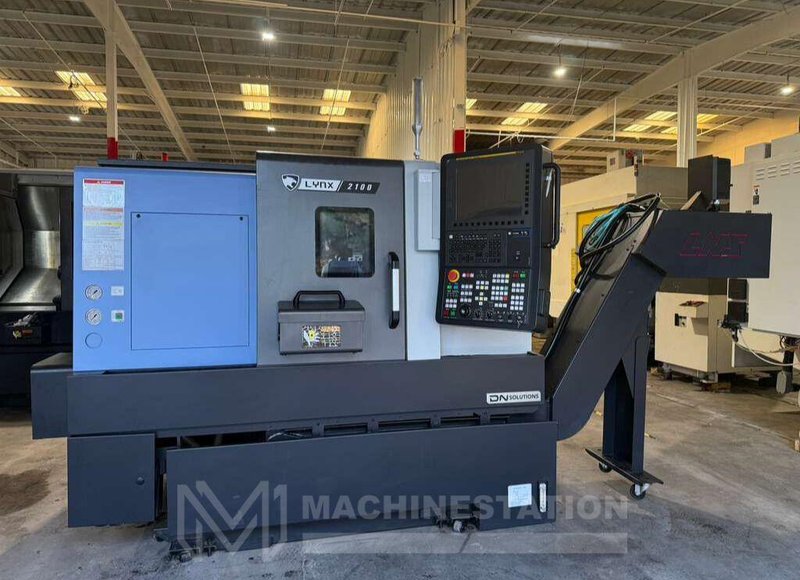

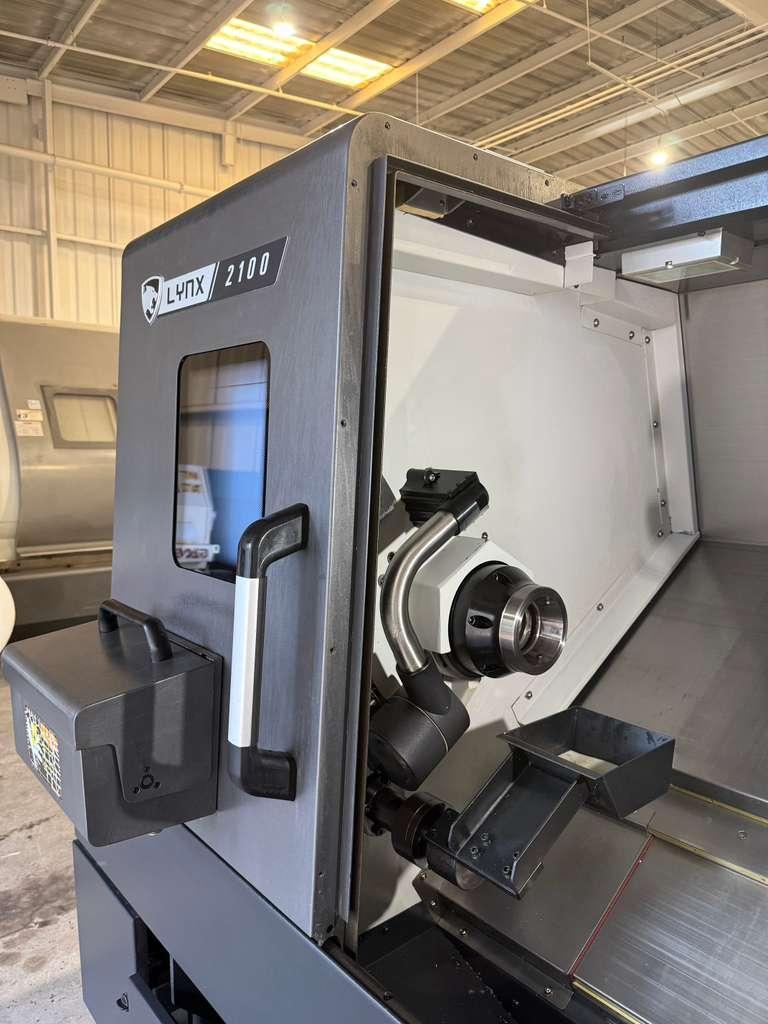

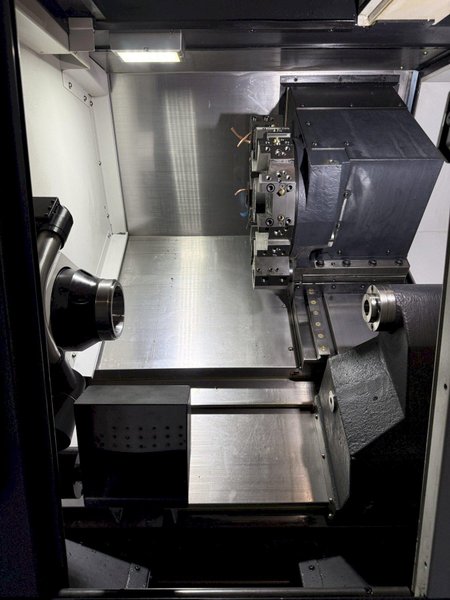

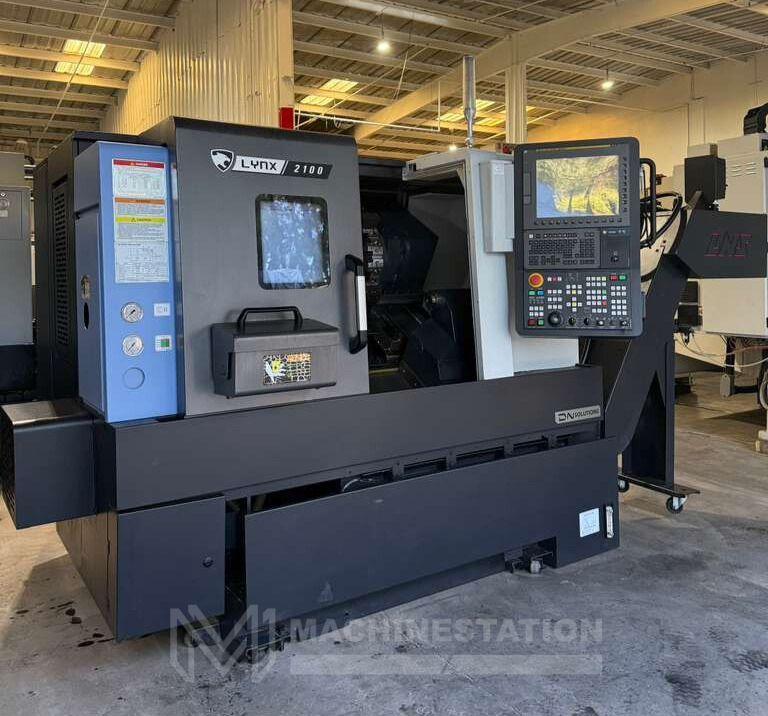

Doosan DN Solutions Lynx 2100A CNC Turning Center – 2022 Bar Feeder Lathe

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Doosan DN Solutions Lynx 2100A
Stock #
112986
Year
2022
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan DN Solutions
Model: Lynx 2100A
Year: 2022
Condition: Used – Excellent
Equipped With:

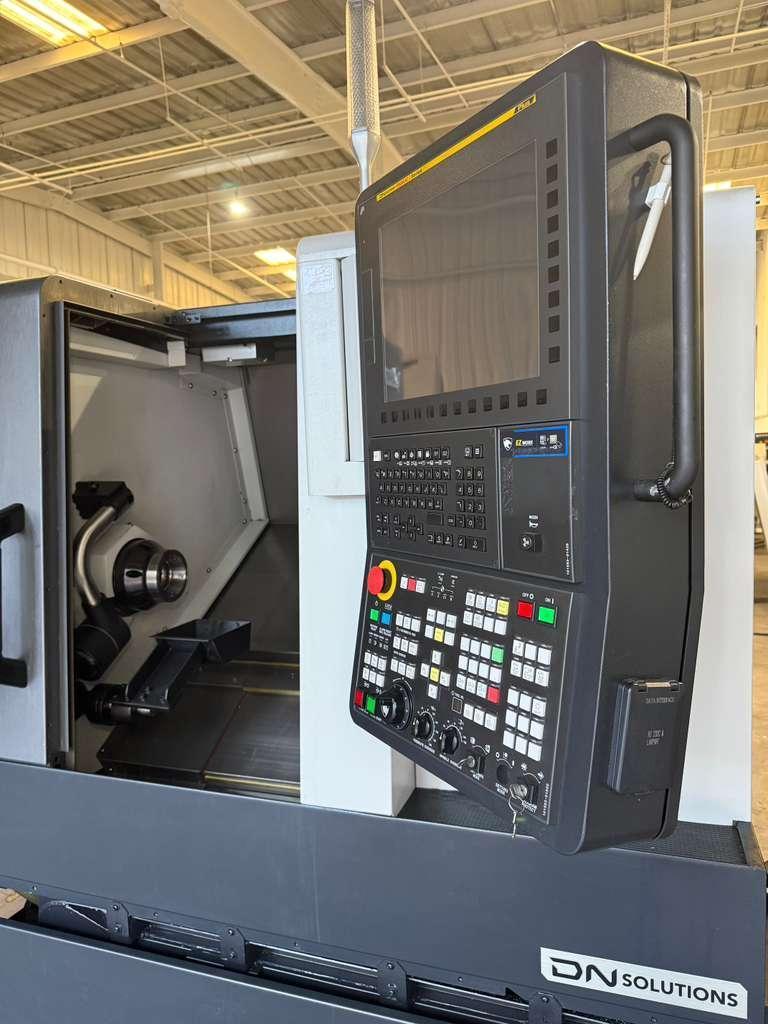

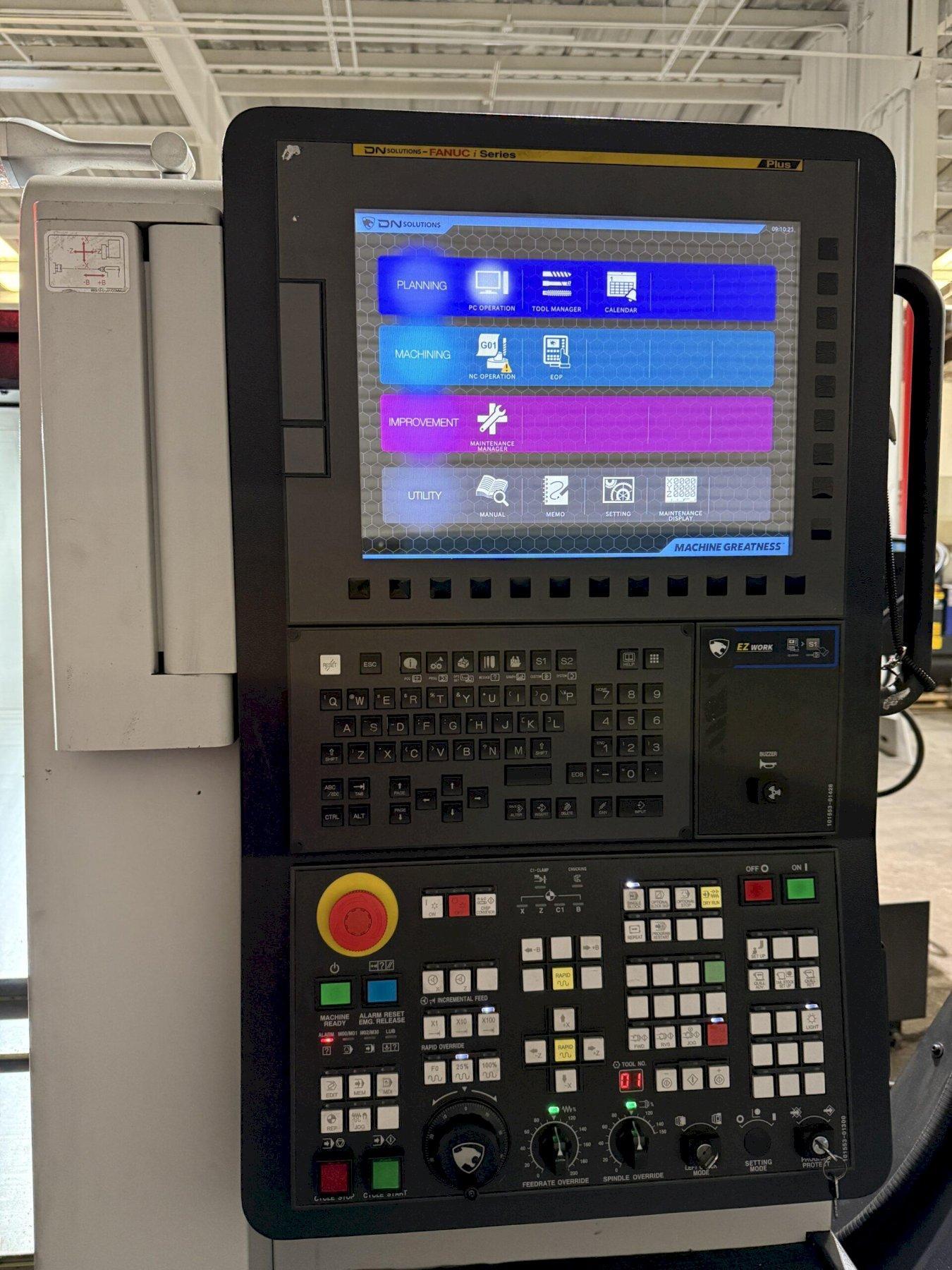

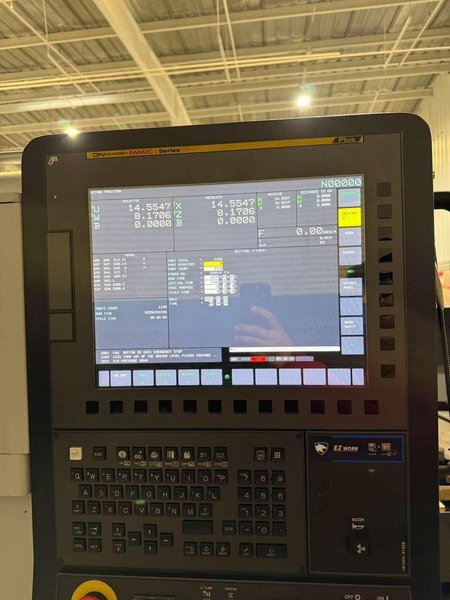

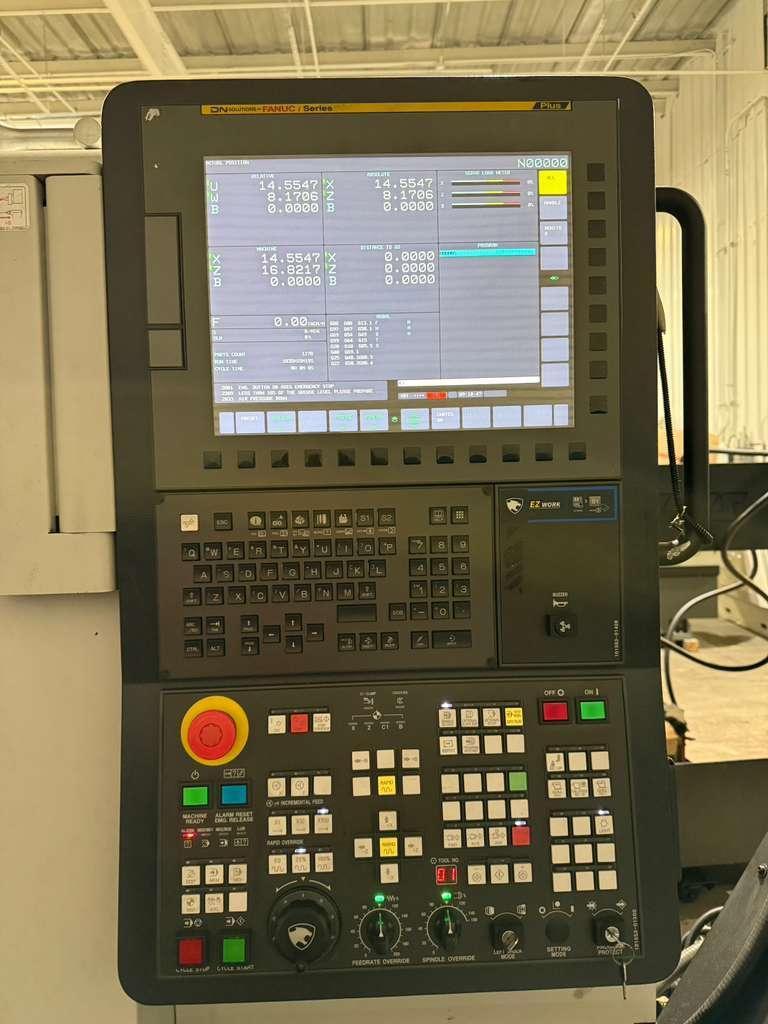

DN Solutions Fanuc i series Plus Touch Screen CNC Control

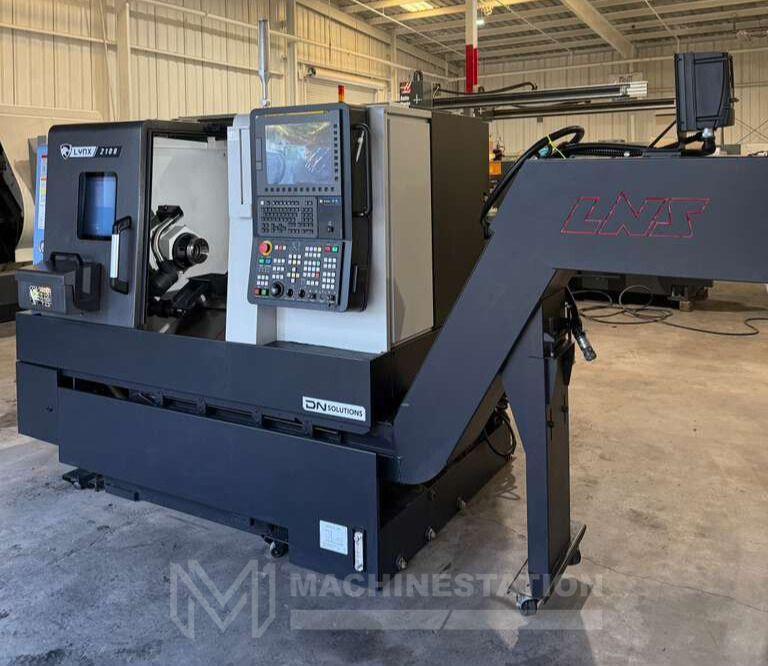

LNS Super Hydrobar Bar Feeder

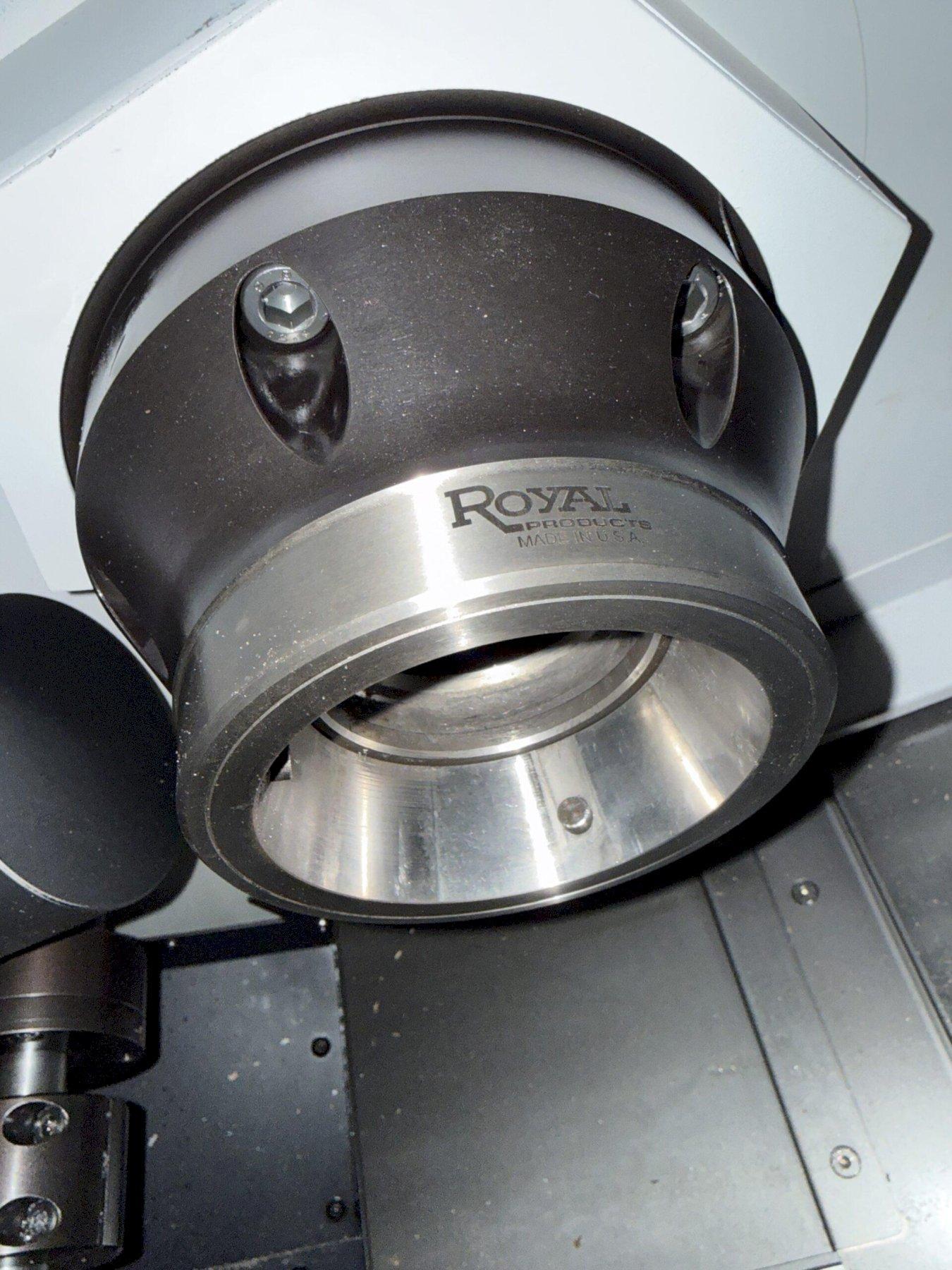

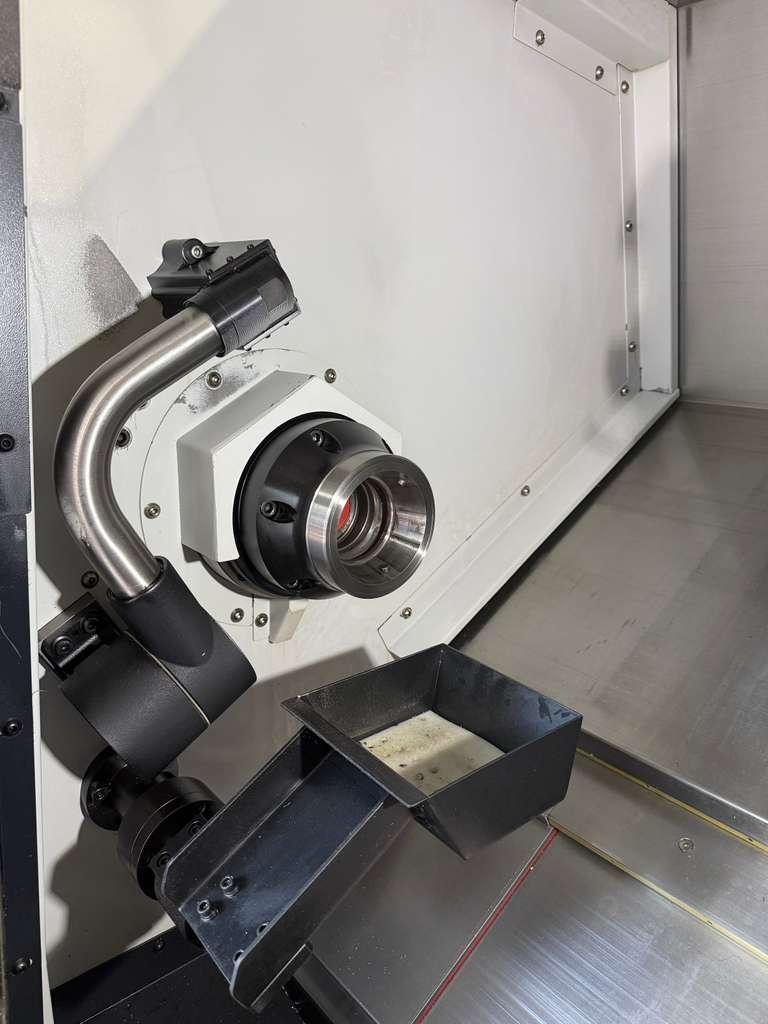

Royal Quick-Grip QG-52 Collet Chuck (6″ Chuck Capable) (Upgraded $4,810 value Included)

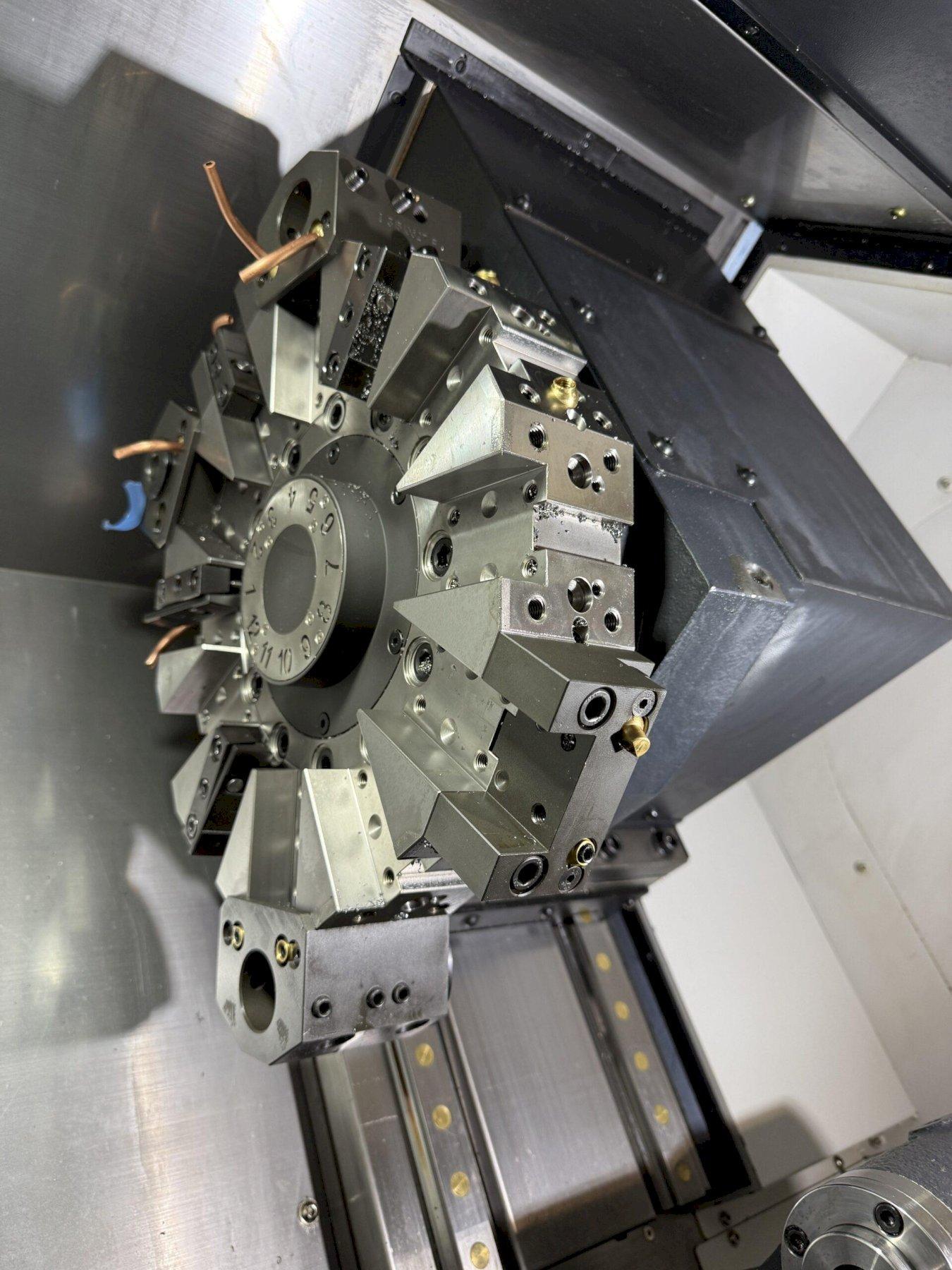

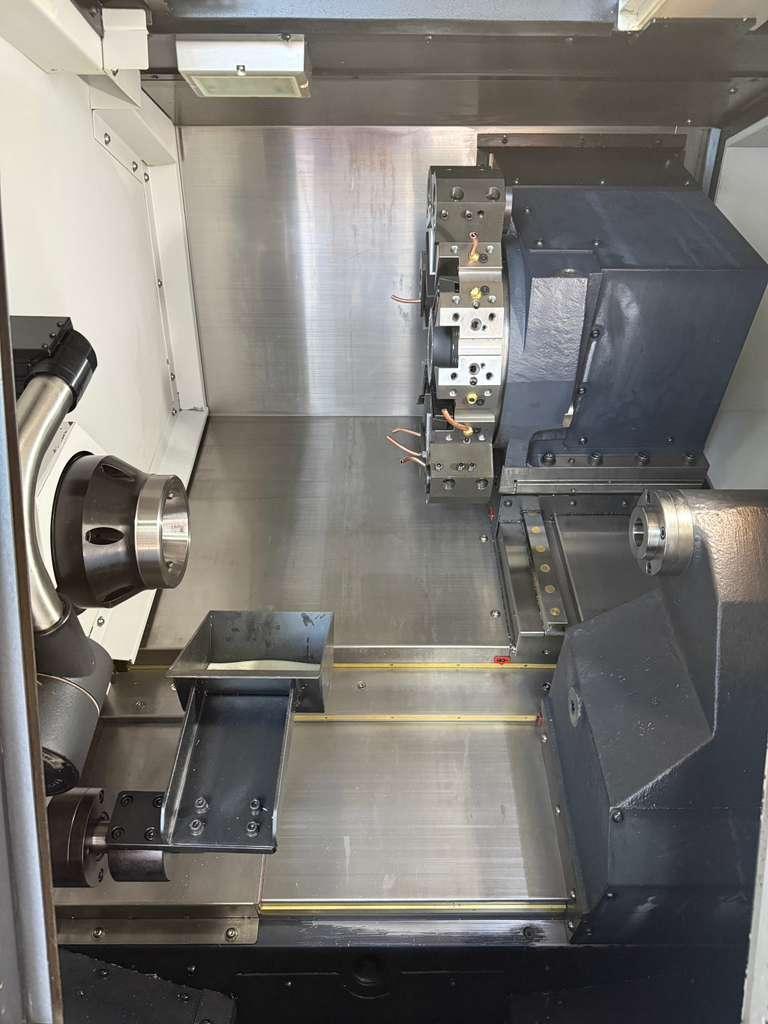

12 Station Automatic Turret
Programmable Tailstock
Tool Presetter
Parts Catcher
PCMCIA Card Interface

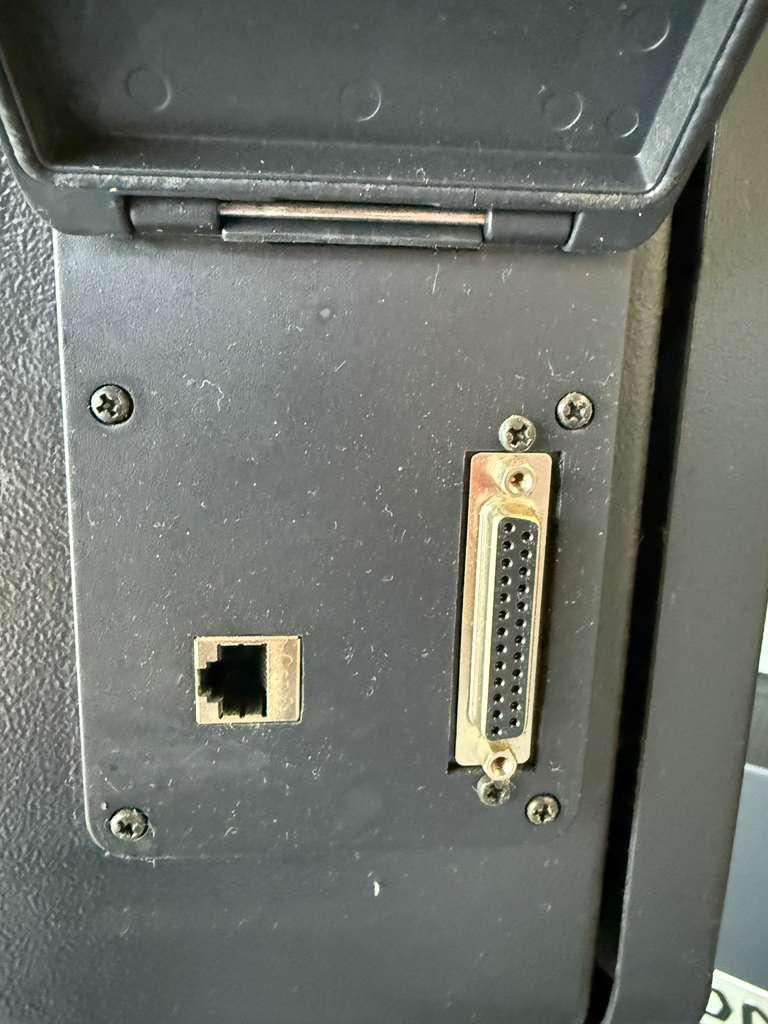

USB Port & RS-232 Port
Foot Switch
Coolant System
LNS Chip Conveyor
(2) Boring Tool Holders & (2) Square Tool Holders
Note: Tool holders mounted on the turret are not included with the machine.
Capacity:
Max Turning Diameter: 13.77″
Max Turning Length: 13.00″
Max Bar Capacity: 2.00″
Swing Over Bed: 23.60″
Swing Over saddle: 15.70″
Travels:
X Axis Travel: 8.07″
Z Axis Travel: 13.40″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.11 Second
Max OD Tool Size: 1.0″ x 1.0″
Tool Holders Type: Bolt Mounted
Tailstock:
Quill Diameter: 2.56″
Travel Distance: 14.1″
Taper Size: MT#4
General:
Power: 24.21 kva, 220v / 3-Phase
Overall Dimensions: 91.3″ x 62.8″ x 6.7″ High Approx.
Weight: 6,834 lbs. Approx.
No files or videos to display
