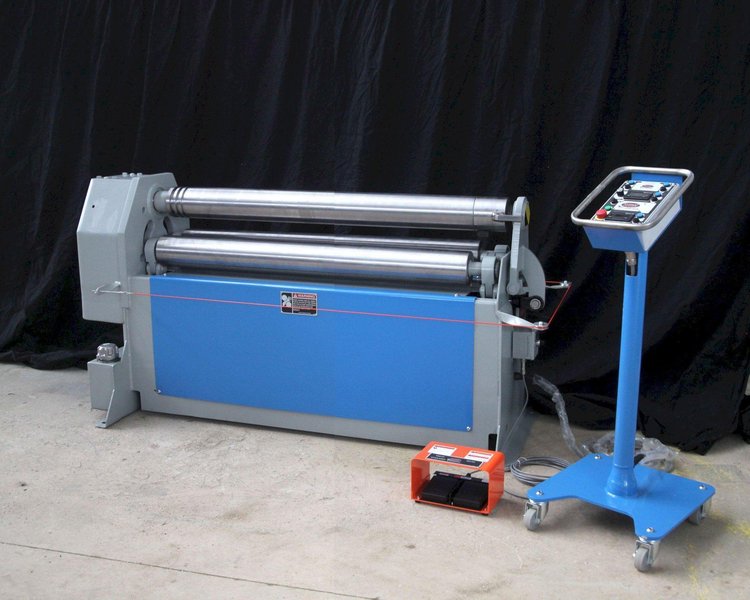

1 - NEW WDM HYDRAULIC INITIAL PINCH PLATE BENDING MACHINE, MODEL #: 101-5-4
Brand
Category
Model
101-5-4
Stock #
87206
Year
Not specified
Condition
New
Location
Tennessee
|
SPECIFICATIONS:
NOMINAL ROLL DIAMETER -------------------- 5" RATED ROLLING CAP. (MILD STEEL) ---------- 1/4” mild steel plate to 20” diameter x 4' wide CENTRAL HYDRAULIC SYSTEM --------------- 3 HP, 230/460 Volt, 3 Ph TEFC Motor APPROXIMATE WEIGHT ----------------------- 2,900 LBS APPROXIMATE DIMENSIONS ( L X W X H) -------- 87" x 39" x 37" FEATURES: • 1045 carbon steel rolls
• Hydraulic driven roll which provides instant start, stop, and reverse
• NEMA 12 control cabinet with fused power supply
• Electrics meet NFPA 79 specifications
• 230/460-volt 3 phase 50/60 hertz electrics (specify voltage when ordering)
• Variable frequency drive providing infinitely variable speed from 0-22 FPM and
electronic overload protection
• Three roll drive
• SKF spherical roller bearings on all main bearings
• LSHT type hydraulic drive motor with high volumetric and overall efficiency
• Safety cable around perimeter of machine
• Beta 3.2 rolling console control. Push button control of main functions and 2 digital
readouts to show the position of the 2 lower rolls.
• Rolls driven by spur gears and roller chain
• Machine sets directly on level floor
• Ability to roll symmetrical steel sections without additional attachments
• Hydraulic operated drop end support
• Hardened Only Rolls
• Foot switch for Rotation SPECIFICATIONS SUBJECT TO VERIFICATION OPTIONAL FEATURES: • Cone Attachment - $1,450
• Heavy Duty Cone Attachment - $2,750
• Hardened and Polished Rolls - $2,600
• Circular Grooves 3/8, 1/2, 5/8 - $800 • Additional Starting Groove (1pc standard in far roll) - $300
• Side Support Each - $7,000
• Overhead Support 12' Max - $8,550
• Pre 3.2 Control - $10,700
22-24 Weeks |
