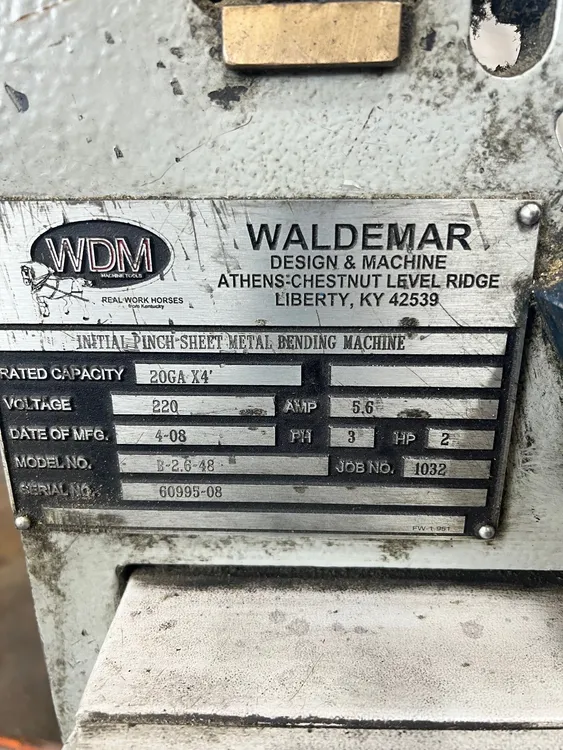

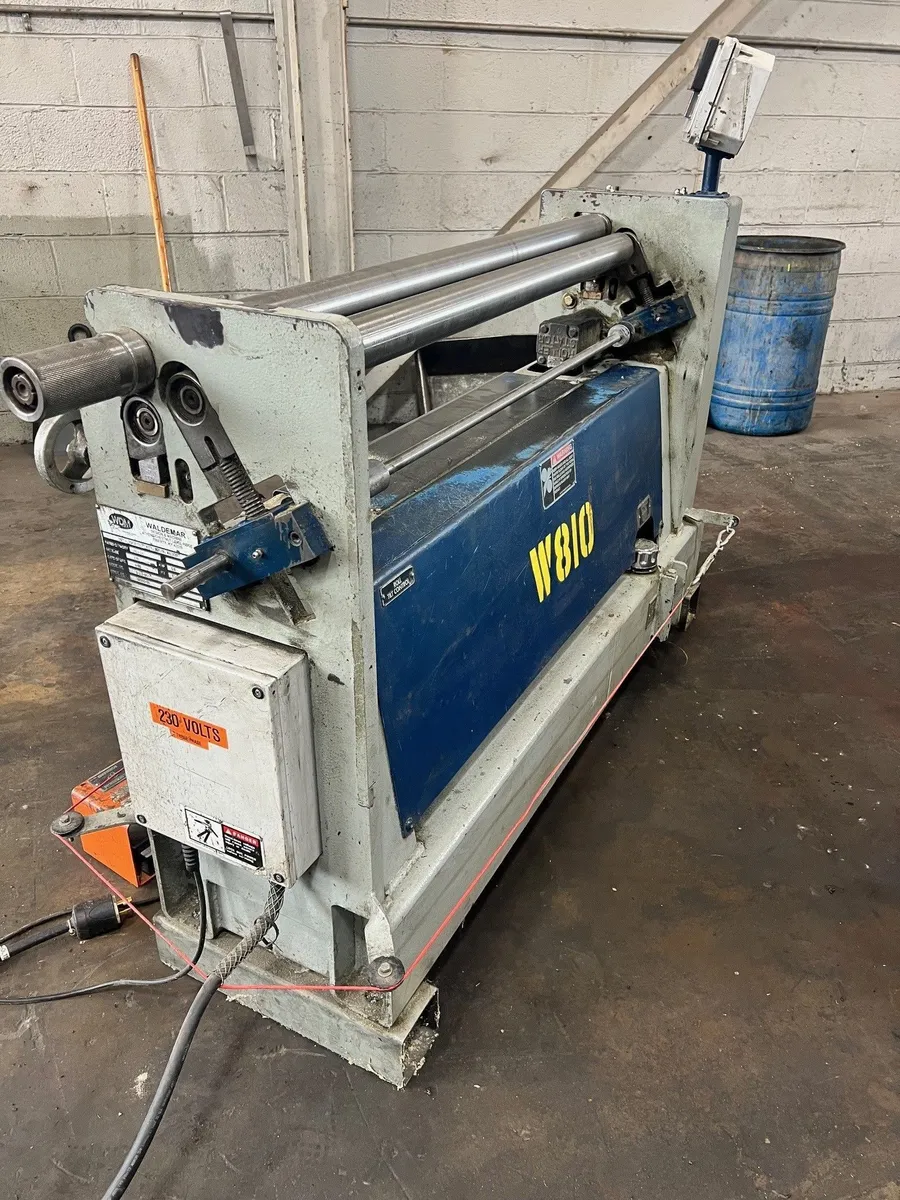

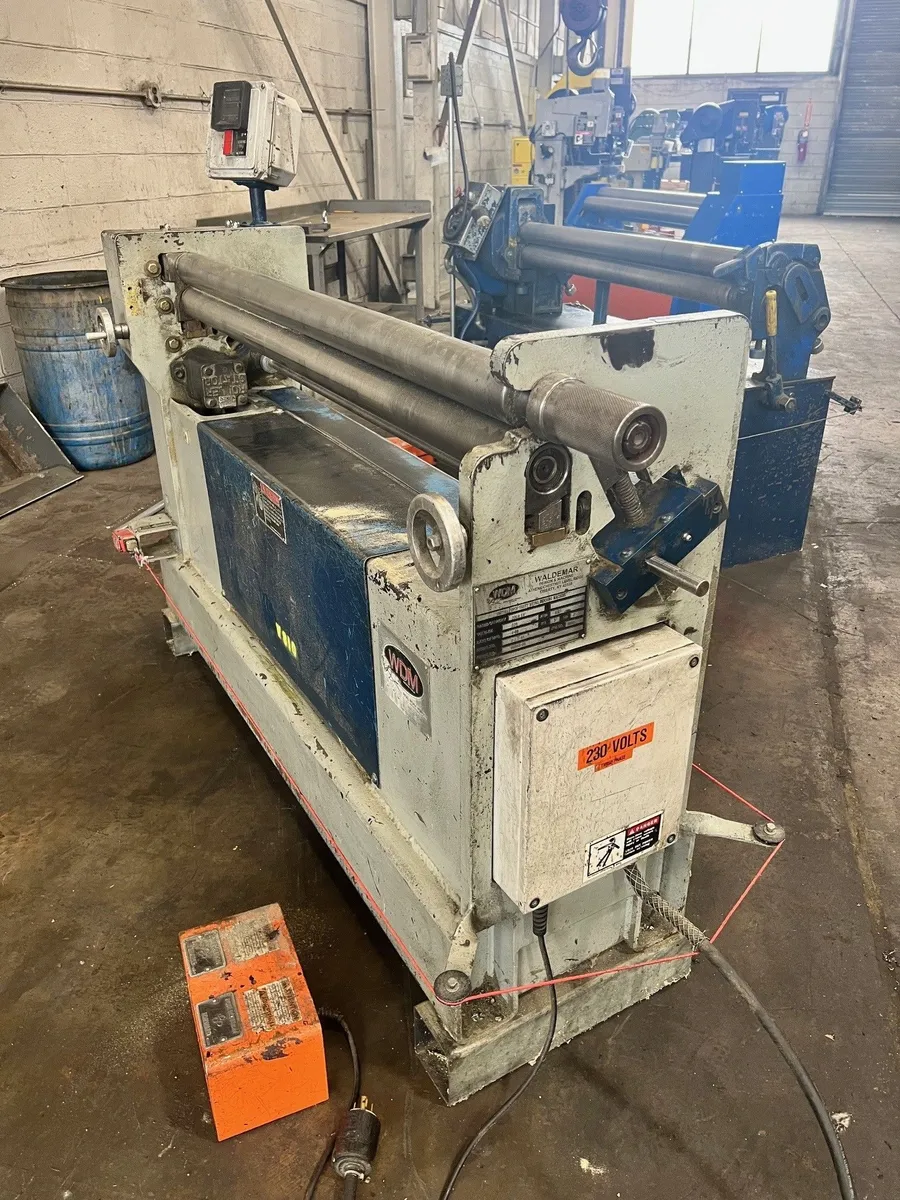

USED WDM MODEL B-2.6-48 4' X 20 GAUGE 3-ROLL INITAL PINCH PLATE ROLL

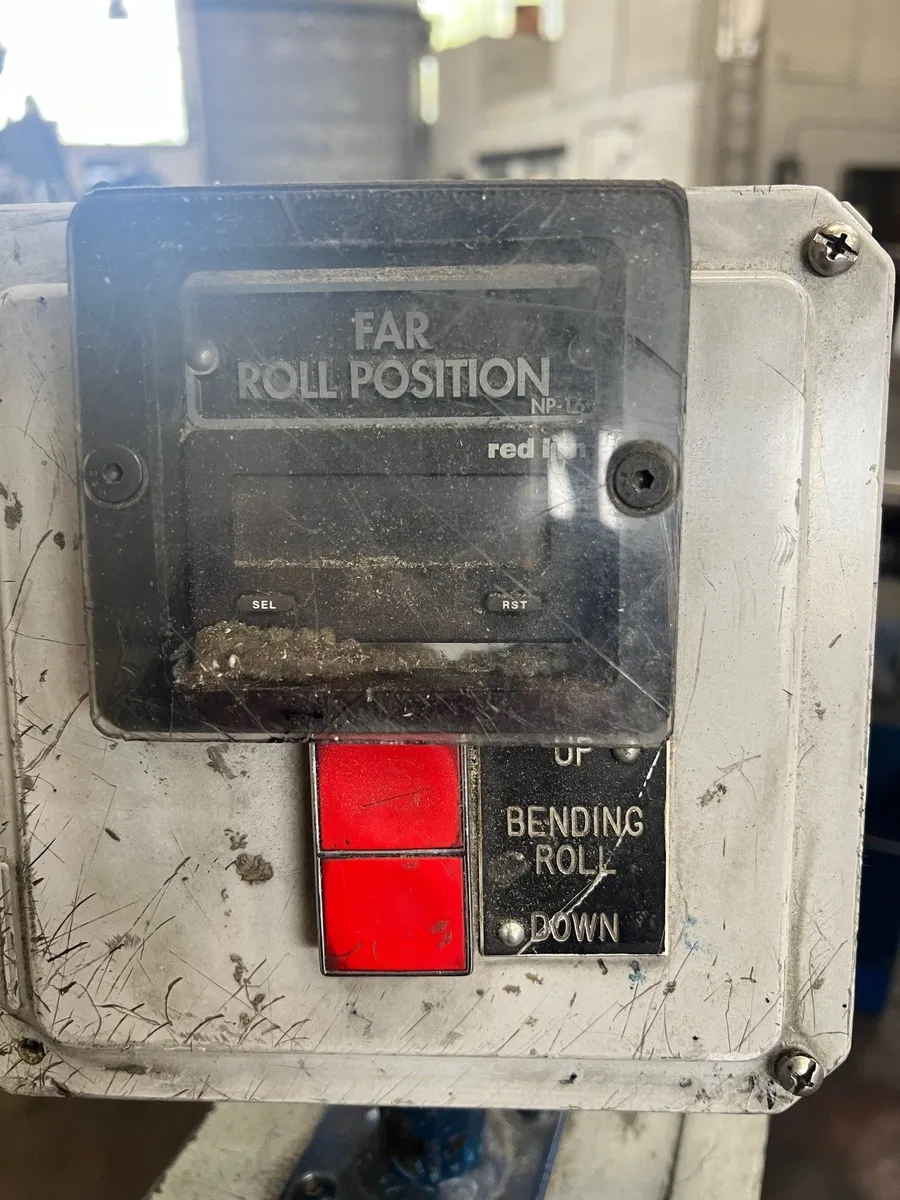

Powered bending roll for up and down adjustment with LED position readout.
Heavy welded steel frame.

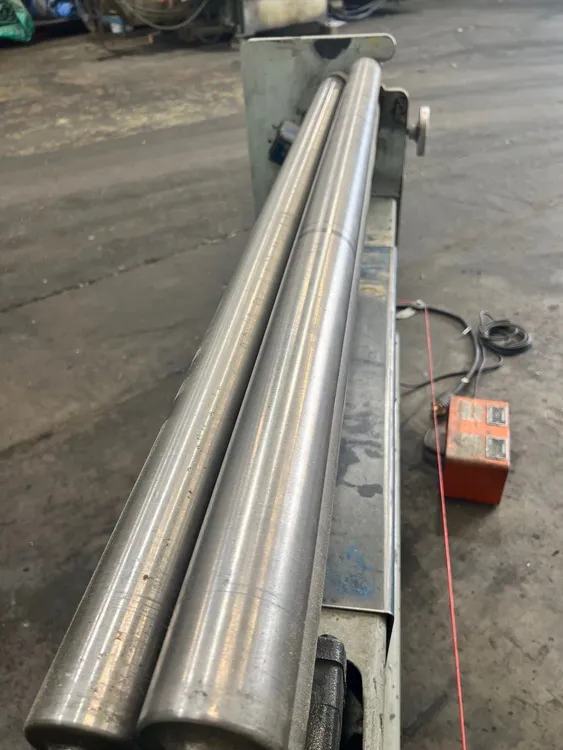

Rolls are crowned to compensate for deflection under forming load.
Pinch rolls adjusted by dual hand wheels via a hardened screw and hardened wedge system.
Rolls are driven by a unique hydraulic motor, pump, valve arrangement providing instant start, stop and reverse.
Pinch and top roll rotation powered.

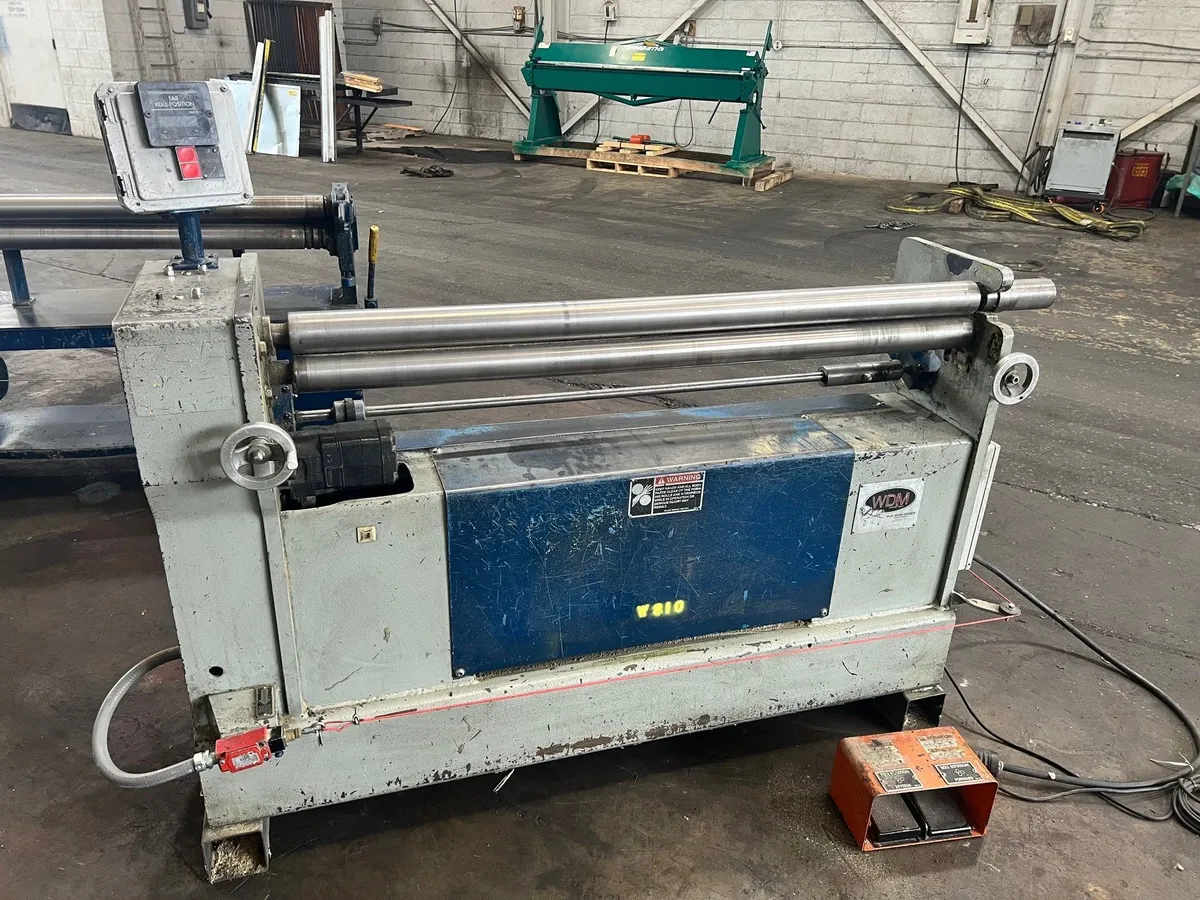

Roll rotation forward and reverse, controlled by dual guarded portable foot pedal.
Industrial style safety cable switch with adjusting winch and reset button.
Top roll swings forward to remove finished tube/work piece.
Swing out top roll for easy work piece removal.
Starting groove in pinch roll to facilitate rapid workpiece prebending and rolling.
Stainless steel scale and pointer to show bending roll position.
