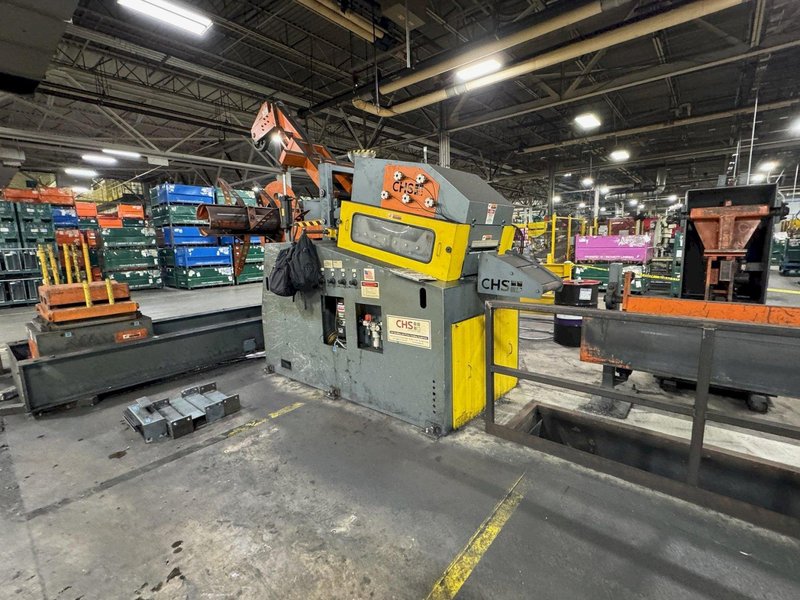

CHS - HSLA Coil Feed Line 20,000 Lbs. x 18" Wide x .100" @ 130 KSI

NIDEC-CHS Coil Feed Line 20,000 Lbs. x 18" Wide
Max coil weight: 20,000 Lbs.
Max coil width:  18" Wide
Stock thickness: .100" x 18" Wide @ 130 KSI
Expansion range: 20" - 24"
Coil OD Capacity: 72"

Max stock thickness capacity specifications:
Consult sales for full range of thickness at KSI

NIDEC-CHS Coil Reel Model No. R200
Three leaf mandrel with hydraulic expansion
Adjustable coil keeper arm
Jog drive for coil threading
Air brake mounted on main spindle

NIDEC-CHS Coil Load Car Model No. TLC-200
Powered lift and travel
Narrow coil supports

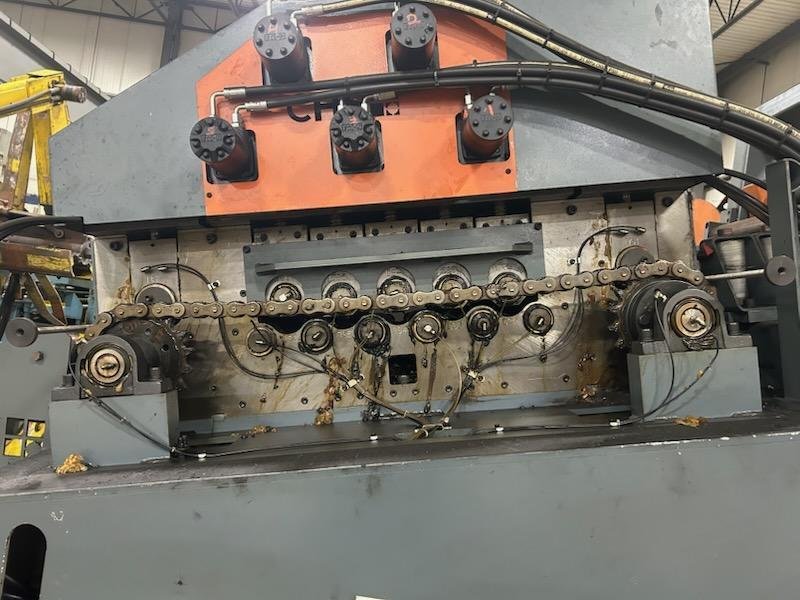

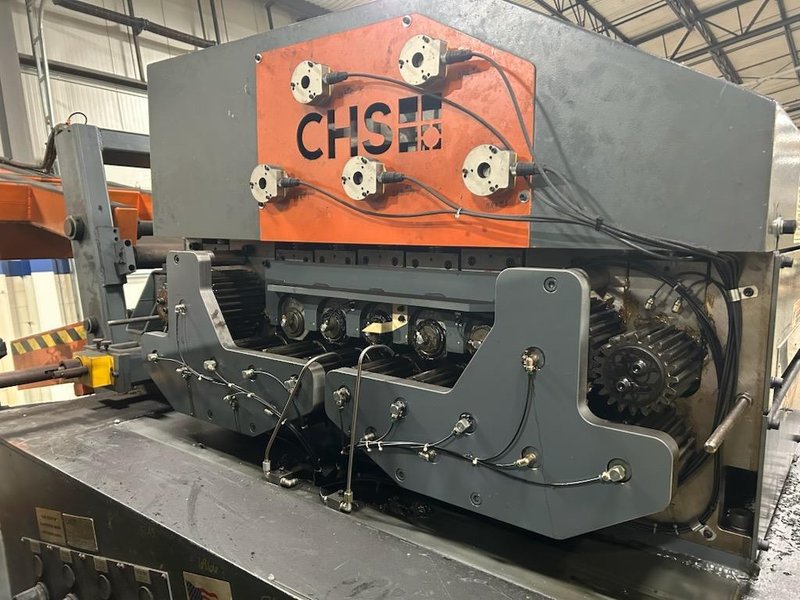

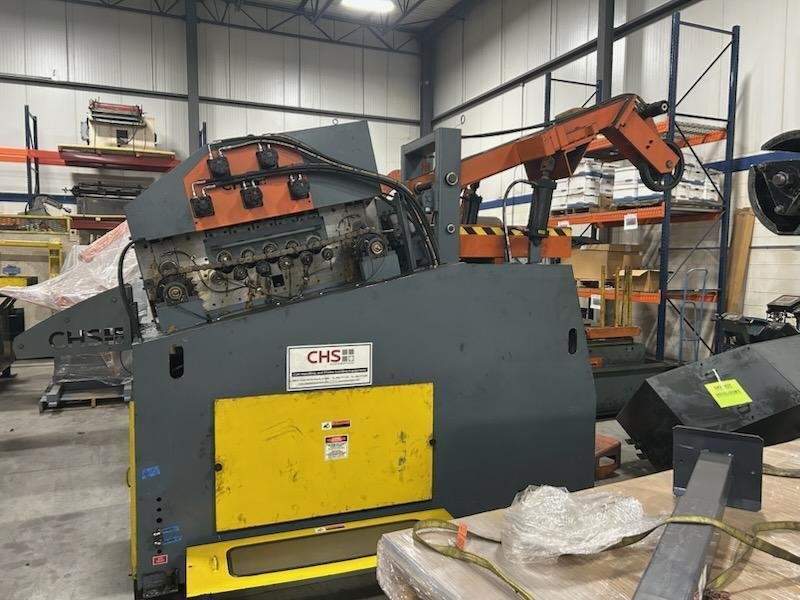

NIDEC-CHS Powered Straightener Model No. PS-350-18 HDX (Super Duty Head)
Eleven straightening rolls x 3.5" diameter
Upper roll position readouts
Entry and exit pinch rolls
Coil hold down (motorized end wheel) and stock threading station with peeler
Coil hold up arm with motorized end wheel
Adjustable stock width edge guides
Automatic lubrication system (straightener)

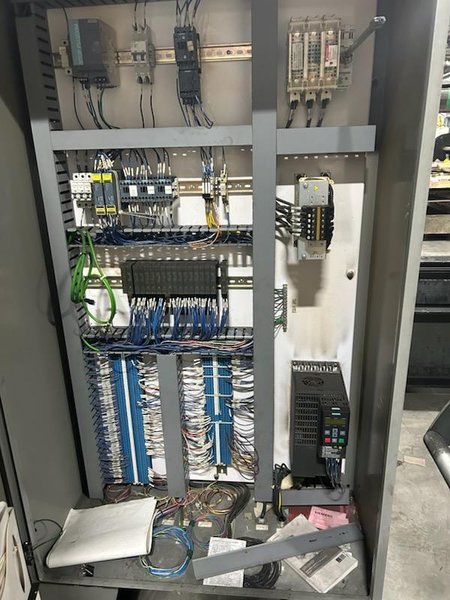

AC VFD Control system
Operator's control station
Laser loop control

NIDEC-CHS Exit Thread Table Model No. ETT-118
Bomb bay door style actuation

Optional:
New NIDEC-CHS Servo Roll Feed to complete the line available at additional cost - consult sales for pricing
