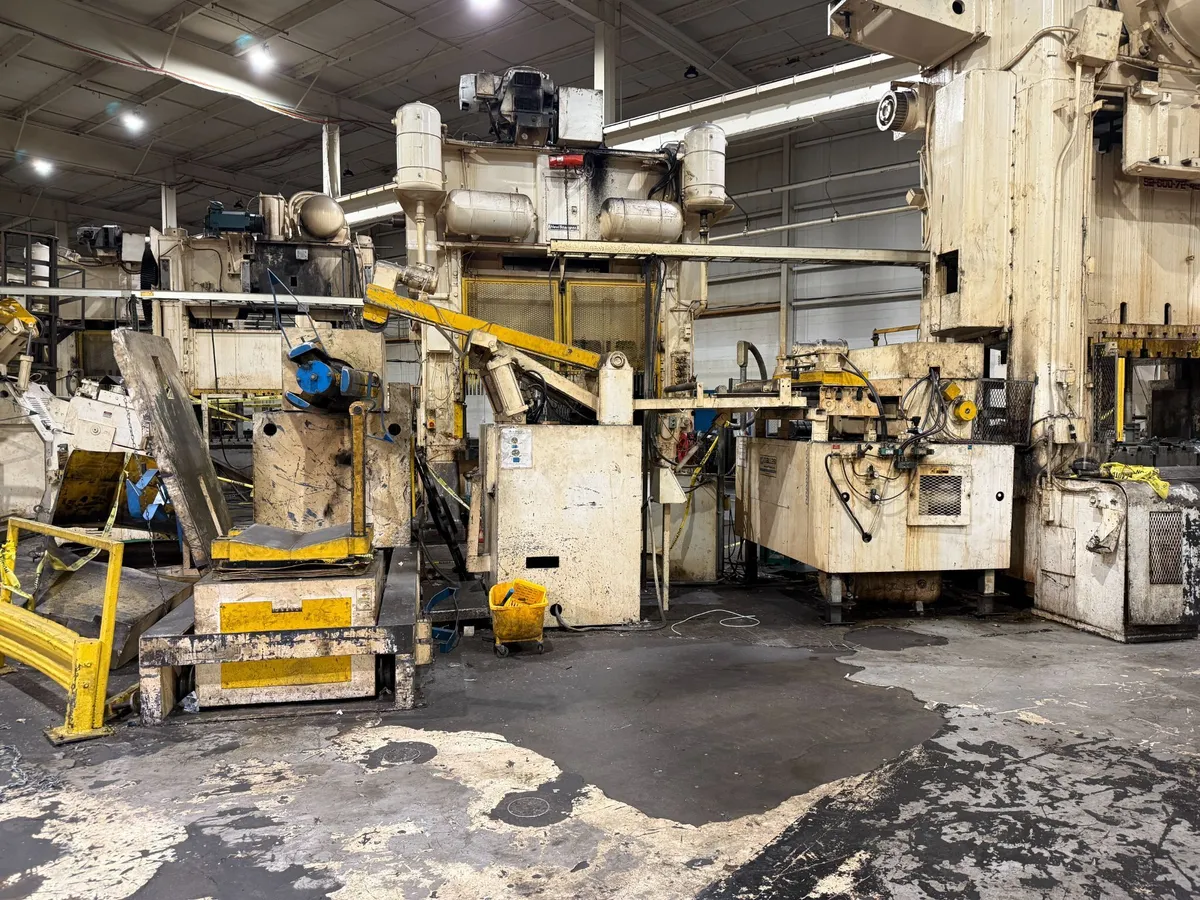

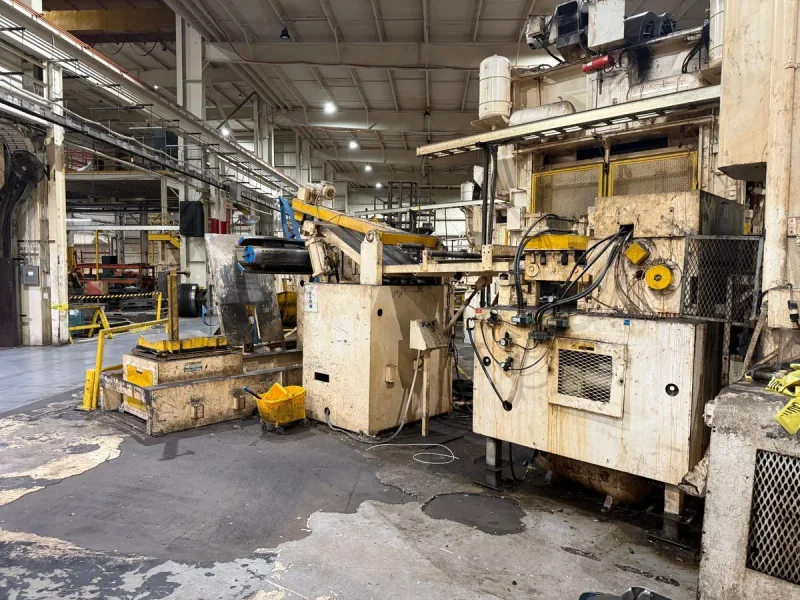

Dallas Coil Feed Line - Space Saver - 15,000 Lbs. x 30" Wide

Coil Weight Capacity: 15,000 Lbs
Model No. DRF-630 / CPR-1500 X 30 / LC-15000

Stock thickness capacity: .188" x 30" Wide
Stock thickness capacity: .250" x 18" Wide

Dallas Motorized Coil Reel Model No. DPR-15000 x 30
Three leaf mandrel with hydraulic expansion
Motorized payout
Air brake
Jog drive for threading
Auto / Run cycle
Space saver loop control
Dallas Coil Load Car Model No. LC-15000 x 30
Powered lift and travel

Dallas Coil Hold Down and Threading Station
Hold down arm with motorized end wheel
Integrated peeler table and stock end de-bender

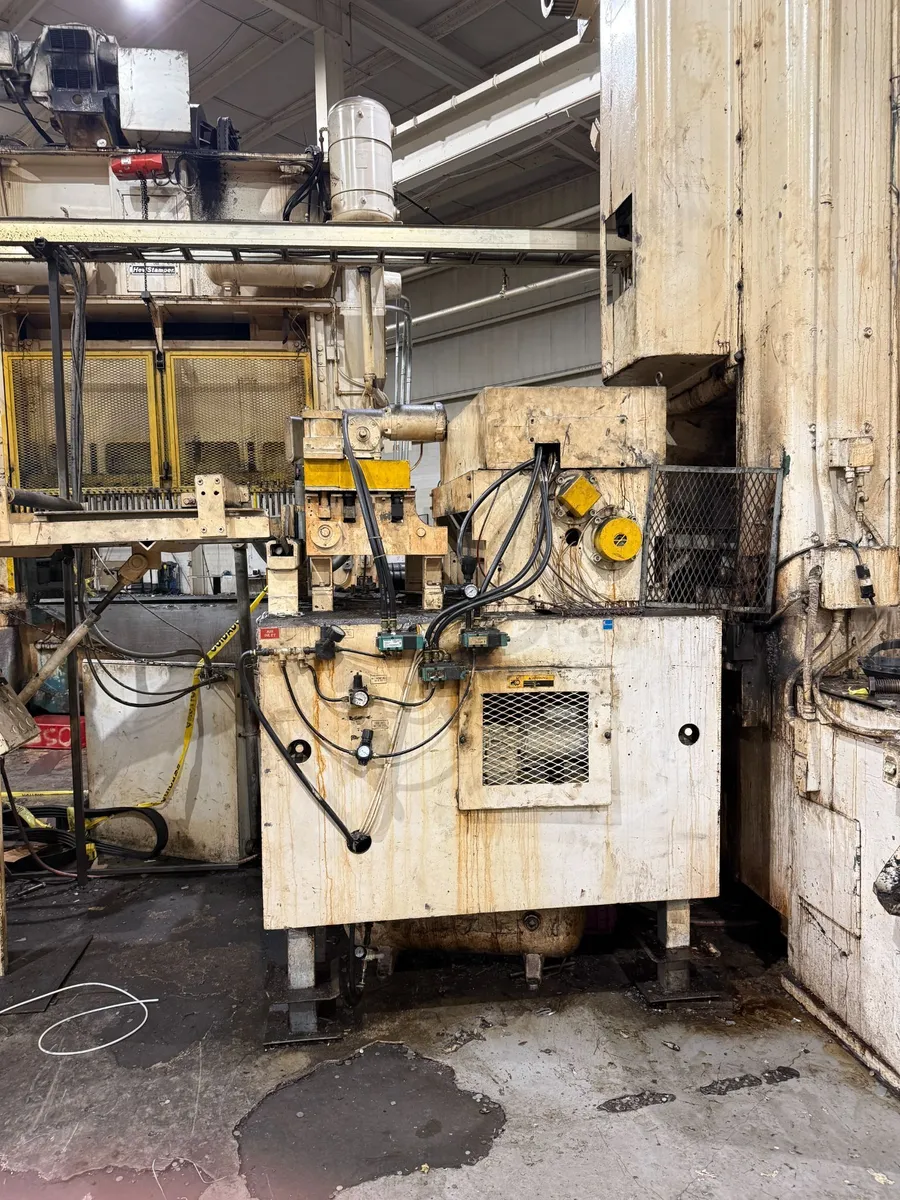

Dallas Servo Roll Feed - Straightener Combination Model No. DRFS-630RH
Six inch diameter feed rolls with piloting upper rolls
Coil straightener with individual roll adjustments
Motorized entry pinch rolls
Cabinet base with adjustable pass line

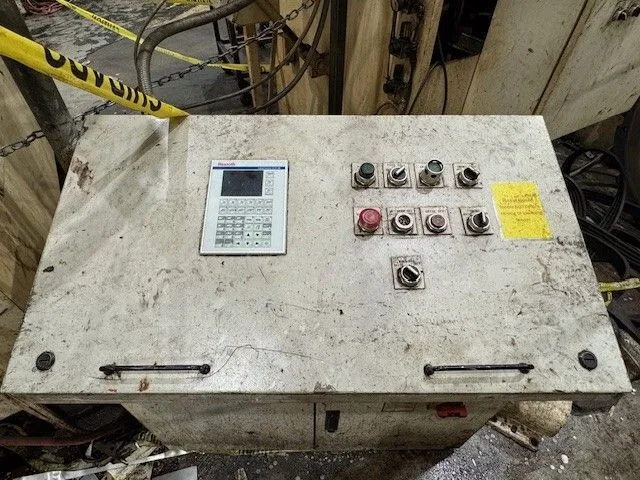

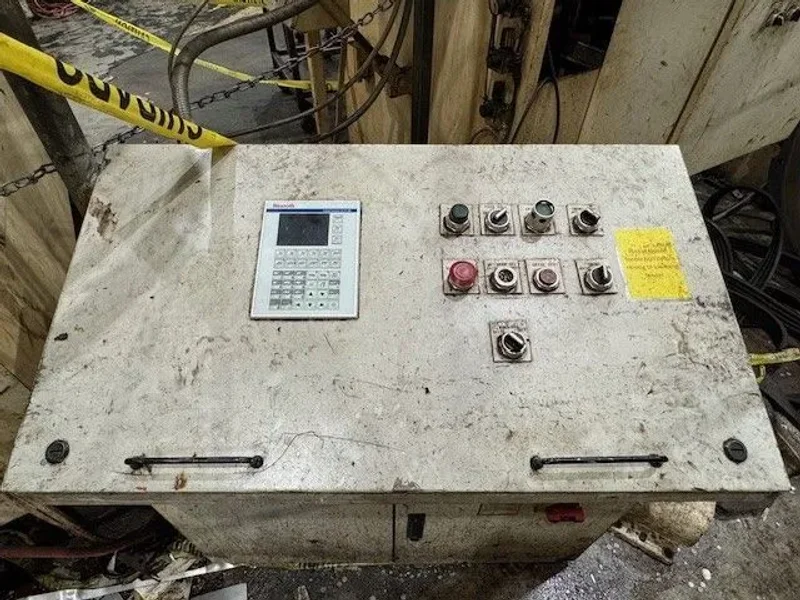

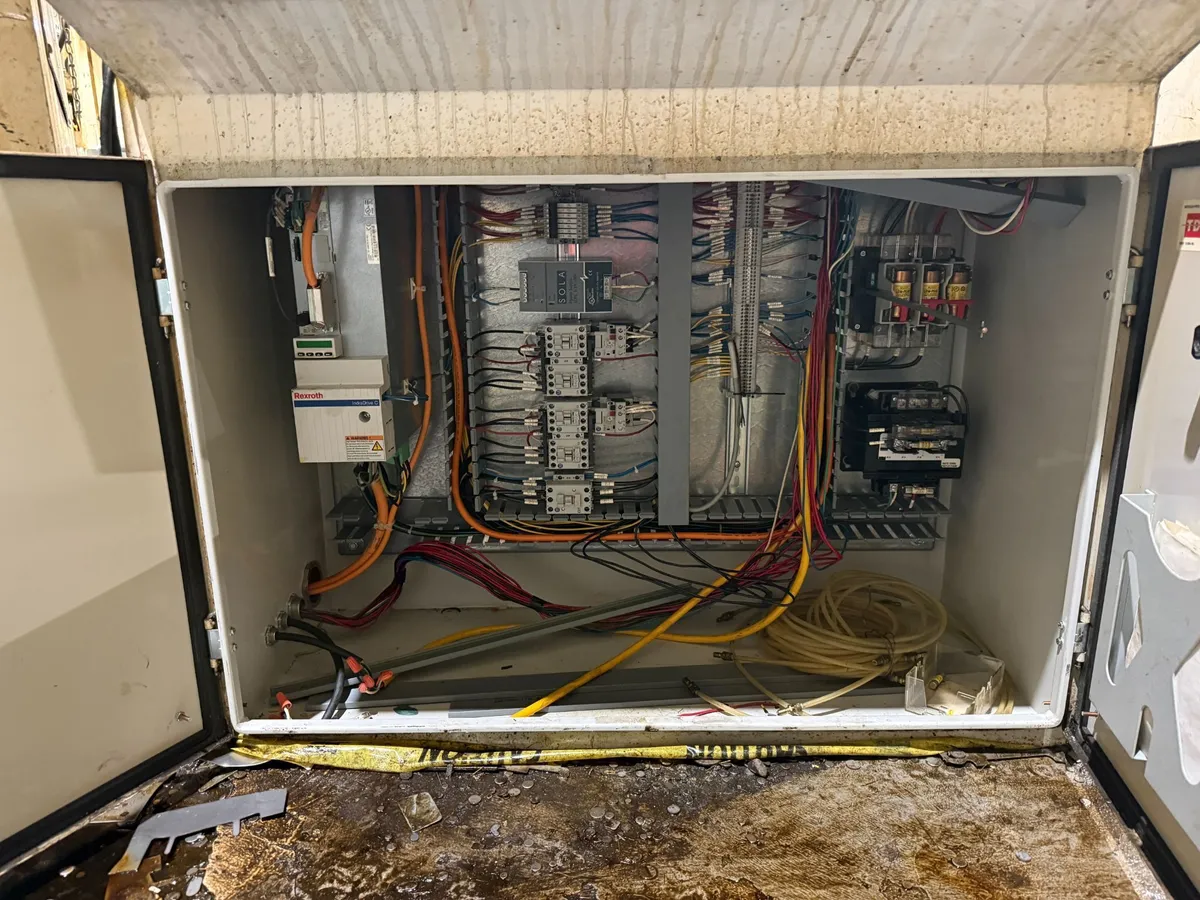

AC Servo controls
