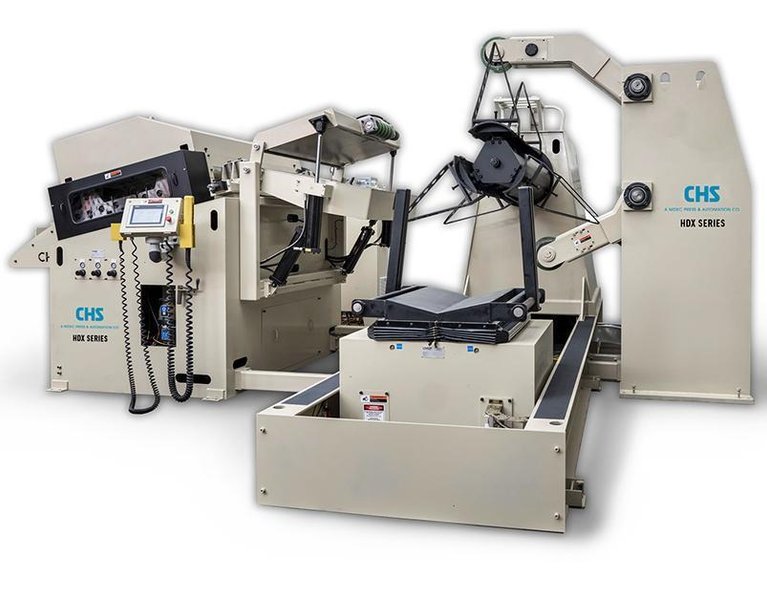

CHS HDX 60 in. Wide Complete Feed Line Feed – Thread Table – Straightener – Single Uncoiler
Brand
Not specified
Category
Type
Model
HDX-60
Stock #
30692
Year
2024
Condition
New
Location
Michigan
| Material Passline Height Over Floor | 48 – 60 in. |
| Straightener Roll Diameter | 3.50 in. |
| Minimum Material Thickness | 0.039 in. |
| Maximum Material Thickness | 0.31 in. |
| Mandrel I.D. Range | 19.5 to 24.5 in. |
| Feed Roll Diameter | 6.00 in. |
| Maximum Coil O.D. | 72 in. |
| Maximum Coil Weight | 30,000 lbs. |
| Number Of Straightener Rolls | 9 |
| Maximum Material Width | 60 in. |
|
GENERAL SPECIFICATION: Manufacture Specification: ANSI-B11 & NFPA 79 System Voltage: 480 V, 3 Phase, 60 Hz Paint Color: White RAL 9010 Material Direction: Right to Left Legend Plate Language: English Manual Language: Englich (electronic)
STANDARD FEATURES: · Automatic Passline Height on Feed · Hand Crank Edge Guides · Automatic Lubrication · Material Support Table · Servo Pilot Release on Feed · Powered Work Roll Adjustment on Straightener · Crocodile Peeler and De-Bending Assembly · Pneumatic “Fail Safe” Mandrel Drag Brake · Hold-Down Arm with Motorized Wheel · Coil Loading Car and Track · Laser Coil Centering System |
|
