USED ARKU FEED / STRAIGHTEN "ZIGZAG" COIL LINE, Year: 2010

USED ARKU FEED / STRAIGHTEN "ZIGZAG" COIL LINE, Year: 2010

Name: Used ARKU Coil Feed Lines For Sale 11068
Brand: ARKU
SKU: 11068
Availability: PreOrder

Brand

ARKU

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Coil Feed Lines

Manufacturer:

ARKU

Year:

2010

Stock #:

11068

Status:

For Sale

Description

2010 ARKU Coil Feed Line, including Laweco Coil Loading Station and other advanced components; handles 20" wide coils up to 13,200 lbs. Features hydraulic expansion, ultrasound loop control, and zigzag punch. Sold as-is.

Specifications

Brand: Arku
Consisting Of:

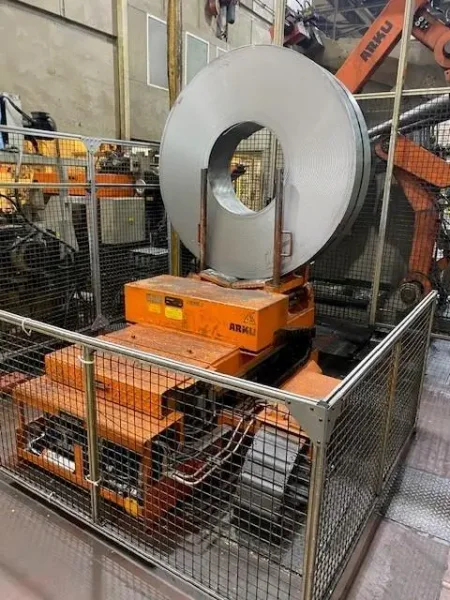

Laweco Coil Loading Station
Maximum Coil Width: 20”
Load Capacity: 13,200 lbs.

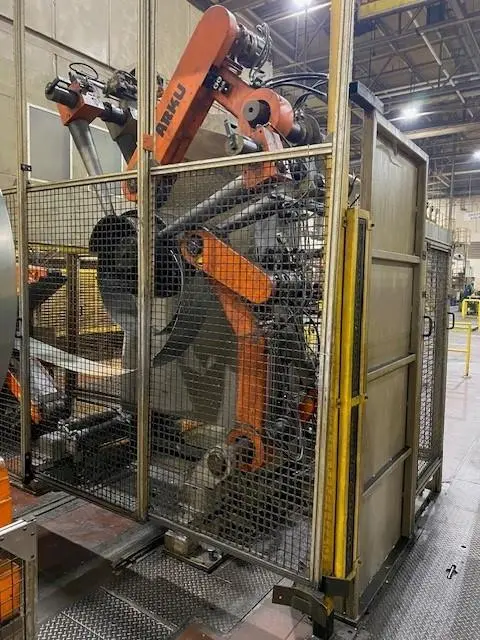

Arku Single-End Uncoiler
Expansion Range: 18.5” – 20.86”, (22.44”-24” with screw on segments)
Coild OD: 40” – 71.81”
Maximum Coil Width: 20”
Maximum Coil Weight: 13,200 lbs.

Equipped With

-       Hydraulic Expansion
-       Automatic Re-Expansion
-       Front/Back Coil Guides
-       Hydraulic Restrictor Arms (Both Top & Bottom) with Driver
-       Strip Sensing (uses Ultrasound for Loop Control)
-       Laser Measuring for Coil Diameter
-       Roller Conveyor for Loop Guide

Arku Threading Unit
Maximum Coil Width: 20”

Arku Feeder / Straightener
Maximum Coil Width: 20”
Diameter of Straightening Rolls: 3.46”
Number of Straightening Rolls: 7 (Hardened & Ground)
Diameter of Exit Pinch Rolls: 6”

Zigzag Punch – Select 1 of 5-out patterns
Zigzag Side Stroke – Maximum 4.72” from Centerline of Coil

Arku Strip-End Feeder
Maximum Coil Width: 20”
Diameter of Feed Rolls: 6”
-   Electronically Driven
-    Upper Roll Opens Hydraulically

Machine sold “AS-IS, WHERE-IS”
Inspect Under Power in Mid-West Plant – Available June 2024

*Specifications Subject to Verification
