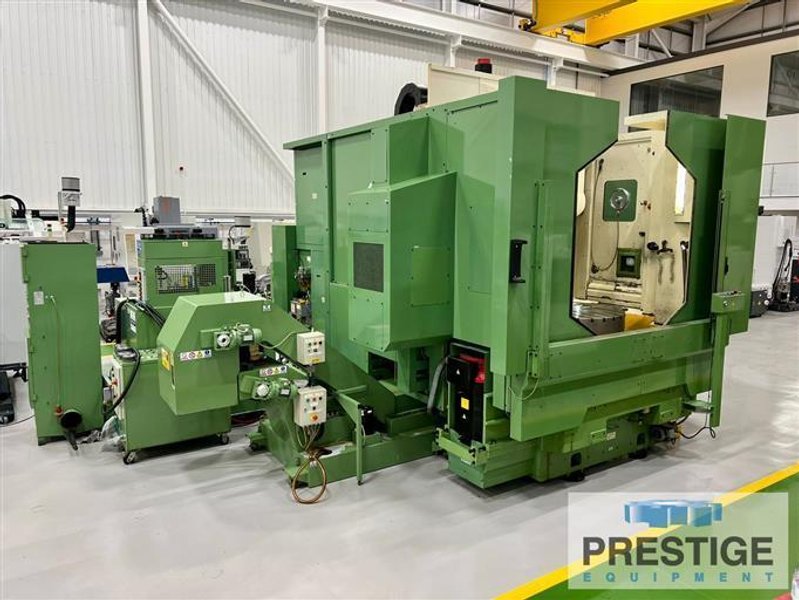

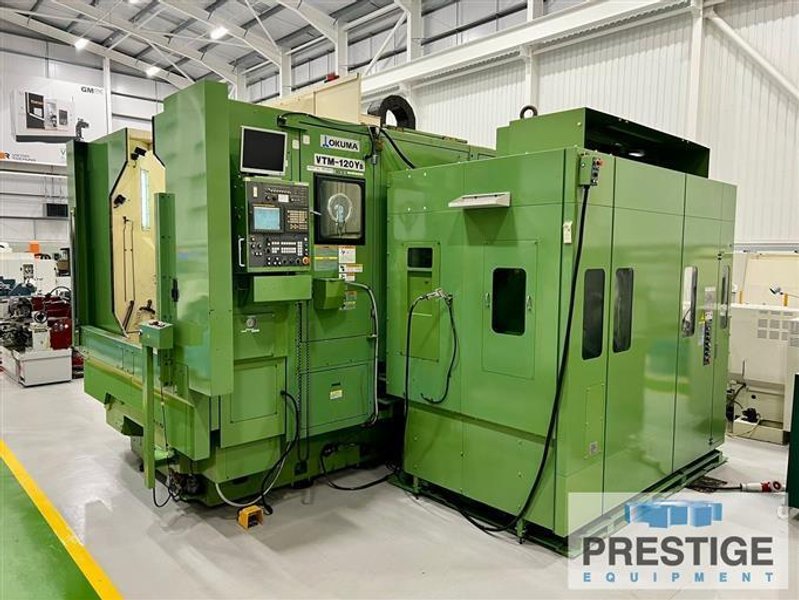

Okuma VTM-120YB 49"/59" 5-Axis CNC Vertical Turning Center

SPECIFICATIONS:

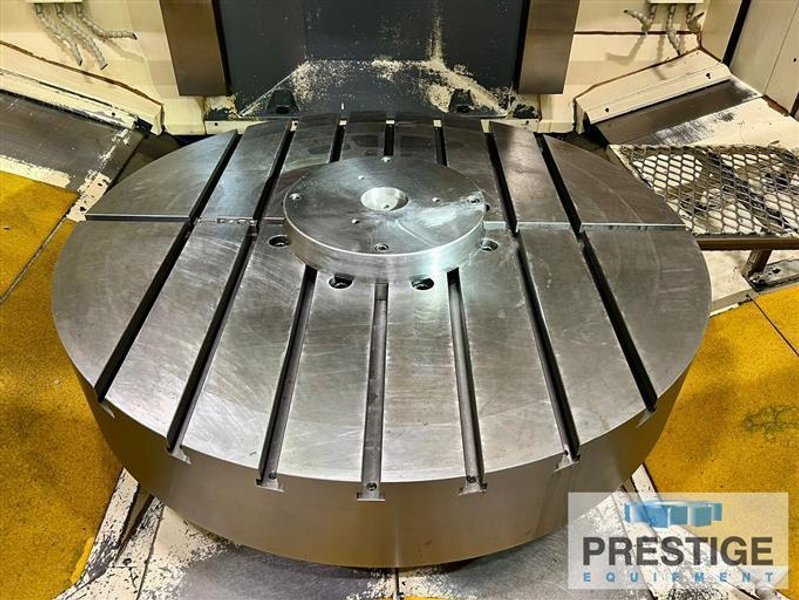

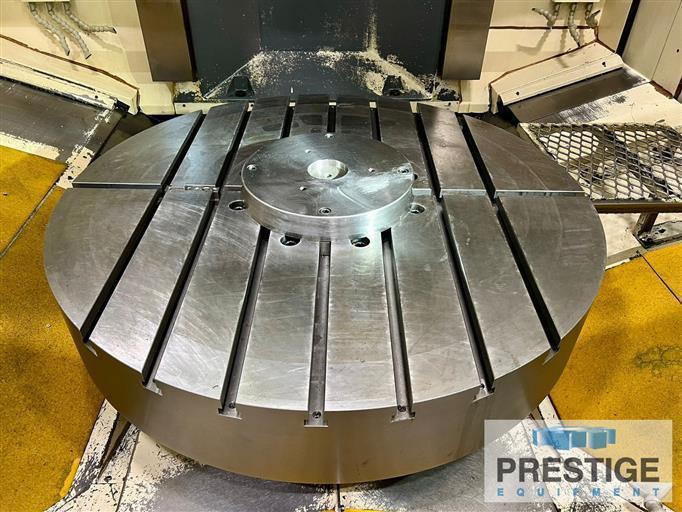

Table Diameter 49.21"
Maximum Swing Diameter 59.06"
Maximum Machining Diameter 47.24"
Maximum Turning Height 39.37"
Table Speeds 6-600 RPM
Table Motor 40 HP / 30 HP
X-Axis Travel 50"
Y-Axis Travel 39.37"
Z-Axis Travel 44.69"
C-Axis .001 Deg.
B-Axis Range 120 Degrees
Milling Spindle Motor 25 HP/ 20 HP
Milling Spindle Speeds 6000 RPM
Spindle Taper BT50 Big Plus
Cutting Feedrate, X/Y/Z Axes .00004 - 19.69 IPR
Rapid Traverse, X/Y/Z Axes 630 IPM
Floor Space Required 202.75" x 208.26"
Machine Height 173.42"
Total Weight 59,400 Lbs.
Machine Electrics 220/480/3/60



Equipped With:

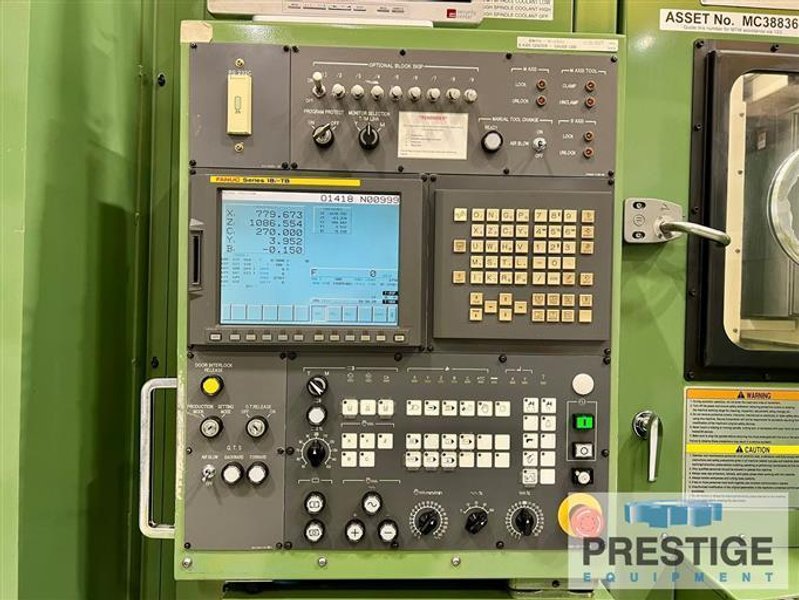

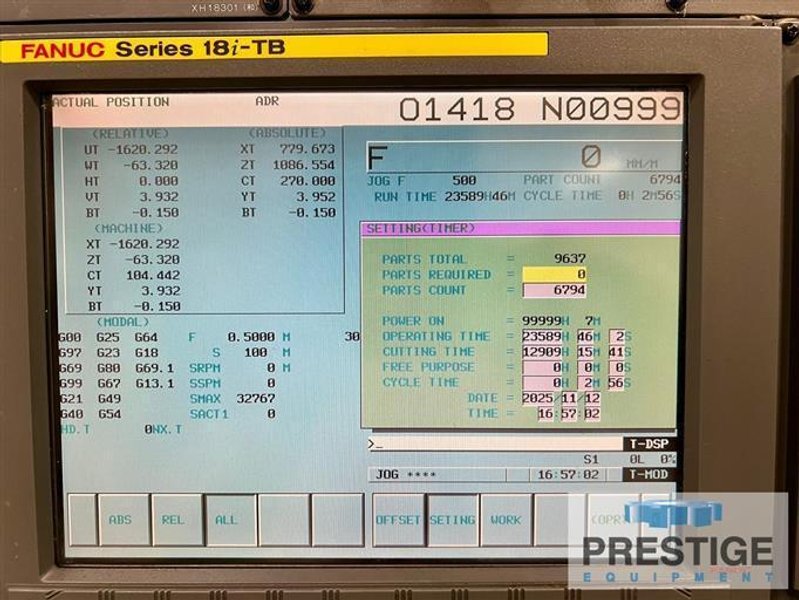

Fanuc 18i-TB CNC Control
49.21" 4-Jaw Chuck
Live Milling With C-Axis

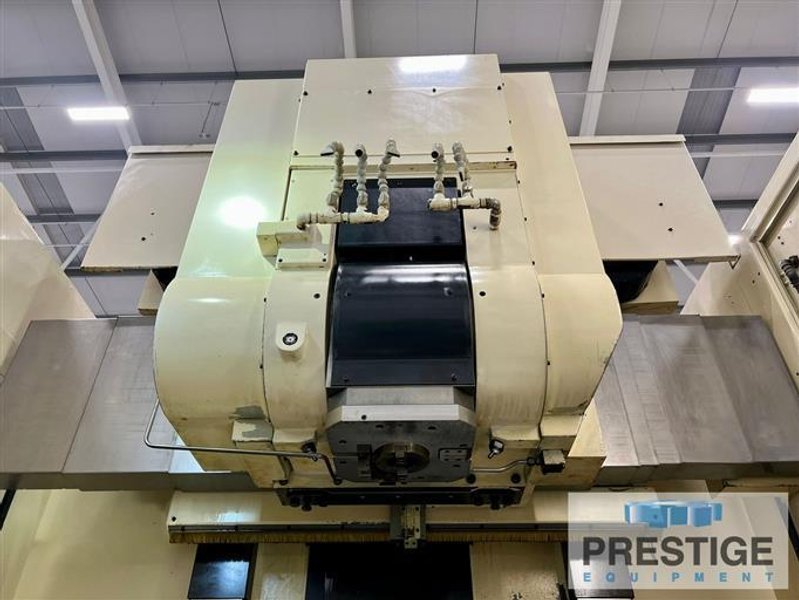

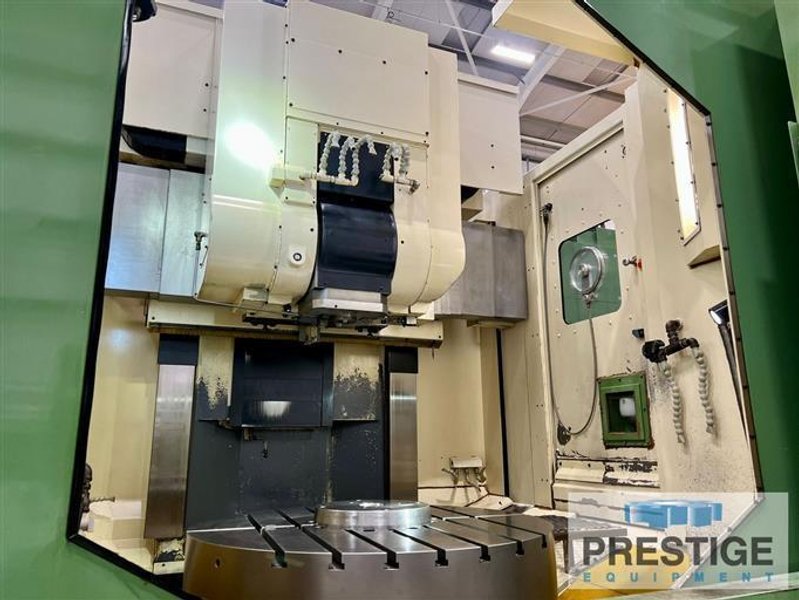

B-Axis Swivel Head

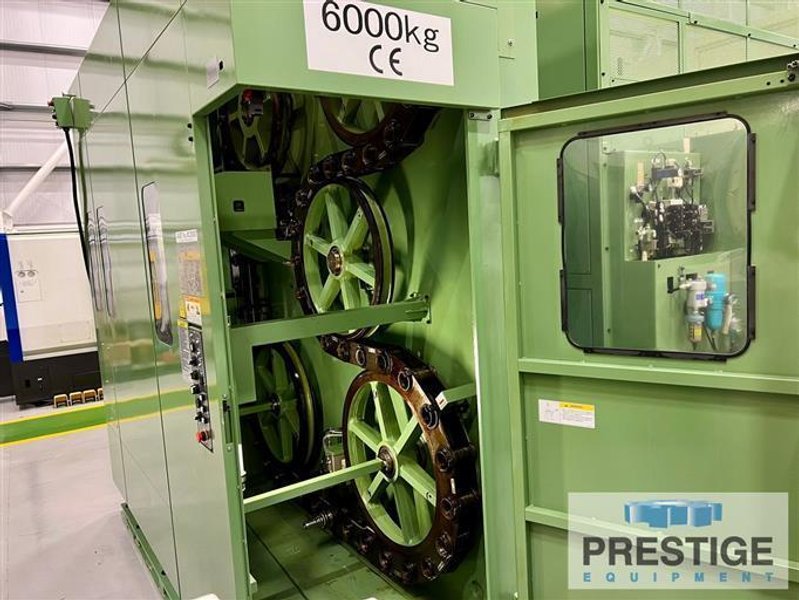

60-Station Automatic Tool Changer
1000 PSI High Pressure Coolant
Renishaw Probe
Chip Conveyor


NOTE: VTM-120YB 5-axis combination lathe/machining center can perform turning,vertical,horizontal,and angled surface machining in one operation without reorienting the part in the chuck. With operator control of spindle direction in relation to the surface of the workpiece, side cutting with straight end mills can be used to dramatically reduce cutting time compared with point cutting using ball end mills. Cutting efficiency can be increased significantly and the lifetime of the tooling can be extended, reducing overall production costs. The work spindle is supported at two locations by large diameter roller bearings, offering precision control for the production of complex parts. The spindle’s geared head generates high torque capable of sustaining the heavy cutting necessary for parts such as large valve bodies. Inspect Under Power
