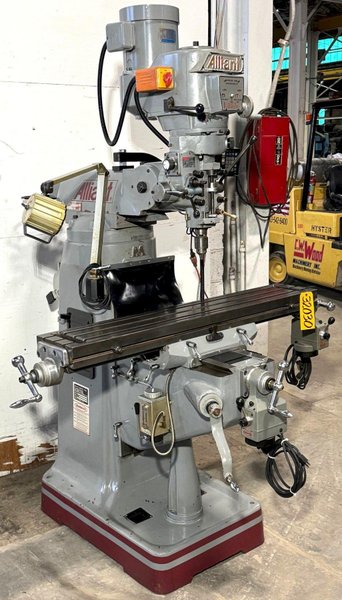

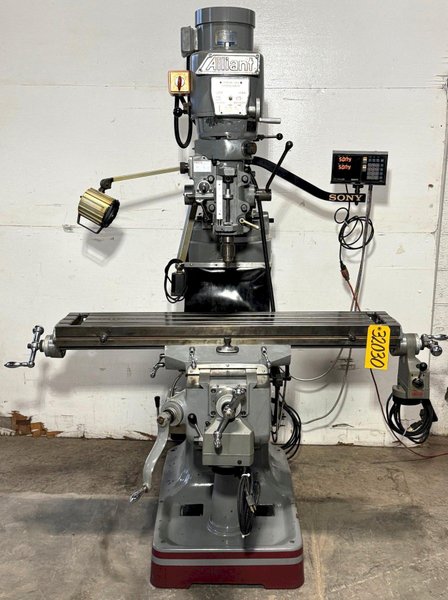

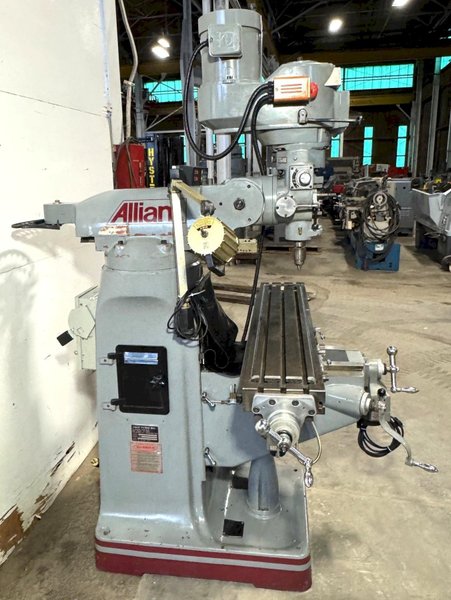

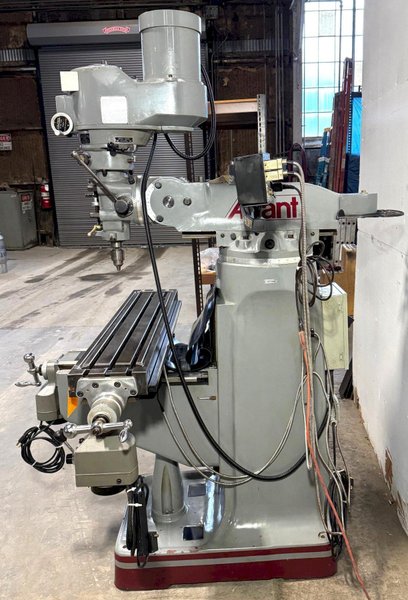

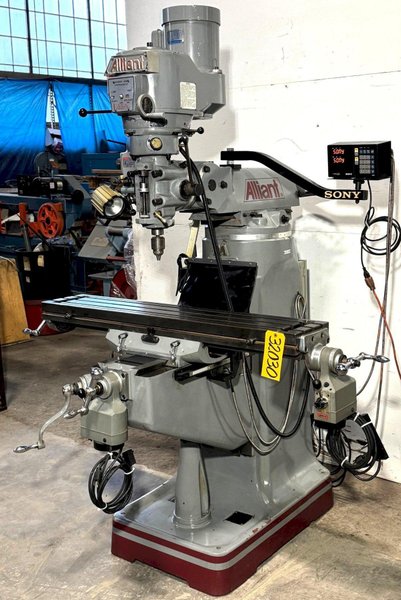

Alliant Vertical Mill 949-3V, 9" x 49" P.F. Tbl., DRO, 3 HP, Nice
Brand
Category
Type
Model
949-3V
Stock #
32030
Year
Not specified
Condition
Used
Location
Ohio
| Table-W | 9 inches |
| Table-L | 49 inches |
| Travel-Long | 37 inches |
| Travel-Cross | 12 inches |
| Power | 3 horsepower |
| RPM | 4500 |
| Taper | R-8 |
| CNC Control | no |
| Weight | 2200 pounds |
|

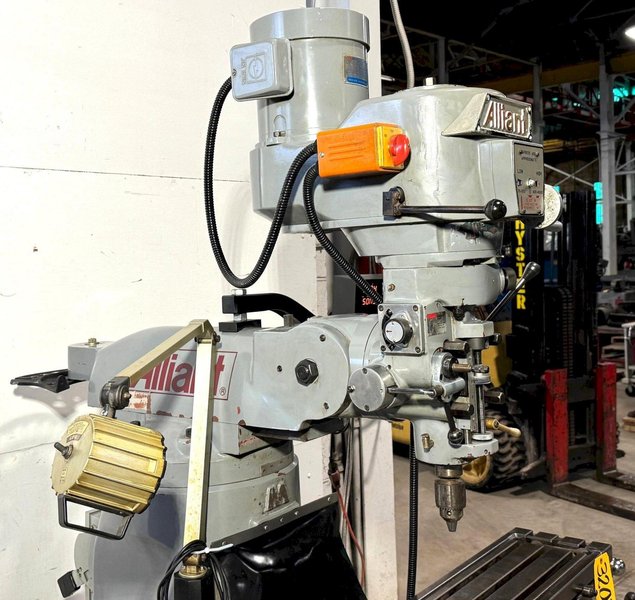

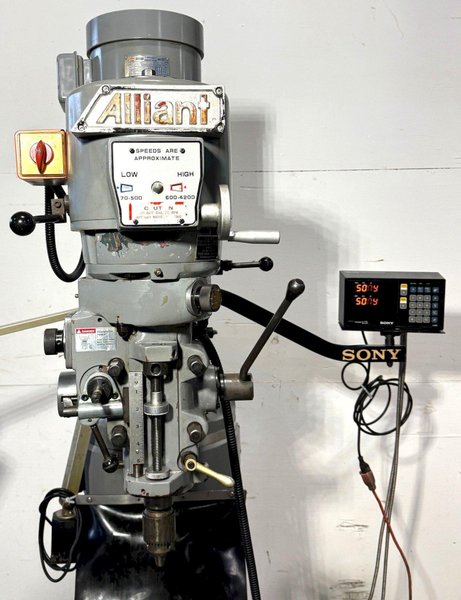

ALLIANT VERTICAL MILL

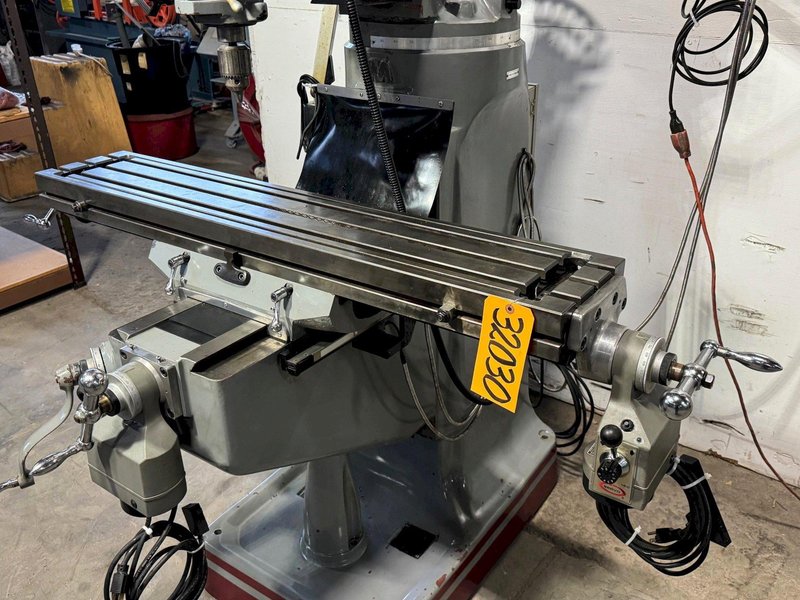

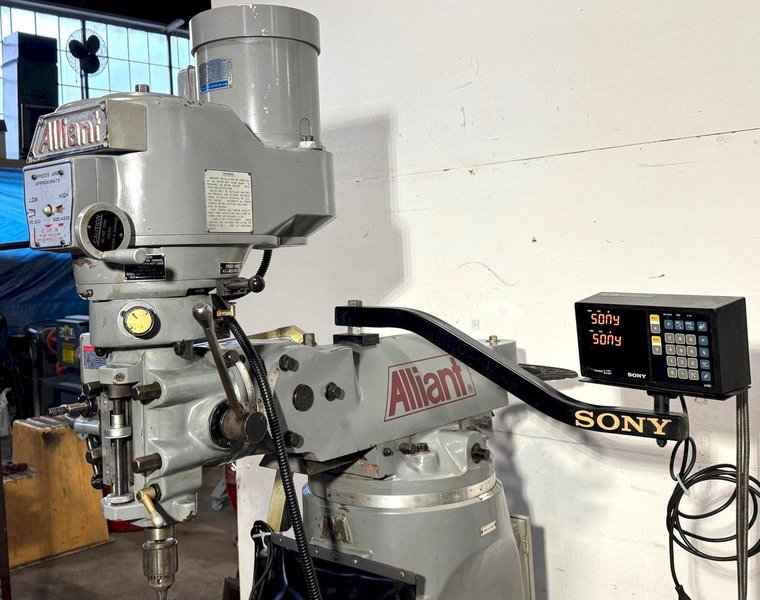

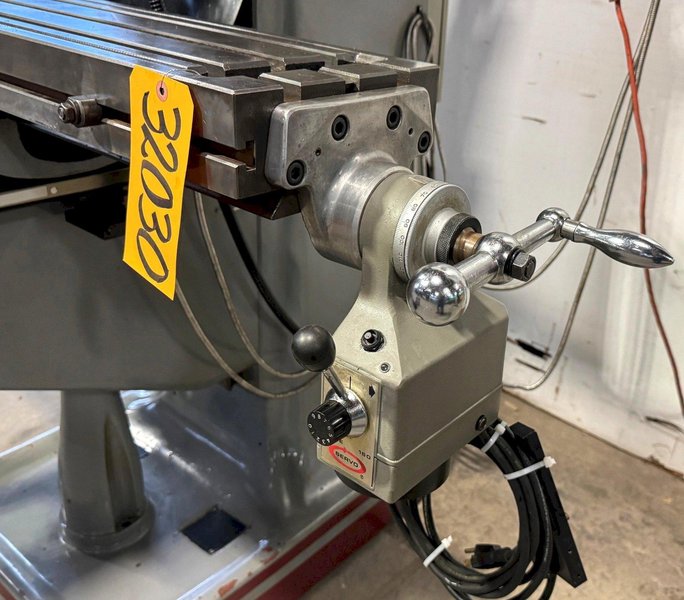

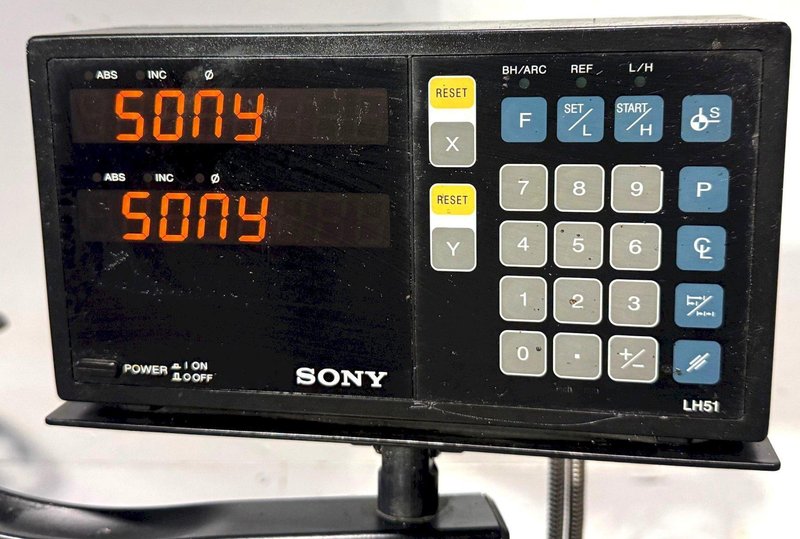

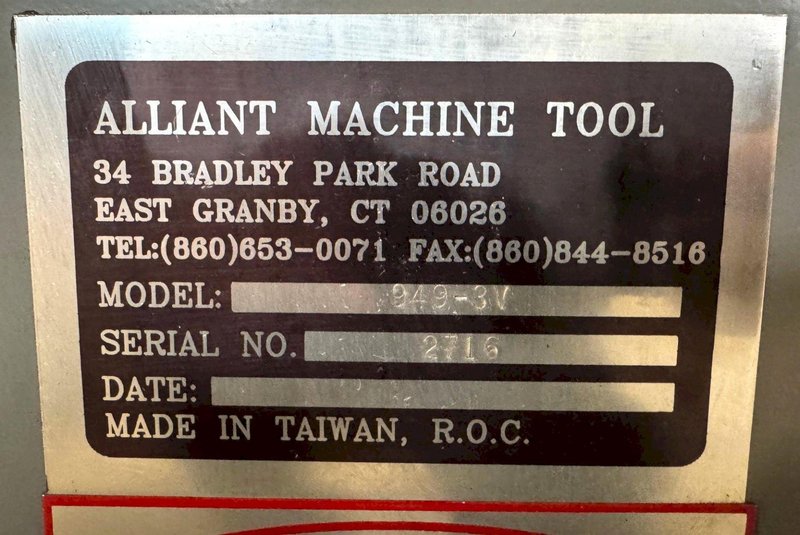

MODEL: 949-3V SERIAL NUMBER: 2716 GENERA; SPECIFICATIONS Table Size: 9" x 49" X-Axis Travel: 37" Y-Axis Travel: 12" Z-Axis Travel: 16" Quill Diameter: 3-3/8" Quill Travel: 4-7/8" Spindle Taper: R-8 Spindle Speeds, Variable: 60 - 4500 RPM EQUIPPED WITH 3 HP Spindle Motor Sony LH51 Two-Axis Digital Readout Servo Type 150 Power Feed X & Y Axis One-Shot Lubrication Approximate Weight: 2200 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
|
