ALLIANT Vertical Milling Machine, Model 42VC
Brand
Category
Type
Model
42VC
Stock #
4929
Year
2003
Condition
Used
Location
New Jersey
|

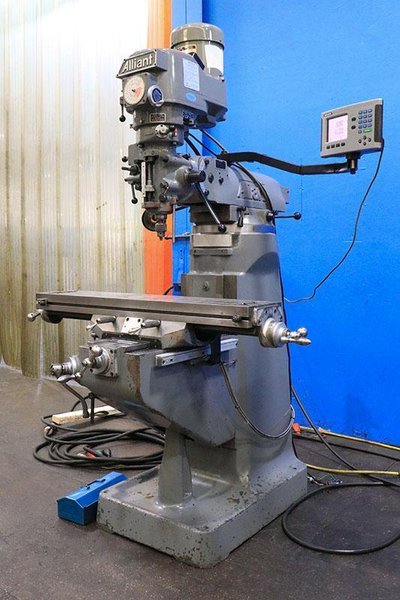

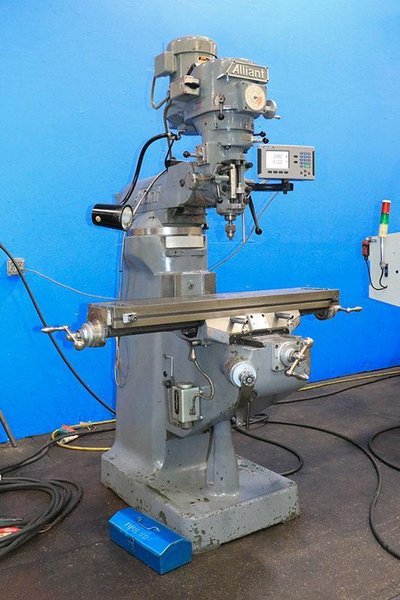

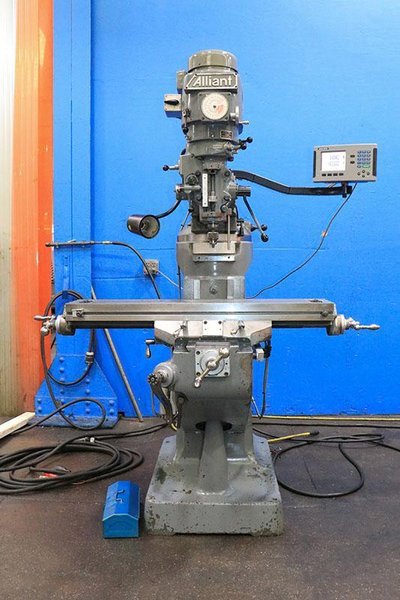

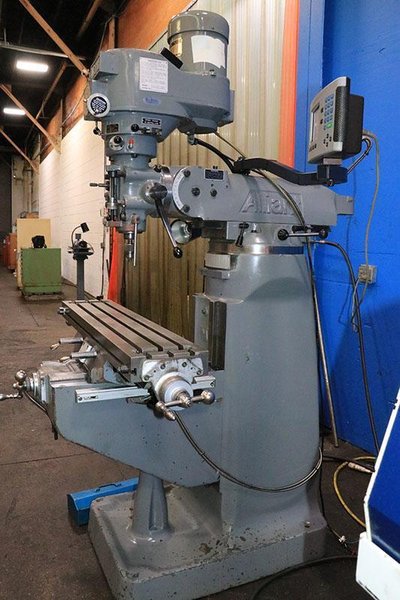

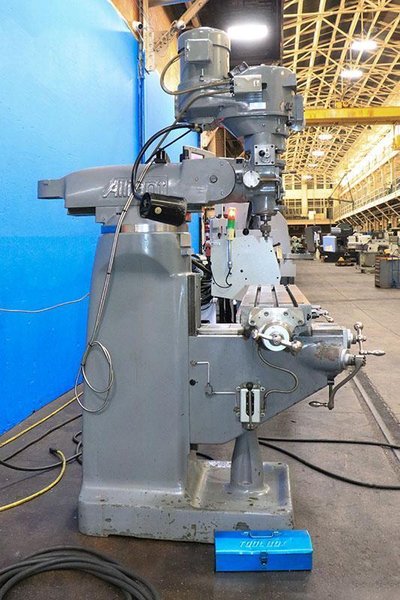

ALLIANT VERTICAL MILLING MACHINE
MODEL: 42VC
NEW: 2003 SPECIFICATIONS:

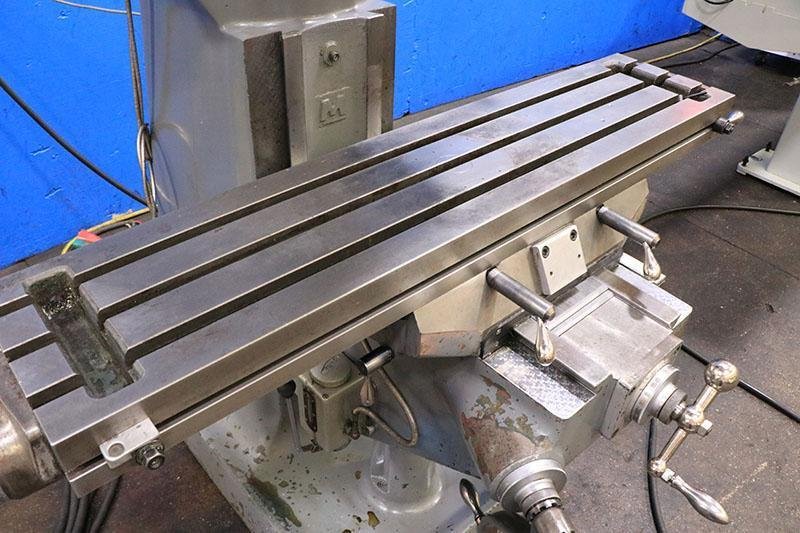

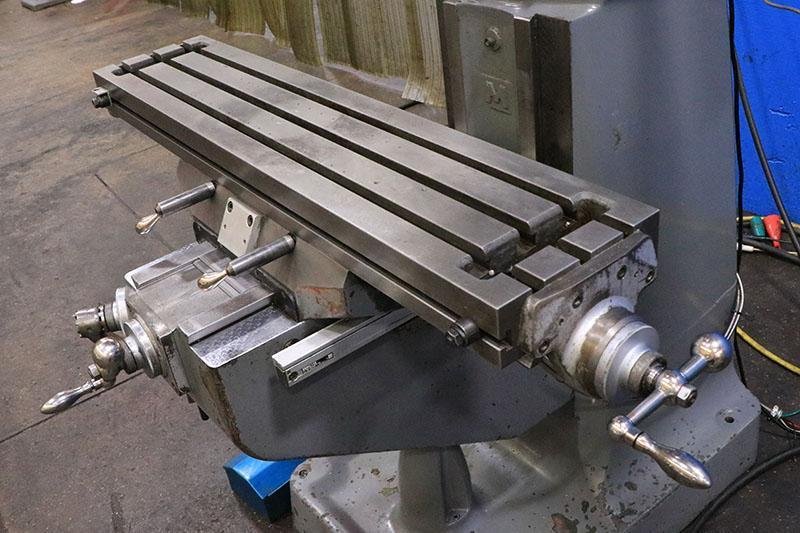

TABLE SIZE ........................... 9" X 42"
NUMBER OF T-SLOTS .................... 3
MAXIMUM WEIGHT OF WORKPIECE .......... 750 LBS
LONGITUDINAL TABLE TRAVEL ............ 30"
CROSS TRAVEL ......................... 12"
QUILL TRAVEL ......................... 5"
KNEE TRAVEL .......................... 16"
RAM TRAVEL ........................... 12"
MAX/MIN DIST, SPINDLE NOSE
TO TOP OF TABLE ................ 18-1/2" / 2-1/2"
MAX/MIN DIST, CENTERLINE OF SPINDLE
TO FACE OF COLUMN .............. 18-3/4" / 6-3/4"

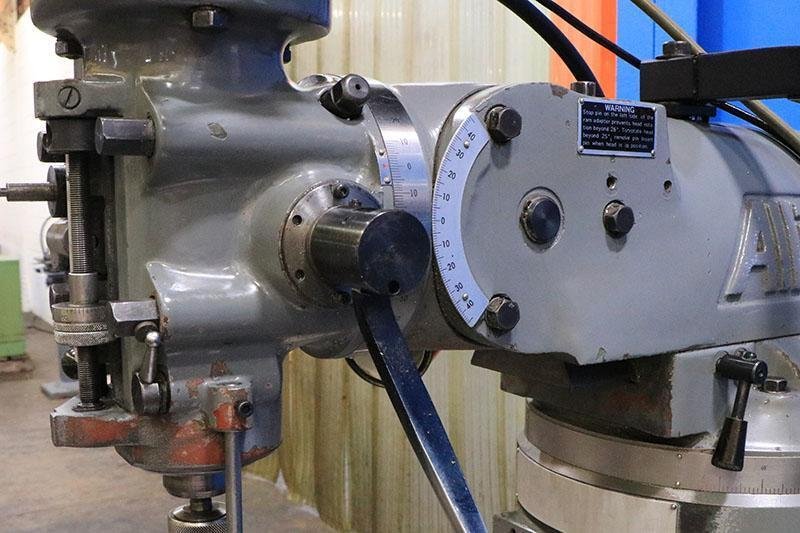

HEAD TILT:
LEFT & RIGHT ................... 90 DEG
FRONT & BACK ................... 35 DEG
INFINITELY VARIABLE SPEED RANGE ...... 60-4,500 RPM
POWER QUILL FEEDS (3) ................ .0015, .003, .006 IPR
INFINITELY VARIABLE SPEED RANGE ...... 60-4,200 RPM
SPINDLE TAPER ........................ R-8
MAX COLLET CAPACITY .................. 3/4"
APPROXIMATE WEIGHT ................... 2,000 LBS
EQUIPPED WITH:

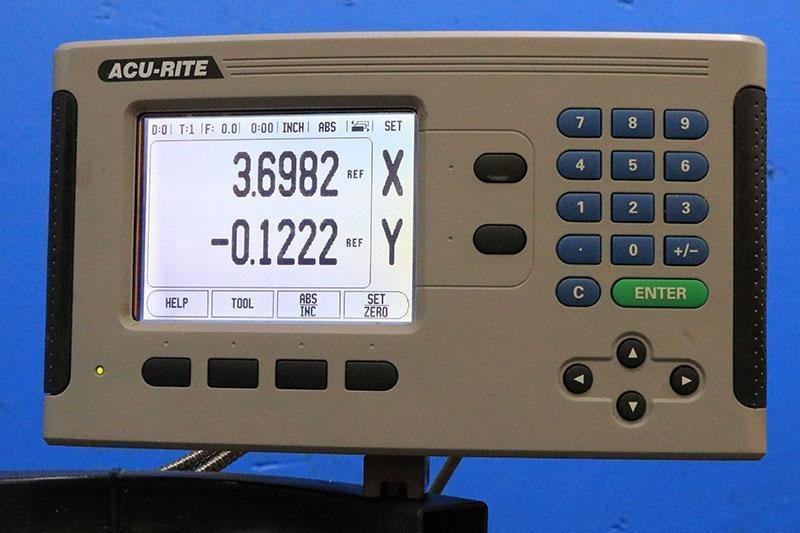

ACU-RITE TWO AXIS DIGITAL READOUT

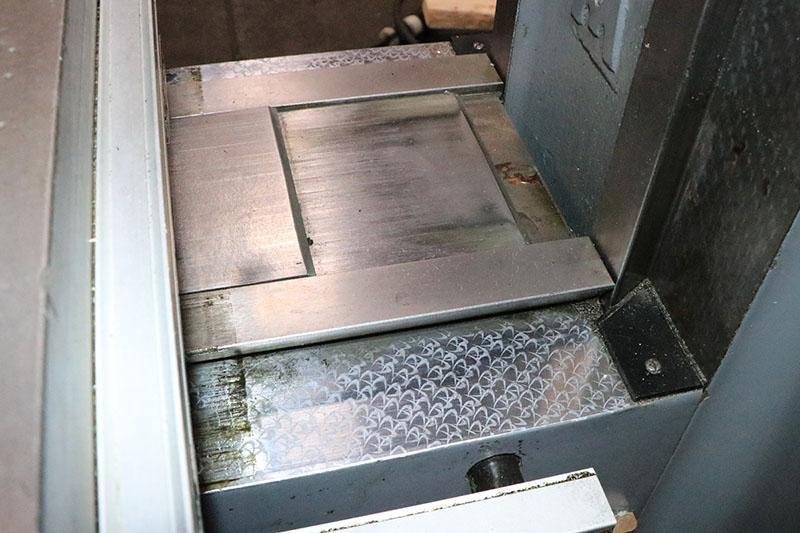

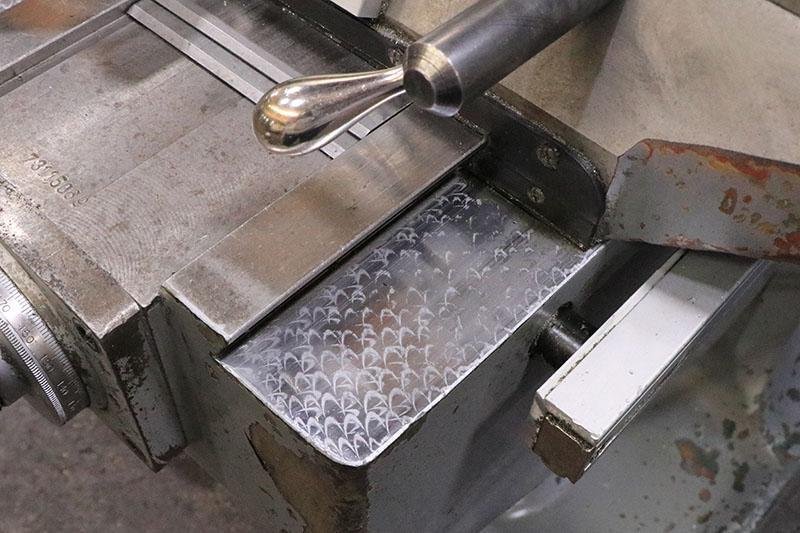

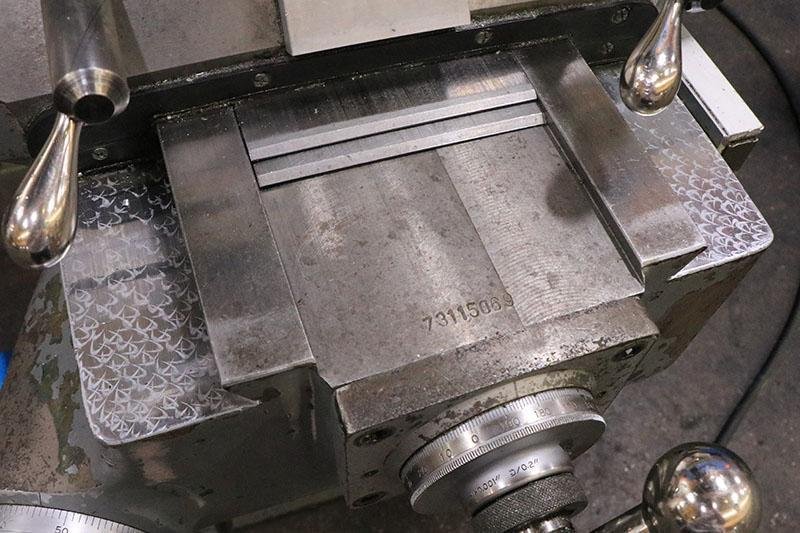

CHROME WAYS
ONE-SHOT LUBE

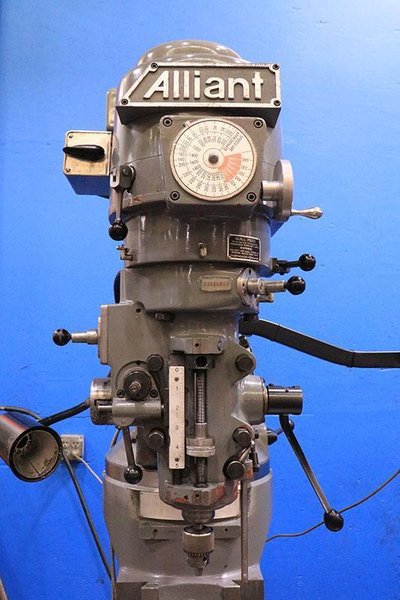

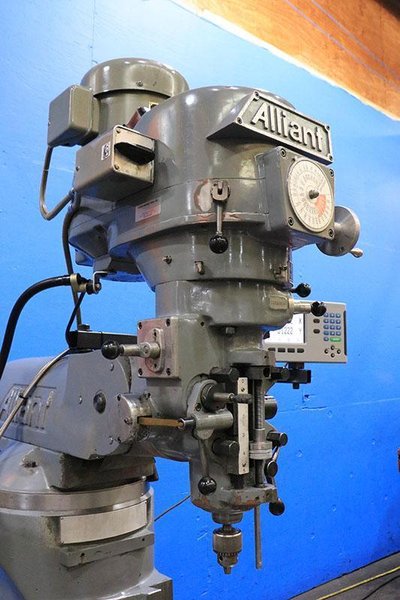

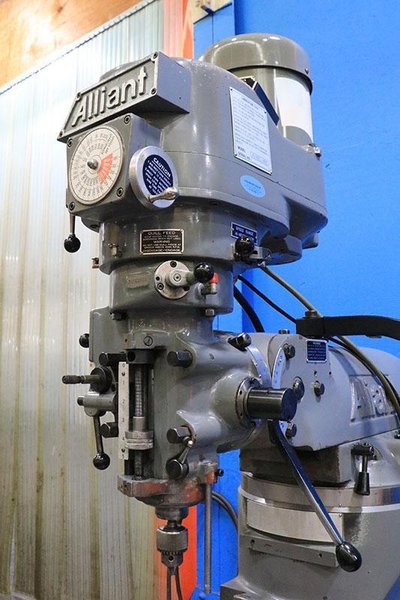

2 HORSE-POWER MILLING HEAD
FOB: ORIGIN |
