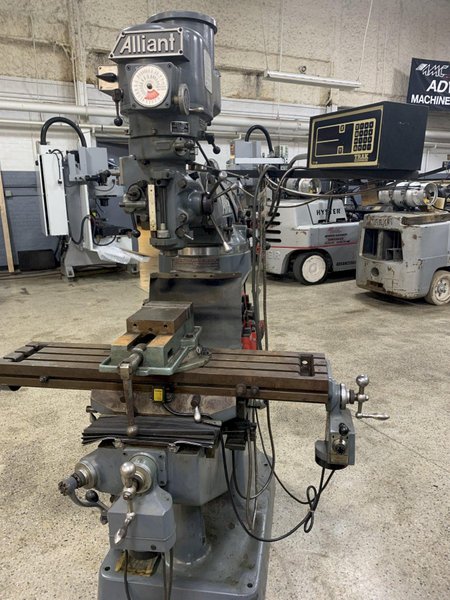

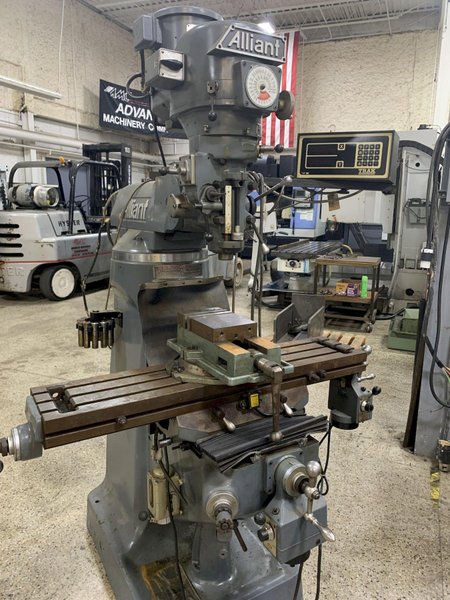

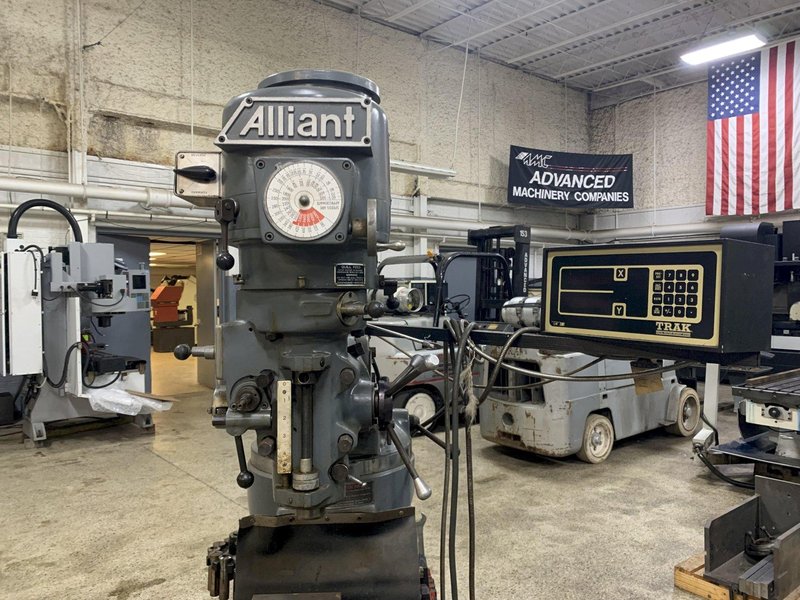

Alliant Variable Speed Vertical Milling Machine
Brand
Category
Type
Model
Pending
Stock #
34761
Year
Not specified
Condition
Used
Location
Ohio
|
Specifications:

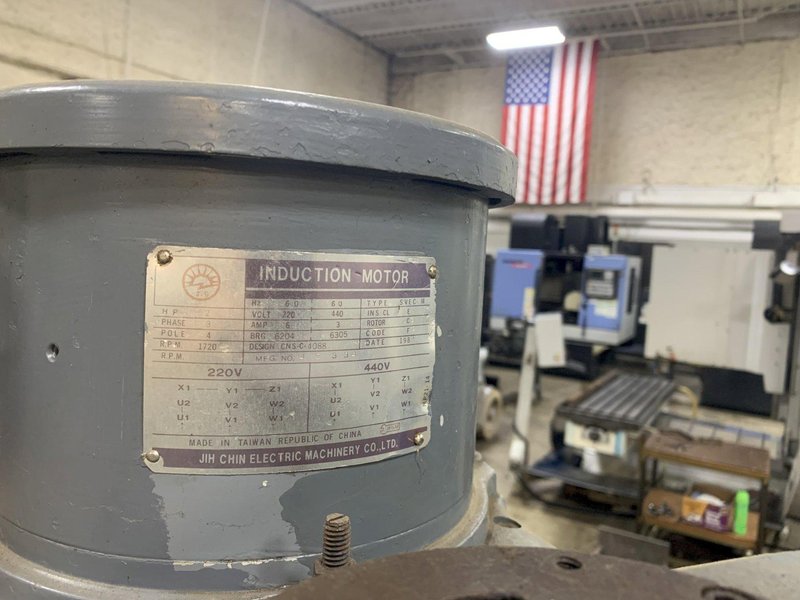

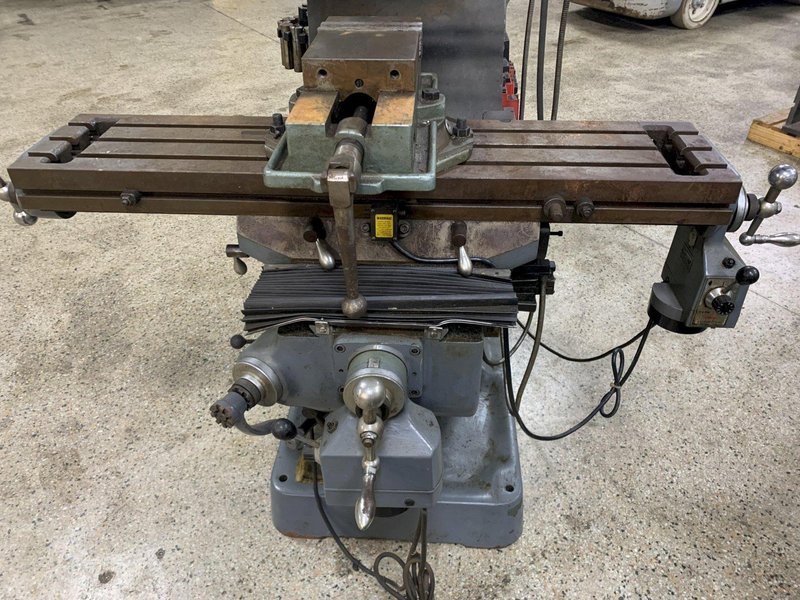

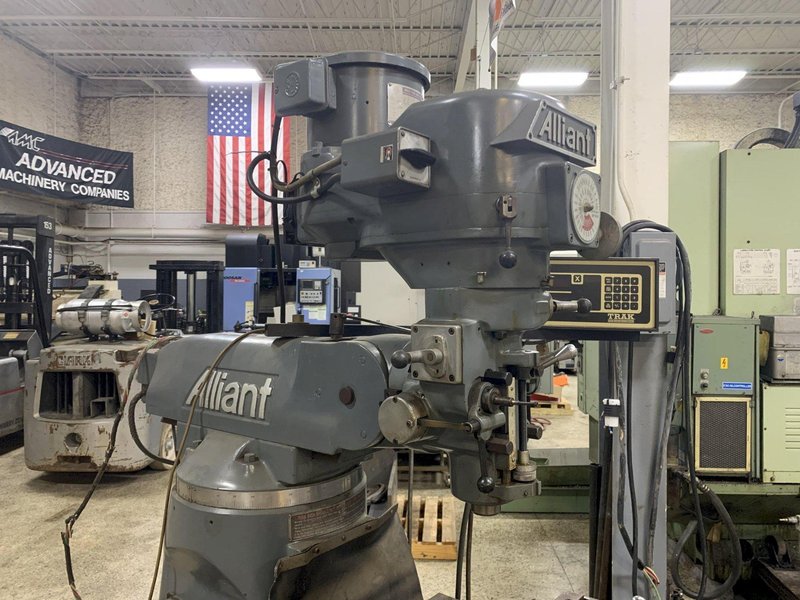

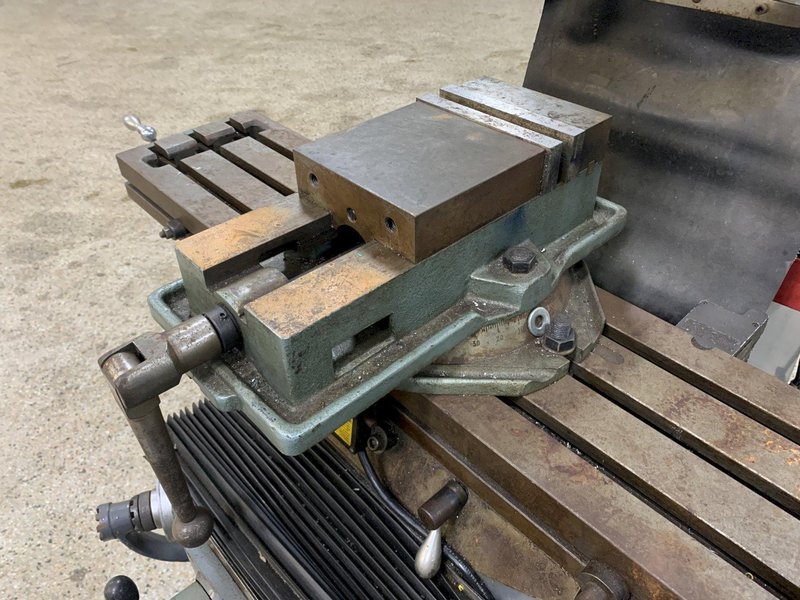

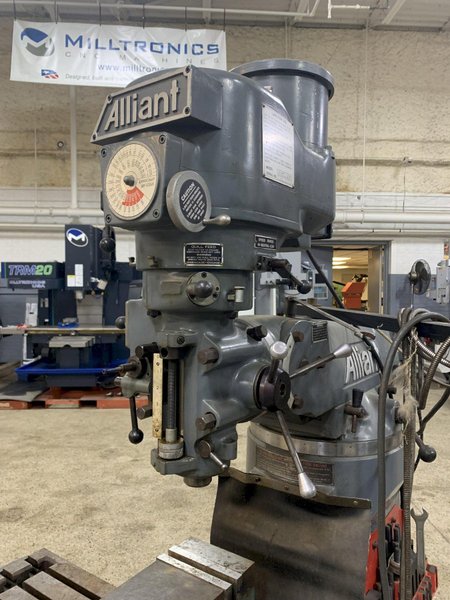

Table size – 9” x 42" Longitudinal travel (x) - 30" Cross travel (y) – 12” Vertical travel (z) – 16” Max height table above floor – 47” Max workpiece weight – 750 lbs (centered on table) Ram travel – 12” Head swivel – 90 deg right / left Head tilt – 45 deg Spindle motor – 2 hp Spindle speeds, Infinitely Variable - 60 to 4500 rpm Spindle taper – R8 Quill diameter – 3.375” Quill travel – 5” Quill feed rates - .0015, .003, .006 in./rev. Net Weight, approx – 2227 lbs. Equipped with: Trak 2-Axis DRO (x-axis does not count) Servo Powerfeed on X Servo Powerfeed on Y (non-operable) Mill Vise with Swivel Base Work Light 1-Shot Lubrication Specifications subject to independent verification by the buyer. Skidding fee will be charged if requested for transport. Note - the y-axis powerfeed does not operate Note - the x-axis on the dro does not count |
