2000 CURRENT EDM EDMDRILL ST300 | EDM, Wire, CNC

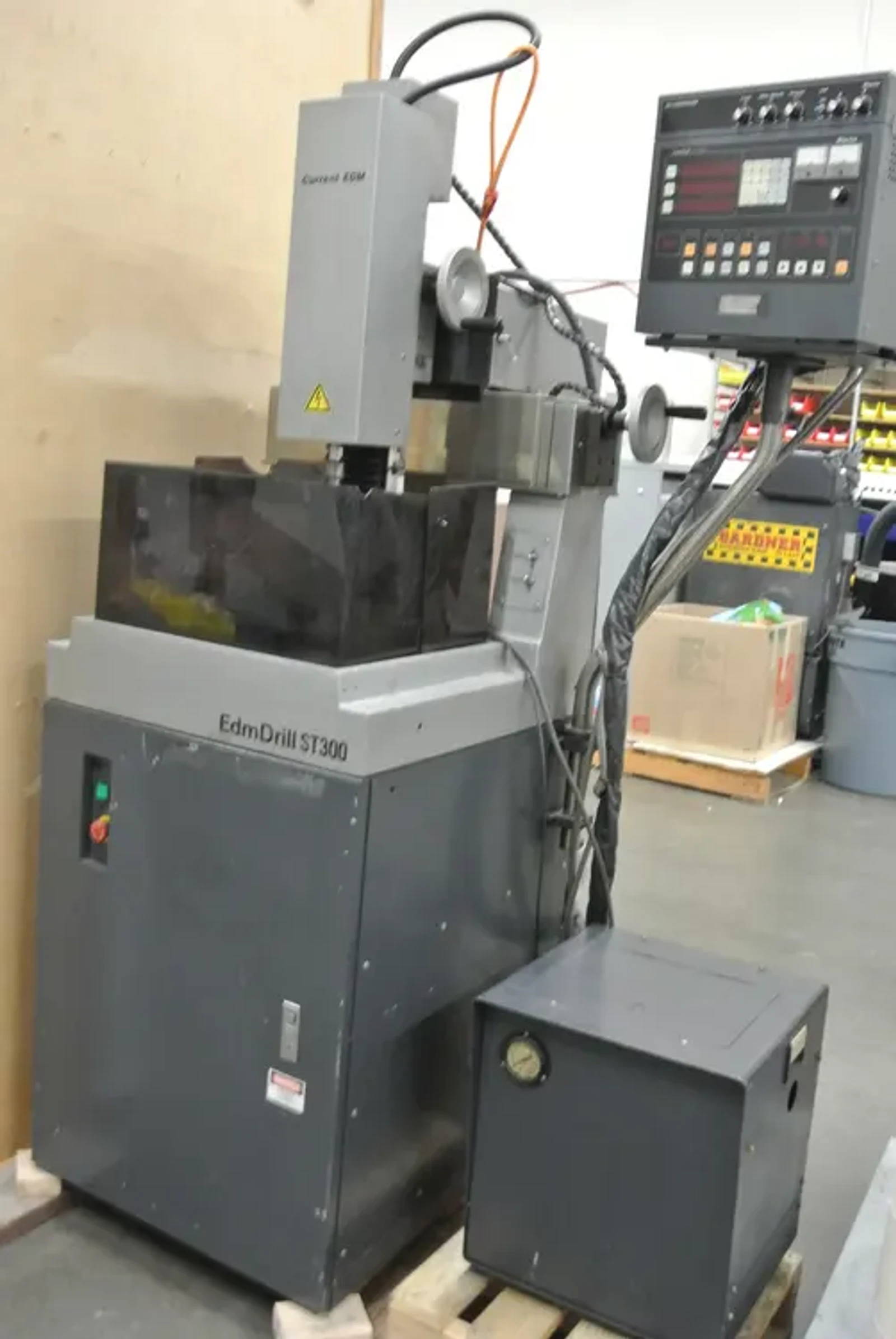

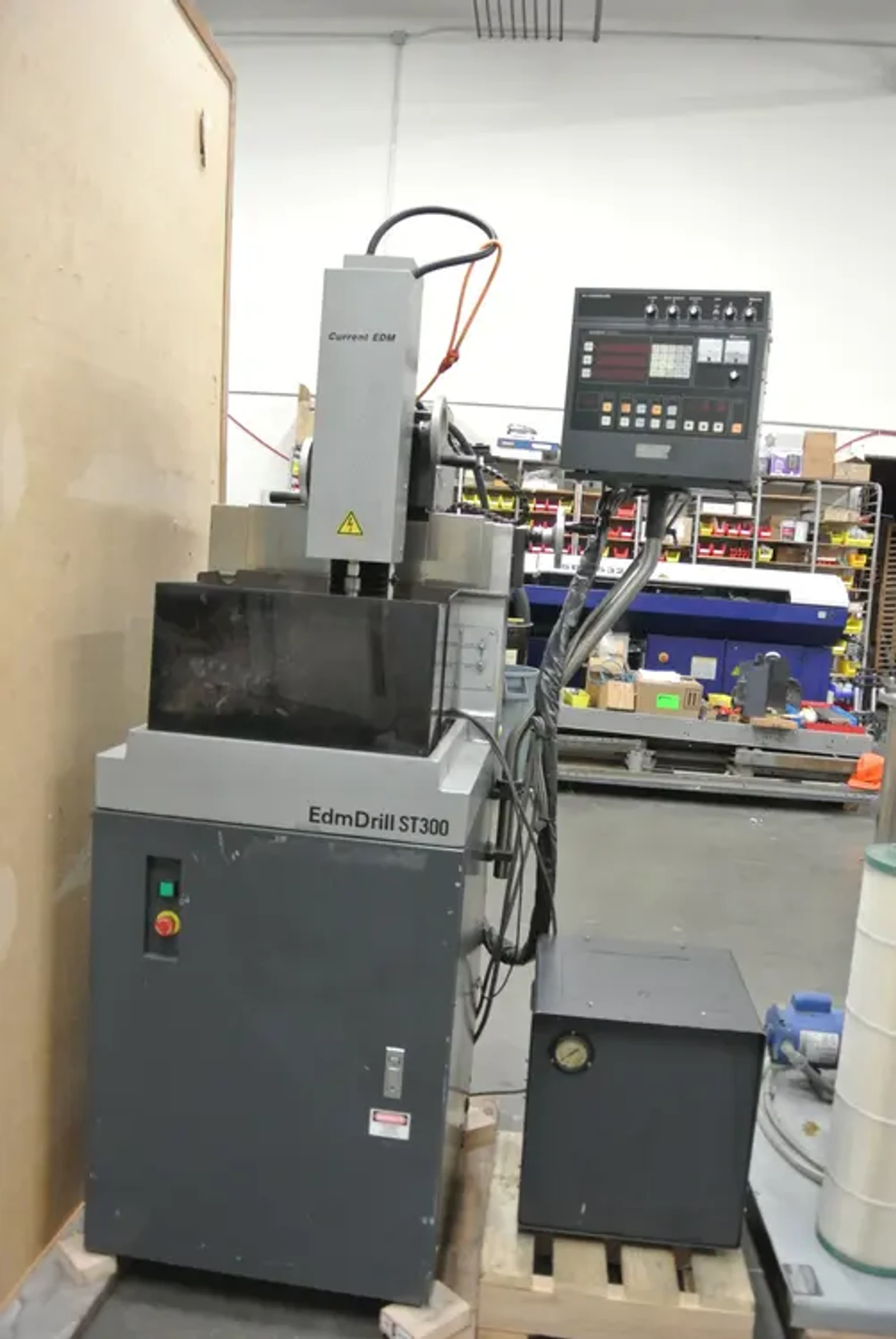

Current EDMDrill ST300 EDM (Made in Japan) EDM Hole Drill/Popper

New: 2000

Specifications

X Axis Travel:........................... 12" (300mm)

Y Axis Travel:........................... 8" (200mm)

Z Axis Travel:........................... 12" (300mm)

Guide Axis Travel:....................... 10.5" (266mm)

Workpiece Weight (Max):.................. 682 lbs (310 kg)

Granite Worktable Size:.................. 12" x 12" (300 x 300mm)

Worktank Capacity ....................... 18" x 16"

Electrode Drill Diameters................ 0.004" - 0.256" (0.1 - 6.5mm)

Machine Weight:.......................... 682 Lbs. (310kg)

Approx. Dimensions:...................... 23.5" x 25" x 78"H

Equipped With::

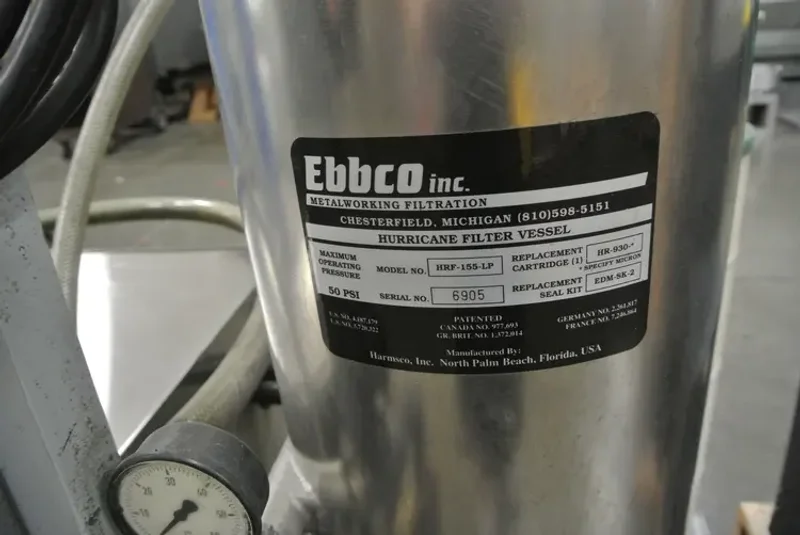

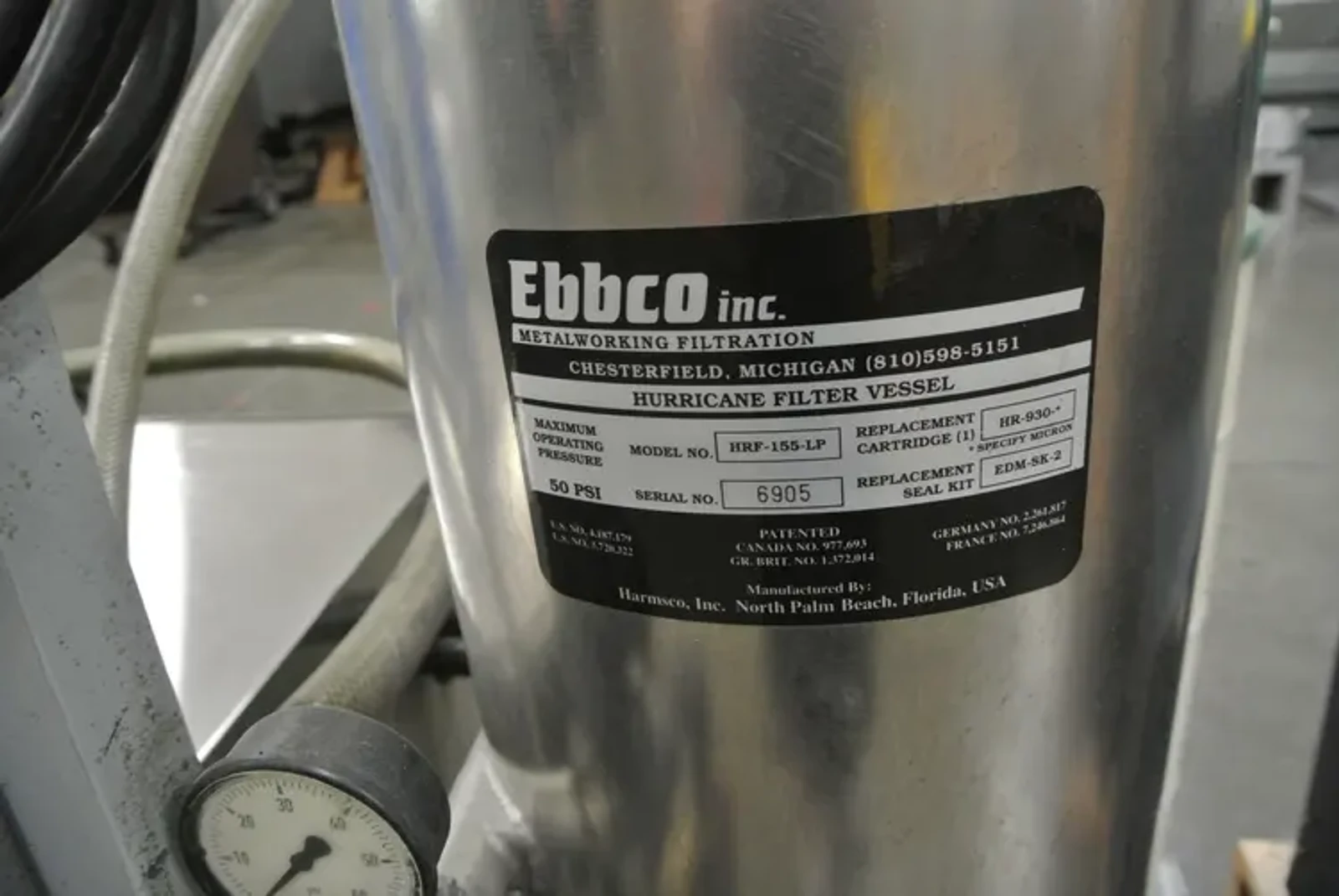

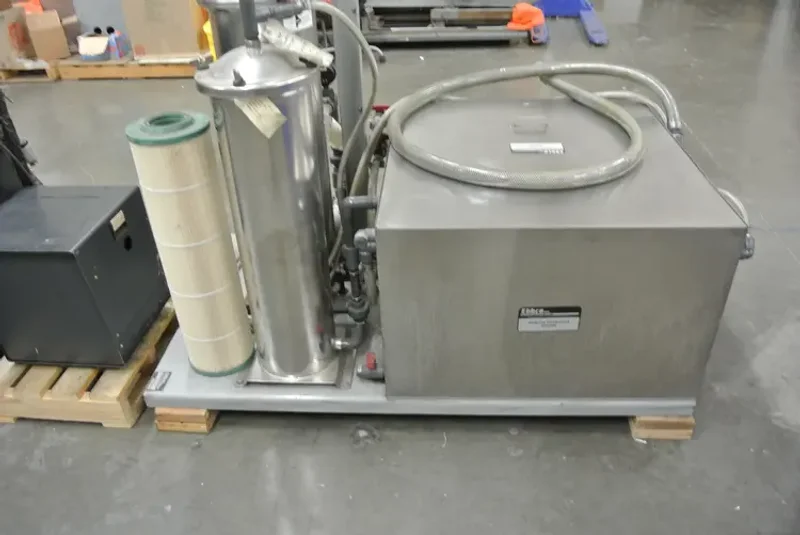

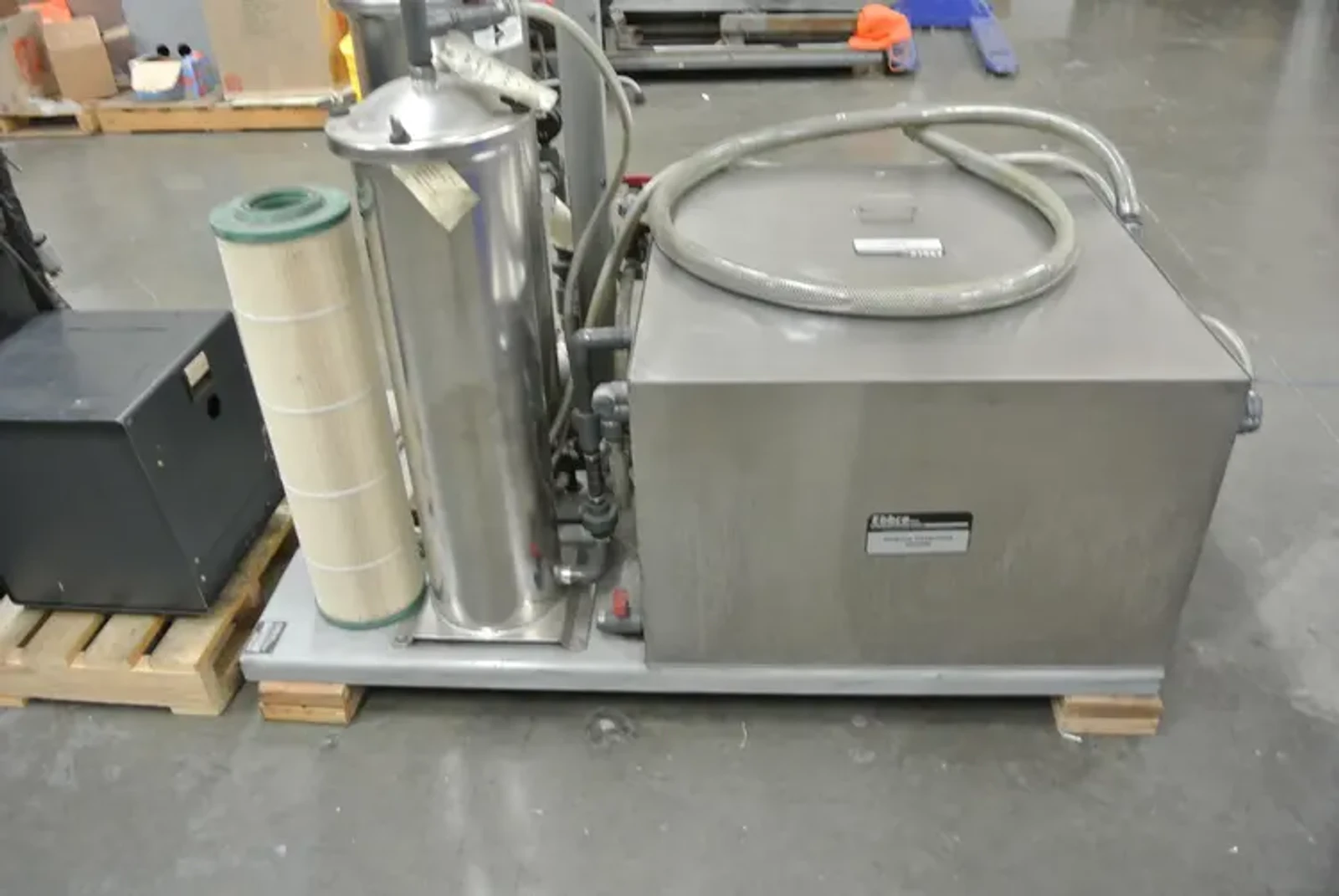

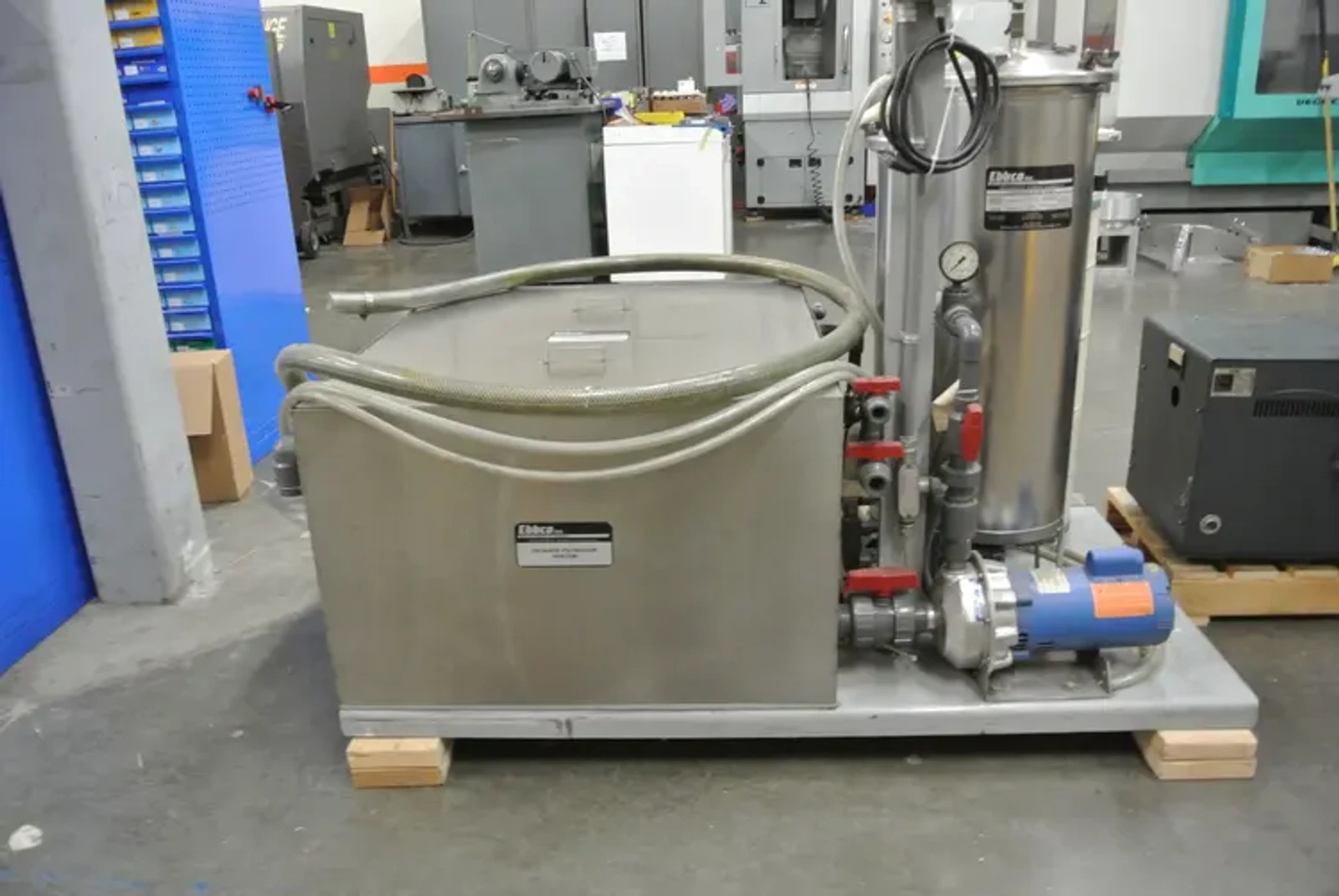

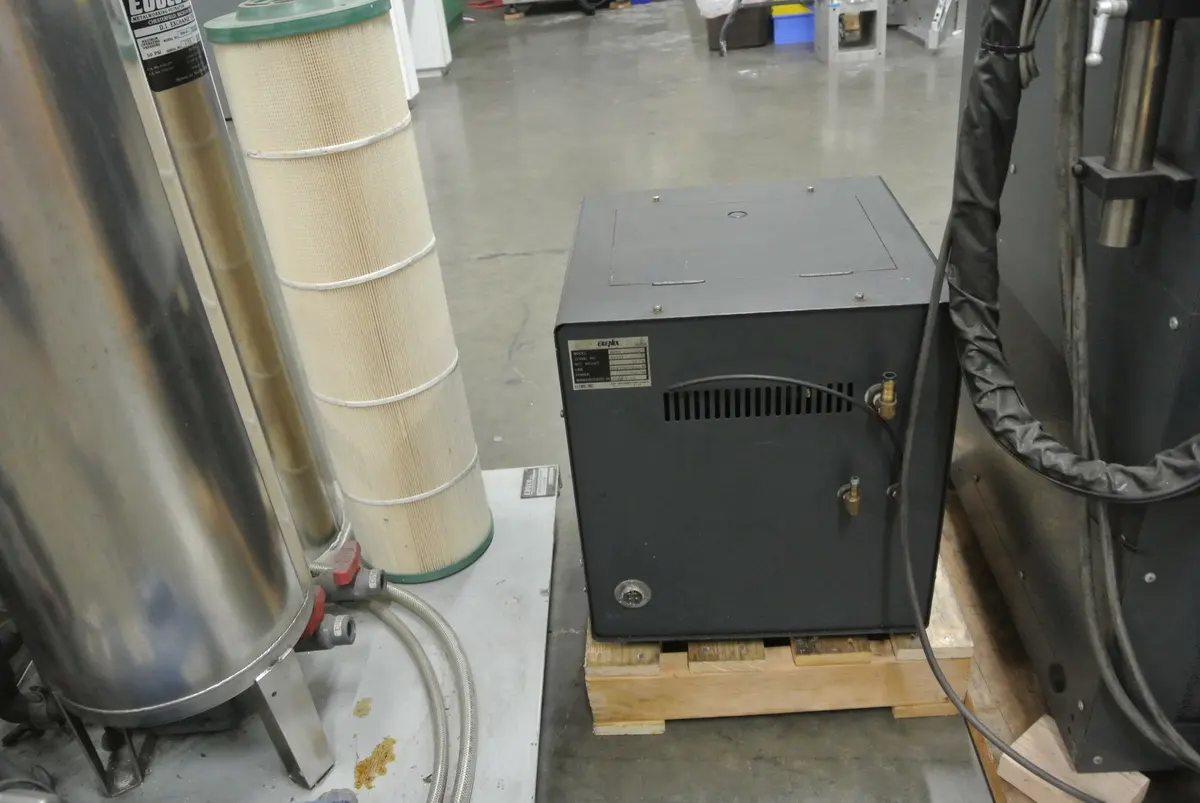

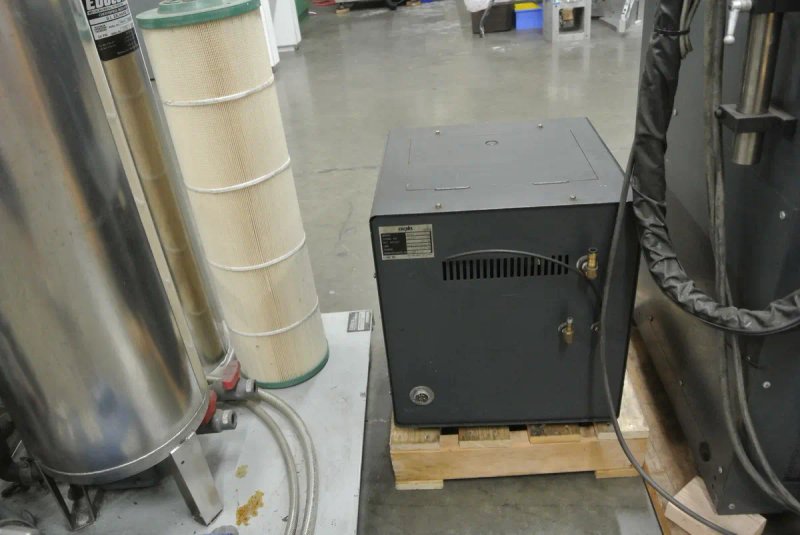

Ebbco filtration Unit

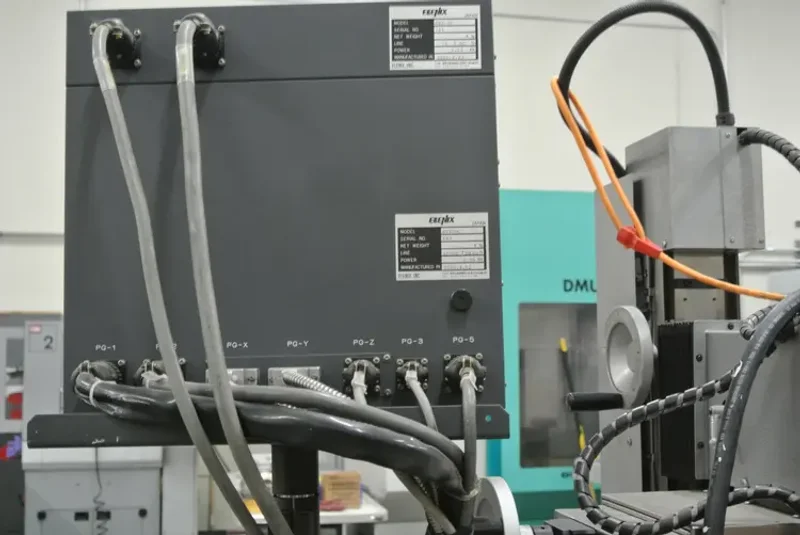

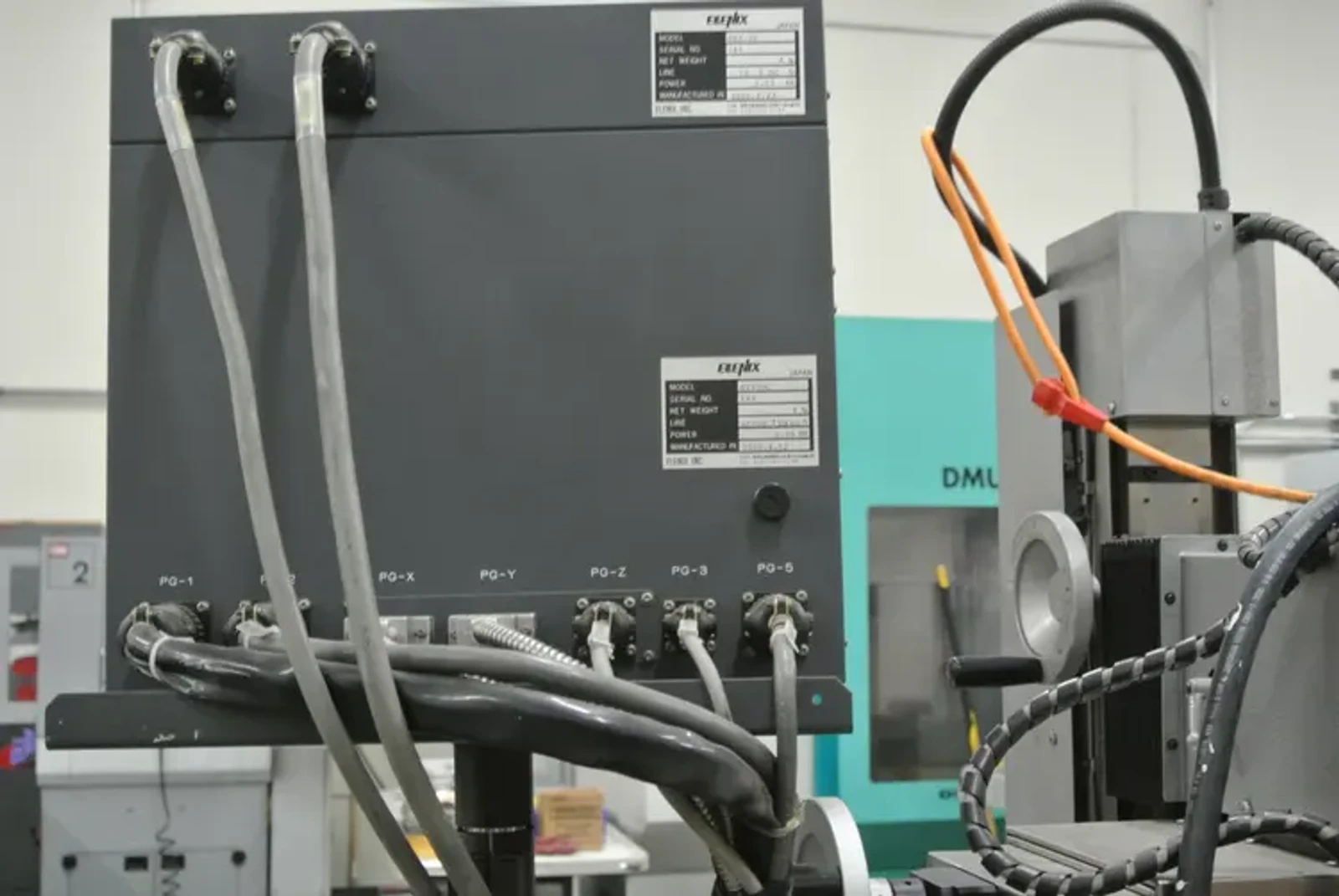

Elenix Control

Current EDM's ST300 EDM Drill enables precision deep-hole

 drilling of hard alloys to depths up to 300 times electrode diameter.

 Installed in hundreds of shops around the world,

 this unique system is capable of fast and accurate

 performance: Drilling a .040" hole through 1-inch tool steel

 in approximately 35 seconds, virtually burr-free.

 The ST300 can drill at all angles using electrodes ranging

 from .004" to .256" in diameter.

Cast bridge Design for cleaner operation.

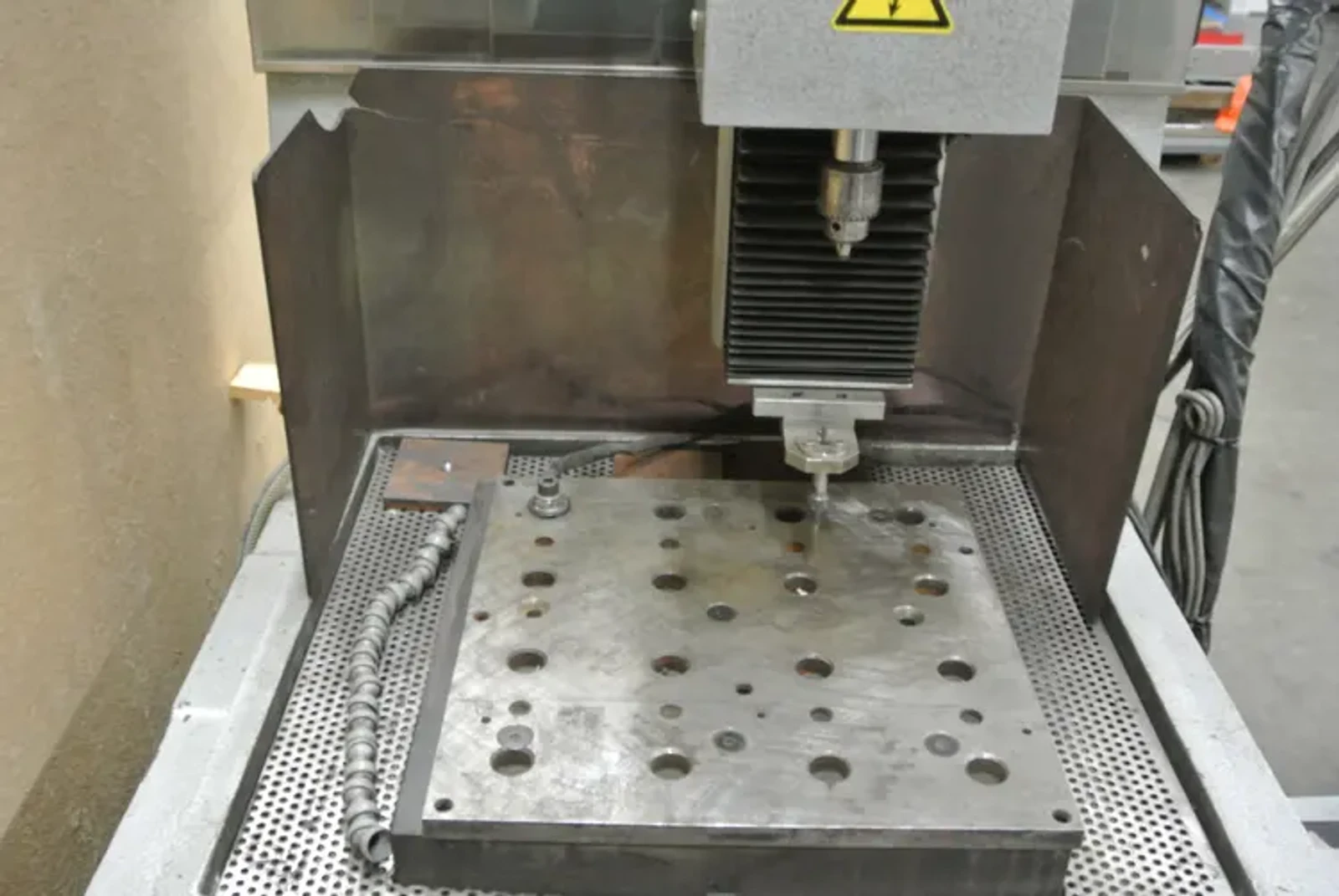

Precision-lapped granite worktable for stability and accuracy.

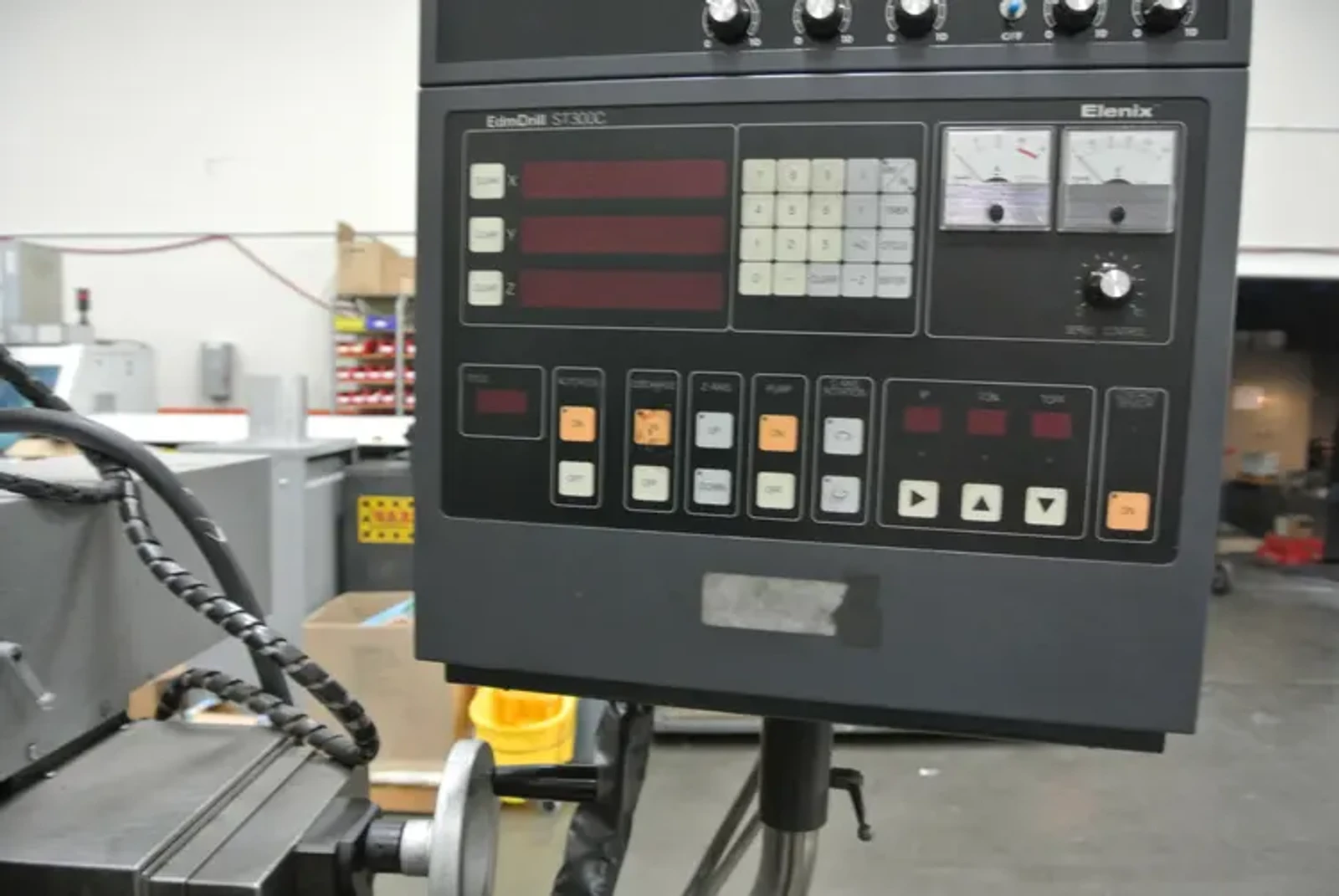

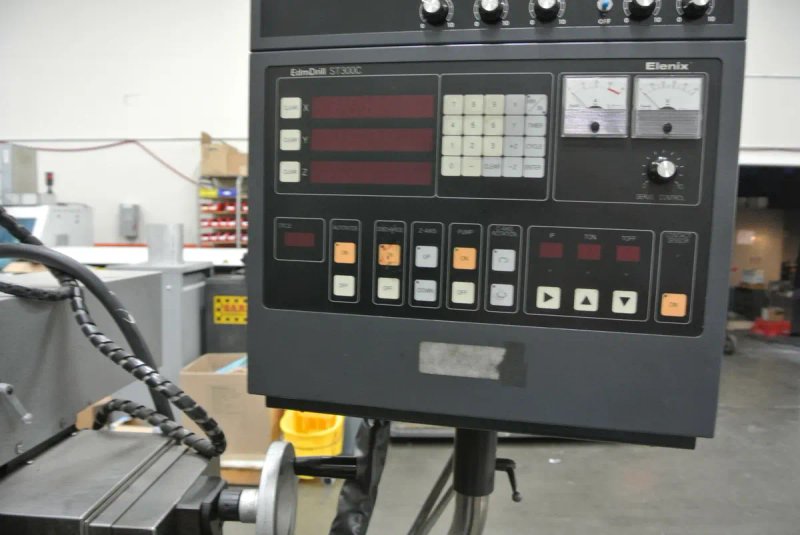

Elenix /SJR Control:

Inch/Metric Conversion

XYZ DRO

Drill Depth Input

Electrode Retract Input

Auto Mode

Input/Output for Indexing or Rotary Table

Automated Initial Zero Set

Discharge on Timer

Voltmeter & Ammeter
