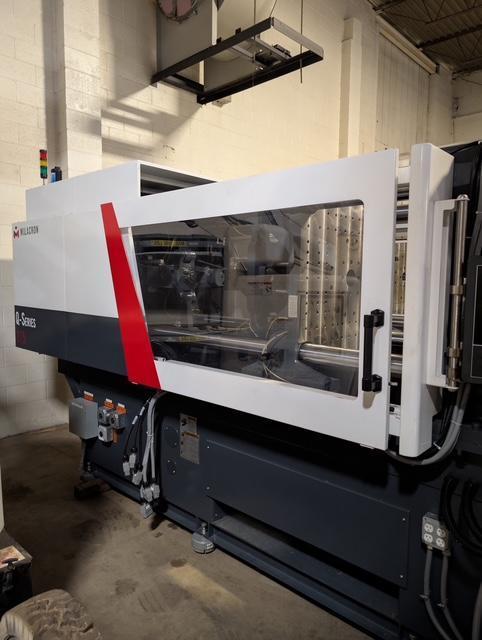

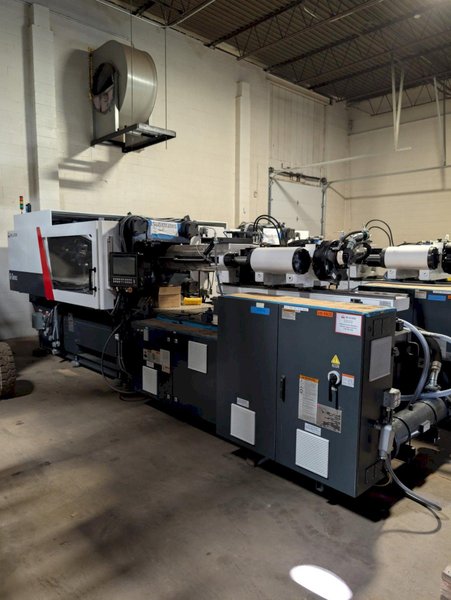

315 Ton Servo Hydraulic Milacron Q Series 3 Injection Molding Machine, 2024- Hydraulic Husky Altanium Neo5 Controller, Plastrac Blender

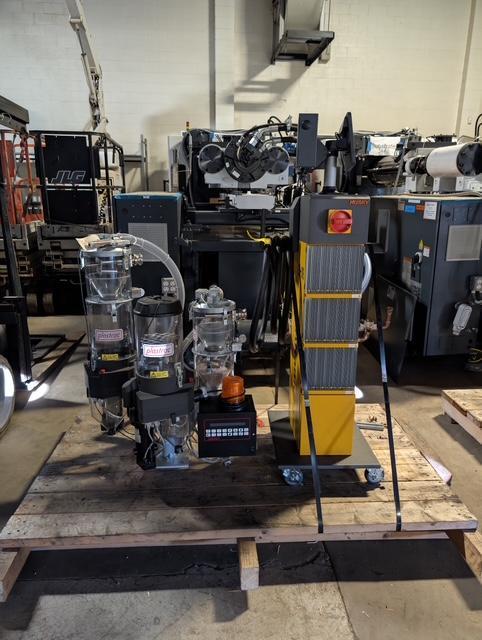

Manufacturer Milacron Model Q Series 3 Year 2024 Type Servo-Hydraulic Injection Molding Machine Clamping Force 315 U.S. Tons Injection Unit Q 3 Platform – Servo Hydraulic Drive Shot Size (PS) 17–36 oz Screw Diameter 50–70 mm Injection Pressure Up to 30,000 psi (2,068 bar) Injection Speed 200–350 mm/sec Platen Size Approx. 33 × 33 in (838 × 838 mm) Tie Bar Spacing 20 × 20 in (508 × 508 mm) Daylight Opening 18–44 in (adjustable) Mold Thickness (min–max) 8 – 36 in Ejector Stroke 5 – 7 in Ejector Force ~ 8 tons Clamp System 5-point toggle mechanism with servo pump control Drive System Milacron Servo Hydraulic Energy-Efficient System Controller Mosaic or Momentum Series Touchscreen Control Pump System Variable speed servo pump for energy savings (30–60% vs standard hydraulic) Electrical 480 V / 3-phase / 60 Hz Husky 36 Zone Altanium Neo5 Controler Plastrac Auto-Disc Blender – 3 Ingredient Model; 2 Feeders

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
