2002 Milacron Maxima MM450 with Yushin VCII‑400 Robot — 450 Ton Injection Molding System

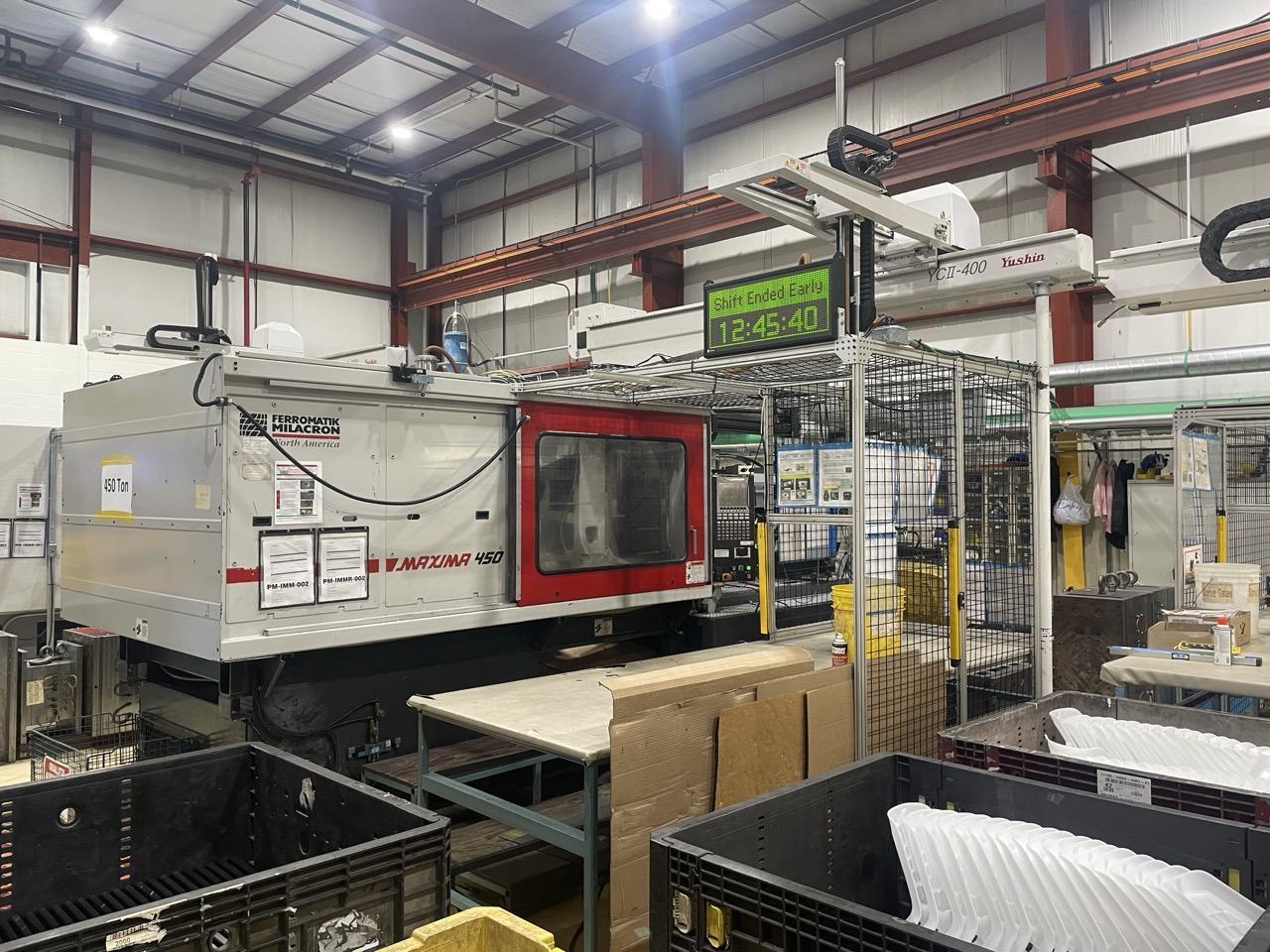

Equipment Overview This 2002 Milacron Maxima MM450 is a 450-ton hydraulic injection molding machine integrated with a Yushin VCII‑400 Cartesian servo robot. Known for its direct-acting clamp and compact layout, the Maxima series is well suited for automotive and large-part molding. This unit is currently installed and appears functional, offering integrated robotic automation.

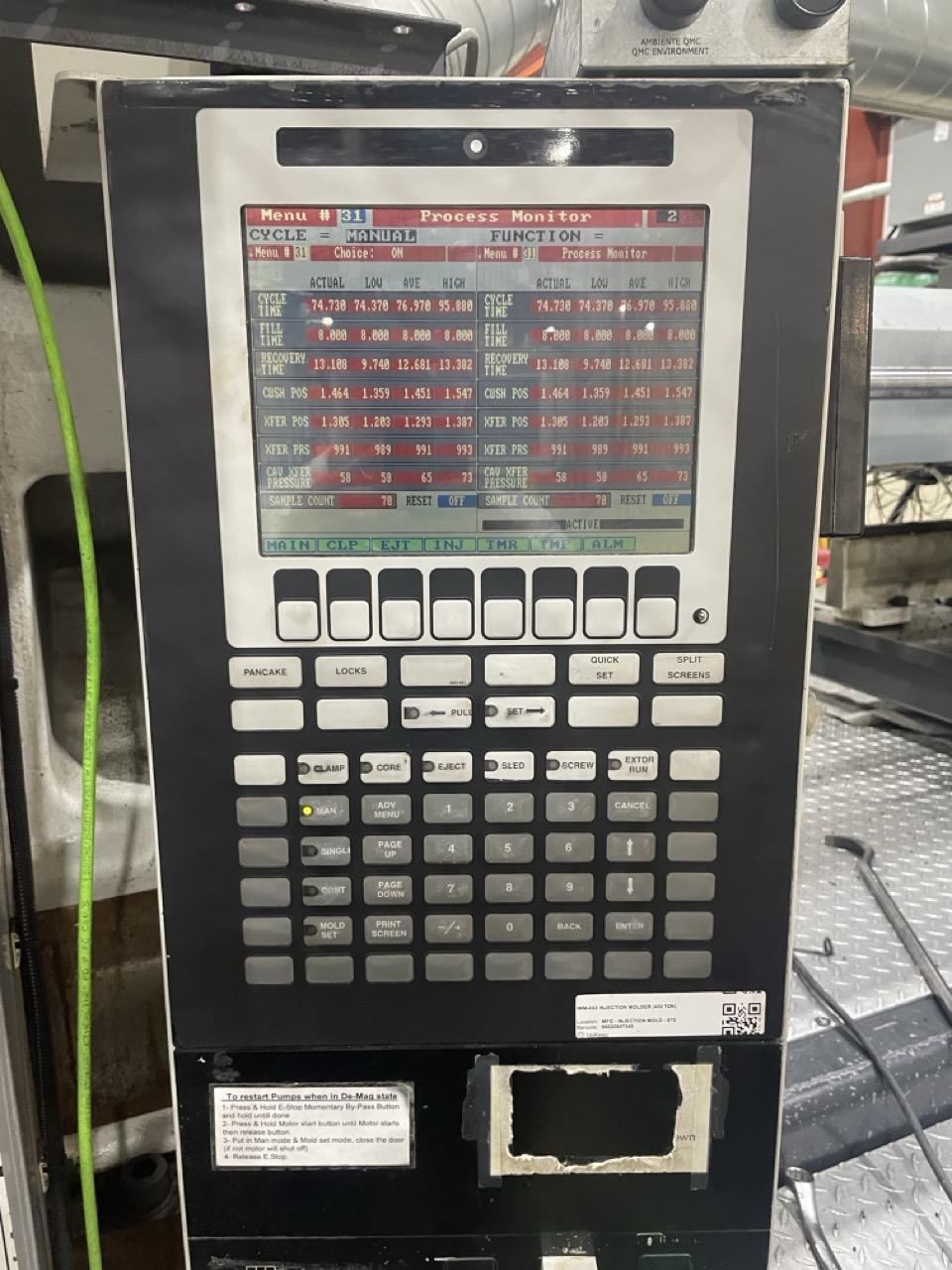

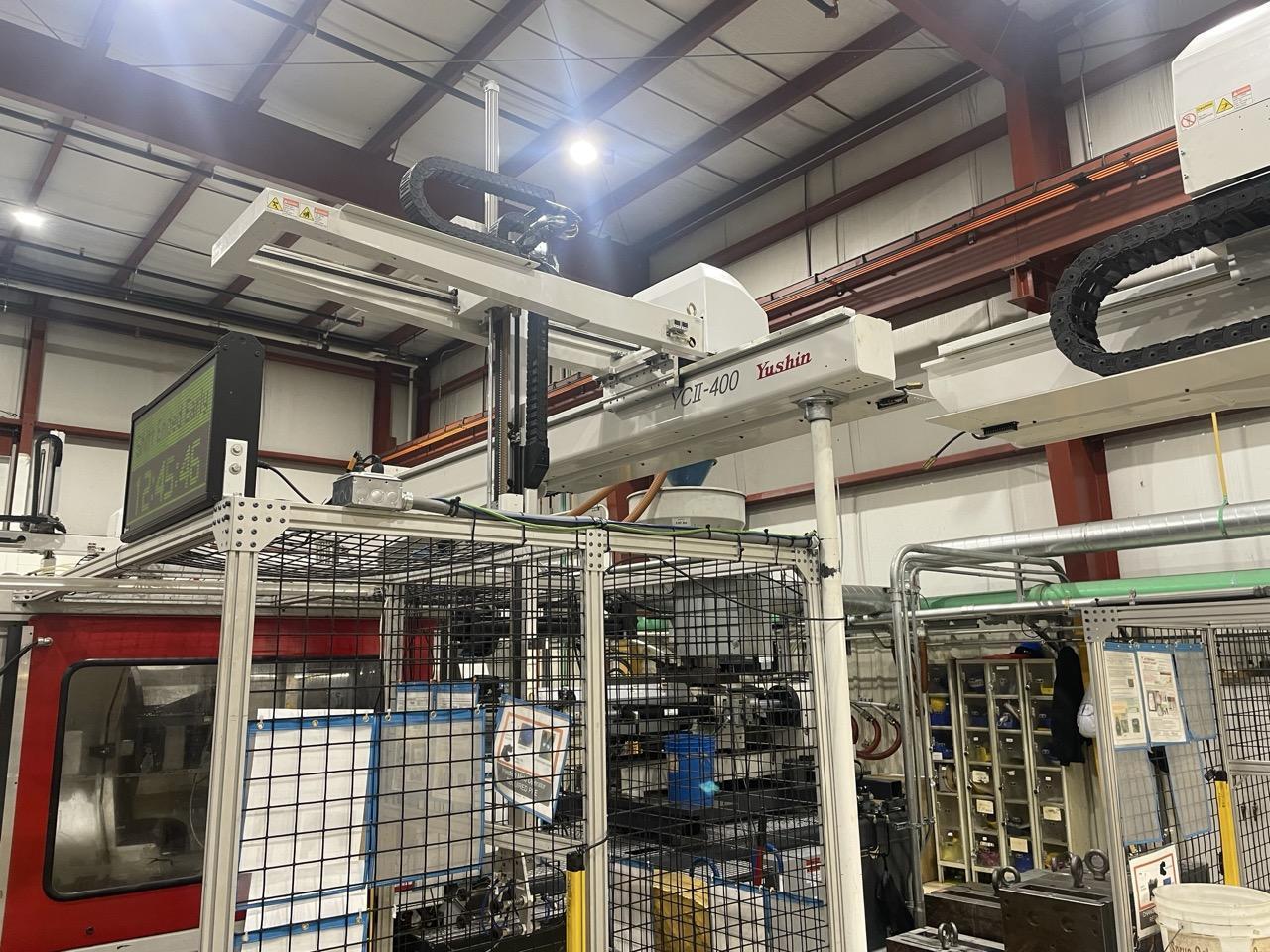

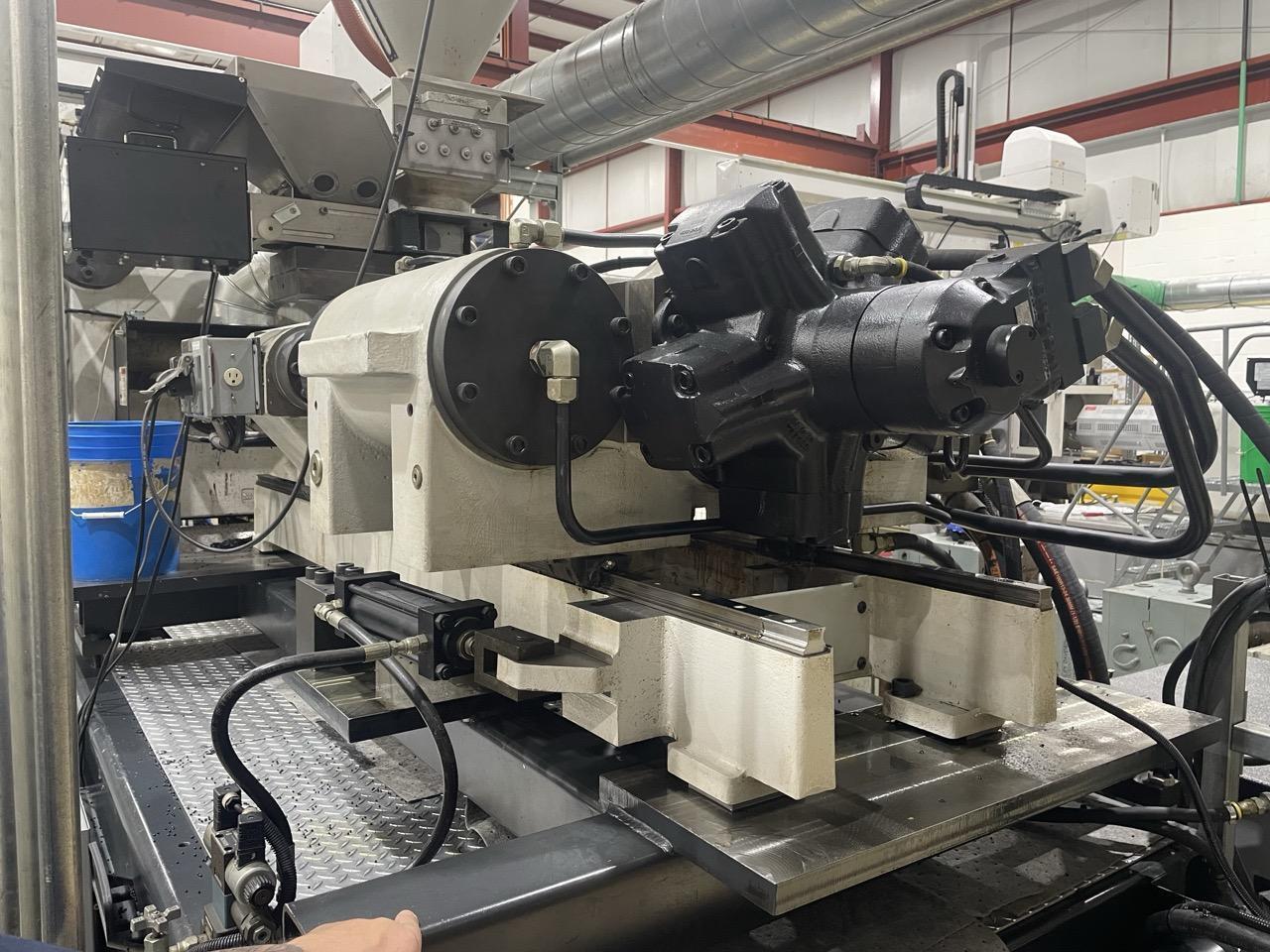

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Features and Specifications – Clamping Force: 450 tons (≈ 408 metric tons) – Clamp Stroke: 47.2 in (1199 mm) – Actuation Type: Hydraulic (direct-acting clamp) – Orientation: Horizontal injection molding layout – OEM Footprint Claim: 10–20 % less floor space than comparable models – Control Voltage: 115 VAC / 24 VDC logic – Supply Voltage: 460 VAC, 3‑phase, 60 Hz – Largest Motor Current (FLI): 108 A – Robot: Yushin VCII‑400 Cartesian Servo Robot (integrated) – Hydraulic System: Integrated motor/pump base-mounted – Control Panel: Digital process monitor, function keys, cycle data – Safety Equipment: Guarding, light curtains, interlocks (visually confirmed) – Documentation Tags: Wiring, pneumatic, logic, hydraulic diagram references present – Cycle Time (Observed): ~16.98 seconds (displayed) – Cushion Position (Observed): ~1.457 in

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
