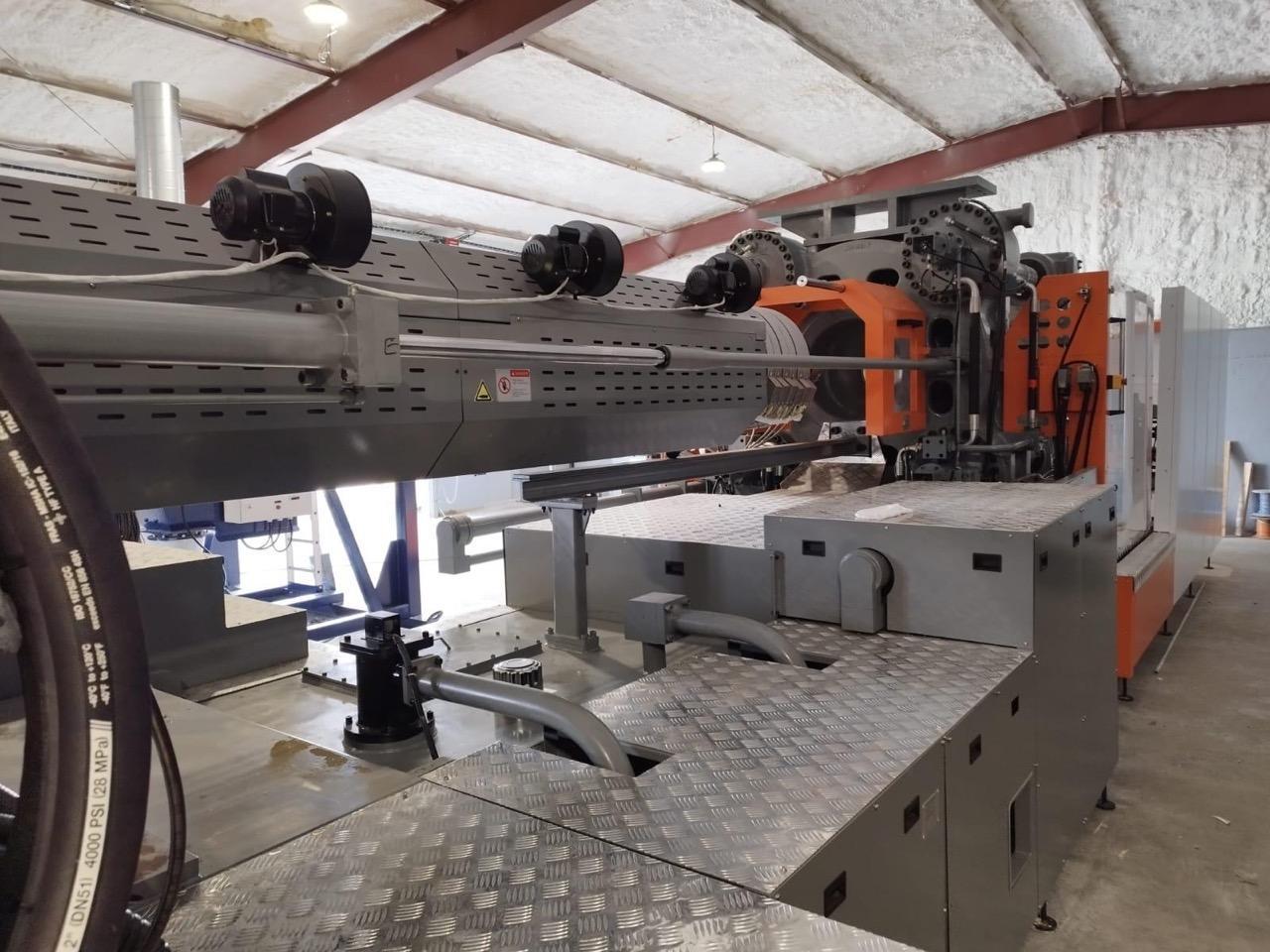

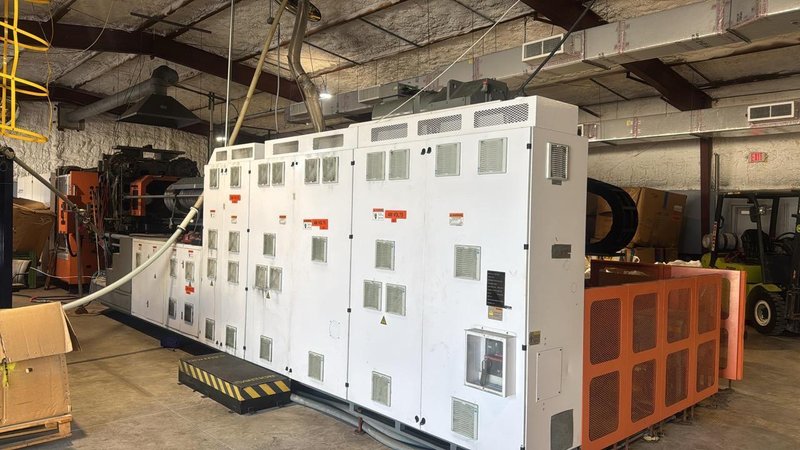

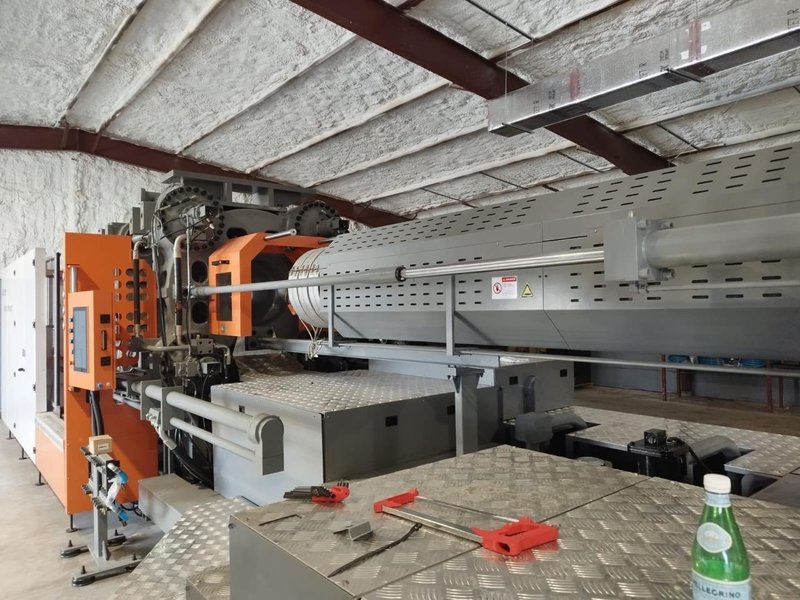

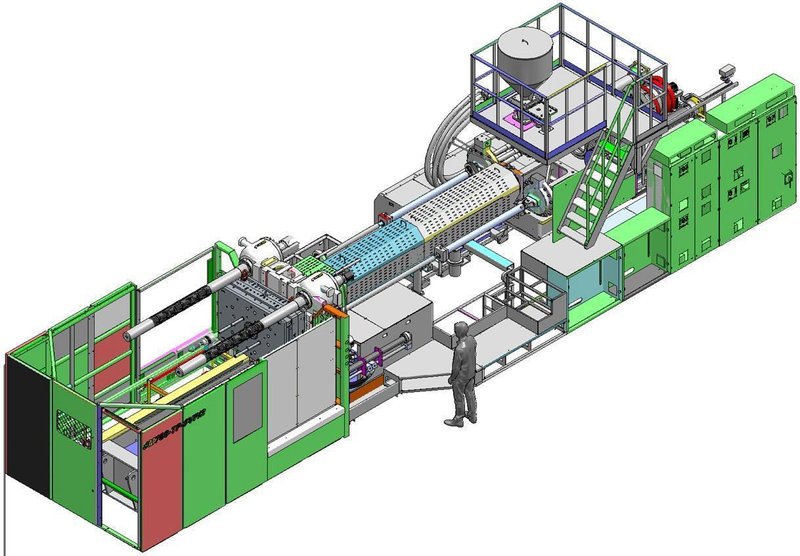

770 TON, 1,404 Oz CHEN HSONG SM700-TP-SVP/2 (D2) Plastic Injection Molding Machine, 2024 – Tie Bar Pulling System with Power Tie Bar Retraction

2024 CHEN HSONG SM700-TP-SVP/2 (D2) SUPERMASTER TP SERIES

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,770 US Tons, Two-Platen Injection Molding Machine

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,High-Performance, Energy-Efficient and Space-Saving design

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Low-Hours Unit.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,This is a “true Tow-Platen” machine, offering smaller footprint than traditional toggle machines while providing a massive opening stroke.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Perfect to manufacture plastic pallets and more.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,It is equipped with the SVP/2 Servo-Drive system for energy efficiency.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Key Value Addition: Tie-Bar Pulling System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The machine features a Power Tie-Bar Retraction system on the operator side.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Benefits: allows for seamless side-loading of oversized molds and drastically simplifies platen / mold maintenance

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Advantage: perfect for facility with low ceiling heights or limited overhead crane access

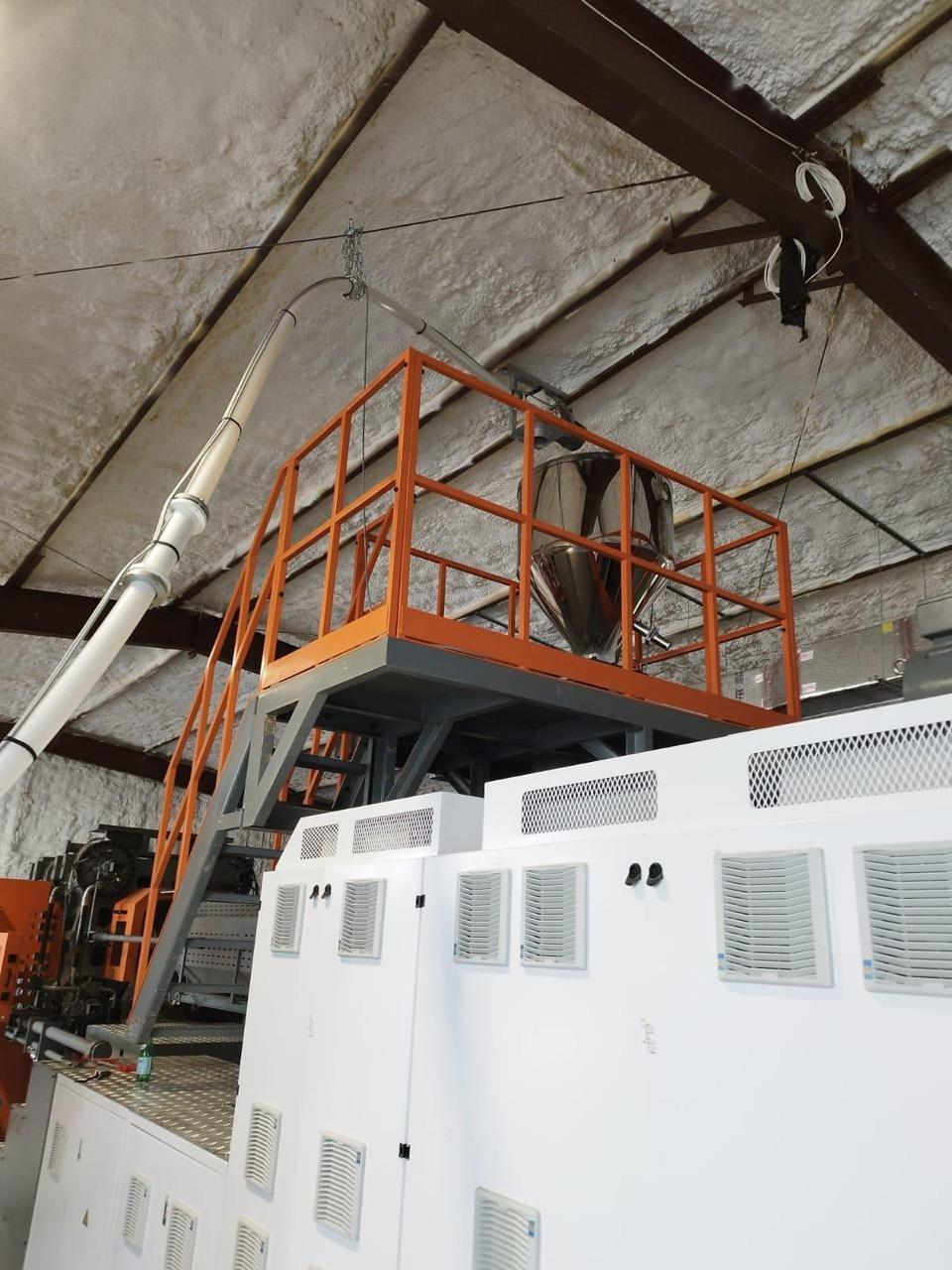

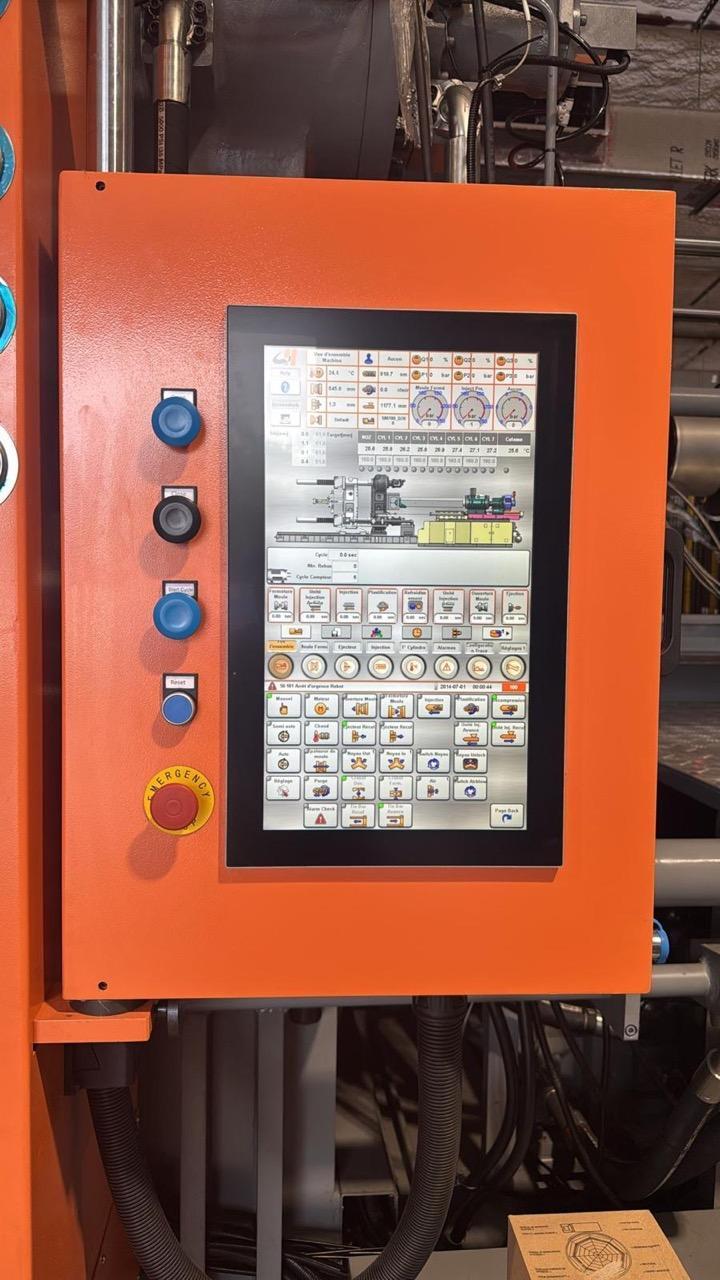

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Other features: – UL certified – Add-on: new heavy duty feeding hopper – Opportunity to purchase a 480V => 400V transformer – CLAMPING FORCE : 771 US Tons (7000 kN) – PLATEN SIZE : 59” x 59” (1,500mm x 1, – OPENING STROKE : 47.24” – 74.80 – SCREW BARREL : 225mm S – CONTROL SYSTEM : BECKHOFF (High Speed German PLC) – DRIVE SYSTEM : SVP/2 Servo-Hydraulic (Energy Saving)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Length x Width x Height 52’ x 13’ x 13’ (15,845mm x 3,950mm x 3,950mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Weight. 119,050 Lbs (54 Metric Ton)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,– Mold maximum Weight 24,250 Lbs (11 metric Ton) – Input Voltage 400 V – 3 Ph. + N – Frequency 50 / 60 Hz – Current 600A – Load – Injection 300 kW – Load – Plastification 267 kW – Load – Heating 175 kW – Shot weight / Shot Size : 39,801g (87.74 lbs) / 1,404 oz
