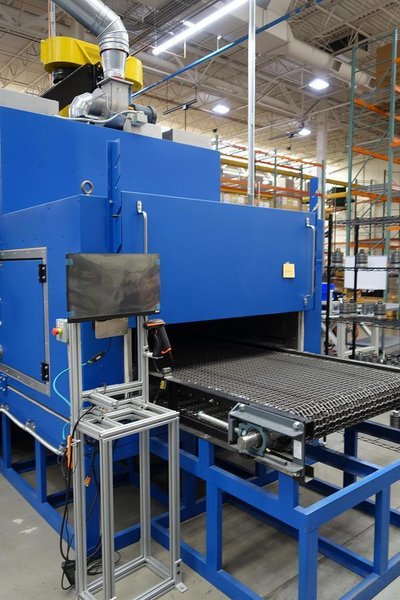

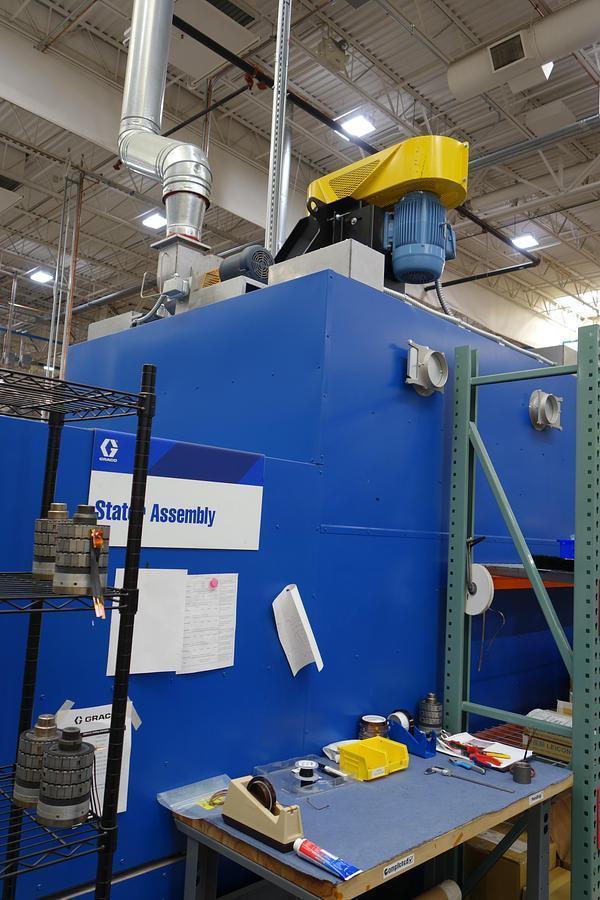

200°C JPW Industrial Curing Oven Model C98TULEP480V45KW, 2023 – 40′ Conveyor

Make: JPW Industrial Ovens

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Oven Model #C2-83-139TULEP480V45-60KW

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2023

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The Conveyor oven is designed to operate at 200°C maximum temperature and includes the following special features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,4.5” thick insulated walls, ceiling and floor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· CRS exterior painted machine Blue

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Aluminized interior

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Conveyor, 42”w x1x1 heavy duty flatwire with steel support bed 2,000 lb load

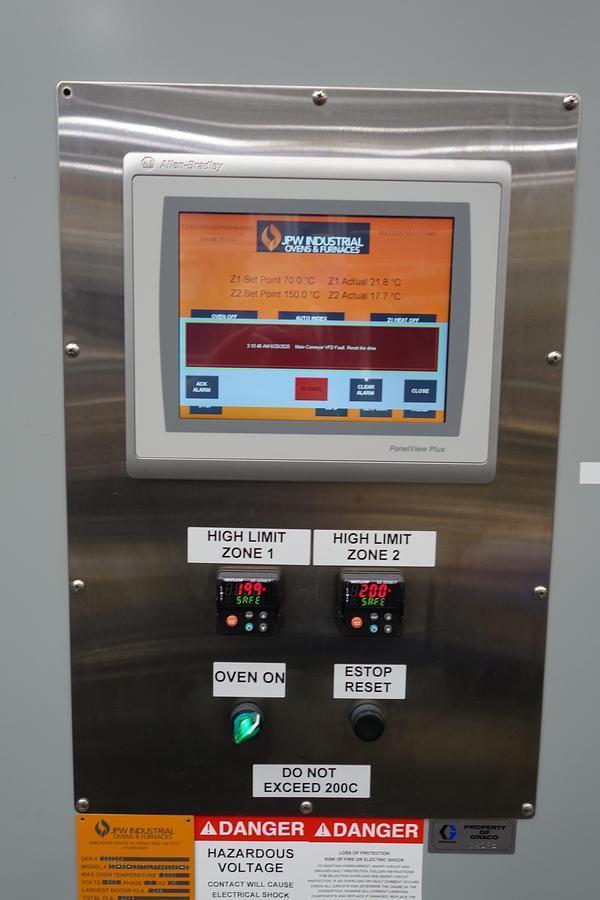

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· AB PLC with HMI monitoring all devices with communications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Watlow PM High limits (one each zone)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Conveyor speed range of 1.25”-3.5” per minute constant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Product sensor on outlet end to stop conveyor if sensor is made

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Adjustable crank doors on inlet and outlet – Max height open of 21”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Skid frame bottom support to raise belt to 36” from floor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 2 zones- Zone 1 operating at 70C-100C +/-3C, Zone 2 operating at 100C-150C +/-3C

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Zone 1 45KW of heat

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Zone 2 60KW of heat

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Each zone will be controlled separately

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· UL Control panel 480V/3/60 – Nema 12

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· load conveyor – 36” long

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Unload conveyor – 36” long

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Zone 1 Heating section 142” lg x 42”’w x 24”h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Zone 2 Heating section 237” lg x 42”’w x 24”h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 1-high volume recirculation (plug design) 23,000 cfm – each zone with VFD’s for 18,000 cfm zone 1 operating, 23,000 cfm zone 2 operating

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 1500 cfm forced exhaust on a VFD- common exhaust for both zones

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 12-14” center dead zone between conveyors

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Vertical down airflow

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Fused rotary disconnect

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· E stops at each end of the conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Access doors positioned on the right-hand side (doubles as explosion relief if required)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Batch Oven Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Effective Work Area

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Zone 1: 3’ 6” W × 2’ 0” H × 11’ 10” L

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Zone 2: 3’ 6” W × 2’ 0” H × 19’ 9” L

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,External Dimensions (Overall) 8’ 9” W × 11’ 0” H × 39’ 2” L

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total Electrical Power 105 kW (45 kW Zone 1 / 60 kW Zone 2)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Recirculation Fans 2 units @ 23,000 CFM, 10 HP each (one per zone)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Supply 480 V / 3-phase / 60 Hz, 163 Amps Recommended breaker: 300 Amps

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
