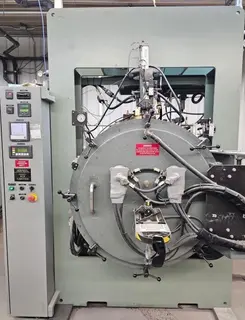

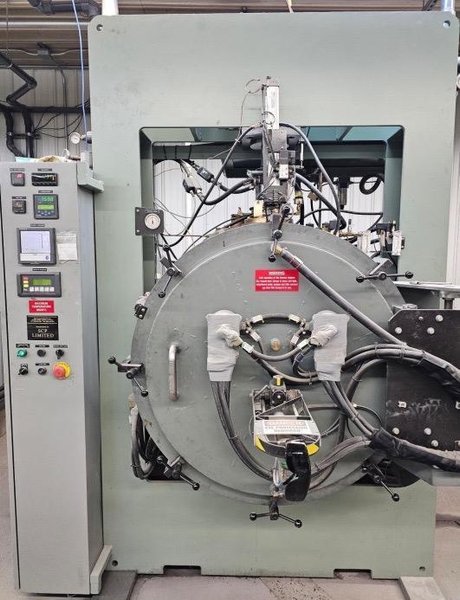

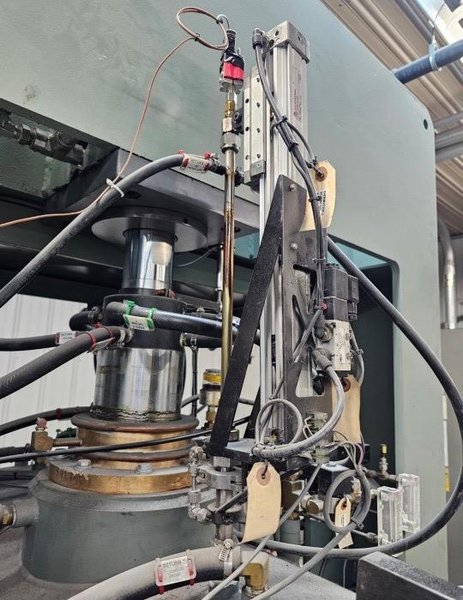

50-Ton SCP Limited Vacuum Hot Press (3), 2018

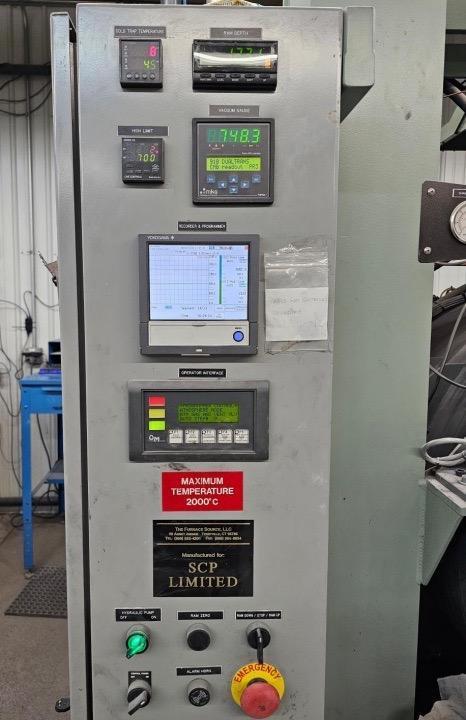

Maximum Temperature: • 2000°C • Power: 480VAC 3-Phase / 267FLA Hot Zone: • 19” Wide x 21” Deep x 14” Tall • Ram Window: 10.4”-16.0” (Down – Up) • 2” Graphite Insulation Board • 5” Diameter Iso-pressed graphite rams • Four elements / Four sided heating Vessel Atmosphere Control Modes: • Roughing Vacuum Operation • Partial Pressure Operation • Atmosphere (positive pressure) up to approximately 0.5 PSI with maximum flow rate of 1 LPM. Controls: • Yokogawa GX10 Program Controller and Datalogger o Network enabled • Fluke Endurance Series Pyrometer o Thermal Operation above 1300C • Type C Thermocouple o Control and Over-temp o Automatic retraction • MKS PDR900 Vacuum Controller o MKS 910 DualTrans Transducer • Digital Ram Movement Encoder o Accuracy to nearest .001” • VPN Modem for remote diagnostics with furnace manufacturer Features: • Exhaust check valve • Exhaust bubbler • 0-9 Automatic pump down and backfill cycles prior to program start. • Automatic leak check prior to program start. • Stokes 149 Piston pump • Edwards EH250 Roots Blower • Ultimate pump down can reach below 100mTorr • Cold Trap w/ Filters for vacuum and exhaust operation. o Liquid Nitrogen can be used • 120KW Power Supply

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
