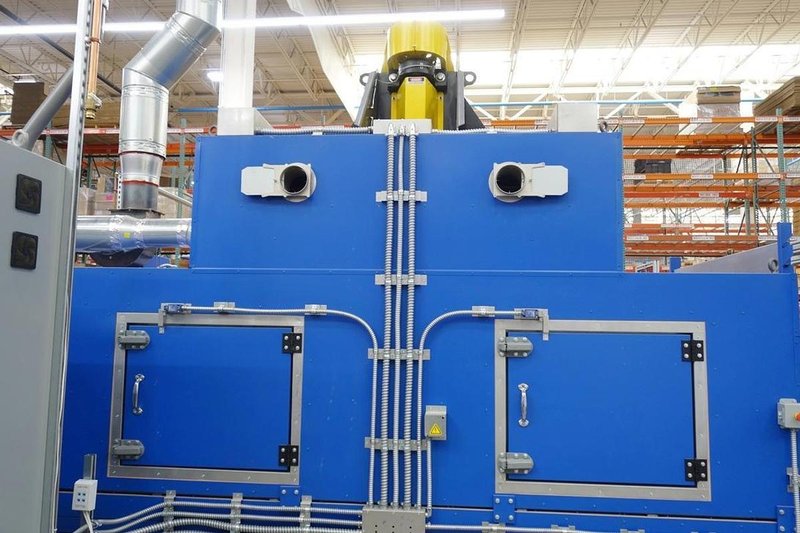

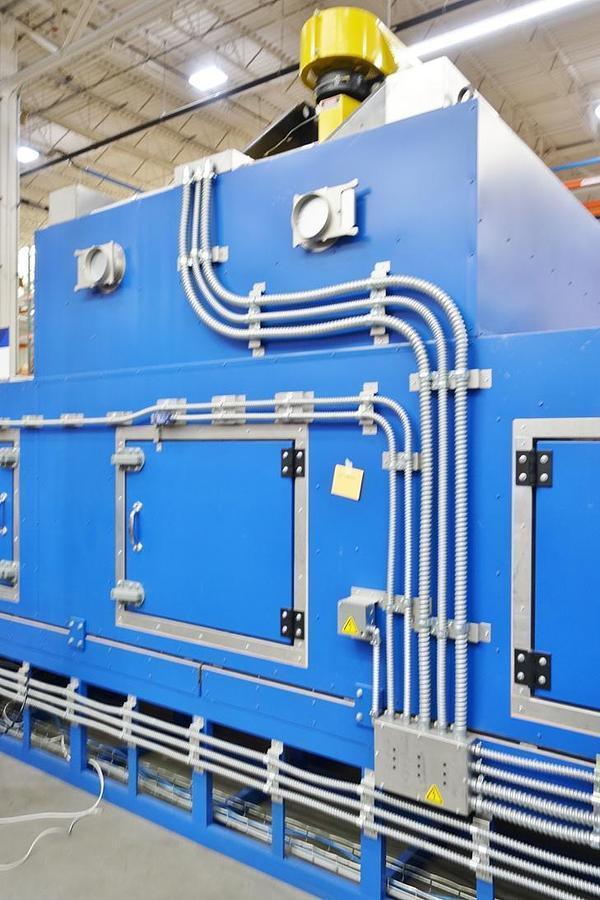

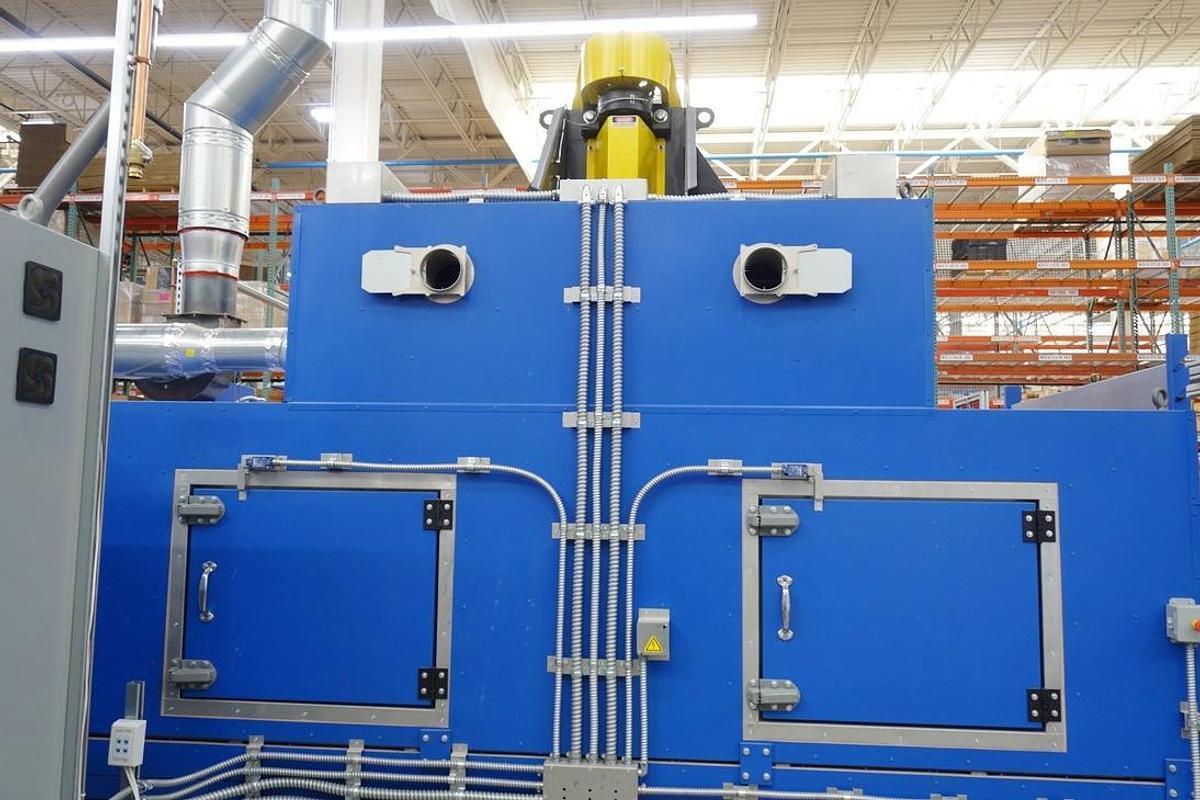

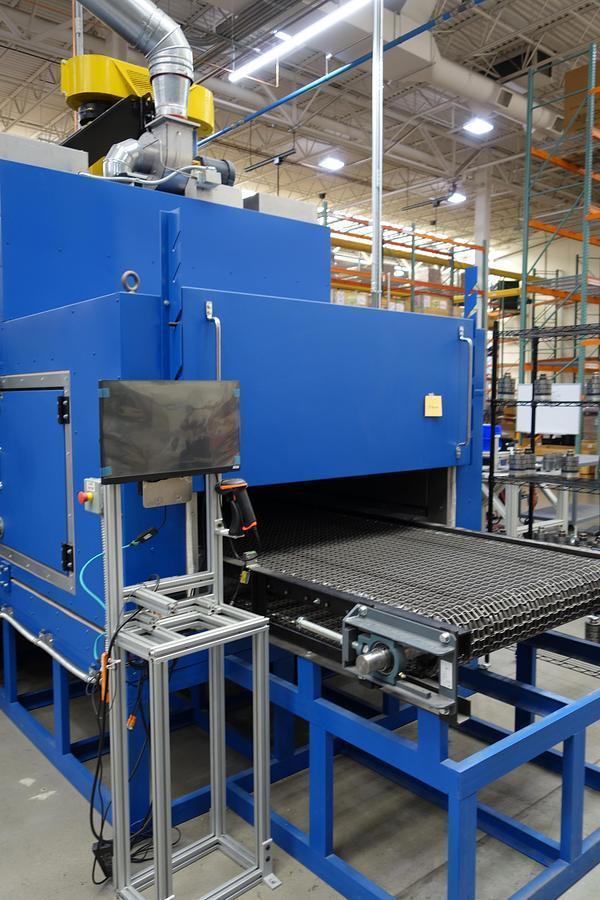

150°C JPW Industrial Oven Model C2-83-139TULEP480V45-60KW, 2023 – 20′ Conveyor

Make: JPW Industrial Ovens

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2003

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control: Allen Bradley

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General Specifications:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Conveyor oven is designed to operate at 150°C maximum temperature and includes the following special features:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 4.5” thick insulated walls, ceiling and floor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· CRS exterior painted machine gray

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Aluminized interior

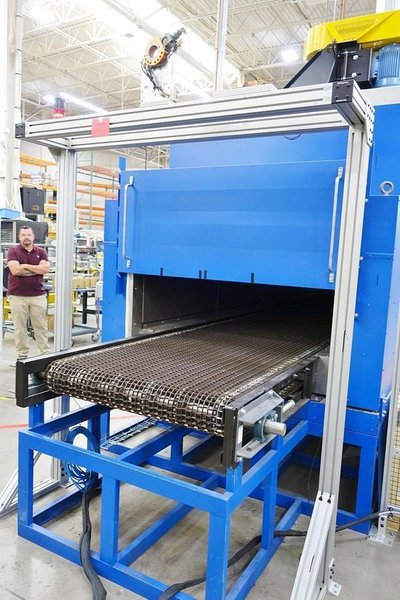

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Conveyor, 42”w x1x1 heavy duty flatwire with steel support bed 1,000 lb load

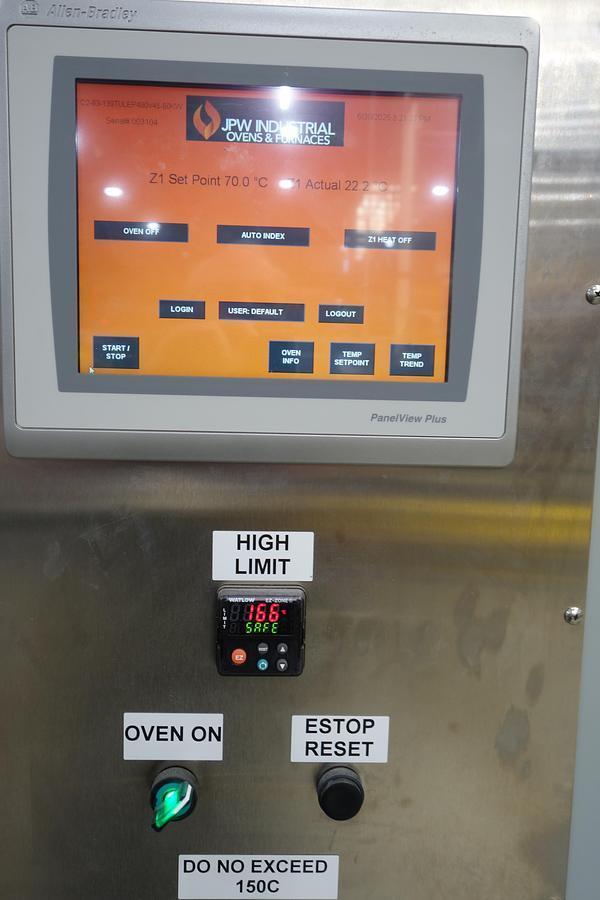

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· AB PLC with HMI monitoring all devices with communications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Watlow PM High limit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Conveyor speed range of 1.25”-4.0” per minute constant

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Product sensor on outlet end to stop conveyor if sensor is made

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Adjustable crank doors on inlet and outlet – Max height open of 21”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Skid frame bottom support to raise belt to 36” from floor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Heated Zone operating at 70C-100C +/-3C

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Heated zone will have 45KW of heat

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· UL Control panel 480V/3/60 – Nema 12

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· load conveyor – 36” long

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Unload conveyor – 36” long

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Heated zone 168” lg x 42”’w x 24”h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 1-high volume recirculation (plug design) 23,000 cfm –with a VFD operating at 18,000 cfm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· 600 cfm forced exhaust on a VFD

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Vertical down airflow

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Fused rotary disconnect

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· E stops at each end of the conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,· Access doors positioned on the right-hand side (doubles as explosion relief if required)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Batch Oven Specifications Effective Work Area (Zone 1) 3’ 6” Width × 2’ 0” Height × 14’ 0” Length

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,External Dimensions (Overall) 8’ 9” Width × 11’ 0” Height × 20’ 4” Length

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total Power 45 kW (Electric)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Recirculation Fan 1 unit @ 23,000 CFM, 10 HP motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature Rating Up to 200°C (392°F)
