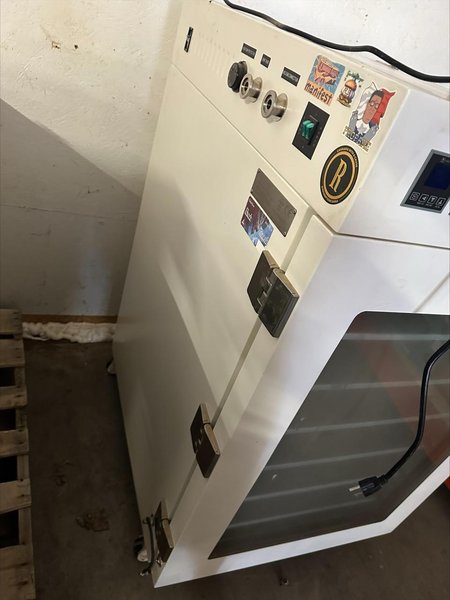

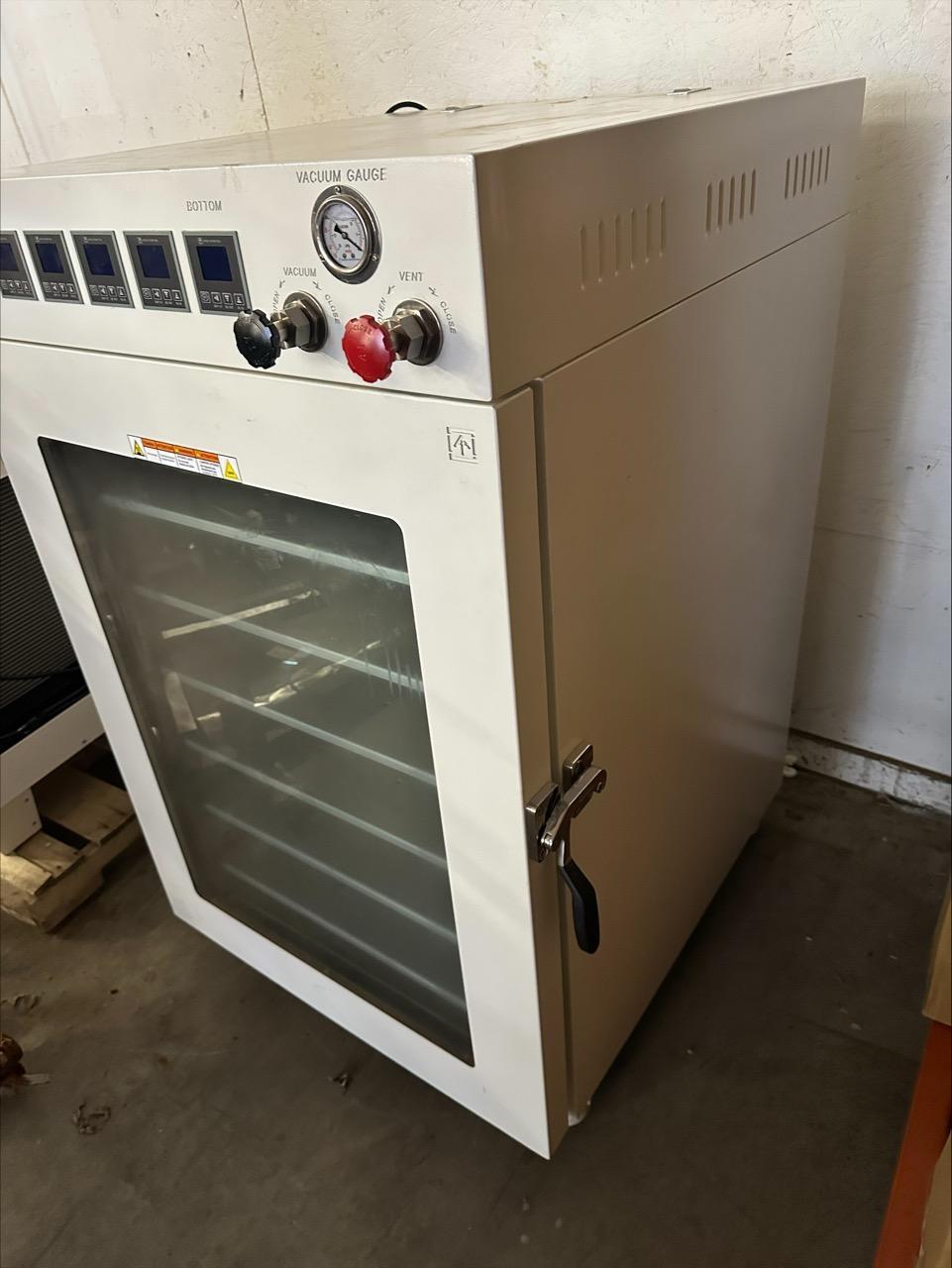

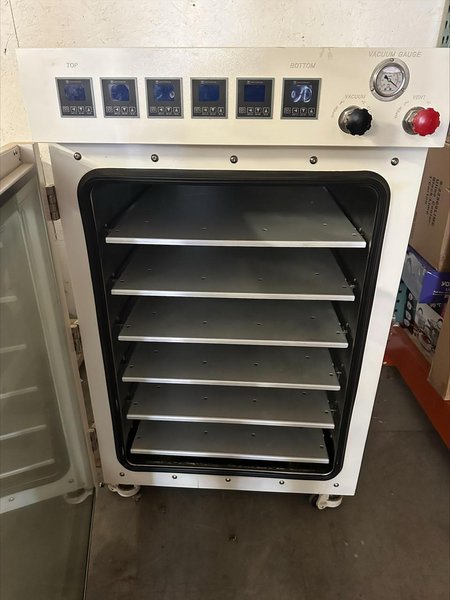

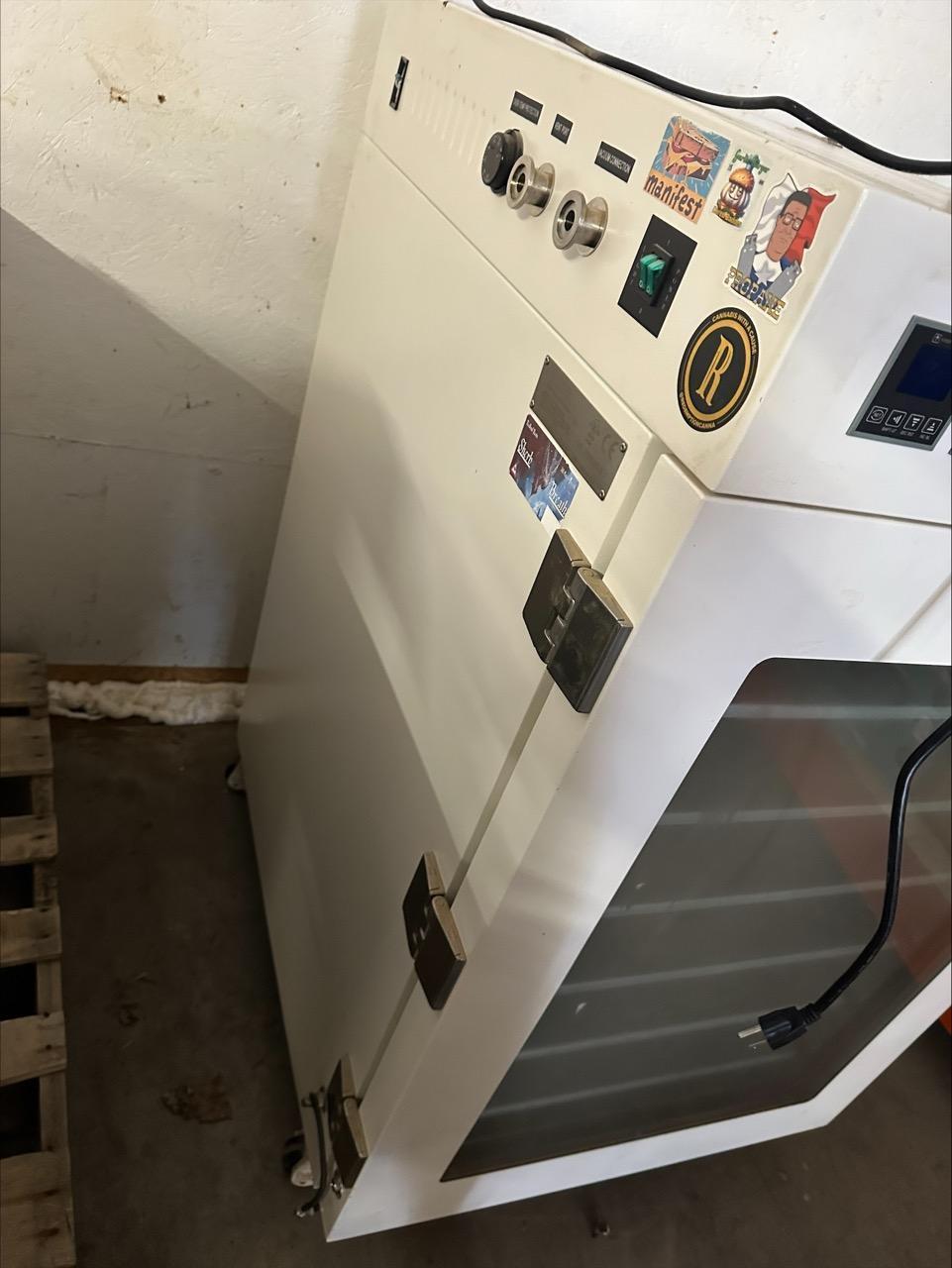

100°C Across International AT160 Vacuum Oven, 2020

Electrical Requirements

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,250 watts x 6, built into 6 aluminum shelves for the fastest, most energy efficient and uniform heating

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Chamber

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 25.6 x 30 x 35.5″ (WxDxH) Material: Stainless steel Capacity: 16 cubic feet

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Controller: Low proportional gain, microcomputer PID controlled with LCD display Range: Ambient to 100°C (212°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9,999 minutes

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ultimate vacuum level: Better than 500 microns/millitorrs (may vary based on altitude) Mechanical vacuum gauge range: 0 to 30 inch mercury Mechanical vacuum gauge type: Oil-filled Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight & Dimensions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Unit weight: 710 lbs | Shipping weight: 1,114 lbs Unit dimensions (WxDxH): 33 x 37 x 52″ Shipping dimensions: 46 x 39 x 60″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shelves

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,6 non-removable heated aluminum shelves, 25 x 29.25″ (WxD) each Optional stackable aluminum shelves: 25 x 29.25 x 2.375″ (WxDxH) Shelf spacing (without stackable shelves): 5″ Shelf spacing (with 6 stackable shelves): 2.375″ Total shelf area: 30 sq ft / 4,386 sq in (without stackable shelves) Total shelf area with stackable shelves: 60 sq ft / 8,772 sq in Max. load capacity per shelf: 20 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Door & Viewing

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Door gasket material: Silicone or Viton Observation window: 1/2″ tempered safety glass

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Safety Features

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Interior Lighting

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,White LED

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Compliance

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,UL Listed (E482564), CE

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
