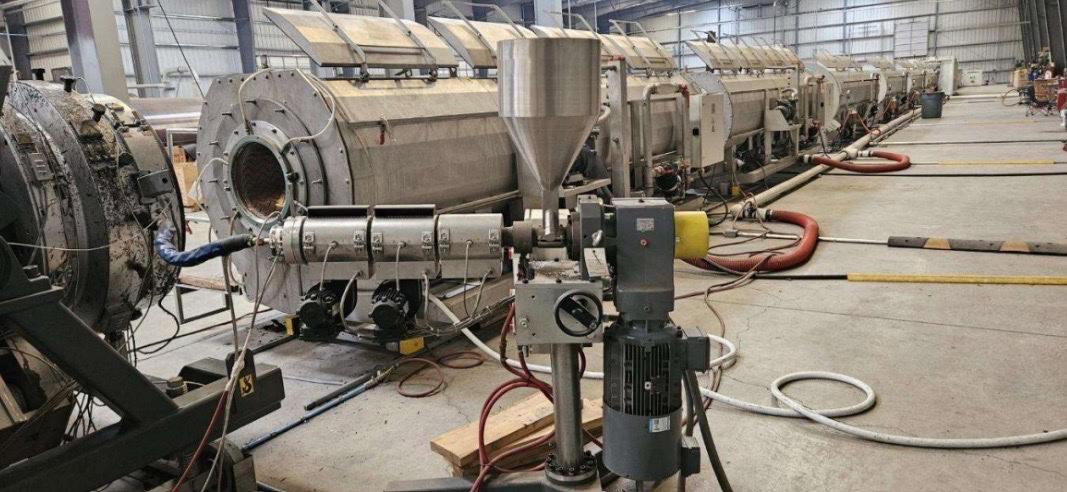

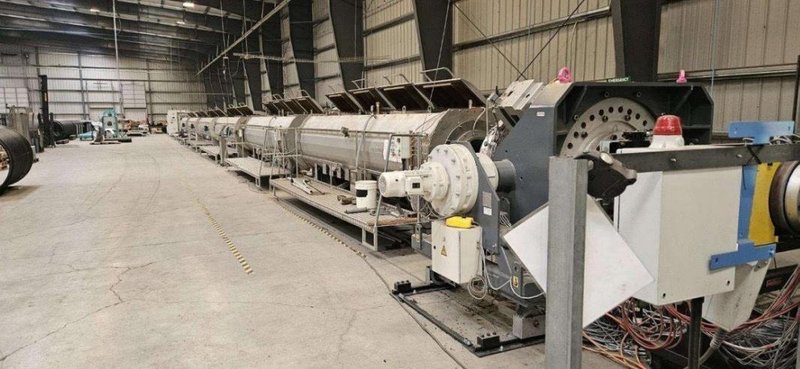

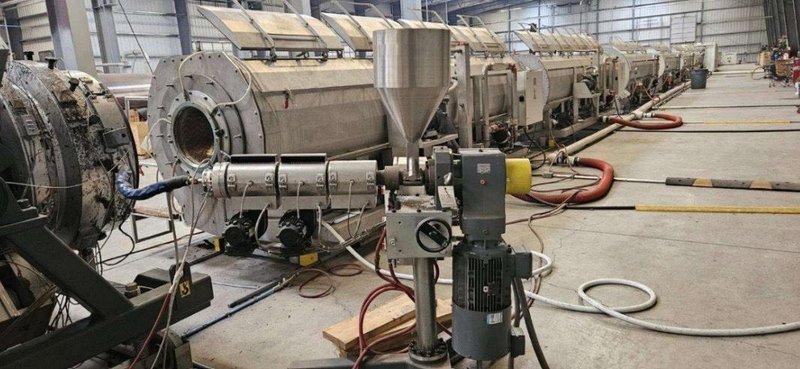

Battenfeld Helix II 630 VFI+FDC Pipe Extrusion Line, 2020 – solEx NG-90 Single Screw Extruder, Feeders, Vac Tanks, CoolTanks

Capacity & Pipe Range:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pipe Diameter: 4″ – 24″ (102 mm – 610 mm) SDR Range: 11 – 32.5

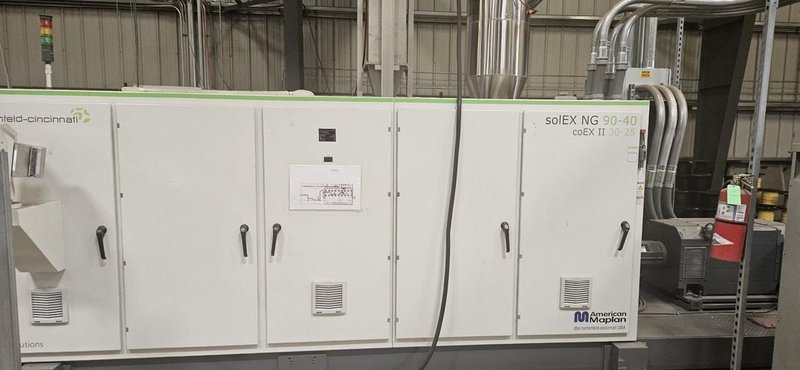

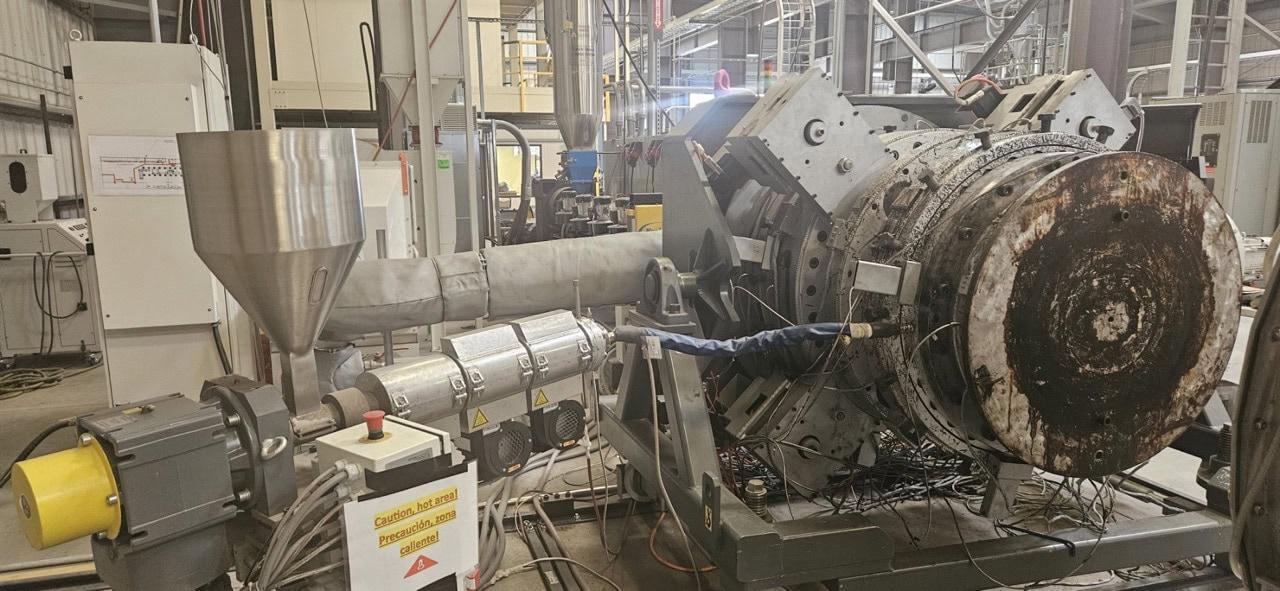

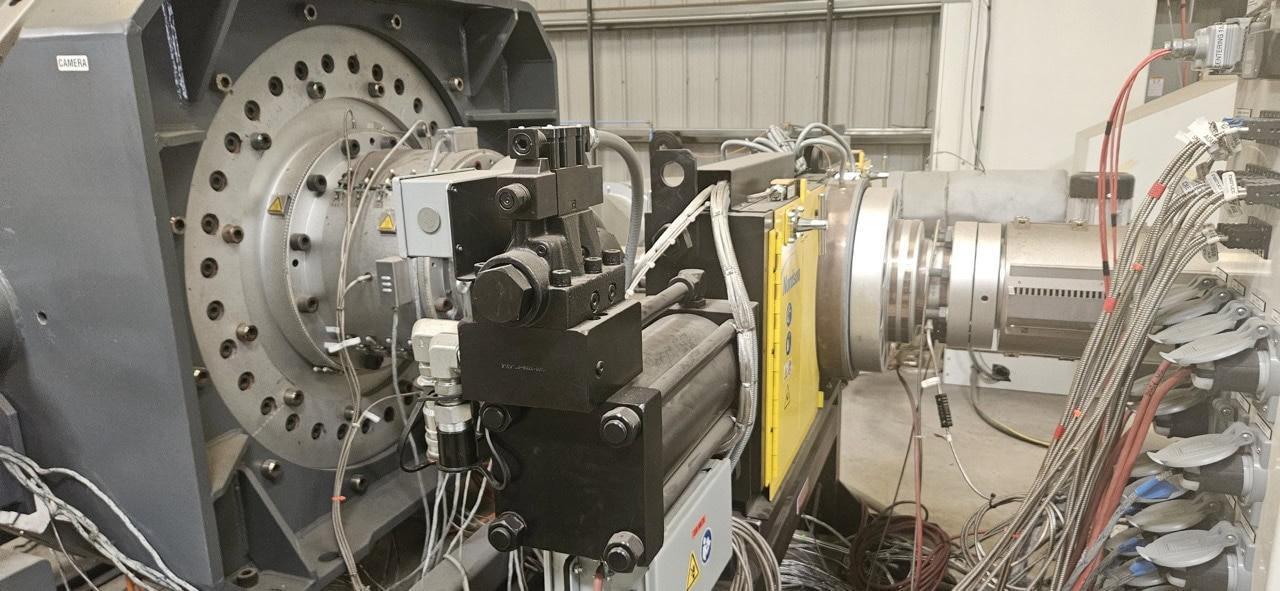

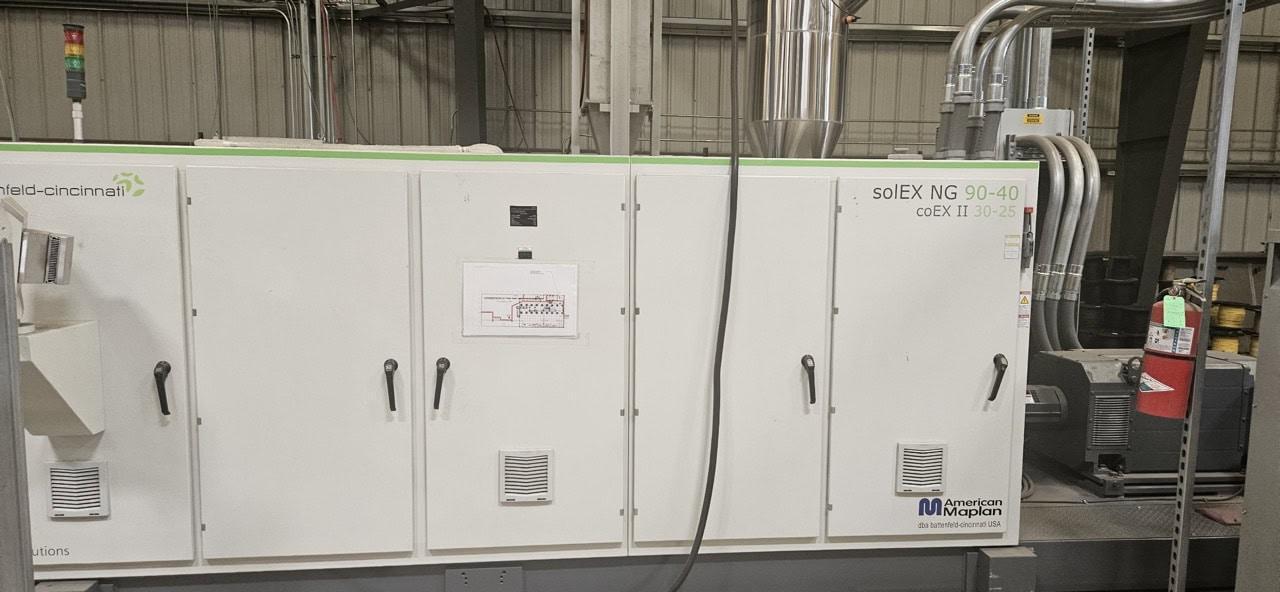

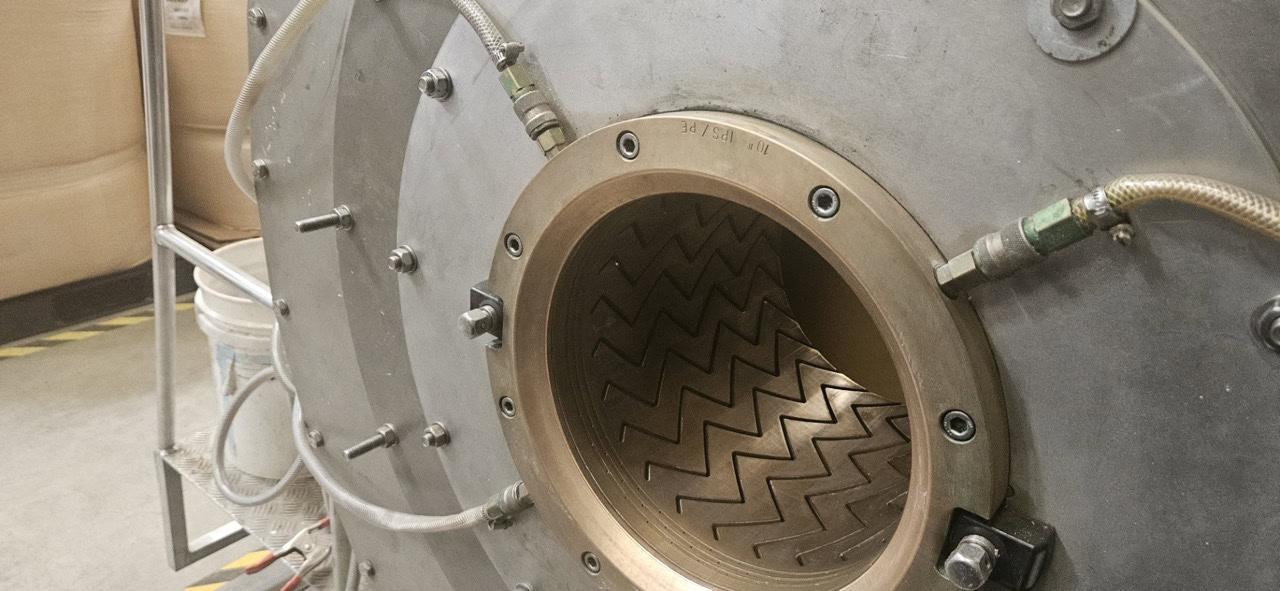

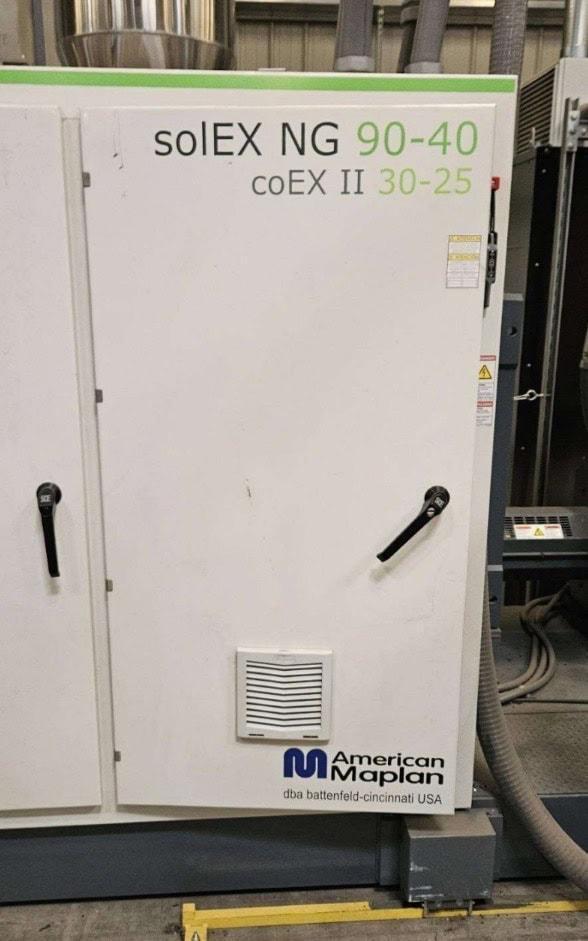

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extruder & Technology: Model: solEX NG 90 Line Rates: 1,620 Hg/Hr or 3,564 PPH Feeders: Sysmetric feeder system with 3 feeders (Main resin, Regrind, Color MB) Co-Extrusion and Striping Ring Screen Changer included Diehead: Standard or Automatic FDC design, adjustable calibration sleeves

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional Equipment:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pipe Mandrel with Insulation – Diameter Range 609 mm (SDR9-11) to 508 mm (SDR7-11), for use with die set DI 610 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Extension Set – Diameter Range 355 – 457 mm (SDR7-11)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pipe Mandrel with Insulation – Diameter Range 219 – 323 mm (SDT7-11), for use with die set DI 336 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pipe Mandrel with Insulation – Diameter Range 168 – 114 mm (SDR7-11)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

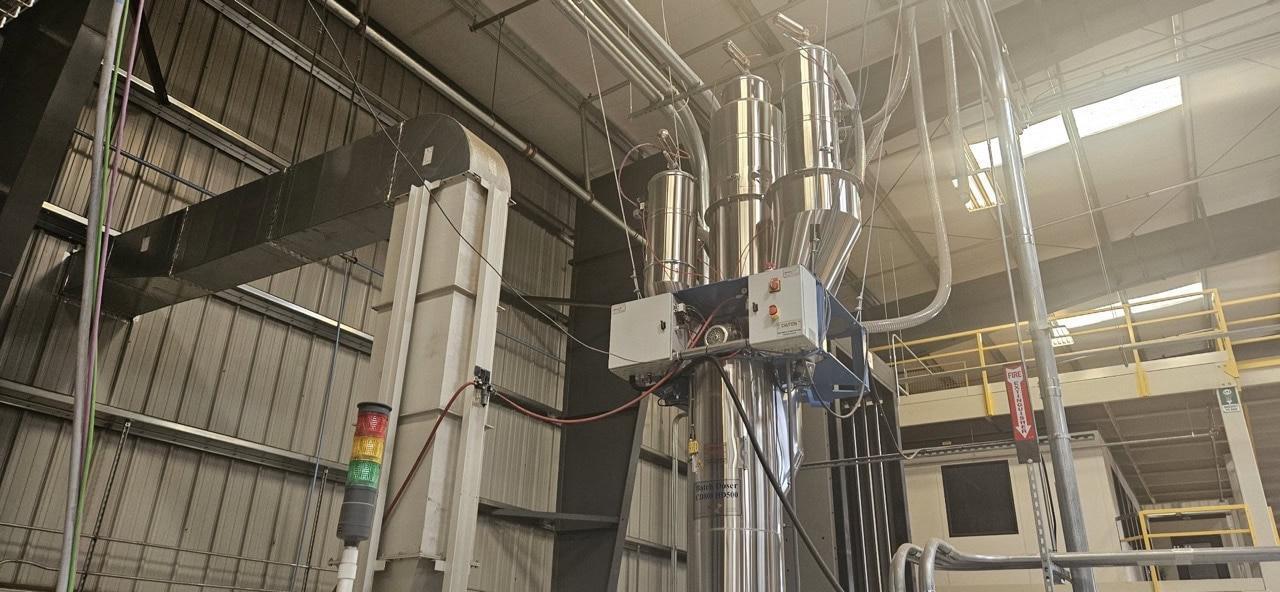

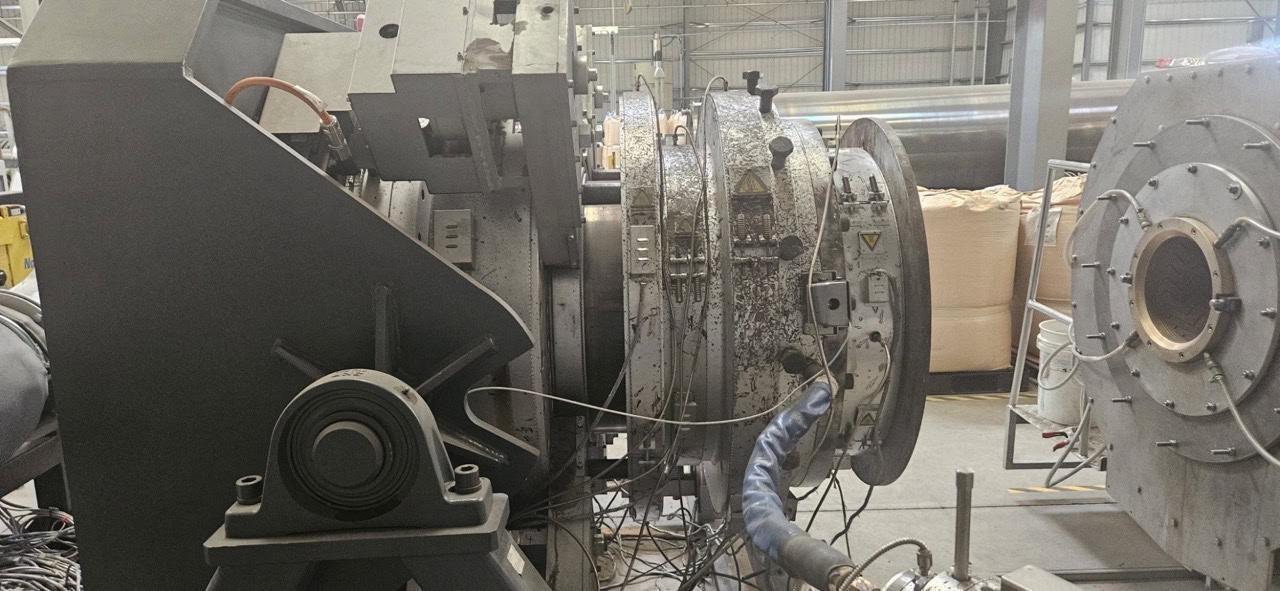

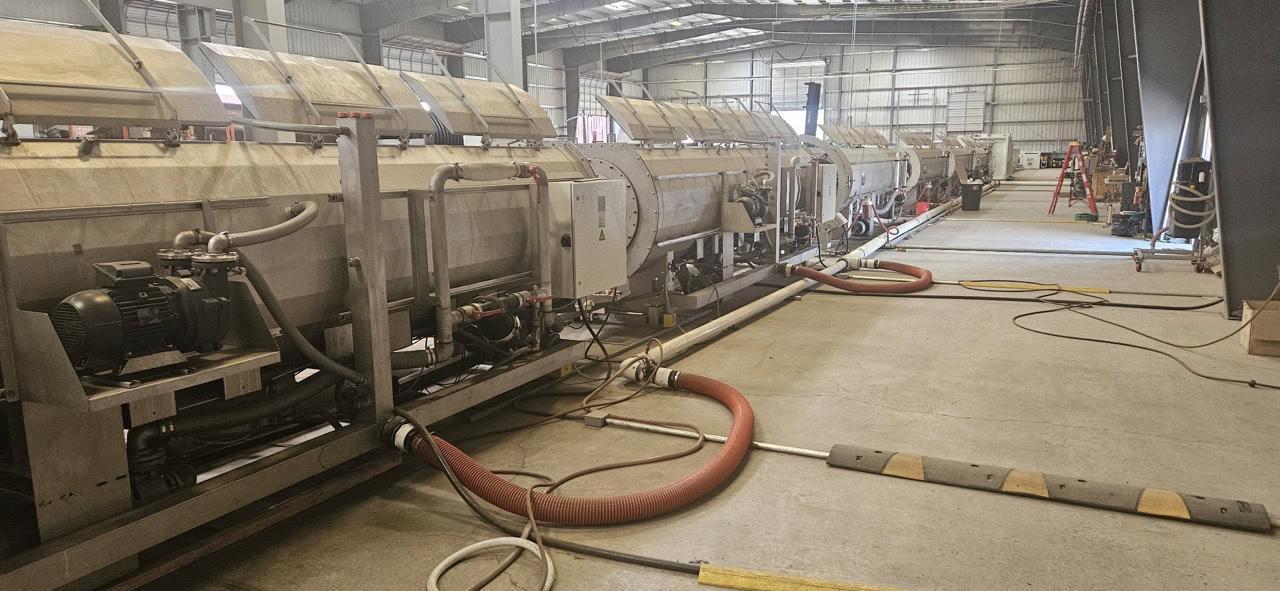

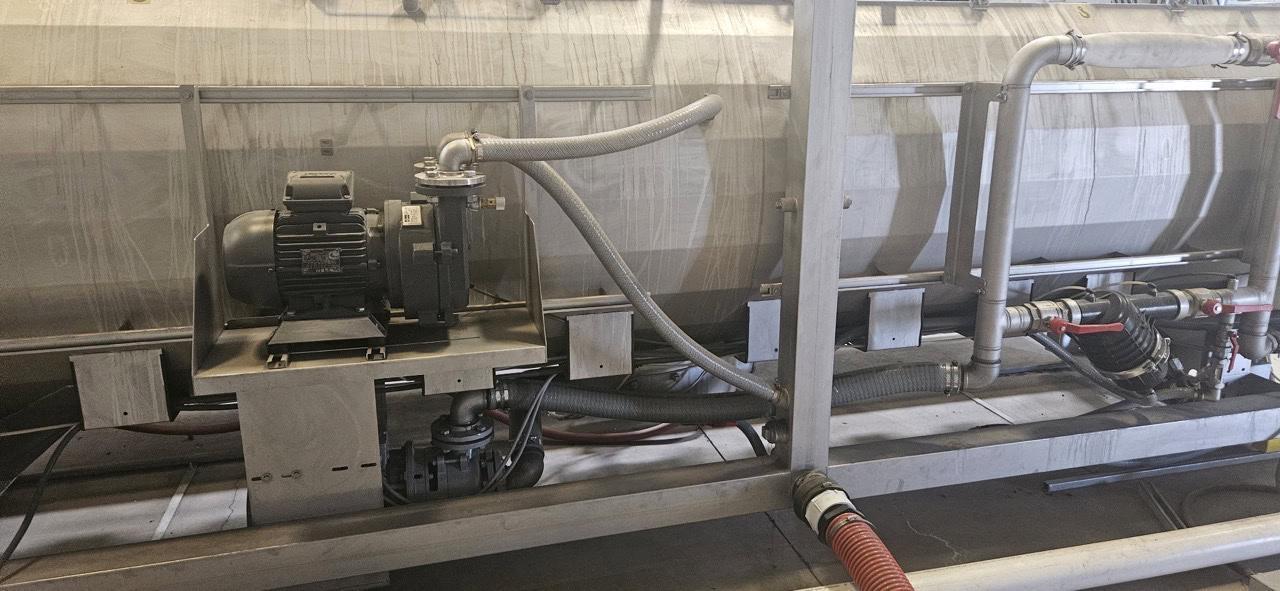

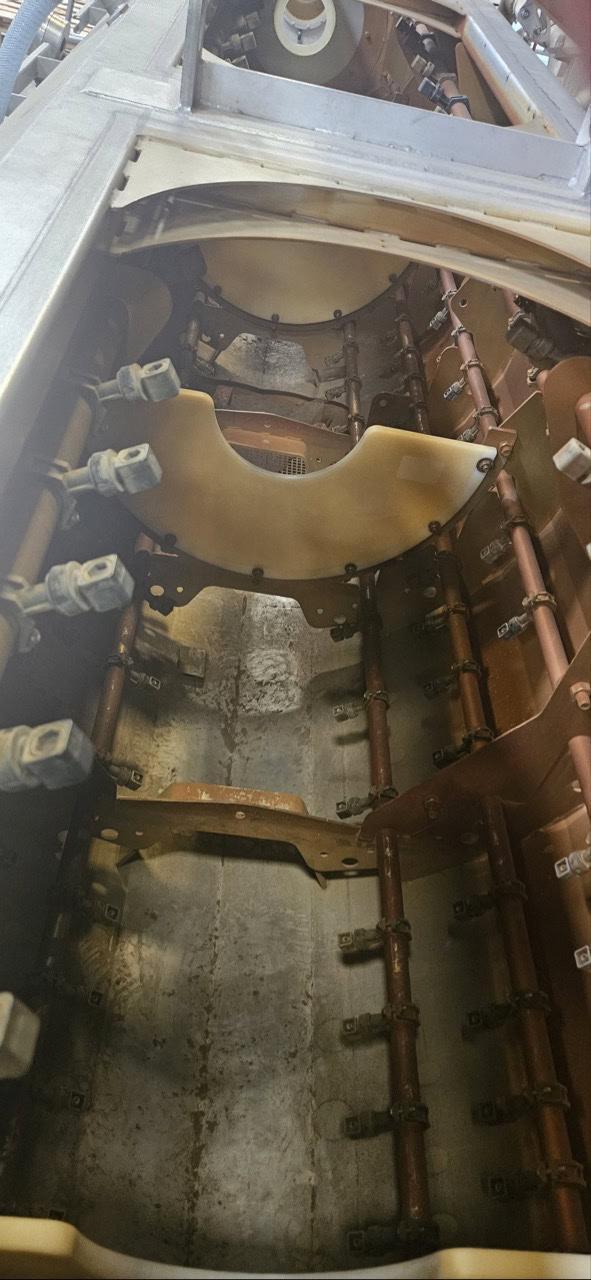

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Adjustable Diehead Sica 630 Sysmetric Feeder System (2) Vac Tanks & (4) Cool Tanks
