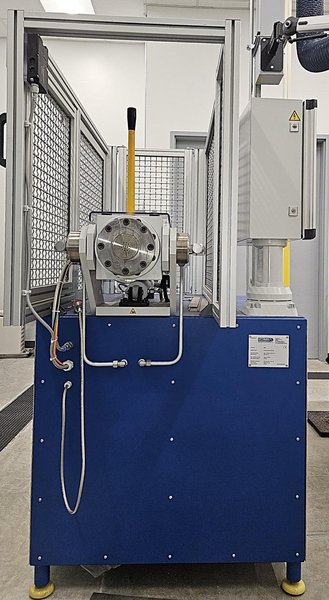

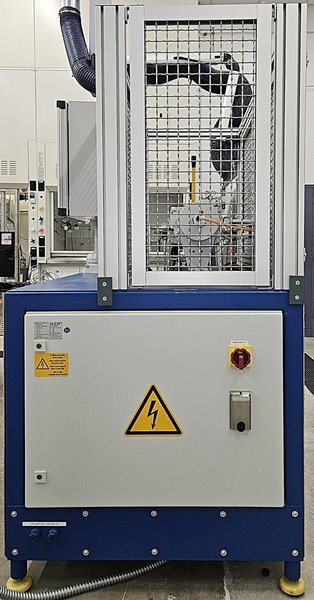

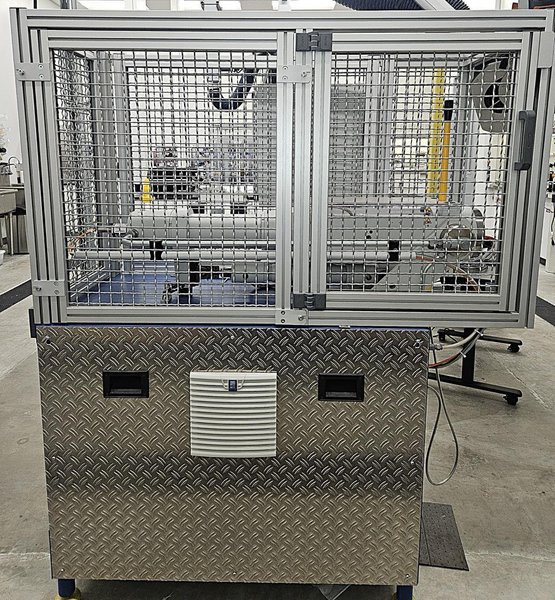

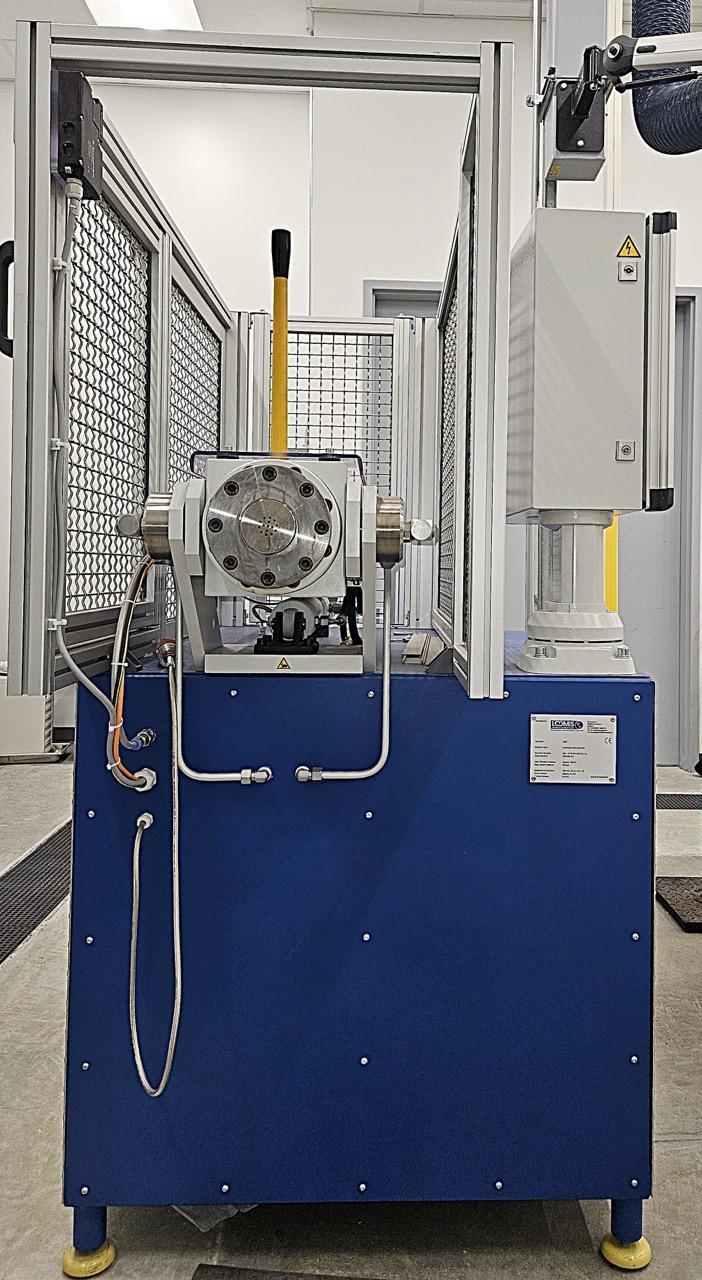

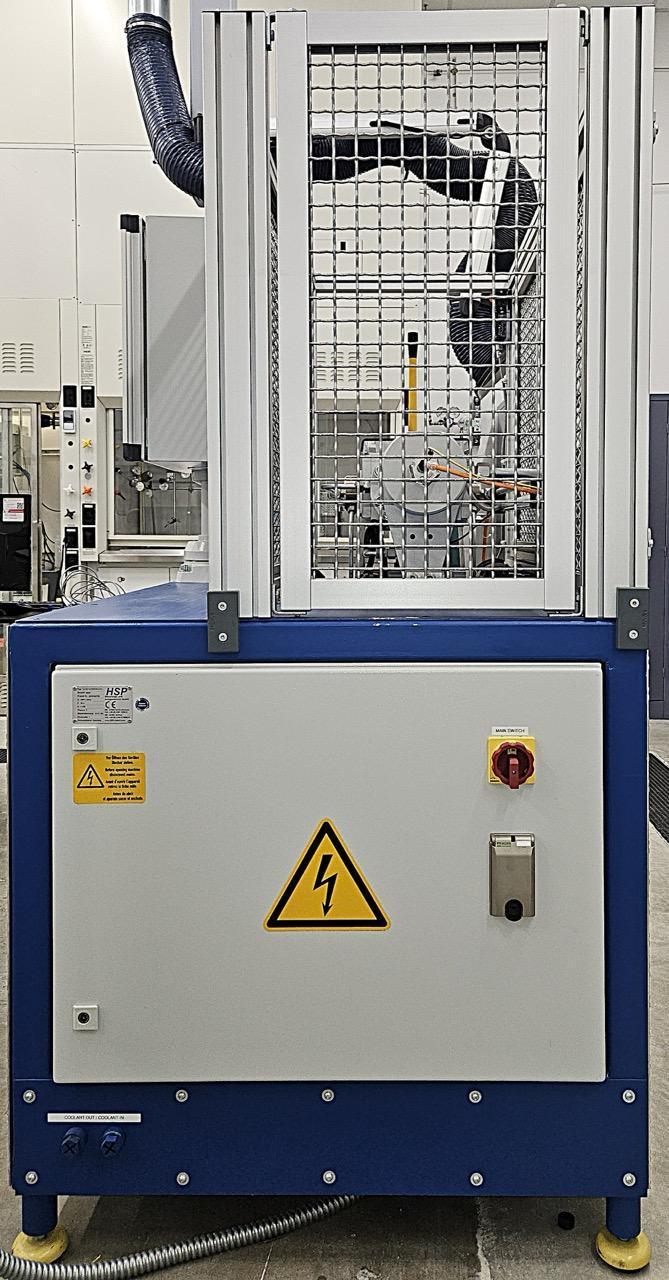

Loomis Laboratory 60mm ID Hydraulic Piston Extruder – 2020, Unused (FAT Tested Only)

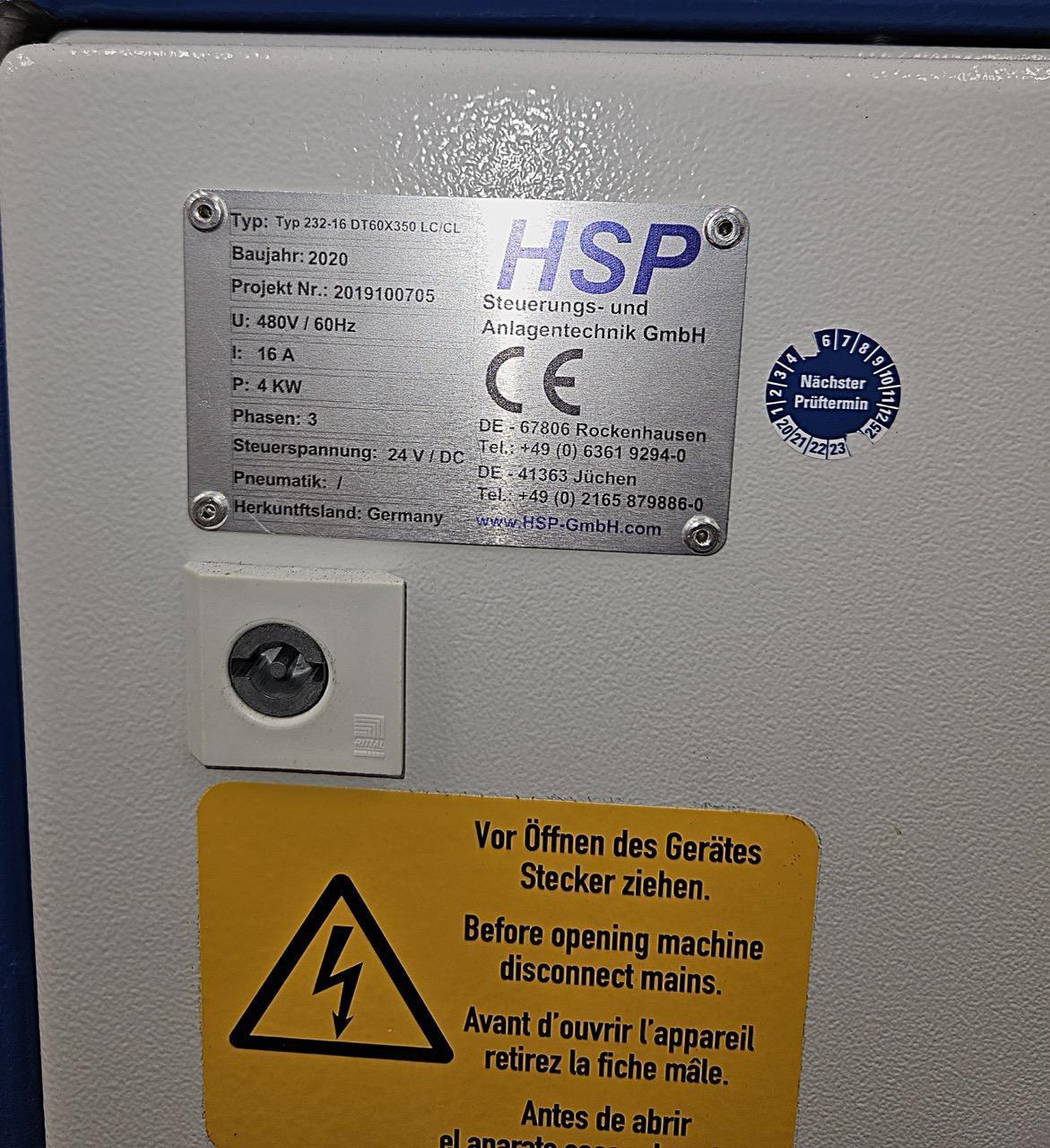

Press Tonnage: 0 – 165 kN Ram Speed Forward: 10 mm/sec Ram Speed Retract: 13.8 mm/sec Extrusion Speed: 0 – 5.2 mm/sec Material Cylinder Inner Diameter: 60 mm Material Cylinder Length: 350 mm Operating Pressure Max: 210 Bar Power Consumption: 2.50 kW Supply Voltage: 380 – 420 VAC 50 Hz 3 Phase Control Voltage: 24 VDC Machine Dimensions: 63″ x 35.4″ x 60.6″ Vertical Frame Height: 81.5″ Extrusion Exit Height CL: 45.3″ Weight: 1,213 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

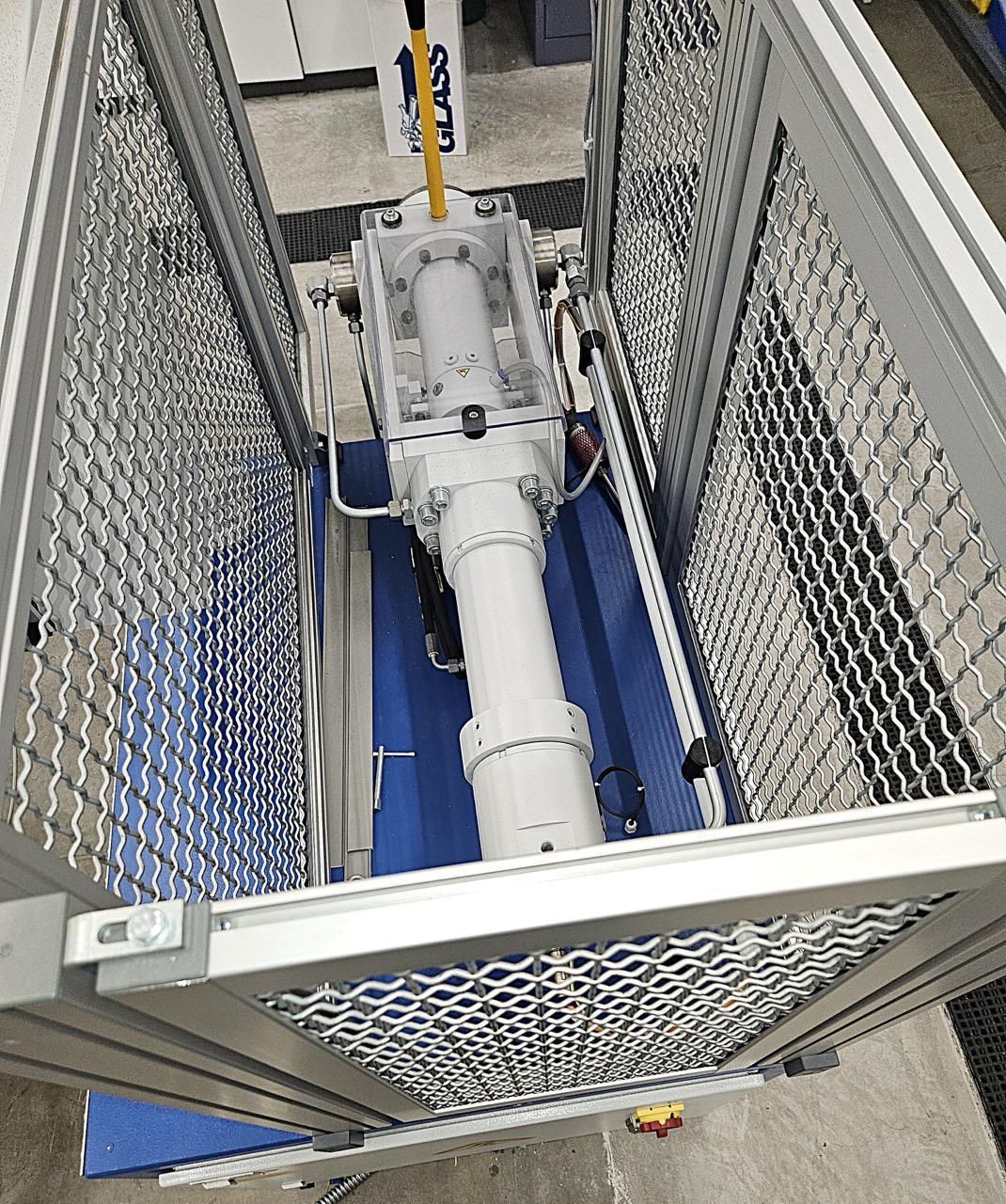

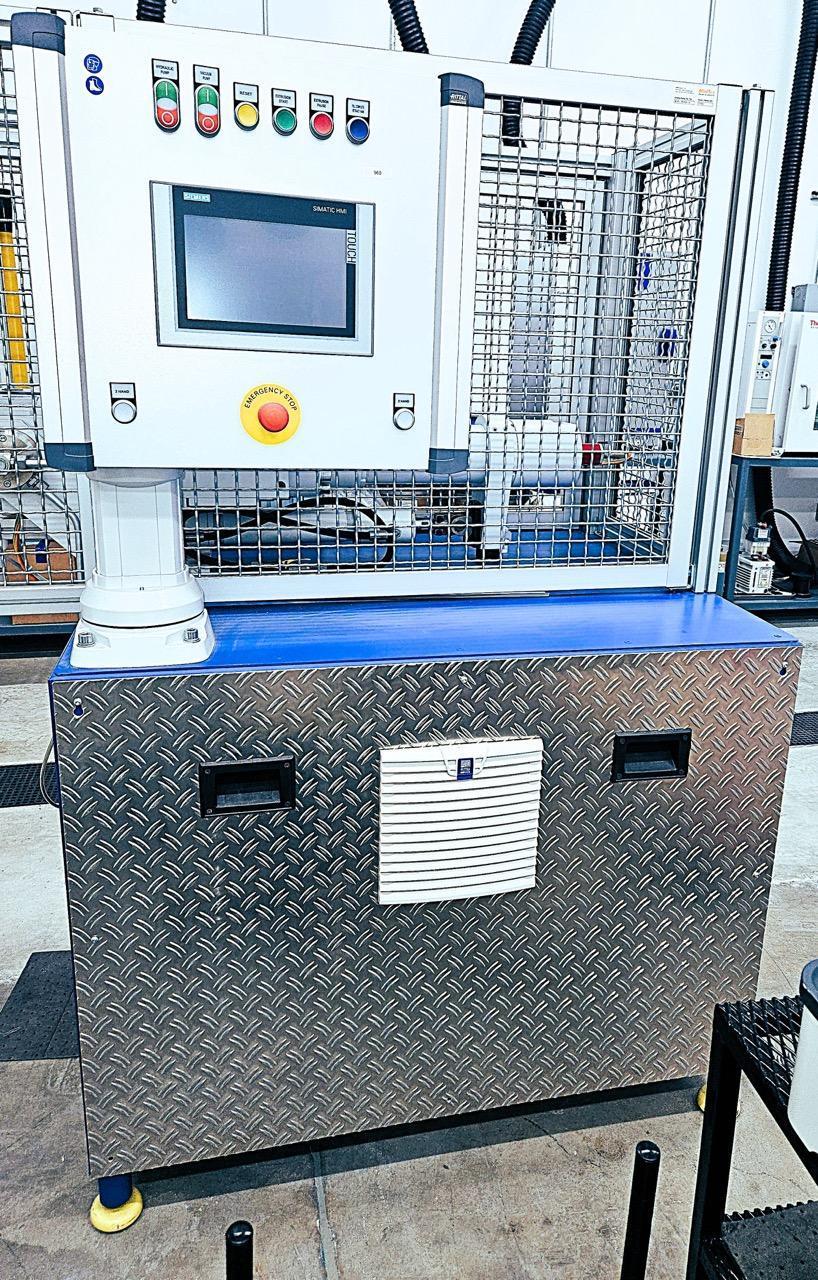

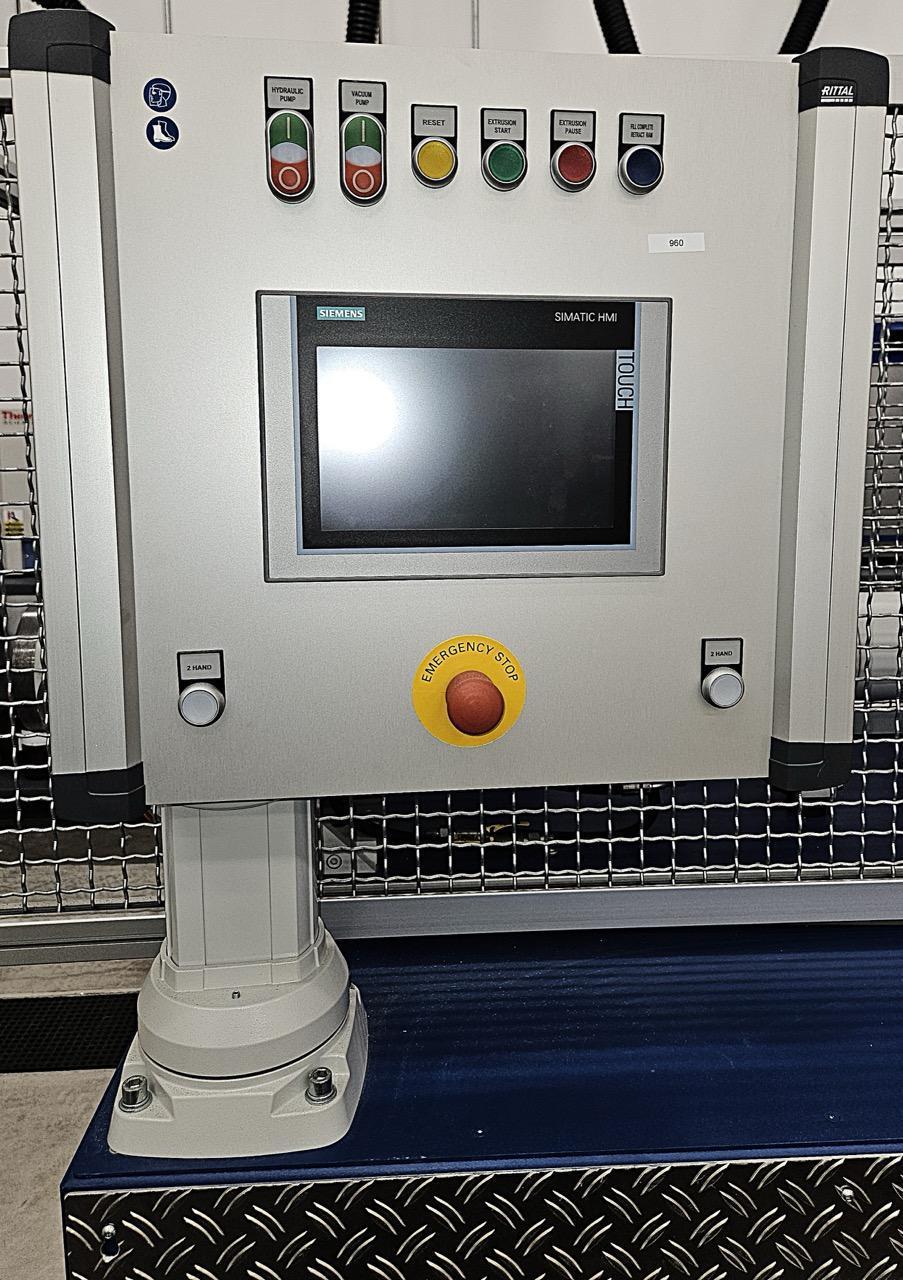

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Siemens S7-1200 CPU and Siemens 7” Touch Panel Prepped for Liquid Heat/Cool Nozzle Heating and Temp Control Industrial Paste Pressure Senser Vacuum System 1.75 M3 Per Hour Interchangeable Cylinders 50 – 100 mm Range Hard Chromed Inner Cylinder All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
