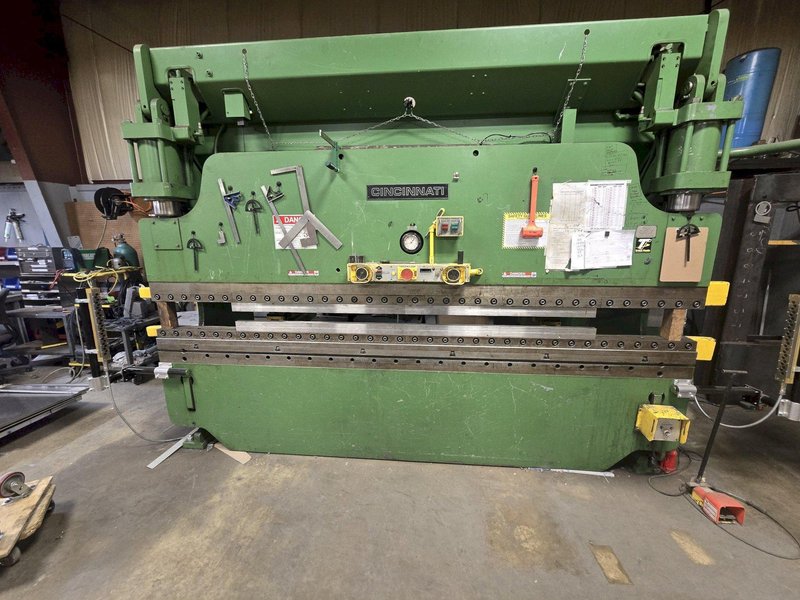

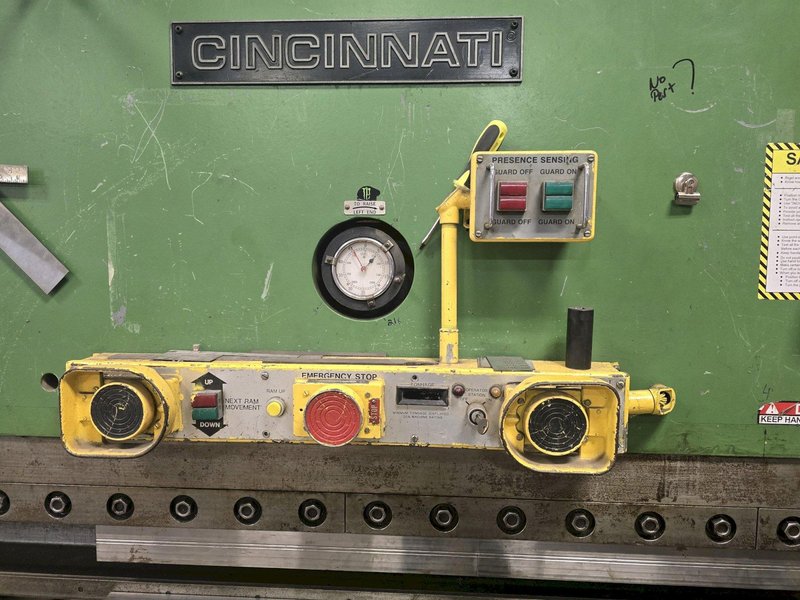

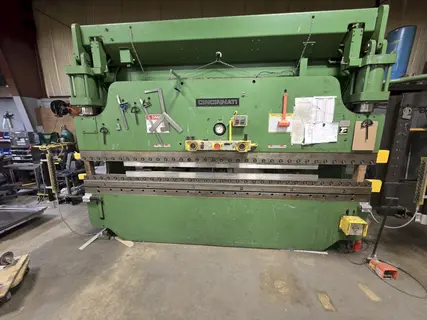

90 Ton x 12’ Cincinnati AS90 x 10 Hydraulic Press Brake, 1986 – Updated Electronics and Control

Tonnage Capacity: 90 tons Overall Bending Length: 144”(12 feet) Distance Between Side Housings: Approximately 126.5” (10 feet 6.5”) Stroke Length: 8” Open Height: 15” Closed Height: 7” Throat Depth: 7” Ram Speeds: Approach: 312–380” per minute (IPM) Forming: 15–120 IPM Return: 294–405 IPM Backgauge Travel: Typically 24” (programmable X-axis) Main Motor: 17.5 to 25 horsepower, 220/440V, 3-phase Bed Width (Top Surface): 3.5” Machine Weight: 8,800 lbs Footprint: 150″ L × 60″ D × 96″ H (varies slightly by configuration)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

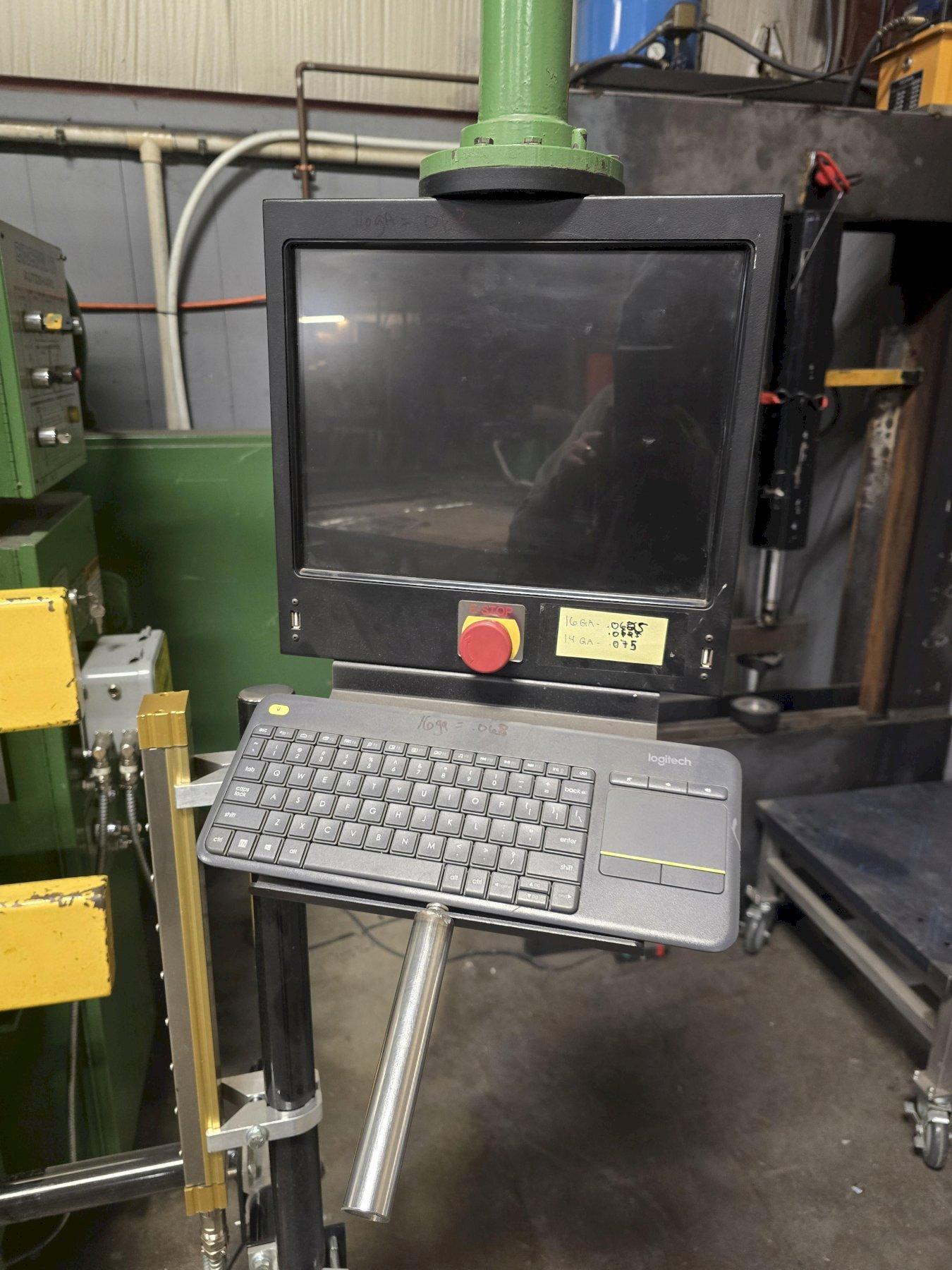

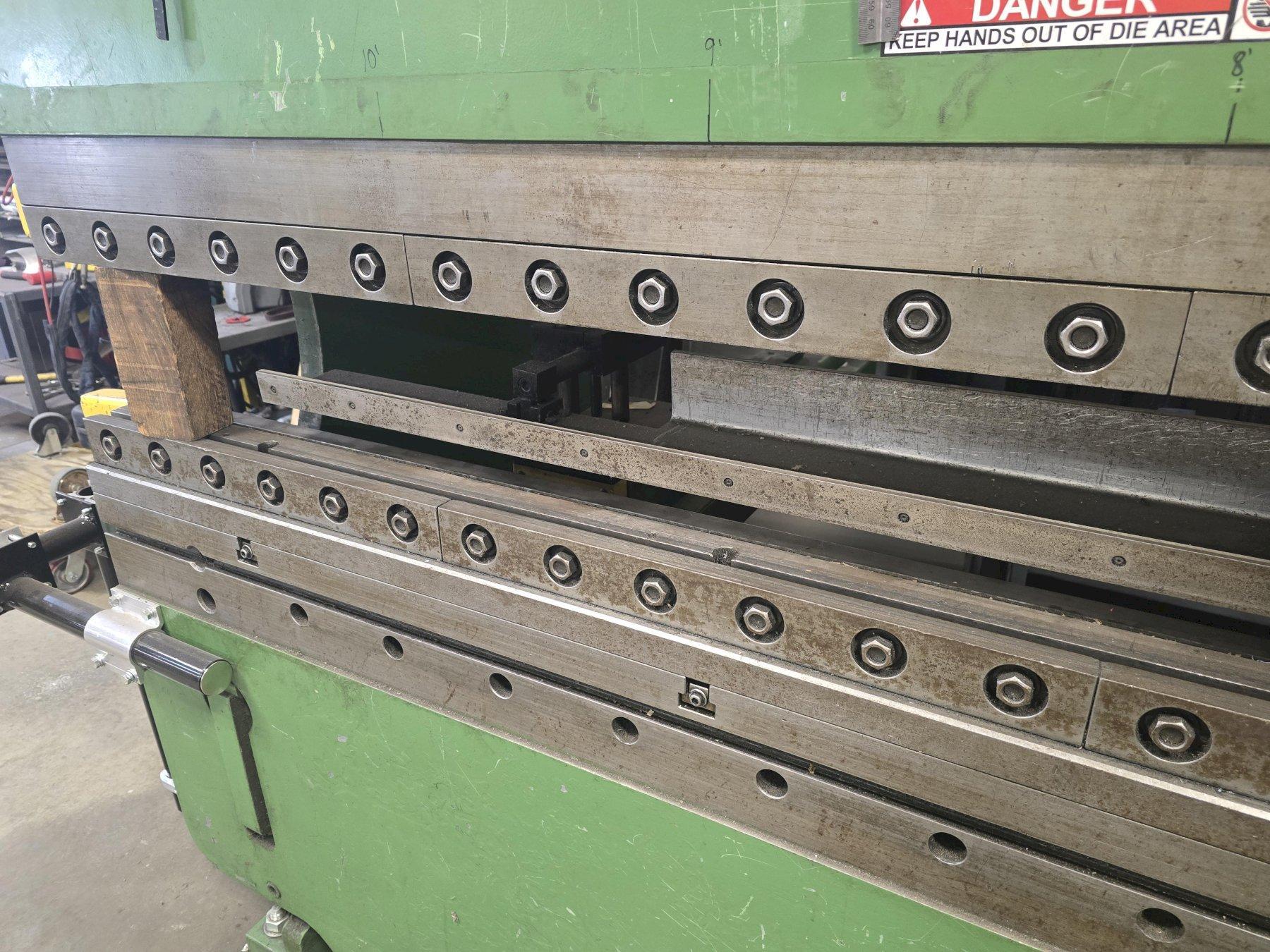

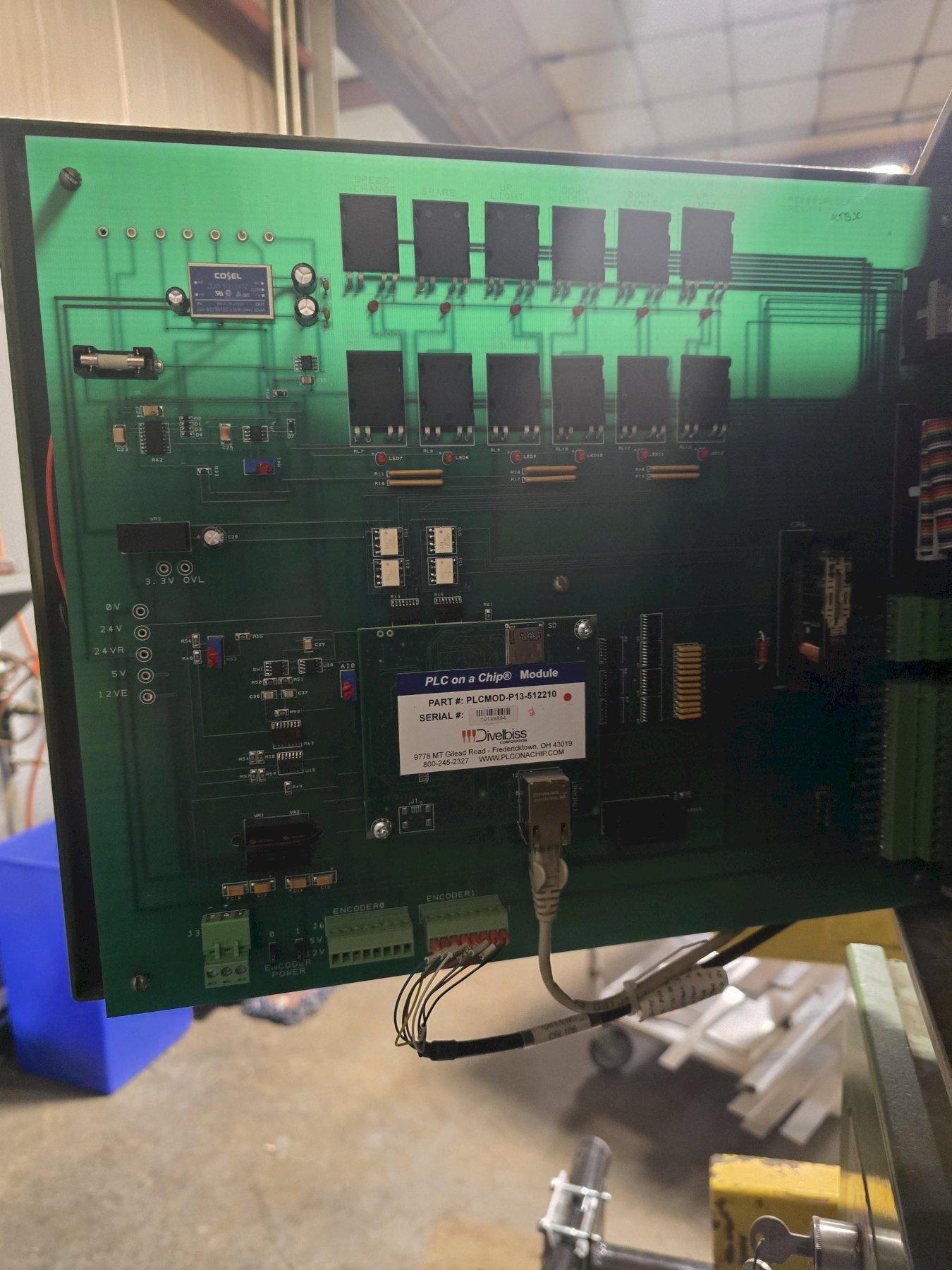

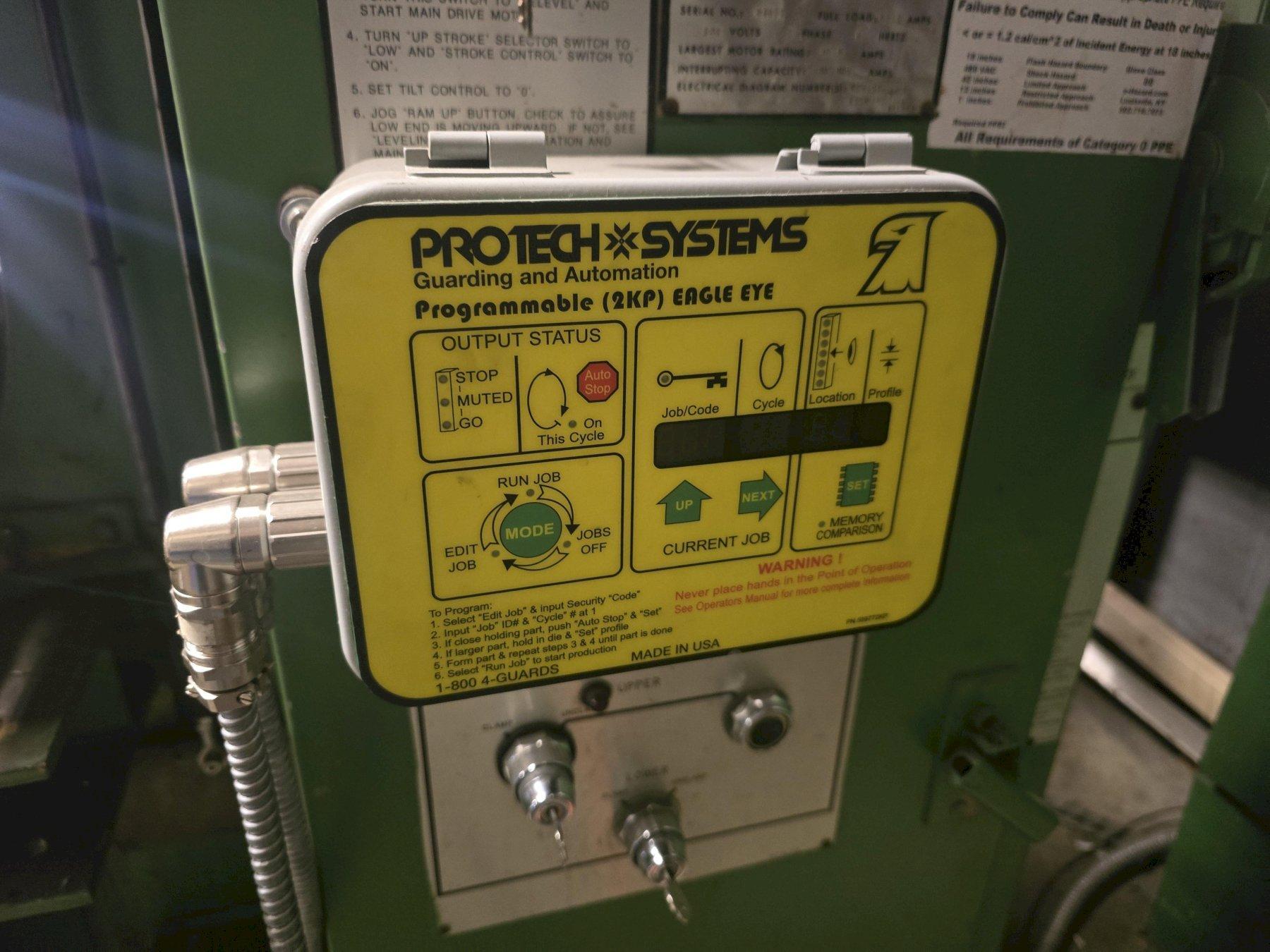

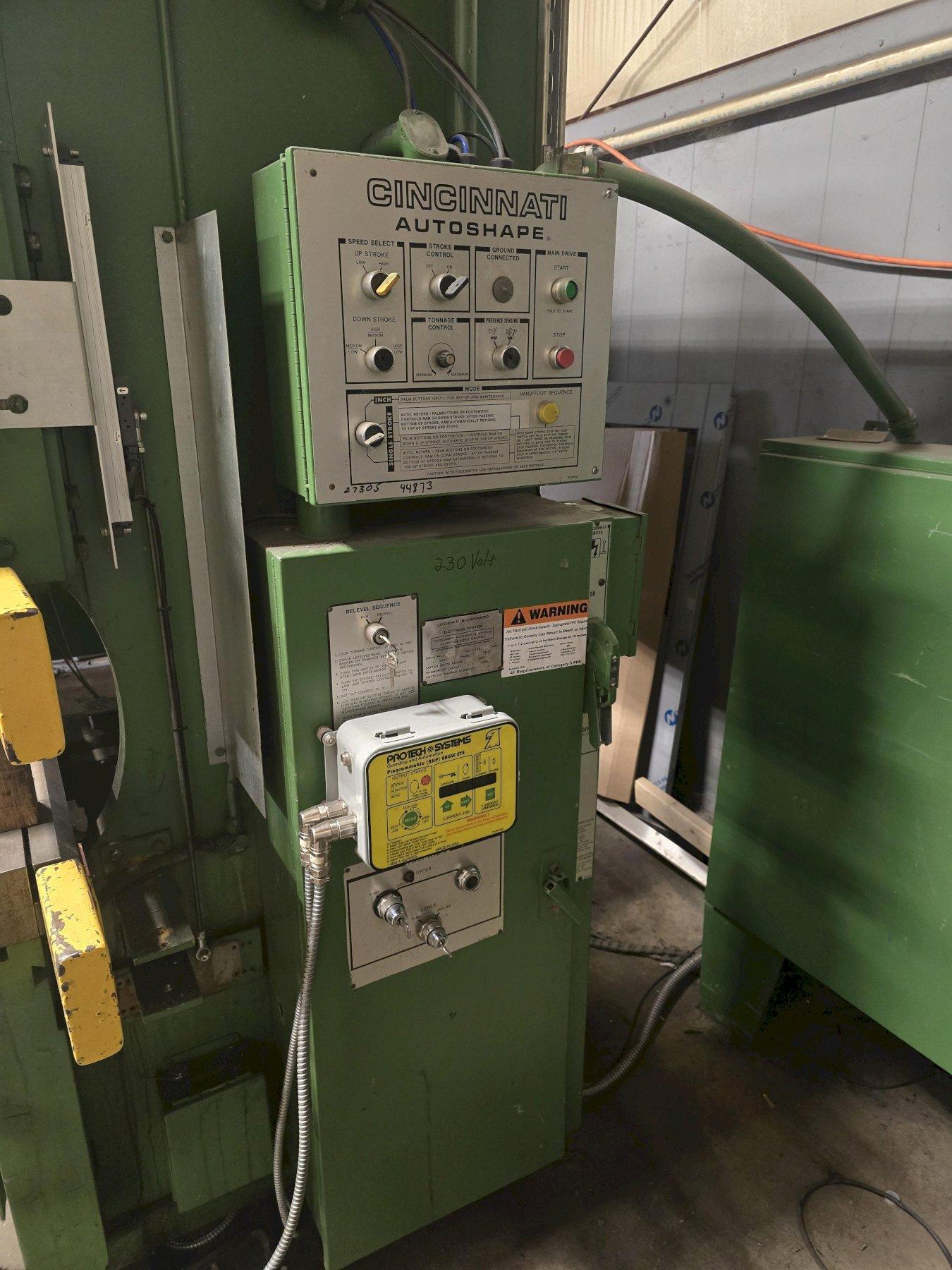

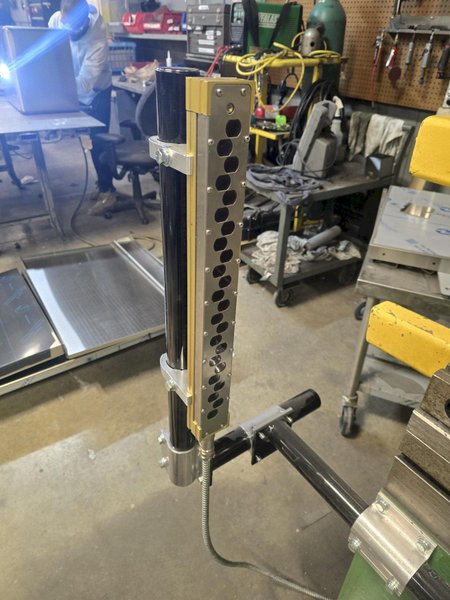

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Upgraded touchscreen controls (2024) Both cylinders rebuilt (2024) 4-way valve replaced (2024) Oil changed (2024) Electronics and Control updated 2024 Hydraulic upper and lower clamps Protect light curtain Ethernet connection and runs windows 10 The unit can be programmed remotely, access files if connected to a server, has 512GB of on-board storage, and remote support is available Currently wired for 240v 3 phase @ 45amp (60 amp breaker/fuse)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
