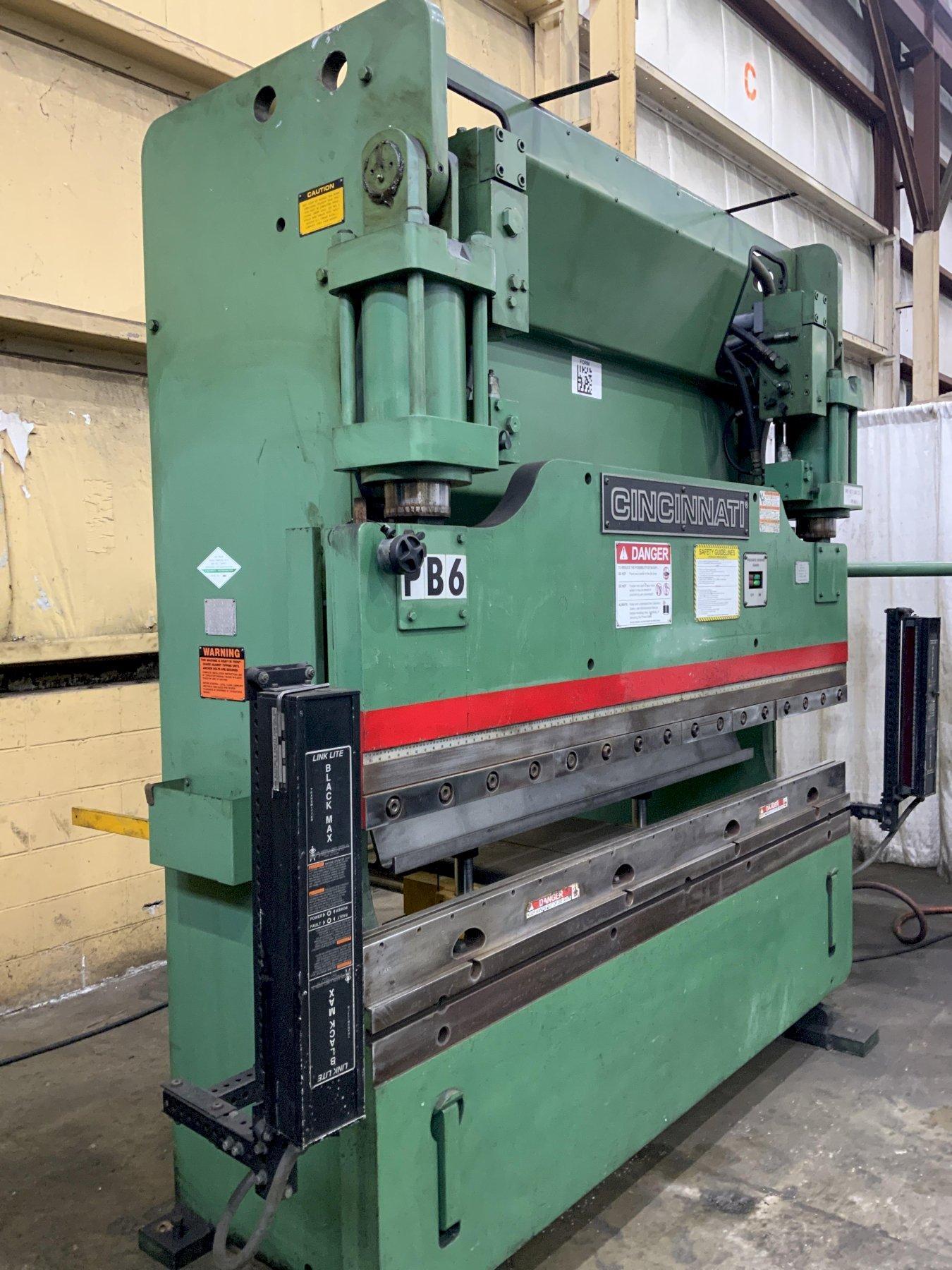

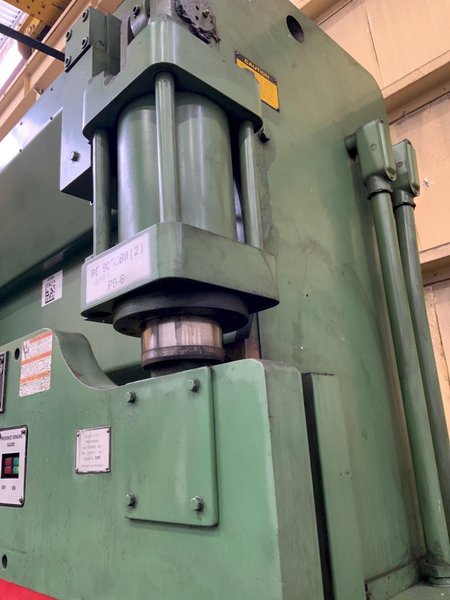

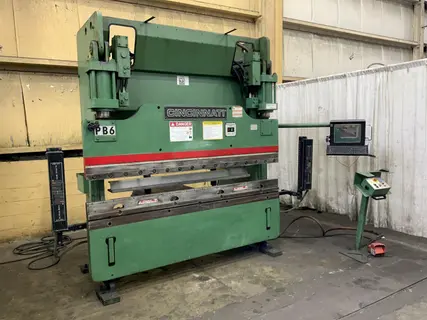

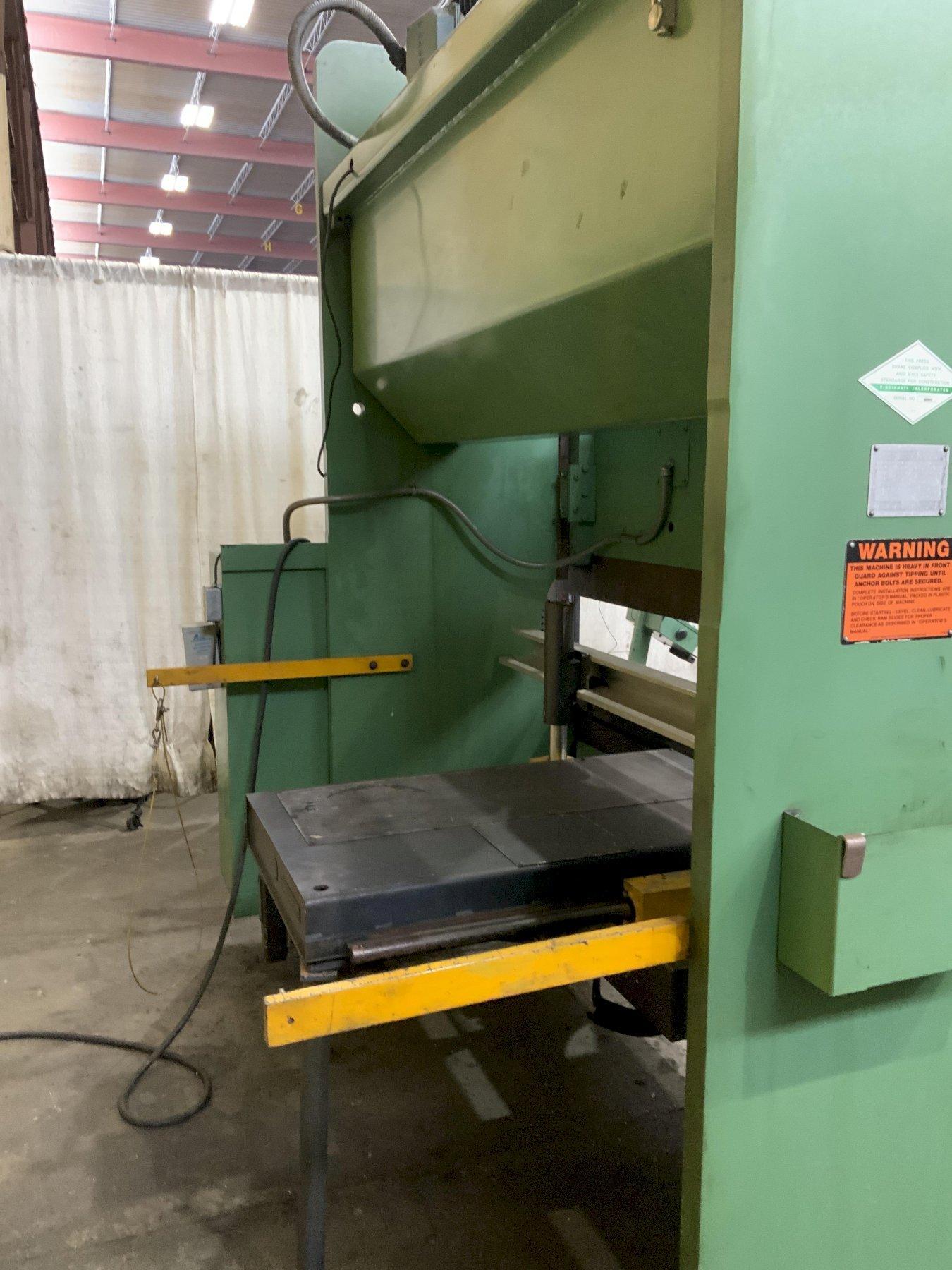

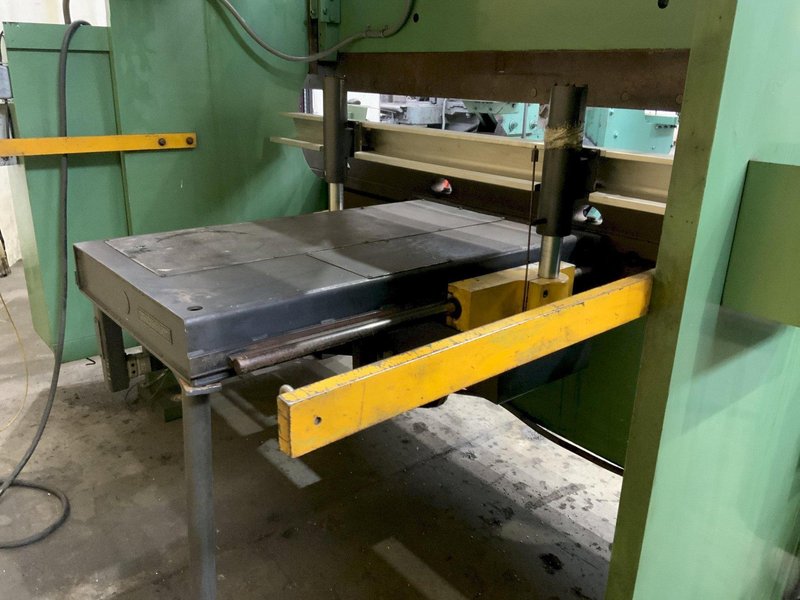

90 TON X 8' CINCINNATI CNC HYDRAULIC PRESS BRAKE: STOCK #80720

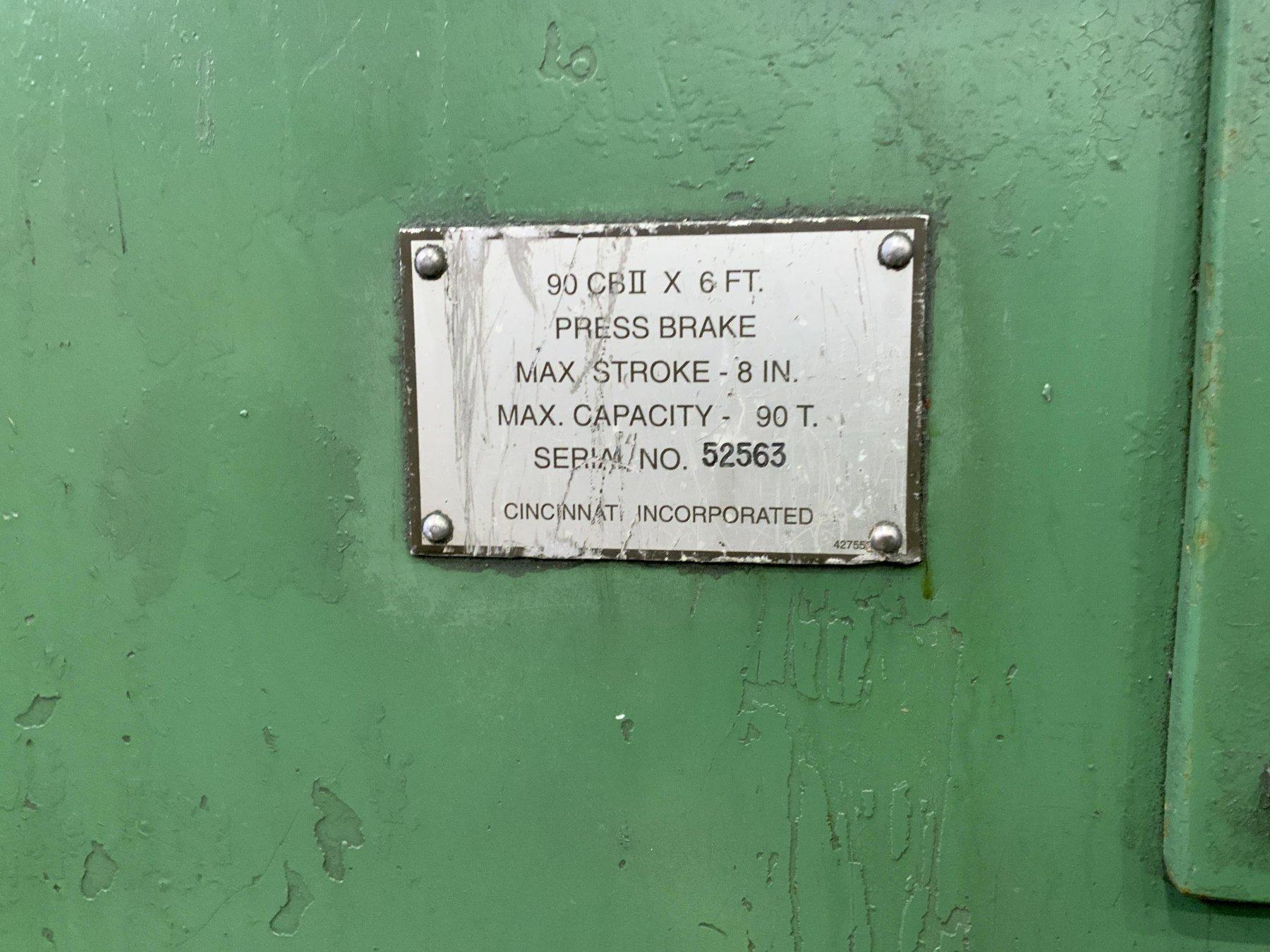

SERIAL .............................. 52563

MODEL ............................... 90CBIIX6

YEAR NEW ............................ 2002

CONTROL UPGRADED .................... 2010

CAPACITY ............................ 90 TON

OVERALL LENGTH OF BED & RAM ......... 8'

DISTANCE BETWEEN HOUSINGS ........... 6'6"

STROKE OF RAM ....................... 14"

OPEN HEIGHT ......................... 21"

CLOSED HEIGHT ....................... 7"

DEPTH OF THROAT ..................... 7"

RAM SPEED RAPID APPROACH ............ 150 IPM

RAM SPEED FAST PRESS ................ 70 IPM

RAM SPEED PRESSING .................. 21 IPM

RAM SPEED NORMAL RETURN ............. 136 IPM

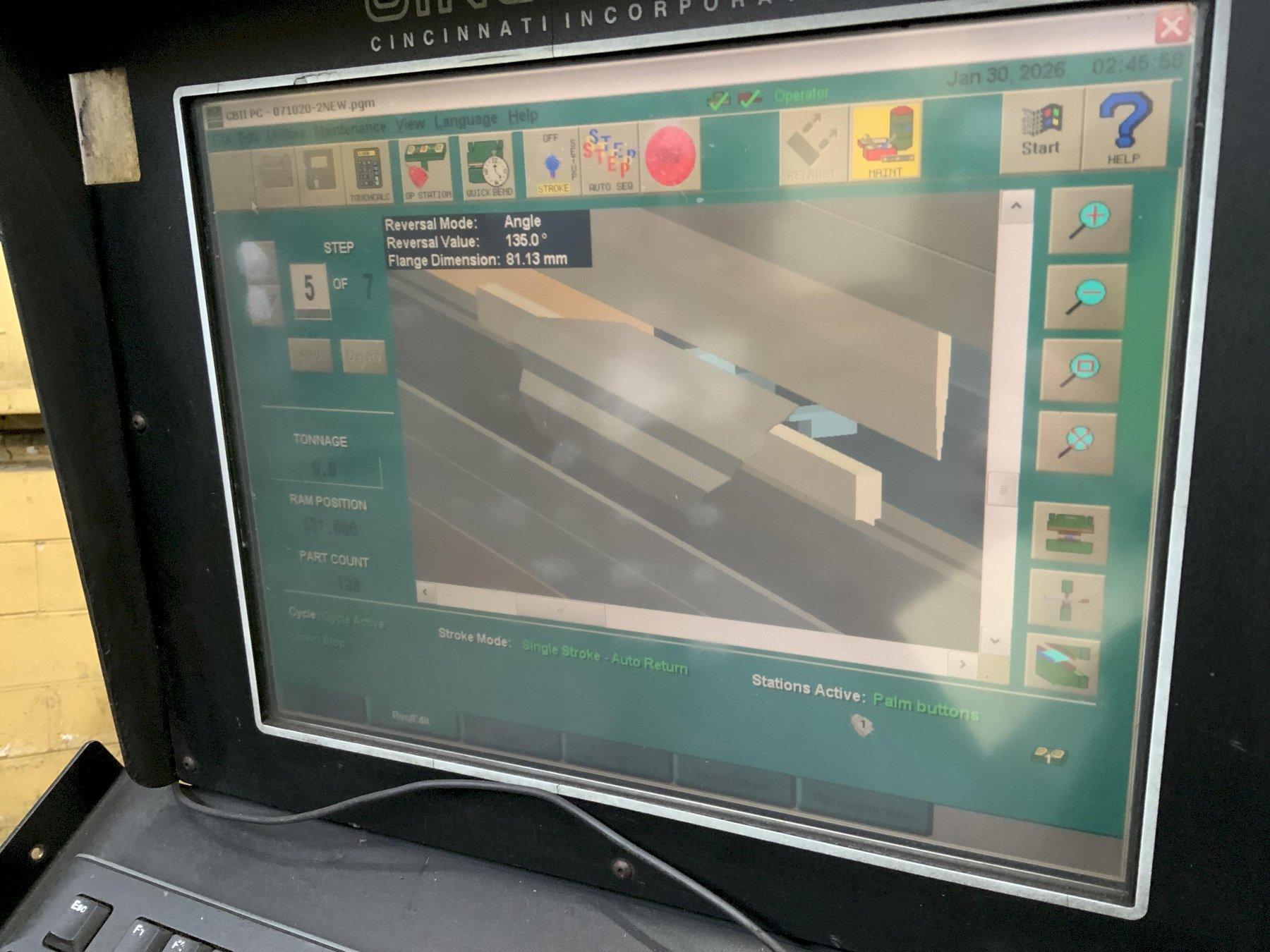

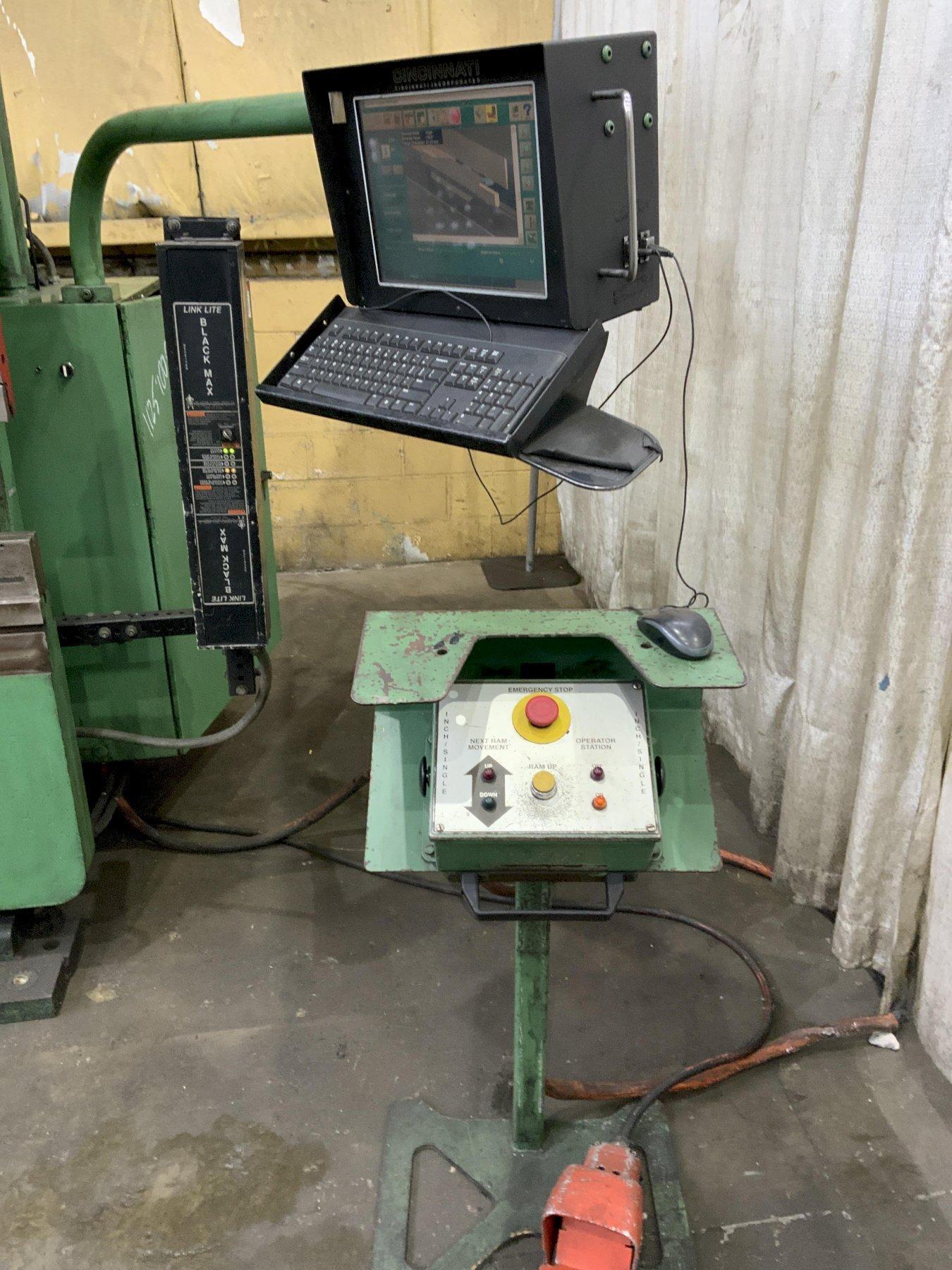

MICROCOMPUTER PROGRAMMABLE CONTROL .. MULTI AXIS LCD

BACK GAUGE CNC ...................... 6 AXIS

ELECTRIC FOOT PEDAL ................. YES

DUAL PALM BUTTONS ................... YES

MOTOR ............................... 15
